Toyota HILUX 废气再循环系统 — Figure 2501

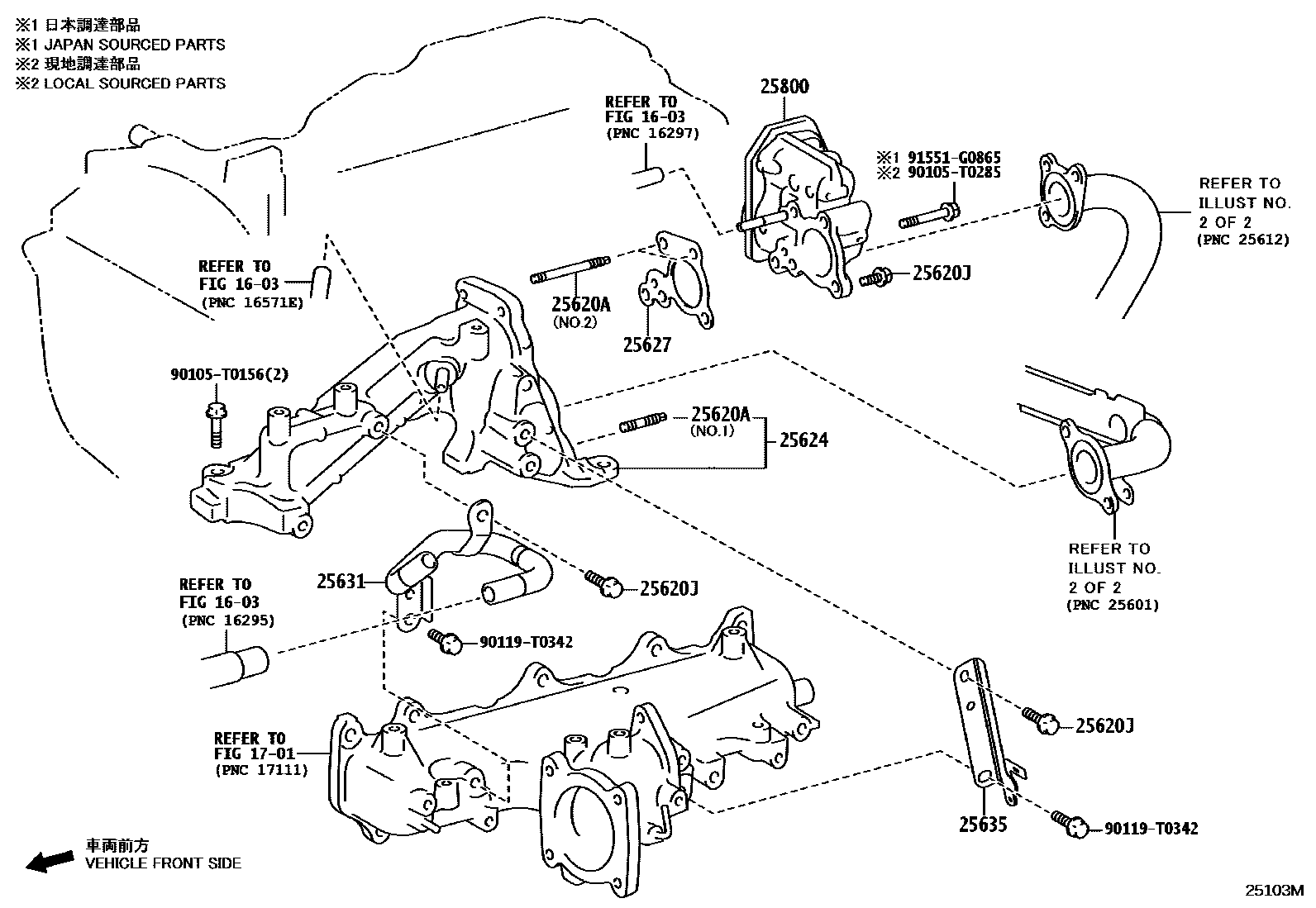

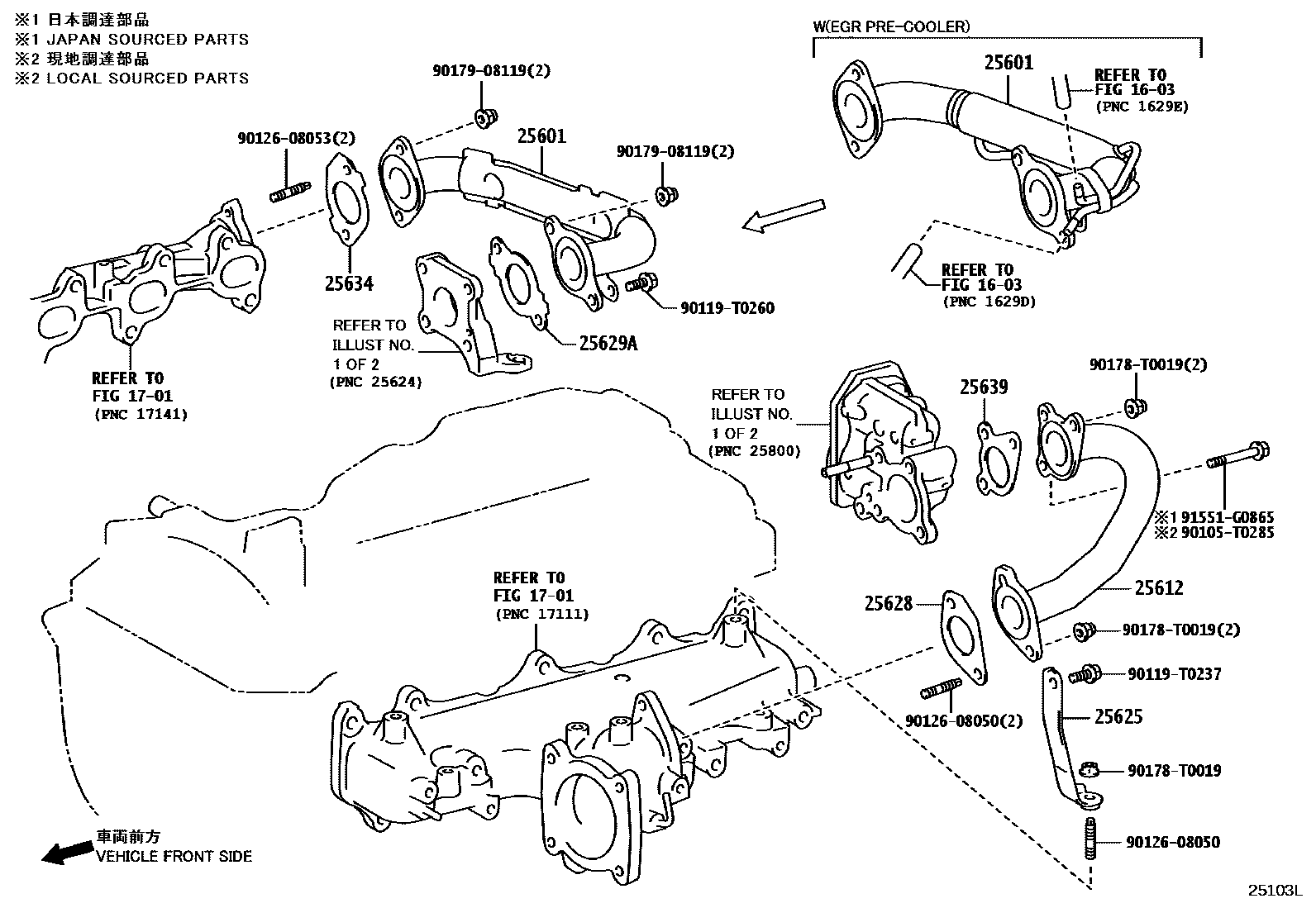

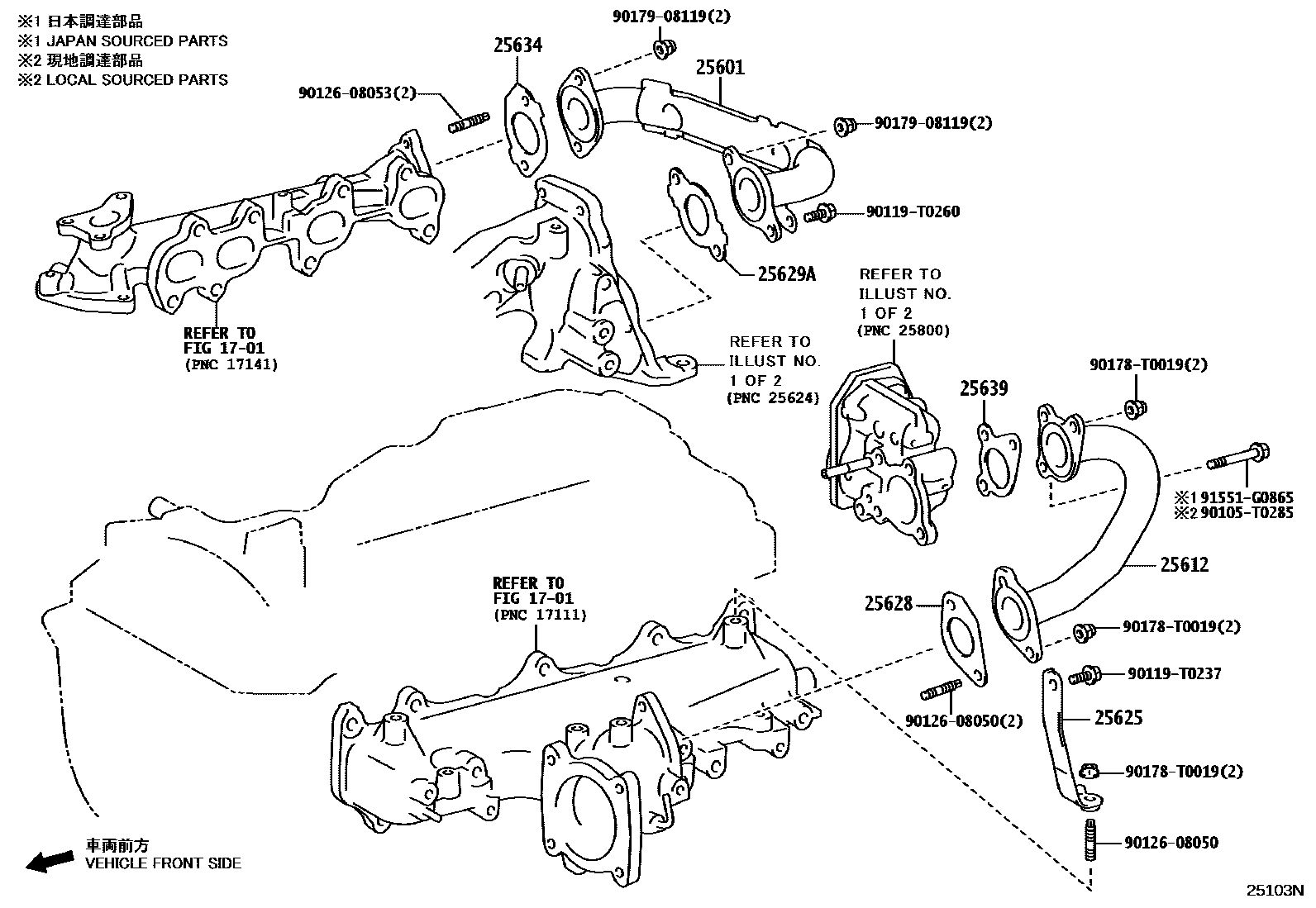

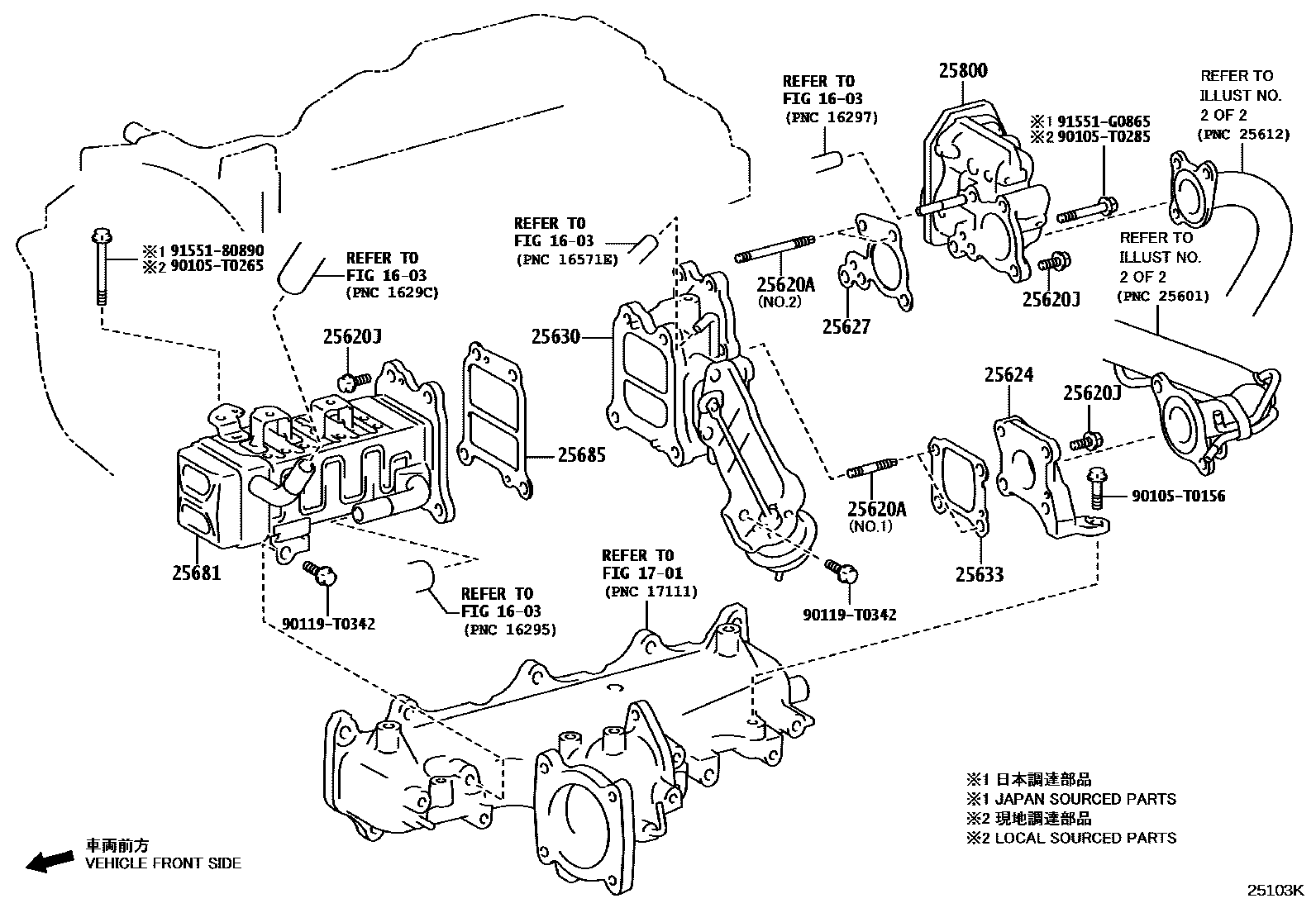

Toyota HILUX EPC diagram 2501, 废气再循环系统, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-0E020 · 25601-11050 · 25611-0E010 |
| 25612 | No. 2 EGR tube | 25612-0E010 |
| 25620A | Stud bolts (for EGR valve) | 90126-08047 · 90126-08052 · 90126-T0018 |
| 25620J | Bolt (for EGR valve) | 90119-T0238 |
| 25624 | EGR valve adapter | 25607-0E010 · 25624-0E010 |
| 25625 | EGR valve bracket | 25625-0E010 |
| 25627 | EGR valve gasket | 25627-0E010 |
| 25628 | EGR air intake gasket | 25628-0E010 |
| 25629A | No. 2 EGR tube gasket | 25629-0E010 |
| 25630 | No. 2 EGR valve assembly | 25630-0E031 |
| 25631 | No. 1 EGR tube stay | 25631-0E010 |
| 25633 | EGR valve gasket | 25633-0E010 |
| 25634 | EGR tube gasket | 25634-0E010 |
| 25635 | No. 1 EGR tube holder | 25635-0E010 · 25635-11010 |
| 25639 | No. 3 EGR tube gasket | 25639-0E010 |
| 25681 | No. 1 EGR cooler | 25681-0E010 |
| 25685 | No. 1 EGR Cooler Gasket | 25685-0E010 |
| 25800 | Electronic EGR control valve assembly | 25800-0E010 |
