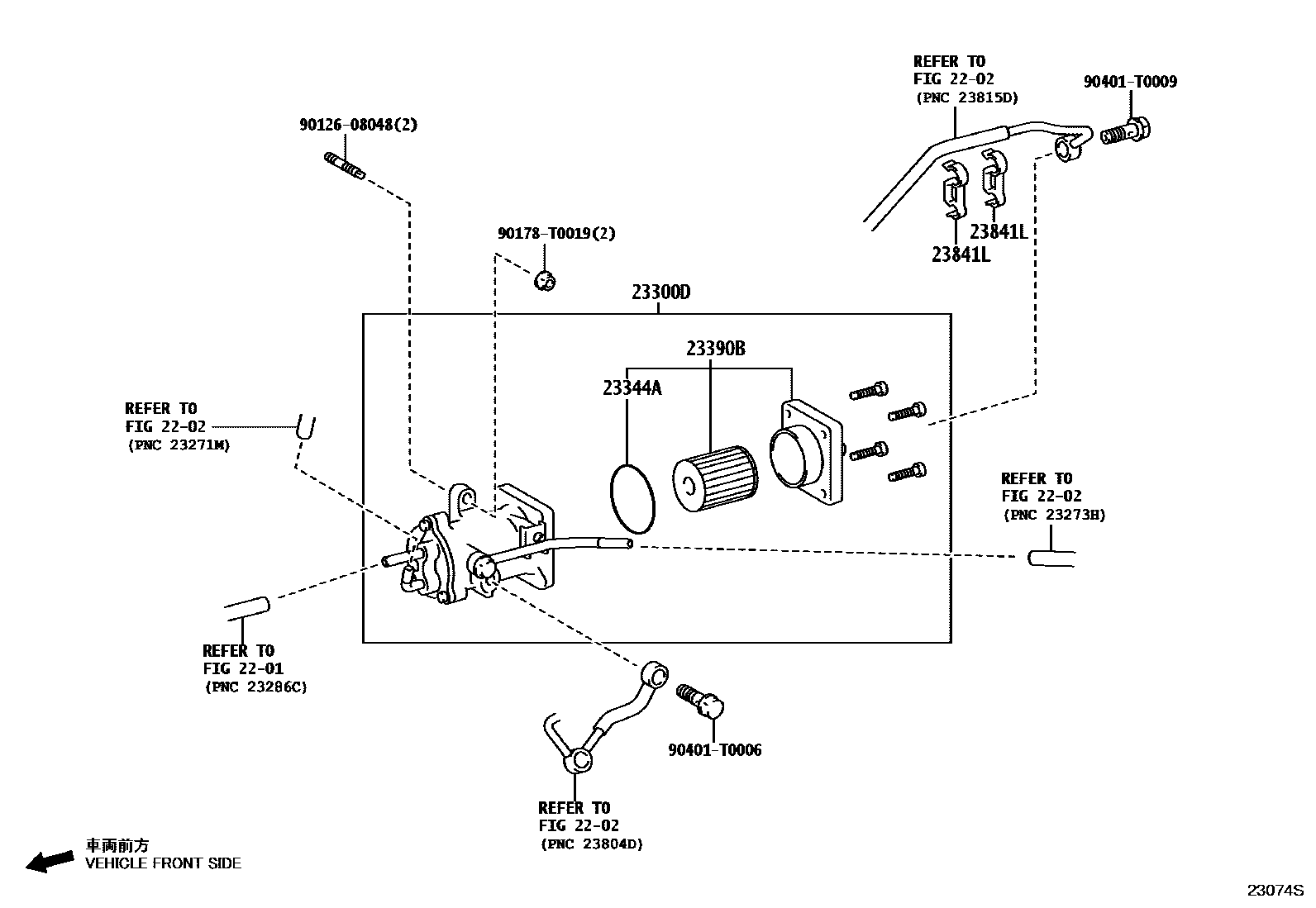

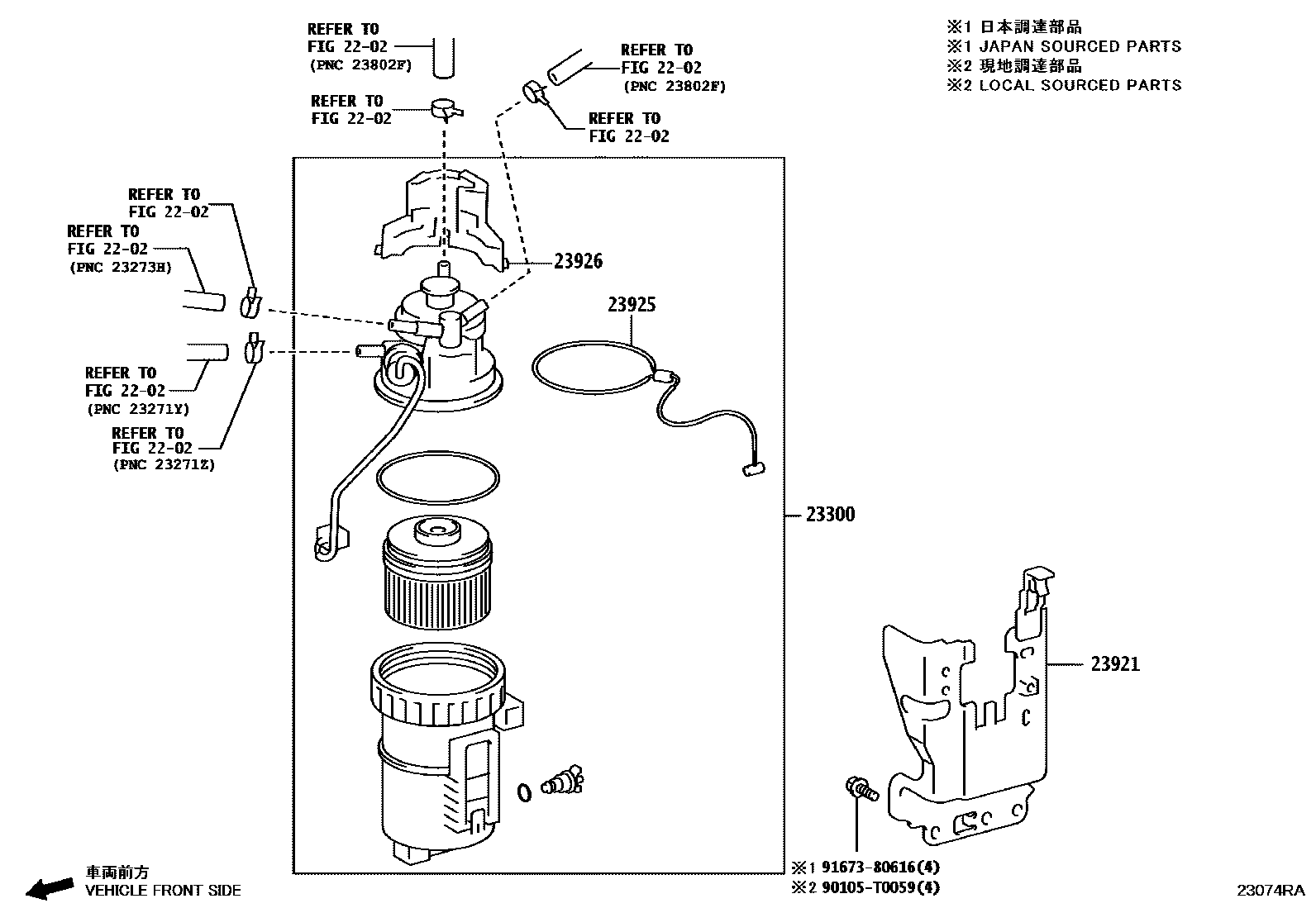

Toyota HILUX fuel filter — Figure 2302
Toyota HILUX EPC diagram 2302, fuel filter, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23300 | fuel filter assembly | 23300-0L102 · 23300-0L113 |
| 23300D | Fuel filter assembly (for diesel engine) | 23300-0E011 |
| 23344A | fuel filter element gasket | 23344-0E010 |
| 23390B | No. 2 fuel filter element assembly | 23390-0E011 |
| 23841L | Fuel pipe clamp | 23841-0E010 |
| 23921 | Fuel filter support | 23921-0E170 |
| 23925 | fuel filter support stay | 23925-0L020 |
| 23926 | No. 2 fuel filter support bracket | 23926-0L020 |
