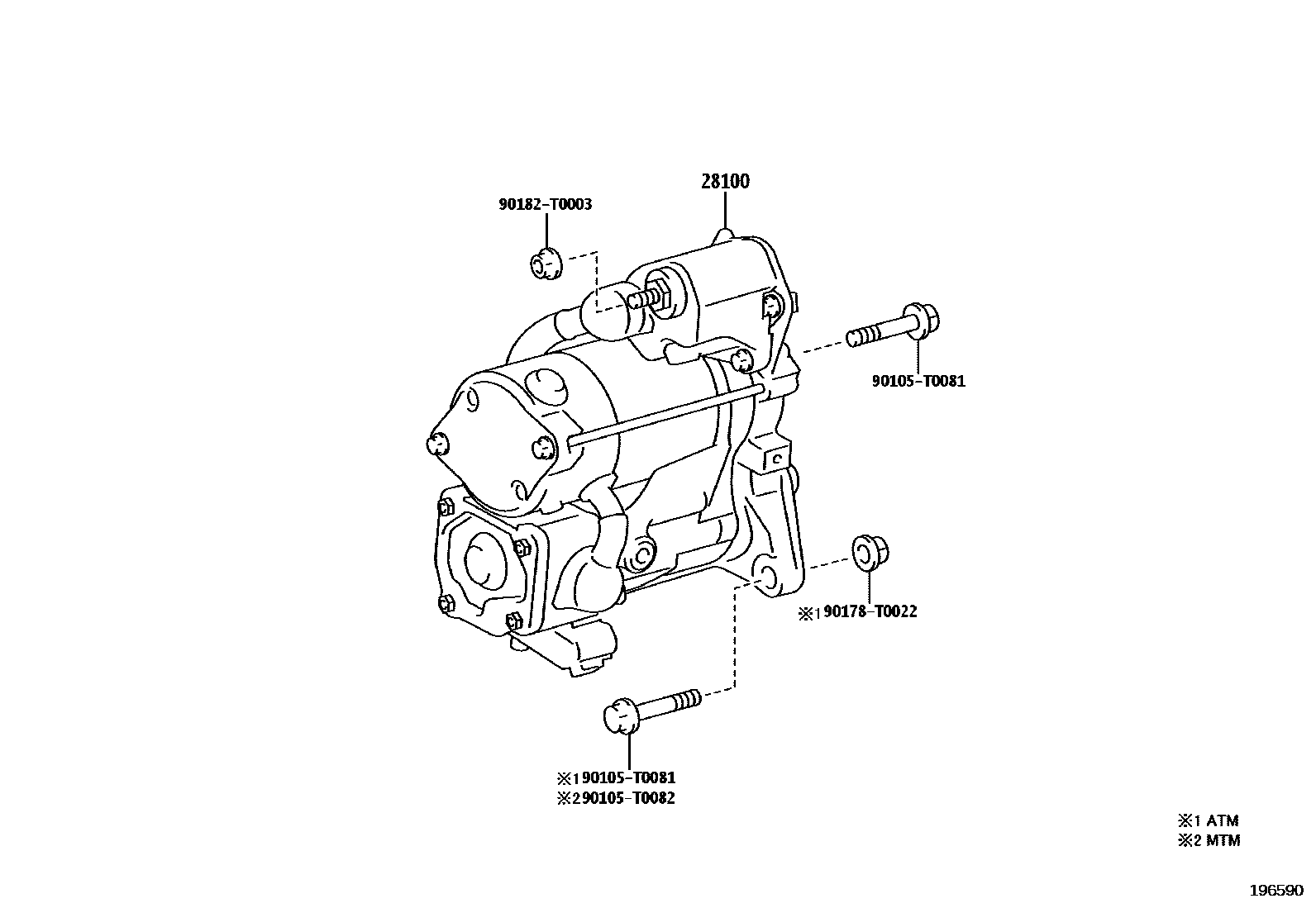

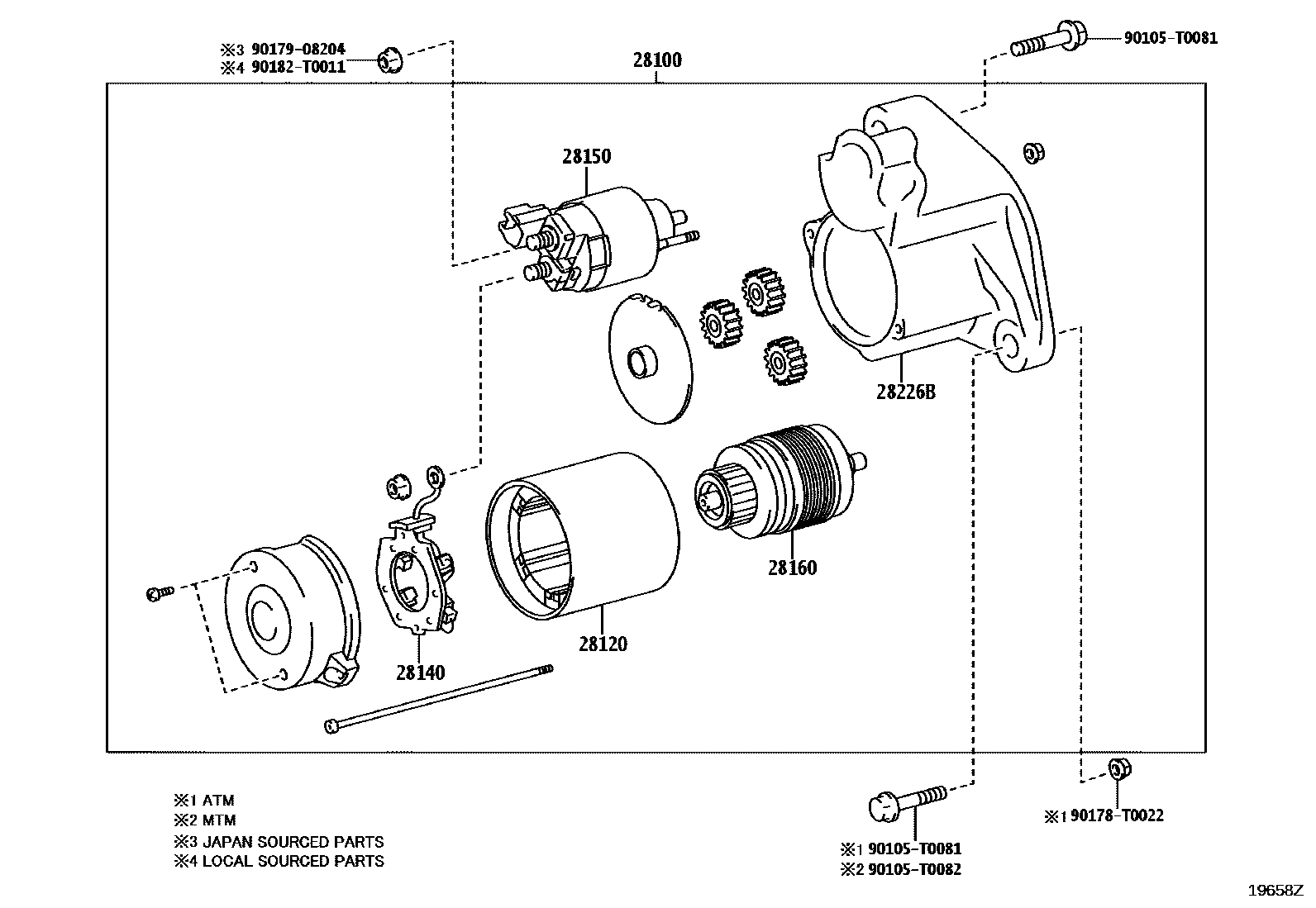

Toyota HILUX 起动机 — Figure 1904
Toyota HILUX EPC diagram 1904, 起动机, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28100 | Starter assembly | 28100-0L100 · 28100-0L180 |
| 28120 | Starter yoke assembly | 28120-0L180 |
| 28140 | Starter brush holder assembly | 28140-0L180 |
| 28150 | Starter electromagnetic switch assembly | 28150-0Y170 |
| 28160 | Starter armature assembly | 28160-0L180 |
| 28226B | starter magnetic switch | 28226-0L180 |
