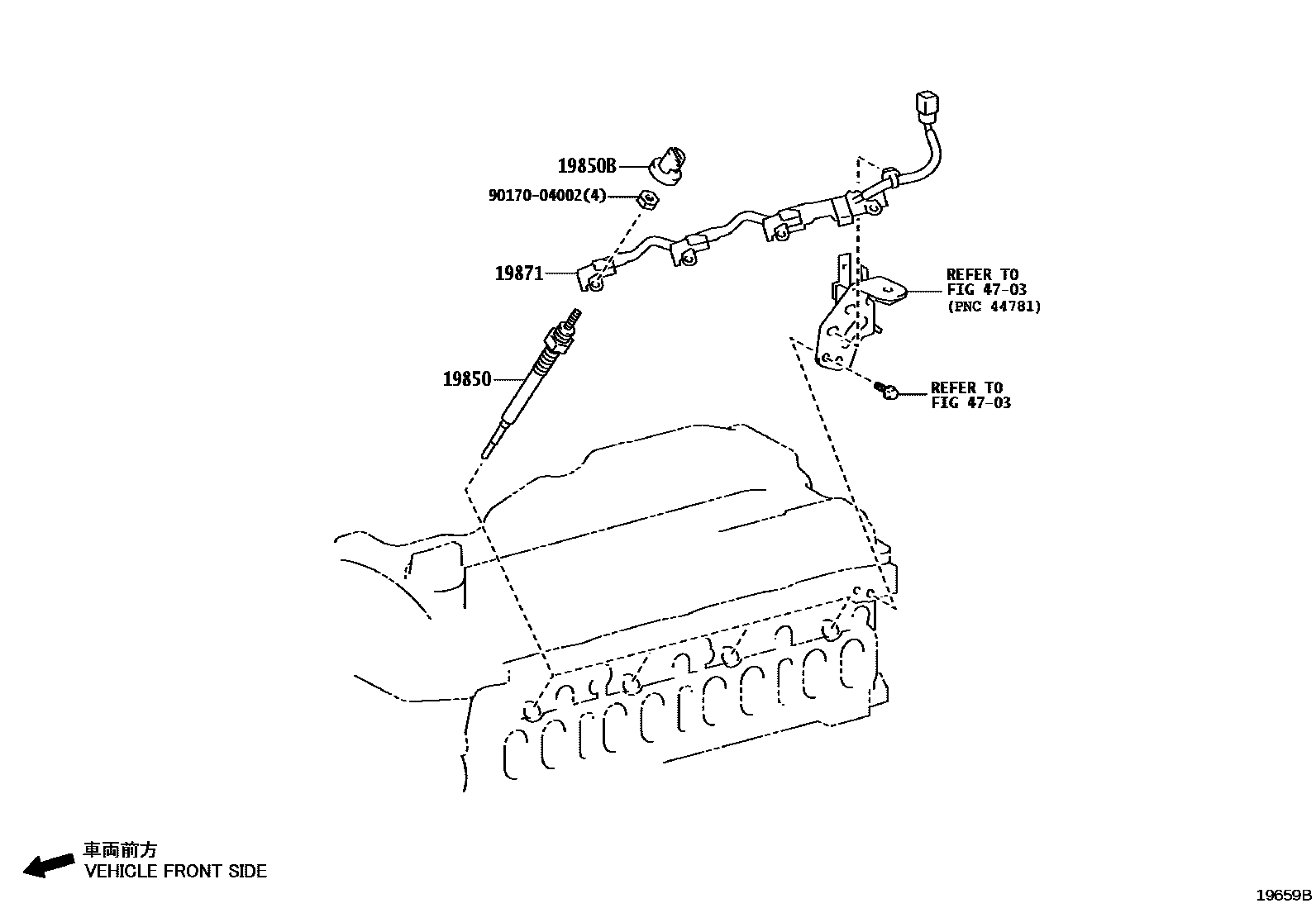

Toyota HILUX 点火线圈和火花塞 /电热塞 — Figure 1901
Toyota HILUX EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19850 | Glow plug assembly | 19850-11040 |
| 19850B | Screw seal (for glow plug) | 90189-T0001 |
| 19871 | Glow plug connector No. 1 | 19871-0E010 |
