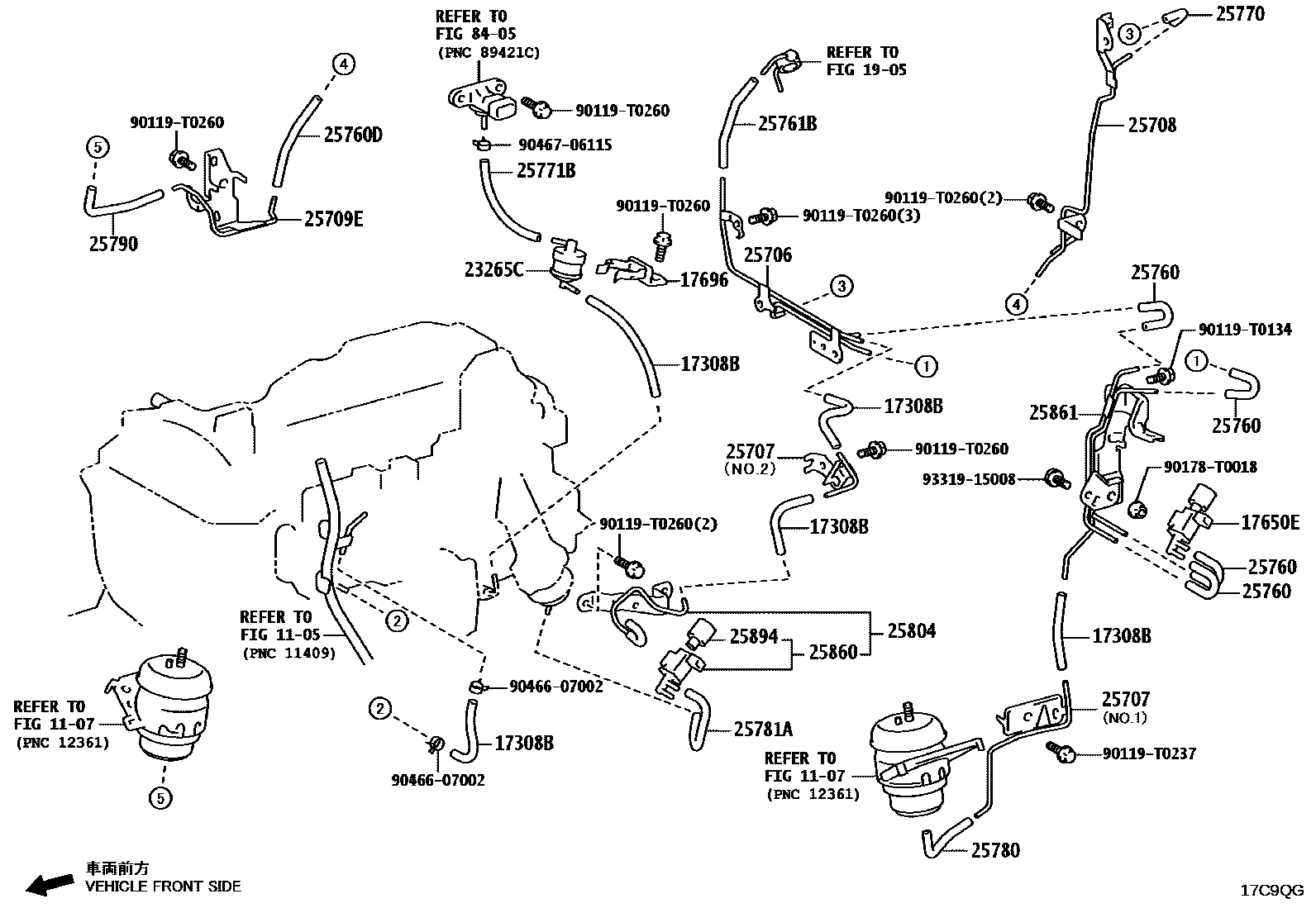

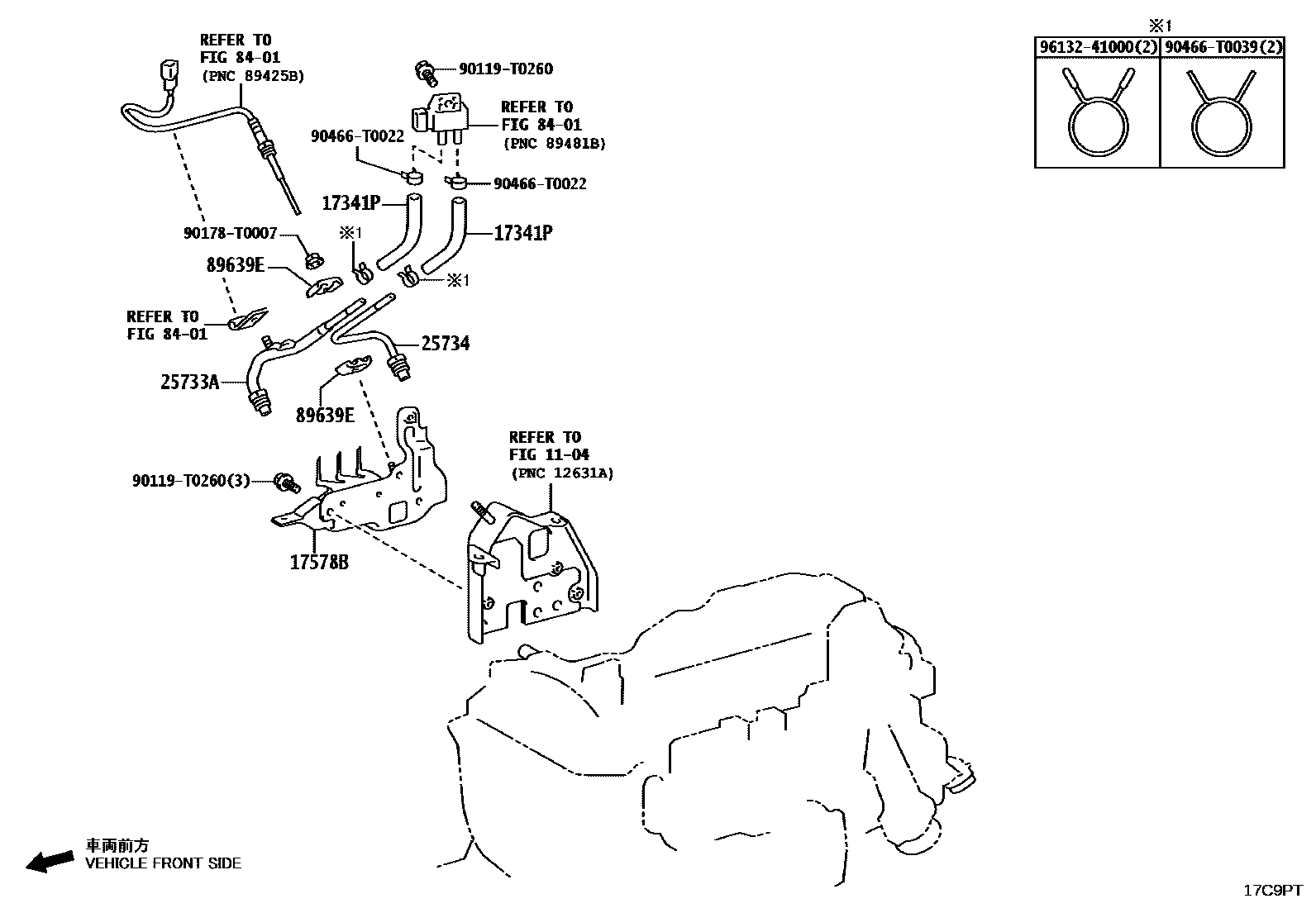

Toyota HILUX vacuum tube — Figure 1708
Toyota HILUX EPC diagram 1708, vacuum tube, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308B | Vacuum hose sub-assembly | 90999-92002 |
| 17341P | air hose | 17341-0E010 |
| 17578B | Pipe clamp | 17578-0E020 |
| 17650E | Vacuum switch valve | 90910-12089 |
| 17696 | Gas filter bracket | 17696-0E010 |
| 23265C | gas filter | 90917-11044 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-08010 · 25706-0E010 · 25706-0E060 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-08020 · 25707-0E010 |
| 25708 | No. 3 vacuum transfer tube sub-assembly | 25708-08010 |
| 25709E | No. 4 vacuum transfer tube sub-assembly | 25709-08010 |
| 25733A | No. 1 vacuum tube | 25733-0E010 |
| 25734 | No. 2 vacuum tube | 25734-0E010 |
| 25760 | Vacuum transfer hose assembly | 25760-08010 |
| 25760D | No. 4 vacuum transmission hose assembly | 25791-08010 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-0E010 |
| 25770 | No. 2 vacuum transmission hose assembly | 25770-08010 |
| 25771B | No. 2 vacuum transfer hose | 25771-0E020 |
| 25780 | No. 3 vacuum transmission hose assembly | 25780-08010 |
| 25781A | No. 3 vacuum transfer hose | 25781-0E010 |
| 25790 | No. 4 vacuum transmission hose assembly | 25790-08010 |
| 25804 | Vacuum control valve assembly | 25804-11010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-30070 |
| 25861 | Vacuum switch valve bracket | 25861-08010 |
| 25894 | No. 1 filter | 25894-11010 |
| 89639E | card holder | 89639-0K010 |
