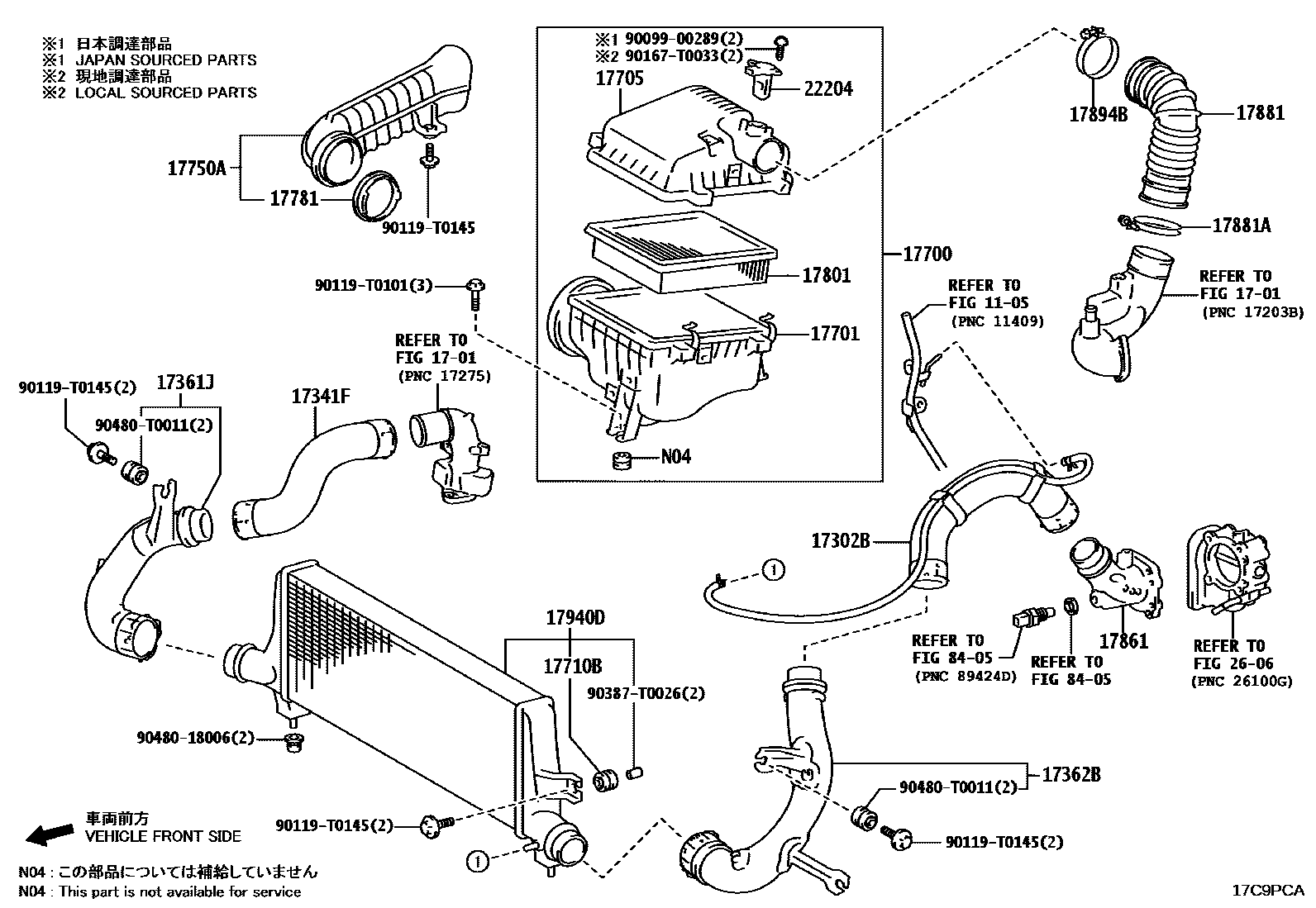

Toyota HILUX Air Cleaner — Figure 1703
Toyota HILUX EPC diagram 1703, Air Cleaner, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17302B | Air hose sub-assembly | 17302-0E022 |
| 17341F | Air hose No. 1 | 17341-0E040 |
| 17361J | Air tube No. 1 | 17361-0E010 |
| 17362B | No. 2 air pipe | 17362-0E010 |
| 17700 | air filter assembly | 17700-0L350 |
| 17701 | Air filter housing sub-assembly | 17701-0C170 |
| 17705 | Air filter cover sub-assembly | 17705-0L290 |
| 17710B | gasket | 90480-T0011 |
| 17750A | Air filter air inlet assembly | 17750-0L060 |
| 17781 | Air filter air inlet seal | 17781-0E010 |
| 17801 | Air filter element sub-assembly | 17801-0L040 |
| 17861 | Intake connecting pipe | 17861-08020 |
| 17881 | No. 1 air cleaner hose | 17881-0E021 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-T0005 |
| 17894B | Hose clamp (for intake resonator No. 2) | 90460-T0020 |
| 17940D | Intercooler assembly | 17940-0E010 |
| 22204 | Intake air flow meter assembly | 22204-30030 |
