Toyota HILUX Water Pump — Figure 1601

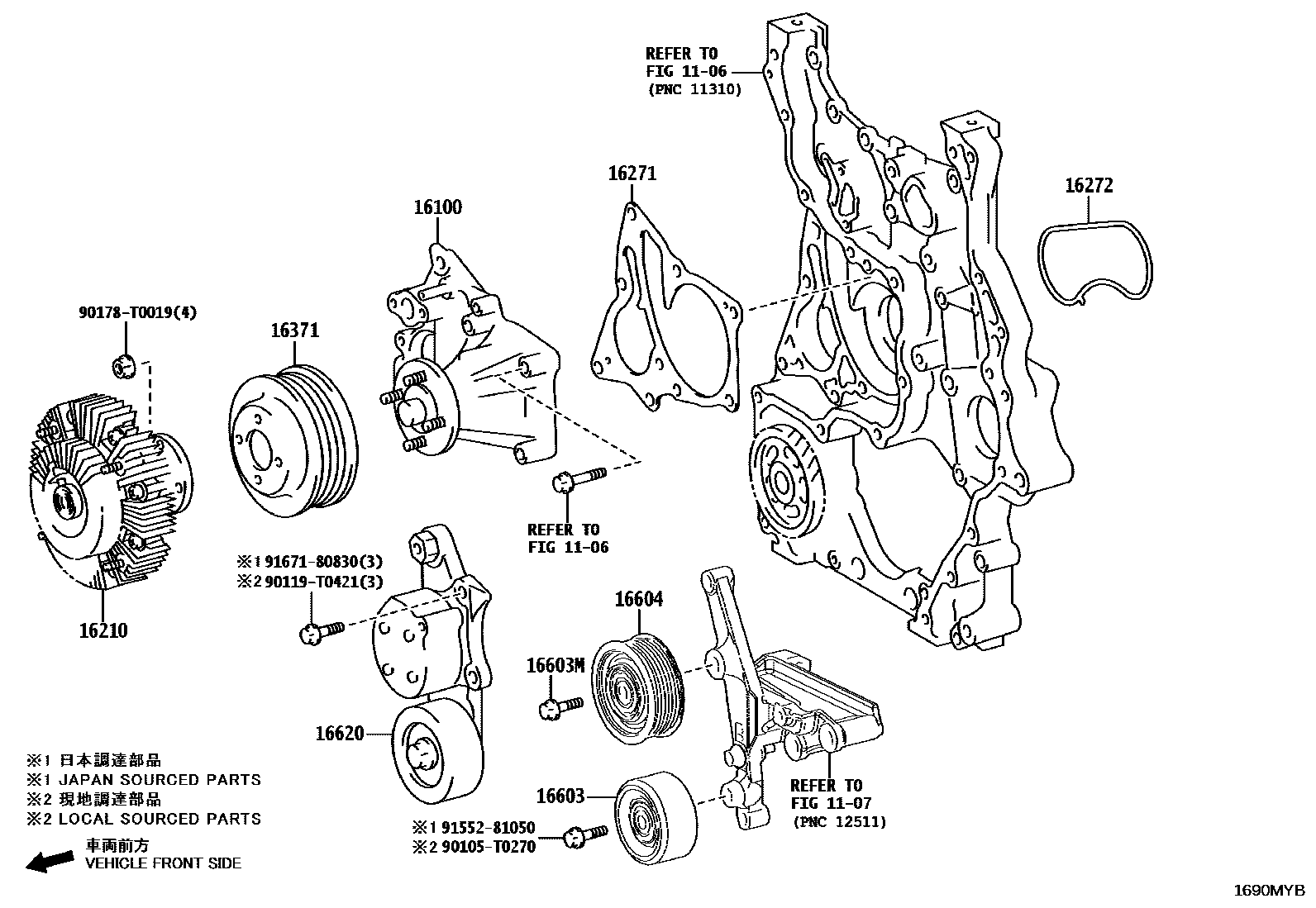

Toyota HILUX EPC diagram 1601, Water Pump, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09711 |
| 16210 | Hydraulic coupler assembly | 16210-0E040 · 16210-0E050 |
| 16271 | water pump gasket | 16271-0E010 |
| 16272 | No. 2 water pump gasket | 16272-0E010 |
| 16371 | fan pulley | 16371-0E010 |
| 16603 | No. 1 idler pulley sub-assembly | 16603-0C013 · 16603-0E010 |
| 16603M | Bolt (for idler gear) | 90105-T0270 |
| 16604 | No. 2 idler pulley sub-assembly | 16604-35010 |
| 16620 | Poly V-belt tensioner assembly | 16620-0E010 · 16620-0E020 |
