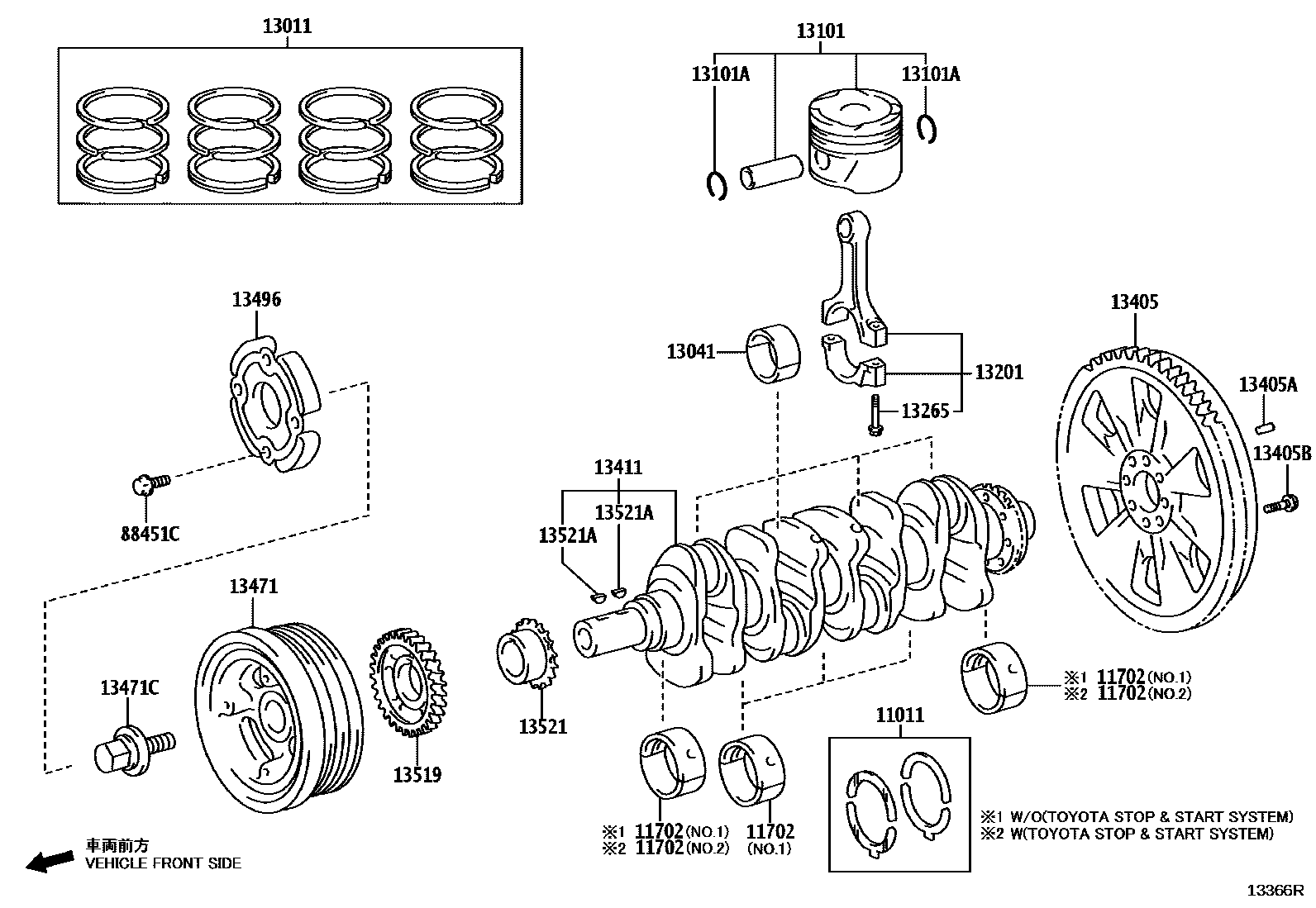

Toyota HILUX Crankshaft & Piston — Figure 1301
Toyota HILUX EPC diagram 1301, Crankshaft & Piston, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-0L020 |
| 13011 | Piston ring assembly | 13011-0E022 · 13011-0E042 |
| 13101A | Bore snap ring (for piston pin) | 90520-32013 |
| 13265 | Connecting rod bolts | 13265-22031 |
| 13405 | Flywheel sub-assembly | 13405-0E020 · 13405-0E030 |
| 13405A | Direct sales (for flywheel) | 90250-T0008 · 90250-T0013 |
| 13405B | Flywheel fixing bolt | 90105-T0203 |
| 13411 | crankshaft | 13401-0E020 |
| 13471 | crankshaft pulley | 13408-0E011 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-T0218 |
| 13496 | crankshaft pulley cover | 13496-0E010 |
| 13519 | Oil pump driving gear | 13519-0E010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0E010 |
| 13521A | Key (for crankshaft timing gear) | 90280-T0002 |
| 88451C | Bolts with washers | 90119-T0236 |
