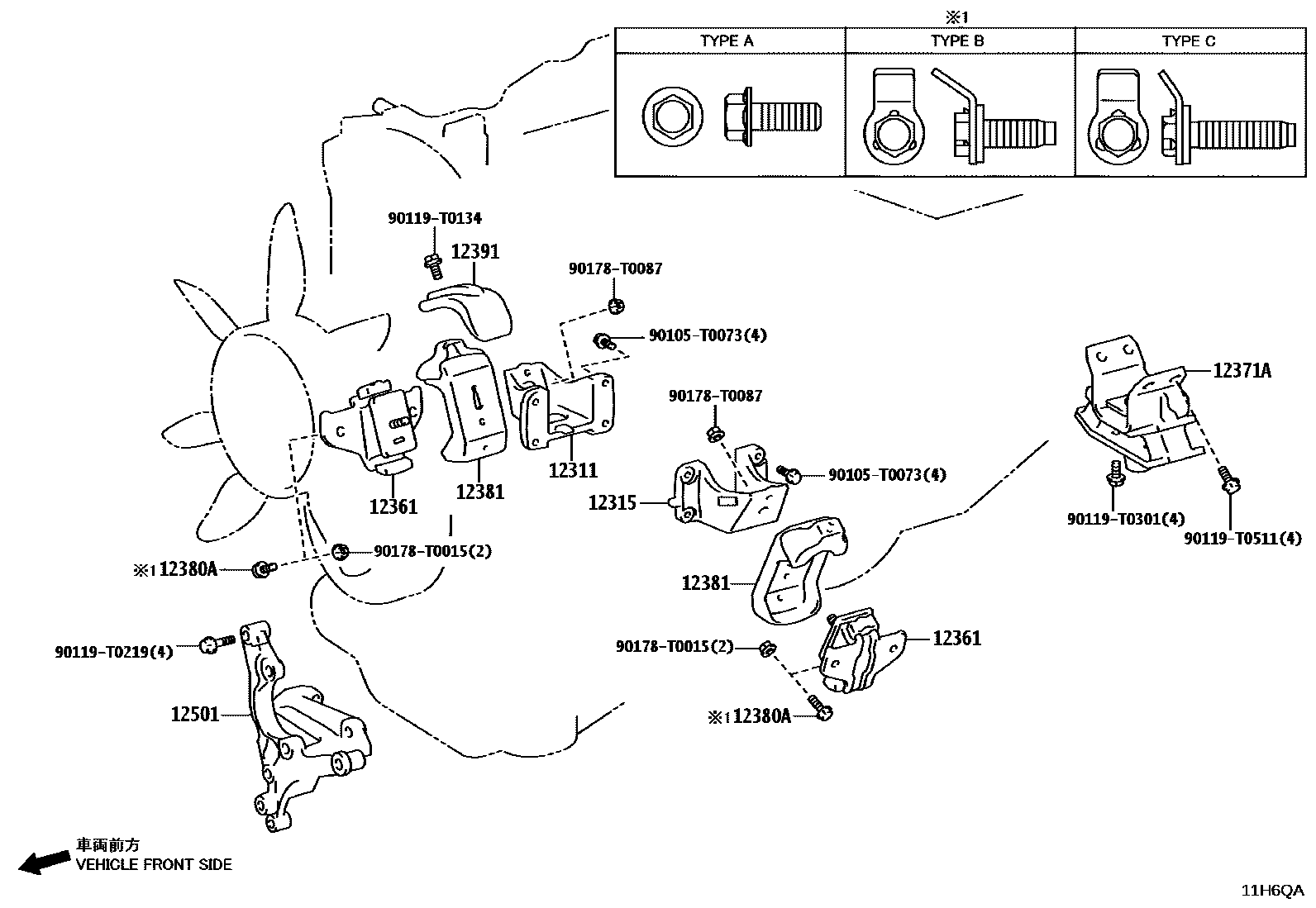

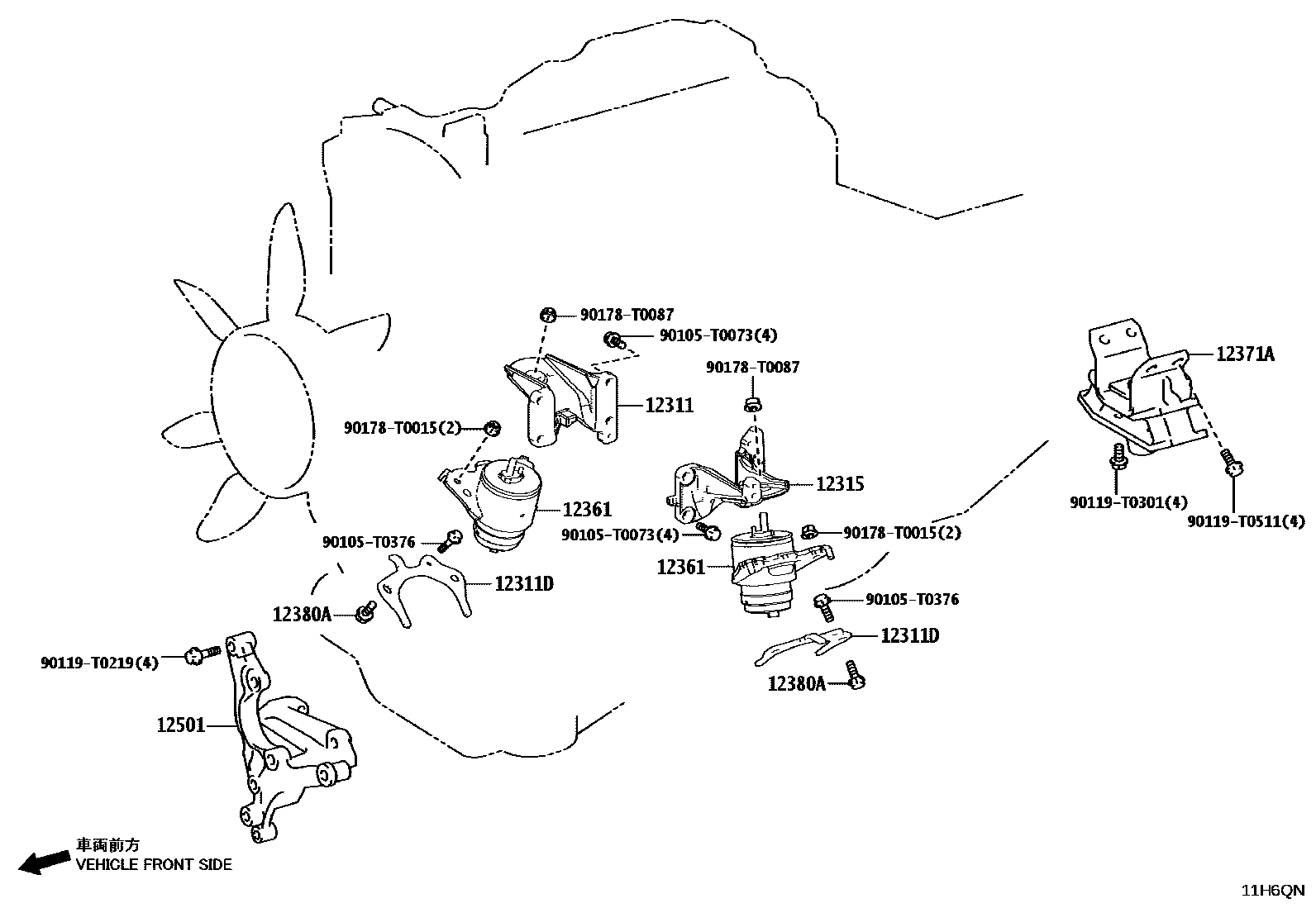

Toyota HILUX Engine Mounting — Figure 1107
Toyota HILUX EPC diagram 1107, Engine Mounting, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12311-08010 · 12311-0E020 |
| 12311D | engine mounting bracket | 12311-0E030 · 12315-0E020 |
| 12315 | Engine No. 1 left front suspension bracket | 12315-08020 · 12315-0E010 |
| 12361 | Engine front mounting vibration isolation pad | 12361-0E010 · 12361-0L021 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0L180 · 12371-0L200 · 12371-0L210 |
| 12380A | Bolts (for engine mount vibration isolators) | 90105-T0174 · 90109-10190 · 90910-03003 |
| 12381 | engine mount stabilizer bar | 12381-0L081 |
| 12391 | Engine right front mounting heat insulation pad | 12391-0L010 |
| 12501 | Generator bracket sub-assembly | 12501-08010 |
