Toyota HILUX Cylinder Head — Figure 1104

Toyota HILUX EPC diagram 1104, Cylinder Head, with 2 images and 25 PNC and OE references.

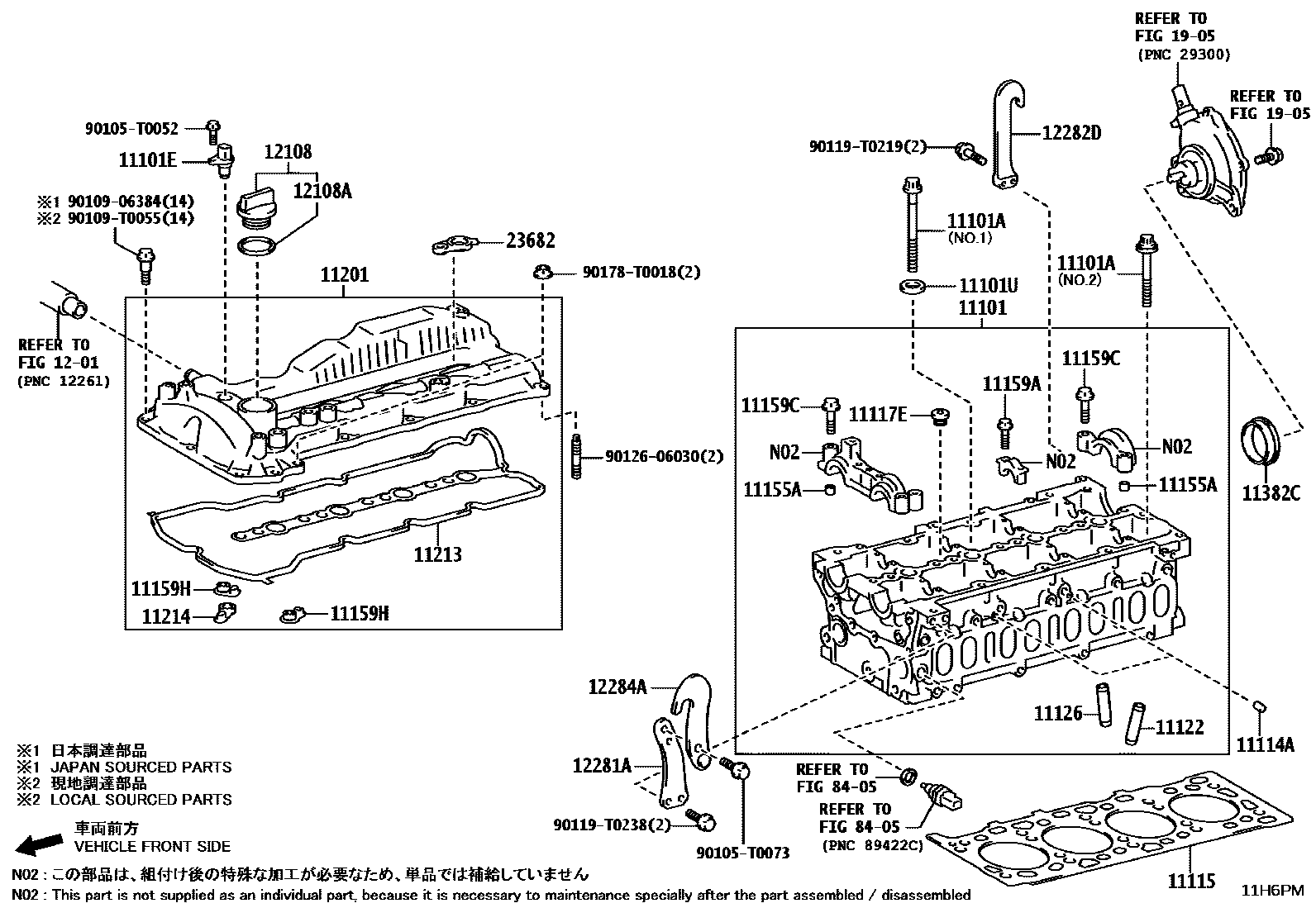

Toyota HILUX Cylinder Head EPC diagram — 11H6PM
Cylinder Head — 11H6PM (202508 – 999999)

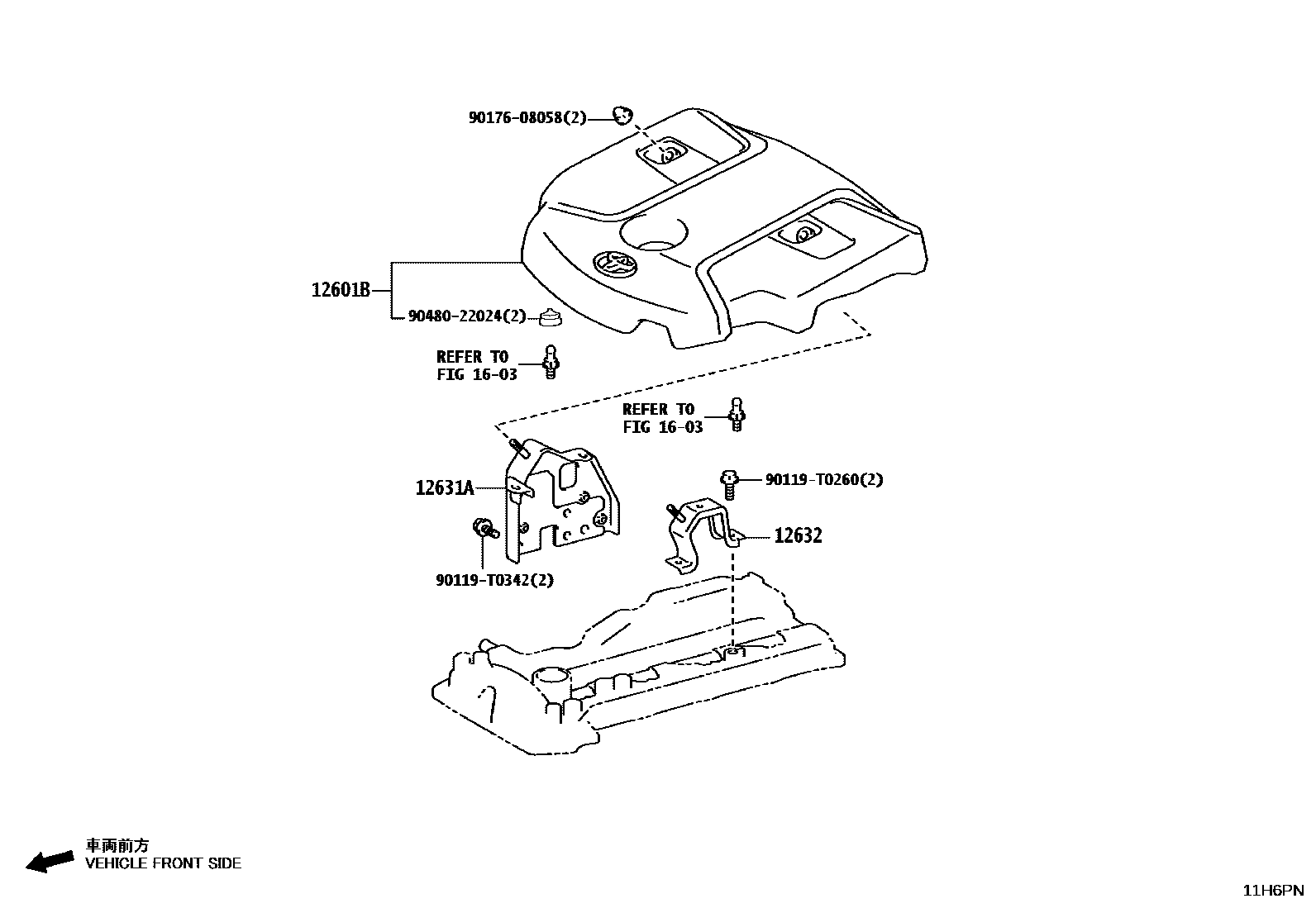

Toyota HILUX Cylinder Head EPC diagram — 11H6PN
Cylinder Head — 11H6PN (202508 – 999999)

PNC and OE references

PNCPart nameOE numbers
11101CYLINDER HEAD SUB-ASSY11101-0E011
11101ABOLT (FOR CYLINDER HEAD)90910-T2010 · 90910-T2011
11101ECam position sensor90919-05060
11101USPACER (FOR CYLINDER HEAD SET BOLT)90560-T0026
11114Adirect selling90250-T0011
11117EPLUG, STRAIGHT SCREW W/HEAD, NO.190341-T0005
11122BUSH, INTAKE VALVE GUIDE11122-30020 · 11123-30020
11126BUSH, EXHAUST VALVE GUIDE11122-30020 · 11123-30020
11155APIN, RING W/HEAD90253-11021
11159ABOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP)90109-06080 · 90119-T0551
11159CBOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP)90105-T0130
11159HCamshaft bearing cover oil hole gasket11159-0E010
11201CYLINDER HEAD COVER SUB-ASSY11201-0E012
11213GASKET, CYLINDER HEAD COVER11213-0E010
11214No. 2 cylinder head cover gasket11214-0E010
11382CCamshaft oil seal race11382-0E010
12108OIL FILLER CAP SUB-ASSY12180-0H020
12108AGASKET (FOR OIL FILLER CAP)90080-43027
12281AEngine No. 1 hanger12281-0E010
12282DENGINE HANGER, NO.212282-0E010
12284AENGINE HANGER, NO.1 UPPER12284-0E010
12601BNo. 1 engine hood sub-assembly12601-08040
12631Ahood bracket12631-0E010
12632No. 2 engine hood bracket12632-0E010 · 12632-0E040
23682Injector body gasket23682-0E010
