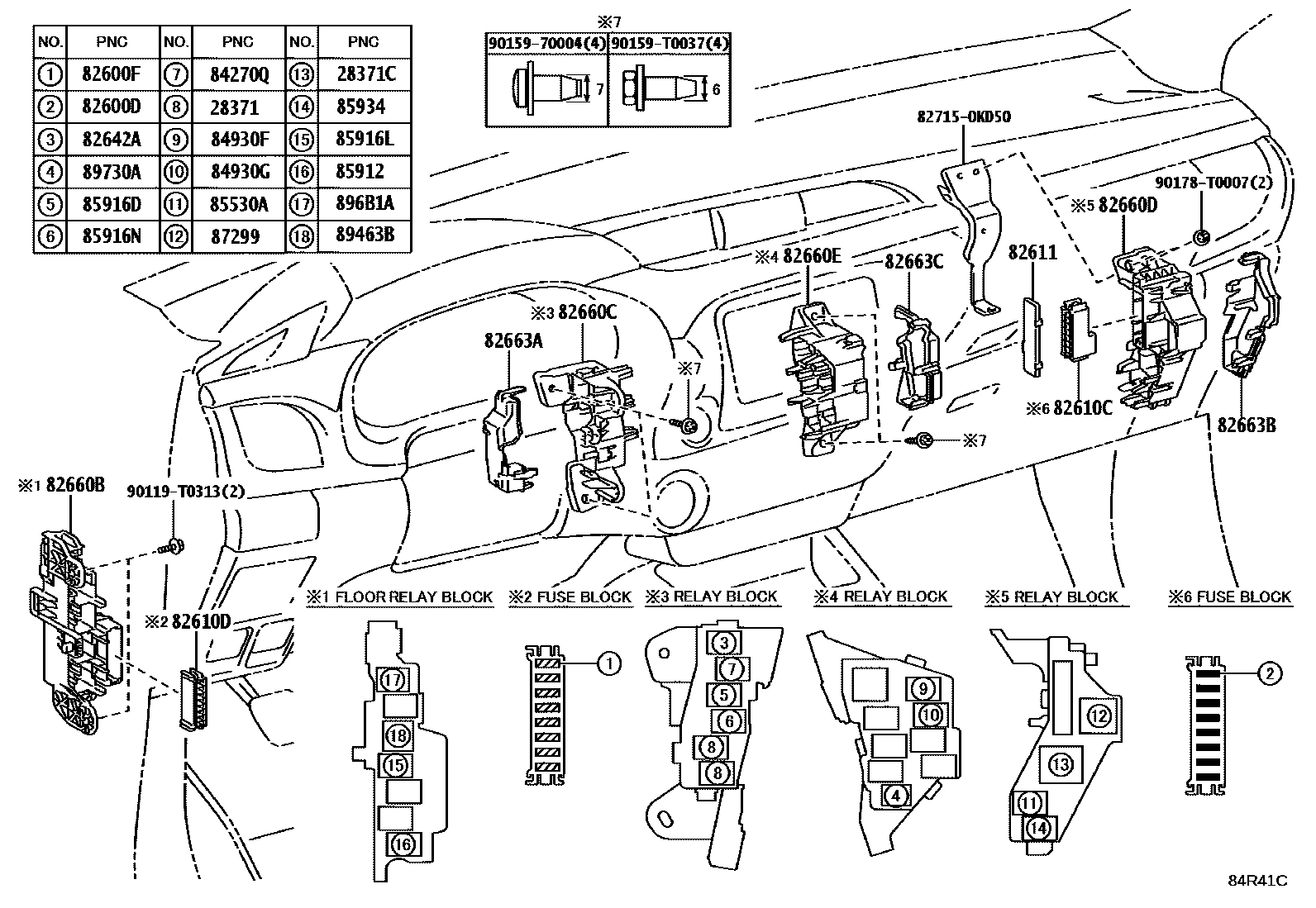

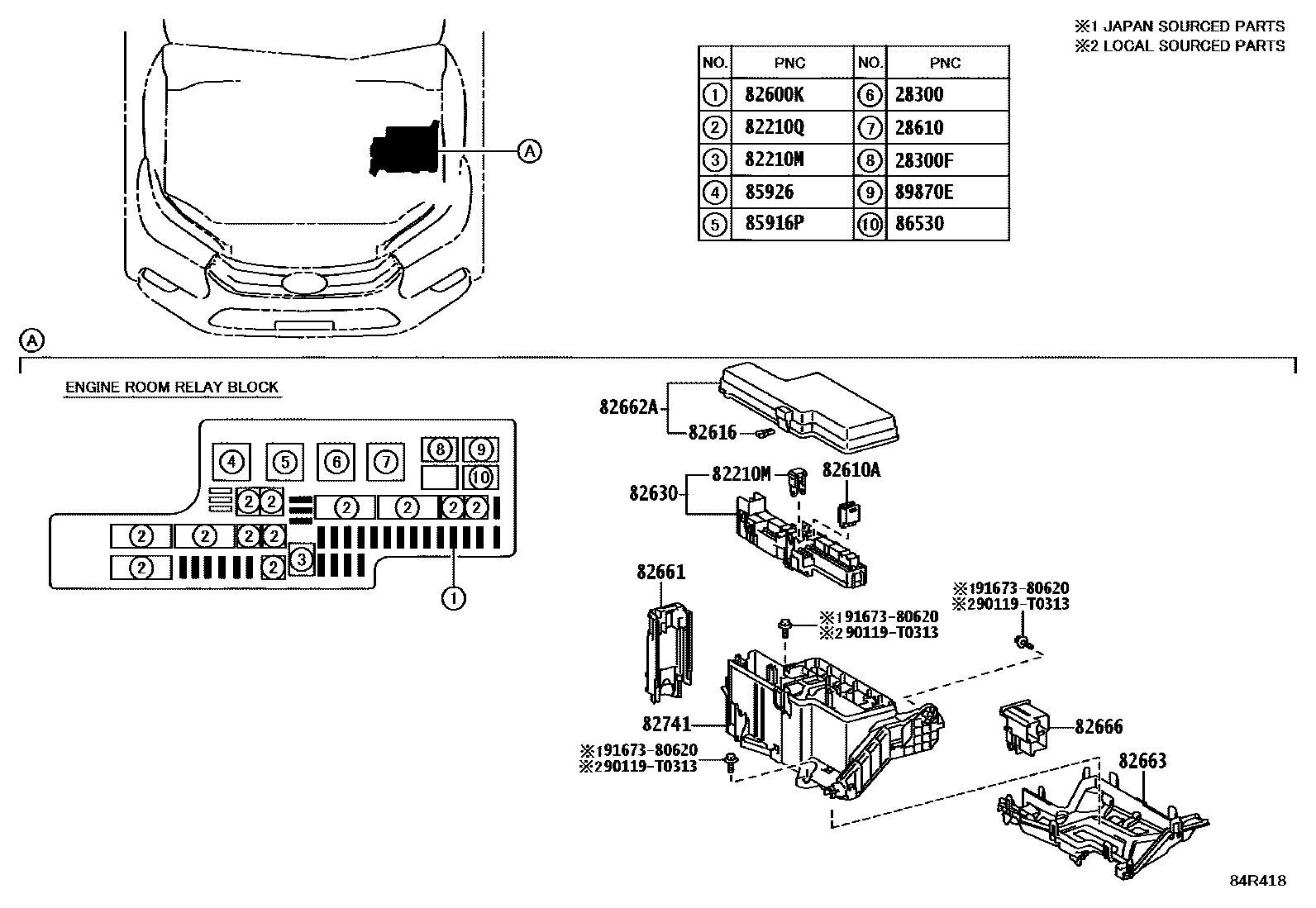

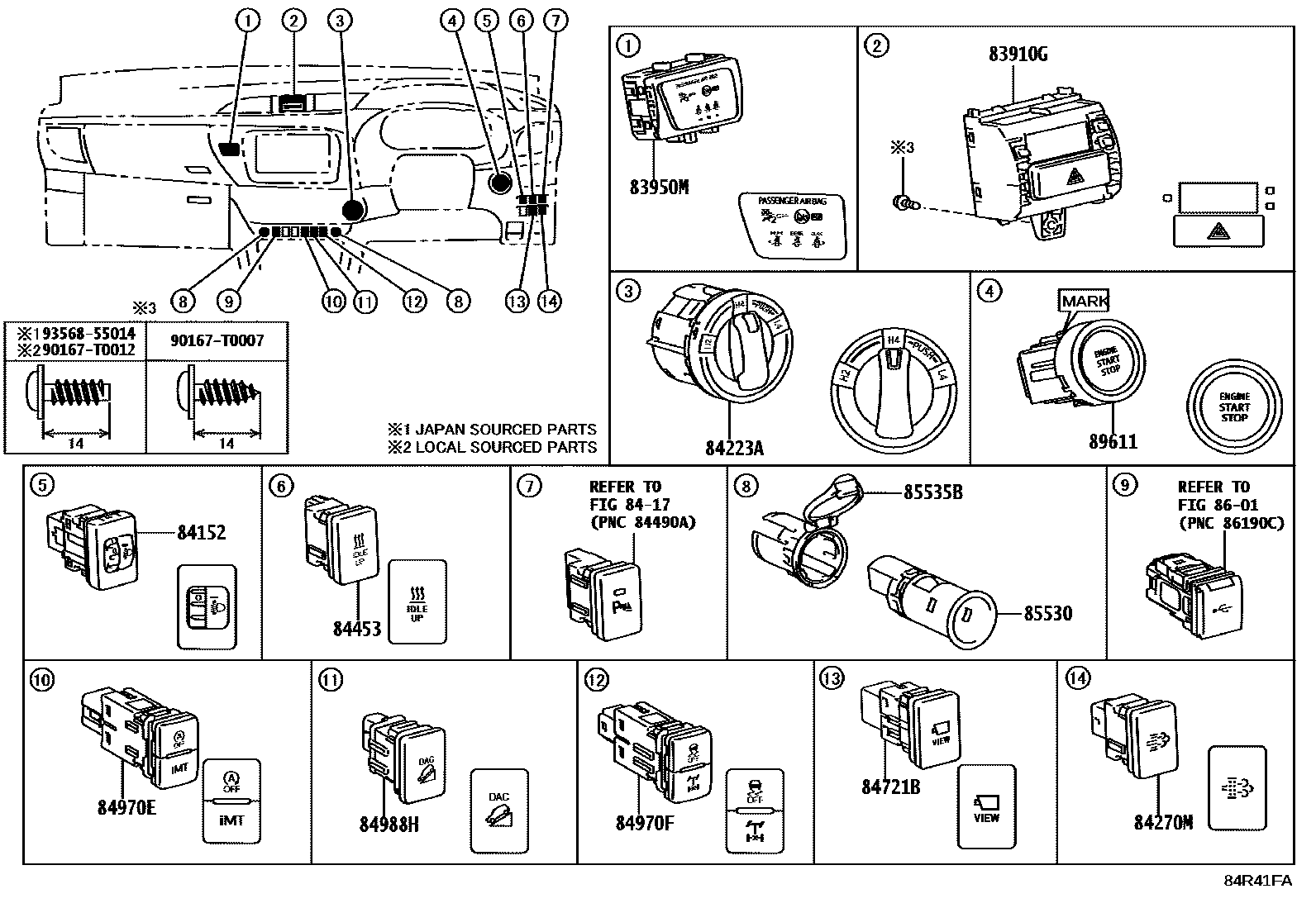

Toyota HILUX 开关和继电器和ECU — Figure 8401
Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 19 images and 123 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-30050 |
| 28300F | No. 2 starter relay assembly | 28300-0L011 · 28300-21020 |
| 28371 | No. 1 ignition relay | 90987-02027 · 90987-T2001 |
| 28371C | No. 2 ignition relay | 90987-02025 · 90987-T2002 |

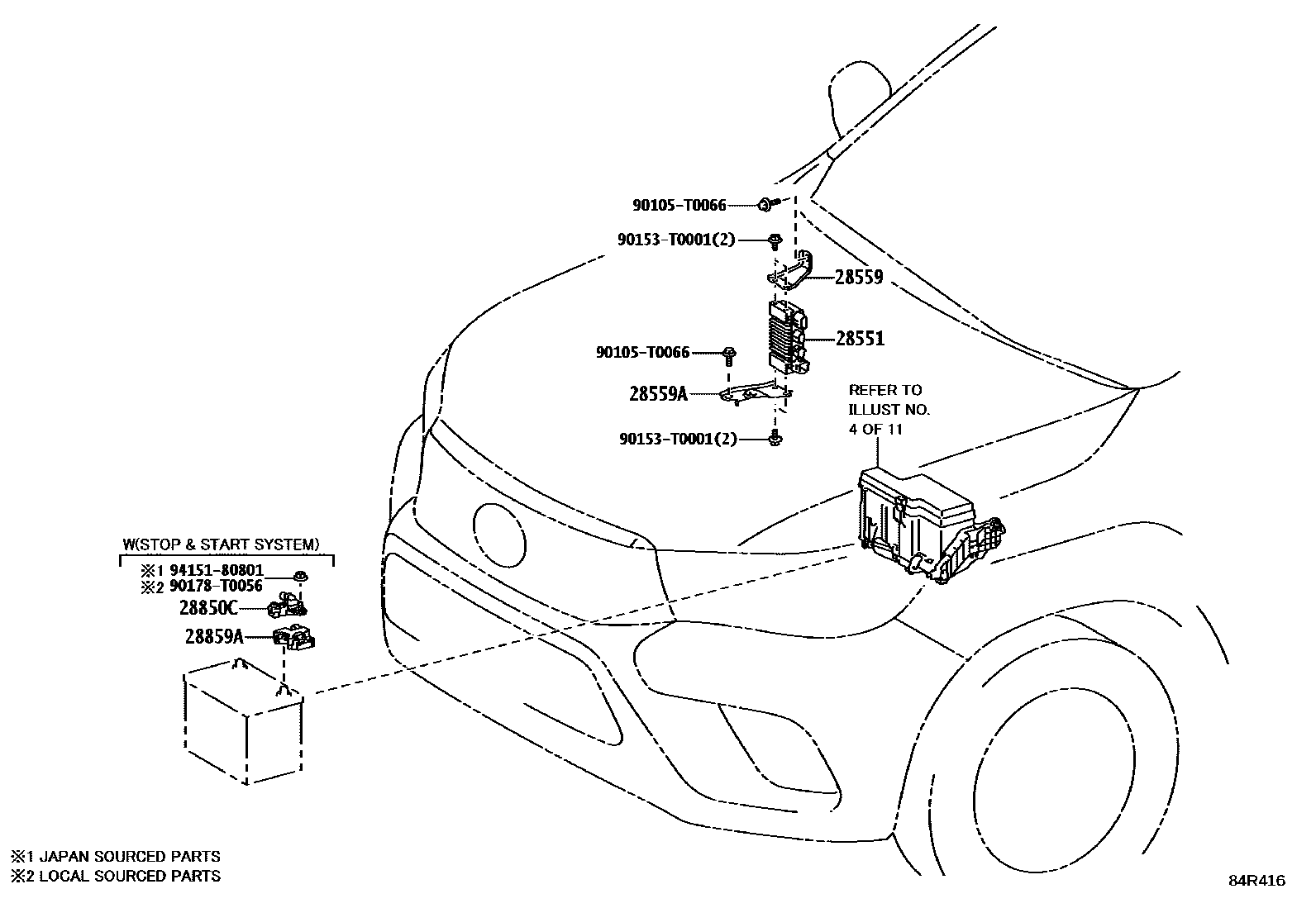

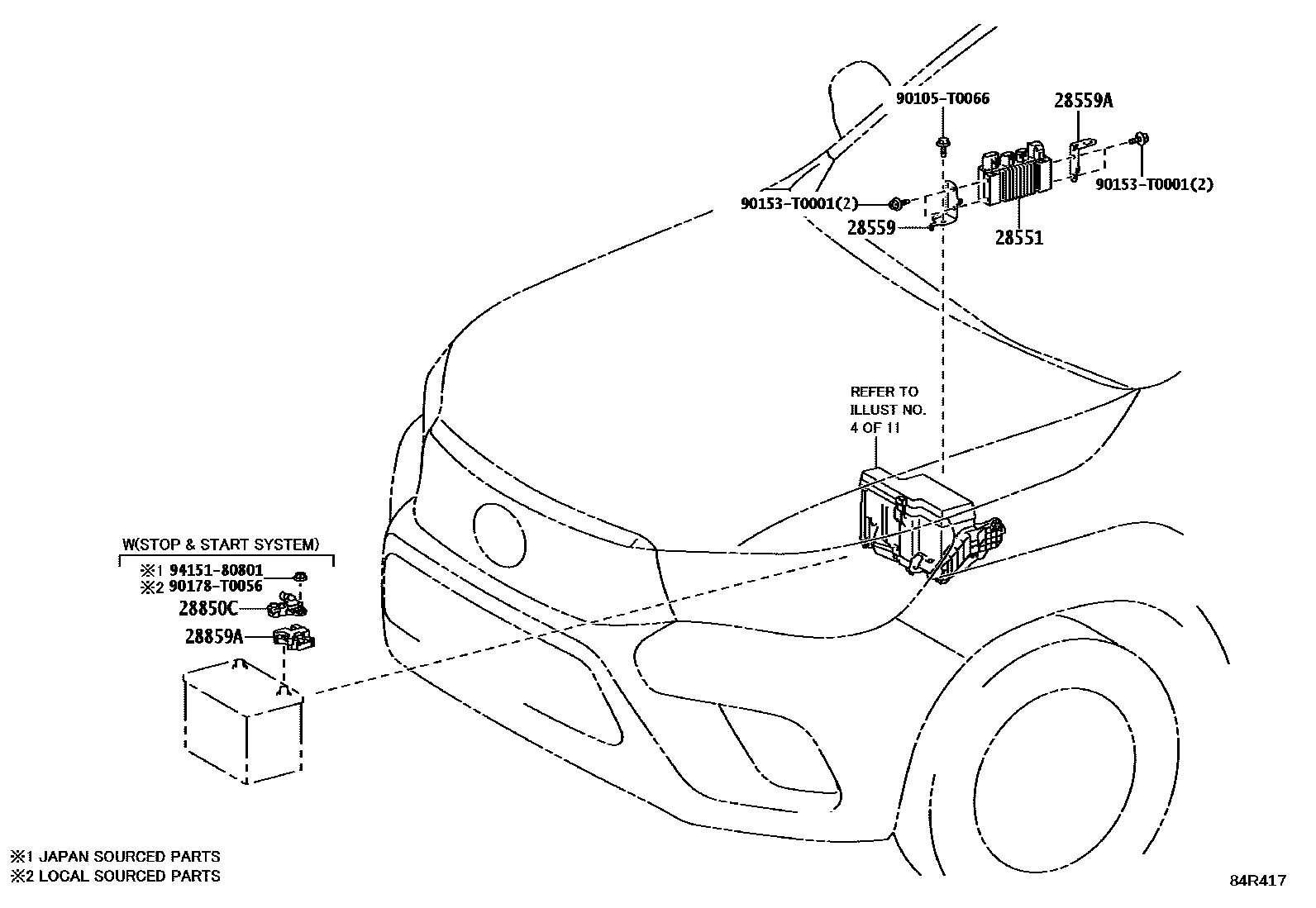

| 28551 | glow plug controller | 28551-0E010 · 28551-30010 |
| 28559 | Glow plug controller bracket No. 1 | 28559-0L010 · 28559-0L030 · 28559-0L050 · 28559-0L090 |
| 28559A | Glow plug controller bracket No. 2 | 28559-0L020 · 28559-0L040 · 28559-0L060 · 28559-0L100 |
| 28610 | Intake air heater or glow plug relay assembly | 28610-27010 · 90987-02025 · 90987-T2002 |
| 28850C | Battery status sensor assembly | 28850-0T030 |
| 28859A | Battery current sensor mount | 28859-0E020 |
| 33576D | No. 1 reversing light switch bracket | 33576-0K010 · 33576-0K040 |
| 33576E | No. 2 reversing light switch bracket | 33576-0K020 · 33576-0K050 |
| 33576F | No. 3 reversing light switch bracket | 33576-0K030 · 33576-0K060 |
| 69065A | Air bag cut-off switch lock cylinder sub-assembly | 69065-0K010 · 69065-0K040 |
| 82210M | fuse | 90982-08286 |
| 82210N | Instrument panel fuse | 90982-08294 · 90982-08295 |
| 82210Q | Front cabin fuse | 90982-08294 · 90982-08295 · 90982-08296 · 90982-08298 · 90982-08299 · 90982-08300 · 90982-08301 · 90982-08302 · 90982-08303 · 90982-08304 · 90982-08305 · 90982-08307 · 90982-08308 · 90982-08311 · 90982-08312 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600K | Front cabin fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-0K030 |
| 82610C | Fuse box assembly | 82610-0K010 |
| 82610D | Fuse box assembly | 82610-0K010 |
| 82611 | fuse box cover | 82611-0K070 · 82611-0K080 |
| 82616 | fuse puller | 82616-58010 |
| 82630 | Fuse holder assembly | 82630-0K020 |
| 82642A | driving light relay | 90987-02027 · 90987-T2001 |

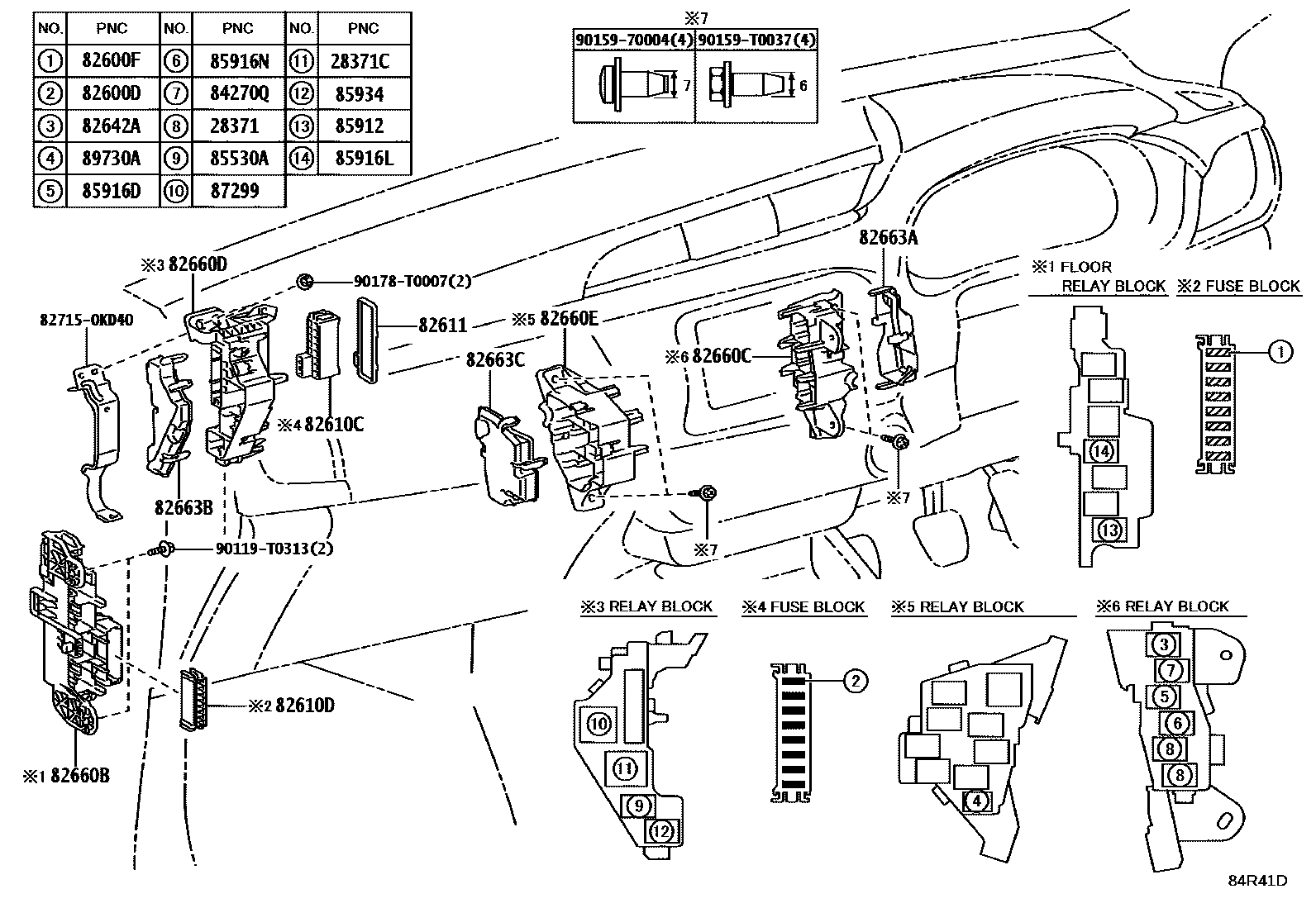

| 82660B | Relay assembly | 82660-0K161 |
| 82660C | Relay assembly | 82660-0K050 · 82660-0K060 |
| 82660D | Relay assembly | 82660-0K070 · 82660-0K080 |
| 82660E | Relay assembly | 82660-0K090 · 82660-0K100 |
| 82661 | No. 1 relay box cover | 82661-0K050 · 82661-0K070 · 82661-0K080 · 82661-0K090 |
| 82662A | No. 1 relay box upper cover | 82662-0K551 · 82662-0K691 · 82662-0K711 · 82662-0K791 · 82662-0K801 |
| 82663 | Relay box lower cover | 82663-0K020 |
| 82663A | No. 2 relay box lower cover | 82663-0K050 · 82663-0K060 |
| 82663B | No. 3 relay box lower cover | 82663-0K070 · 82663-0K080 |
| 82663C | No. 4 relay box lower cover | 82663-0K090 · 82663-0K100 |
| 82666 | Connector holder | 82666-0K150 |
| 82672A | Junction box cover | 82672-0K020 · 82672-0K090 · 82672-0K110 |
| 82673A | Junction box bracket | 82673-0K010 · 82673-0K030 · 82673-0K070 |
| 82673B | Junction box bracket | 82673-0K020 · 82673-0K050 |

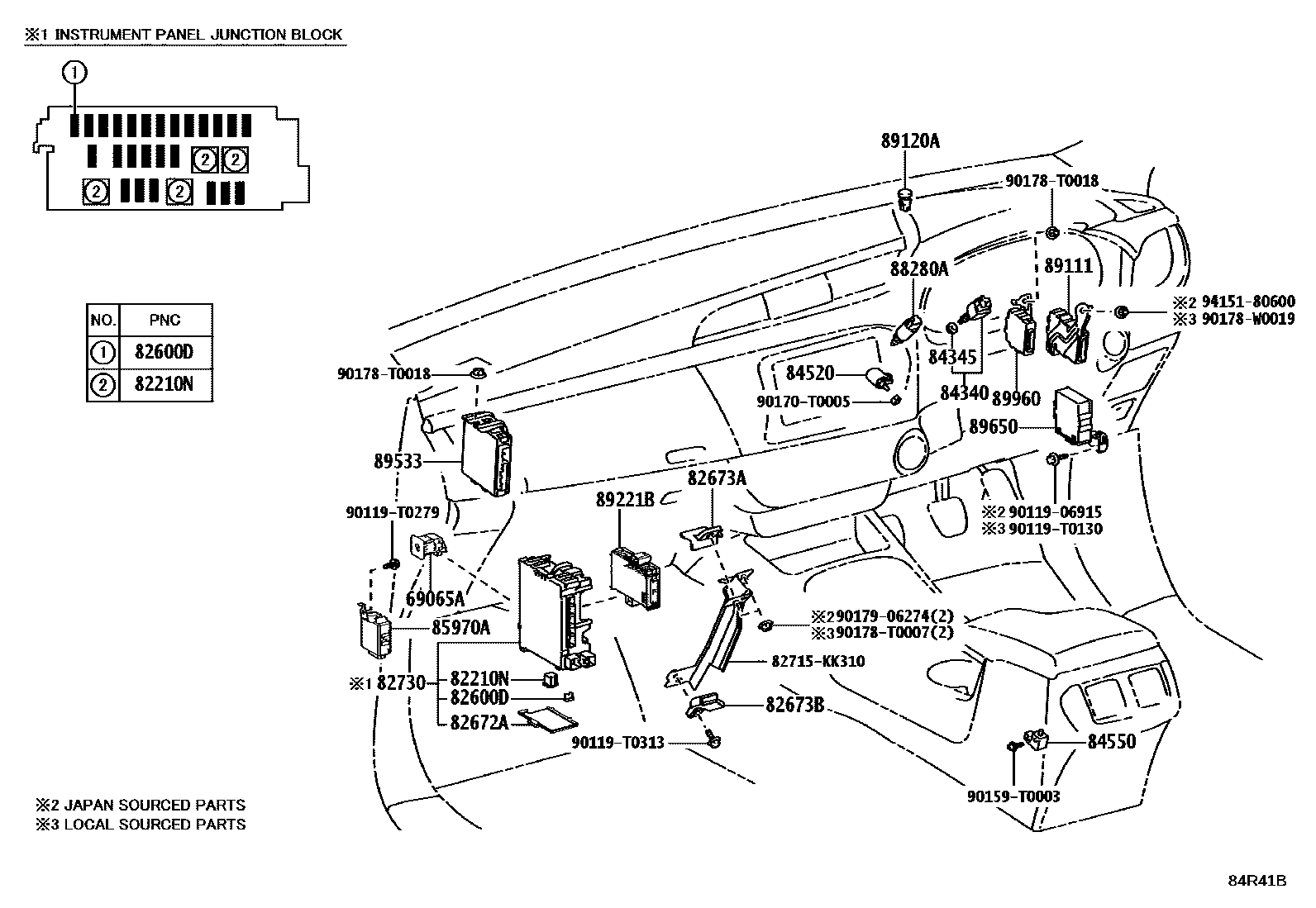

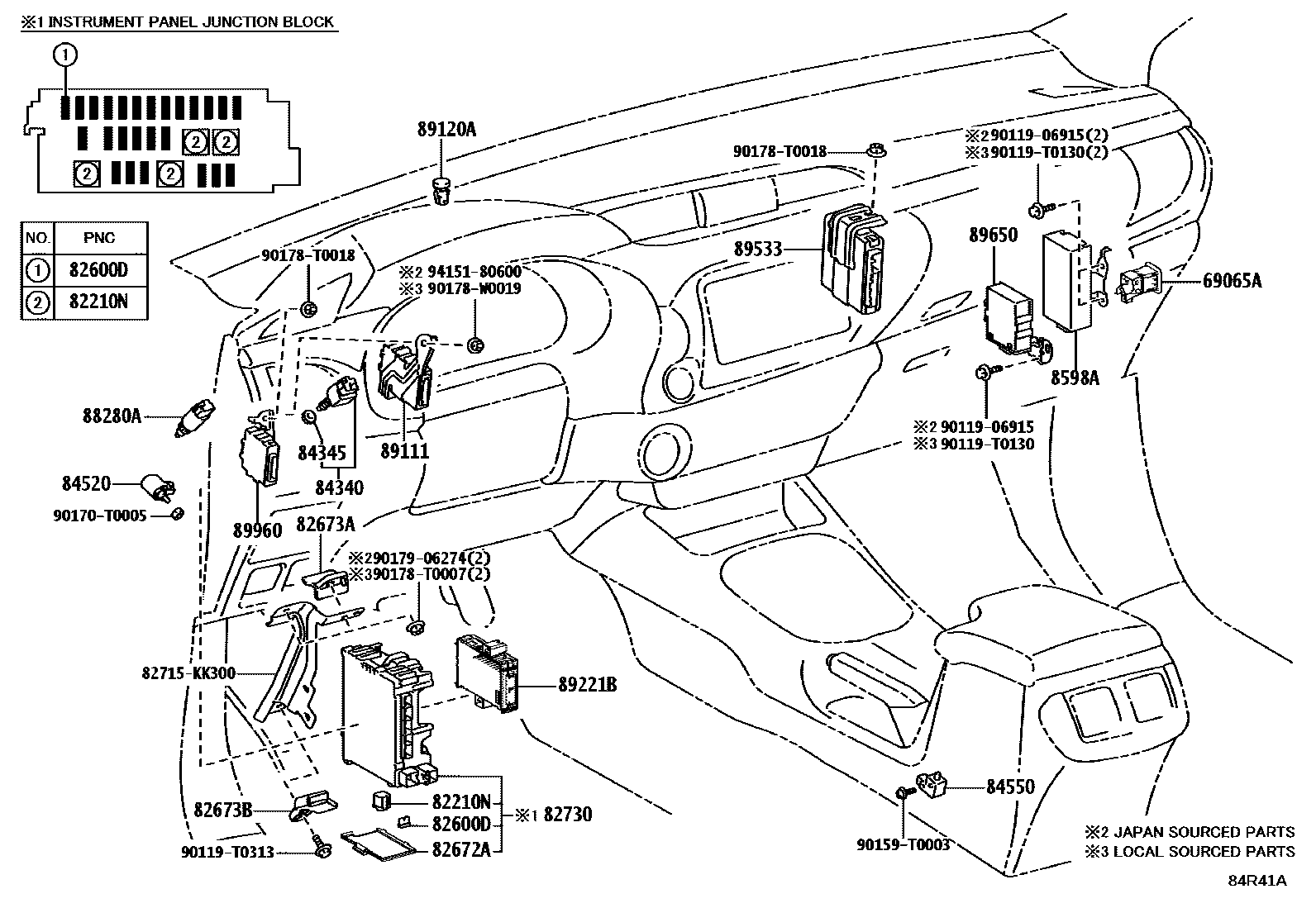

| 82730 | Instrument panel junction box assembly | 82730-0K170 · 82730-0K250 · 82730-0K260 · 82730-0K270 · 82730-0K560 · 82730-0K580 · 82730-0KB40 · 82730-0KB60 · 82730-0KB70 · 82730-0KB80 · 82730-0KB90 · 82730-0KC00 |

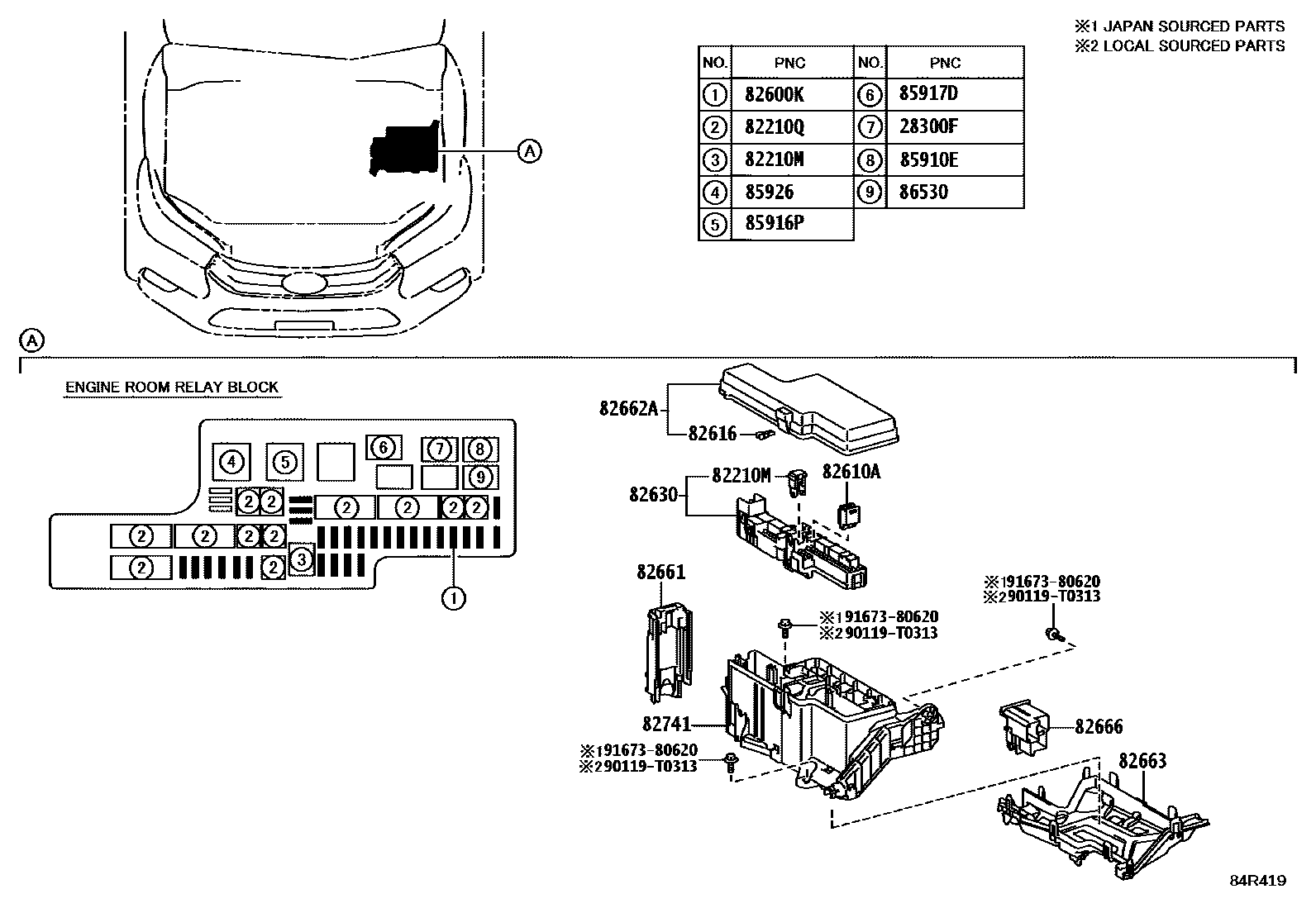

| 82741 | Engine room relay box | 82741-0K020 |
| 83320 | Fuel gauge sensor assembly | 83320-0K160 · 83320-0K181 |
| 83520 | Oil pressure gauge sensor assembly | 83520-60060 |

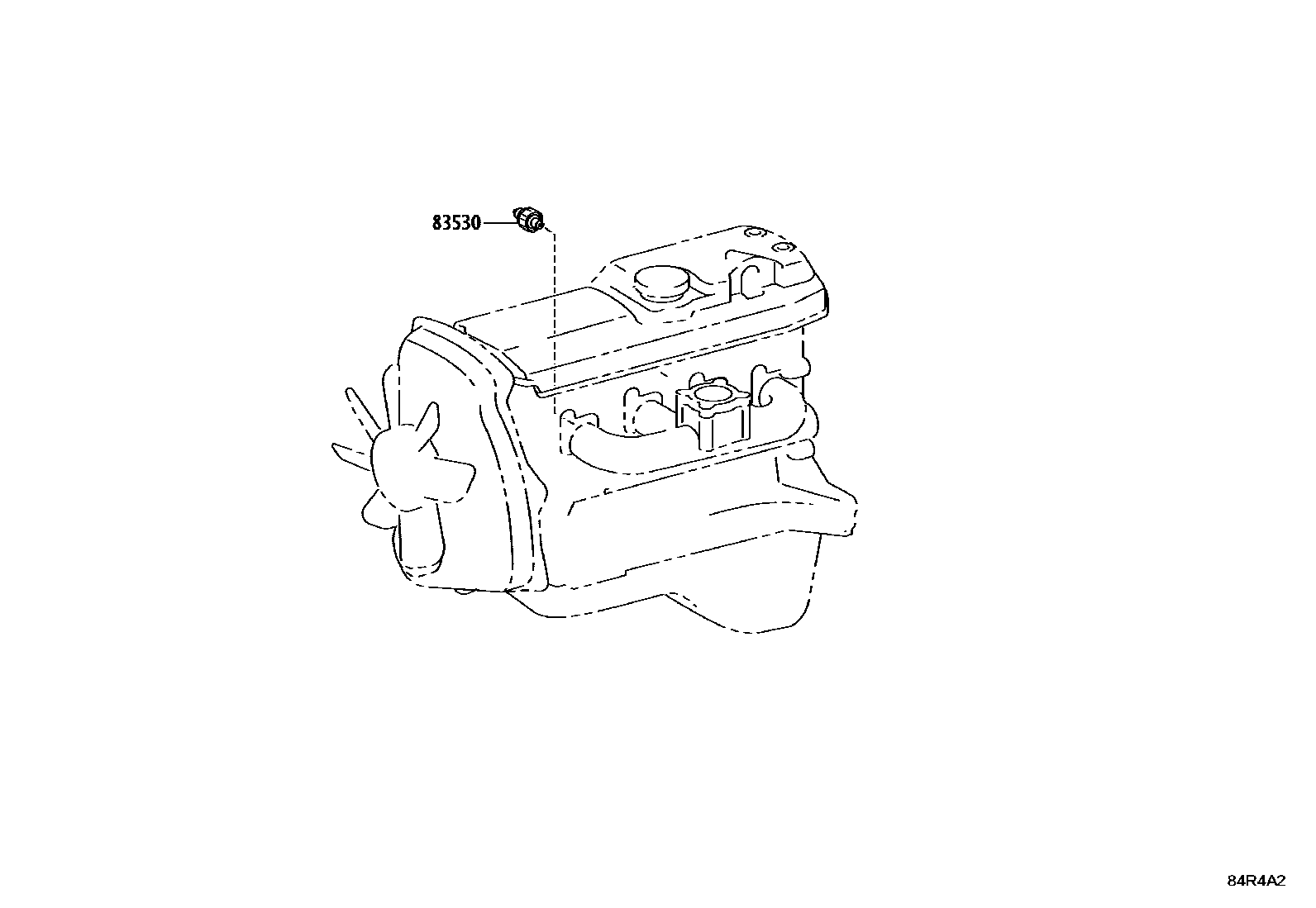

| 83530 | Oil pressure switch assembly (for engine) | 83530-28010 · 83530-28020 · 83530-60010 · 83530-60020 · 83530-60030 |
| 83910G | clock assembly | 83910-0K040 · 83910-0K180 |
| 83950M | Warning light assembly | 83950-0K040 · 83950-0K070 · 83950-0K340 · 83950-0K370 · 83950-0K390 |
| 84052 | Unlock warning switch assembly | 84052-0K020 |
| 84140 | Headlight dimmer switch assembly | 84140-02A80 · 84140-06550 · 84140-06560 · 84140-06600 · 84140-0K400 · 84140-0K410 · 84140-0K430 · 84140-0K440 · 84140-0K450 · 84140-0K460 · 84140-0K470 · 84140-0K480 · 84140-0K490 · 84140-0K500 · 84140-0K510 · 84140-0K570 · 84140-0K580 · 84140-0K590 · 84140-0K600 · 84140-0K610 · 84140-0K620 · 84140-0K630 · 84140-0K640 · 84140-0K660 · 84140-0K690 · 84140-0K760 |
| 84152 | Headlight beam height adjustment switch | 84152-0K060 · 84152-0K090 |

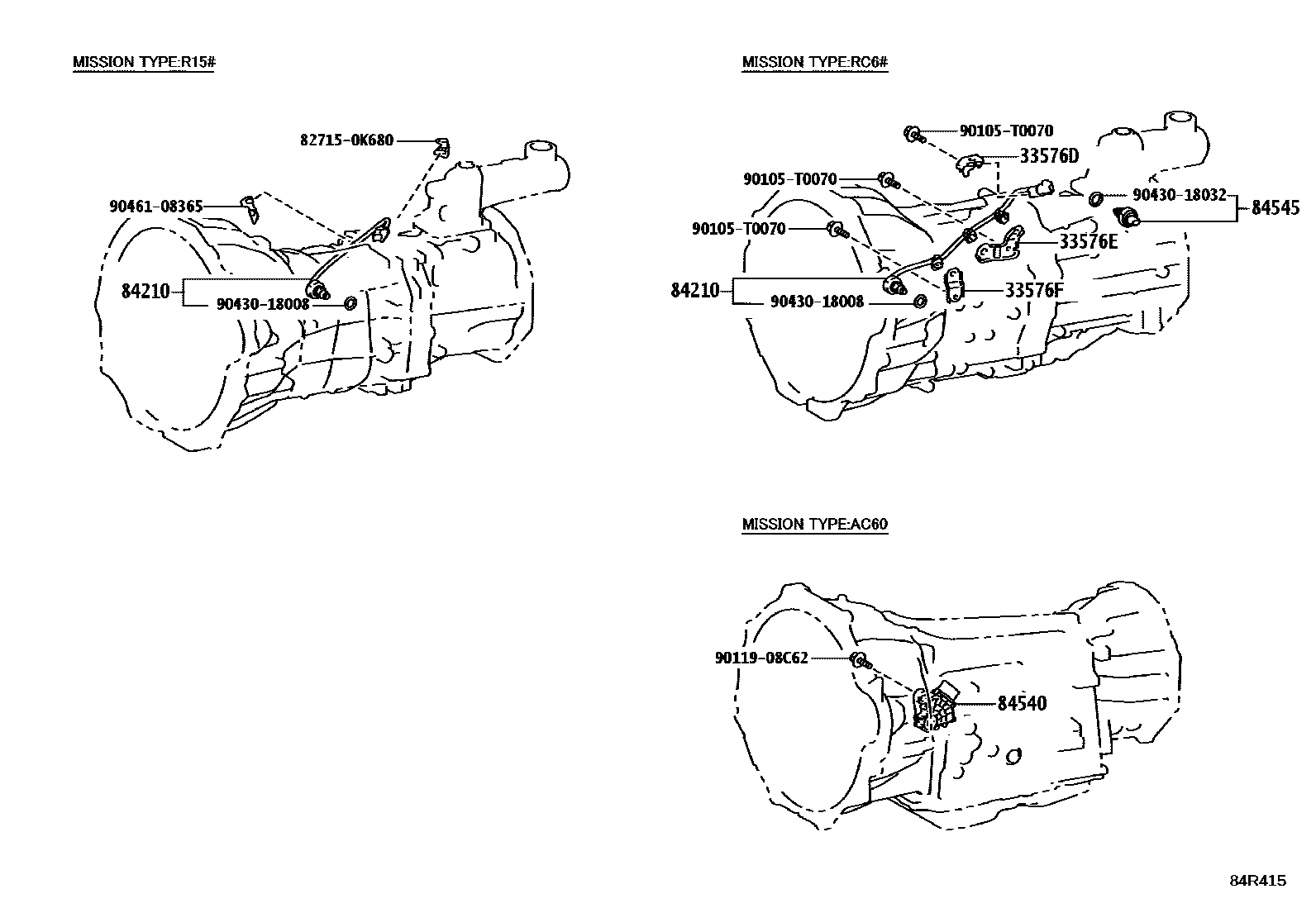

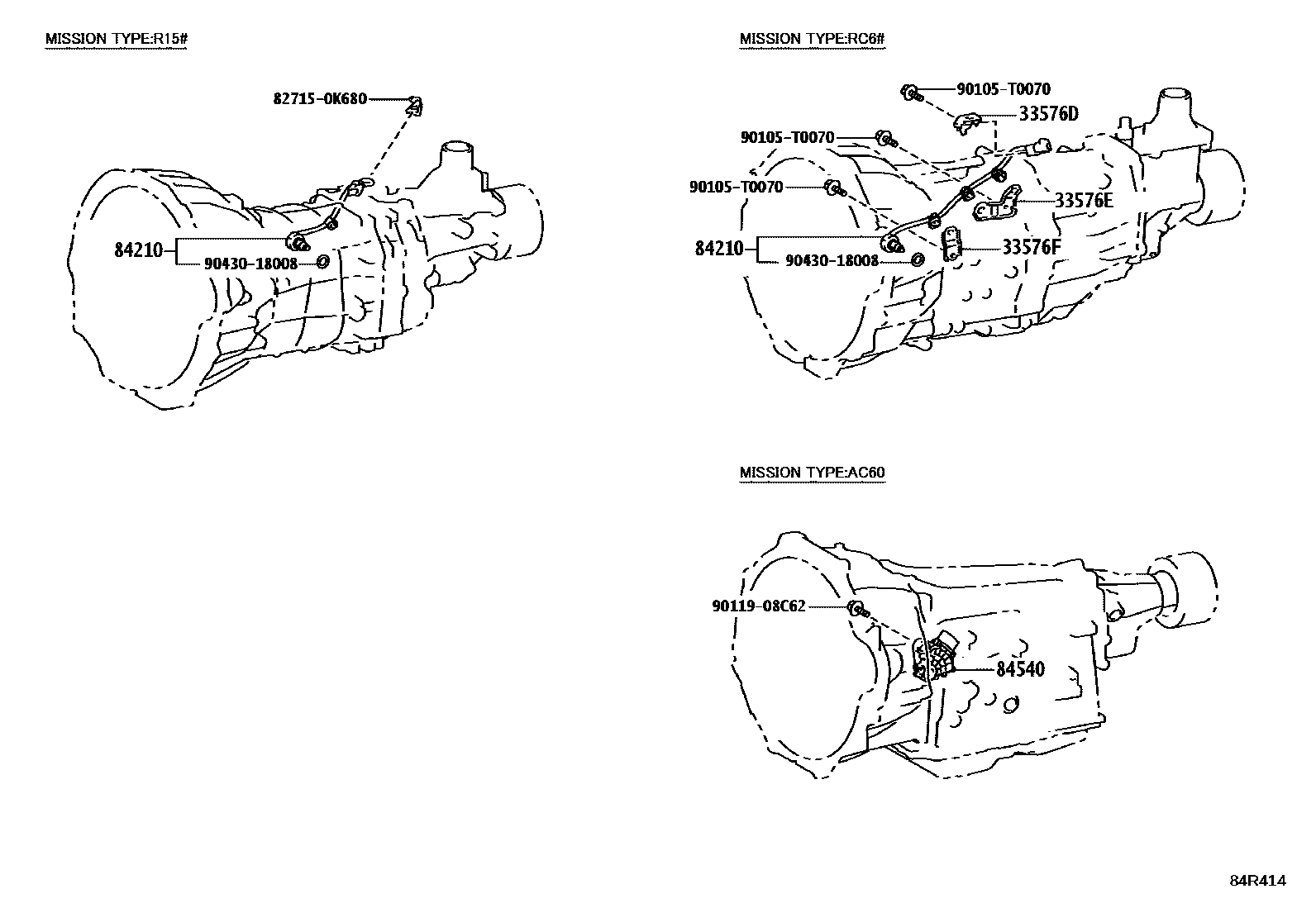

| 84210 | Reversing light switch assembly | 84210-71030 · 84210-71040 · 84210-71050 |
| 84223A | transfer case position switch | 84223-0K010 |
| 84233 | Door control light switch assembly (for front door) | 84231-0K060 · 84231-60070 |
| 84270M | Diesel particulate reduction switch assembly | 84270-0K050 |
| 84270Q | headlight relay | 90987-02027 · 90987-T2001 |

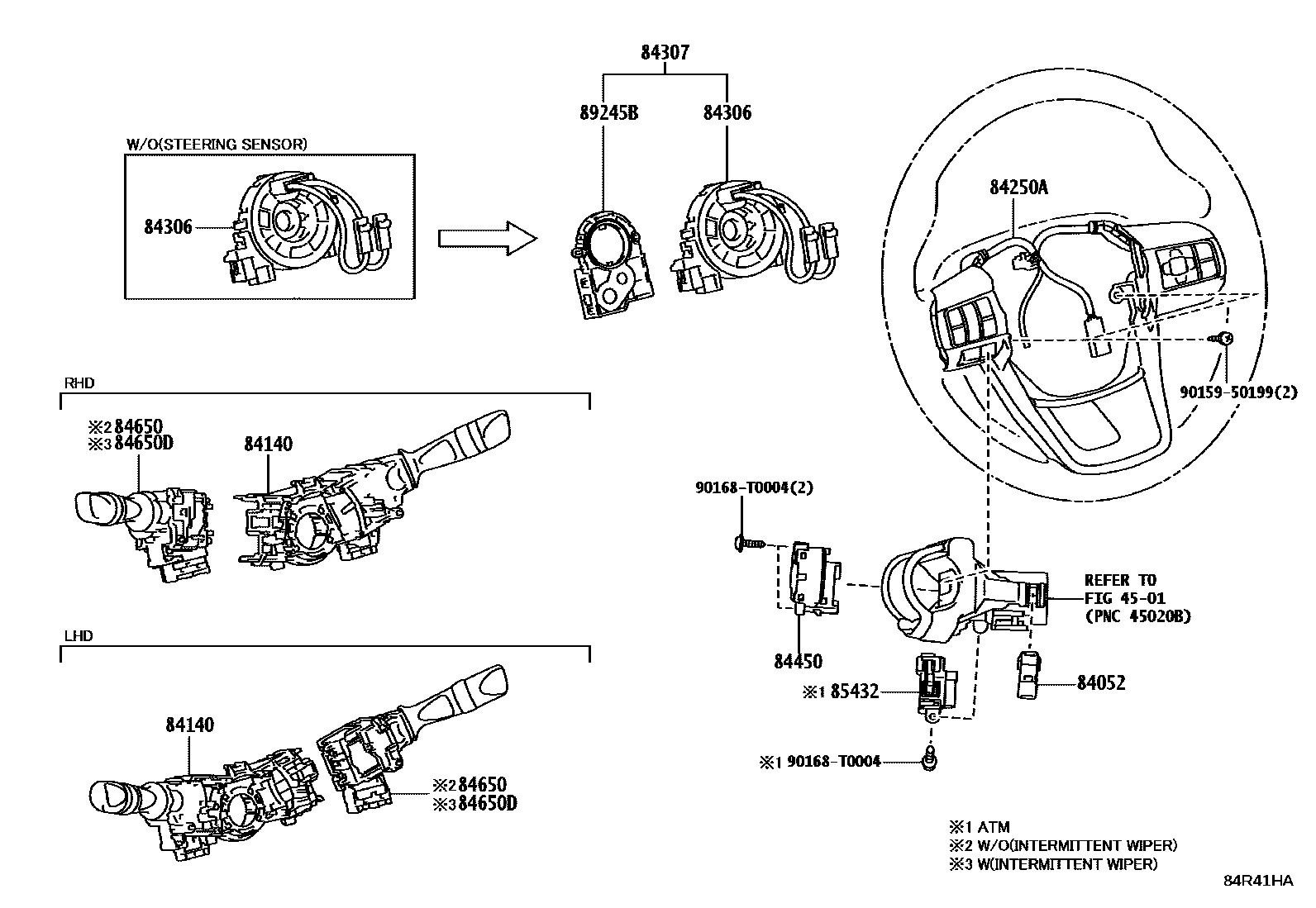

| 84306 | Spiral cable sub-assembly | 84306-0K260 · 84306-0K270 · 84308-0K060 · 84308-0K070 · 84308-0K080 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-0K190 · 84307-0K200 · 84307-0K210 |
| 84340 | brake light switch assembly | 84340-09380 |
| 84345 | Brake light switch base adjuster | 84345-0K010 |
| 84450 | Ignition or starter switch assembly | 84450-02040 |
| 84453 | Idle speed boost switch | 84453-0K010 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-60050 |
| 84545 | neutral position switch | 84545-71010 |
| 84550 | Parking brake switch assembly | 84550-02030 |
| 84650 | Windshield wiper switch assembly | 84652-0D340 · 84652-0K260 · 84652-0K300 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-02750 · 84652-06260 · 84652-0K241 · 84652-0K250 · 84652-0K280 · 84652-0K290 |

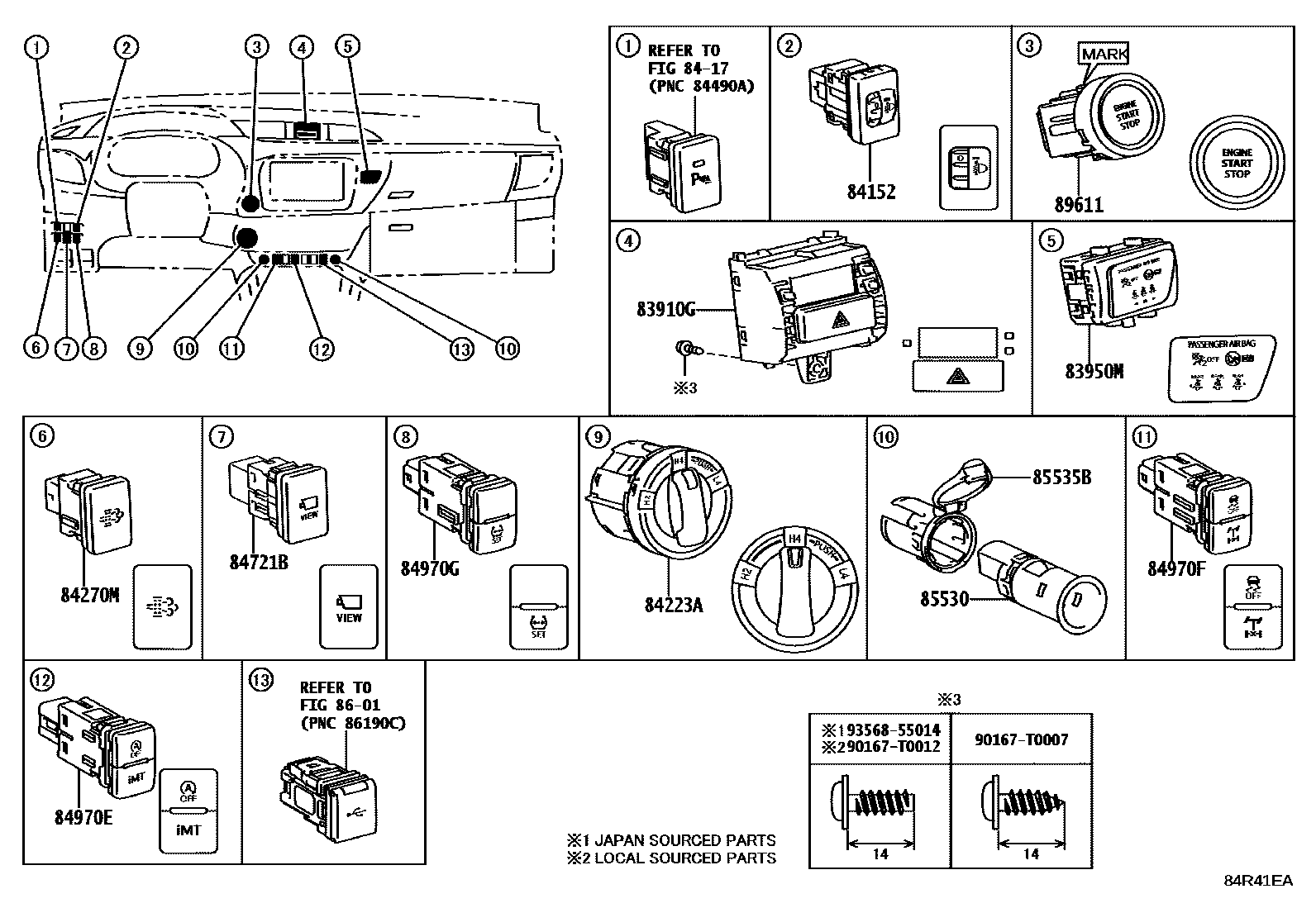

| 84721B | Panoramic display switch | 84721-0K080 |

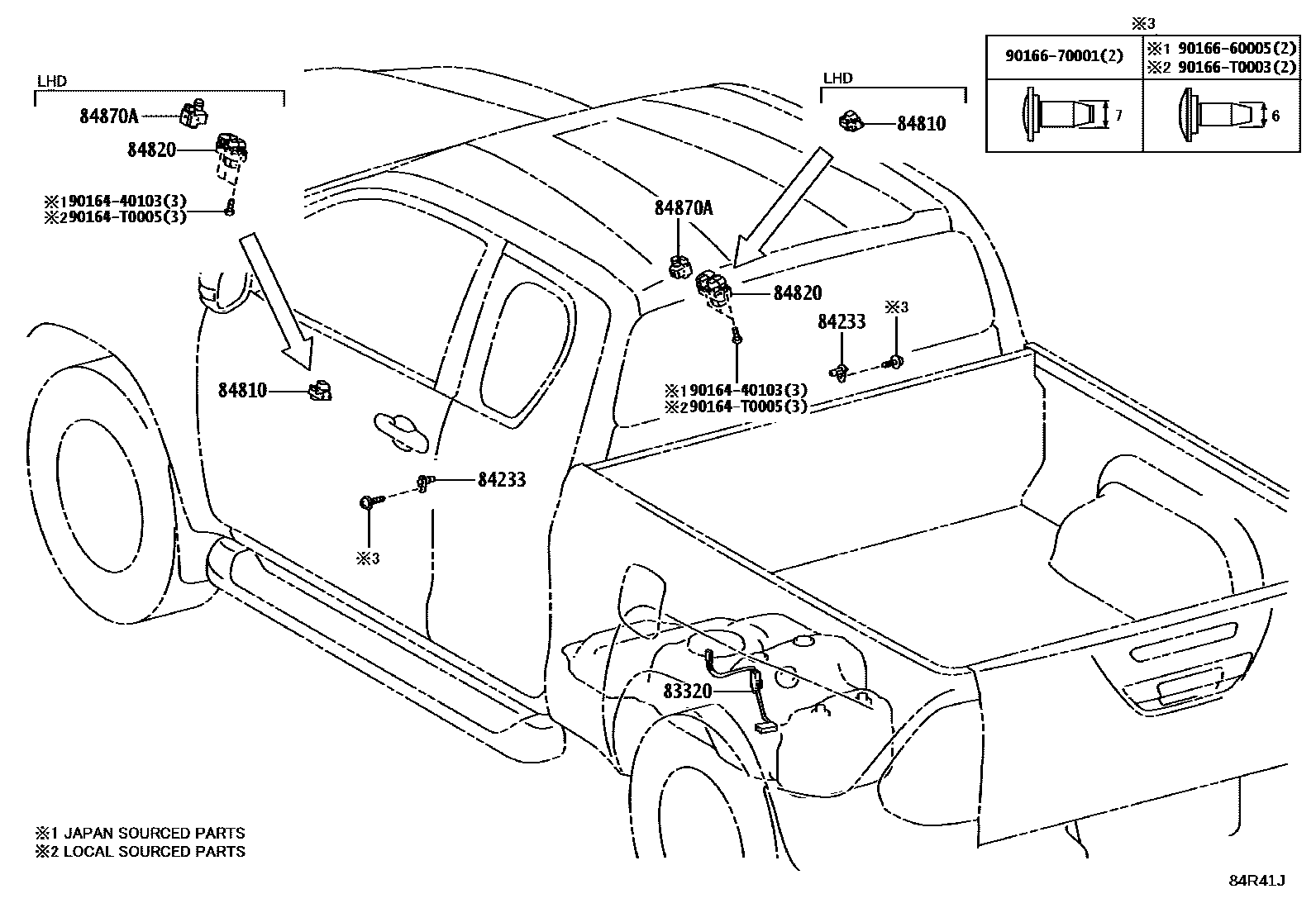

| 84810 | Electric window lift switch assembly | 84810-0D300 · 84810-0K080 |
| 84820 | Electric window lift main switch assembly | 84040-0K032 · 84040-0K180 · 84820-0D610 · 84820-0D620 · 84820-0K190 · 84820-0K200 |
| 84870A | Exterior rearview mirror switch assembly | 84872-0K010 · 84872-0K020 · 84872-0K030 · 84872-0K040 |

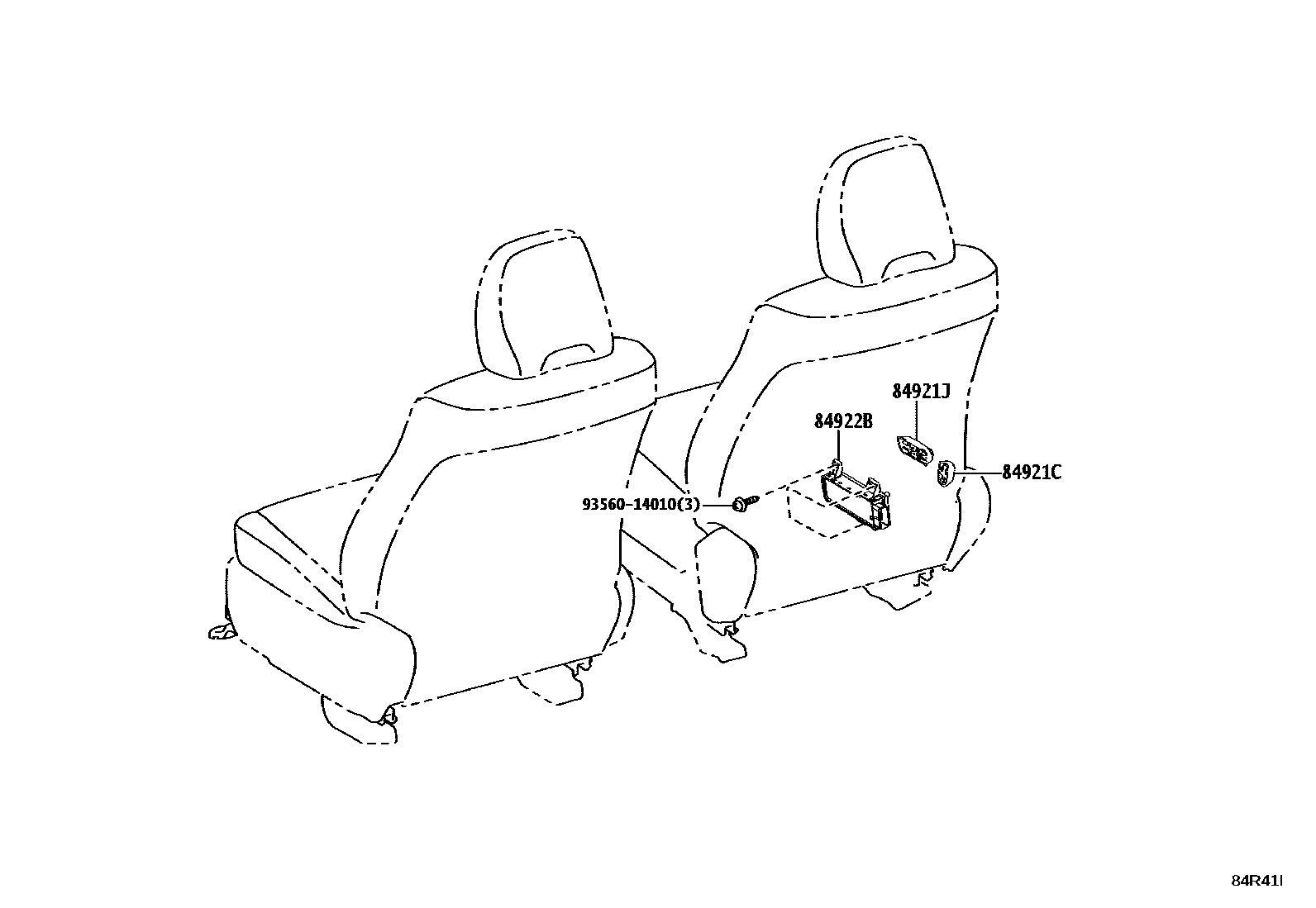

| 84922B | Front right electric seat switch | 84922-06150 |
| 84930F | door lock control relay | 90080-87009 · 90987-04004 |
| 84930G | Door lock control relay No. 2 | 90080-87009 · 90987-04004 |

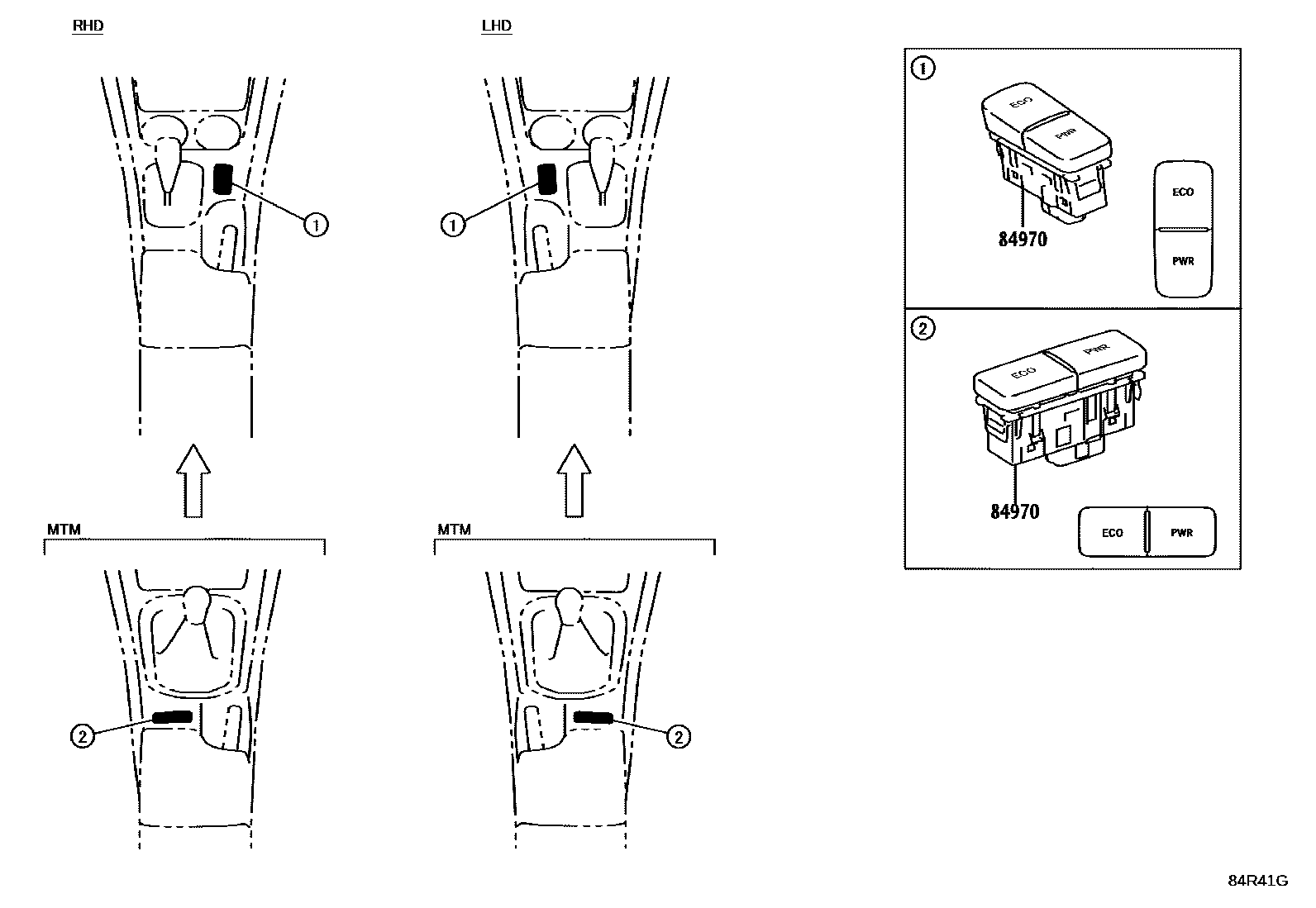

| 84970 | Combination switch assembly | 84970-0K021 · 84970-0K071 |
| 84970E | No. 2 combination switch assembly | 84970-0K260 · 84970-0K270 |
| 84970F | No. 3 combination switch assembly | 84970-0K200 · 84970-0K210 · 84970-0K220 |
| 84970G | No. 4 combination switch assembly | 84970-0K330 |
| 84988H | Downhill assist control switch | 84988-0K030 · 84988-0K080 |
| 85432 | Key interlock solenoid valve | 85432-0D010 |
| 85530 | No. 1 power socket assembly | 85530-0K040 |
| 85530A | power outlet relay | 90987-T2001 |
| 85910E | Injector relay | 90987-02027 · 90987-T2001 |
| 85912 | defogger relay | 90080-87009 |
| 85916D | fog light relay | 90987-02027 · 90987-T2001 |
| 85916L | Rear fog light relay | 90987-02027 · 90987-T2001 |
| 85916N | Tail light relay | 90987-02027 · 90987-T2001 |
| 85916P | headlight relay | 90987-02025 · 90987-T2002 |
| 85917D | Heater relay (for air-fuel ratio sensor) | 90987-02027 · 90987-T2001 |
| 85926 | Headlight dimmer relay | 90987-02025 · 90987-T2002 · 90987-T2003 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 85970A | Double lock door control relay assembly | 85970-71020 |
| 8598A | door control battery | 8598A-0K050 |
| 86530 | Speaker relay assembly | 90987-T2001 |
| 86530A | Horn relay | 90987-T2001 |
| 87299 | heater relay | 90987-T2003 |
| 88280A | Clutch switch assembly | 88280-42010 |
| 89111 | Network gateway ECU | 89100-71011 |
| 89120A | Automatic light control sensor | 89121-50020 |
| 89221B | Body ECU | 89221-0K052 · 89221-0K082 · 89221-0K092 · 89221-0K132 · 89221-0K152 · 89221-0K192 · 89221-0K701 · 89221-0KA12 · 89221-0KB70 · 89221-0KB90 · 89221-0KC30 · 89221-0KC40 · 89221-0KC60 · 89221-0KC91 · 89221-0KD00 · 89221-0KD20 · 89221-0KE11 · 89221-0KE80 · 89221-0KP20 · 89221-F0B10 · 89221-F0G41 · 89221-F0G81 · 89221-F0J41 · 89221-F0J61 · 89221-F0J71 · 89221-F0K01 · 89221-F0K41 · 89221-F0K51 · 89221-F0K81 · 89221-F0L61 · 89221-F0L81 · 89221-F0M21 · 89221-F0M82 · 89221-F0M92 · 89221-F0N02 · 89221-F0N12 · 89221-F0N22 · 89221-F0N32 · 89221-F0N42 · 89221-F0N52 · 89221-F0N62 · 89221-F0N82 |
| 89245B | steering sensor | 8924B-0D020 |

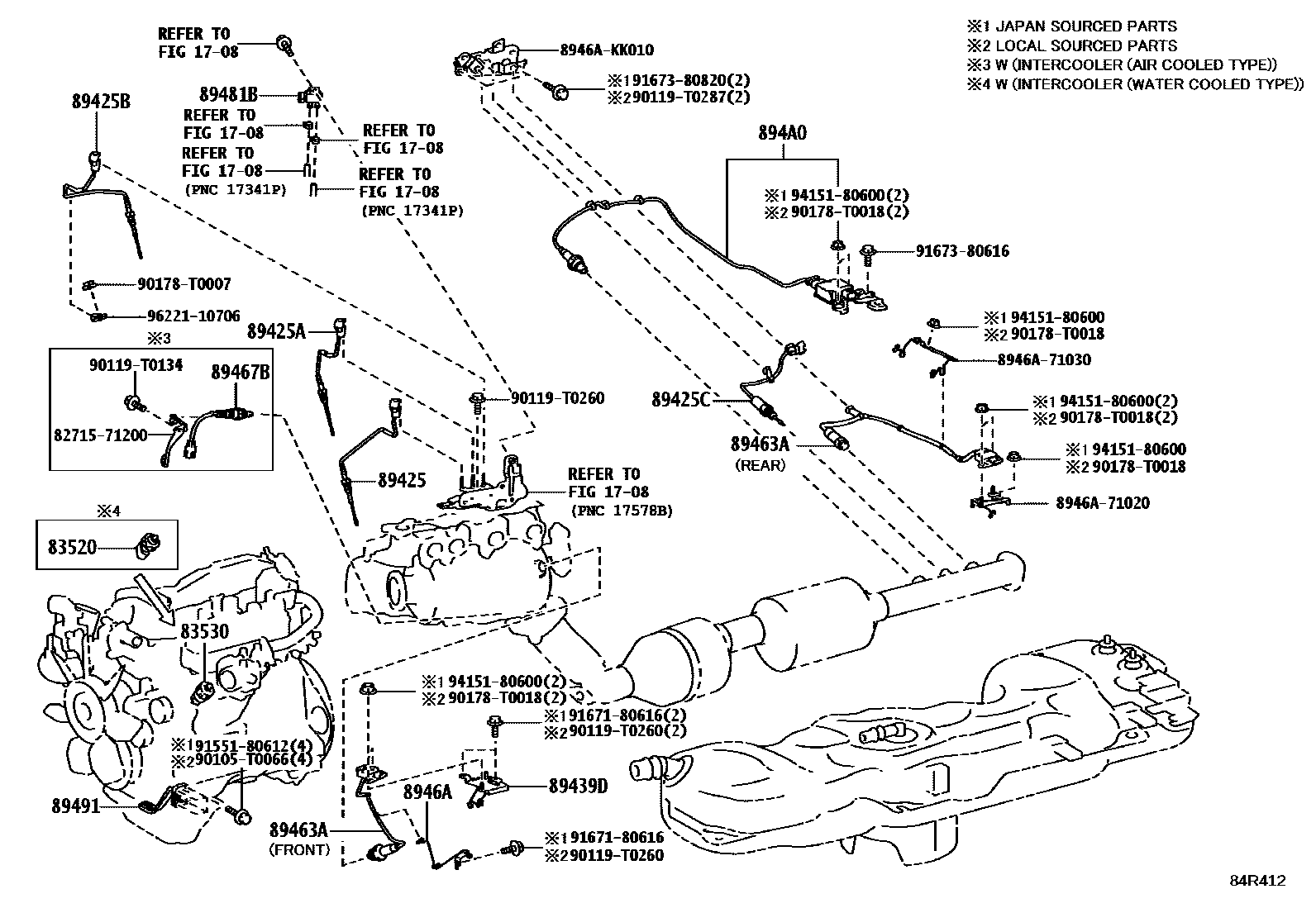

| 89425 | Exhaust gas temperature sensor | 89425-71070 |
| 89425A | No. 2 exhaust gas temperature sensor | 89425-71080 |
| 89425B | No. 3 exhaust gas temperature sensor | 89425-71090 |
| 89425C | No. 4 exhaust gas temperature sensor | 89425-71060 · 89425-71100 |
| 89439D | Sensor No. 1 Bracket | 8946A-60020 |
| 89463A | Nitrogen oxide sensor | 89463-71011 · 89463-71041 |
| 89463B | Nitrogen oxide relay | 90987-02030 · 90987-T2009 |

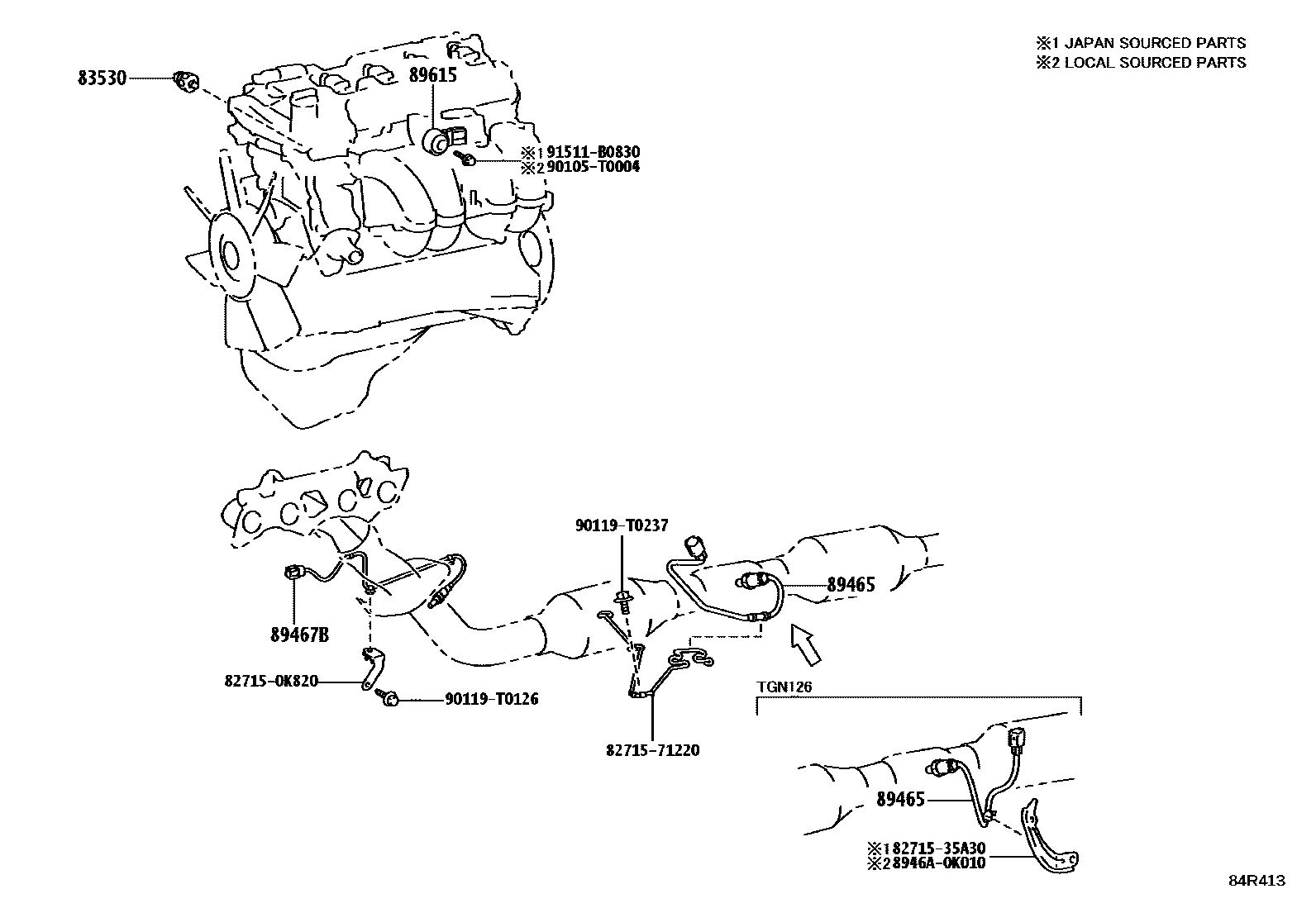

| 89465 | oxygen sensor | 89465-0K190 · 89465-0K200 |
| 89467B | air fuel ratio sensor | 89467-71120 · 89467-71130 |
| 8946A | Exhaust sensor clip bracket | 8946A-71010 |
| 89481B | Differential pressure sensor | 89481-48010 · 89481-71010 |
| 89491 | Engine oil level sensor | 89491-26190 |
| 894A0 | Particle sensing assembly | 894A0-71040 |
| 89533 | Four-wheel drive control ECU | 89533-71102 · 89533-71111 · 89533-71121 · 89533-71131 · 89533-71141 · 89533-71152 · 89533-71162 · 89533-71171 · 89533-71181 · 89533-71320 |
| 89611 | One-button start switch | 89611-0K014 · 89611-0K050 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-71040 |
| 896B1A | DCU main relay | 90987-02027 · 90987-T2001 |
| 89730A | Relay (for safety warnings) | 90987-T2001 |
| 89870E | Electronic drive unit relay | 90987-02027 · 90987-T2001 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-71100 · 89960-71150 |
