Toyota HILUX 蓄电池和蓄电池电缆 — Figure 8201

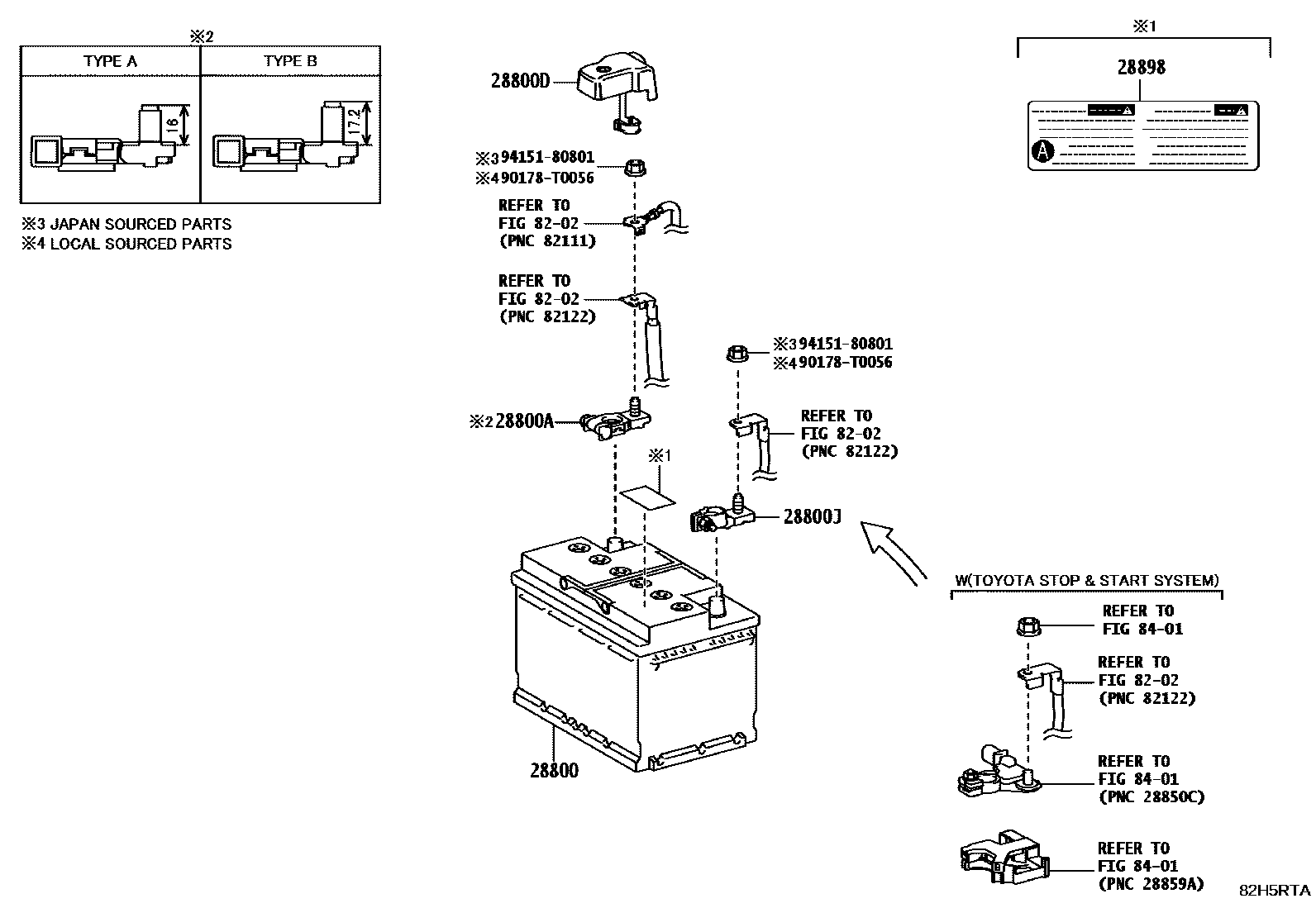

Toyota HILUX EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0C241 · 28800-0C251 · 28800-0C261 · 28800-0C274 · 28800-0C361 · 28800-0E011 · 28800-0E031 · 28800-0L380 · 28800-0L461 · 28800-0L482 · 28800-0L492 · 28800-0L504 · 28800-0L511 · 28800-0L521 · 28800-0L522 · 28800-0L722 |
| 28800A | battery positive terminal | 90982-05054 · 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82821-33350 |
| 28800J | battery negative terminal | 90982-06059 |
| 28898 | battery plates | 28897-36030 |
