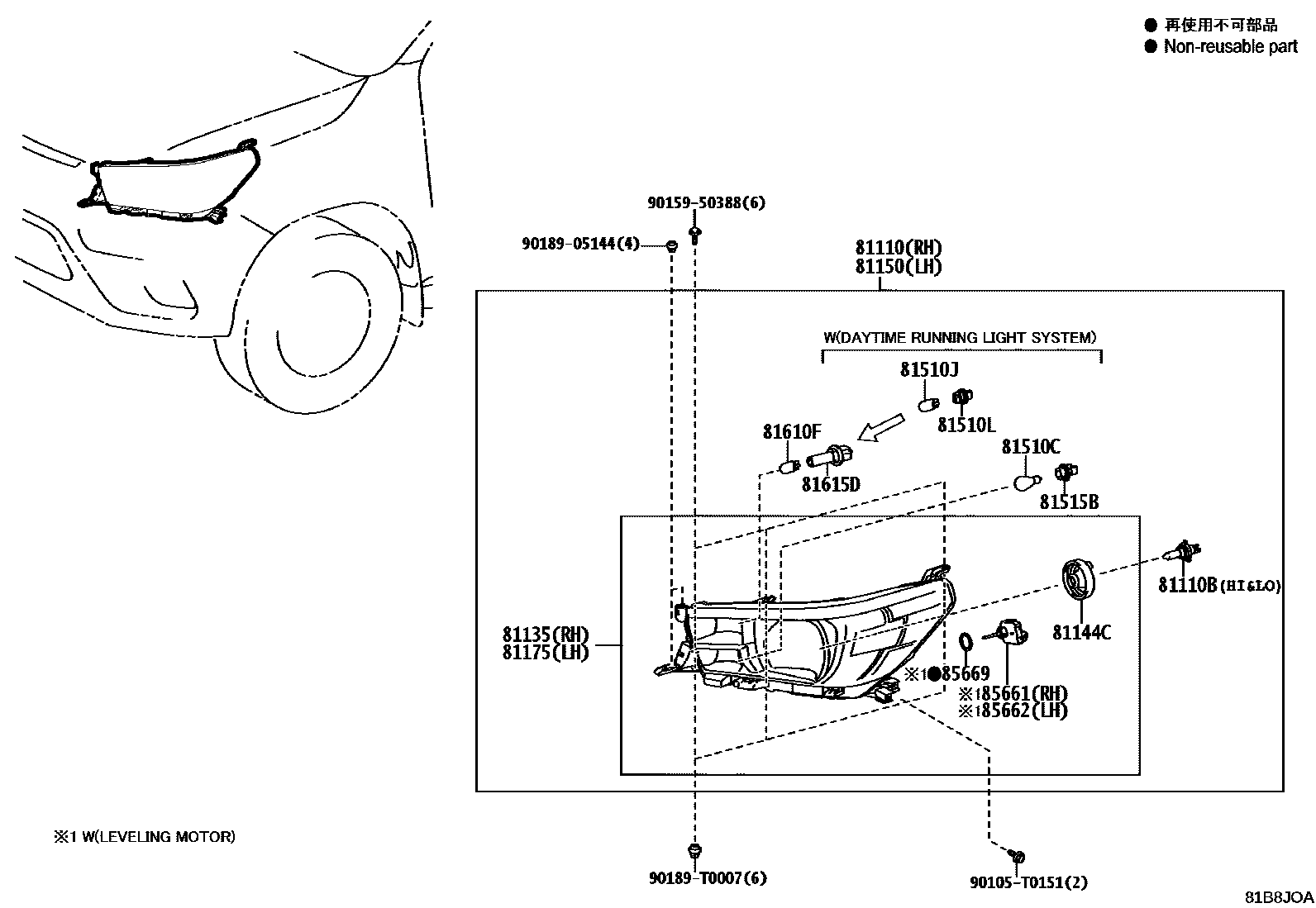

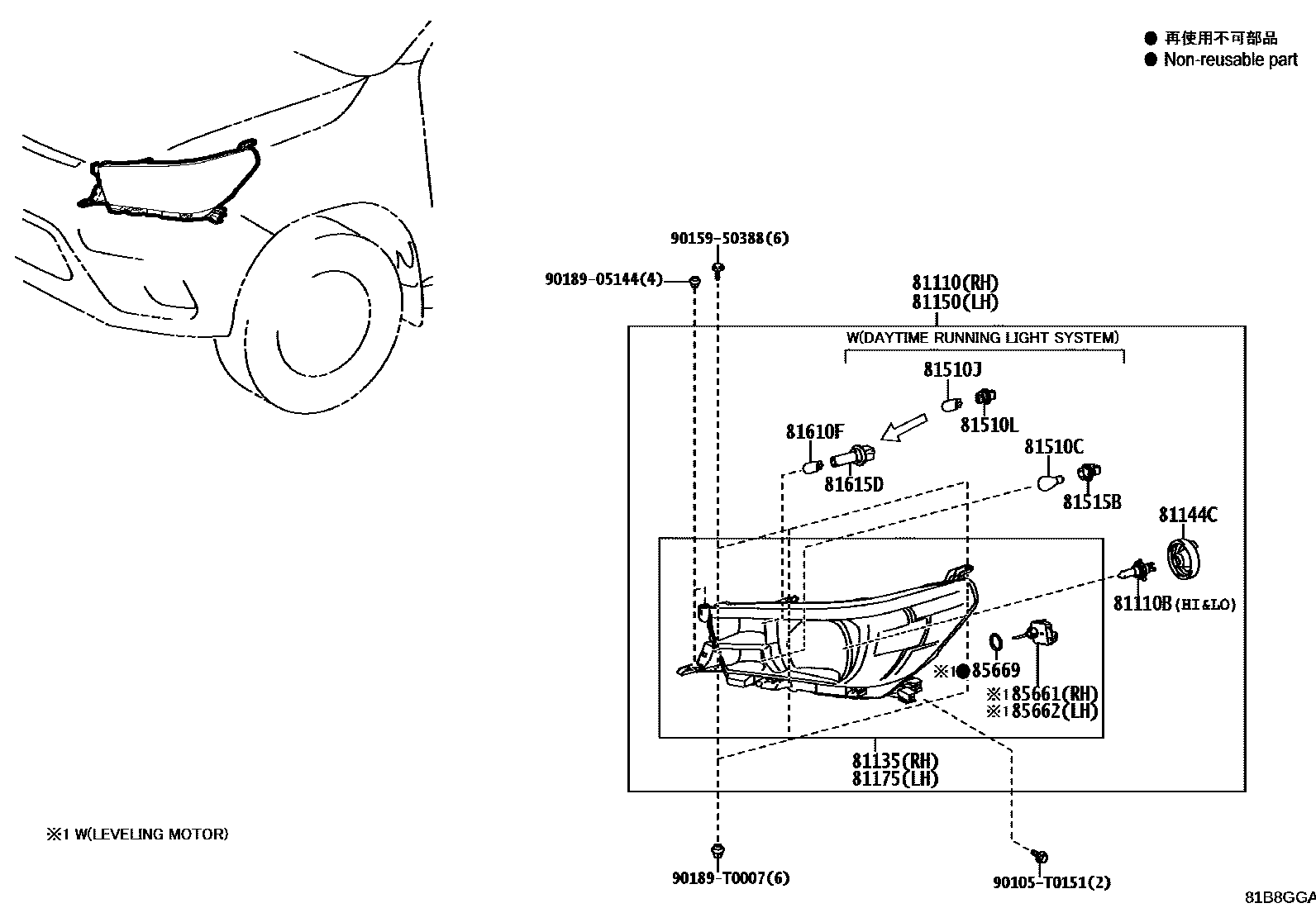

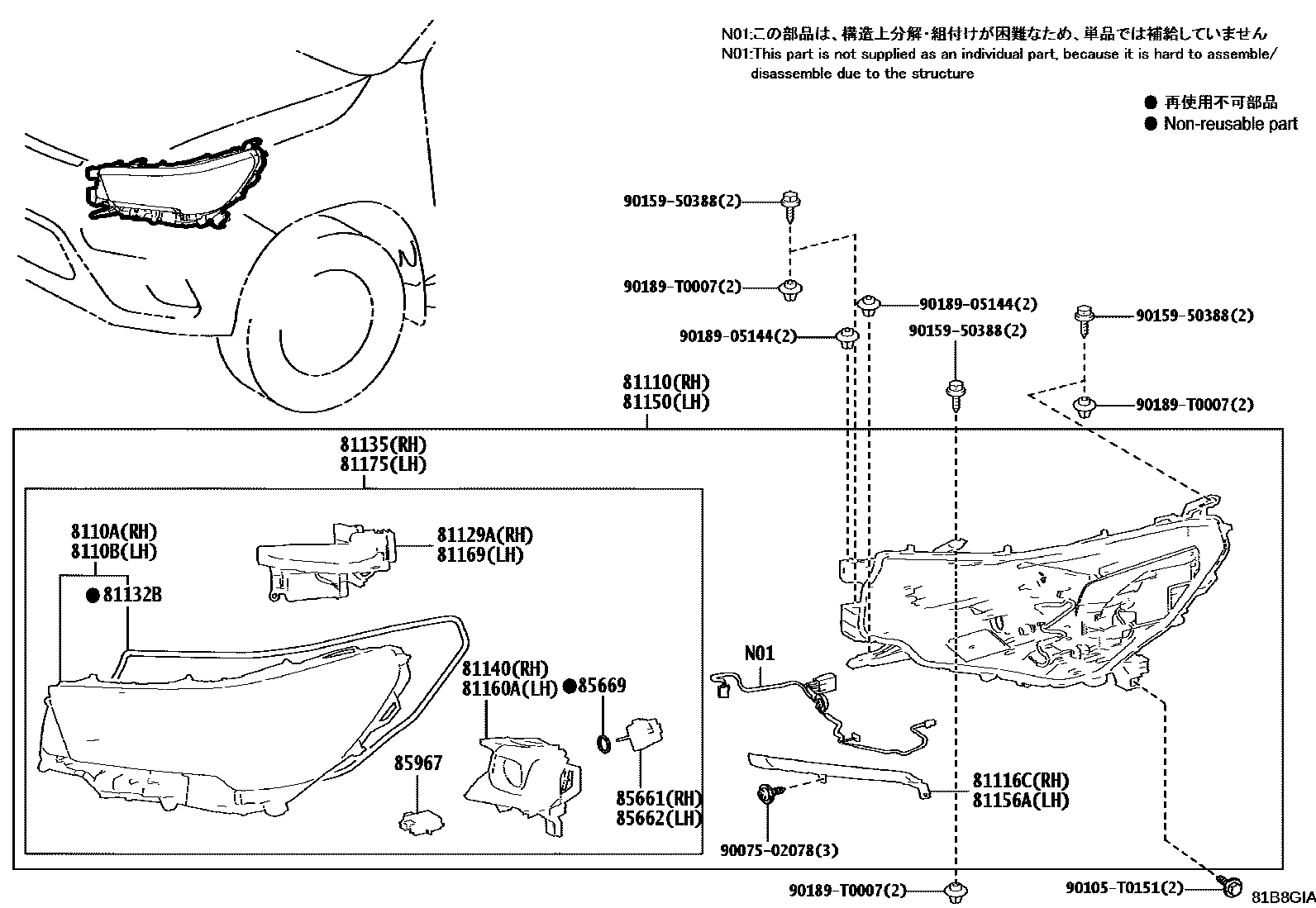

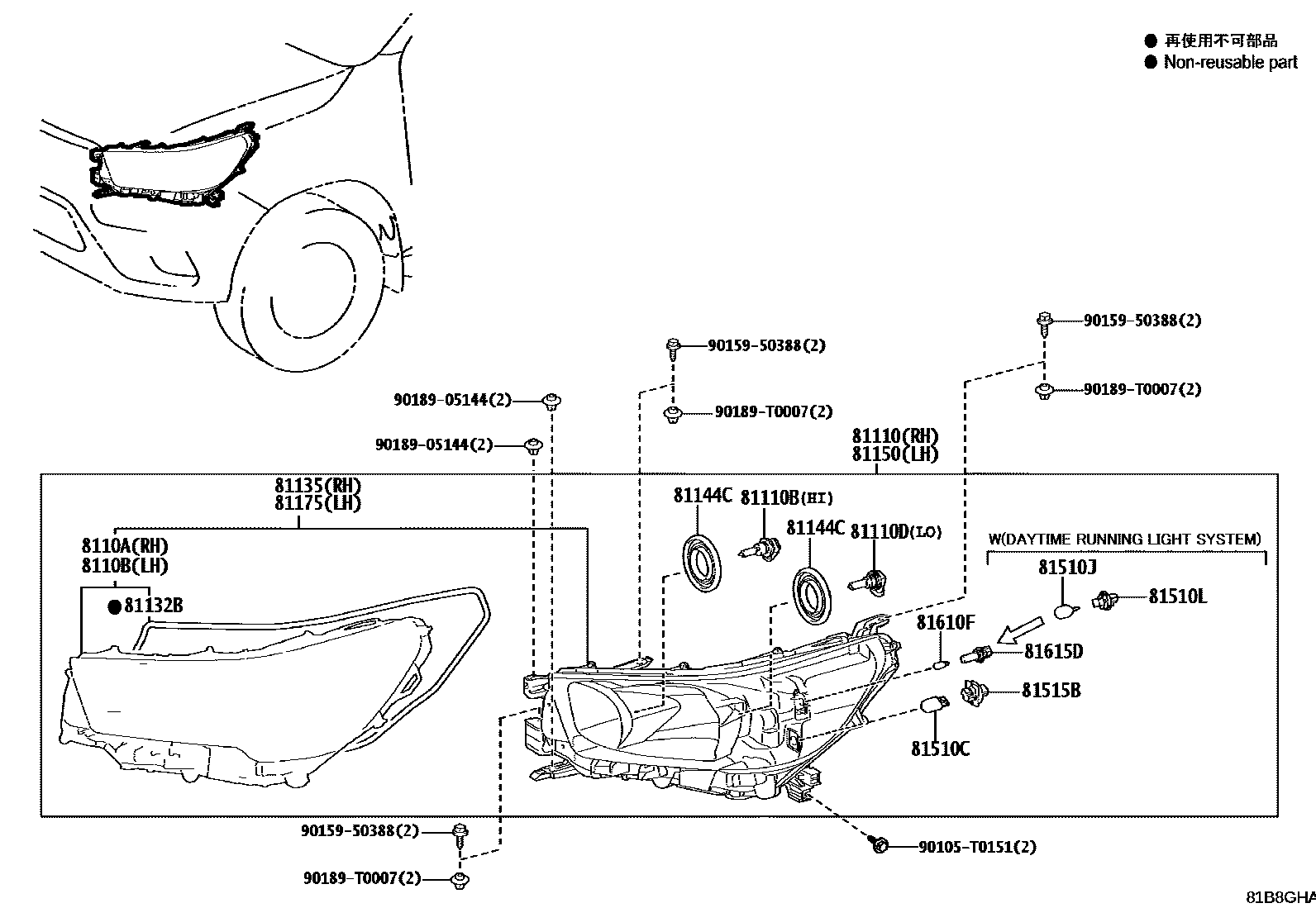

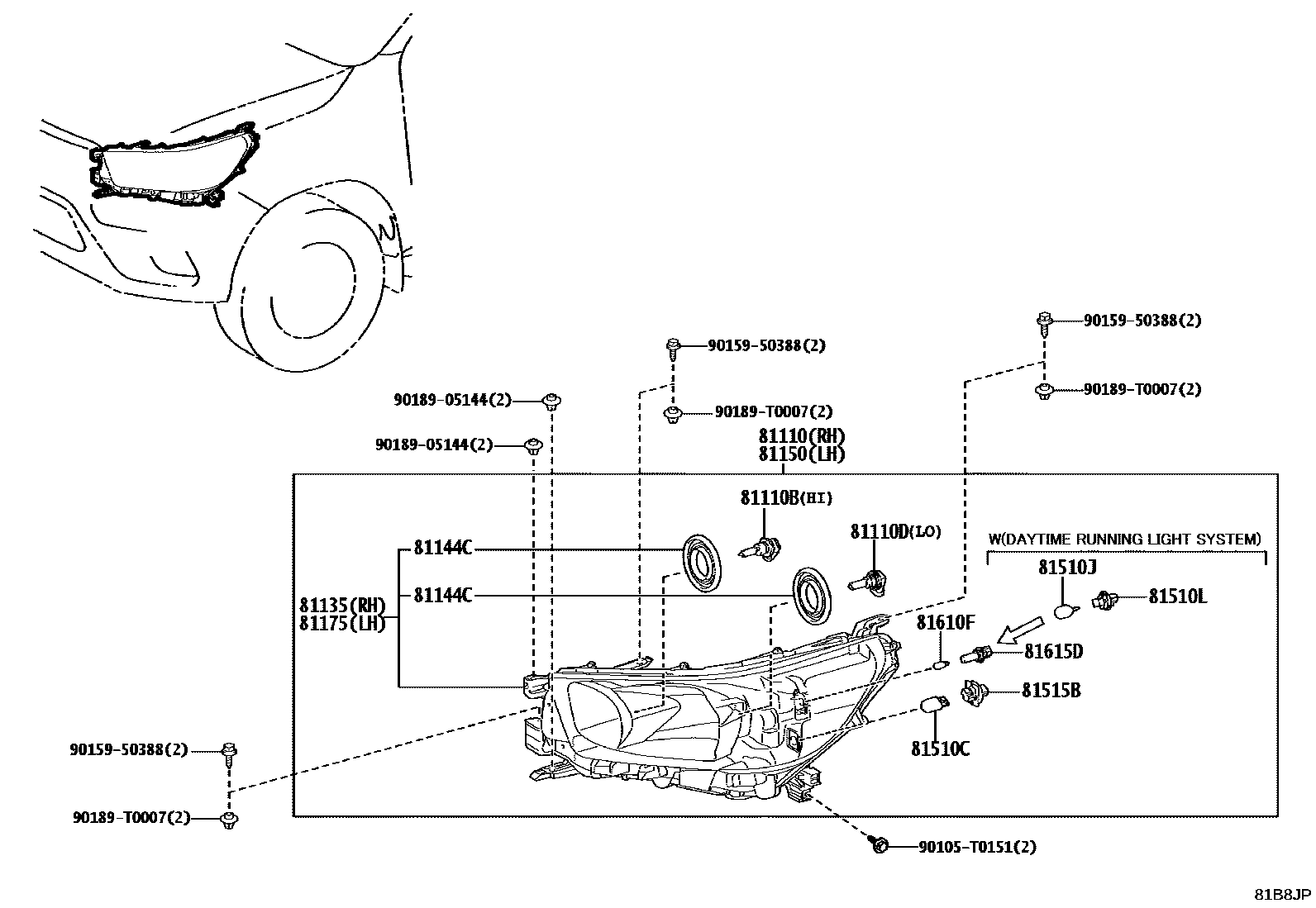

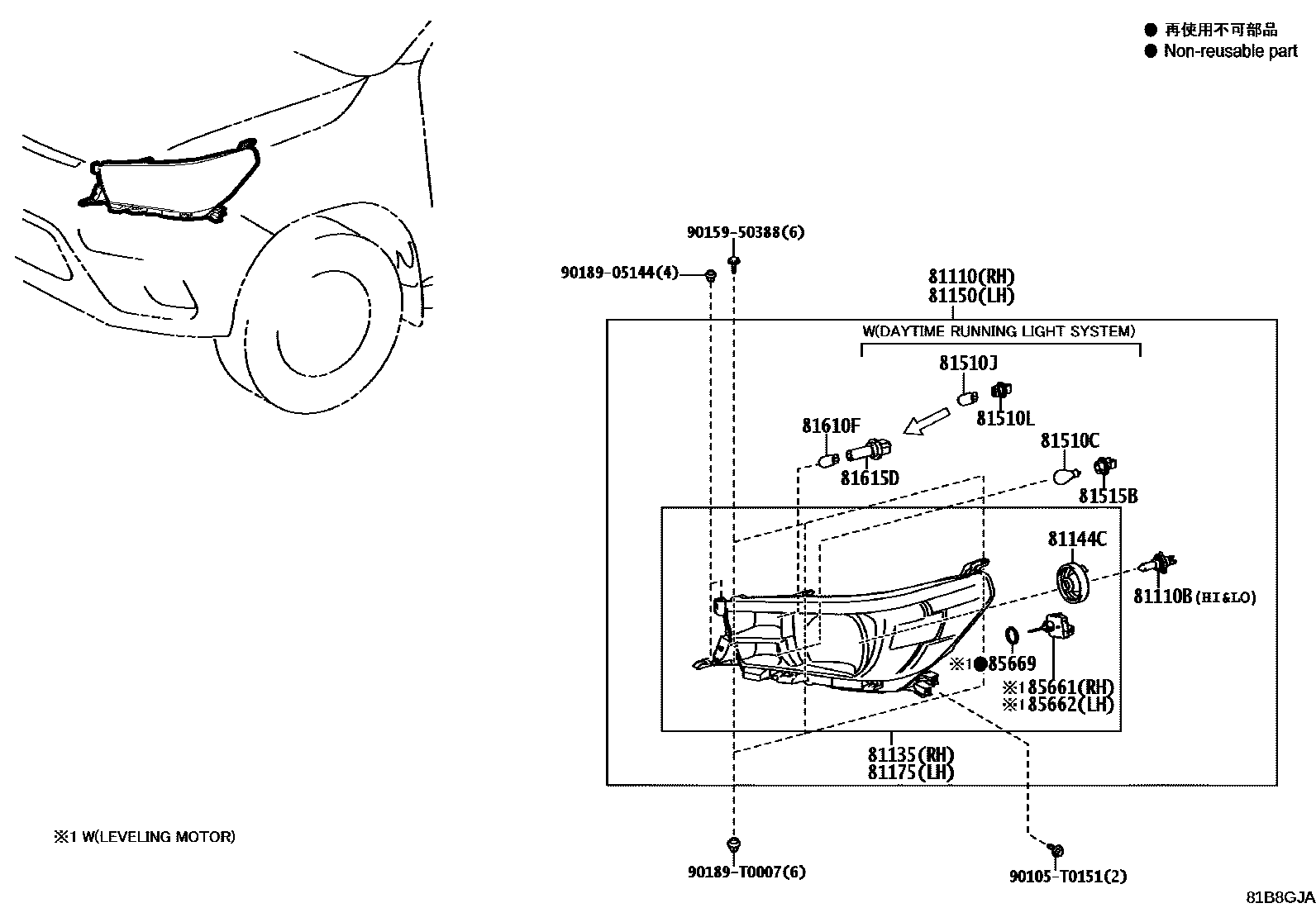

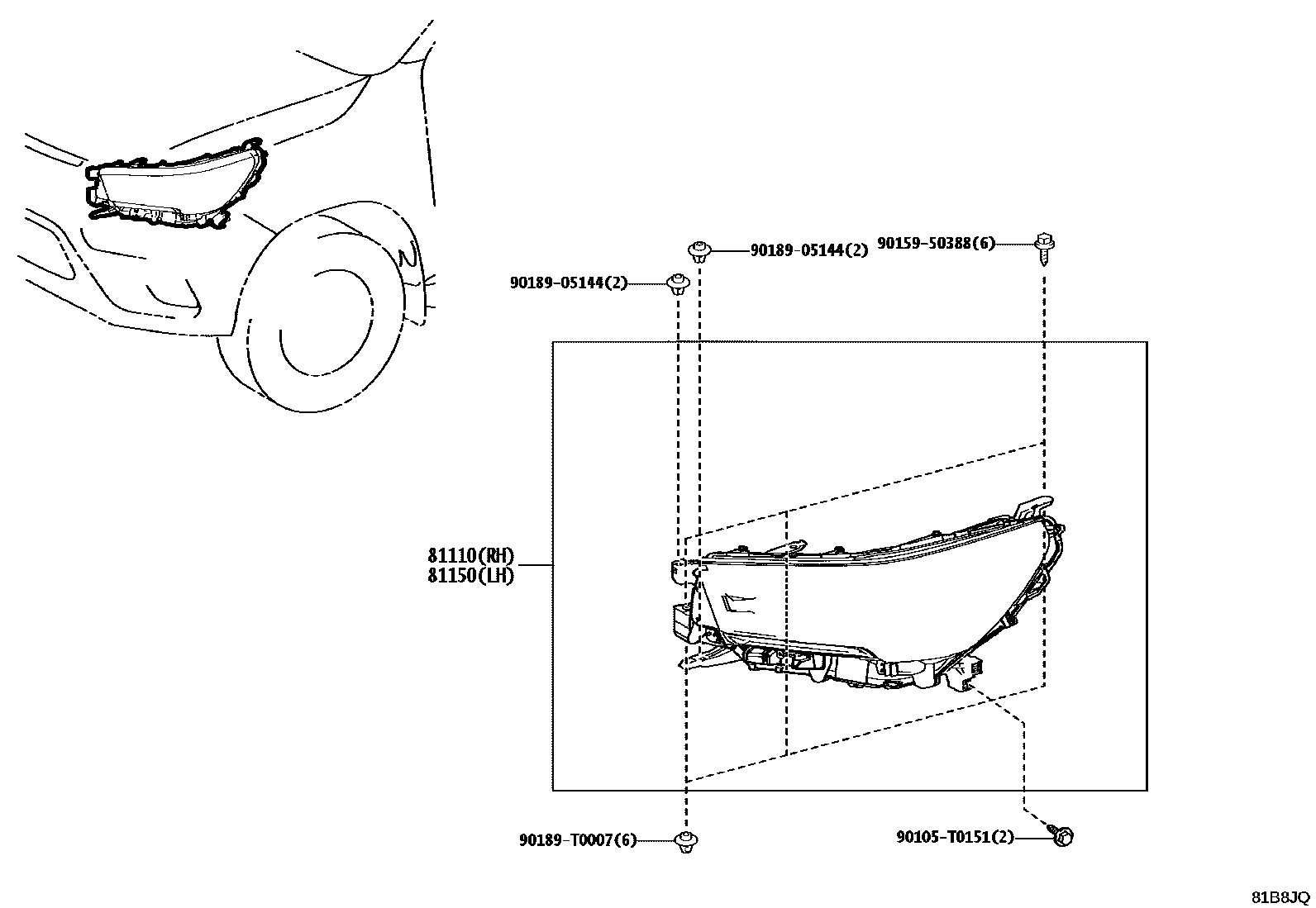

Toyota HILUX Headlamp — Figure 8101
Toyota HILUX EPC diagram 8101, Headlamp, with 7 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 8110A | Right headlight cover sub-assembly | 8110A-0KE80 · 8110A-0KJ80 · 8110A-0KZ20 · 8110A-YP090 |
| 8110B | Left headlight cover sub-assembly | 8110B-0KE80 · 8110B-0KJ80 · 8110B-0KZ20 · 8110B-YP090 |
| 81110 | Right headlight assembly | 81110-0K652 · 81110-0K662 · 81110-0K672 · 81110-0K682 · 81110-0K692 · 81110-0K752 · 81110-0K772 · 81110-0K782 · 81110-0K792 · 81110-0K801 · 81110-0K821 · 81110-0K832 · 81110-0KC12 · 81110-0KE31 · 81110-0KF52 · 81110-0KJ41 · 81110-0KJ81 · 81110-0KK01 · 81110-0KK11 · 81110-0KK50 · 81110-0KK51 · 81110-0KK70 · 81110-0KK71 · 81110-0KK80 · 81110-0KK81 · 81110-0KT91 · 81110-0KU21 · 81110-0KU41 · 81110-0KU91 · 81110-0KU92 · 81110-0KV01 · 81110-0KV02 · 81110-0KV11 · 81110-0KZ20 · 81110-YP061 · 81110-YP151 · 81110-YP371 · 81110-YP401 · 81110-YP441 · 81110-YP442 · 81110-YP451 · 81110-YP452 |
| 81110B | Bulb (for headlight No. 1) | 90981-13058 · 90981-13099 |
| 81110D | Bulb (for headlight No. 2) | 90981-13075 |
| 81116C | Right headlight bracket | 81116-0KE80 |
| 81129A | Right headlight reflector | 81129-0KW60 |
| 81132B | Headlight cover gasket | 81132-48C30 |
| 81135 | Right headlight assembly assembly | 81130-0K652 · 81130-0K662 · 81130-0K672 · 81130-0K682 · 81130-0K692 · 81130-0K752 · 81130-0K772 · 81130-0K782 · 81130-0K792 · 81130-0K801 · 81130-0K821 · 81130-0K832 · 81130-0KC12 · 81130-0KE31 · 81130-0KF52 · 81130-0KJ40 · 81130-0KJ80 · 81130-0KK00 · 81130-0KK10 · 81130-0KK50 · 81130-0KK70 · 81130-0KK80 · 81130-YP060 · 81130-YP150 · 81145-0KT91 · 81145-0KU21 · 81145-0KU41 · 81145-0KV11 · 81145-0KZ20 · 81145-YP371 · 81145-YP401 |
| 81140 | Right headlight LED assembly assembly | 81140-0KE80 · 81140-0KK90 · 81140-0KZ20 |
| 81144C | Headlight lamp holder cover | 81135-0K800 · 90075-65002 · 90075-65006 · 90075-65019 |
| 81150 | Left headlight assembly | 81150-0K652 · 81150-0K662 · 81150-0K672 · 81150-0K682 · 81150-0K692 · 81150-0K752 · 81150-0K772 · 81150-0K782 · 81150-0K792 · 81150-0K801 · 81150-0K821 · 81150-0K832 · 81150-0KC12 · 81150-0KE31 · 81150-0KF52 · 81150-0KJ41 · 81150-0KJ81 · 81150-0KK01 · 81150-0KK11 · 81150-0KK50 · 81150-0KK51 · 81150-0KK70 · 81150-0KK71 · 81150-0KK80 · 81150-0KK81 · 81150-0KT91 · 81150-0KU21 · 81150-0KU41 · 81150-0KU91 · 81150-0KU92 · 81150-0KV01 · 81150-0KV02 · 81150-0KV11 · 81150-0KZ20 · 81150-YP061 · 81150-YP151 · 81150-YP371 · 81150-YP401 · 81150-YP441 · 81150-YP442 · 81150-YP451 · 81150-YP452 |
| 81156A | Left headlight bracket | 81156-0KE80 |
| 81160A | Left headlight LED assembly assembly | 81160-0KE80 · 81160-0KK90 · 81160-0KZ20 |
| 81169 | Left headlight reflector | 81169-0KW60 |
| 81175 | Left headlight assembly assembly | 81170-0K652 · 81170-0K662 · 81170-0K672 · 81170-0K682 · 81170-0K692 · 81170-0K752 · 81170-0K772 · 81170-0K782 · 81170-0K792 · 81170-0K801 · 81170-0K821 · 81170-0K832 · 81170-0KC12 · 81170-0KE31 · 81170-0KF52 · 81170-0KJ40 · 81170-0KJ80 · 81170-0KK00 · 81170-0KK10 · 81170-0KK50 · 81170-0KK70 · 81170-0KK80 · 81170-YP060 · 81170-YP150 · 81185-0KT91 · 81185-0KU21 · 81185-0KU41 · 81185-0KV11 · 81185-0KZ20 · 81185-YP371 · 81185-YP401 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15020 · 90981-15021 · 90981-15028 |
| 81510J | Bulb (for daytime running lights) | 90981-13088 |
| 81510L | Daytime running light lamp holder | 90075-60086 |
| 81515B | Front turn signal lamp holder | 90069-81110 · 90075-60028 · 90075-60069 |
| 81610F | Light bulb (for width indicator light) | 90981-11069 · 90981-11070 · 90981-13101 |
| 81615D | Width light lamp holder | 90069-81109 · 90075-60077 · 90075-60089 |
| 85661 | Right headlight beam height adjustment motor | 85661-02040 · 85661-0D020 |
| 85662 | Left headlight beam height adjustment motor | 85661-02040 · 85661-0D020 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
| 85967 | Light control ECU | 85967-12050 |
