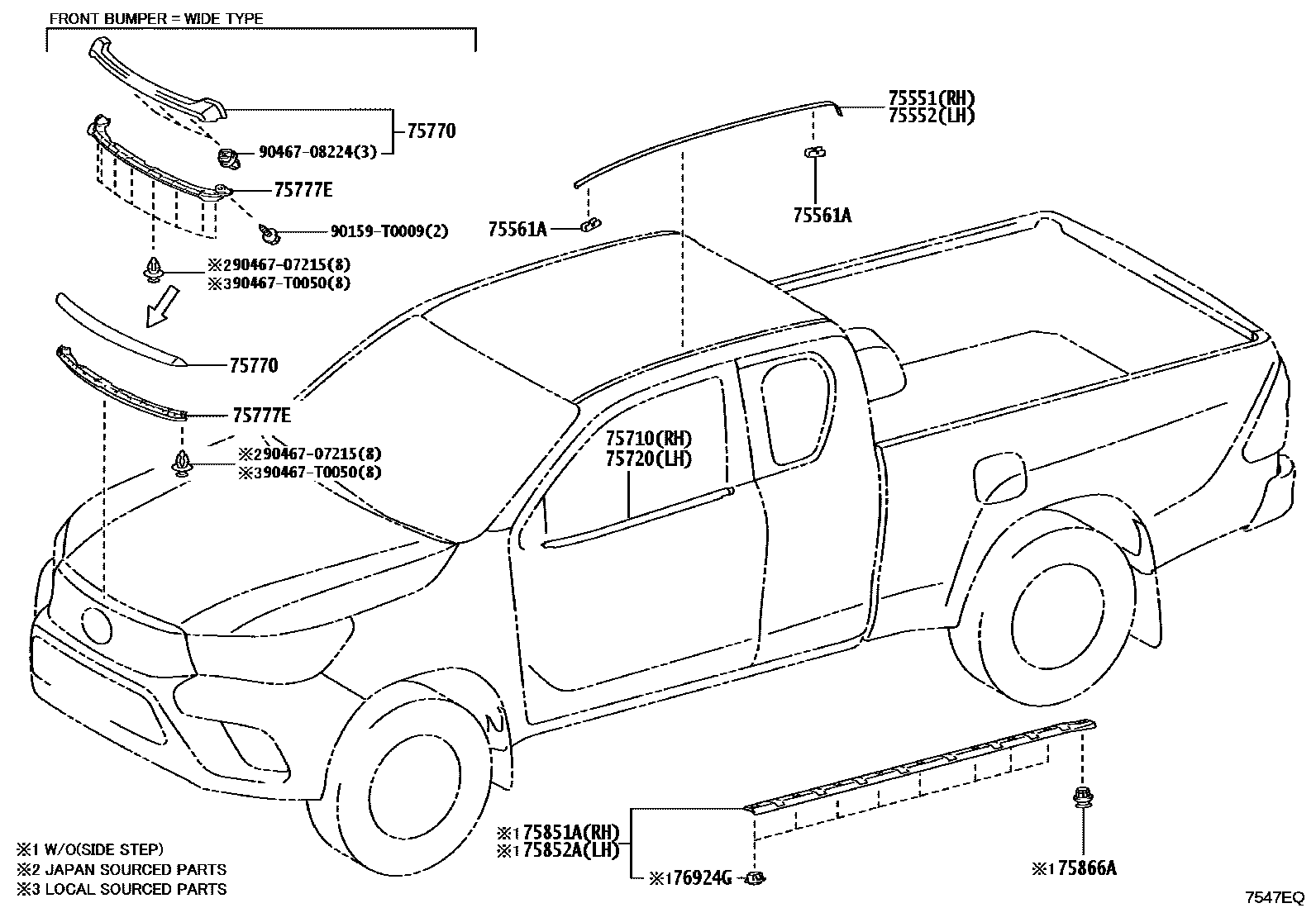

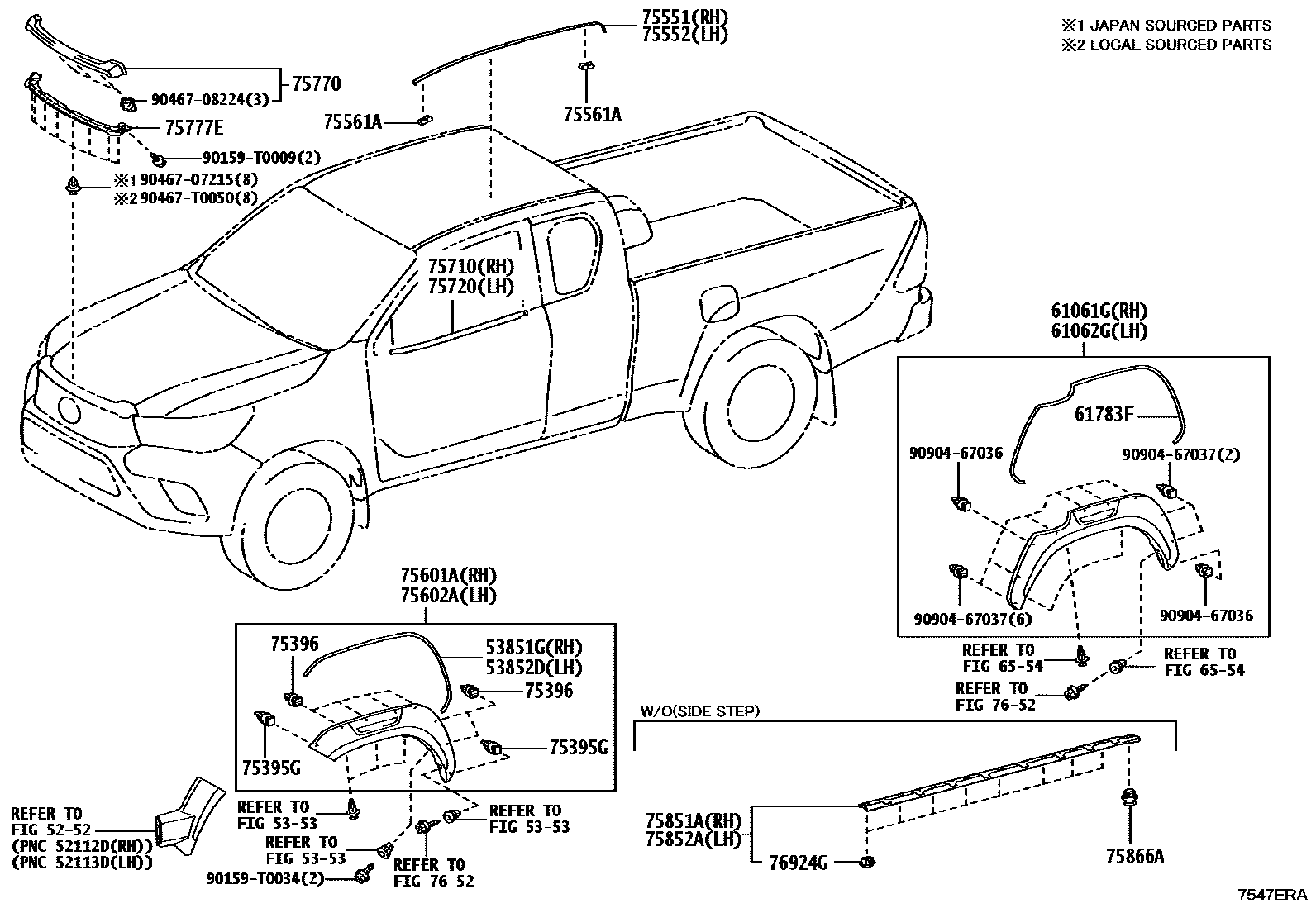

Toyota HILUX 防护条 — Figure 7552
Toyota HILUX EPC diagram 7552, 防护条, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53851G | Right front fender outer panel pad | 53851-YP010 · 53851-YP020 |
| 53852D | Left front fender exterior panel pad | 53852-YP010 · 53852-YP020 |
| 61061G | Right rear No. 1 fender external panel sub-assembly | 61061-YP030 · 61061-YP040 |
| 61062G | Left rear No. 1 fender external panel sub-assembly | 61062-YP030 · 61062-YP040 |
| 61783F | No. 1 rear fender outer panel pad | 61783-YP030 · 61783-YP040 · 61784-YP030 · 61784-YP040 |
| 75395G | No. 1 outer protective strip clip | 75395-0K010 |
| 75396 | No. 2 outer protective strip clip | 75396-35020 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-0K170 · 75551-0K180 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-0K170 · 75552-0K180 |
| 75561A | Roof drain channel side decorative strip clip | 75561-33030 |
| 75601A | Right front fender protection strip sub-assembly | 53087-YP010 · 53087-YP020 |
| 75602A | Left front fender protection strip sub-assembly | 53088-YP010 · 53088-YP020 |
| 75710 | Right front door waistline protection strip assembly | 68160-0K040 |
| 75720 | Left front door waistline protection strip assembly | 68210-0K040 |
| 75770 | Engine cover front protective strip assembly | 75770-0K311 · 75770-0K312 · 75770-0K341 · 75770-0K342 · 75770-0K351 · 75770-0K371 · 75770-0K372 · 75770-0K380 · 75770-0K381 · 75770-0K390 · 75770-0K391 · 75770-0K401 · 75770-0K430 · 75770-0K431 · 75770-0K460 · 75770-0K470 · 75770-0K490 · 75770-YP030 · 75770-YP031 · 75770-YP040 |
| 75777E | Engine cover front protective strip liner | 53393-0K010 · 53393-0K020 · 53393-0K041 · 53393-0K051 |
| 75851A | Right front door sill panel protective strip | 75851-0K020 · 75851-0K030 · 75851-0K080 · 75851-0K090 · 75851-0K100 |
| 75852A | Left front door sill panel protective strip | 75852-0K020 · 75852-0K030 · 75852-0K080 · 75852-0K090 · 75852-0K100 |
| 75866A | Door sill panel protective strip fixings | 76923-52021 |
| 76924G | Door sill panel protective strip fixings | 76924-0K010 · 76924-0K020 |
