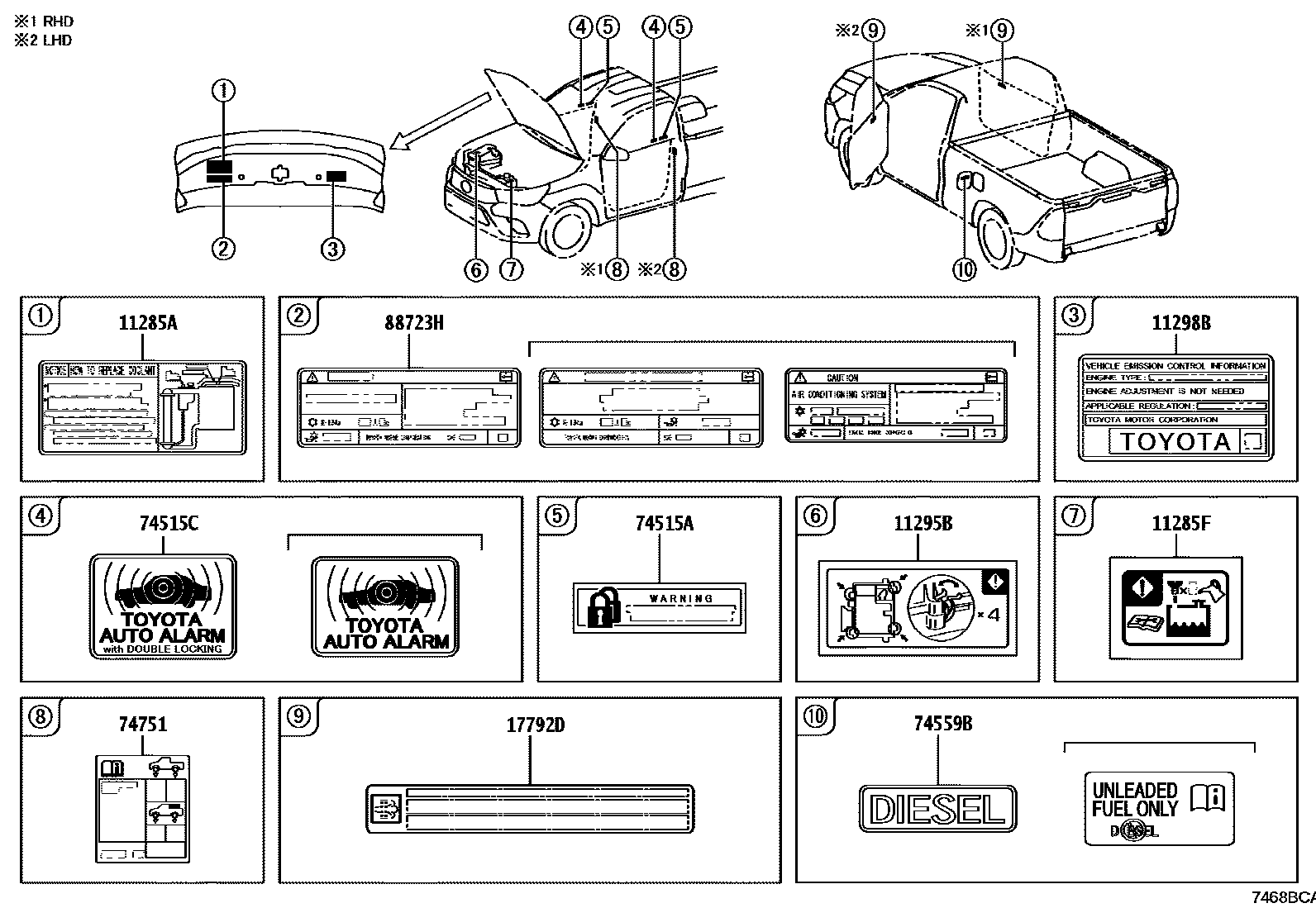

Toyota HILUX warning nameplate — Figure 7455
Toyota HILUX EPC diagram 7455, warning nameplate, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0E010 |
| 11285F | Coolant System Warning Label | 11285-0E030 |
| 11295B | No. 1 Engine Maintenance Attention Label | 11295-0E010 |
| 11298B | Emission Control Information Label | 11298-0E040 |
| 17792D | Emission control device information label | 17792-11750 · 17792-11800 |
| 74515A | Anti-theft warning nameplate | 74515-20010 |
| 74515C | Anti-theft warning information label | 74515-0K020 · 74515-42010 |
| 74559B | fuel information label | 74559-0K020 · 74559-20140 · 74559-89101 · 74559-YE010 |
| 74751 | tire pressure information label | 42661-0KM31 · 42661-0KM40 · 42661-0KM50 · 42661-0KM70 · 42661-0KM80 · 42661-0KM90 · 42661-0KN10 · 42661-0KN20 · 42661-0KN40 · 42661-0KN50 · 42661-0KN60 · 42661-0KN90 · 42661-0KQ50 · 42661-0KQ70 · 42661-0KQ90 · 42661-0KS20 · 42661-0KS50 · 42661-0KT11 · 42661-0KT30 · 42661-0KT50 |
| 88723H | Cooler maintenance warning label | 88723-0K260 · 88723-0K261 · 88723-0K270 · 88723-0K300 · 88723-0K321 · 88723-0K350 · 88723-0K360 · 88723-0K390 |
