Toyota HILUX 扶手和遮阳板 — Figure 7451

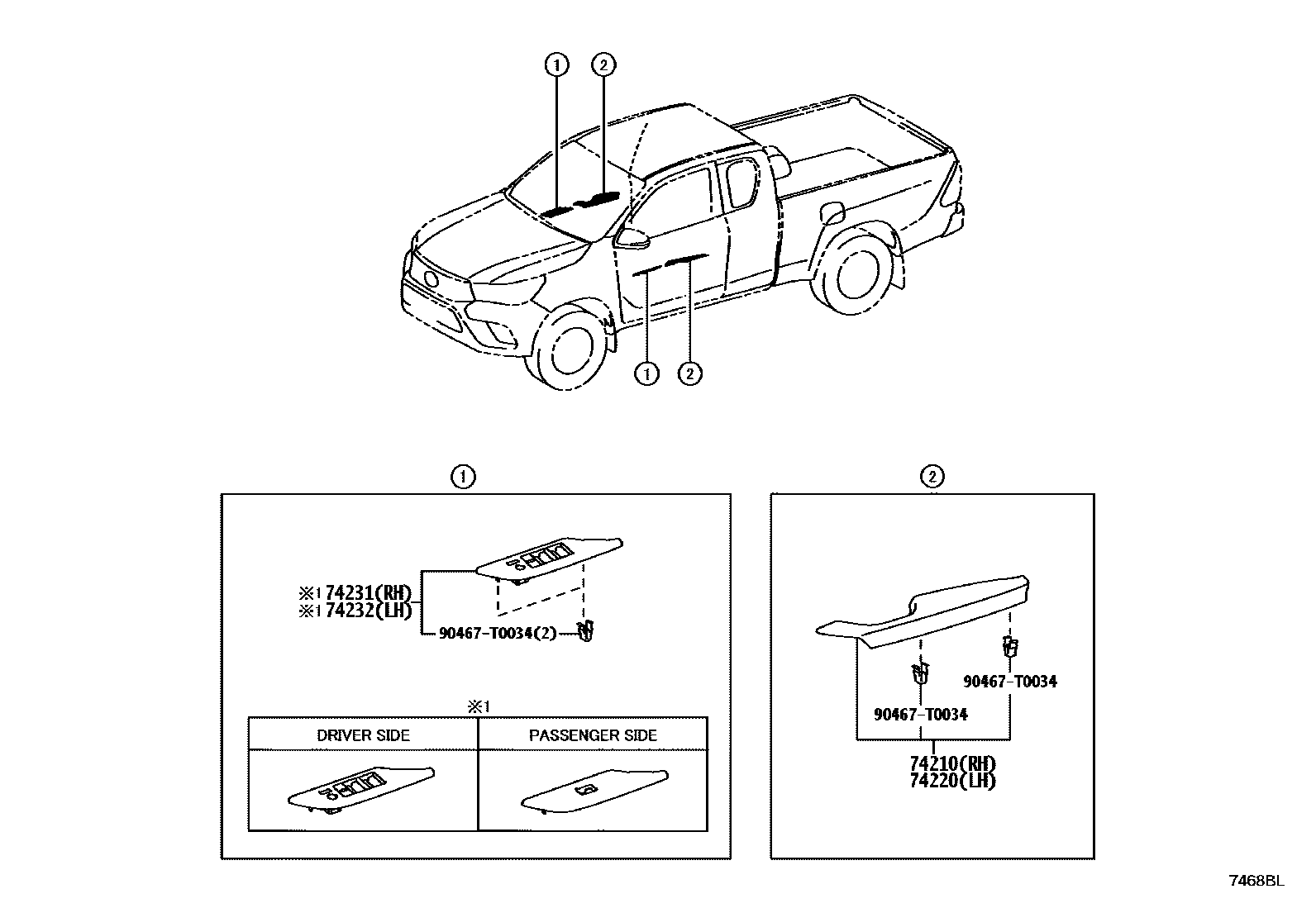

Toyota HILUX EPC diagram 7451, 扶手和遮阳板, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-0K580 · 74231-0K591 · 74231-0K600 · 74231-0K611 · 74231-0K620 · 74231-0K710 · 74231-0K770 · 74231-0K790 · 74231-0K800 · 74231-0KB10 · 74231-0KB60 |
| 74232 | Left front armrest upper panel | 74232-0K591 · 74232-0K600 · 74232-0K611 · 74232-0K620 · 74232-0K770 · 74232-0K790 · 74232-0K800 · 74232-0KA60 · 74232-0KB20 · 74232-0KB40 |
