Toyota HILUX 后地板和后地板梁 — Figure 5852

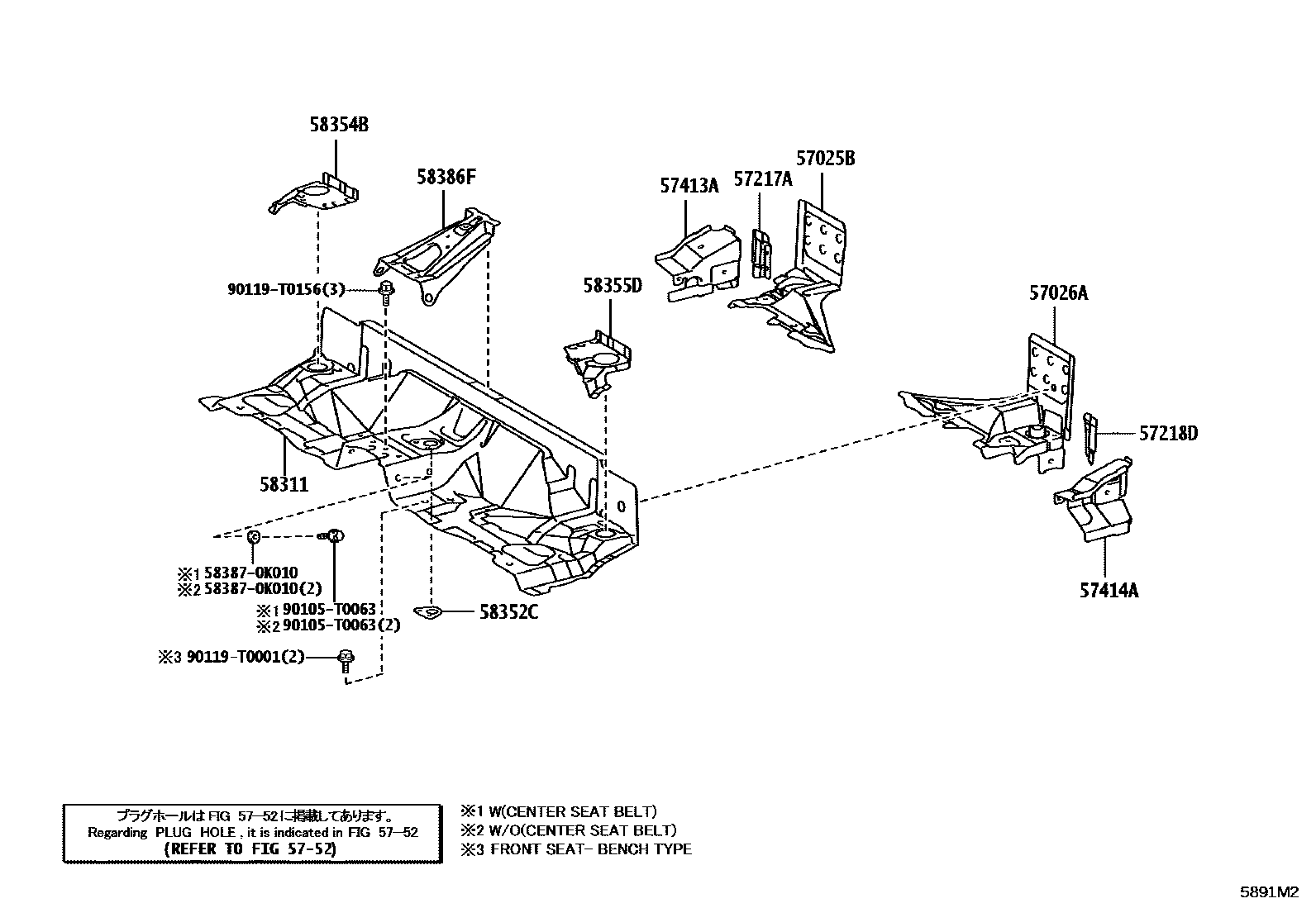

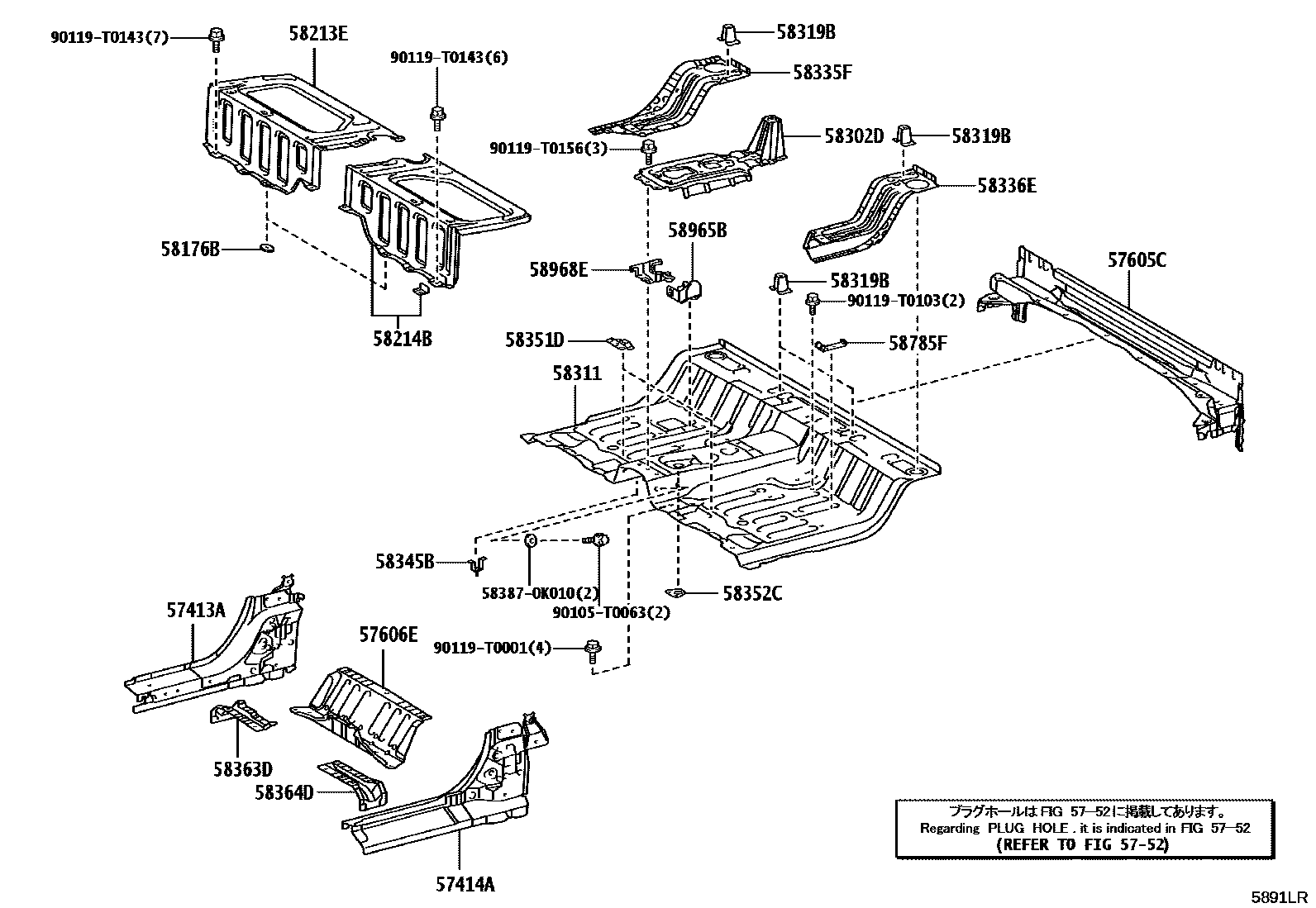

Toyota HILUX EPC diagram 5852, 后地板和后地板梁, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57025B | Right body No. 3 mounting bracket sub-assembly | 57025-KK010 |
| 57026A | Left body No. 3 mounting bracket sub-assembly | 57026-KK010 |
| 57217A | Right body No. 4 mounting bracket | 57217-0K020 |
| 57218D | Left body No. 4 mounting bracket | 57218-0K020 |
| 57413A | Rear floor right inner longitudinal beam | 57403-KK030 · 57413-KK030 |
| 57414A | Rear floor left inner longitudinal beam | 57404-KK030 · 57414-KK030 |
| 57605C | Rear floor cross member sub-assembly | 57605-KK010 |
| 57606E | Rear floor No. 2 cross member sub-assembly | 57606-0K020 · 57606-0K021 |
| 58176B | Rear seat fixing nut piece | 58176-0K020 |
| 58213E | Right seat floor side panel | 58201-KK030 |
| 58214B | Left seat floor side panel | 58202-KK020 |
| 58302D | Rear floor front panel sub-assembly | 58302-KK020 |
| 58311 | rear floor pan | 58311-KK040 · 58311-KK050 · 58311-KK060 · 58311-KK080 · 58311-KK180 |
| 58319B | Rear floor side panel bracket | 58319-KK010 |
| 58335F | Front floor right panel | 58335-KK030 |
| 58336E | Front floor left panel | 58336-KK030 |
| 58345B | Rear floor insulation pad bracket No. 1 | 58345-0K010 |
| 58351D | Rear floor reinforcement | 57555-KK010 |
| 58352C | Rear floor reinforcement No. 2 | 58352-KK010 |
| 58354B | Rear floor reinforcement No. 4 | 58354-0K050 |
| 58355D | Rear floor reinforcement No. 5 | 58355-0K050 |
| 58363D | Rear floor No. 2 right reinforcement | 58363-KK010 |
| 58364D | Rear floor No. 2 left reinforcement | 58364-KK010 |
| 58386F | Body lower back panel 2 corner panel | 58386-KK010 |
| 58785F | Tool bag strap holder | 58785-89106 |
| 58965B | Jack holder | 58965-0K030 |
| 58968E | Jack stand No. 2 | 58968-KK010 |
