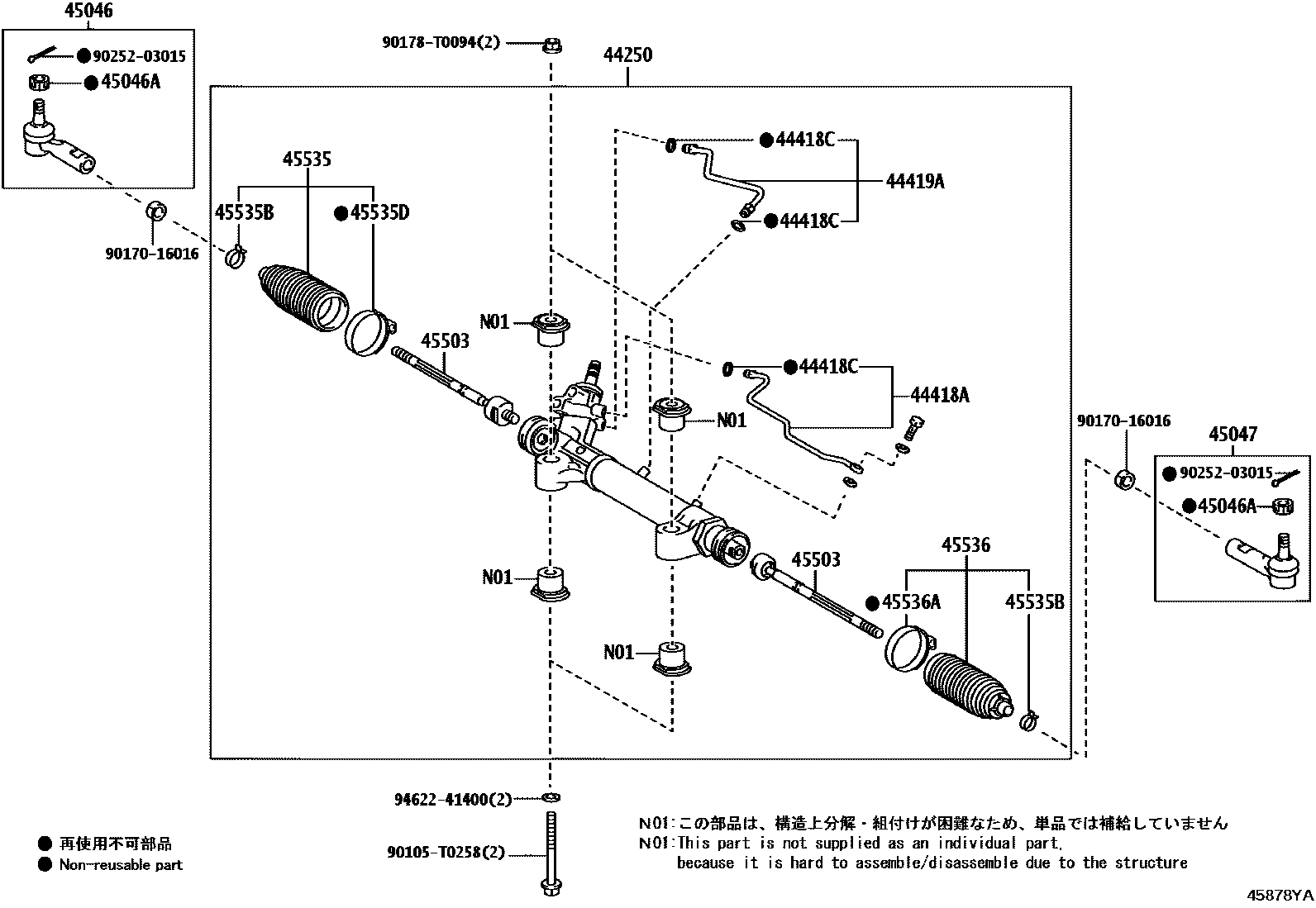

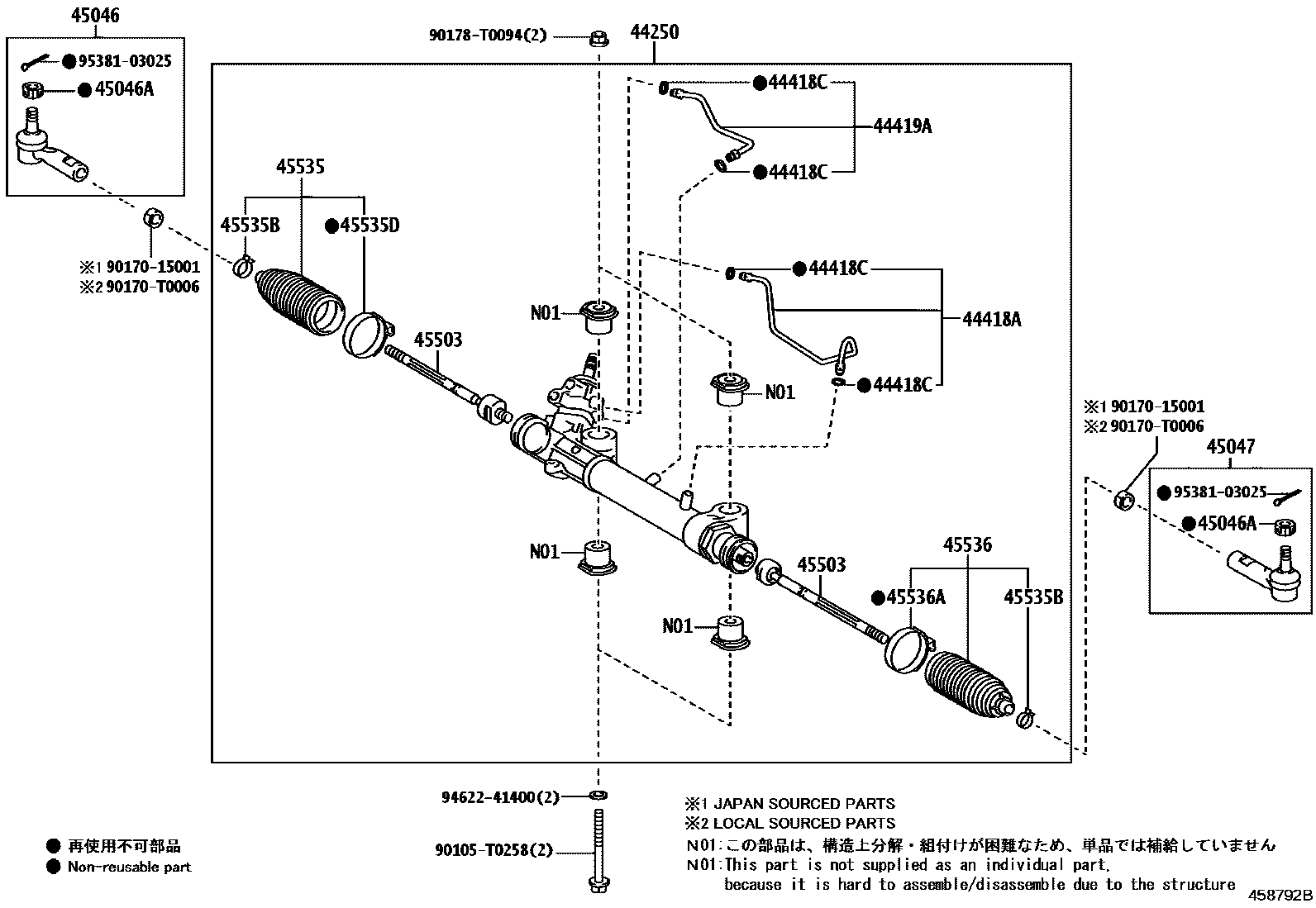

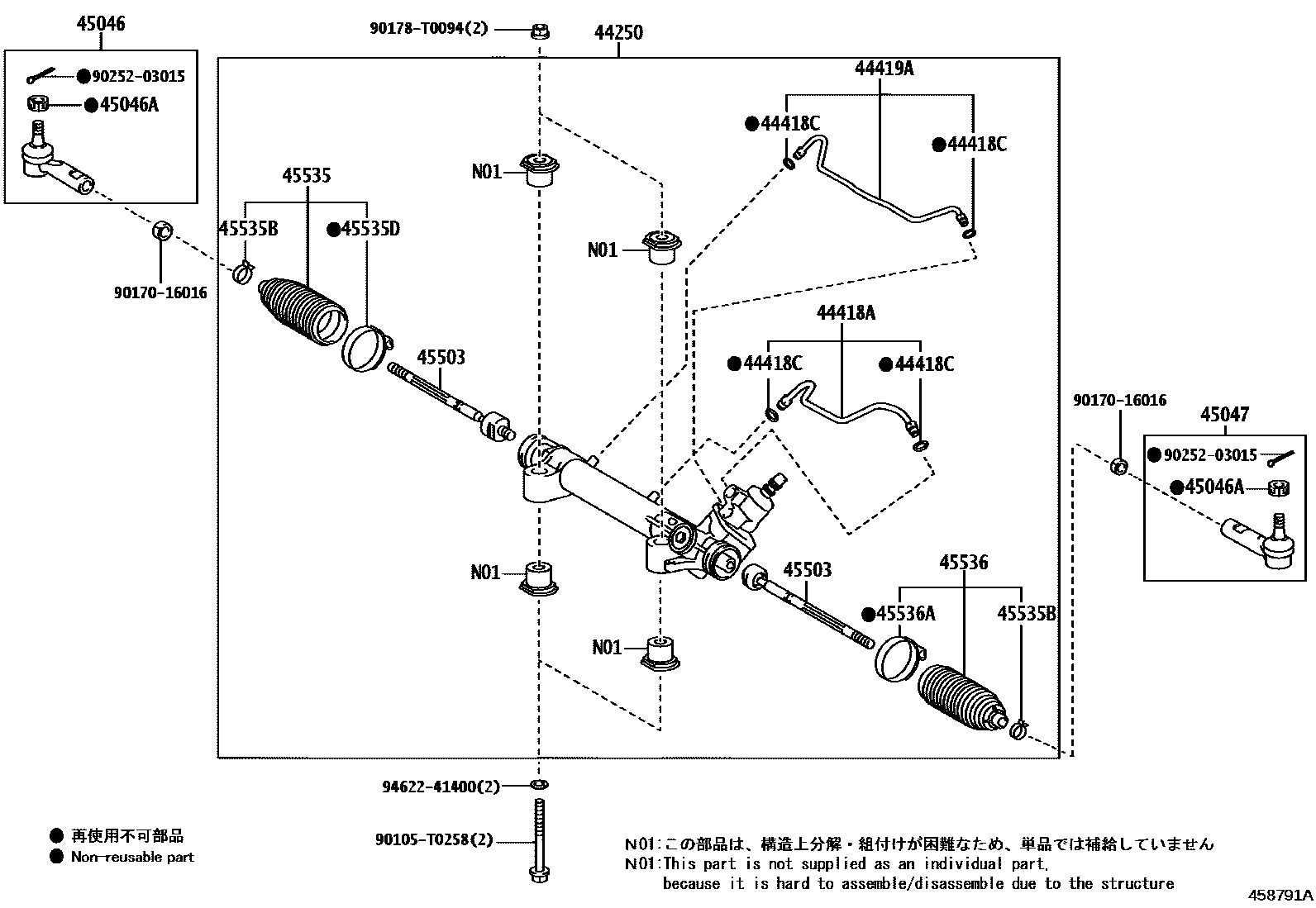

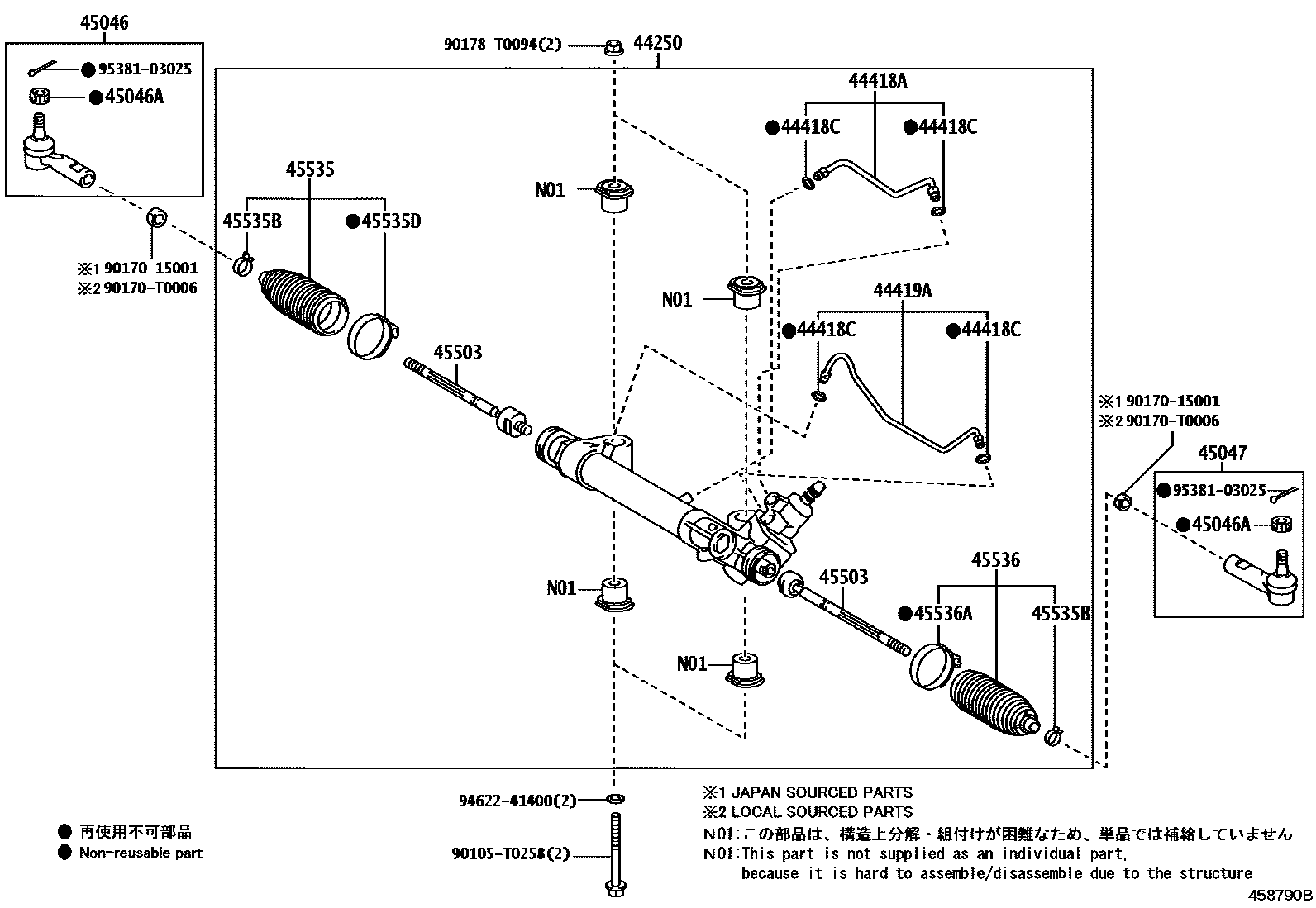

Toyota HILUX 前转向齿轮和连杆 — Figure 4505
Toyota HILUX EPC diagram 4505, 前转向齿轮和连杆, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-0K603 · 44250-0K623 · 44250-0K633 · 44250-0K643 · 44250-0K653 · 44250-0K663 · 44250-0K673 · 44250-0K693 · 44250-0K713 · 44250-0K723 · 44250-0K733 · 44250-0K743 · 44250-0K754 · 44250-0K763 |
| 44418A | Right steering pressure oil pipe | 44418-0K190 · 44418-0K200 · 44418-0K220 · 44418-0K230 · 44418-0K250 · 44418-0K260 · 44418-0K270 · 44418-0K280 |
| 44418C | O-ring (for steering pressure oil pipe) | 90301-T0032 |
| 44419A | Left steering pressure oil pipe | 44419-0K190 · 44419-0K200 · 44419-0K220 · 44419-0K230 · 44419-0K250 · 44419-0K260 · 44419-0K270 · 44419-0K280 |
| 45046 | Right tie rod end sub-assembly | 45046-09780 · 45046-09800 |
| 45046A | Castle nuts (for tie rod ends) | 90171-T0002 · 90171-T0004 |
| 45047 | Left tie rod end sub-assembly | 45046-09780 · 45046-09800 |
| 45503 | Steering rack end sub-assembly | 45503-0K110 · 45503-0K130 |
| 45535 | No. 1 steering rack dust cover | 45535-09380 · 45535-09390 · 45535-09400 · 45535-09410 · 45535-09420 |
| 45535B | Clamp (for steering rack dust boot) | 45537-0D040 · 90466-T0004 · 90466-T0005 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-0K010 · 45538-0K020 · 45538-0K030 · 45538-0K040 · 45538-0K050 |
| 45536 | No. 2 steering rack dust cover | 45535-09380 · 45535-09390 · 45535-09400 · 45535-09410 · 45535-09420 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-0K010 · 45538-0K020 · 45538-0K030 · 45538-0K040 · 45538-0K050 |
