Toyota HILUX 真空泵 — Figure 1905

Toyota HILUX EPC diagram 1905, 真空泵, with 2 images and 12 PNC and OE references.

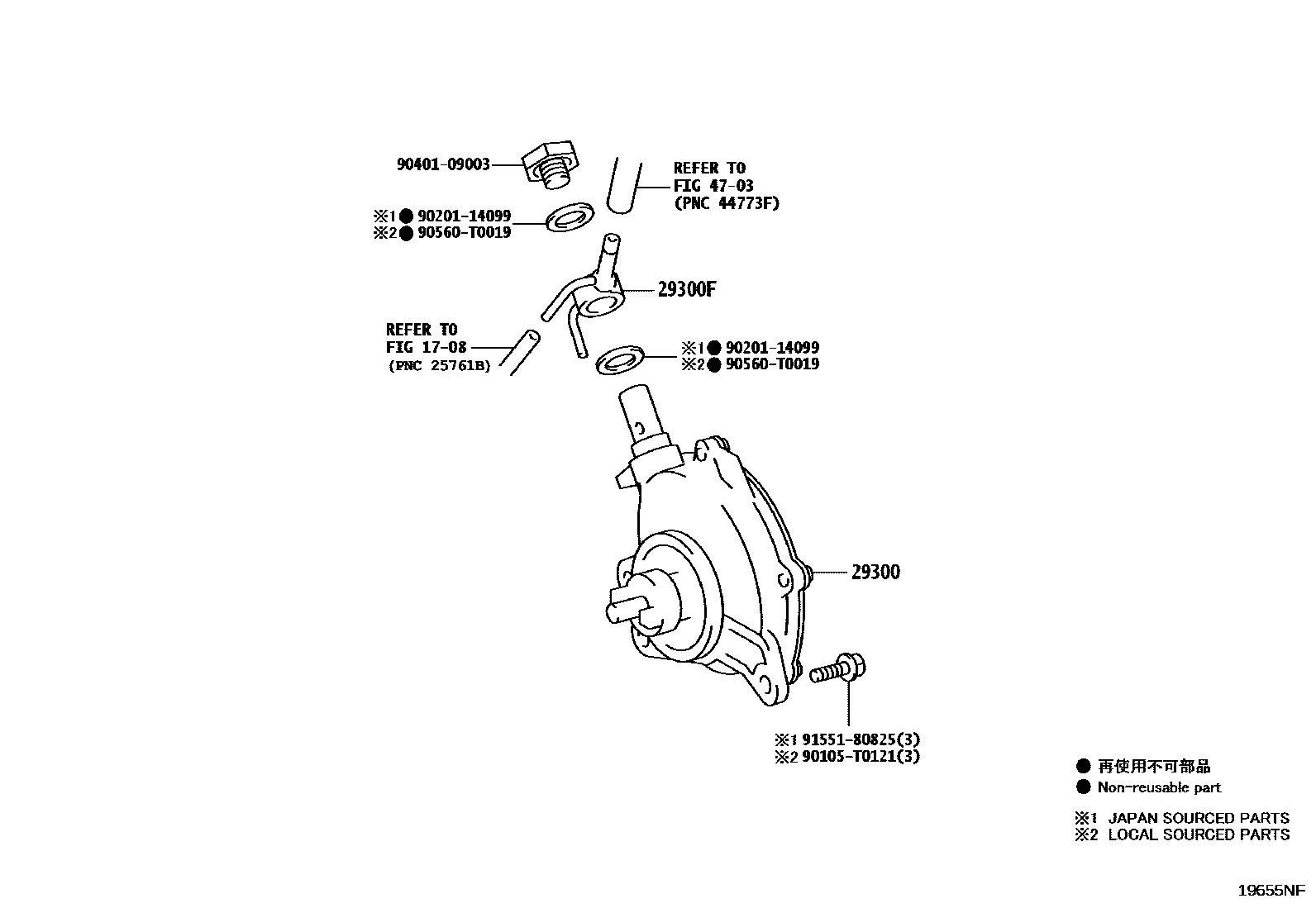

Toyota HILUX 真空泵 EPC diagram — 19655NF
真空泵 — 19655NF (202408 – 999999)

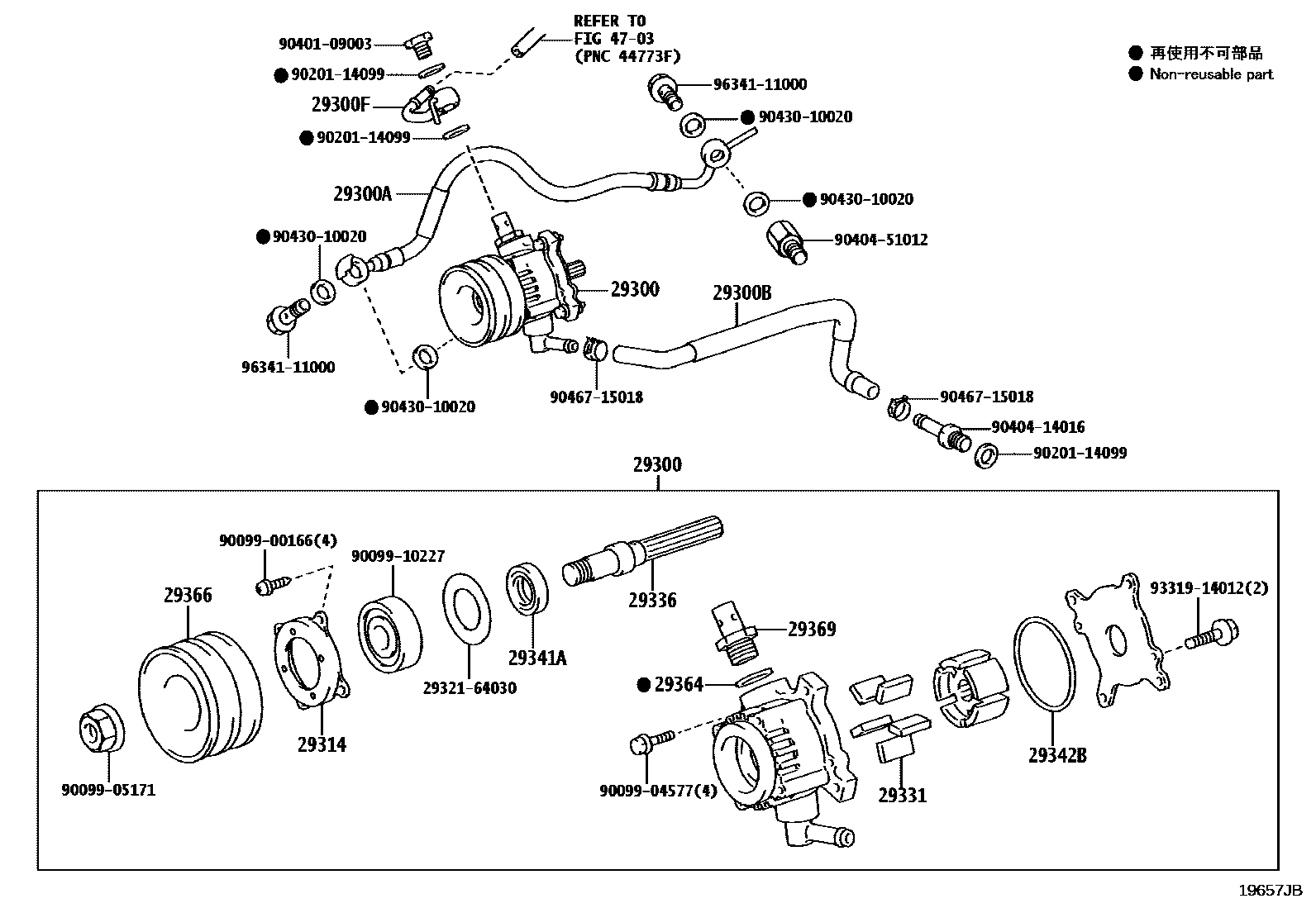

Toyota HILUX 真空泵 EPC diagram — 19657JB
真空泵 — 19657JB (202411 – 999999)

PNC and OE references

PNCPart nameOE numbers
29300Vacuum pump assembly29300-08010 · 29300-35010 · 29300-54180
29300AVacuum pump oil inlet hose90923-02118
29300BVacuum pump oil hose29611-54100
29300FConnector90405-09180 · 90405-09194 · 90405-T0001 · 90405-T0005
29314retaining ring29314-64030
29331Vacuum pump A blade29331-54130
29336Vacuum pump shaft29336-64031
29341AOil seal29341-64030
29342BO-ring29342-64030
29364vacuum pump gasket29364-66010
29366Vacuum pump pulley29366-54110
29369One-way valve sub-assembly29369-64030
