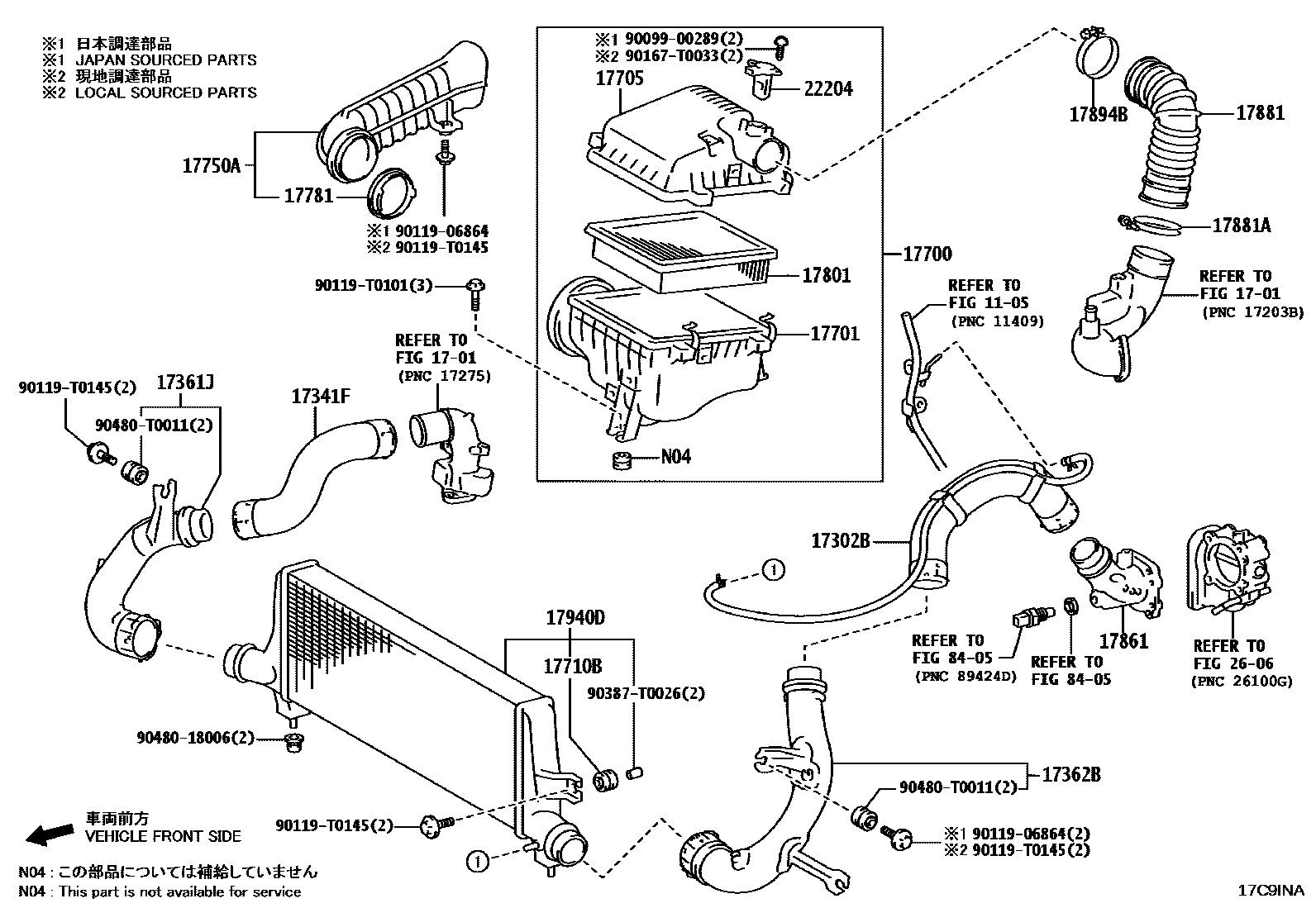

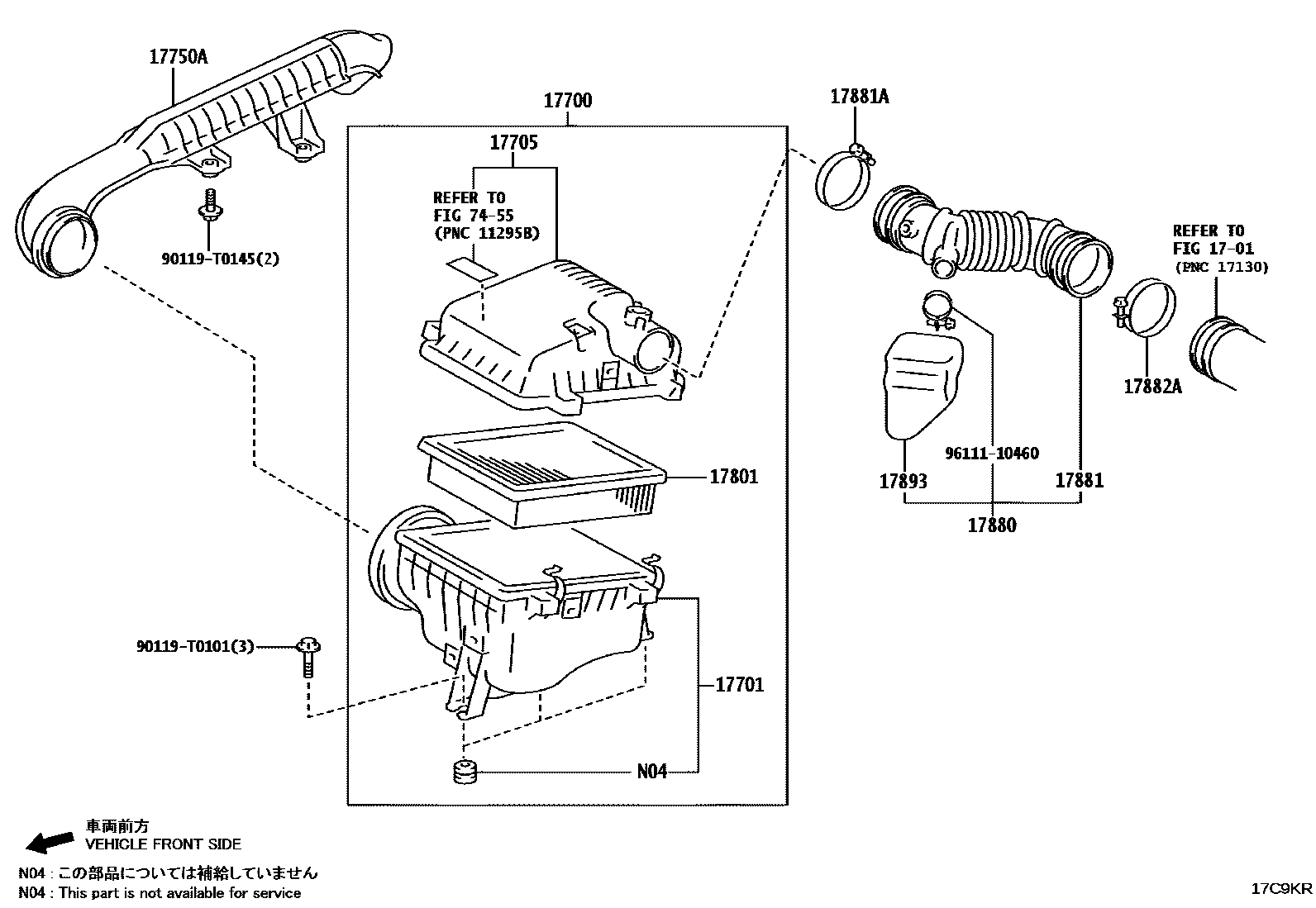

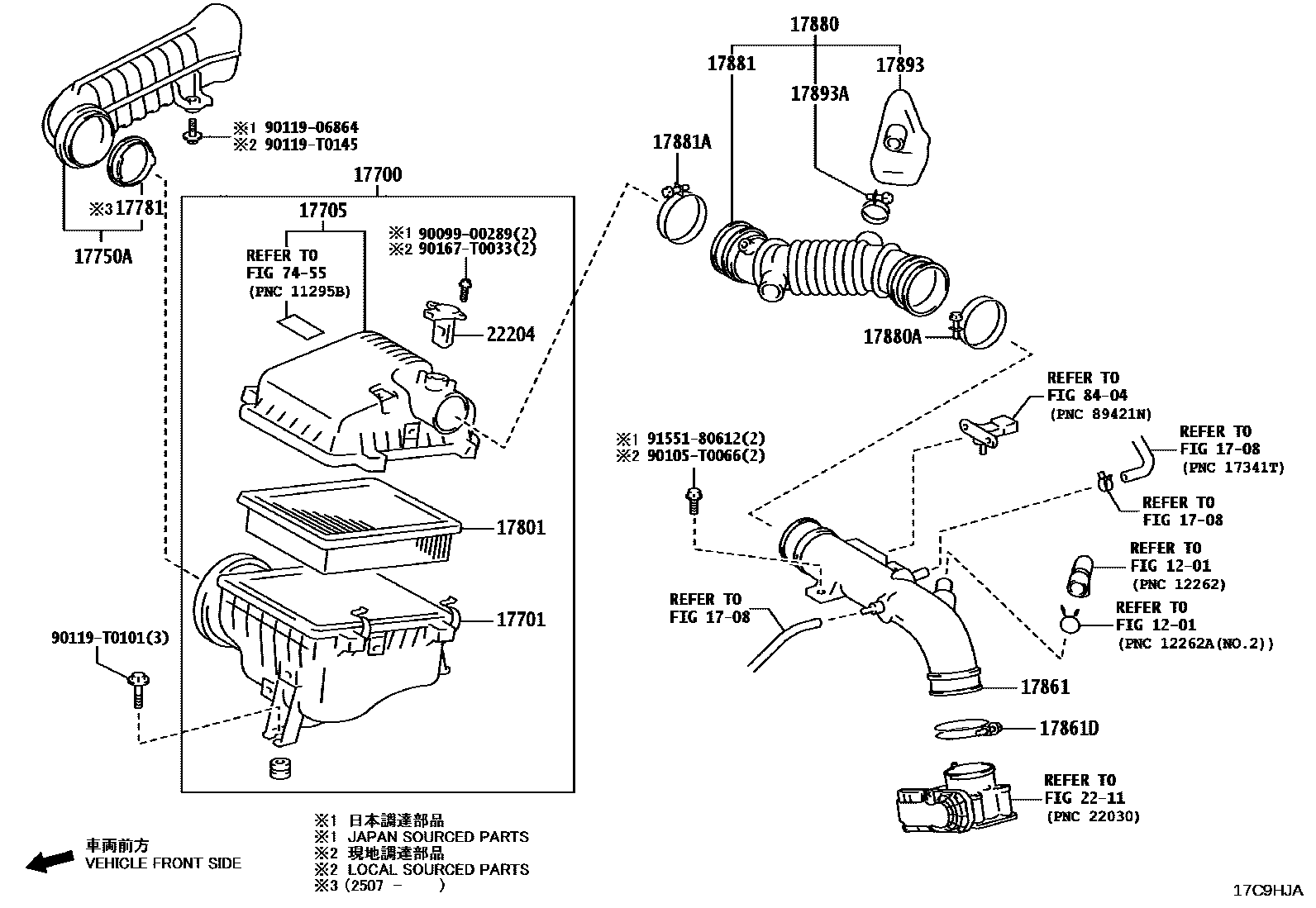

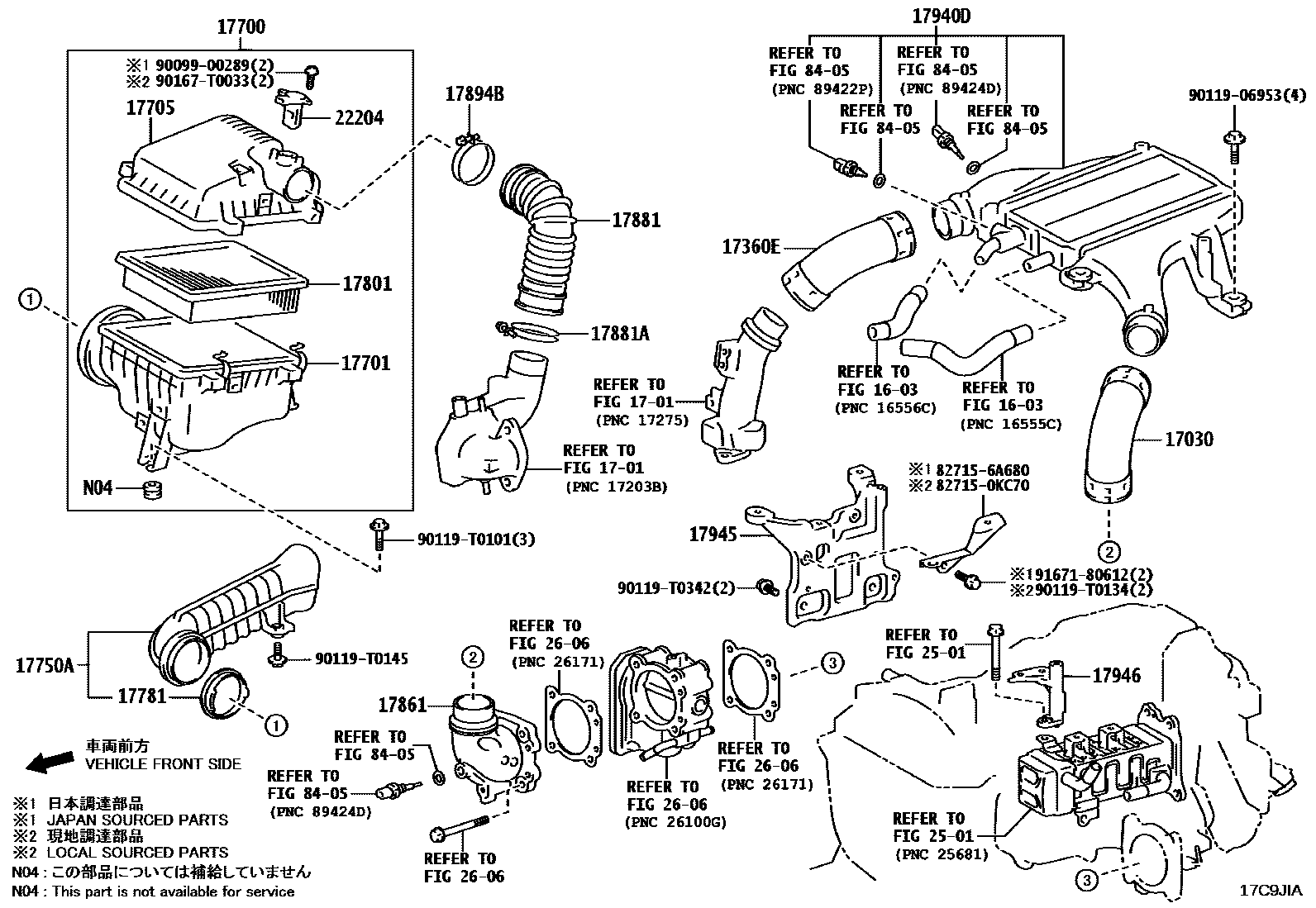

Toyota HILUX Air Cleaner — Figure 1703
Toyota HILUX EPC diagram 1703, Air Cleaner, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17030 | air hose assembly | 17030-11040 |
| 17302B | Air hose sub-assembly | 17302-0E022 |
| 17341F | Air hose No. 1 | 17341-0E022 · 17341-0E040 |
| 17360E | No. 1 air pipe assembly | 17360-11090 |
| 17361J | Air tube No. 1 | 17361-0E010 |
| 17362B | No. 2 air pipe | 17362-0E010 |
| 17700 | air filter assembly | 17700-0C210 · 17700-0C240 · 17700-0C250 · 17700-0C251 · 17700-0L290 · 17700-0L350 · 17700-0L380 · 17700-0L390 · 17700-0L391 |
| 17701 | Air filter housing sub-assembly | 17701-0C170 · 17701-0C180 · 17701-0C190 · 17701-0C200 · 17701-0C220 · 17701-0C230 |
| 17705 | Air filter cover sub-assembly | 17705-0C160 · 17705-0C170 · 17705-0C180 · 17705-0L280 · 17705-0L290 · 17705-0L320 · 17705-0L330 |
| 17710B | gasket | 90480-F0002 |
| 17750A | Air filter air inlet assembly | 17750-05031 · 17750-0L060 · 17750-0L070 |
| 17781 | Air filter air inlet seal | 17781-0E010 · 17781-0E020 |
| 17801 | Air filter element sub-assembly | 17801-0E030 · 17801-0L040 |
| 17861 | Intake connecting pipe | 17861-08010 · 17861-08020 · 17861-0C080 · 17861-0C120 · 17861-0C130 · 17861-0C150 · 17861-0E030 · 17861-11140 |
| 17861D | Clamp (for air intake connecting pipe) | 90460-T0005 · 90460-T0010 · 96111-10750 · 96111-10800 |
| 17880 | Air cleaner hose assembly | 17880-05021 · 17880-0C091 |
| 17880A | hose clamp | 90460-T0005 |
| 17881 | No. 1 air cleaner hose | 17881-05061 · 17881-0C111 · 17881-0E021 · 17881-0E050 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-T0005 · 90460-T0020 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-T0005 |
| 17893 | Intake resonator | 17893-0C070 |
| 17893A | hose clamp | 96111-10460 |
| 17894B | Hose clamp (for intake resonator No. 2) | 90460-T0020 |
| 17940D | Intercooler assembly | 17940-0E010 · 17940-0E030 · 17940-0E040 · 17940-11100 |
| 17945 | intercooler bracket | 17945-0E011 · 17945-11050 |
| 17946 | No. 2 intercooler bracket | 17946-0E010 |
| 22204 | Intake air flow meter assembly | 22204-30030 · 22204-75040 |
