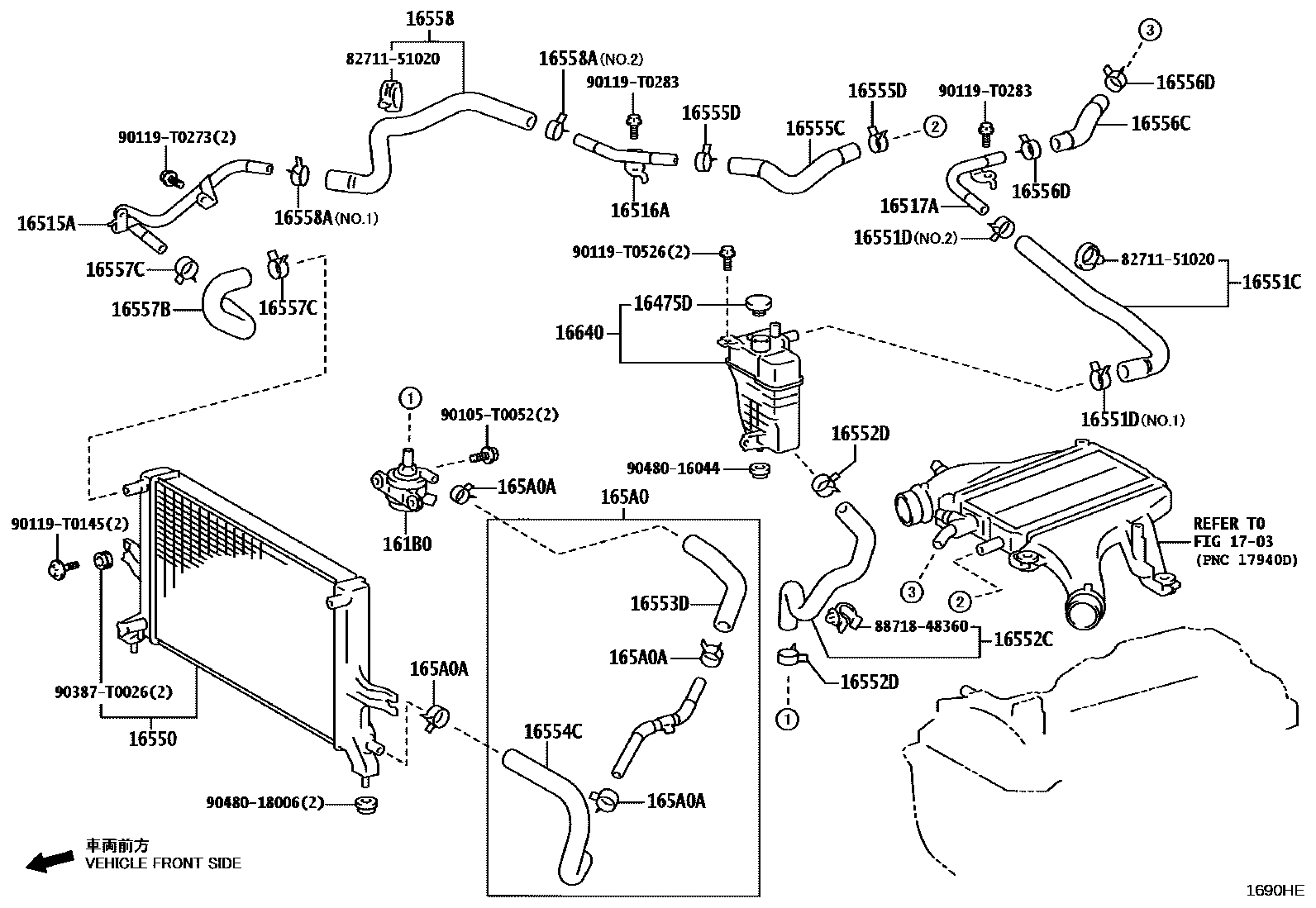

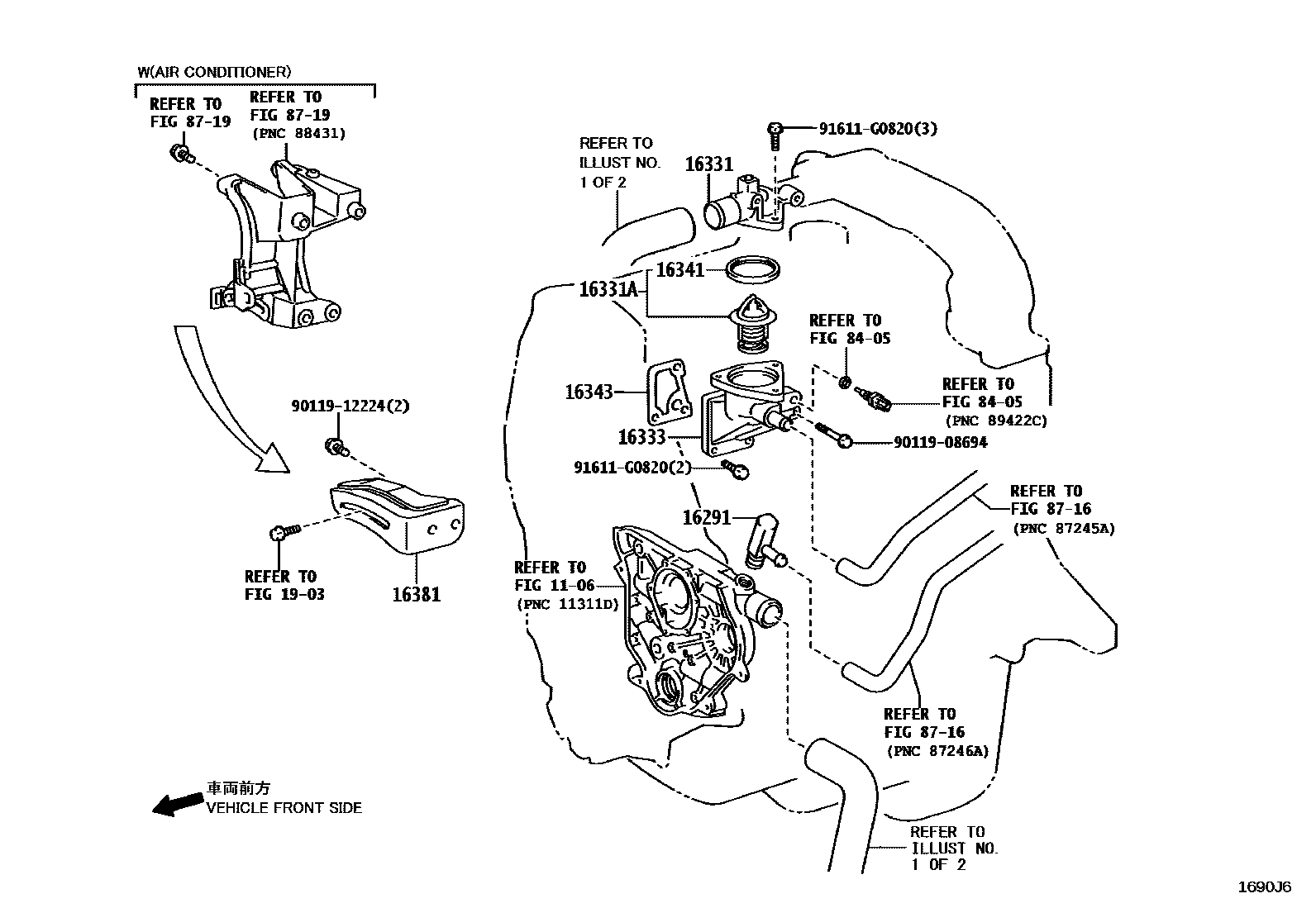

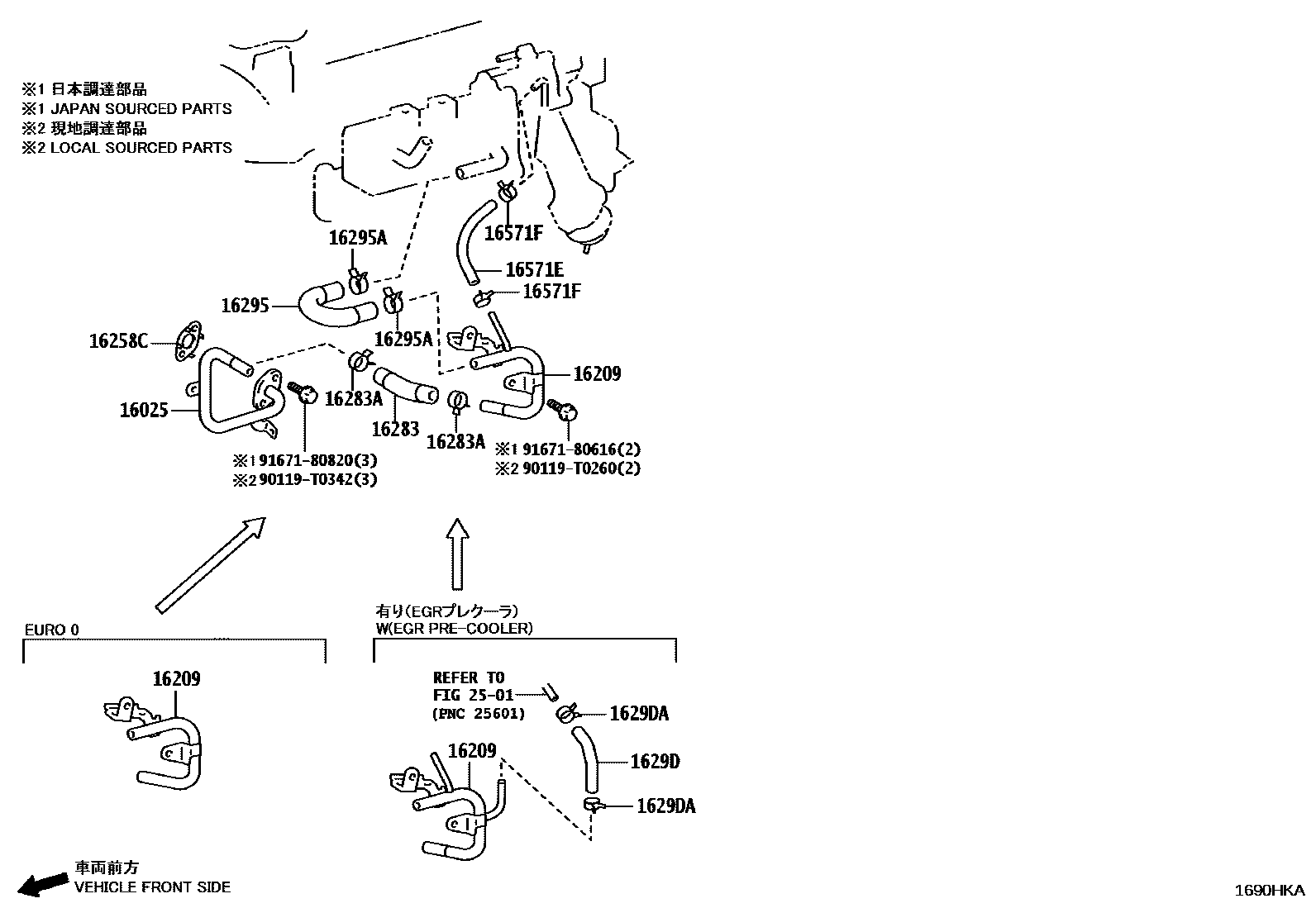

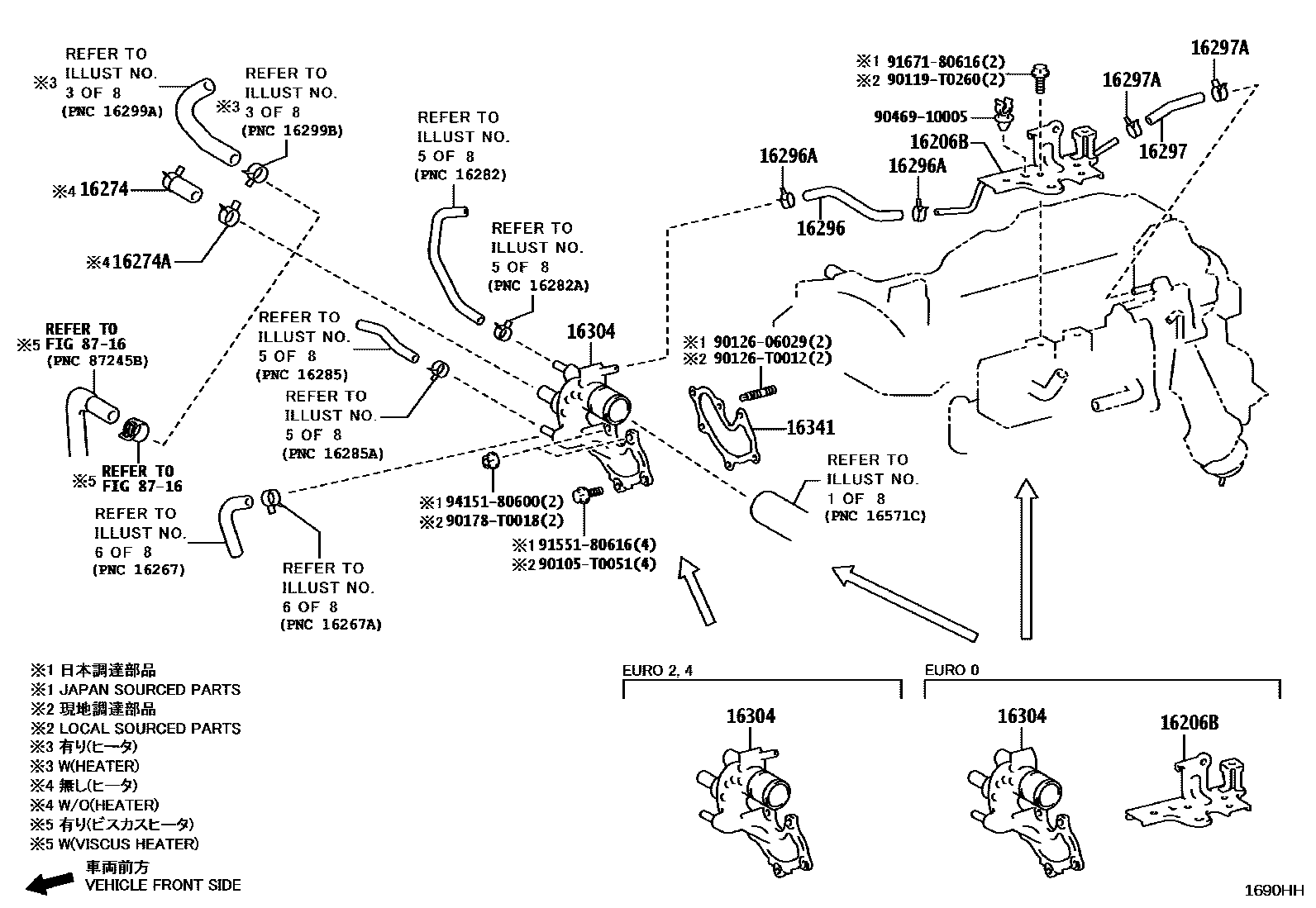

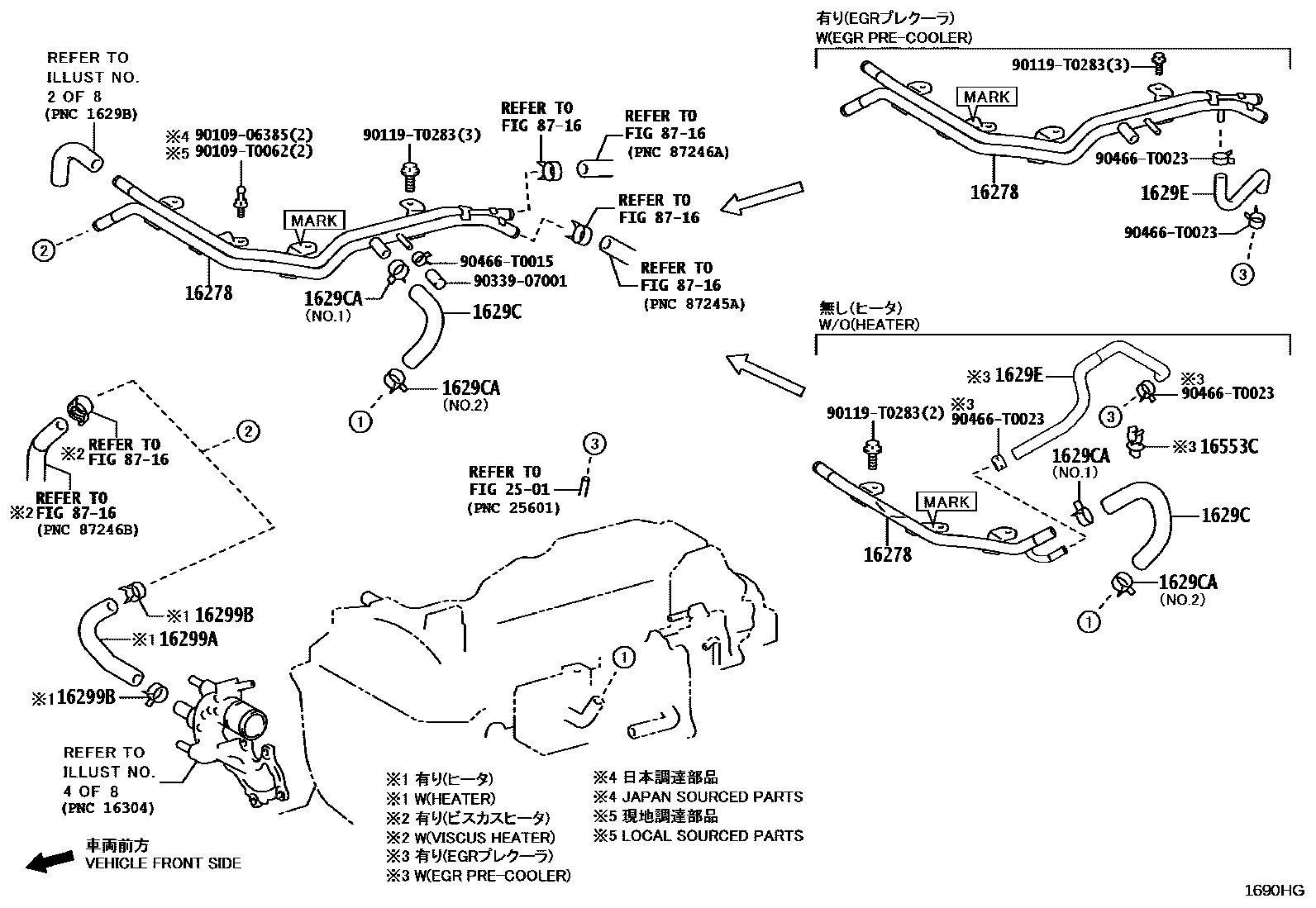

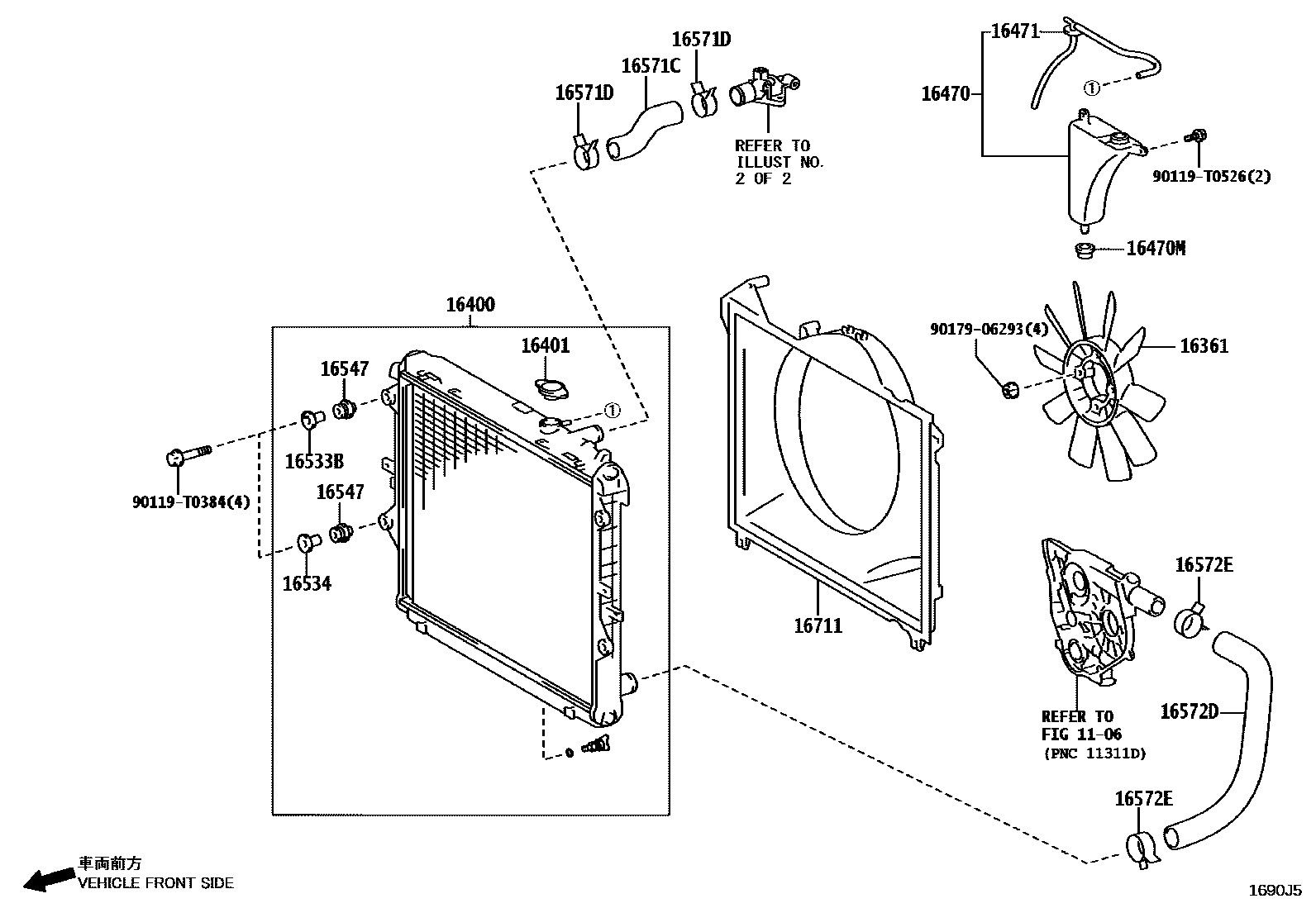

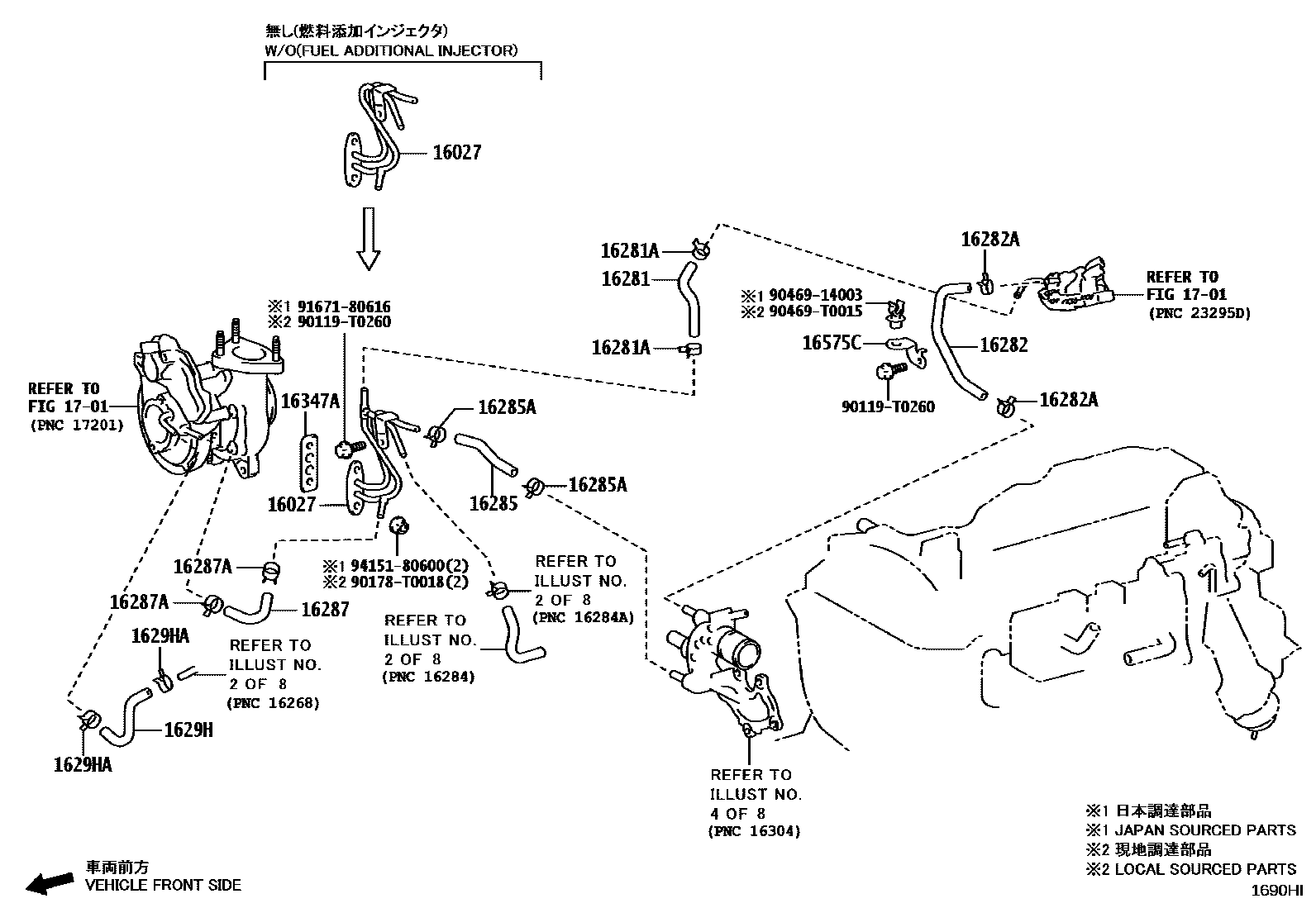

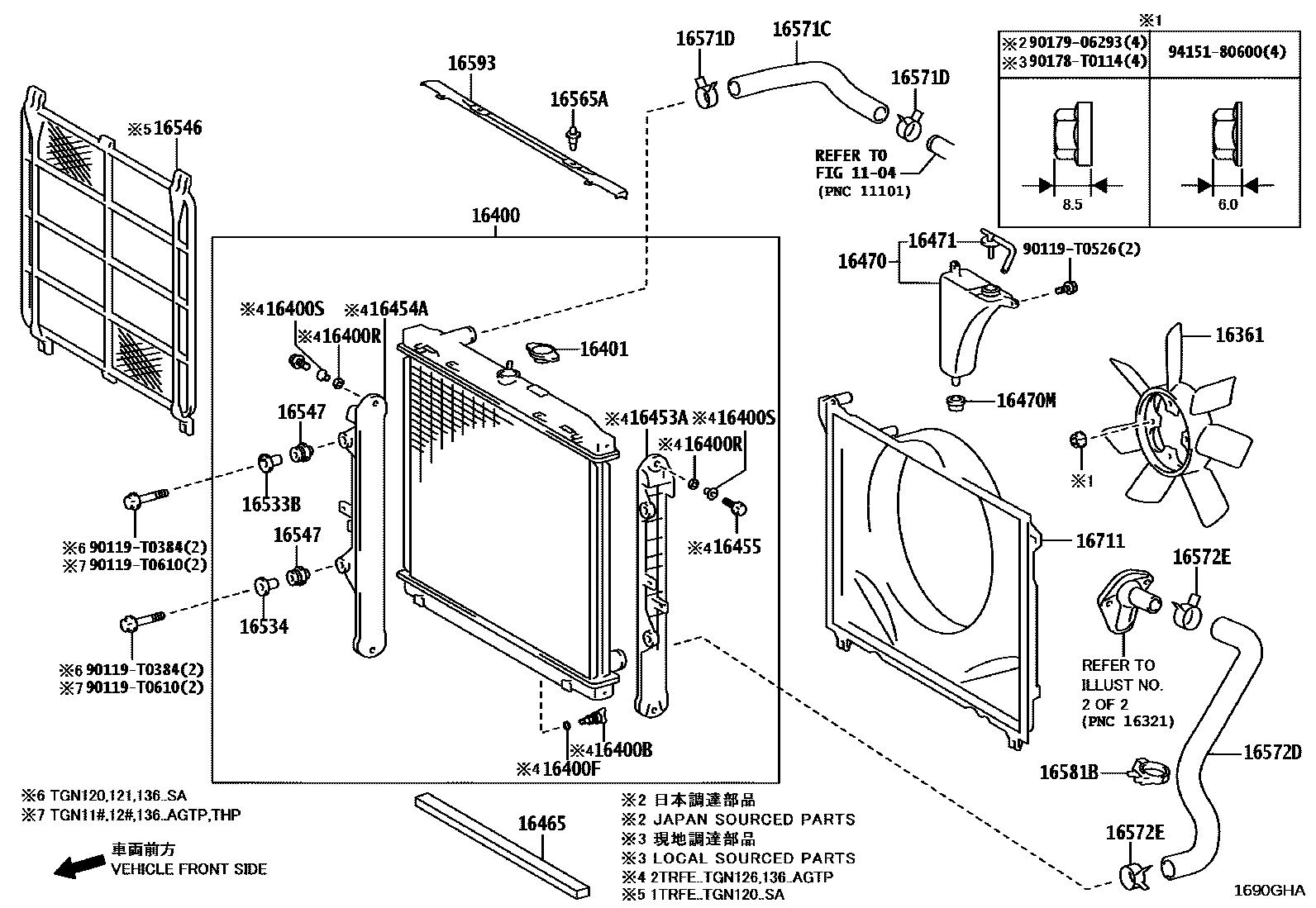

Toyota HILUX RADIATOR & WATER OUTLET — Figure 1603

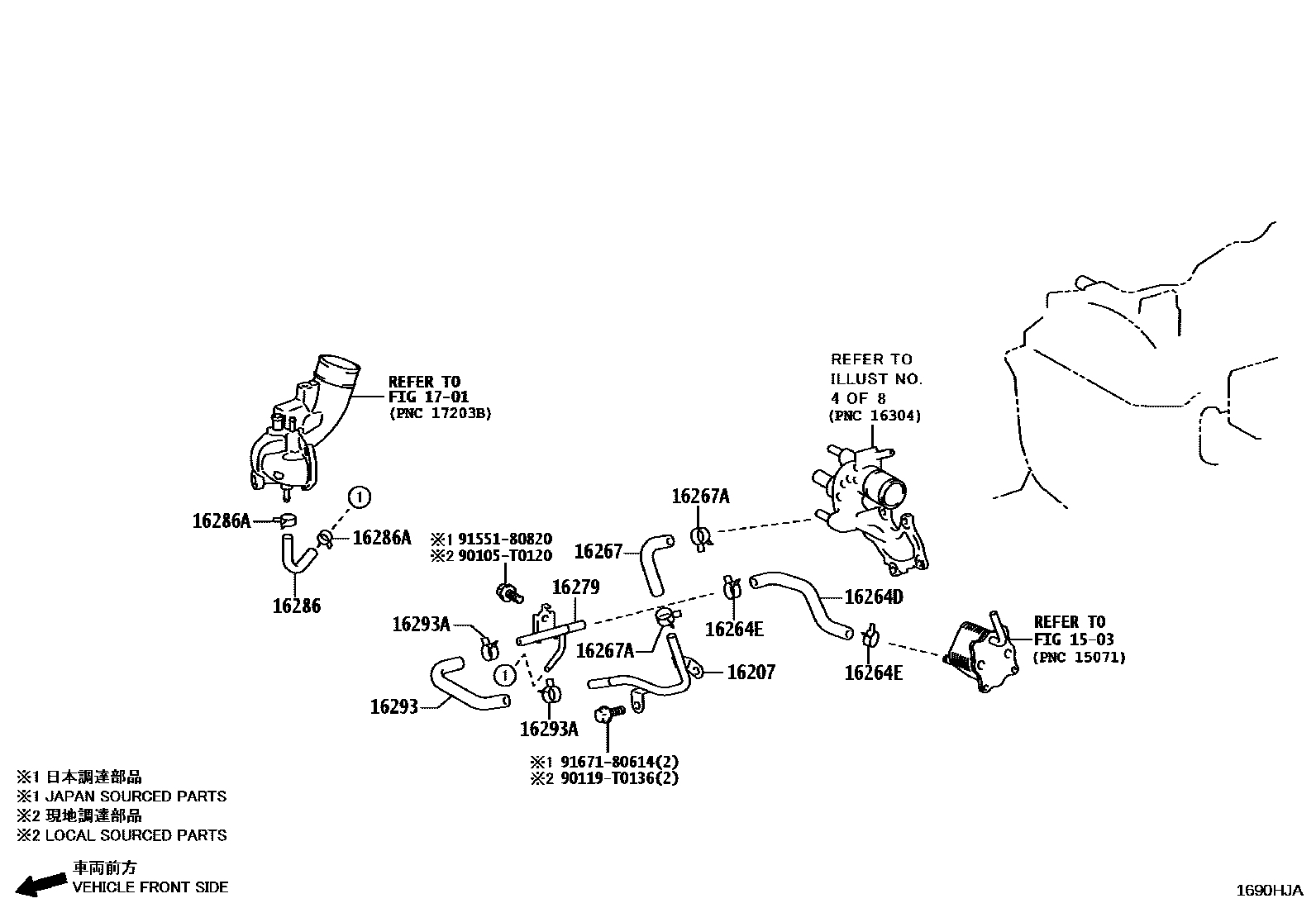

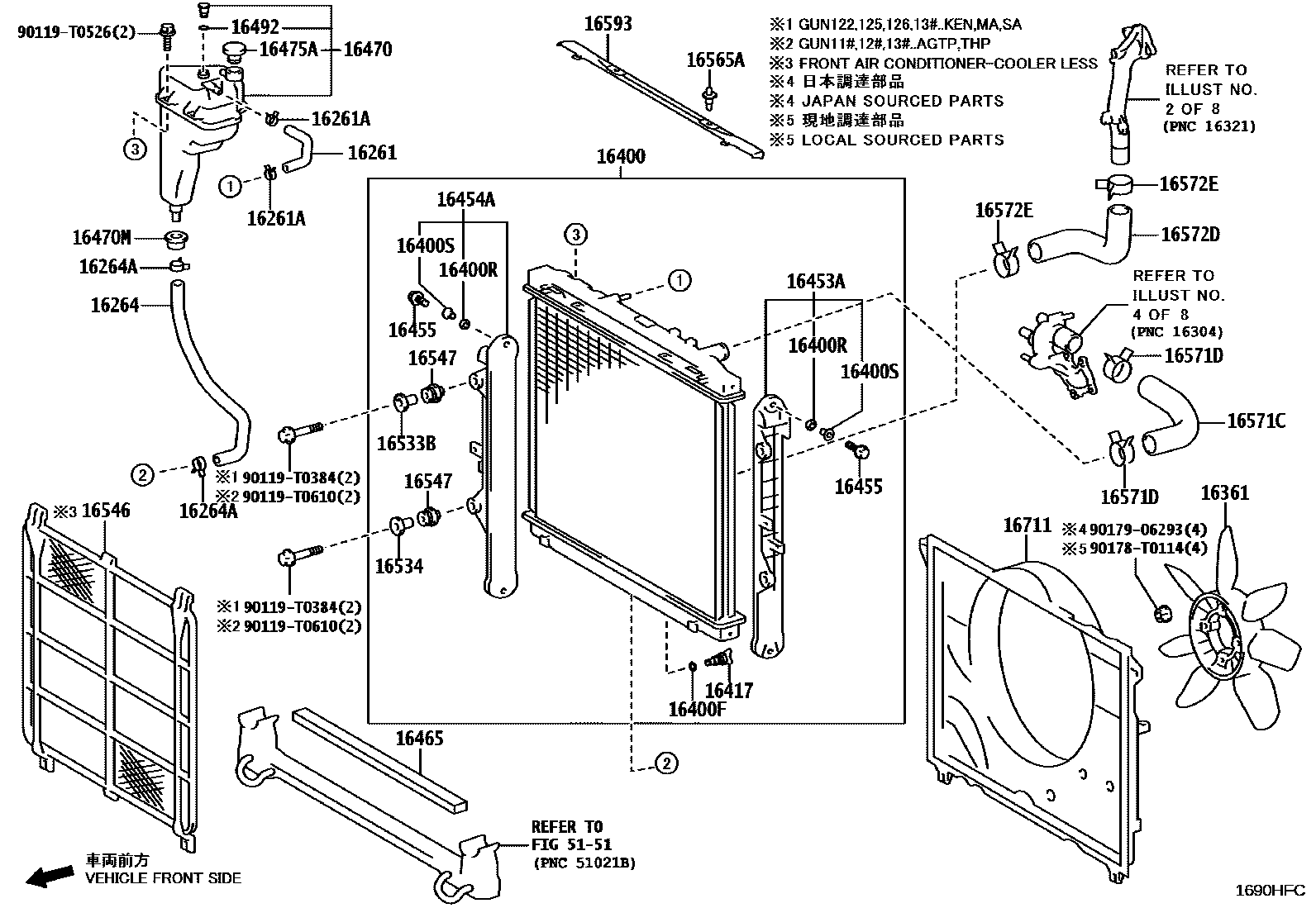

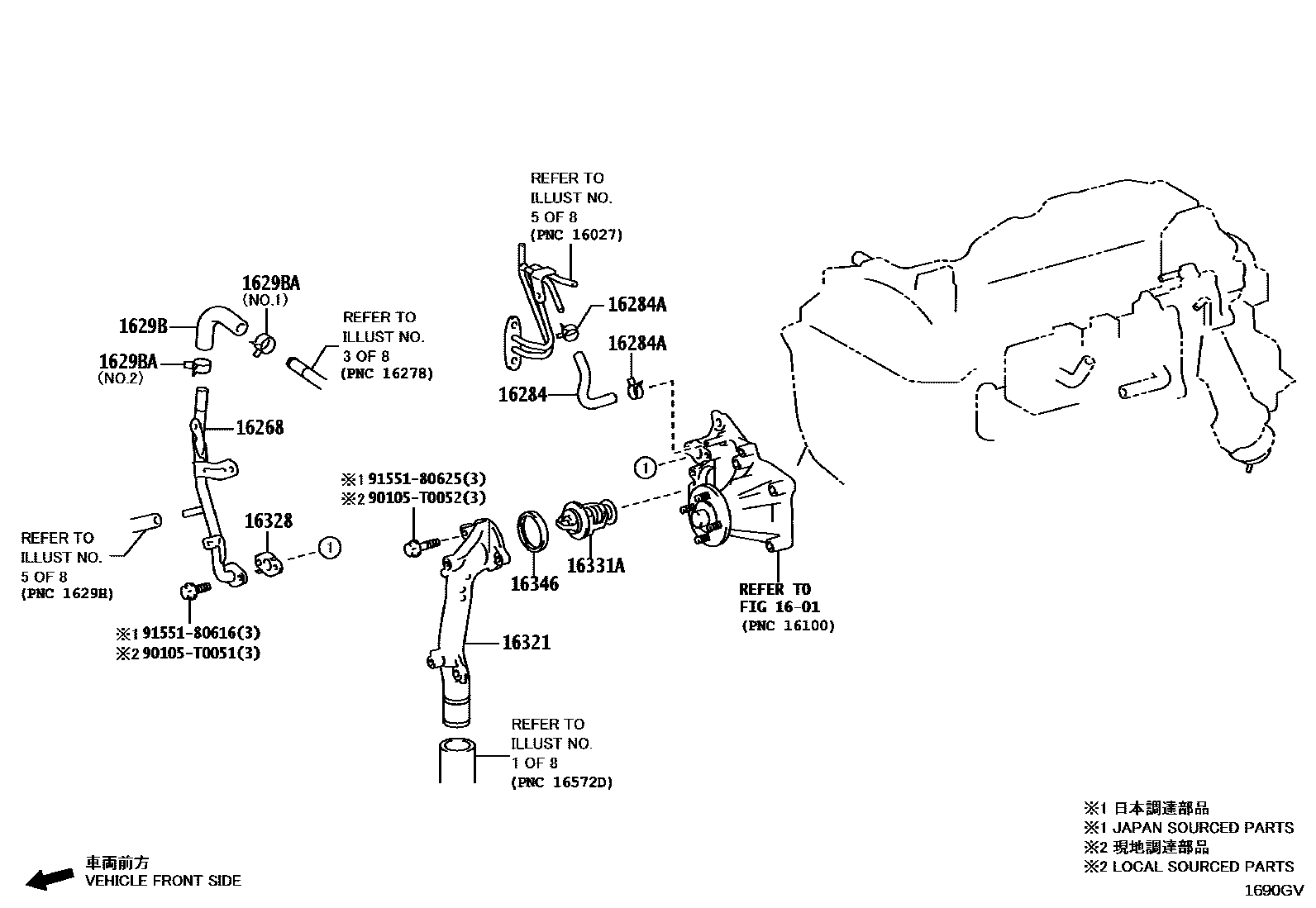

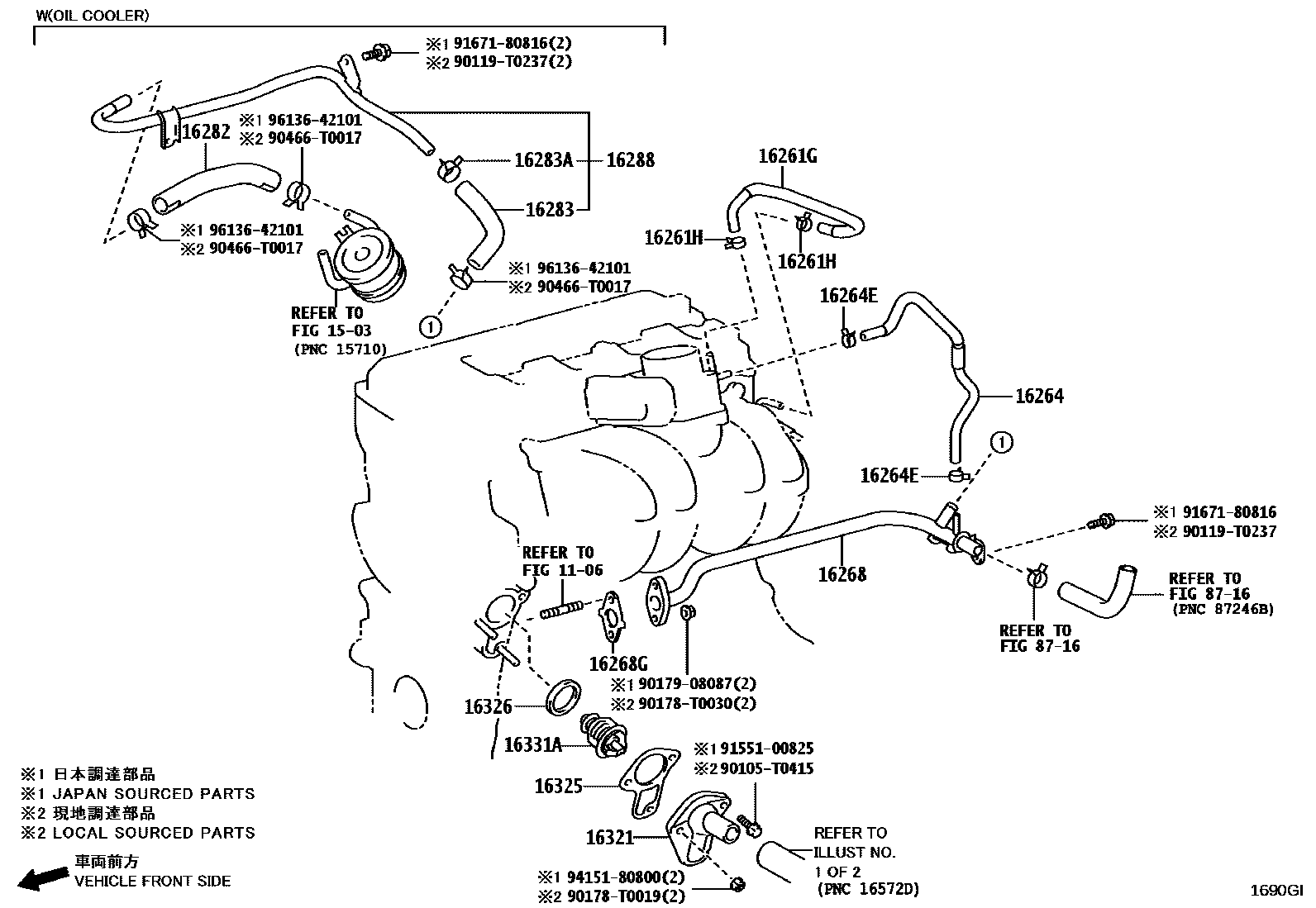

Toyota HILUX EPC diagram 1603, RADIATOR & WATER OUTLET, with 12 images and 125 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16025 | No. 5 water bypass pipe sub-assembly | 16025-0E010 · 16025-0E020 |
| 16027 | No. 1 turbocharger water pipe sub-assembly | 16027-0E040 · 16027-0E070 · 16027-0E080 · 16027-11080 |
| 161B0 | Electronic water pump assembly | 161B0-47010 |
| 16206B | No. 3 water bypass pipe sub-assembly | 16208-0E010 · 16208-0E020 · 16208-0E040 · 16208-0E050 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-0E011 · 16207-0E040 · 16207-11030 |
| 16209 | No. 4 water bypass pipe sub-assembly | 16209-0E010 · 16209-0E070 · 16209-0E091 · 16209-0E120 |
| 16258C | Gasket (for water bypass pipe) | 16258-0E010 · 16258-0E020 · 16258-11010 |
| 16261 | HOSE, WATER BY-PASS | 16261-0L070 · 16261-0L121 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-T0069 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0C051 · 16261-0C061 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-T0015 · 96136-41501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0C071 · 16264-0C081 · 16264-0L110 · 16264-0L150 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0031 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-0E011 · 16264-0E021 · 16264-11131 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0015 · 90466-T0017 · 90466-T0081 · 96136-41501 · 96136-42101 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0E010 · 16267-0E020 · 16267-11010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-T0017 · 90466-T0081 · 96136-42101 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0C011 · 16268-0C021 · 16268-0C030 · 16268-0E050 · 16268-0E060 · 16268-0E080 · 16268-11090 · 16268-75112 · 16268-75131 · 16268-75141 |
| 16268G | Gasket (for water bypass pipe) | 16258-0C010 · 16258-75021 |
| 16274 | Water bypass pipe screw plug | 16274-11010 |
| 16274A | Clamp (for water pipe bypass plug) | 90466-T0020 · 96136-42501 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-08010 · 16278-0E010 · 16278-0E020 · 16278-0E030 · 16278-0E041 |
| 16279 | No. 3 water bypass pipe | 16279-0E010 · 16279-0E020 · 16279-0E030 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0E010 · 16281-11010 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-T0059 · 90466-T0080 · 96137-41501 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-0C010 · 16282-0E010 · 16282-11010 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-T0059 · 90466-T0080 · 96137-41501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-0E010 · 16283-0E020 · 16283-11010 · 16283-75030 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-T0020 · 96136-42501 · 96136-52101 |
| 16284 | No. 1 turbocharger water hose | 16284-0E010 · 16284-0E020 · 16284-11050 |
| 16284A | Clamp (for No. 1 turbocharger water hose) | 90466-T0059 · 90466-T0080 |
| 16285 | No. 2 turbocharger water hose | 16285-0E010 · 16285-0E020 · 16285-11010 |
| 16285A | Clamp (for No. 2 turbocharger water hose) | 90466-T0059 · 90466-T0080 |
| 16286 | No. 3 turbocharger water hose | 16286-0E010 |
| 16286A | Clamp (for No. 3 turbocharger water hose) | 90466-T0015 · 90466-T0080 |
| 16287 | No. 4 turbocharger water hose | 16287-0E010 · 16287-0E020 · 16287-11020 |
| 16287A | Clamp (for No. 4 turbocharger water hose) | 90466-T0059 · 90466-T0080 |
| 16288 | No. 4 water bypass pipe | 16288-75040 |
| 16291 | water hose connector | 87251-89113 |
| 16293 | 10Water bypass hose | 16293-0E011 · 16293-0E030 · 16293-11020 |
| 16293A | Clamp (for No. 10 water bypass hose) | 90466-T0017 · 90466-T0081 · 96136-42101 · 96138-42101 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-0E010 · 16295-0E020 · 16295-11010 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 90466-T0020 · 96136-42501 · 96138-42501 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-0E010 · 16296-0E020 · 16296-11010 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 90466-T0015 · 90466-T0080 |
| 16297 | No. 9 water bypass hose | 16297-0E010 · 16297-0E020 · 16297-11010 |
| 16297A | Clamp (for No. 9 water bypass hose) | 90466-T0015 · 90466-T0080 |
| 16299A | No. 13 water bypass hose | 16299-0E010 |
| 16299B | Clamp (for No. 13 water bypass hose) | 90466-T0020 · 96136-42501 |
| 1629B | No. 15 water bypass hose | 1629B-0E010 |
| 1629BA | Clamp (for No. 15 water bypass hose) | 90466-T0020 · 96136-42501 |
| 1629C | No. 16 water bypass hose | 1629C-0E010 · 1629C-0E020 · 1629C-0E030 |
| 1629CA | Clamp (for No. 16 water bypass hose) | 90466-T0020 · 96136-42501 · 96138-42501 |
| 1629D | No. 17 water bypass hose | 1629D-0E011 |
| 1629DA | Clamp (for No. 17 water bypass hose) | 90466-T0023 · 90466-T0042 |
| 1629E | No. 18 water bypass hose | 1629E-08010 · 1629E-0E010 · 1629E-0E020 |
| 1629H | No. 21 water bypass hose | 1629H-0E010 · 1629H-0E020 · 1629H-11010 |
| 1629HA | Clamp (for No. 21 water bypass hose) | 90466-T0015 · 90466-T0080 |
| 16304 | Water outlet sub-assembly | 16304-0E010 · 16304-0E030 · 16304-0E050 · 16304-0E060 · 16304-11010 · 16304-11050 |
| 16321 | water inlet | 16321-0C010 · 16321-0C020 · 16321-0E010 · 16321-0E020 · 16321-0E030 · 16321-11050 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0C021 · 16325-0C040 · 16325-75011 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16325-0C030 · 16325-0H020 · 16325-76010 |
| 16328 | Inlet pipe gasket | 16328-0E010 · 16328-0E020 · 16328-11010 |
| 16331 | Water outlet | 16331-54202 |
| 16331A | thermostat | 16340-54040 · 90916-03118 · 90916-03129 |
| 16333 | Water outlet shell | 16333-54280 |
| 16341 | GASKET, WATER OUTLET | 16341-0E010 · 16341-0E020 · 16341-11010 · 16341-35010 |
| 16343 | Outlet shell gasket | 16343-54040 |
| 16346 | thermostat gasket | 16346-0K010 |
| 16347A | Gasket (for turbocharger water pipe) | 16347-0E010 · 16347-0E020 · 16347-11020 |
| 16361 | Fan | 16361-0C011 · 16361-0E010 · 16361-0L020 · 16361-54131 |
| 16381 | Fan belt adjustment lever | 16381-54121 |
| 16400 | Radiator assembly | 16400-05182 · 16400-0C283 · 16400-0C383 · 16400-0C412 · 16400-0C422 · 16400-0C530 · 16400-0C540 · 16400-0E010 · 16400-0E011 · 16400-0E050 · 16400-0E060 · 16400-0L363 · 16400-0L381 · 16400-0L392 · 16400-0L433 · 16400-0L451 · 16400-0L462 · 16400-0L561 · 16400-0L581 |
| 16400B | Radiator drain switch screw plug | 16417-0C180 · 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-0L060 · 16492-21050 |
| 16400R | Bushing (for radiator) | 16444-0L060 · 16444-75180 |
| 16400S | Collar (for radiator) | 16445-0C180 |
| 16401 | Radiator cover sub-assembly | 16401-0C050 · 16401-30020 |
| 16417 | switch | 16417-0C180 · 16417-21280 |
| 16453A | Radiator right side support plate | 16453-0L361 · 16453-0L380 · 16453-0L430 · 16453-0L451 · 16453-0L570 |
| 16454A | Radiator left support plate | 16454-0L361 · 16454-0L380 · 16454-0L570 |
| 16455 | Radiator side support plate bolts | 91651-B0820 |
| 16465 | Radiator seal | 88619-0K010 · 88619-0K020 · 88619-0K030 · 88619-0K060 · 88619-0K080 |
| 16470 | Radiator reservoir assembly | 16470-05080 · 16470-0C110 · 16470-0C130 · 16470-0C140 · 16470-0L083 · 16470-0L112 · 16470-0L122 |
| 16470M | gasket | 90480-T0003 · 90480-T0004 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-05050 · 16405-0C090 · 16405-0C110 · 16405-0C120 |
| 16475A | Reservoir tank cover | 16475-28140 |
| 16475D | Reservoir tank cover | 16475-28140 |
| 16492 | O-ring (for radiator reservoir switch) | 16492-0L060 |
| 16515A | Intercooler No. 1 coolant pipe | 16516-0E020 |
| 16516A | Intercooler No. 2 coolant pipe | 16516-0E010 |
| 16517A | Intercooler No. 3 coolant pipe | 16517-0E010 |
| 16533B | Radiator bracket No. 1 | 16533-0L010 · 16533-0L020 |
| 16534 | Radiator bracket No. 2 | 16534-0L010 · 16534-0L020 |
| 16546 | Radiator protection device | 16546-0L041 · 16546-0L051 |
| 16547 | Radiator bracket bushing No. 1 | 16547-0L010 · 16547-0L020 |
| 16550 | Intercooler cooling radiator assembly | 16550-0E010 |
| 16551C | Intercooler coolant hose No. 1 | 16551-0E010 |
| 16551D | Clamp or clip (for intercooler coolant hose No. 1) | 90466-T0017 · 90466-T0031 |
| 16552C | Intercooler No. 2 coolant hose | 16552-0E010 |
| 16552D | Clamp or clip (for intercooler coolant hose No. 2) | 90466-T0031 |
| 16553C | hose clamp | 90467-13020 · 90469-T0017 |
| 16553D | Intercooler No. 3 coolant hose | 16553-0E010 |
| 16554C | Intercooler No. 4 coolant hose | 16554-0E010 |
| 16555C | Intercooler No. 5 coolant hose | 16555-0E010 |
| 16555D | Clamp or clip (for intercooler No. 5 coolant hose) | 90466-T0017 |
| 16556C | Intercooler coolant hose No. 6 | 16556-0E010 |
| 16556D | Clamp or clip (for intercooler coolant hose No. 6) | 90466-T0017 |
| 16557B | Intercooler coolant hose No. 7 | 16555-0E020 |
| 16557C | Clamp or clip (for intercooler coolant hose No. 7) | 90466-T0031 |
| 16558 | Intercooler coolant hose No. 8 | 16556-0E020 |
| 16558A | Clamp or clip (for intercooler coolant hose No. 8) | 90466-T0017 · 90466-T0031 |
| 16571C | Radiator hose No. 1 | 16571-05090 · 16571-0C160 · 16571-0L150 · 16571-0L170 |
| 16571D | No. 1 radiator hose clip | 90466-T0024 · 90466-T0028 |
| 16571E | water hose | 16298-0E020 |
| 16571F | Clamps or clips (for water hoses) | 90466-T0015 · 90466-T0080 |
| 16572D | Radiator hose No. 2 | 16572-05080 · 16572-0C160 · 16572-0L150 · 16572-0L200 |
| 16572E | No. 2 radiator hose clip | 90466-T0024 · 90466-T0028 |
| 16575C | No. 1 water hose clamp bracket | 16575-0E010 · 16575-0E020 |
| 16581B | Hose clamp (for radiator hose) | 16581-0C010 |
| 16593 | Radiator deflector No. 1 | 16593-0L020 · 16593-0L030 · 16593-0L040 |
| 165A0 | Intercooler No. 1 coolant hose assembly | 165A0-0E010 |
| 165A0A | Hose clip | 90466-T0031 |
| 16640 | Intercooler liquid tank assembly | 16640-0E010 |
| 16711 | fan cover | 16711-05080 · 16711-0C180 · 16711-0C200 · 16711-0C210 · 16711-0E010 · 16711-0E040 · 16711-0L140 · 16711-0L170 · 16711-0L180 · 16711-0L200 |
