Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718

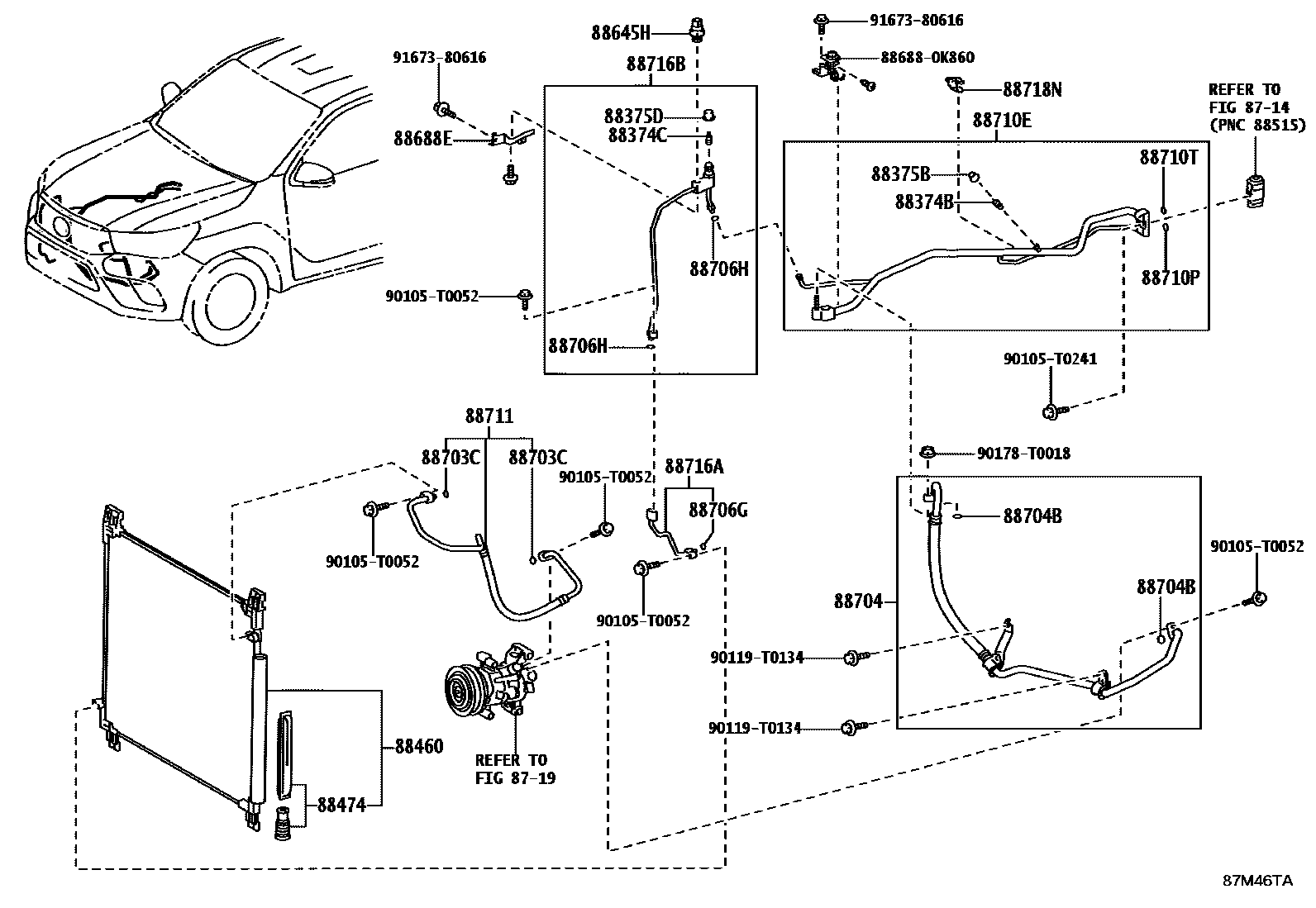

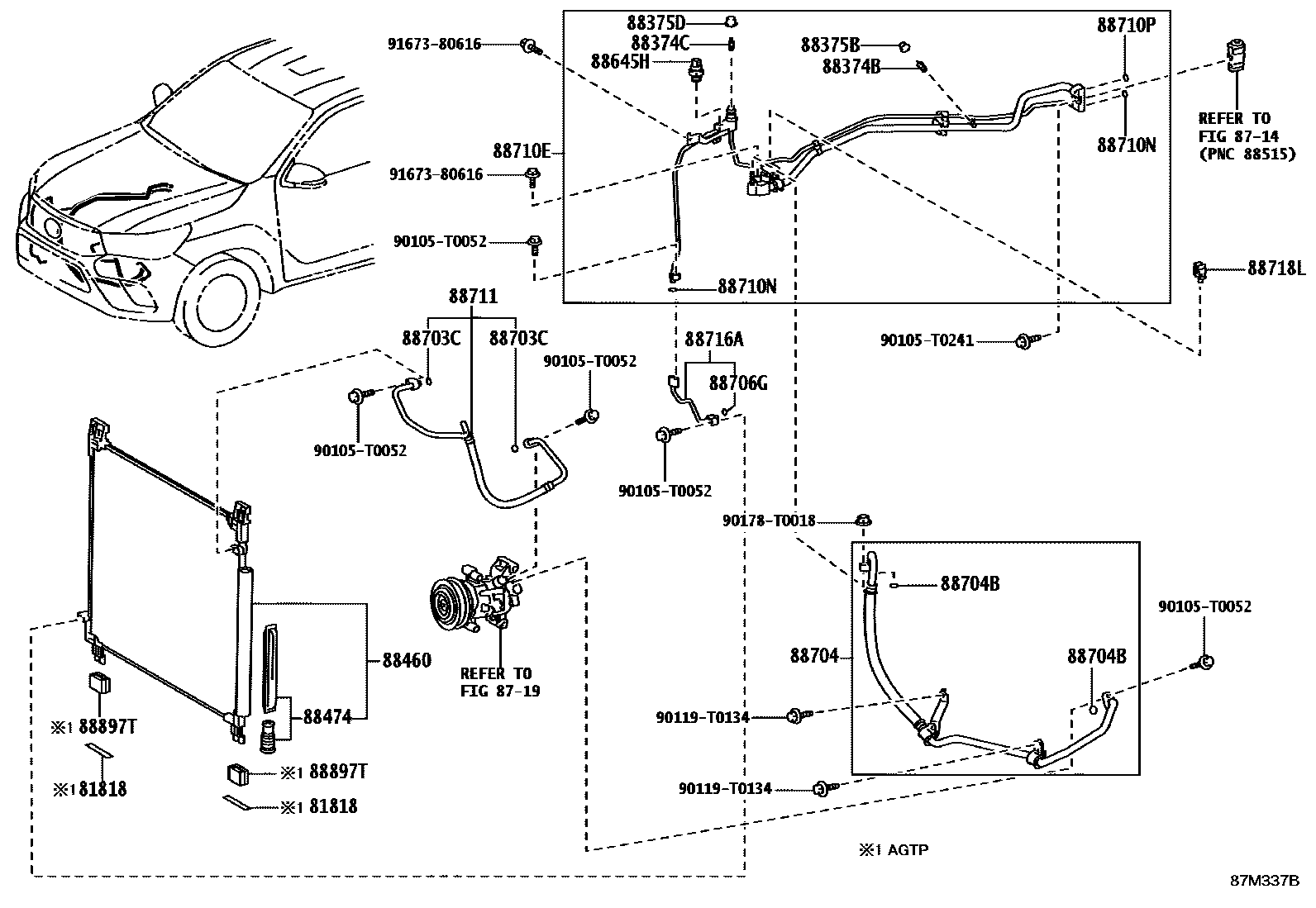

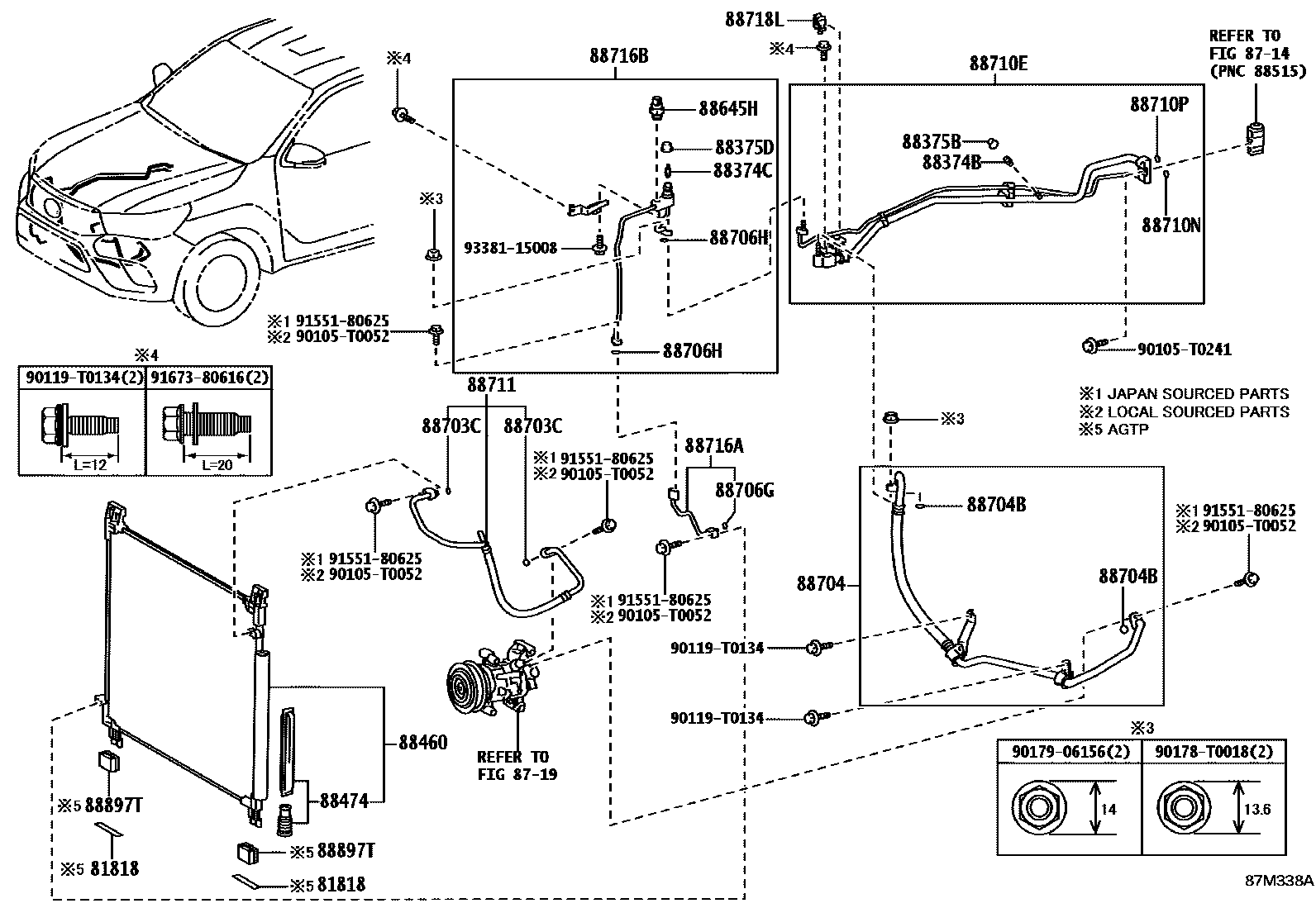

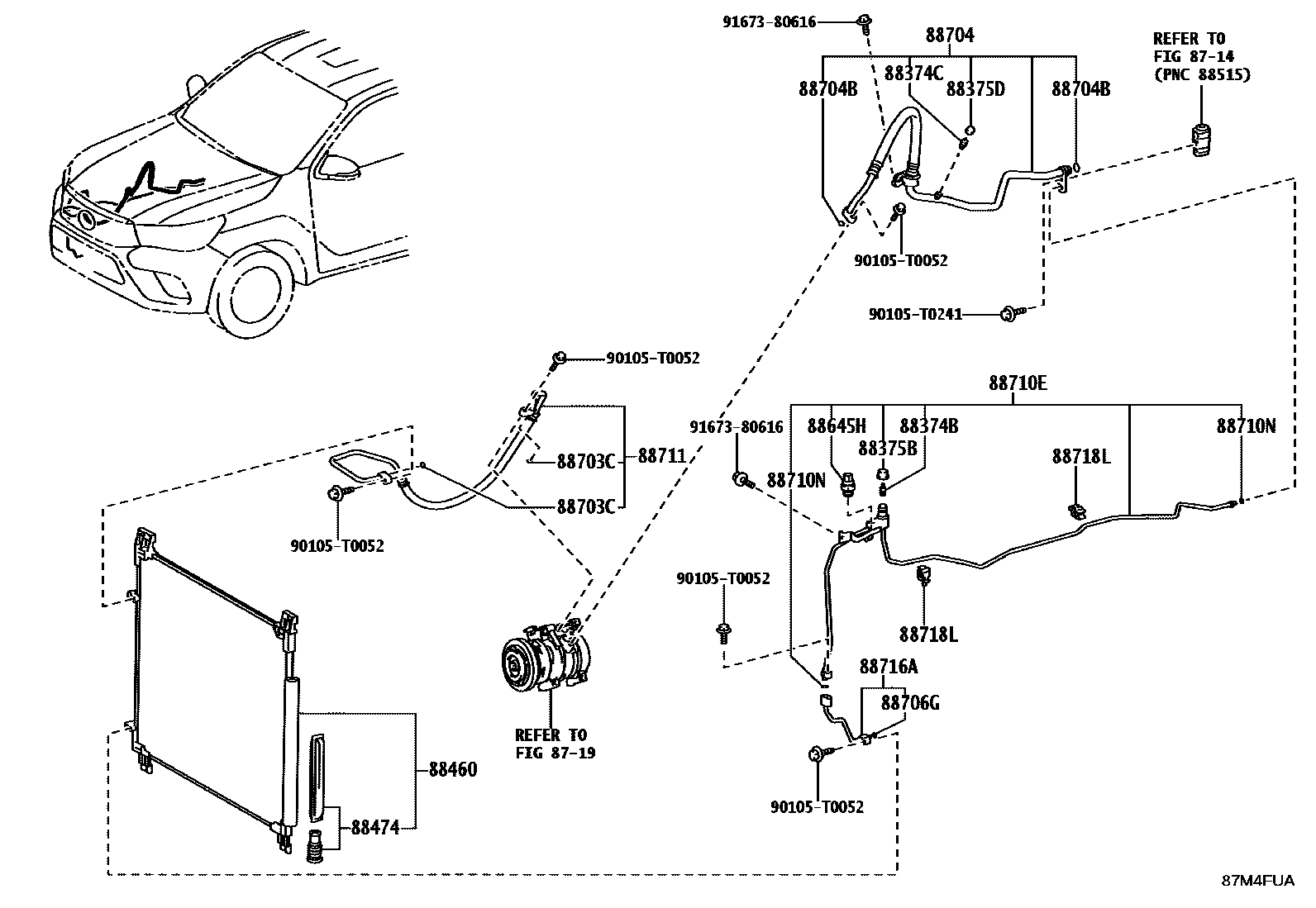

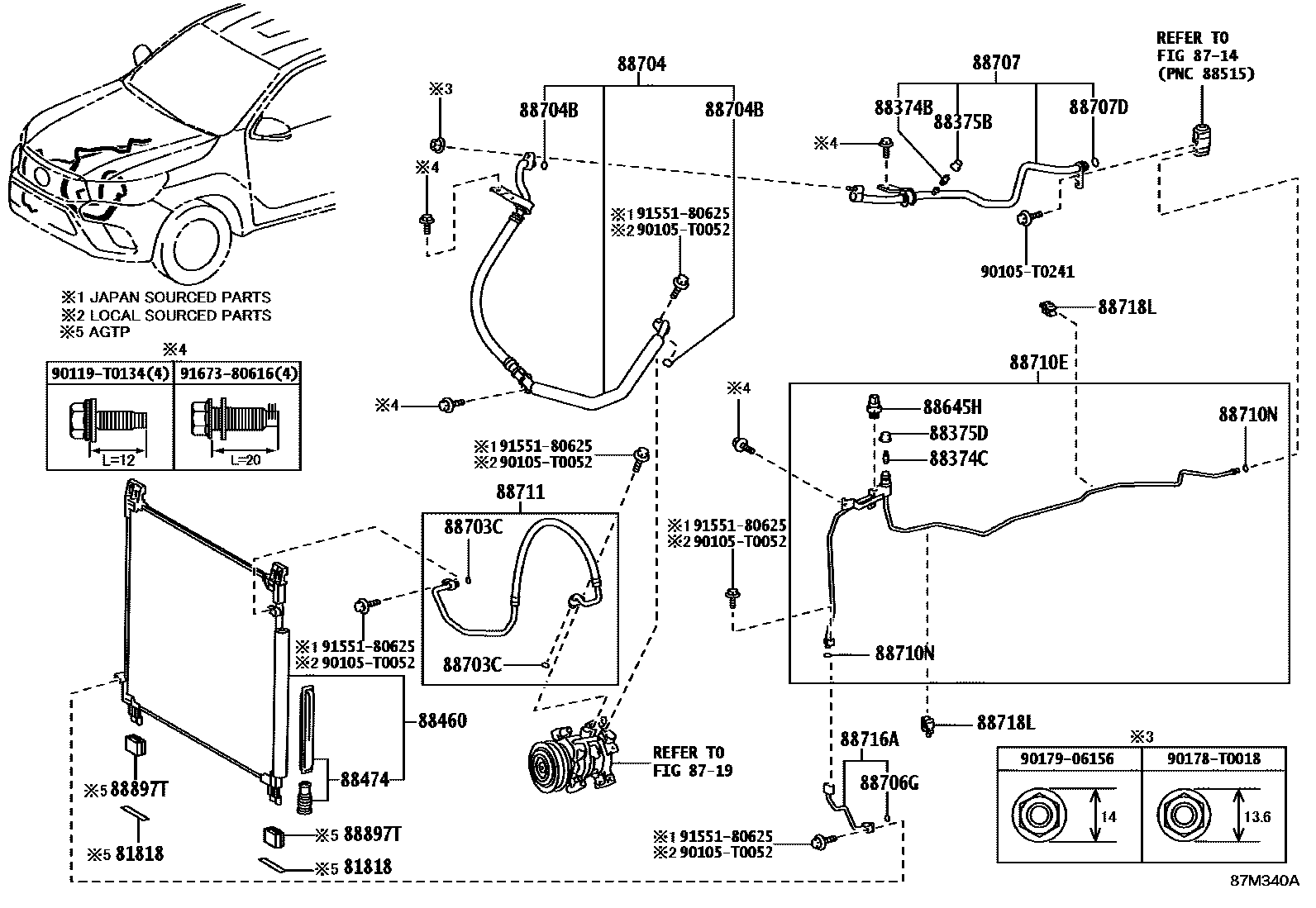

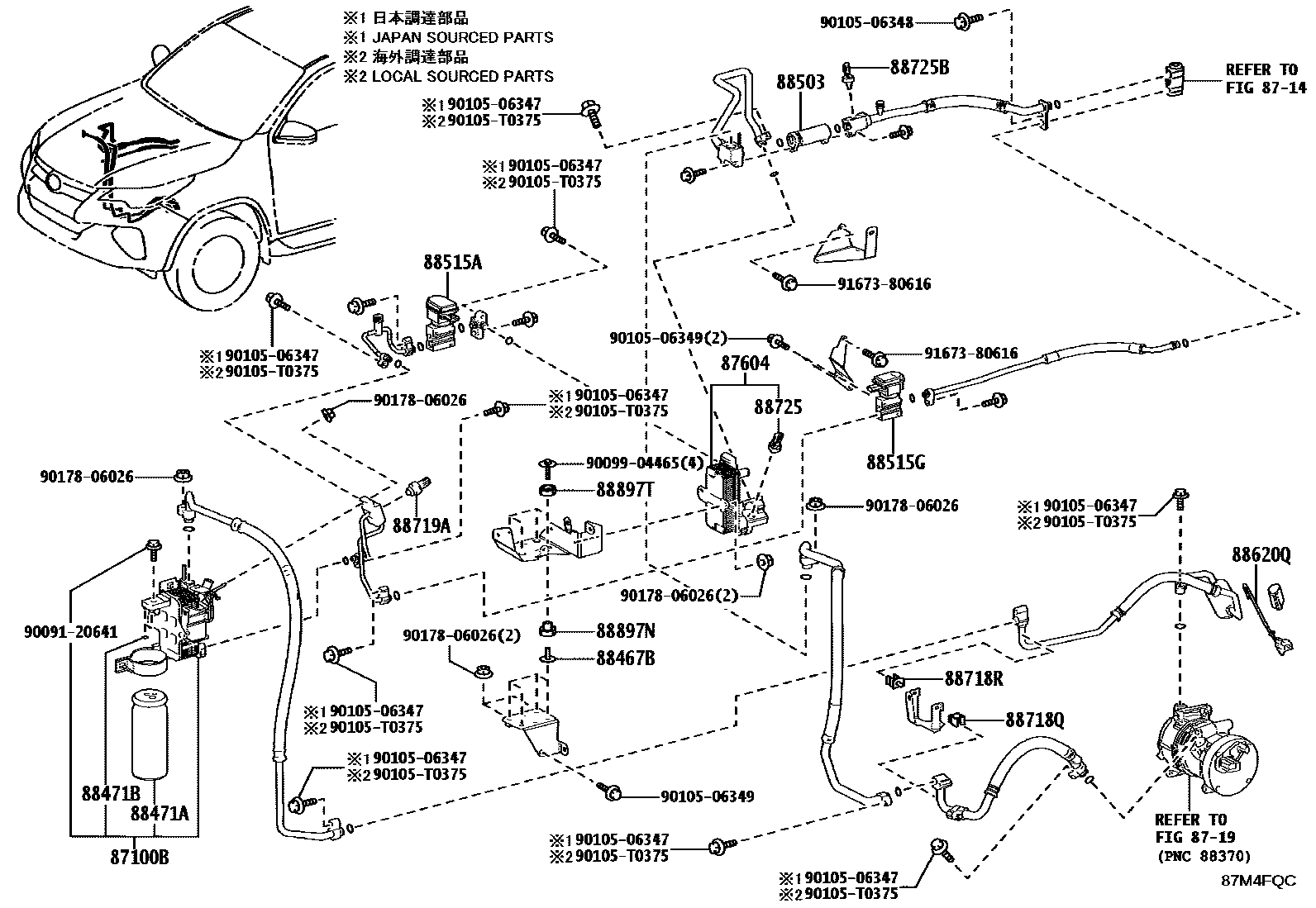

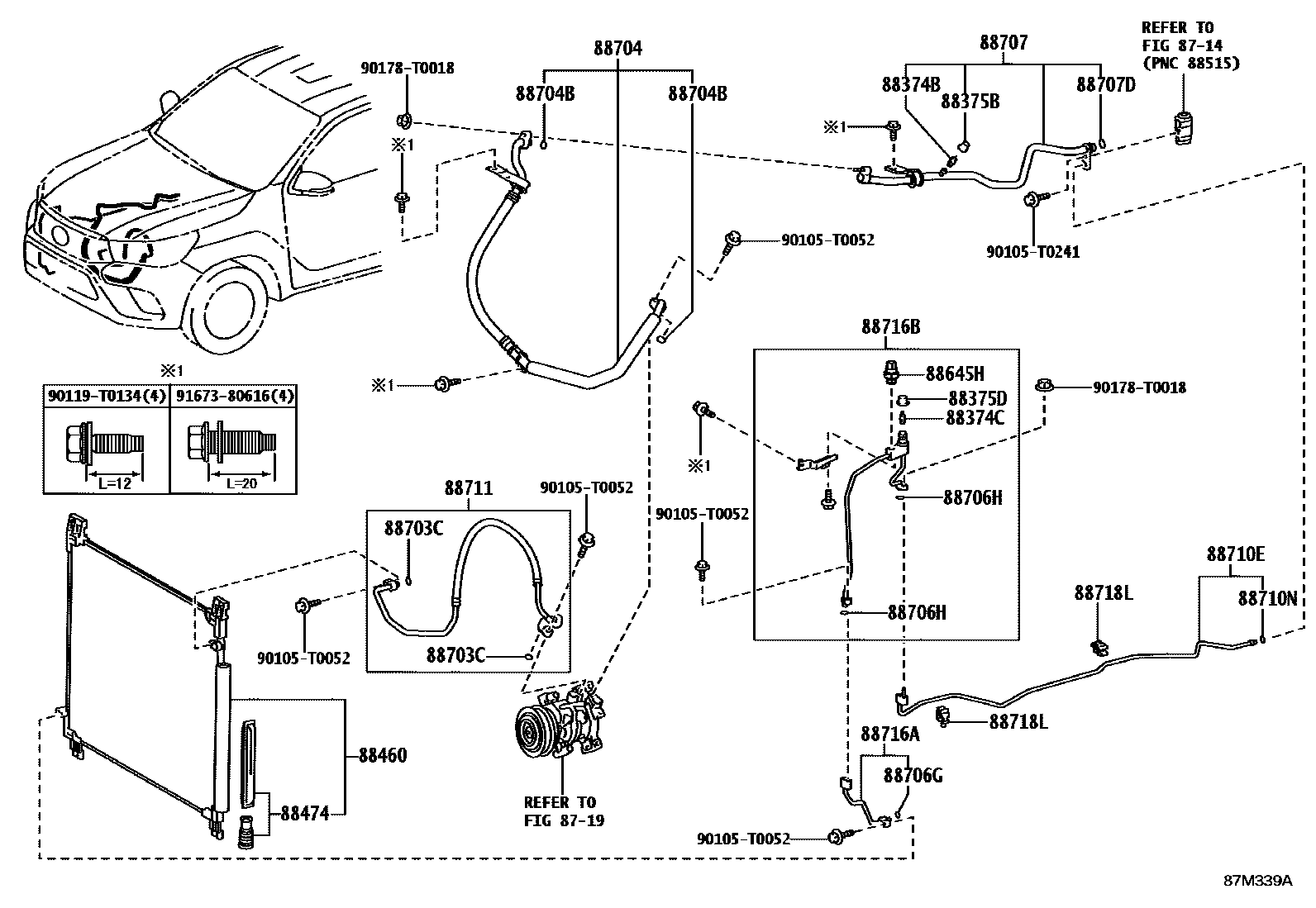

Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 7 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81818 | Seals | 87417-0K070 |
| 87100B | condenser assembly | 87100-42050 |
| 87604 | Heater radiator device sub-assembly | 87604-42010 |
| 88374B | Service valve No. 1 | 88374-02010 · 88374-02020 · 88374-30010 |
| 88374C | Service valve No. 2 | 88374-02010 · 88374-02020 · 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-02130 · 88375-02140 · 88375-02150 · 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-02120 · 88375-02140 · 88375-02150 · 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-0K350 · 88460-0K390 · 88460-0K430 · 88460-0K460 · 88460-0K550 · 88460-0K780 |
| 88467B | Air conditioning condenser fixed vibration isolation pad | 88467-14050 |
| 88471A | Liquid storage tank | 88470-42110 |
| 88471B | O-ring (for liquid storage tank) | 90099-14119 |
| 88474 | cooler dryer | 88474-0K020 · 88474-0K030 · 88474-12010 · 88474-12020 |
| 88503 | Pressure regulator assembly | 88503-42030 |
| 88515A | Cooler expansion valve | 88515-42140 |
| 88515G | No. 2 cooler expansion valve | 88515-42150 |
| 88620Q | No. 1 air conditioning thermistor assembly | 88620-42090 |
| 88645H | No. 1 pressure switch | 88645-0K030 · 88645-0K050 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-0K750 |
| 88703C | O-ring (for drain hose) | 90068-14022 · 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-0K550 · 88704-0KC30 · 88704-0KD10 · 88704-0KD30 · 88704-0KD90 · 88704-0KE10 · 88704-0KE90 · 88704-0KG10 · 88704-0KG20 |
| 88704B | O-ring (for suction hose) | 90068-14024 · 90099-14121 |
| 88706G | O-ring (for liquid pipe) | 90068-14023 · 90099-14119 |
| 88706H | No. 2 O-ring (for liquid pipe) | 90099-14119 |
| 88707 | Suction pipe sub-assembly | 88707-0K680 · 88707-0K700 · 88707-0K720 |
| 88707D | O-ring (for suction pipe) | 90068-14024 · 90099-14121 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-0KD20 · 88710-0KE50 · 88710-0KE70 · 88710-0KF10 · 88710-0KF30 · 88710-0KF60 · 88710-0KF80 · 88710-0KL30 · 88710-0KQ30 · 88710-0KR30 · 88710-0KR40 · 88710-0KS40 |
| 88710N | No. 1 O-ring (for air conditioning pipe and accessory assembly) | 90068-14023 · 90099-14119 |
| 88710P | No. 2 O-ring (for air conditioning pipe and accessory assembly) | 90068-14024 · 90099-14119 · 90099-14121 |
| 88710T | No. 3 O-ring (for air conditioning pipe and accessory assembly) | 90099-14121 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-0K830 · 88711-0KB50 · 88711-0KB60 · 88711-0KC10 · 88711-0KC20 · 88711-0KC40 · 88711-0KC50 · 88711-0KC60 · 88711-0KC90 · 88711-0KD00 · 88711-0KE20 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-0KQ80 · 88716-0KR10 · 88716-0KR20 · 88716-0KR30 · 88716-0KR40 |
| 88716B | Cooler refrigerant liquid pipe B | 88710-0KE40 · 88716-0KT80 |
| 88718L | Pipe clamp | 88718-0KF20 · 88718-0KG90 · 88718-0KW80 · 88718-0KW90 · 88718-0KX00 |
| 88718N | Pipe clamp | 88718-0KV30 |
| 88718Q | Pipe clamp | 88718-2D110 |
| 88718R | Pipe clamp | 88718-0K060 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
| 88725 | Refrigerant sensor | 88725-42010 |
| 88725B | CAPTEUR, REFRIGERANT, NO.2 | 88725-42010 |
| 88897N | No. 2 cooler gasket | 88899-42250 |
| 88897T | cooler seal | 87128-0K270 · 88899-42240 |
