Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716

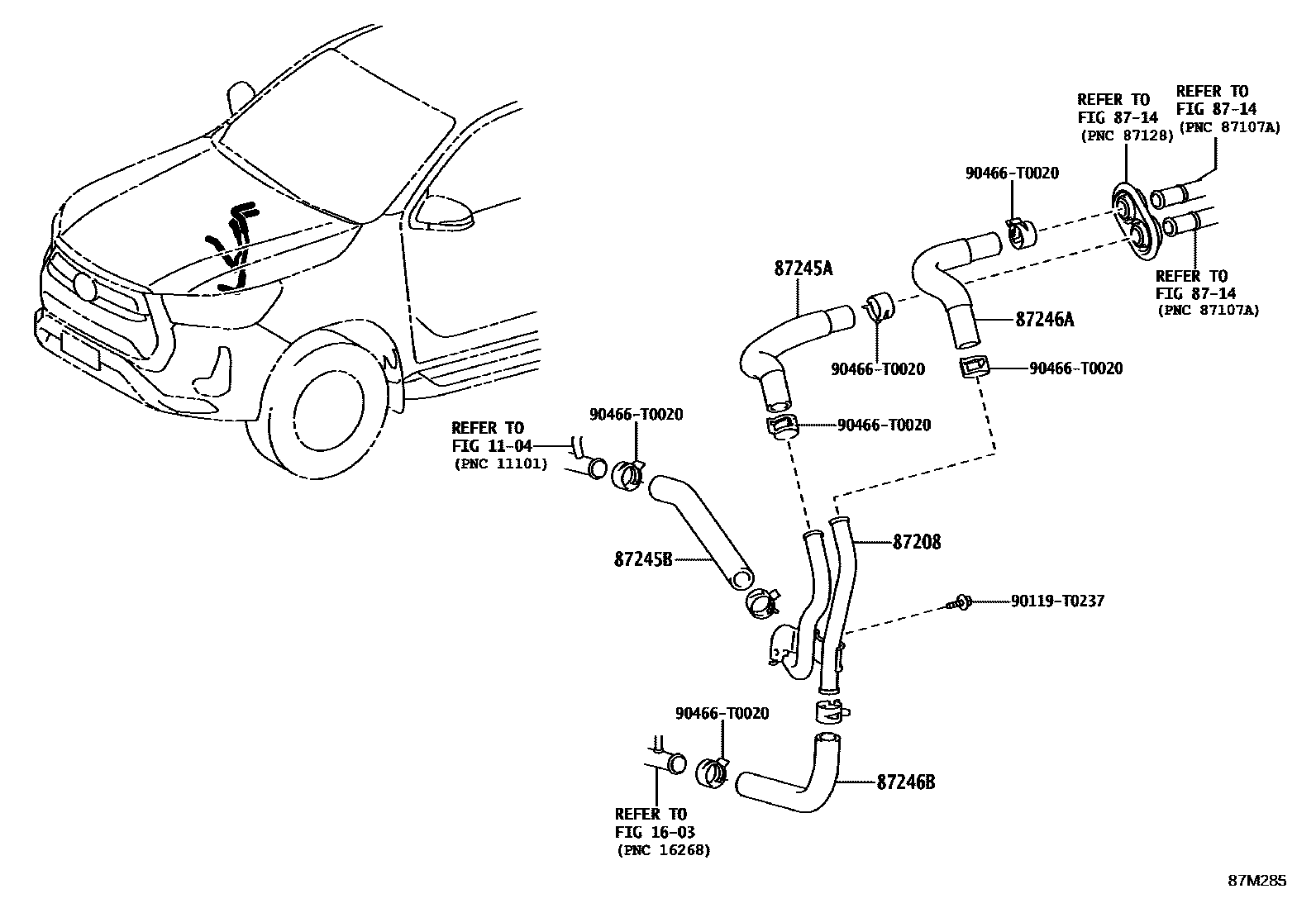

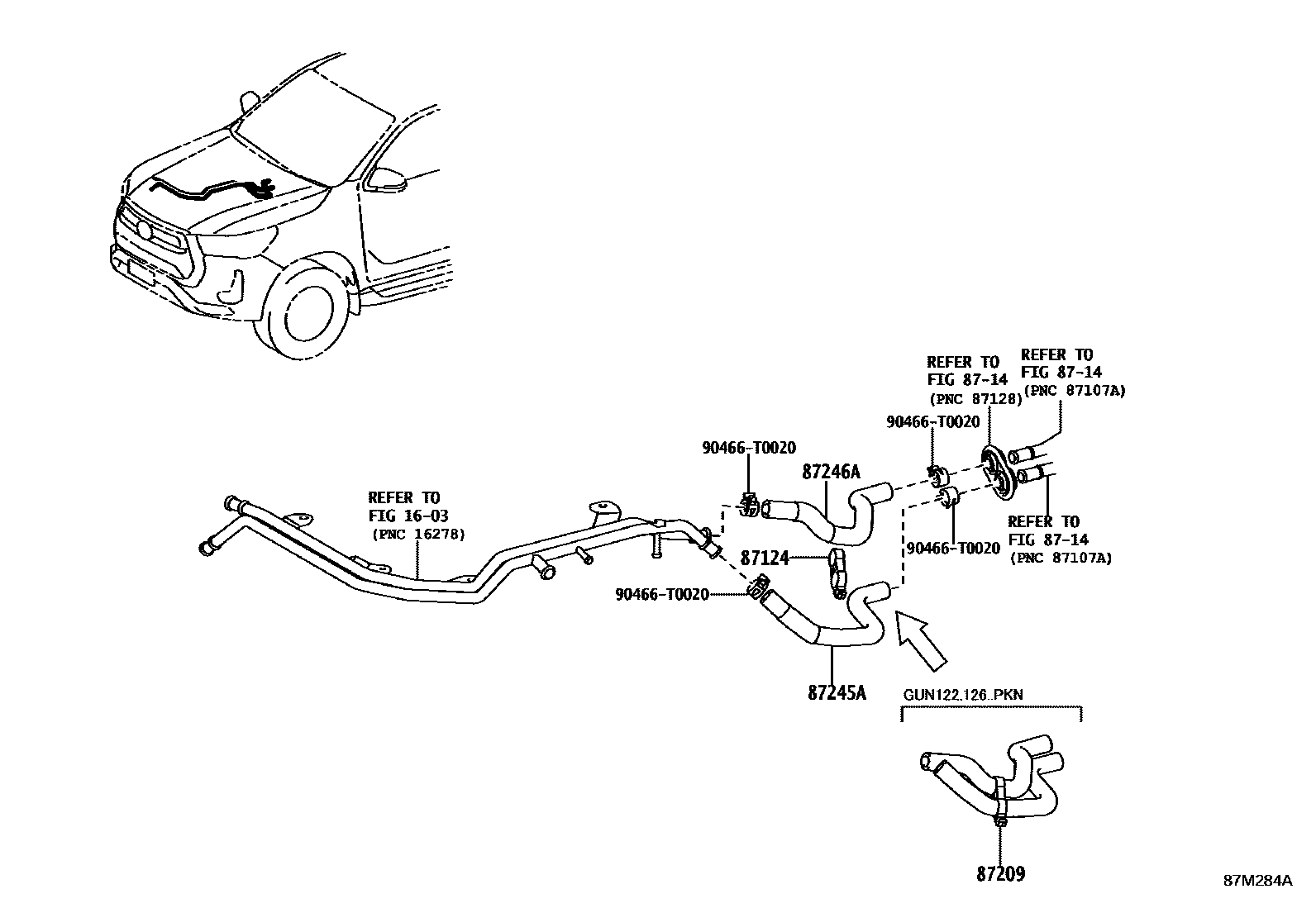

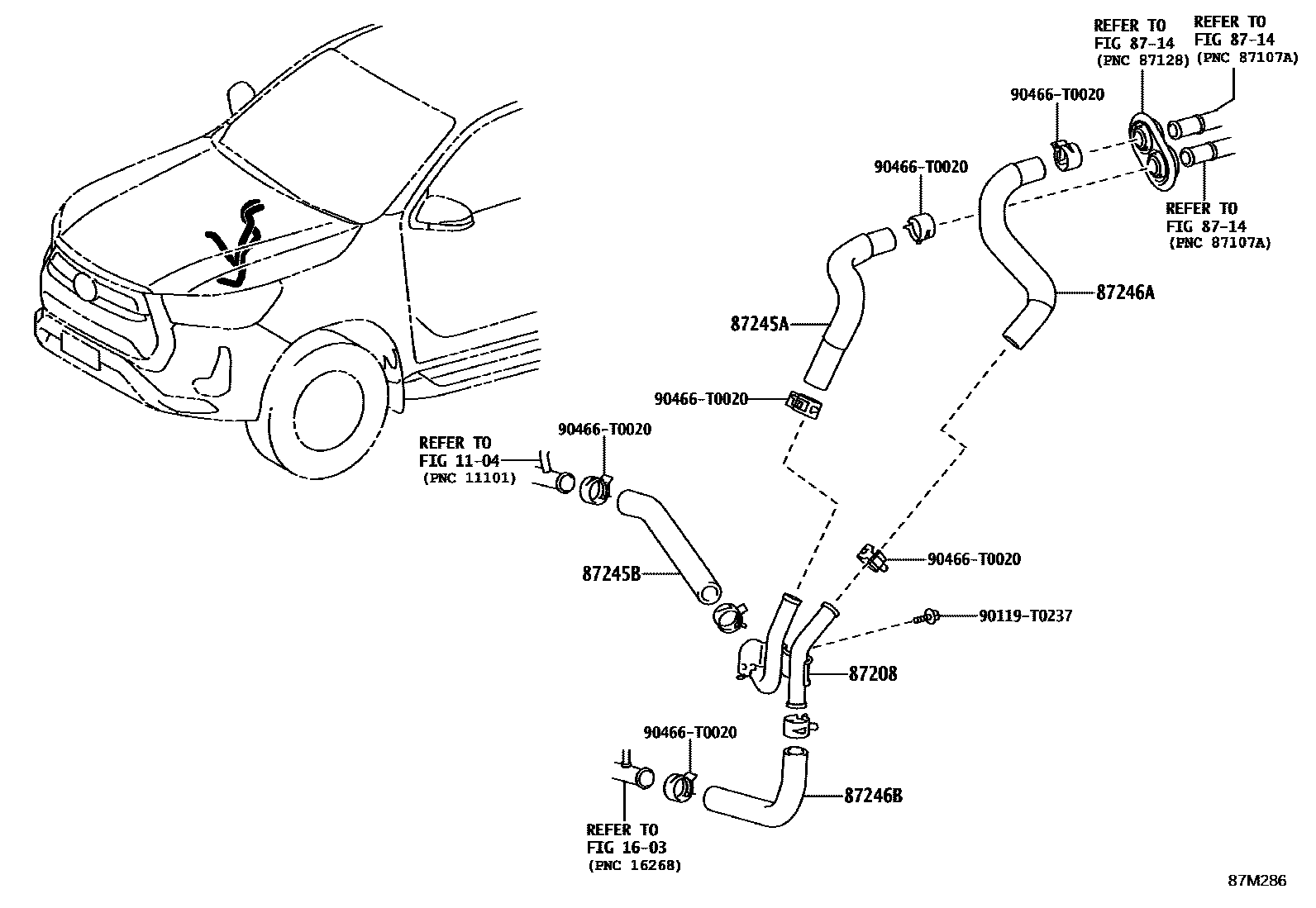

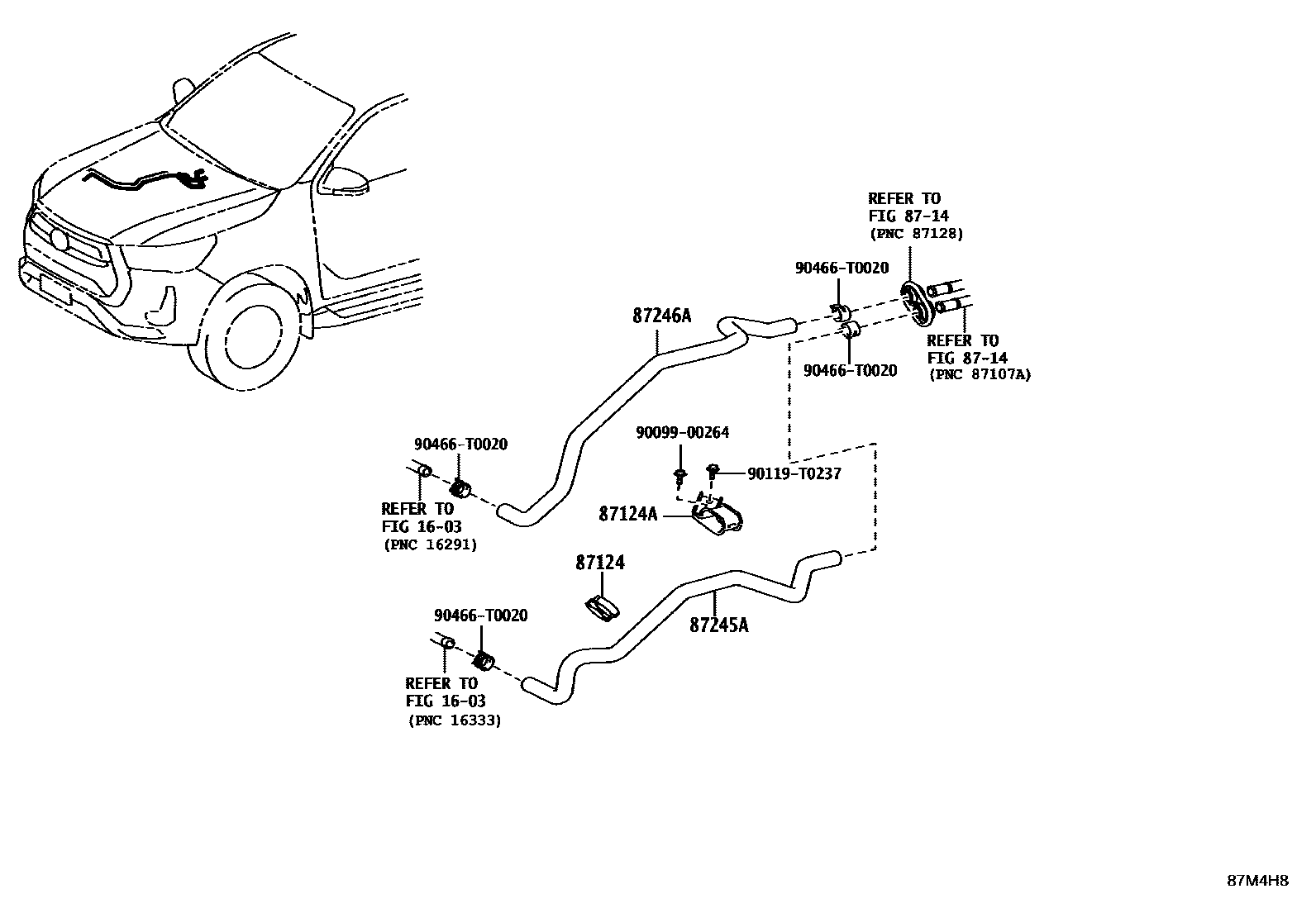

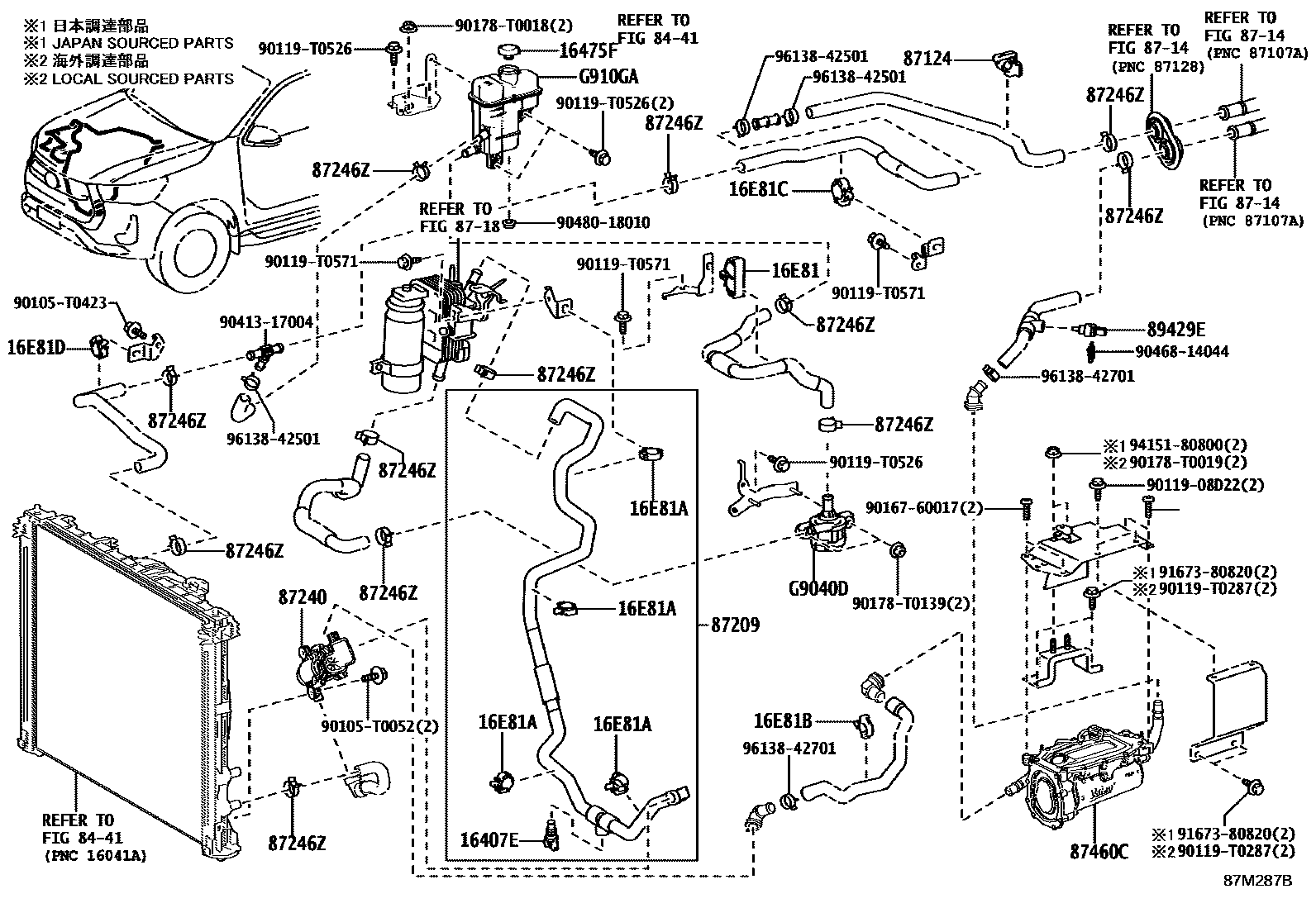

Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16407E | Radiator drain switch sub-assembly | 16407-64010 |
| 16475F | Reservoir tank cover | 16475-28140 |
| 16E81 | BRIDE, TUY(PR TUY D'EAU) | 16581-36050 |
| 16E81A | COLLIER, FLEXIBLE (POUR FLEXIBLE EAU), NO.2 | 16581-77030 |
| 16E81B | COLLIER, FLEXIBLE (POUR FLEXIBLE EAU), NO.3 | 16581-25160 |
| 16E81C | COLLIER, FLEXIBLE (POUR FLEXIBLE EAU), NO.4 | 16581-77030 |
| 16E81D | COLLIER, FLEXIBLE (POUR FLEXIBLE EAU), NO.5 | 16581-77030 |
| 87124 | heater clip | 87124-0K150 · 87124-42030 · 87124-V1020 · 88718-6B070 |
| 87124A | heater clip | 87124-0K060 |
| 87208 | Heater water pipe sub-assembly | 87208-0K240 · 87208-0K270 · 87208-0K280 · 87208-0K300 |
| 87209 | Water hose sub-assembly | 87209-0K632 |
| 87240 | Heater water valve assembly | 87240-42020 |
| 87245A | Heater water inlet hose A | 87245-0KB20 · 87245-0KB40 · 87245-0KC20 · 87245-0KD30 · 87245-0KE02 · 87245-0KK30 · 87245-71010 |
| 87245B | Heater water inlet hose B | 87245-0KF30 · 87245-0KF70 · 87245-0KG10 |
| 87246A | Heater outlet hose A | 87245-0K850 · 87245-0KB30 · 87245-0KC30 · 87245-0KD20 · 87245-0KE11 · 87245-0KK40 · 87245-71020 |
| 87246B | Heater outlet hose B | 87245-0KF20 · 87245-0KF60 · 87245-0KG00 |
| 87246Z | clip | 96138-42501 |
| 87460C | Electronic component assembly | 87460-42010 |
| 89429E | water temperature sensor | 89422-33040 |
| G9040D | Water pump assembly with motor | G9040-48060 |
| G910GA | Inverter reservoir sub-assembly without cover | G910G-42010 |
