Toyota HILUX 暖风和空调系统 - 冷却器组件 — Figure 8714

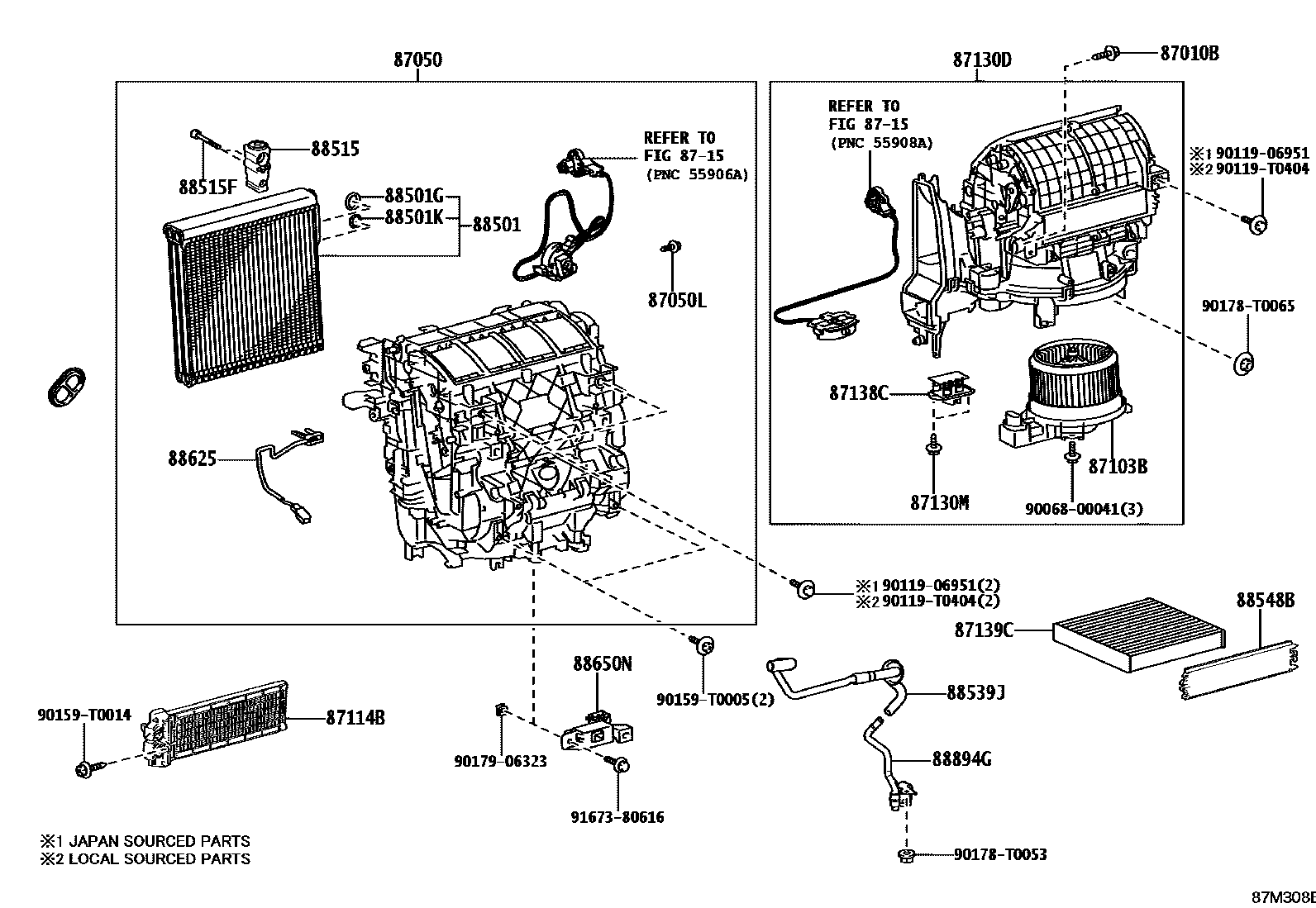

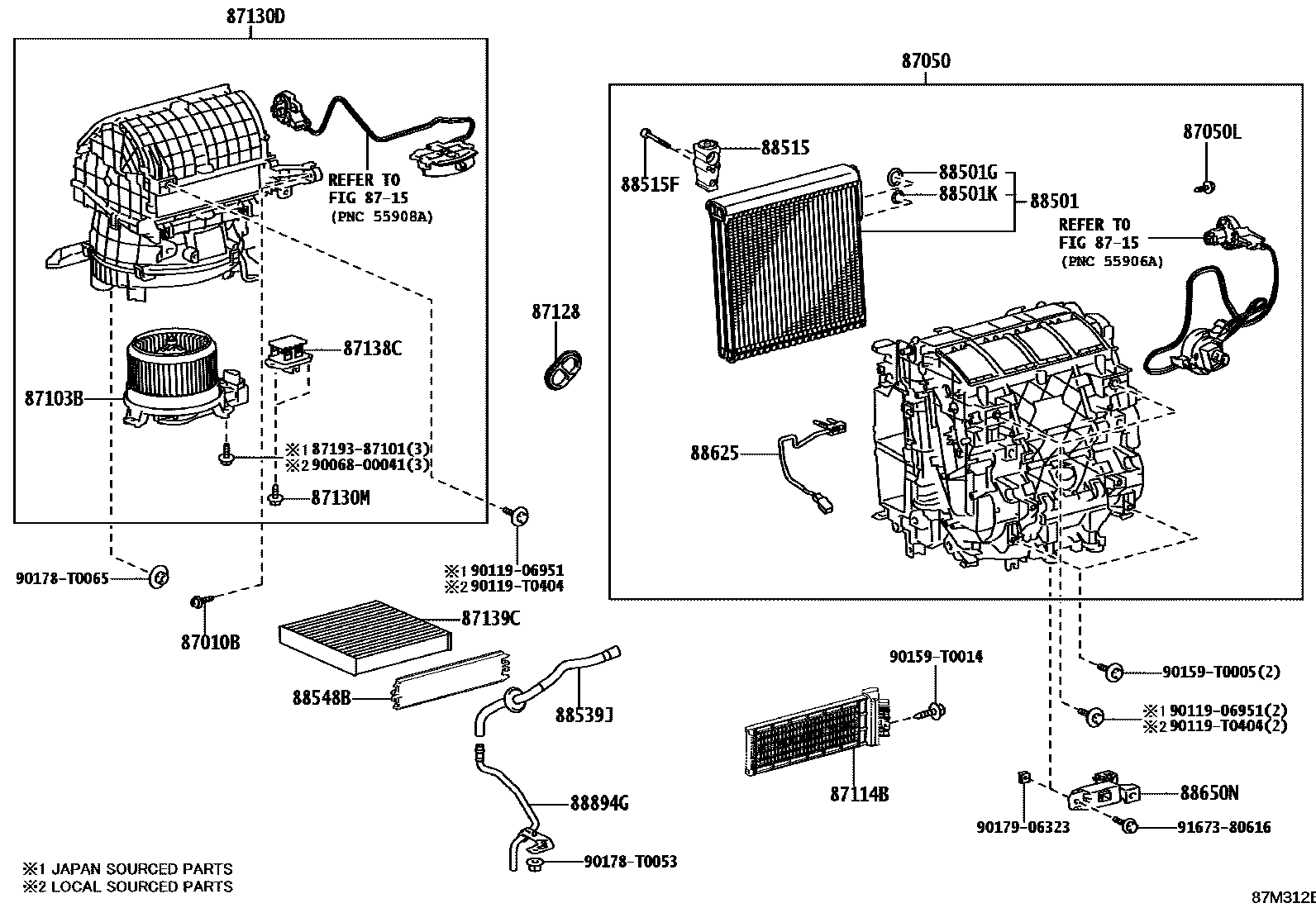

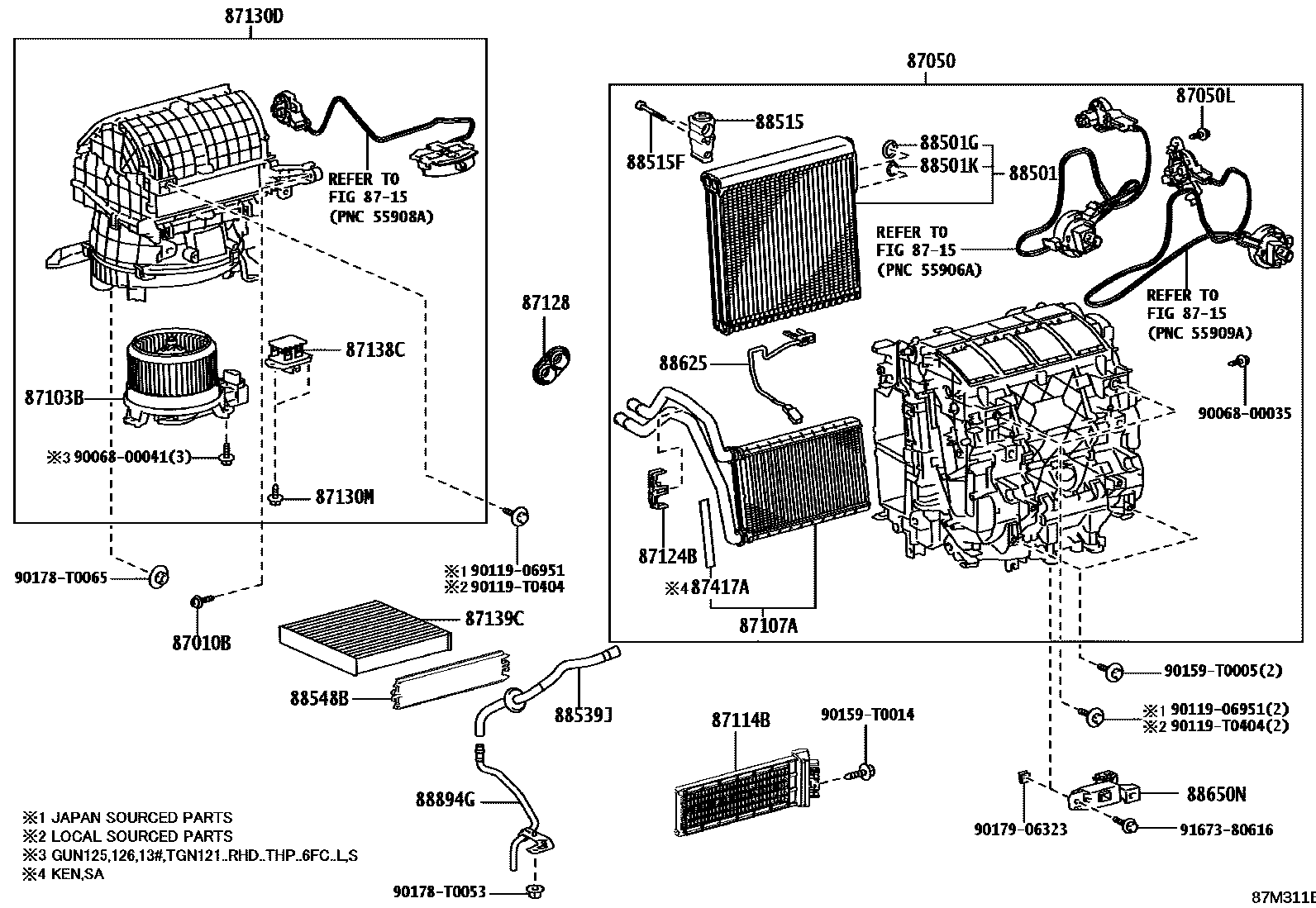

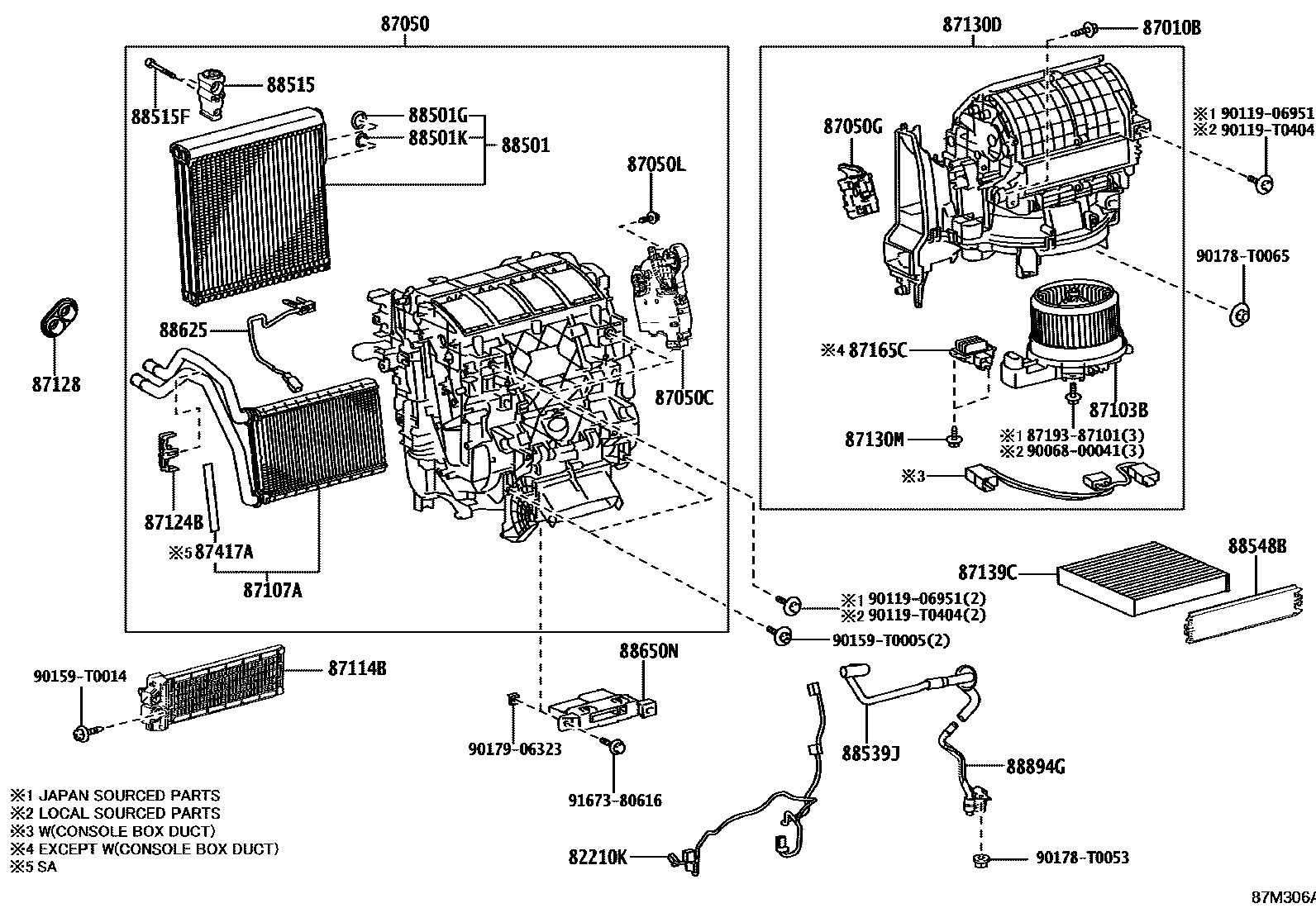

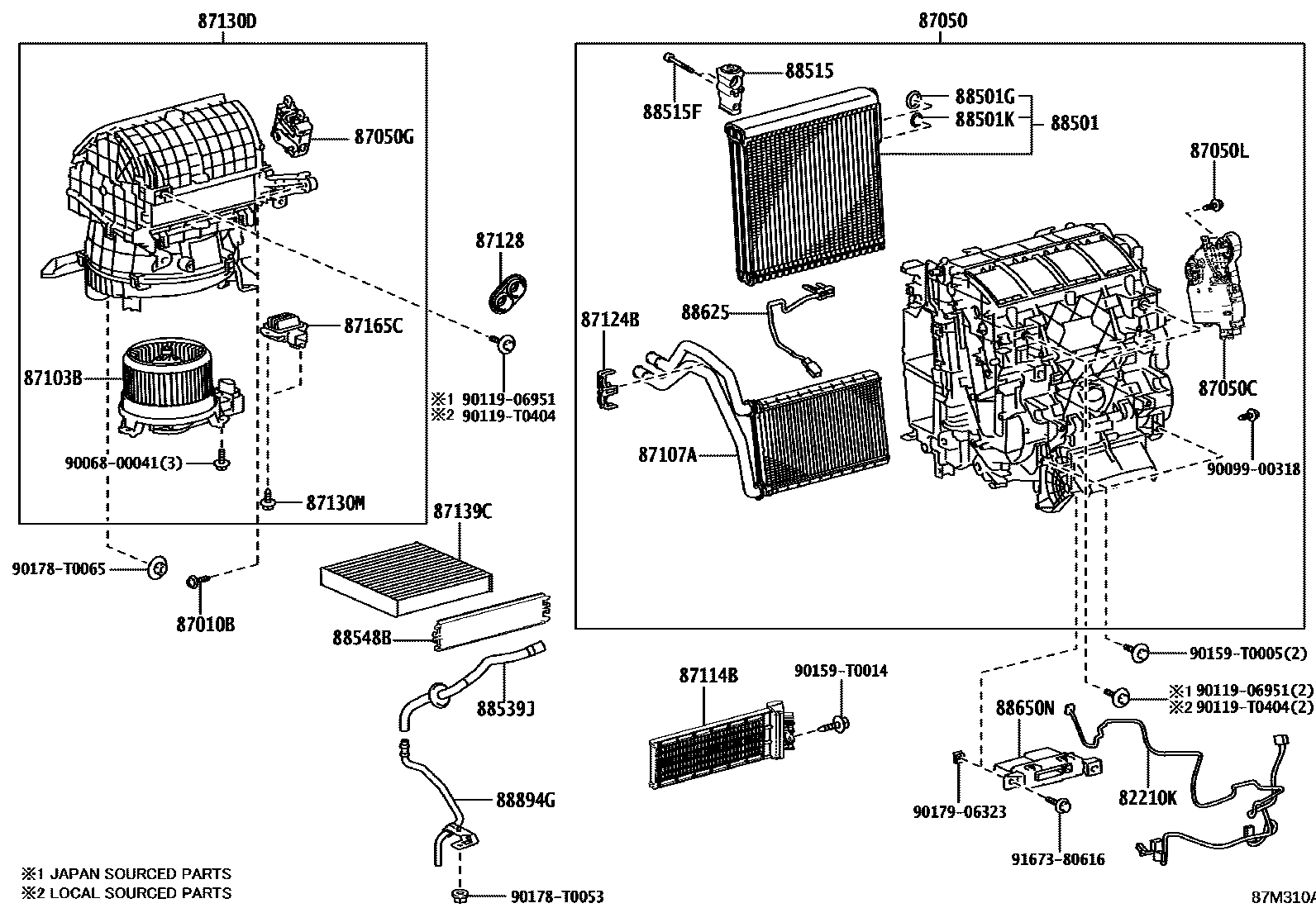

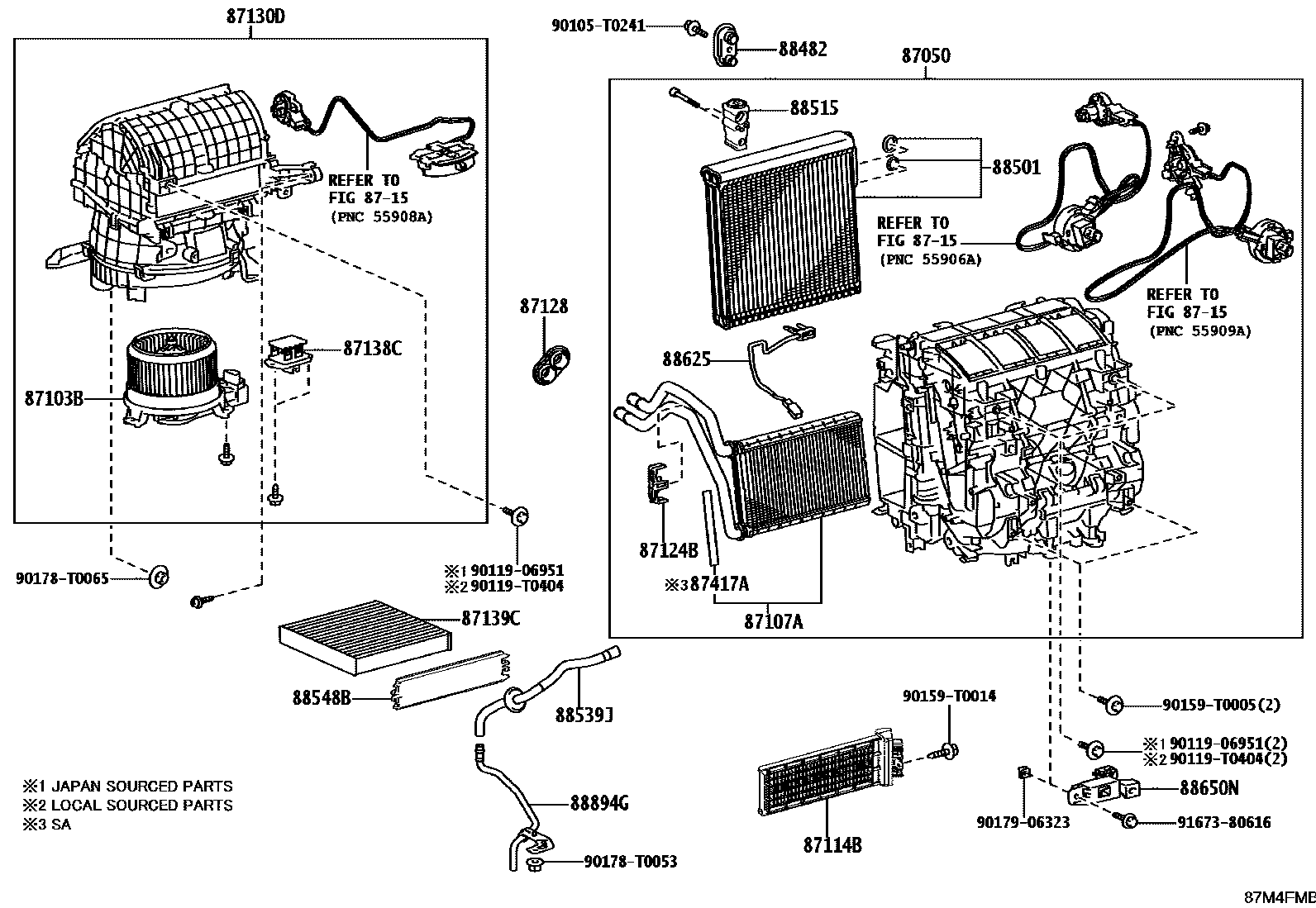

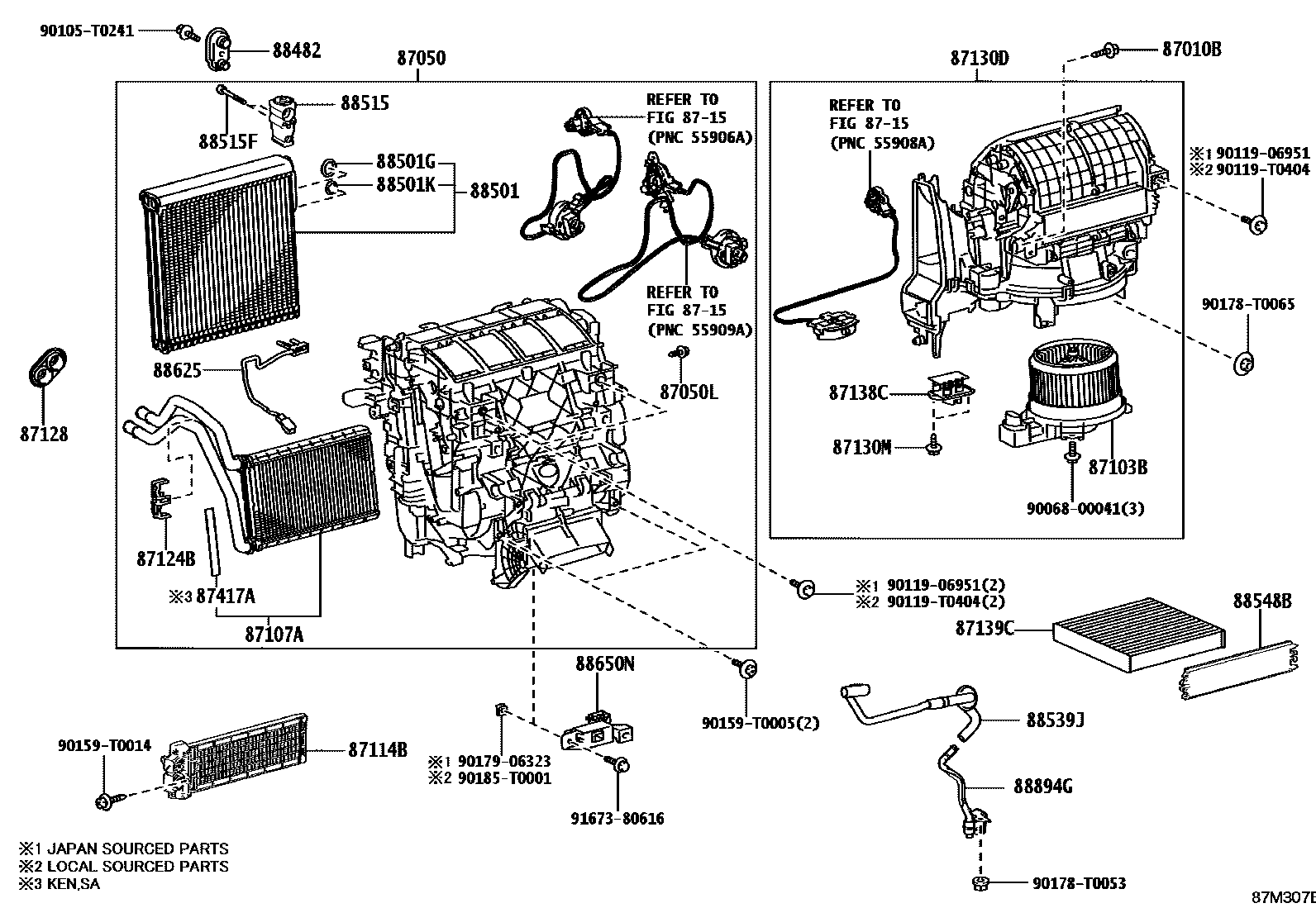

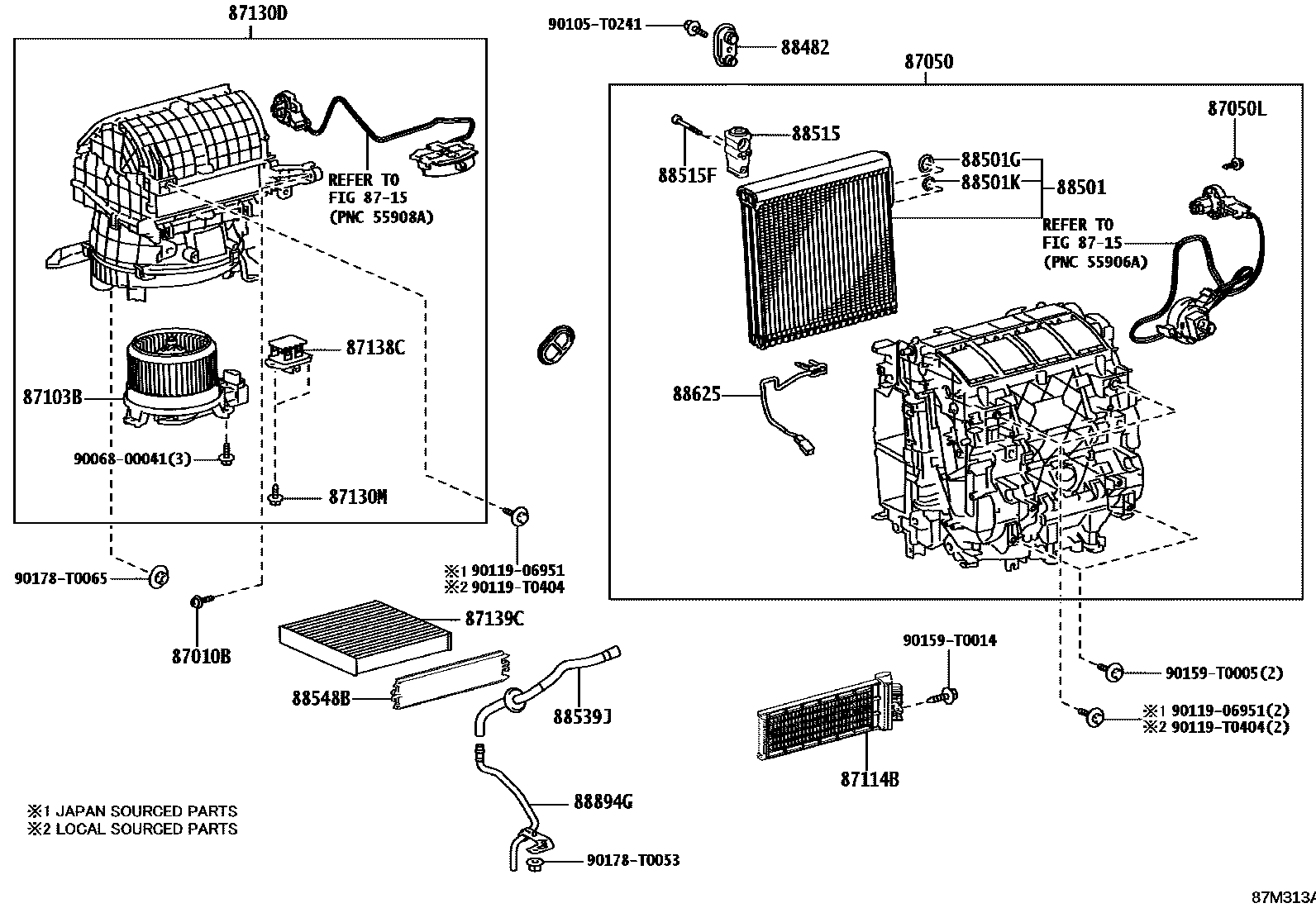

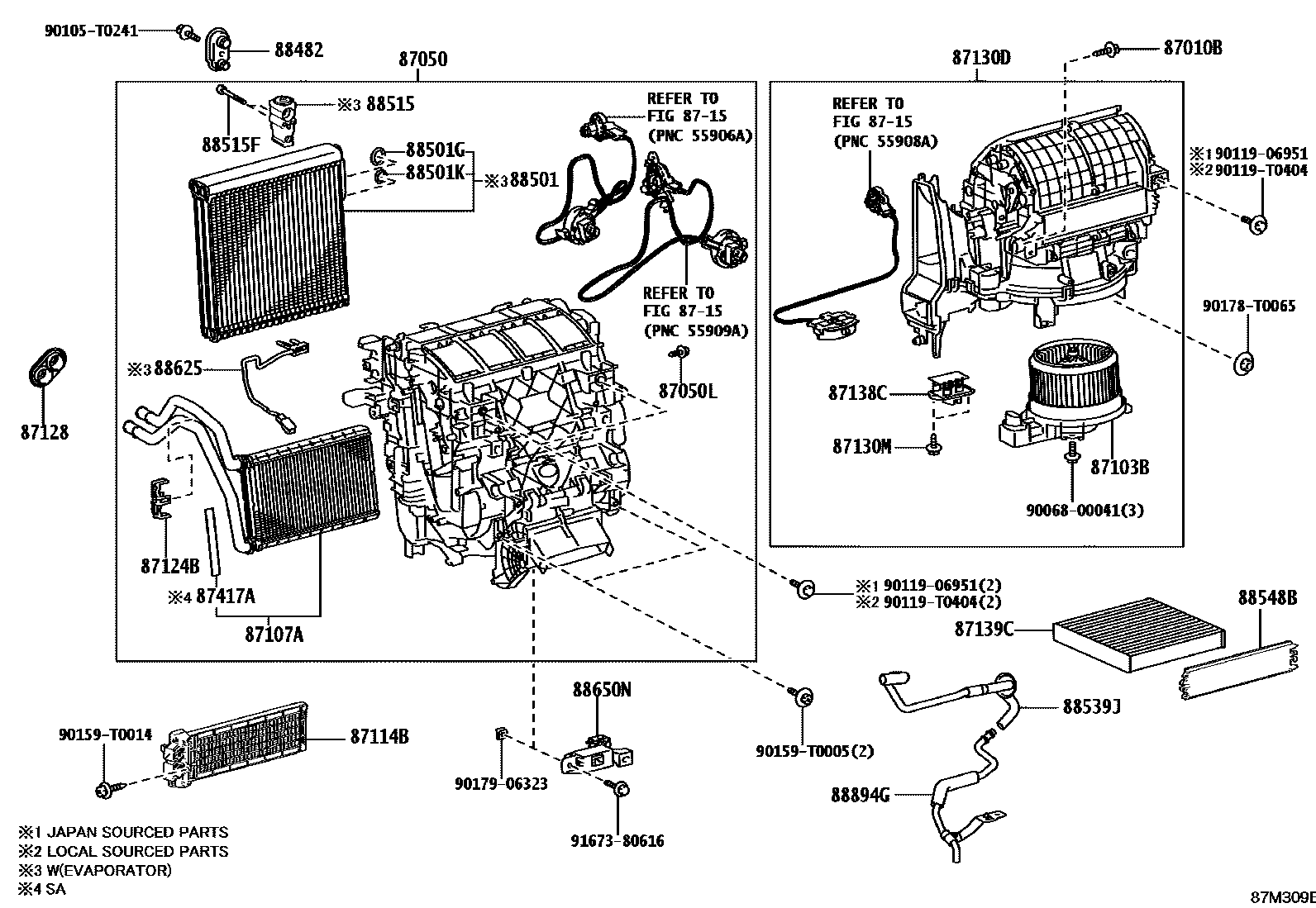

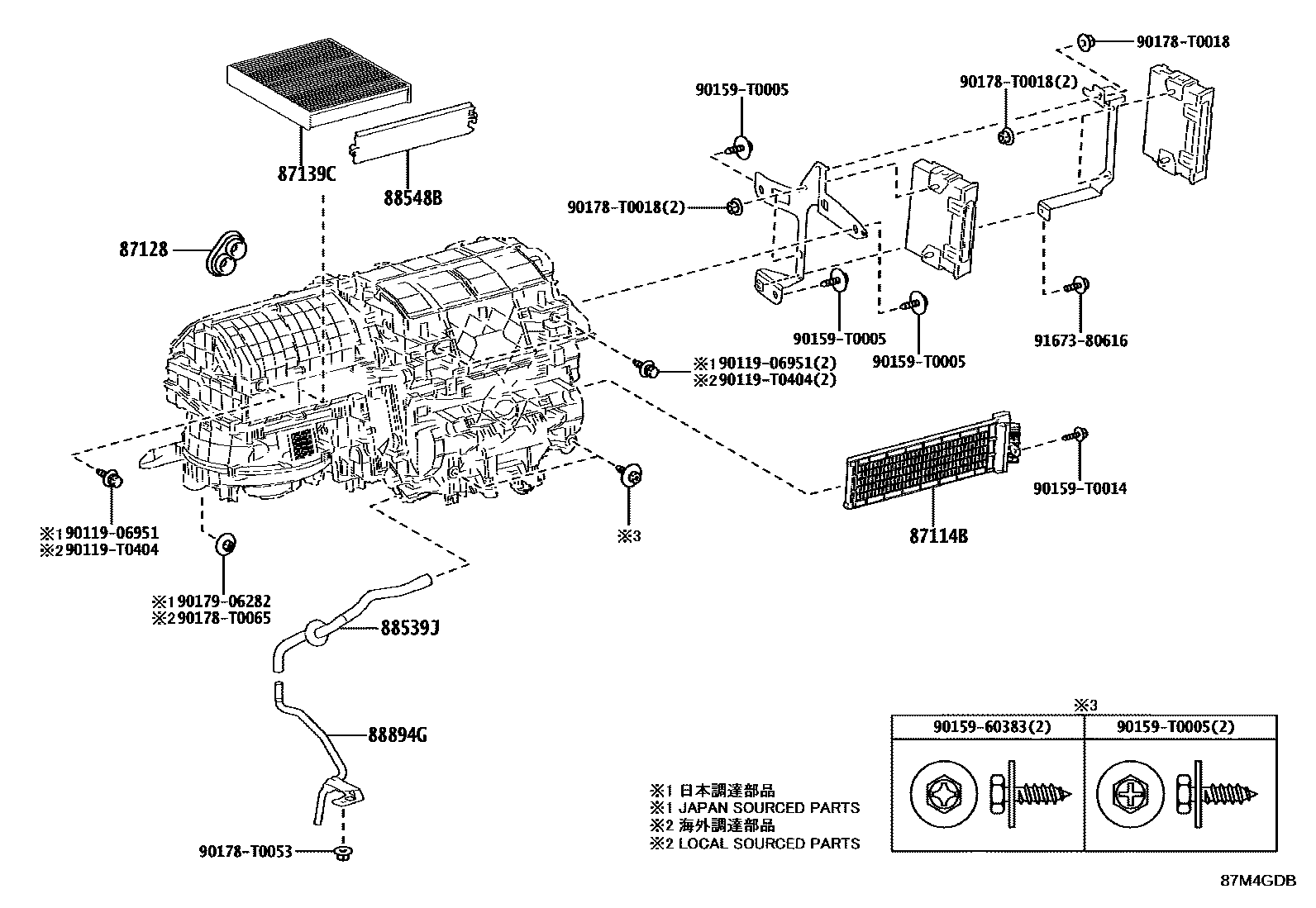

Toyota HILUX EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 10 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-0K050 · 82212-0K060 |
| 87010B | Screws (for air conditioning unit) | 90068-00042 · 90094-90426 · 90099-00968 |
| 87050 | Air conditioning radiator assembly | 87050-0KC70 · 87050-0KC80 · 87050-0KC90 · 87050-0KD10 · 87050-0KE90 · 87050-0KF30 · 87050-0KG00 · 87050-0KG20 · 87050-0KG80 · 87050-0KJ00 · 87050-0KJ20 · 87050-0KM71 · 87050-0KP30 · 87050-0KP70 · 87050-0KP80 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-F4060 |
| 87050G | No. 5 air conditioner radiator damper servo mechanism sub-assembly | 87106-0K241 · 87106-0K251 |
| 87050L | Screws (for air conditioner radiator) | 90068-00042 · 90094-90426 · 90099-00968 |
| 87103B | Blower motor sub-assembly with fan | 87103-0K321 · 87103-0K331 · 87103-0K381 · 87103-0K391 · 87103-0K461 · 87103-0K491 · 87103-0K501 · 87103-0K531 · 87103-0K551 |
| 87107A | Heater radiator device sub-assembly | 87107-0K110 · 87107-0K150 · 87107-0K170 · 87107-0K190 |
| 87114B | heater cover | 87114-0K040 · 87114-0K050 · 87114-0K070 · 87114-0K090 |
| 87124B | heater clip | 87124-06140 · 87124-0K220 · 87124-0K230 |
| 87128 | heater seal | 87128-0K180 · 87128-0K190 · 87128-0K200 · 87128-0K210 |
| 87130D | Blower assembly | 87130-0K531 · 87130-0K551 · 87130-0K561 · 87130-0K581 · 87130-0K621 · 87130-0K631 · 87130-0K711 · 87130-0K761 · 87130-0K791 · 87130-0K831 · 87130-0K861 |
| 87130M | Screws (for blower) | 90068-00042 · 90094-90426 · 90099-00968 |
| 87138C | Blower resistor | 87138-0K350 · 87138-0K360 |
| 87139C | air purification filter | 87139-06130 · 87139-0K070 · 87139-0K080 · 87139-0K090 · 87139-0K100 · 87139-58010 |
| 87165C | Blower motor control device | 87165-0K060 |
| 87417A | Air duct seals | 87417-0K050 |
| 88482 | cooler cover | 88482-0K010 · 88482-0K040 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0K320 · 88501-0K330 · 88501-0K390 · 88501-0K420 · 88501-0K430 · 88501-0K480 · 88501-0K510 · 88501-0K520 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90068-14044 · 90099-14121 |
| 88501K | No. 1 cooler evaporator O-ring (liquid) | 90068-14043 · 90099-14120 |
| 88515 | Cooler expansion valve | 88515-0K580 · 88515-0K670 |
| 88515F | Bolt (for cooler expansion valve) | 90068-04042 · 90068-04062 · 90099-04542 |
| 88539J | Cooler drain hose | 88539-0K380 · 88539-0K390 · 88539-0K410 · 88539-0K420 · 88539-0K430 · 88539-0K470 · 88539-0K490 |
| 88548B | air filter housing | 88548-0K111 · 88548-0K121 · 88548-0K131 · 88899-06330 |
| 88625 | Cooler No. 1 Thermistor | 88620-0K010 · 88620-0K020 |
| 88650N | Air conditioning amplifier assembly | 88650-0K400 · 88650-0K480 · 88650-0K730 · 88650-0K830 |
| 88894G | Drain hose connector | 88894-0K020 · 88894-0K100 · 88894-0K110 · 88894-0K130 · 88894-0K260 · 88894-0K270 |
