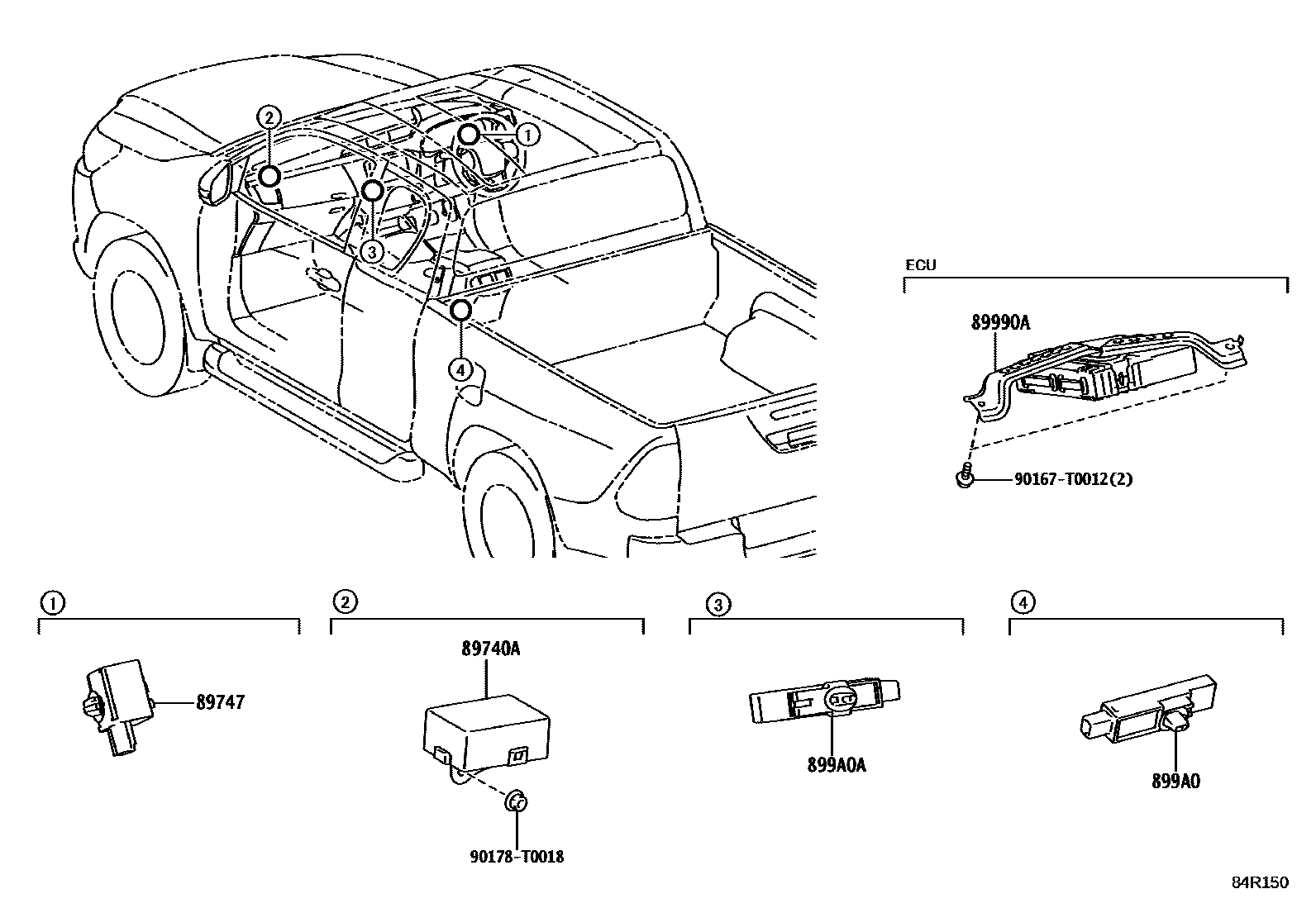

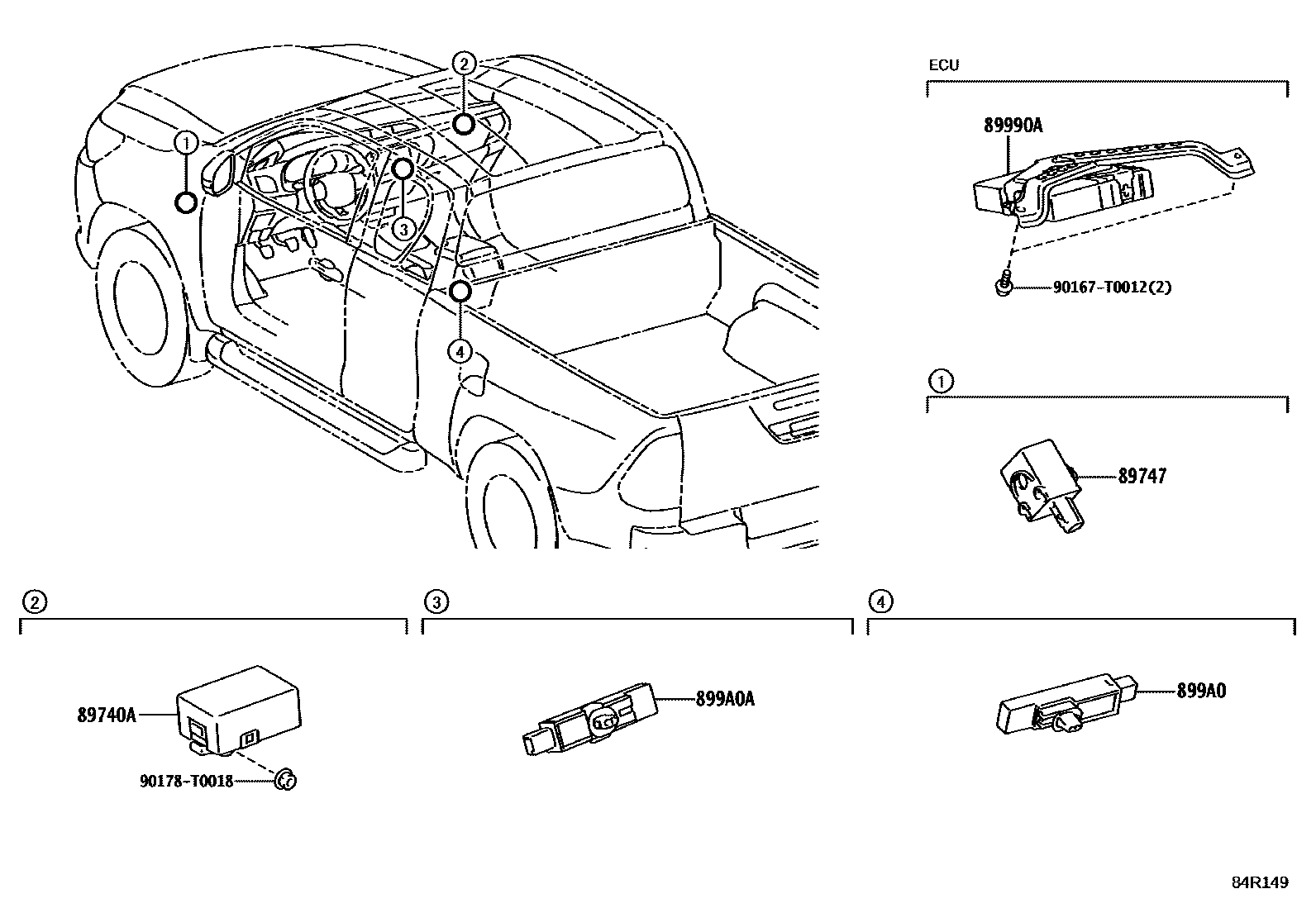

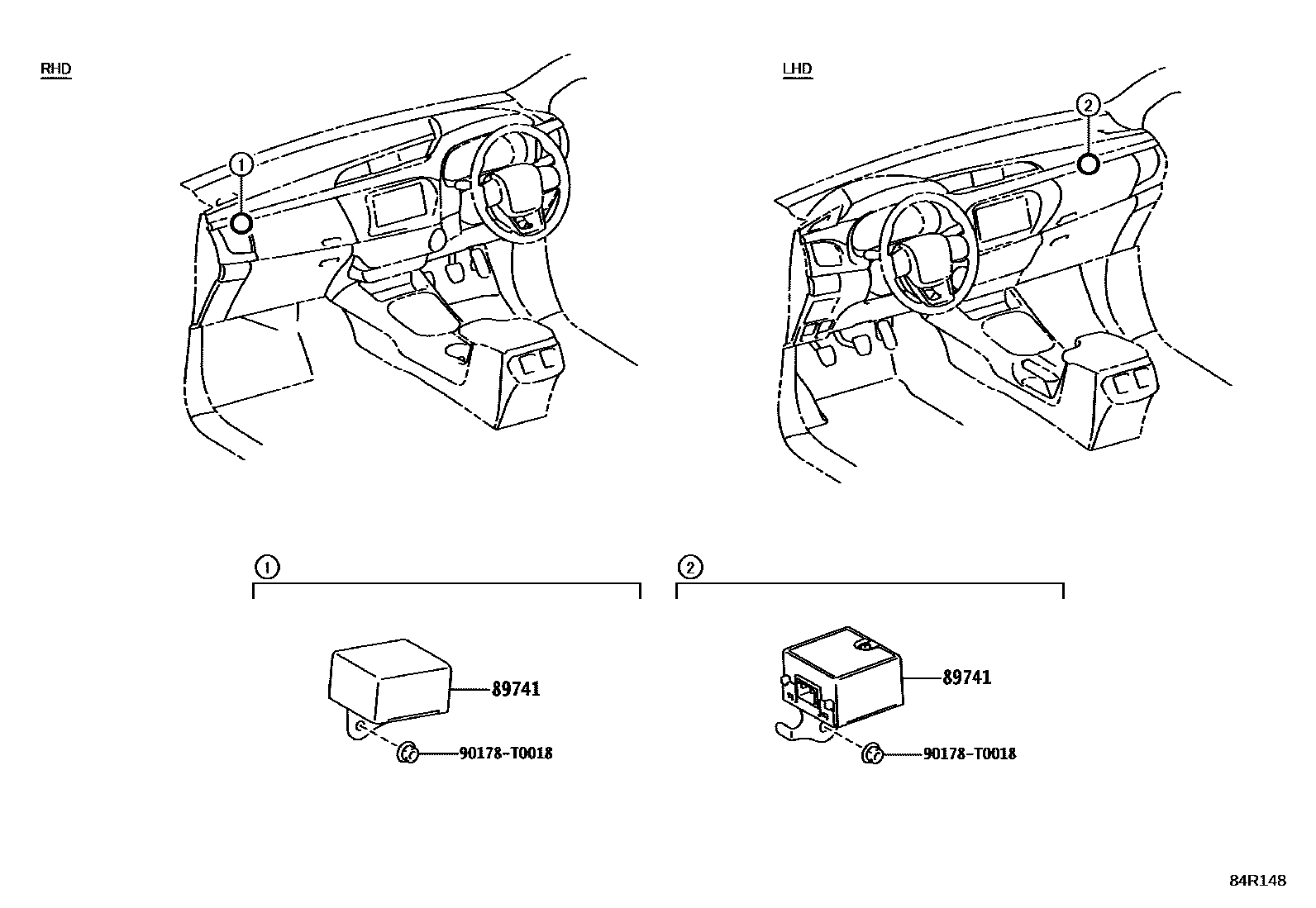

Toyota HILUX 遥控门锁 — Figure 8420
Toyota HILUX EPC diagram 8420, 遥控门锁, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89740A | Smart door control receiver assembly | 89740-0K070 · 89740-0K100 · 89740-0K311 · 89740-0K340 |
| 89741 | door control receiver | 89741-0K280 · 89741-0K290 · 89741-0K300 · 89741-0K310 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 89990-0K600 · 89990-0K610 · 89990-0KF50 · 89990-0KJ20 · 89990-0KJ30 · 89990-0KJ41 · 89990-0KJ51 · 899H0-0K090 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-0A010 · 899A0-0D110 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-0D170 · 899A0-0K060 |
