Toyota HILUX 线束和卡夹 — Figure 8202
Toyota HILUX EPC diagram 8202, 线束和卡夹, with 22 images and 94 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

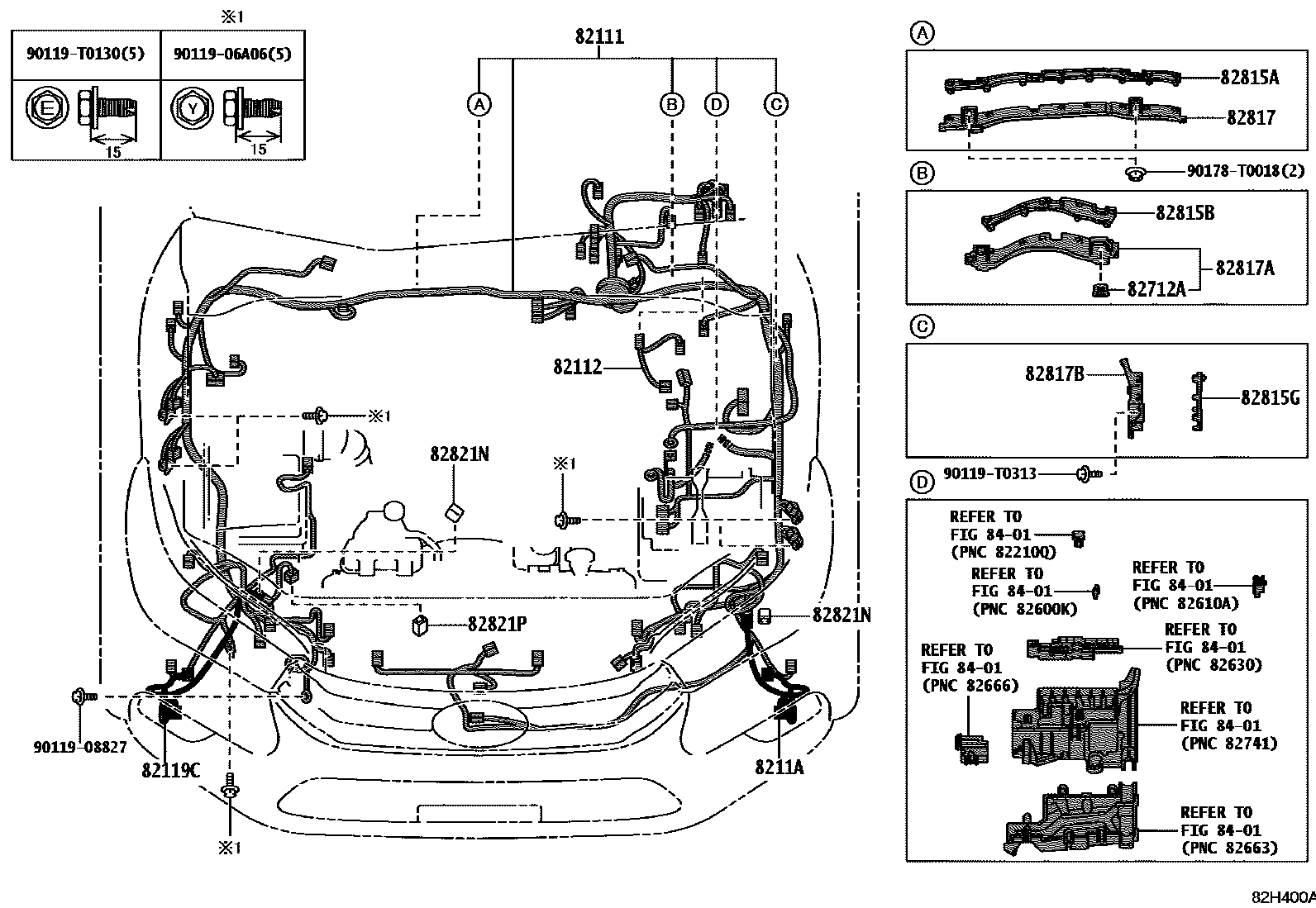

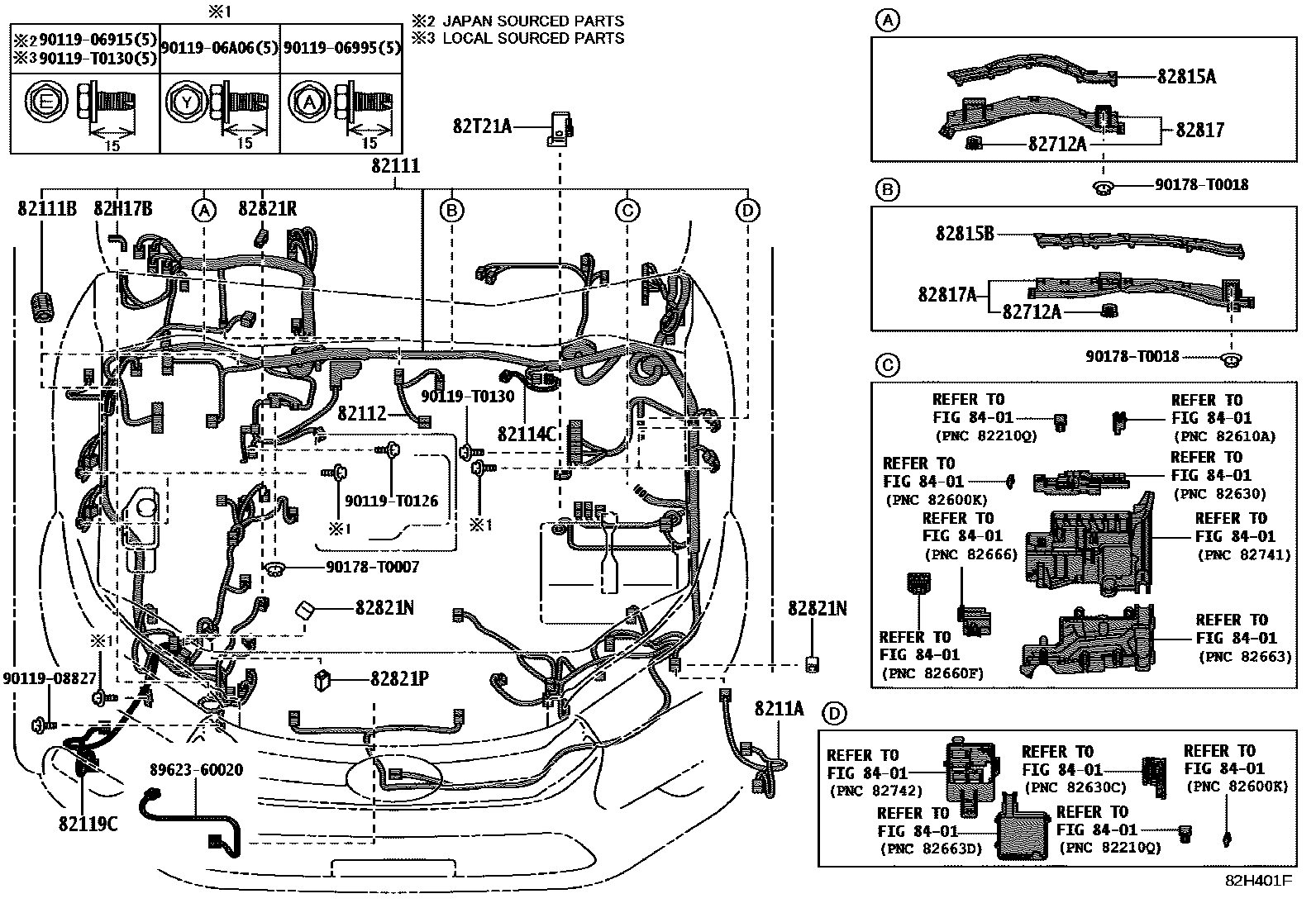

| 82111 | Engine room main wiring harness | 8211F-KK250 · 8211F-KK300 · 8211F-KK310 · 8211F-KKA00 · 8211F-KKK50 · 8211F-KKK60 · 8211F-KKL00 · 8211F-KKL40 · 8211F-KKM90 · 8211F-KKN10 · 8211F-KKP30 · 8211F-KKR90 · 8211F-KKT70 · 8211F-KKV40 · 8211F-KKV70 · 8211F-KKV80 · 8211F-KKW00 · 8211F-KKW40 · 8211F-KKW50 · 8211F-KKW60 · 8211F-KKW80 · 8211F-KKX80 · 8211F-KKY20 · 8211G-KK080 · 8211G-KK130 · 8211G-KK190 · 8211G-KK220 · 8211G-KK620 · 8211G-KK630 · 8211G-KK650 · 8211G-KK680 · 8211G-KK710 · 8211G-KK720 · 8211G-KK750 · 8211G-KK790 · 8211G-KK800 · 8211G-KK810 · 8211G-KK820 · 8211G-KK830 · 8211G-KKA60 · 8211G-KKA70 · 8211G-KKB10 · 8211G-KKB40 · 8211G-KKB50 · 8211G-KKC20 · 8211G-KKC30 · 8211H-KK140 · 8211H-KK740 · 8211H-KK750 · 8211H-KK760 · 8211H-KK770 · 8211H-KKC70 · 8211H-KKC80 · 8211H-KKC90 · 8211H-KKD20 · 8211H-KKD30 · 8211H-KKD40 · 8211H-KKD50 · 8211H-KKD70 · 8211H-KKE20 · 8211H-KKE40 · 8211H-KKE50 · 8211H-KKE60 · 8211H-KKF00 · 8211H-KKF80 · 8211H-KKF90 · 8211H-KKG00 · 8211H-KKG10 · 8211H-KKG20 · 8211H-KKG30 · 8211H-KKW50 · 8211H-KKW70 · 8211H-KKW80 · 8211J-KK190 · 8211J-KK230 · 8211J-KK240 · 8211J-KK370 · 8211J-KK390 · 8211J-KK730 · 8211J-KK770 · 8211J-KK780 · 8211J-KK790 · 8211J-KK810 · 8211J-KK820 · 8211J-KK830 · 8211J-KK840 · 8211J-KKC00 · 8211K-KKQ80 · 8211K-KKR50 · 8211K-KKR80 · 8211K-KKR90 |
| 82111B | condenser | 90980-04206 |
| 82112 | Engine room wiring harness No. 2 | 82112-KK010 · 82112-KK060 |
| 82114C | Front cabin No. 4 wiring harness | 82114-KK110 |
| 82119C | Engine room wiring harness No. 5 | 82119-KK040 · 82119-KK060 · 82119-KK140 · 82119-KK320 · 82119-KK330 · 82119-KK360 · 82119-KK440 · 82119-KK450 |
| 8211A | Engine room wiring harness No. 6 | 8211A-KK040 · 8211A-KK050 · 8211A-KK060 · 8211A-KK070 · 8211A-KK140 · 8211A-KK150 · 8211A-KK320 · 8211A-KK330 |

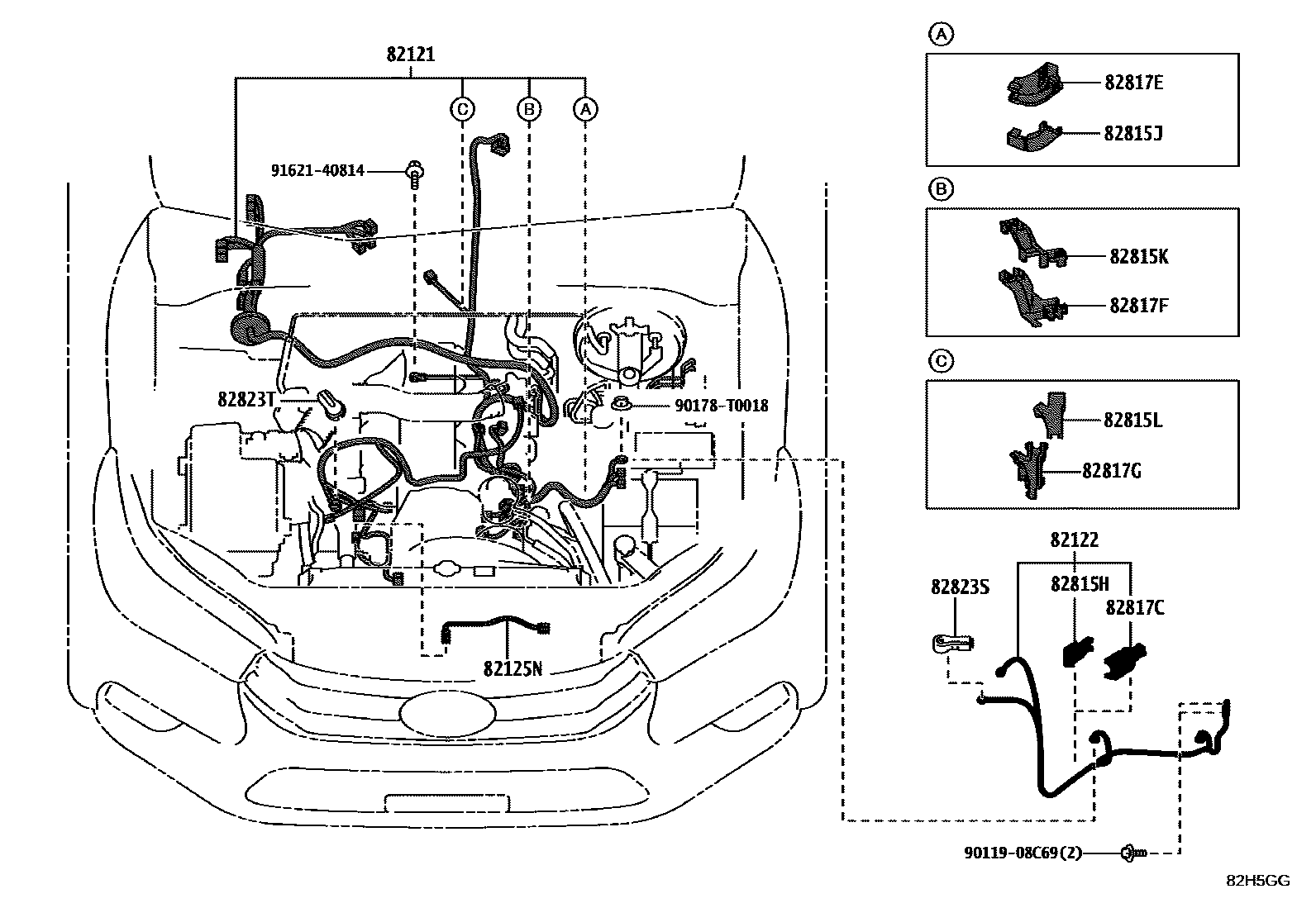

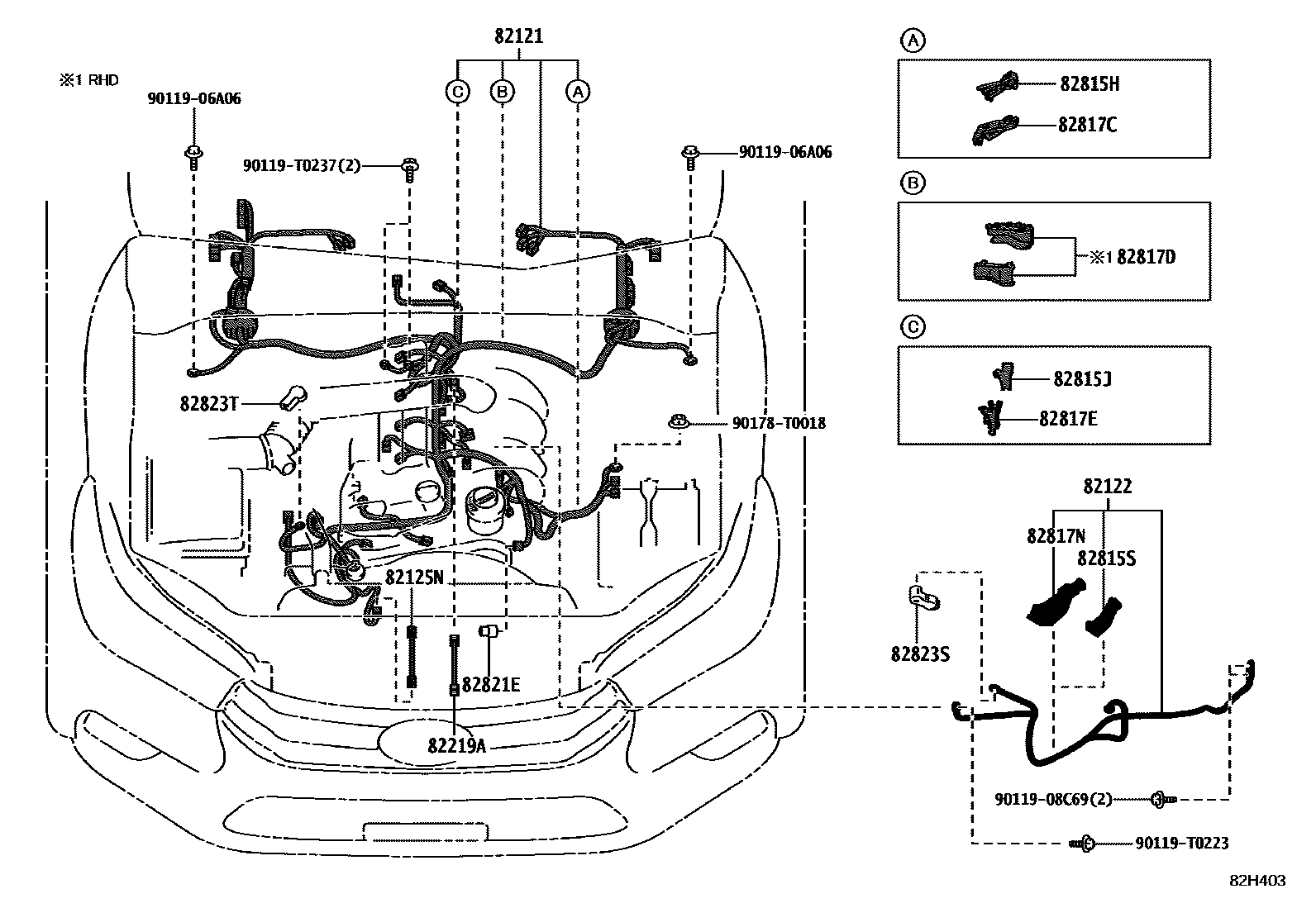

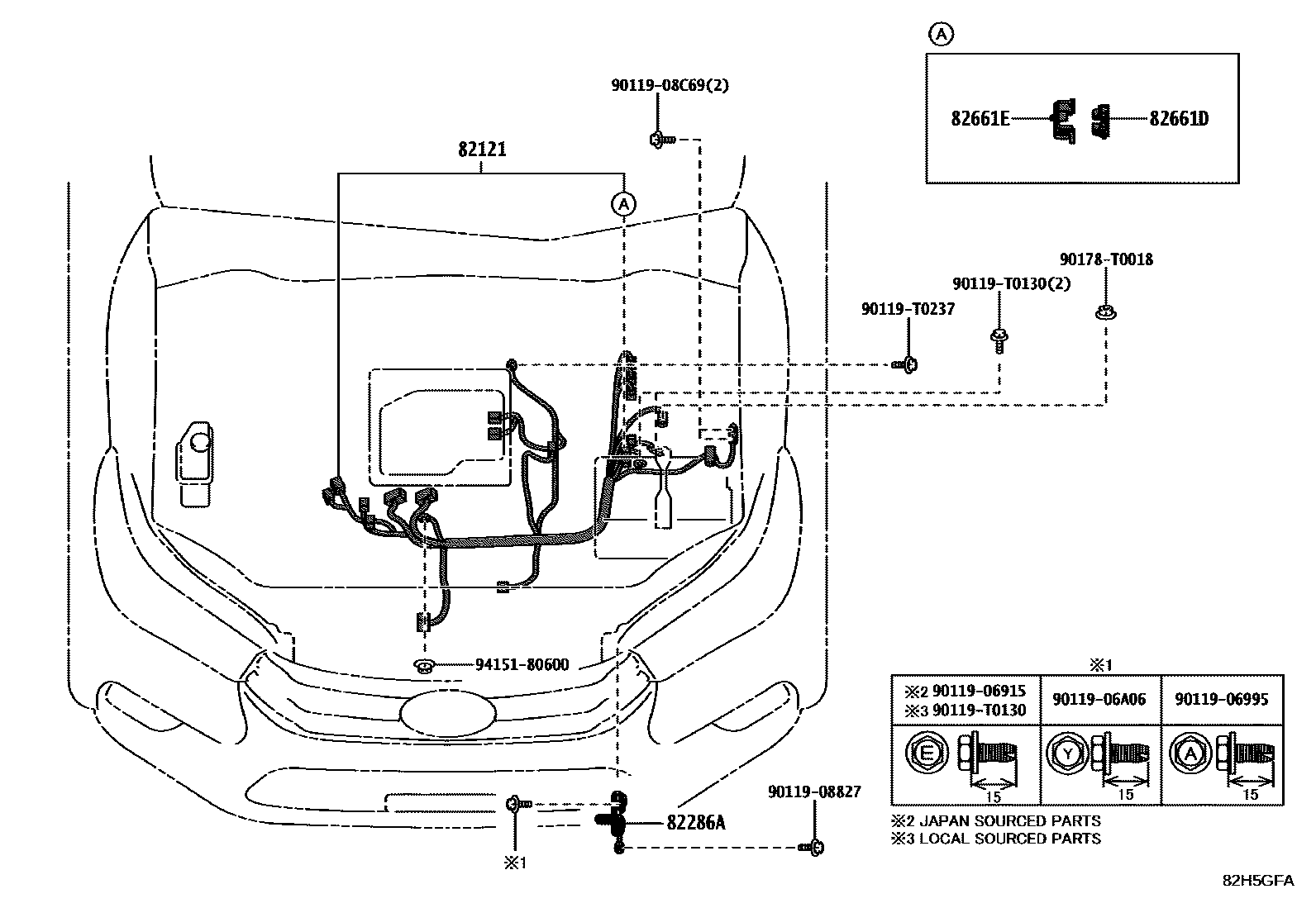

| 82121 | Engine wiring harness | 82121-71151 · 82126-KKL70 · 82126-KKL80 · 82126-KKL90 · 82126-KKM00 · 82126-KKM10 · 82126-KKM20 · 82126-KKM50 · 82126-KKN00 · 82126-KKN10 · 82126-KKN20 · 82126-KKN40 · 82126-KKN60 · 82126-KKN70 · 82126-KKP20 · 82126-KKR10 · 82126-KKR20 · 82126-KKR30 · 82126-KKR40 · 82126-KKR50 · 82126-KKR60 · 82126-KKR70 · 82126-KKR80 · 82126-KKR90 · 82126-KKS00 · 82126-KKS10 · 82126-KKS20 · 82126-KKS30 · 82126-KKS40 · 82126-KKS50 · 82126-KKS70 · 82126-KKS80 · 82126-KKS90 · 82126-KKT00 · 82126-KKT10 · 82126-KKT30 · 82126-KKT40 · 82126-KKT50 · 82126-KKT60 · 82126-KKT70 · 82126-KKT90 · 82126-KKU00 · 82126-KKU10 · 82126-KKU20 · 82126-KKU60 · 82126-KKU70 · 82126-KKU80 · 82126-KKU90 · 82126-KKV10 · 82126-KKV30 · 82126-KKV40 · 82126-KKV50 · 82126-KKV60 · 82126-KKW00 · 82126-KKW40 · 82126-KKW70 · 82126-KKW80 · 82126-KKW90 · 82126-KKX00 · 82126-KKX60 · 82126-KKX70 · 82126-KKX80 · 82126-KKY20 · 82126-KKY30 · 82126-KKY80 · 82126-KKZ10 · 82126-KKZ20 · 82126-KKZ30 · 8213B-KKF00 · 8213C-KK050 · 8213C-KK100 · 8213C-KK110 · 8213C-KK120 · 8213C-KK131 · 8213C-KK150 · 8213C-KK160 · 8213C-KK280 · 8213C-KK330 · 8213C-KK460 · 8213C-KK510 · 8213C-KK550 · 8213C-KK620 · 8213C-KK640 · 8213C-KK650 · 8213C-KK760 · 8213C-KK780 · 8213C-KK870 · 8213C-KK880 · 8213C-KK890 · 8213C-KKA00 · 8213C-KKA10 · 8213C-KKA30 · 8213C-KKA70 · 8213C-KKB00 · 8213C-KKB50 · 8213C-KKB90 · 8213C-KKC40 · 8213C-KKC50 · 8213C-KKE20 · 8213C-KKG30 · 8213C-KKL70 · 8213C-KKM10 · 8213C-KKM20 · 8213C-KKM30 · 8213C-KKM40 · 8213C-KKM50 · 8213C-KKM60 · 8213C-KKM70 · 8213C-KKR10 · 8213C-KKR20 · 8213C-KKR30 · 8213C-KKR80 · 8213C-KKS70 · 8213C-KKS80 · 8213C-KKT00 · 8213C-KKT20 · 8213C-KKT30 · 8213C-KKV50 · 8213C-KKW50 · 8213C-KKX70 · 8213C-KKX80 · 8213C-KKY50 · 8213C-KKZ10 · 8213D-KK420 · 8213D-KK430 |
| 82122 | Engine No. 2 wiring harness | 82122-KK100 · 82122-KK120 · 82122-KK140 · 82122-KK150 · 82122-KK210 · 82122-KK230 · 82122-KK330 · 82122-KK390 · 82122-KK410 · 82122-KK430 |
| 82125N | Engine No. 5 wiring harness | 82125-KK010 |
| 82127 | Differential harness | 82127-0K011 |

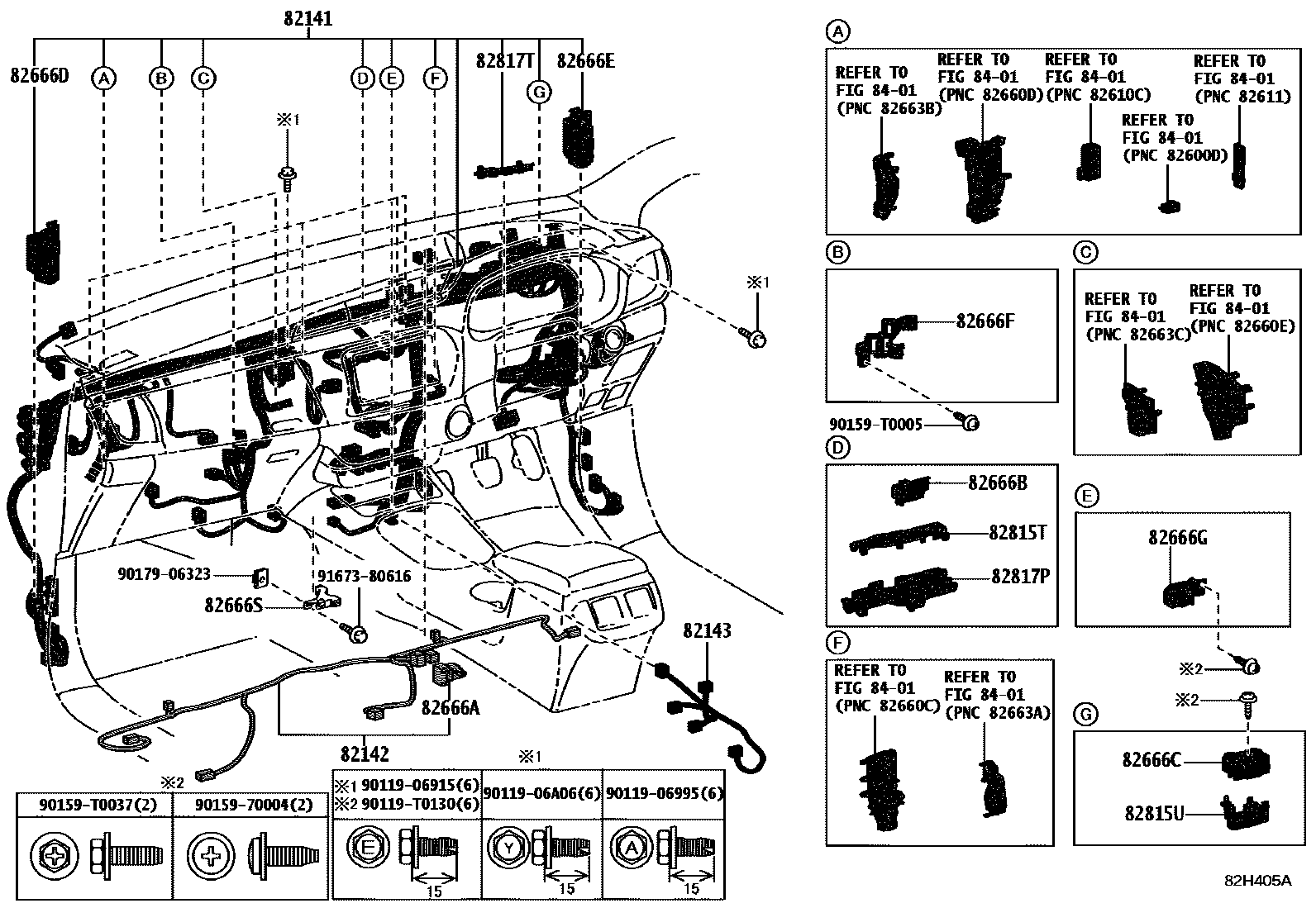

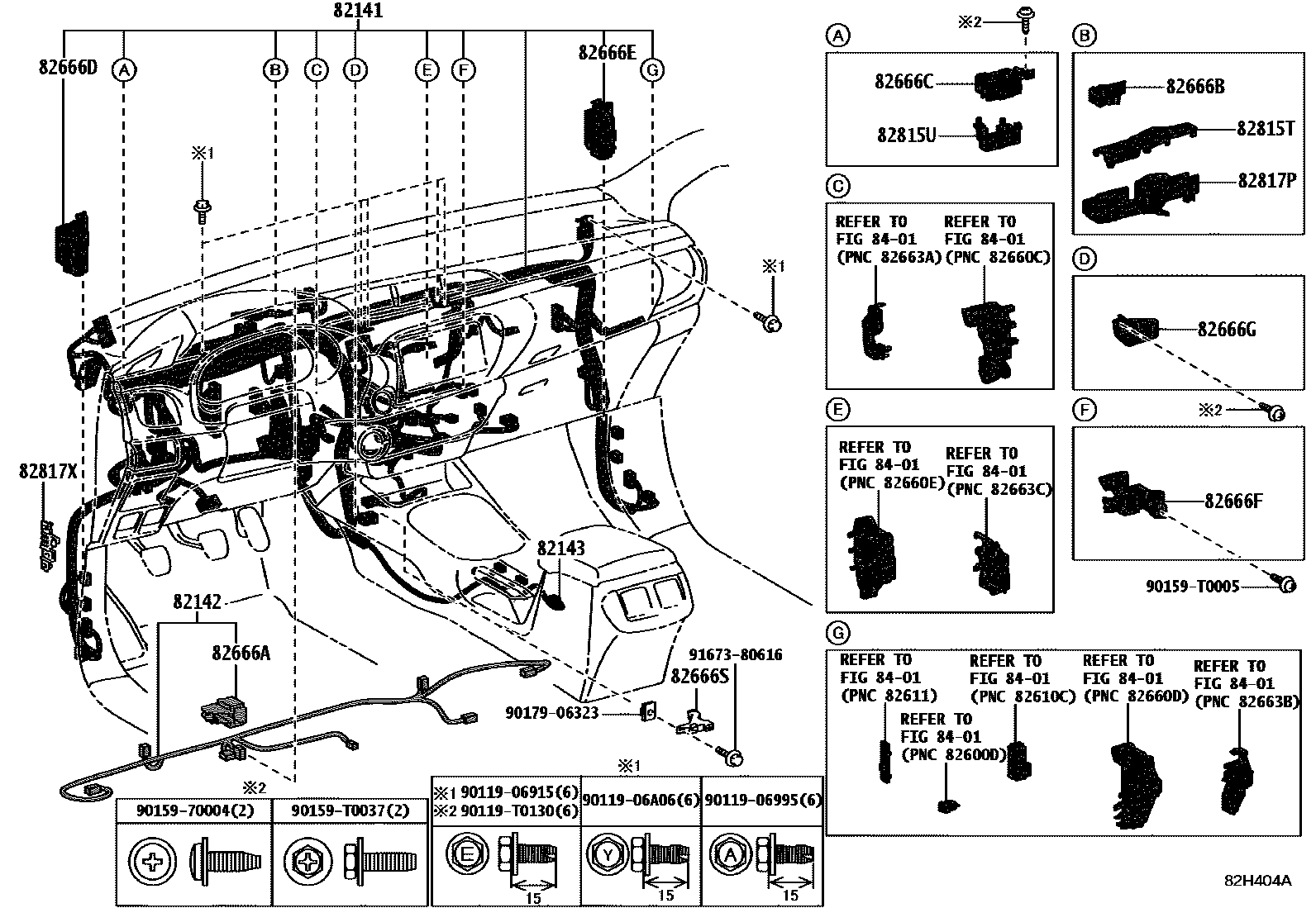

| 82141 | Dashboard wiring harness | 8214G-KKP20 · 8214G-KKP50 · 8214G-KKP90 · 8214G-KKQ00 · 8214G-KKQ10 · 8214G-KKQ70 · 8214G-KKQ80 · 8214G-KKQ90 · 8214G-KKR10 · 8214G-KKR80 · 8214G-KKR90 · 8214G-KKS00 · 8214G-KKS30 · 8214G-KKS50 · 8214G-KKS60 · 8214G-KKT00 · 8214G-KKT10 · 8214G-KKT70 · 8214G-KKU30 · 8214G-KKU40 · 8214G-KKU50 · 8214G-KKU60 · 8214G-KKU70 · 8214G-KKU80 · 8214H-KK850 · 8214H-KKJ70 · 8214H-KKJ80 · 8214H-KKS60 · 8214H-KKS70 · 8214H-KKZ00 · 8214J-KK140 · 8214J-KK150 · 8214J-KK490 · 8214J-KK520 · 8214J-KK550 · 8214J-KK560 · 8214J-KK570 · 8214J-KK580 · 8214J-KK660 · 8214J-KK700 · 8214J-KK720 · 8214J-KK800 · 8214J-KK810 · 8214J-KK820 · 8214J-KK870 · 8214J-KK890 · 8214J-KKA00 · 8214J-KKA10 · 8214J-KKA30 · 8214J-KKA70 · 8214J-KKB30 · 8214J-KKB70 · 8214J-KKC10 · 8214J-KKC50 · 8214J-KKC70 · 8214J-KKC90 · 8214J-KKD10 · 8214J-KKD50 · 8214J-KKE00 · 8214J-KKE10 · 8214J-KKE20 · 8214J-KKE50 · 8214J-KKE60 · 8214J-KKF10 · 8214J-KKF20 · 8214J-KKG40 · 8214J-KKG50 · 8214J-KKG70 · 8214J-KKG80 · 8214J-KKJ50 · 8214J-KKJ60 · 8214J-KKJ70 · 8214J-KKJ80 · 8214J-KKK00 · 8214J-KKK10 · 8214J-KKK30 · 8214J-KKK60 · 8214J-KKL30 · 8214J-KKL40 · 8214J-KKL50 · 8214J-KKL60 · 8214J-KKL70 · 8214J-KKL80 · 8214J-KKM10 · 8214J-KKM20 · 8214J-KKM70 · 8214J-KKM80 · 8214J-KKM90 · 8214J-KKN70 · 8214J-KKN80 · 8214J-KKN90 · 8214J-KKP00 · 8214J-KKP80 · 8214J-KKP90 · 8214J-KKQ00 · 8214J-KKQ10 · 8214J-KKQ20 · 8214J-KKQ30 · 8214J-KKQ40 · 8214J-KKQ70 · 8214J-KKQ80 · 8214J-KKR10 · 8214J-KKR40 · 8214J-KKR50 · 8214K-KK300 · 8214K-KKD10 · 8214K-KKD20 · 8214K-KKF50 · 8214K-KKJ10 · 8214K-KKJ20 · 8214K-KKJ30 · 8214K-KKJ40 · 8214K-KKL80 · 8214K-KKM90 · 8214K-KKN10 · 8214K-KKN20 · 8214K-KKN30 · 8214K-KKN50 · 8214K-KKP20 · 8214K-KKP40 · 8214K-KKQ90 · 8214K-KKR00 · 8214K-KKR20 · 8214K-KKR80 · 8214K-KKV60 · 8214K-KKV70 · 8214K-KKV80 · 8214K-KKV90 · 8214K-KKW00 · 8214K-KKW10 · 8214K-KKW20 · 8214K-KKW60 · 8214K-KKW70 · 8214K-KKW80 · 8214K-KKW90 · 8214K-KKX00 · 8214K-KKX20 · 8214K-KKX40 · 8214K-KKX50 · 8214K-KKX60 · 8214M-KKM30 · 8214M-KKM60 · 8214M-KKM80 · 8214M-KKN10 · 8214M-KKN20 · 8214M-KKP40 · 8214N-KK440 · 8214N-KKL30 · 8214N-KKL40 · 8214N-KKL50 · 8214N-KKM00 · 8214N-KKS00 · 8214N-KKU00 · 8214R-KKM30 · 8214R-KKN90 · 8214R-KKP00 · 8214R-KKY30 · 8214R-KKZ70 · 8214R-KKZ80 · 8214S-KK850 · 8214S-KKA40 · 8214S-KKB40 · 8214S-KKC80 · 8214S-KKC90 · 8214S-KKD00 · 8214S-KKE00 · 8214S-KKE40 · 8214S-KKG10 · 8214S-KKG20 · 8214S-KKJ20 · 8214S-KKK60 · 8214S-KKQ00 · 8214S-KKQ20 · 8214S-KKQ30 · 8214S-KKQ40 · 8214S-KKQ70 · 8214S-KKQ80 · 8214S-KKQ90 · 8214S-KKR00 · 8214S-KKR10 · 8214S-KKR20 · 8214S-KKR30 · 8214S-KKR40 · 8214S-KKR50 · 8214S-KKR60 · 8214S-KKR70 · 8214S-KKR80 · 8214S-KKR90 · 8214S-KKS00 · 8214S-KKS10 · 8214S-KKS20 · 8214S-KKS40 · 8214T-KK300 · 8214T-KK310 · 8214T-KKB50 · 8214T-KKB60 · 8214T-KKC00 · 8214T-KKC10 · 8214T-KKC40 · 8214T-KKC80 · 8214T-KKD10 · 8214T-KKD20 · 8214T-KKD80 · 8214T-KKD90 · 8214T-KKE00 · 8214T-KKE10 · 8214T-KKE20 · 8214T-KKE30 · 8214T-KKE40 · 8214T-KKE60 · 8214T-KKE80 · 8214T-KKE90 · 8214T-KKF50 · 8214T-KKF60 · 8214T-KKJ30 · 8214T-KKK40 · 8214T-KKK50 · 8214T-KKK60 · 8214T-KKK70 · 8214T-KKL90 · 8214T-KKM10 · 8214T-KKM30 · 8214T-KKM40 · 8214T-KKM80 · 8214T-KKM90 · 8214T-KKN00 · 8214T-KKN10 · 8214T-KKN20 · 8214T-KKN30 · 8214T-KKN40 · 8214T-KKN50 · 8214T-KKN60 · 8214T-KKN70 · 8214T-KKN80 · 8214T-KKN90 · 8214T-KKP70 · 8214T-KKP80 · 8214T-KKP90 · 8214T-KKQ00 · 8214T-KKQ10 · 8214T-KKQ20 · 8214T-KKQ30 · 8214T-KKQ40 · 8214T-KKR10 · 8214T-KKR20 · 8214T-KKR30 · 8214T-KKR40 · 8214T-KKR50 · 8214T-KKR60 · 8214T-KKR70 · 8214T-KKR80 · 8214T-KKR90 · 8214T-KKS50 · 8214T-KKS60 · 8214T-KKS70 · 8214T-KKS80 · 8214T-KKT00 · 8214T-KKT10 · 8214T-KKT30 · 8214T-KKT80 · 8214T-KKT90 · 8214T-KKU00 · 8214T-KKU10 · 8214T-KKU20 · 8214T-KKU40 · 8214T-KKU50 · 8214T-KKU60 · 8214T-KKU70 · 8214T-KKU80 · 8214T-KKW80 · 8214T-KKW90 · 8214T-KKX10 · 8214W-KK020 · 8214W-KK030 · 8214W-KK040 · 8214W-KK720 · 8214W-KK740 · 8214W-KK840 · 8214W-KK870 · 821C3-KK200 · 821C3-KK250 · 821C3-KK260 · 821C3-KK270 · 821C3-KK280 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-KKA40 · 82142-KKA50 · 82142-KKA70 · 82142-KKB30 · 82142-KKB40 · 82142-KKE10 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-KKB80 · 82143-KKB90 · 82143-KKC10 · 82143-KKC50 · 82143-KKG10 · 82143-KKG20 · 82143-KKG80 · 82143-KKJ00 |

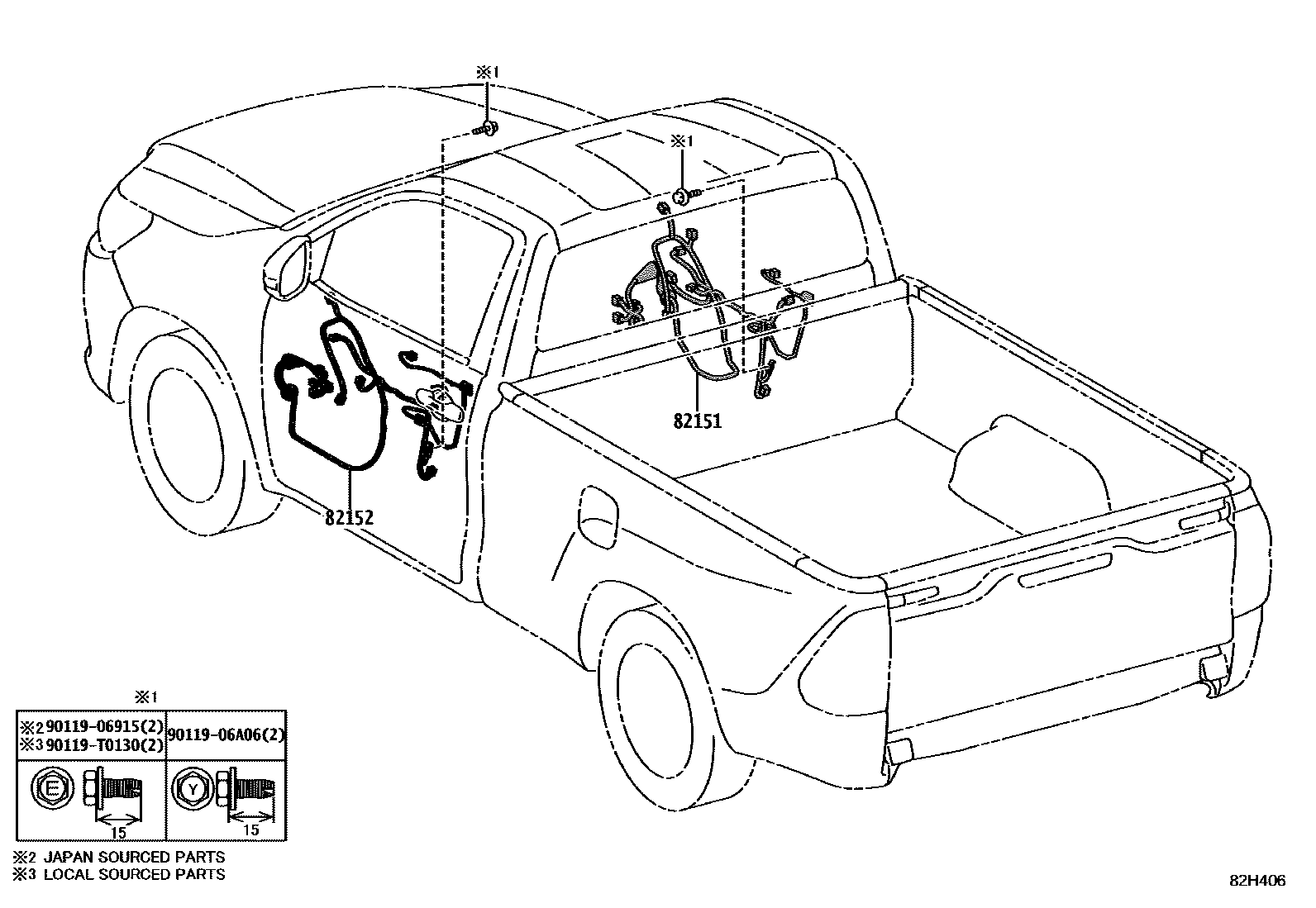

| 82151 | Right front door wiring harness | 82197-KK320 · 82197-KKD00 · 821A7-KK720 · 821A7-KK730 · 821A7-KK740 · 821A7-KK750 · 821A7-KK760 · 821A7-KKA20 · 821A7-KKB90 · 821A7-KKC60 · 821A7-KKC70 · 821A7-KKE90 · 821A7-KKF50 · 821A7-KKF60 · 821A7-KKF70 · 821A7-KKF80 · 821A7-KKF90 · 821A7-KKG00 · 821A7-KKG10 · 821A7-KKG20 · 821A7-KKG30 · 821A7-KKG40 · 821A7-KKG50 · 821A7-KKG60 · 821A7-KKG70 · 821A7-KKG80 · 821A7-KKG90 · 821A7-KKJ00 · 821A7-KKJ10 · 821A7-KKL90 · 821A7-KKM00 · 821A7-KKM10 · 821A7-KKM20 · 821A7-KKX00 · 821A7-KKX10 · 821A7-KKX40 · 821A7-KKX50 |
| 82152 | Left front door wiring harness | 821A8-KKS30 · 821A8-KKS70 · 821A8-KKS80 · 821A8-KKS90 · 821A8-KKT00 · 821A8-KKT10 · 821A8-KKU60 · 821A8-KKV00 · 821A8-KKW80 · 821A8-KKX90 · 821A8-KKY00 · 821A8-KKY10 · 821A8-KKY20 · 821A8-KKY30 · 821A8-KKY40 · 821A8-KKY50 · 821A8-KKY60 · 821A8-KKY80 · 821B8-KK630 · 821B8-KK640 · 821B8-KK840 · 821B8-KK850 · 821B8-KK860 · 821B8-KK870 · 821B8-KK880 · 821B8-KK890 · 821B8-KKA00 · 821B8-KKC60 · 821B8-KKC70 · 821B8-KKC80 · 821B8-KKC90 · 821B8-KKD00 · 821B8-KKD10 · 821B8-KKD20 · 821B8-KKF40 |
| 82153 | Rear door wiring harness No. 1 | 82153-KKB70 · 82153-KKB80 |
| 82154 | Rear door wiring harness No. 2 | 82154-KKA40 · 82154-KKA50 |

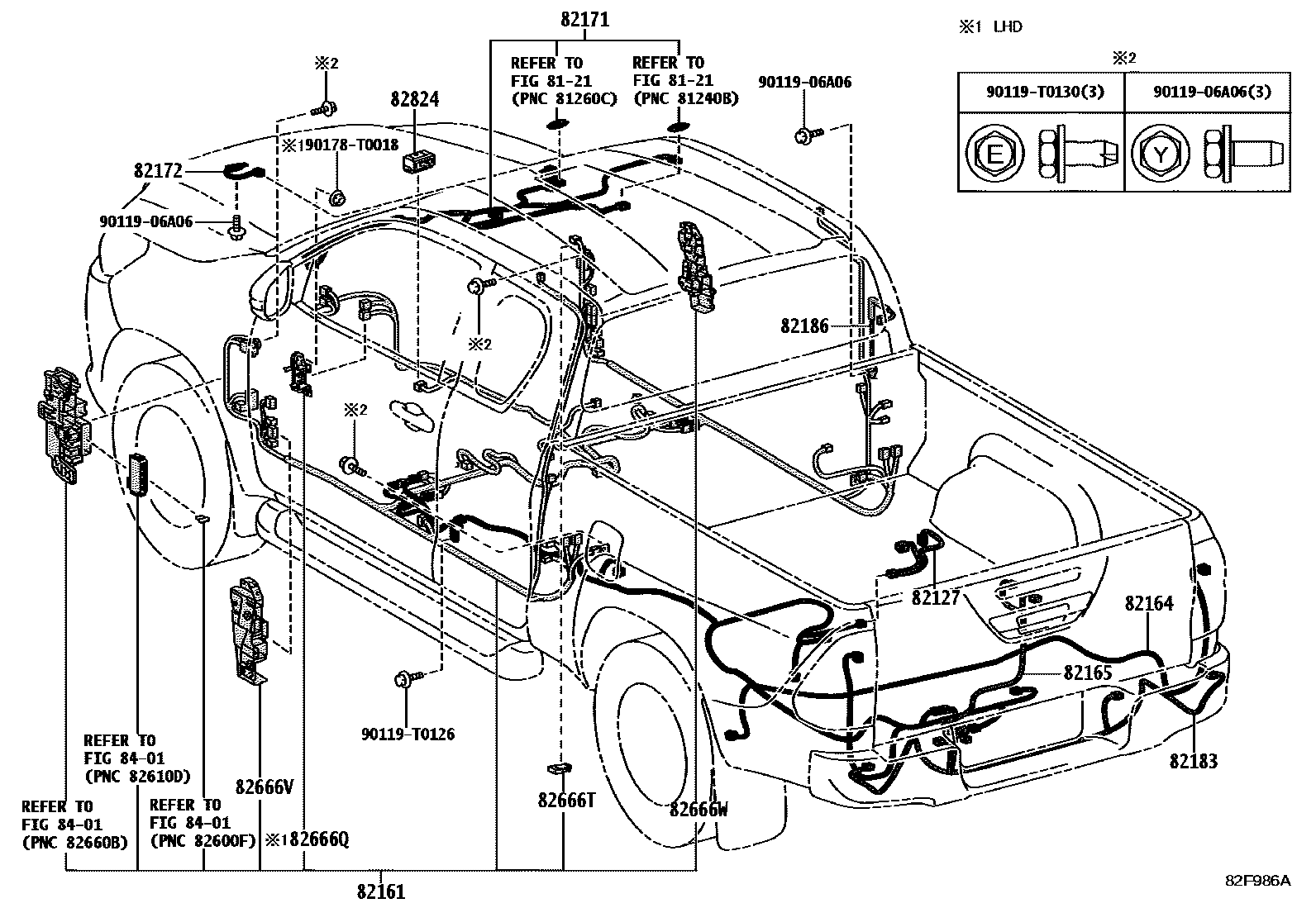

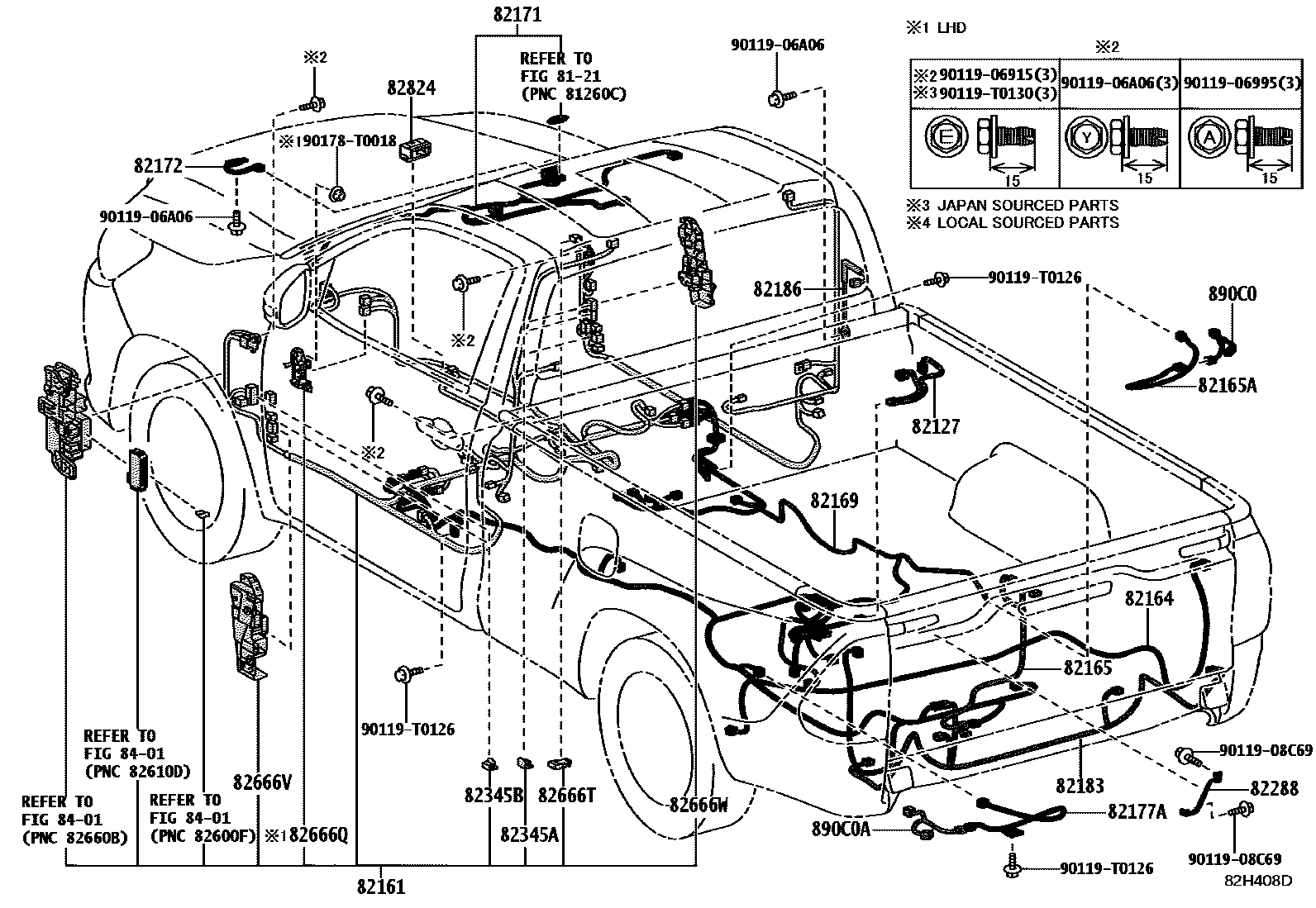

| 82161 | floor wiring harness | 8219H-KKW20 · 8219H-KKW30 · 8219H-KKW40 · 8219H-KKW70 · 8219H-KKW80 · 8219H-KKX50 · 8219H-KKX60 · 8219H-KKX70 · 8219H-KKX80 · 8219H-KKY20 · 8219J-KK510 · 8219J-KK580 · 8219J-KK610 · 8219J-KK620 · 8219J-KK640 · 8219J-KK660 · 8219J-KKA70 · 8219J-KKR30 · 8219J-KKW00 · 8219K-KK030 · 8219K-KK040 · 8219K-KK050 · 8219K-KK060 · 8219K-KK200 · 8219K-KK250 · 8219K-KK530 · 8219K-KK540 · 8219K-KK550 · 8219K-KK560 · 8219K-KK570 · 8219K-KKR40 · 8219K-KKR50 · 8219K-KKR60 · 8219K-KKR70 |
| 82164 | Frame wiring harness set | 82164-KKF30 · 82164-KKF40 · 82164-KKF41 · 82164-KKF60 · 82164-KKF80 · 82164-KKF81 · 82164-KKG00 · 82164-KKG20 · 82164-KKG40 · 82164-KKG70 · 82164-KKG90 · 82164-KKL00 · 82164-KKL30 · 82164-KKL60 · 82164-KKM40 · 82164-KKM80 · 82164-KKT80 · 82164-KKU00 · 82164-KKV10 · 82164-KKV30 · 82164-KKV90 · 82164-KKW00 |
| 82165 | No. 2 frame wiring harness | 82165-KK070 · 82165-KK080 · 82165-KK100 · 82165-KK200 |
| 82165A | No. 2 frame wiring harness | 82177-KK020 |
| 82169 | No. 3 frame wiring harness | 82169-KK100 · 82169-KK220 |
| 82171 | Roof No. 1 wiring harness | 82171-KKF30 · 82171-KKF40 · 82171-KKF60 · 82171-KKF70 · 82171-KKF80 · 82171-KKG20 · 82171-KKG90 · 82171-KKM70 · 82171-KKN30 · 82171-KKN50 · 82171-KKN60 · 82171-KKN70 · 82171-KKN80 · 82171-KKN90 · 82171-KKP00 · 82171-KKR60 · 82171-KKR70 · 82171-KKU80 · 82171-KKV40 |
| 82172 | Roof No. 2 wiring harness | 82172-KK010 |
| 82177A | No. 4 frame wiring harness | 82177-KK010 |
| 82183 | Luggage No. 3 wiring harness | 82183-KK090 |
| 82186 | Rear window wiring harness No. 1 | 82186-KK030 |

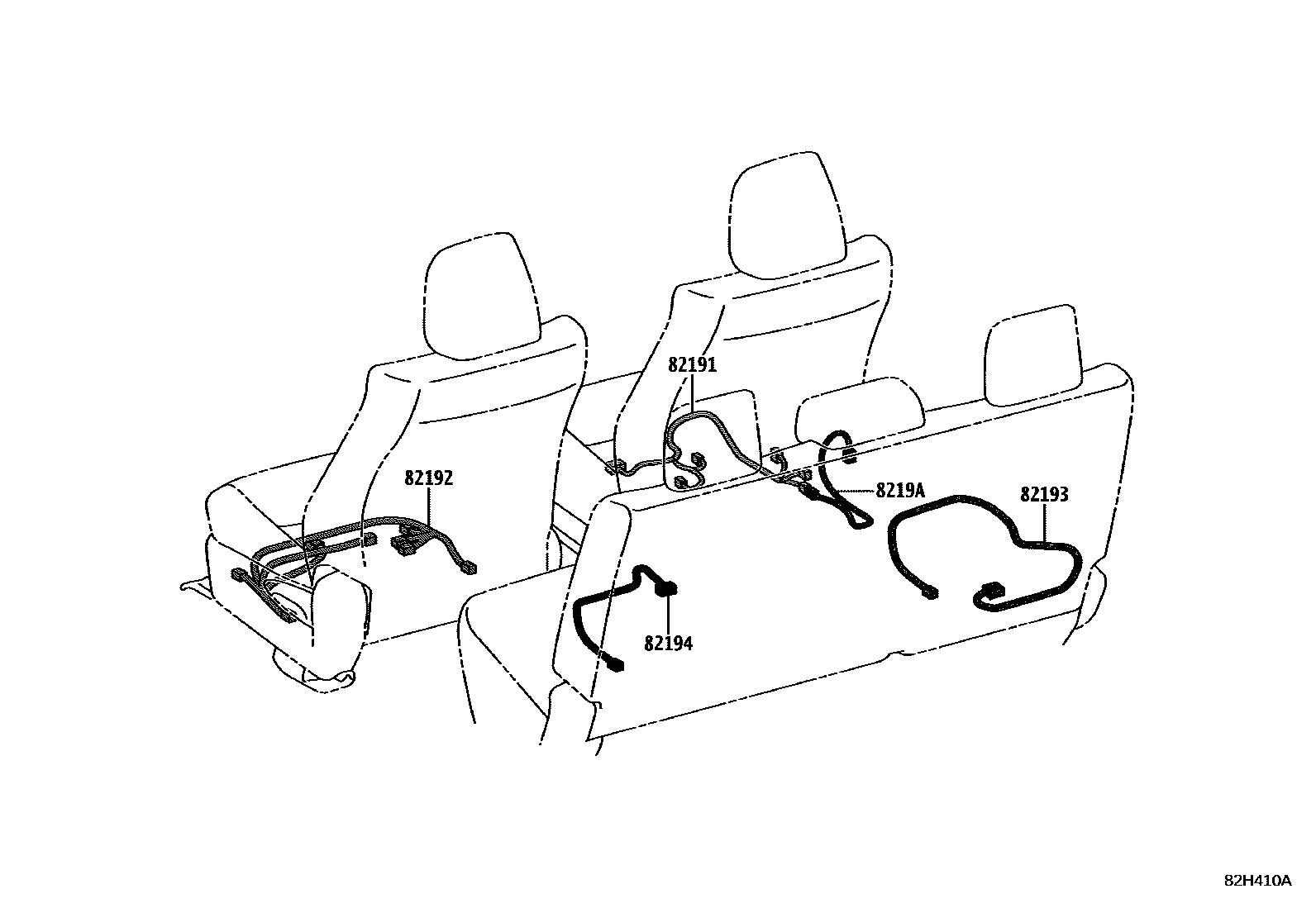

| 82191 | Front right seat wiring harness | 82191-0K050 |
| 82192 | Front left seat wiring harness | 82192-0K140 |
| 82193 | Rear right seat wiring harness | 82193-0K040 |
| 82194 | Rear left seat wiring harness | 82194-0K040 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-0K050 |
| 821H4D | CABLE, ONDULEUR PRISE HAUTE TENSION, NO.1 | 821H4-KK010 |
| 821H6A | Wiring harness on floor No. 2 | 821H6-KK010 |
| 82219A | sensor harness | 82219-0K010 |

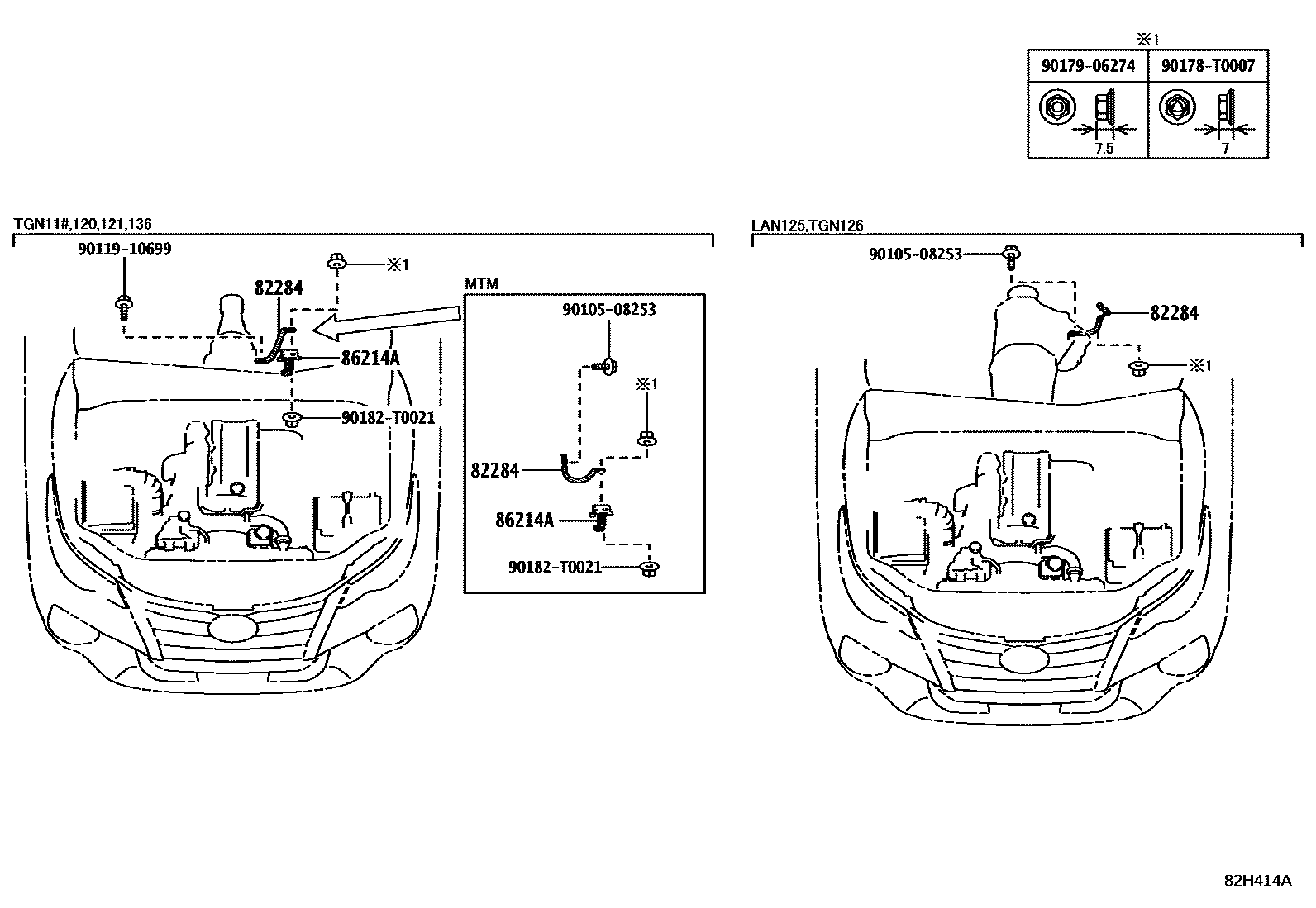

| 82284 | Ground wire | 82284-KK010 · 82284-KK020 · 82284-KK030 |
| 82286A | Line 2 | 82286-KK010 |
| 82288 | Line 4 | 82288-KK010 |
| 82345A | diode | 82345-12050 |
| 82345B | diode | 82345-12030 |
| 82661D | No. 1 relay box side cover | 82661-0K120 |
| 82661E | No. 2 relay box side cover | 82661-0K150 |
| 82666A | Connector holder No. 2 | 82666-0K200 |
| 82666B | No. 3 connector holder | 82666-0K160 · 82666-0K290 |
| 82666C | No. 4 connector holder | 82666-0K170 · 82666-0K180 |
| 82666D | No. 5 connector holder | 82666-0K210 |
| 82666E | No. 6 connector holder | 82666-0K220 |
| 82666F | No. 7 connector holder | 82666-0K230 · 82666-0K240 |
| 82666G | No. 8 connector holder | 82666-0K300 · 82666-0K310 |
| 82666Q | No. 12 connector holder | 82666-0K410 |
| 82666S | No. 13 connector holder | 82666-0K390 |
| 82666T | No. 14 connector socket | 82666-20270 |
| 82666V | No. 15 connector holder | 82666-0K470 |
| 82666W | No. 16 connector socket | 82666-0K480 |

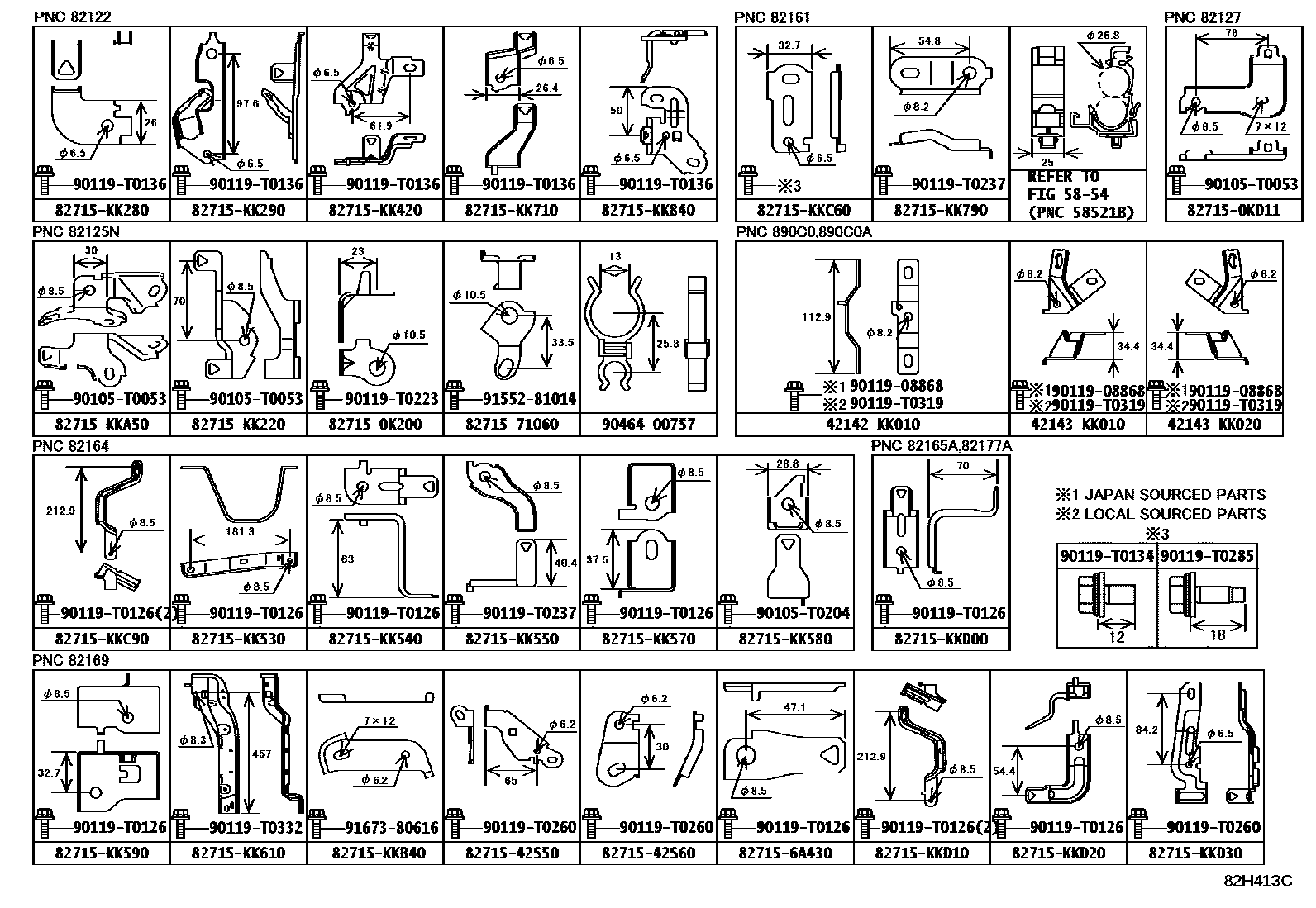

| 82712A | Wire harness bracket | 82712-33190 |
| 82815A | Wiring harness protector cover | 82815-0K530 · 82815-0K560 |
| 82815B | Wiring harness protector cover | 82815-0K520 · 82815-0K550 |
| 82815G | No. 5 wire harness protector cover | 82815-0K540 |
| 82815H | No. 6 wire harness protector cover | 82815-0K270 · 82815-0K610 · 82815-0K661 |
| 82815J | No. 7 wire harness protector cover | 82815-0K340 · 82815-0K350 · 82815-0K600 · 82815-0K640 · 82815-0K710 |
| 82815K | No. 8 wire harness protector cover | 82815-0K280 · 82815-0K720 |
| 82815L | No. 9 wire harness protector cover | 82815-0K510 · 82815-0K710 |
| 82815P | No. 12 wire harness protector cover | 82815-0K070 |
| 82815Q | No. 13 wire harness protector cover | 82815-0K630 |
| 82815S | No. 15 wire harness protector cover | 82815-0K400 · 82815-0K800 |
| 82815T | No. 16 wire harness protector cover | 82815-0K410 · 82815-0K420 |
| 82815U | No. 17 wire harness protector cover | 82815-0K470 · 82815-0K480 |
| 82817 | No. 1 wire harness protection device | 82817-0K530 · 82817-0K560 |
| 82817A | No. 2 wire harness protection device | 82817-0K520 · 82817-0K550 |
| 82817B | No. 3 wire harness protection device | 82817-0K540 |
| 82817C | No. 4 wire harness protection device | 82817-0K270 · 82817-0K640 · 82817-0K691 |
| 82817D | No. 5 wire harness protection device | 82817-0K050 · 82817-0K280 |
| 82817E | No. 6 wire harness protection device | 82817-0K340 · 82817-0K350 · 82817-0K630 · 82817-0K670 |
| 82817F | No. 7 wire harness protection device | 82817-0K510 · 82817-0K780 |
| 82817G | No. 8 wire harness protection device | 82817-0K300 · 82817-0K670 |
| 82817K | No. 10 wire harness protection device | 82817-0K310 |
| 82817M | No. 12 wire harness protection device | 82817-0K660 |
| 82817N | No. 13 wire harness protection device | 82817-0K400 · 82817-0KA30 |
| 82817P | No. 14 wire harness protection device | 82817-0K410 · 82817-0K420 |
| 82817T | No. 15 wire harness protection device | 82817-0K800 |
| 82817X | No. 17 wire harness protection device | 82817-0K840 · 82817-0K860 · 82817-0KA40 |
| 82818 | No. 2 wire harness protection device | 82817-0K290 |
| 82821E | Connector cover | 82821-KK020 |
| 82821N | Connector cover | 82821-KK030 |
| 82821P | Connector cover | 82821-71080 |
| 82821R | Connector cover | 82821-33820 |
| 82823S | starter terminal cover | 82823-0K010 · 82823-0K030 · 82823-30100 · 82823-35040 · 82823-35050 |
| 82823T | Generator terminal cover | 82823-22050 |

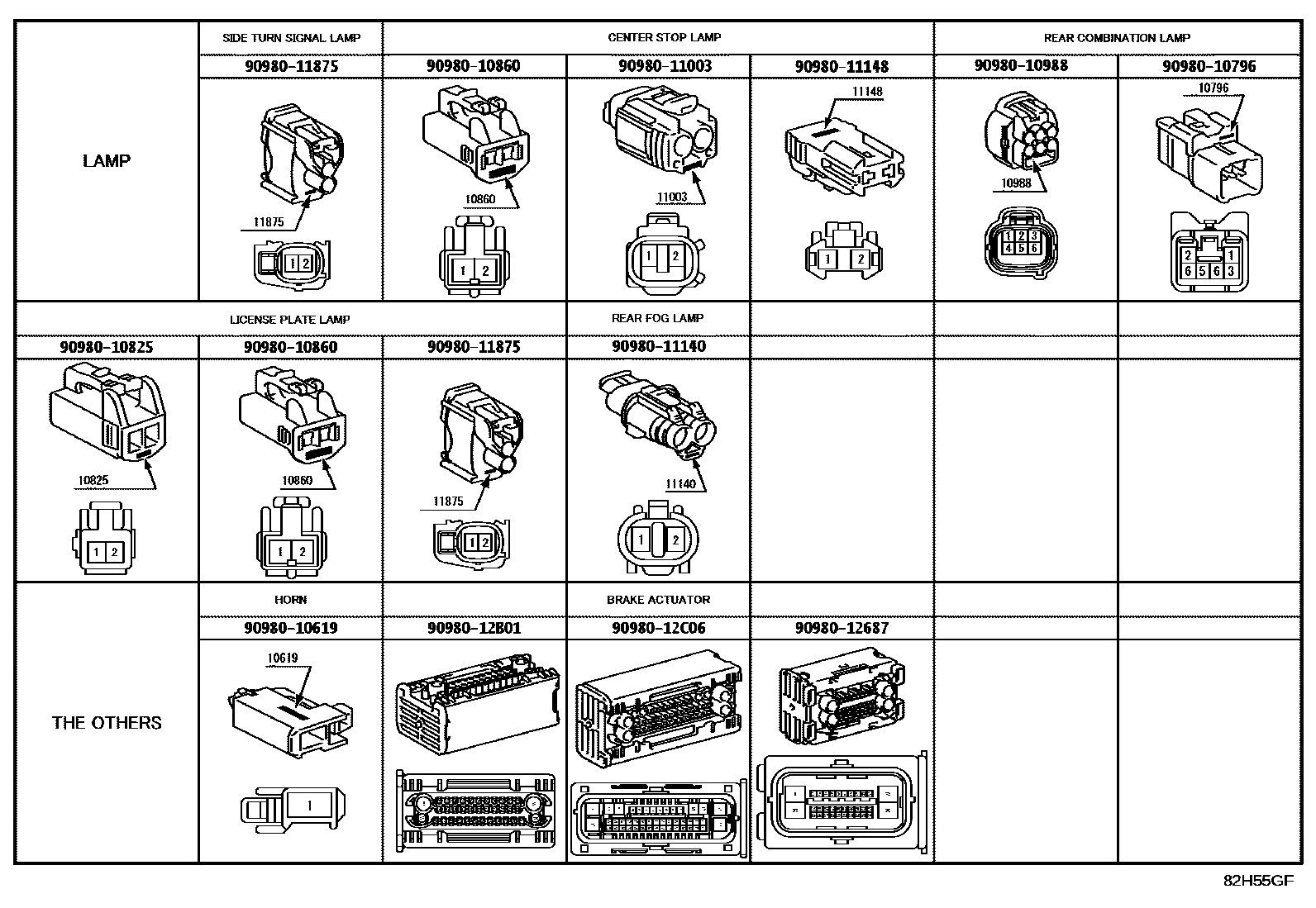

| 82824 | Harness connector | 90980-12393 · 90980-12448 · 90980-12878 |
| 82H17B | No. 1 wire harness protection device | 82817-2A790 |
| 82T21A | CACHE, CONNECTEUR | 82821-33350 |
| 86214A | Radio ground bracket | 86214-KK010 |
| 890C0 | Parking brake cable assembly No. 1 | 890C0-0K010 |
| 890C0A | Parking brake No. 2 cable assembly | 890C0-0K020 |
