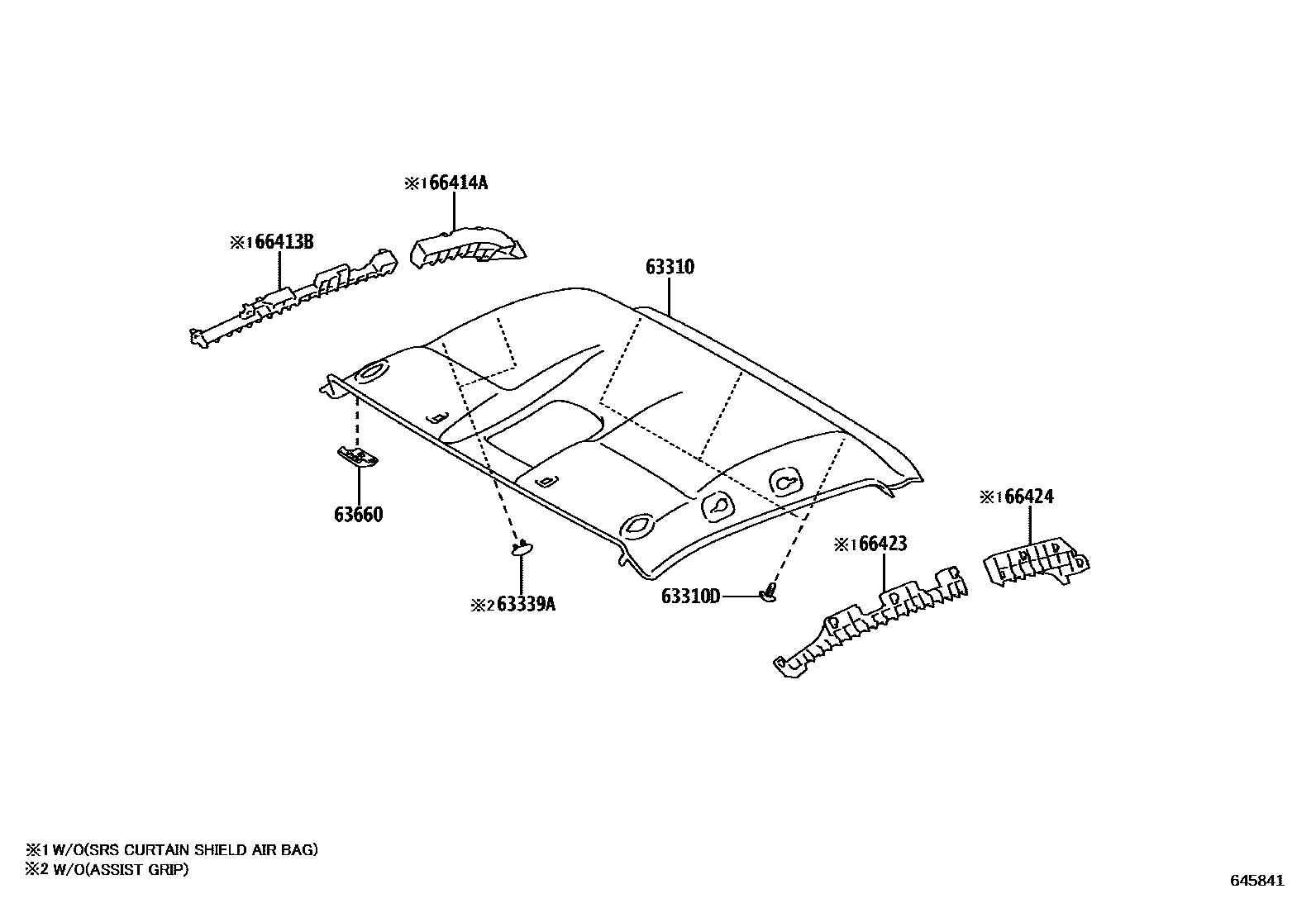

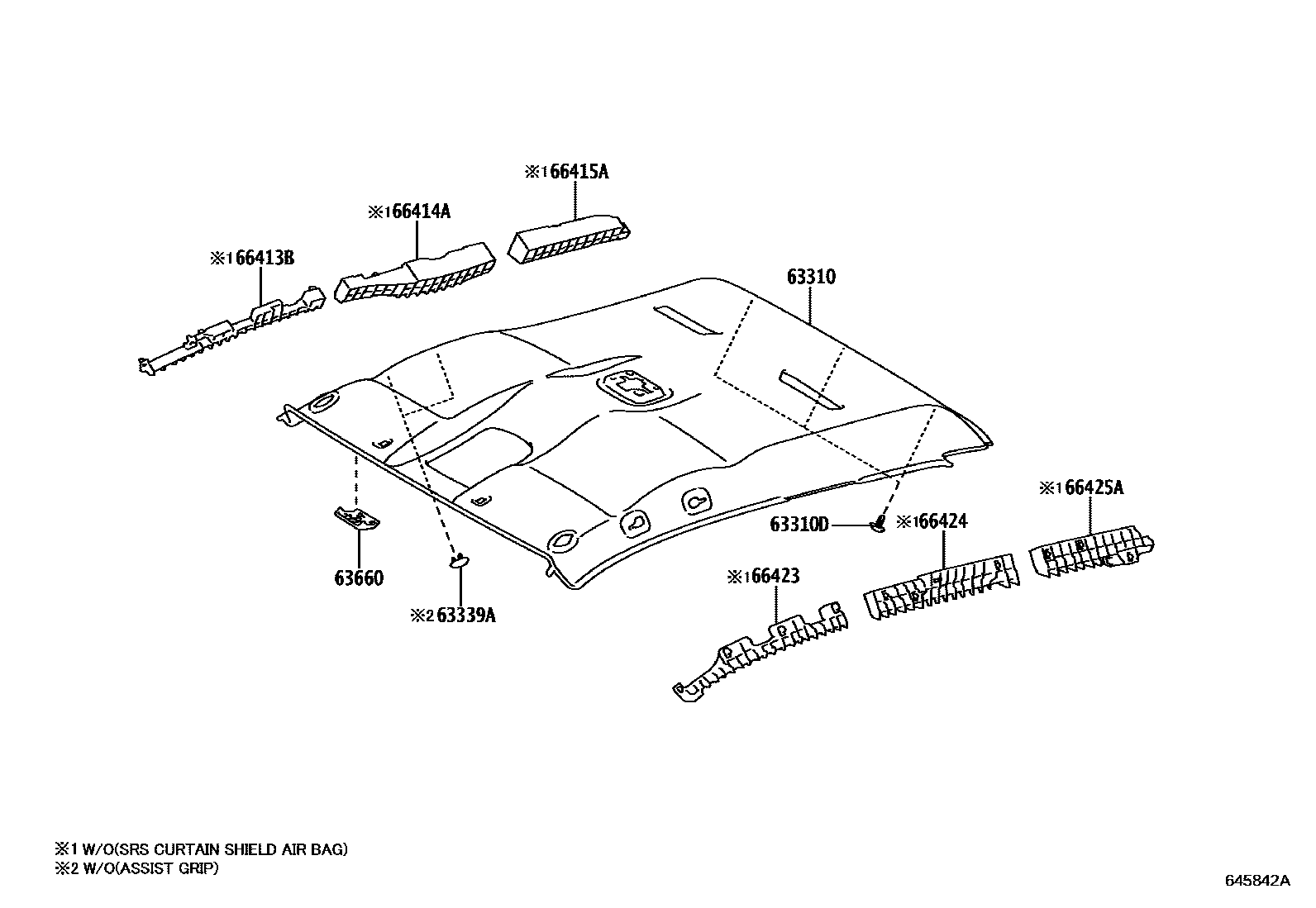

Toyota HILUX 车顶内衬和消声垫 — Figure 6452
Toyota HILUX EPC diagram 6452, 车顶内衬和消声垫, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 66413B | Right front longitudinal member spacer | 66413-0K080 · 66413-KK020 |
| 66414A | Right rear longitudinal member spacer | 66414-0K080 · 66414-0K090 · 66414-KK030 |
| 66415A | No. 2 right rear longitudinal beam spacer | 66415-0K150 |
| 66423 | Left front longitudinal member spacer | 66423-0K080 · 66423-KK020 |
| 66424 | Left rear longitudinal member spacer | 66424-0K080 · 66424-0K090 · 66424-KK030 |
| 66425A | No. 2 left rear longitudinal beam spacer | 66425-0K150 |
