Toyota HILUX 后盘式制动器卡钳和防尘罩 — Figure 4707

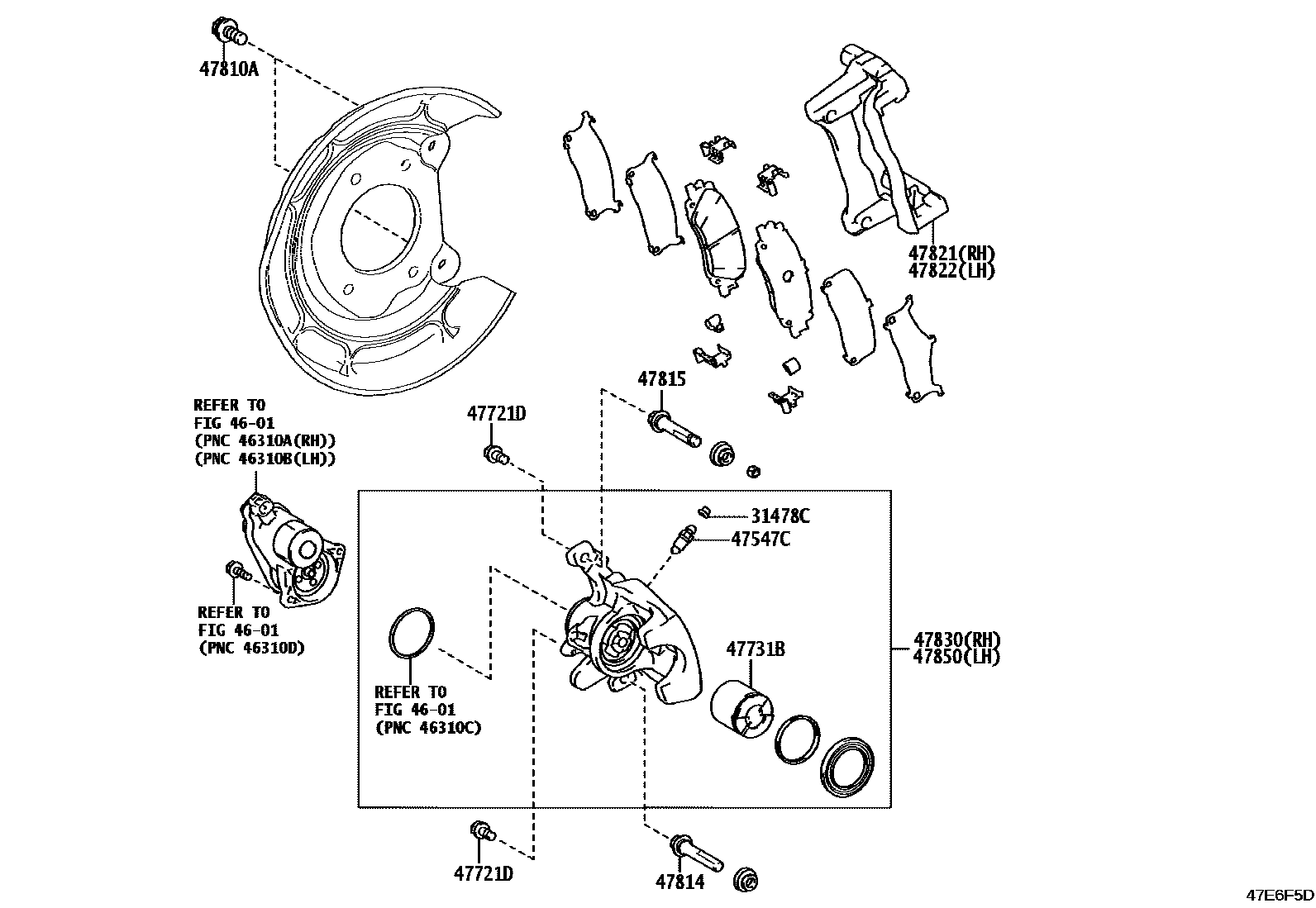

Toyota HILUX EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31478C | Bleed plug cap (for rear disc brake) | 31478-30010 |
| 47547C | Bleed plug (for rear disc brake) | 90016-AJ005 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90016-AA616 |
| 47731B | rear disc brake piston | 47831-04010 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90119-14169 |
| 47814 | No. 1 brake cylinder sliding pin (for rear disc brake) | 47814-0C040 |
| 47815 | No. 2 rear brake cylinder sliding pin (for rear disc brake) | 47815-0C040 |
| 47821 | Right rear disc brake cylinder retainer | 47821-04010 |
| 47822 | Left rear disc brake cylinder retainer | 47822-04010 |
| 47830 | Right rear disc brake cylinder assembly | 47830-04010 |
| 47850 | Left rear disc brake cylinder assembly | 47850-04010 |
