Toyota HILUX 传动桥总成(HEV 或 BEV 或 FCEV) — Figure 3901

Toyota HILUX EPC diagram 3901, 传动桥总成(HEV 或 BEV 或 FCEV), with 1 images and 16 PNC and OE references.

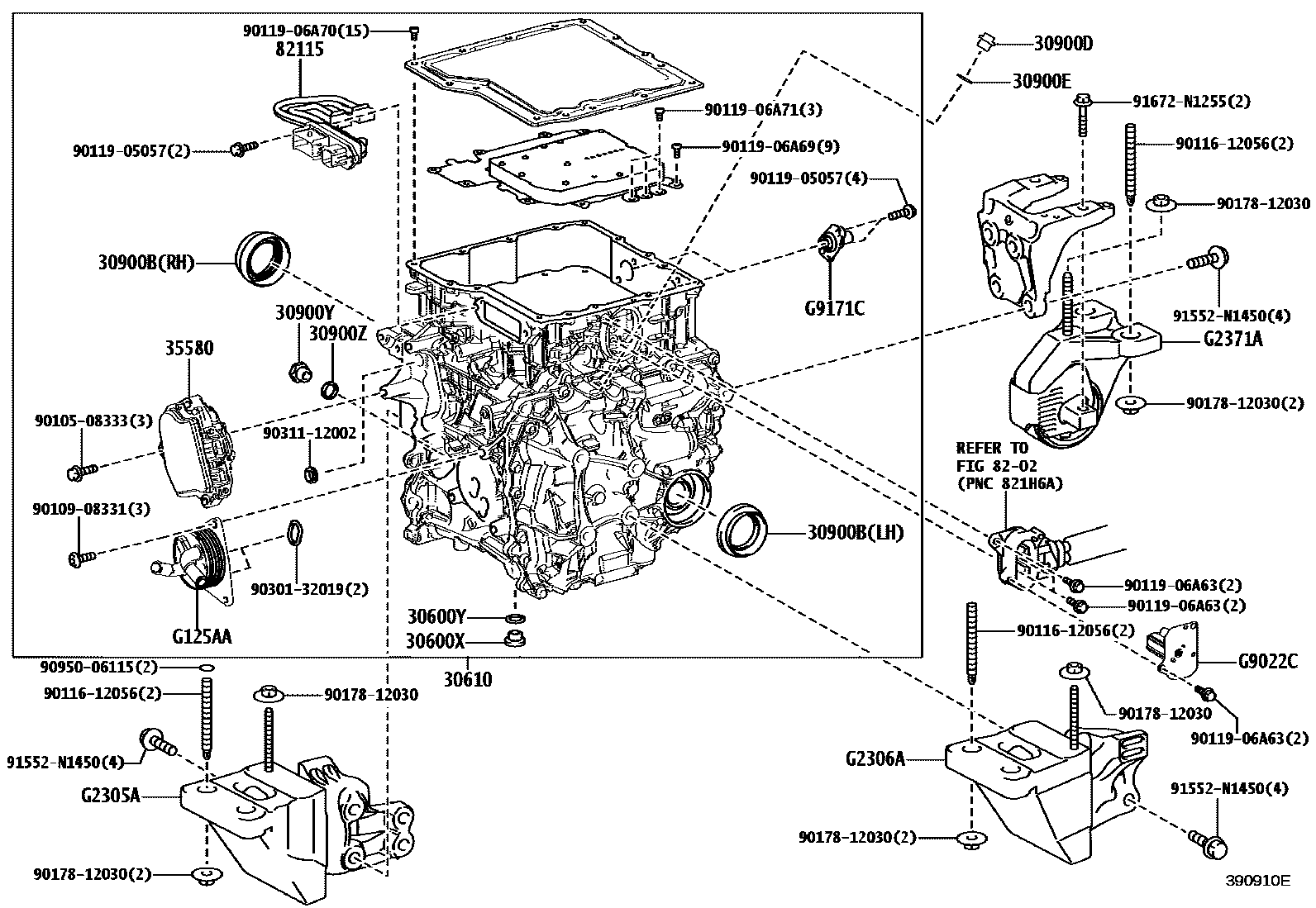

Toyota HILUX 传动桥总成(HEV 或 BEV 或 FCEV) EPC diagram — 390910E
传动桥总成(HEV 或 BEV 或 FCEV) — 390910E (202311 – 999999)

PNC and OE references

PNCPart nameOE numbers
30600XDrain plug (BEV)90341-18016
30600YBleed plug gasket (BEV)90430-18008
30610Transaxle assembly with motor and inverter30610-42011
30900BT-type oil seal (for transmission axle assembly of hybrid vehicles)90311-50067 · 90311-50068
30900DHeaded straight thread plug (for transaxle housing and transaxle housing)90341-18060
30900EGasket (for transaxle housing and transaxle housing)90430-18008
30900YOil filling plug (BEV)90341-18090
30900ZOil filling plug gasket (BEV)90430-18008
35580Shift control actuator assembly35580-42021
82115Motor compartment main wiring harness82115-42Q00
G125AAMotor coolerG125A-42020
G2305AVibration isolation pad sub-assembly installed on the right side of the motorG2305-71010
G2306AVibration isolation pad sub-assembly installed on the left side of the motorG2306-71010
G2371AInstall vibration isolation pad behind the motorG2371-71010
G9022CNo. 2 upper inverter cover sub-assemblyG9022-42020
G9171CNo. 1 inverter cooling pipeG9171-42010
