Toyota HILUX fuel filter — Figure 2302

Toyota HILUX EPC diagram 2302, fuel filter, with 3 images and 13 PNC and OE references.

Toyota HILUX fuel filter EPC diagram — 230738

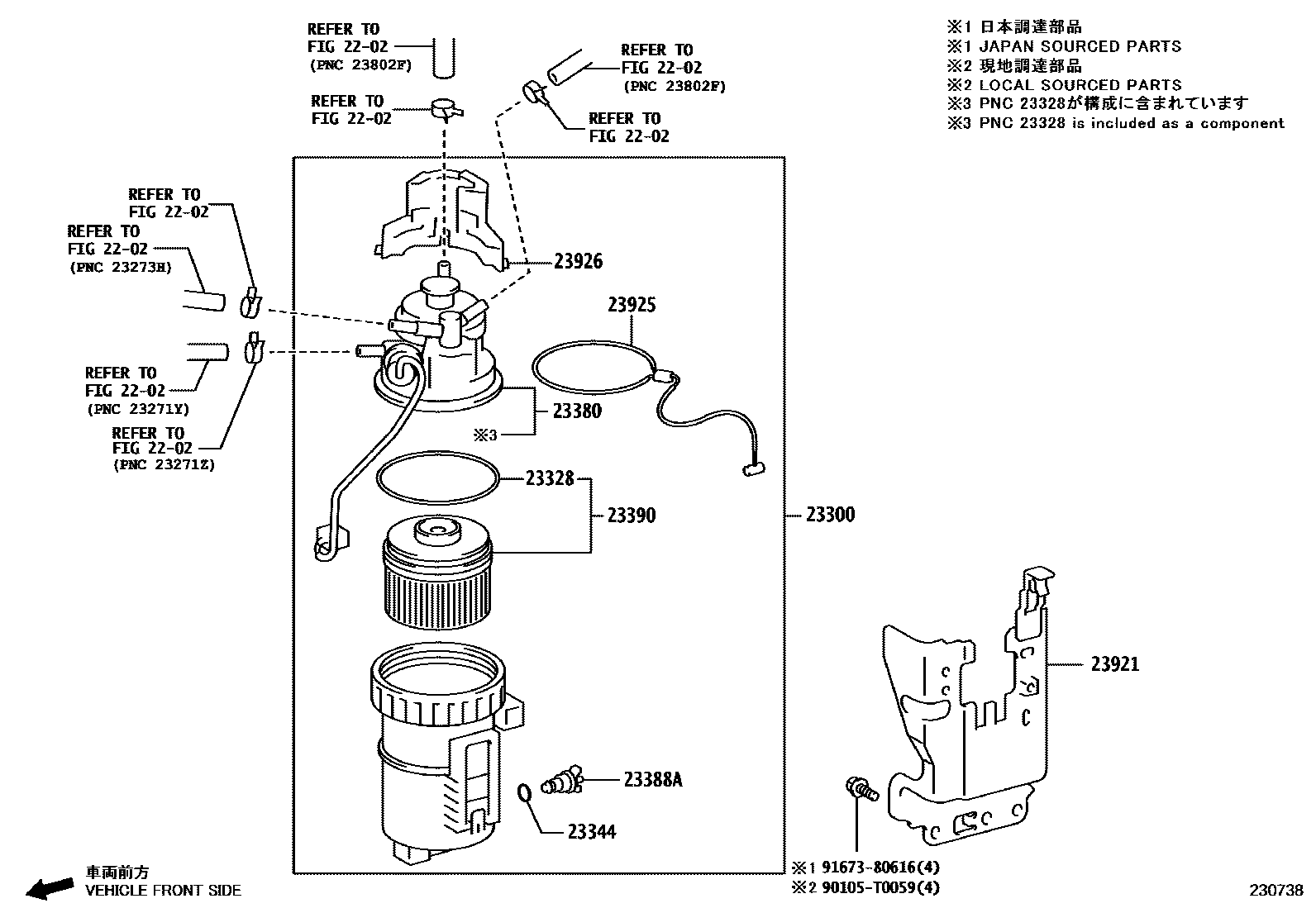

fuel filter — 230738 (202308 – 999999)
Toyota HILUX fuel filter EPC diagram — 230742

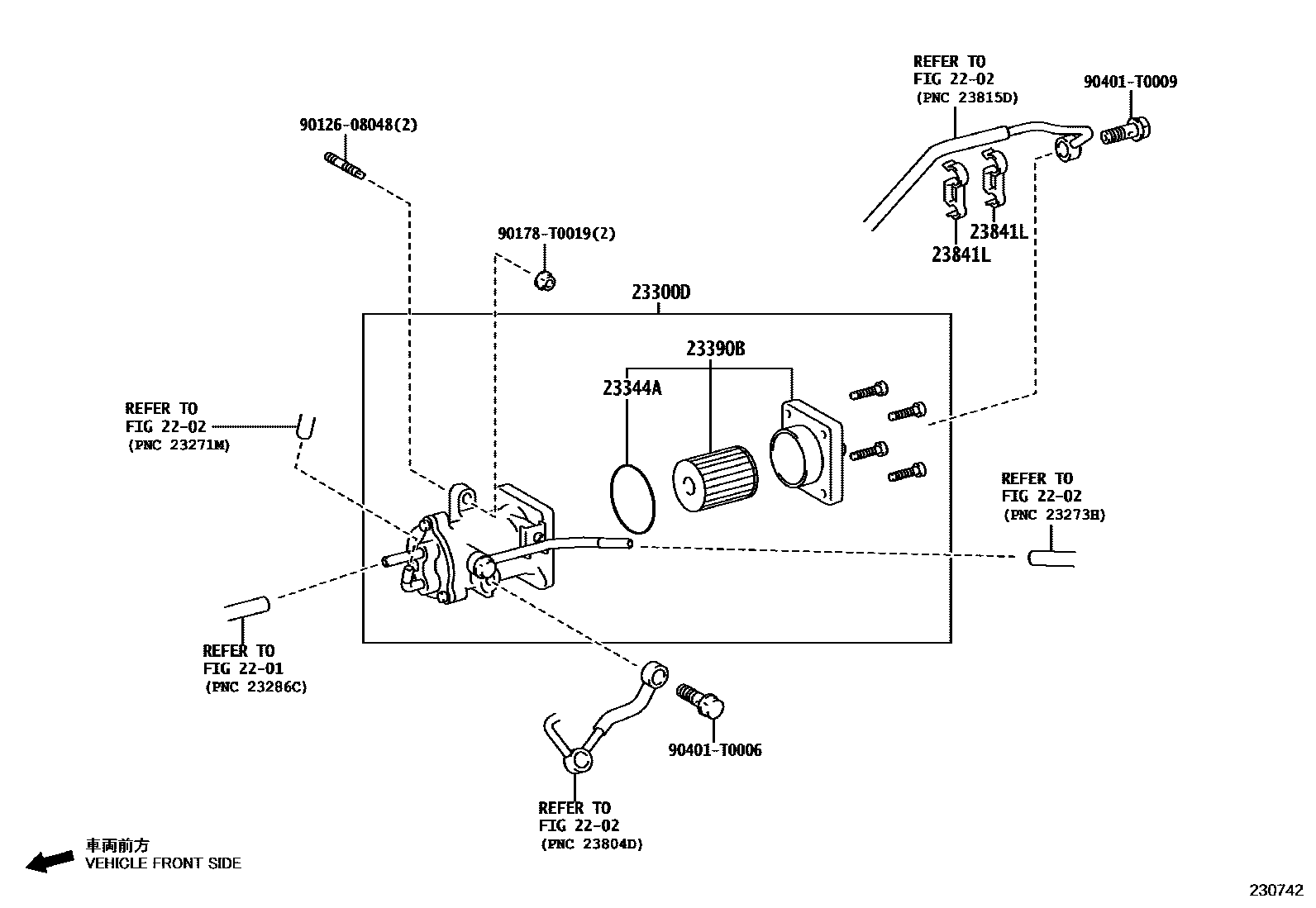

fuel filter — 230742 (202308 – 999999)
Toyota HILUX fuel filter EPC diagram — 230749A

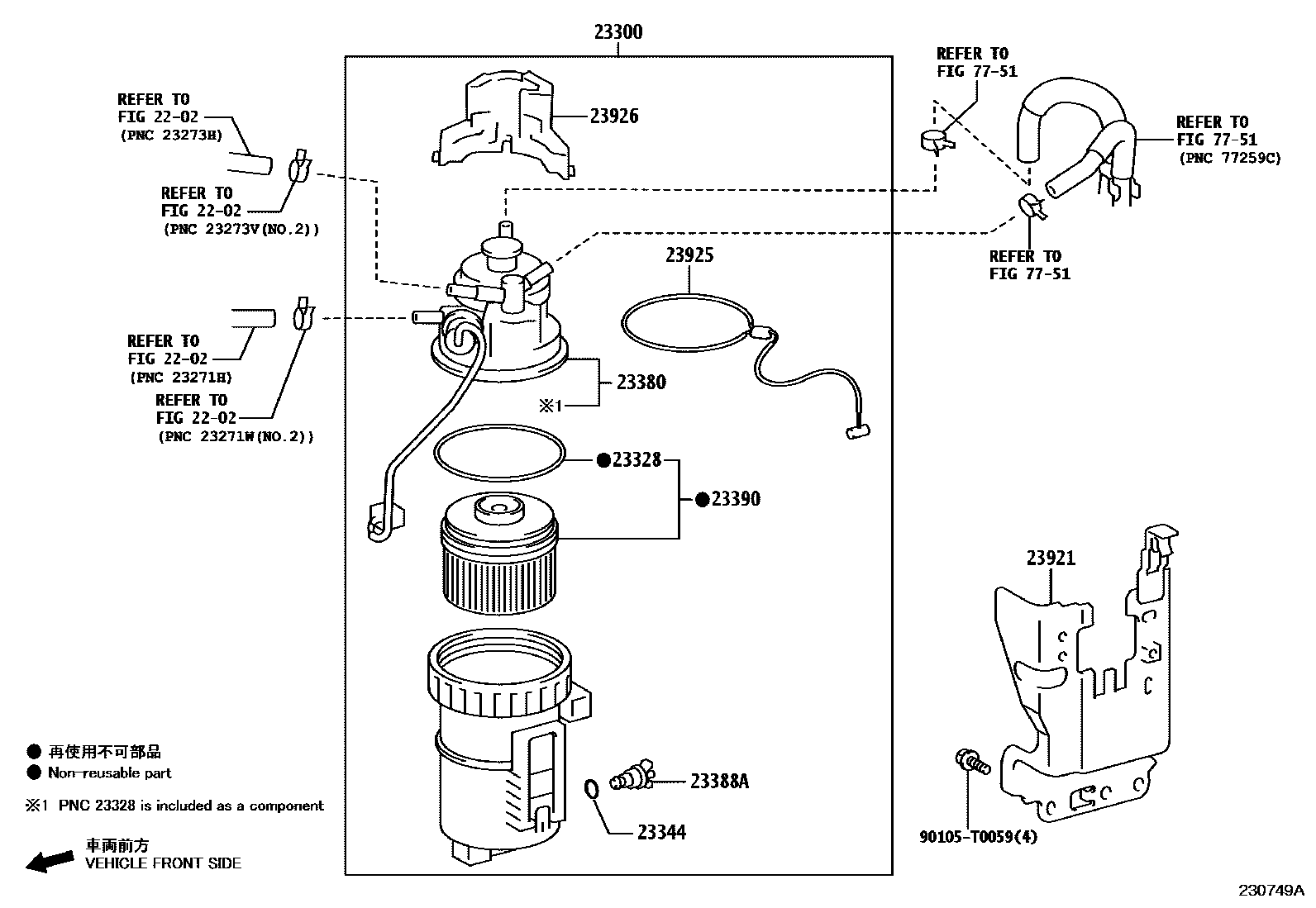

fuel filter — 230749A (202402 – 999999)

PNC and OE references

PNCPart nameOE numbers
23300fuel filter assembly23300-0L101 · 23300-0L112
23300DFuel filter assembly (for diesel engine)23300-0E011
23328Gasket (for fuel filter)23344-0L070
23344Clamp nut gasket (for fuel filter)23344-0L041
23344Afuel filter element gasket23344-0E010
23380Fuel filter cover assembly23380-0L091 · 23380-0L111
23388AFuel filter drain plug23388-0L041
23390Fuel filter element assembly23390-0L070 · 23390-0L100
23390BNo. 2 fuel filter element assembly23390-0E011
23841LFuel pipe clamp23841-0E010
23921Fuel filter support23921-0E040 · 23921-0E050 · 23921-0L130 · 23921-0L210
23925fuel filter support stay23925-0L020
23926No. 2 fuel filter support bracket23926-0L020
