Toyota HILUX Oil Filter — Figure 1502

Toyota HILUX EPC diagram 1502, Oil Filter, with 5 images and 15 PNC and OE references.

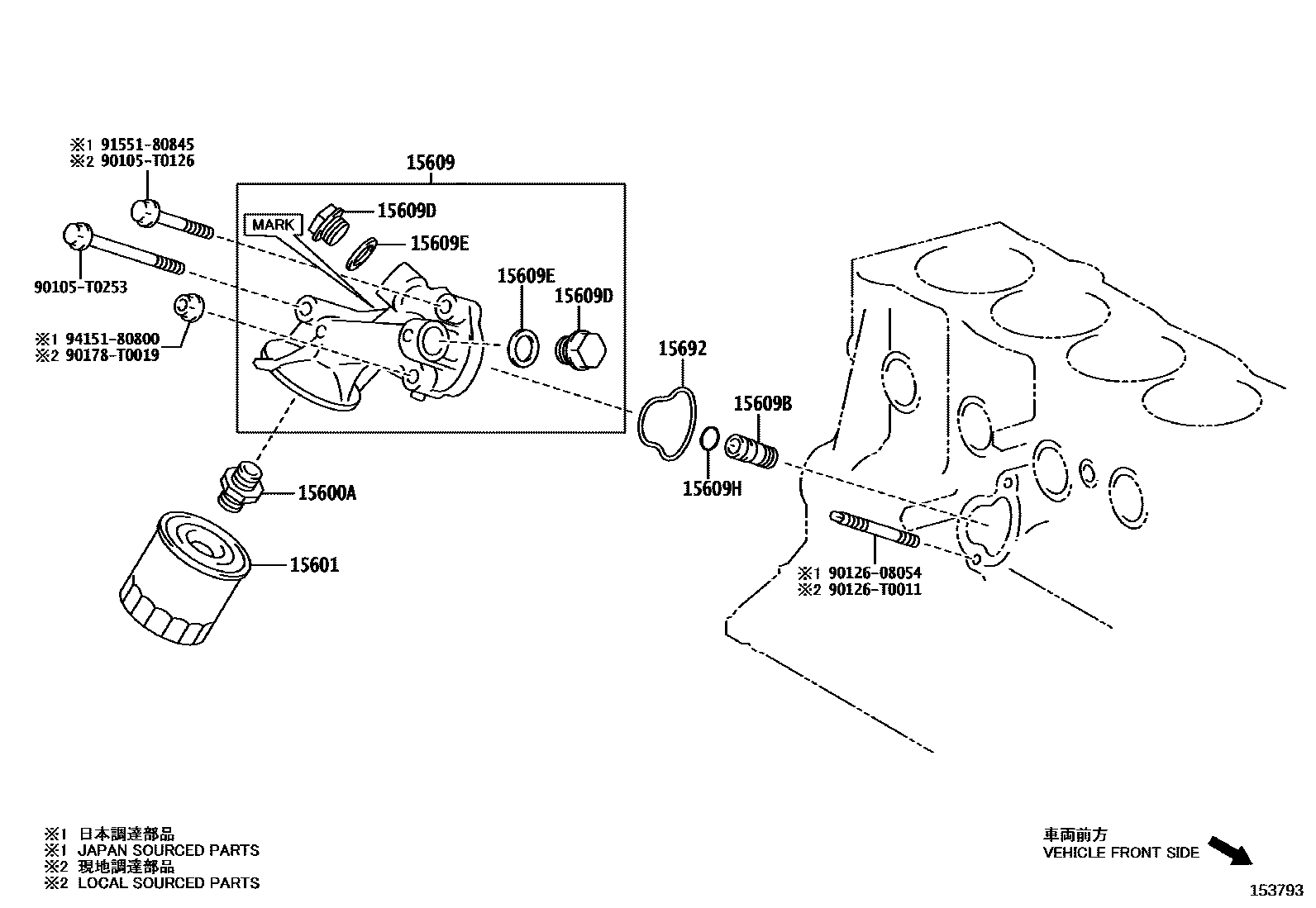

Toyota HILUX Oil Filter EPC diagram — 153793
Oil Filter — 153793 (202308 – 999999)

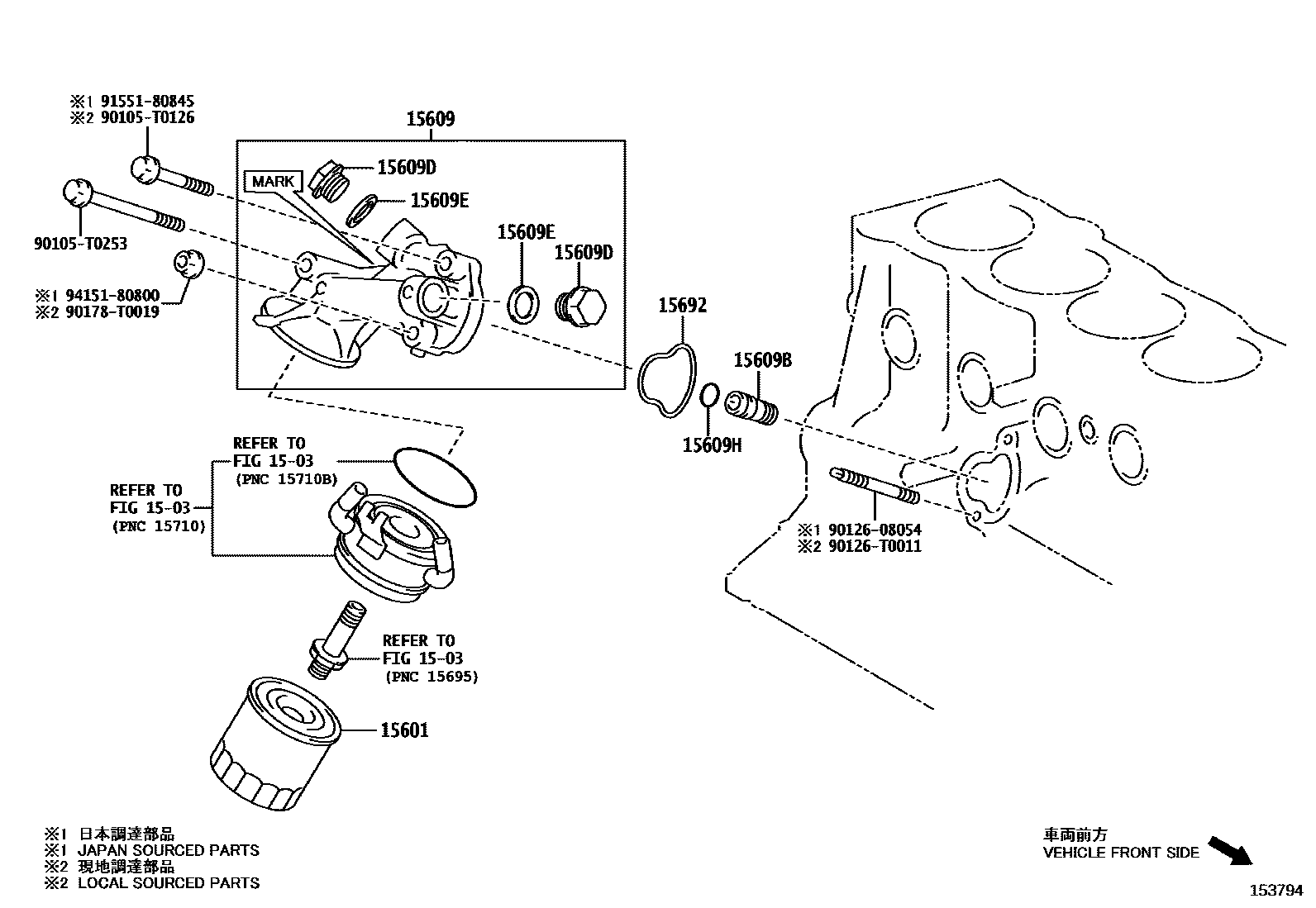

Toyota HILUX Oil Filter EPC diagram — 153794
Oil Filter — 153794 (202308 – 999999)

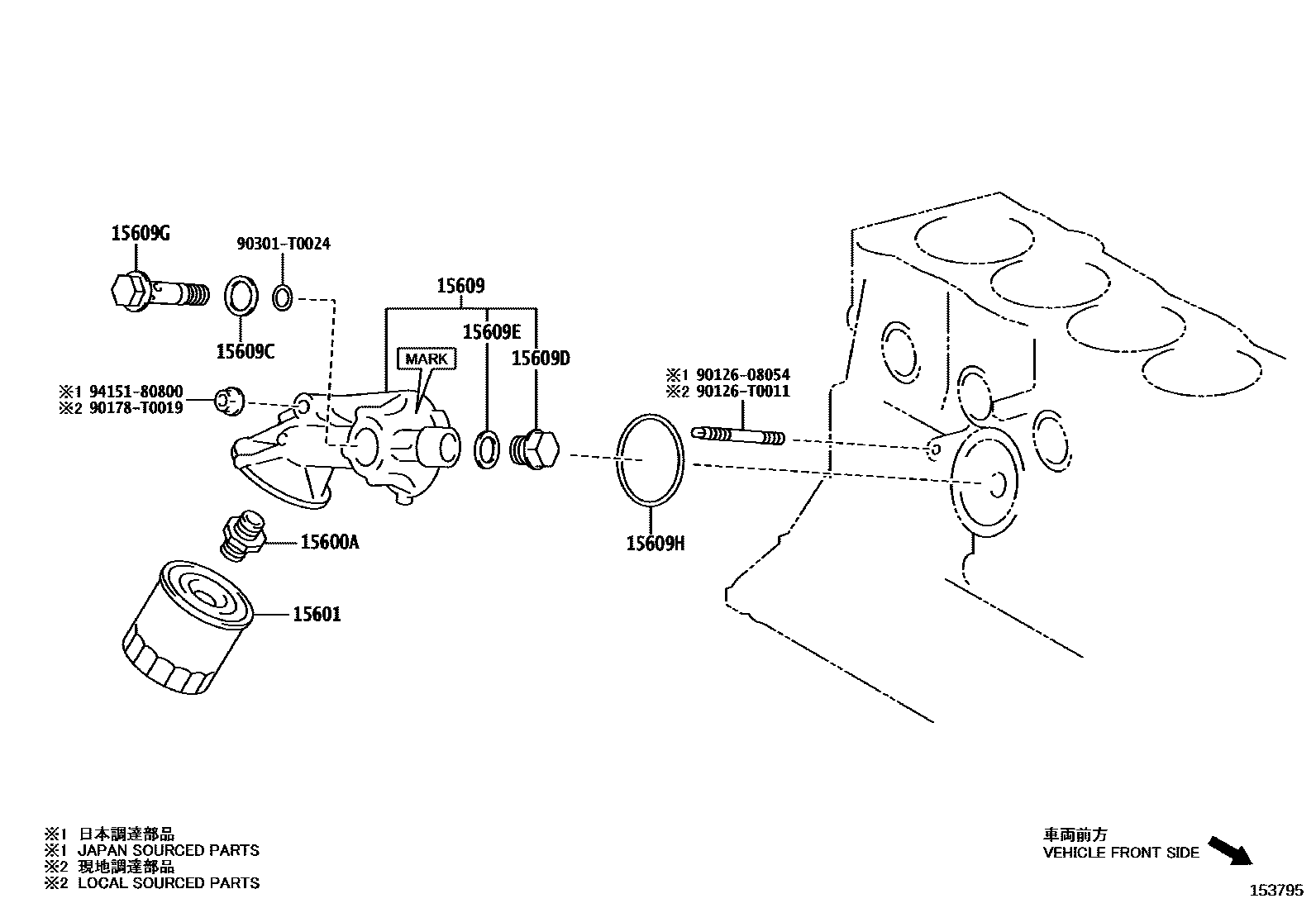

Toyota HILUX Oil Filter EPC diagram — 153795
Oil Filter — 153795 (202308 – 999999)

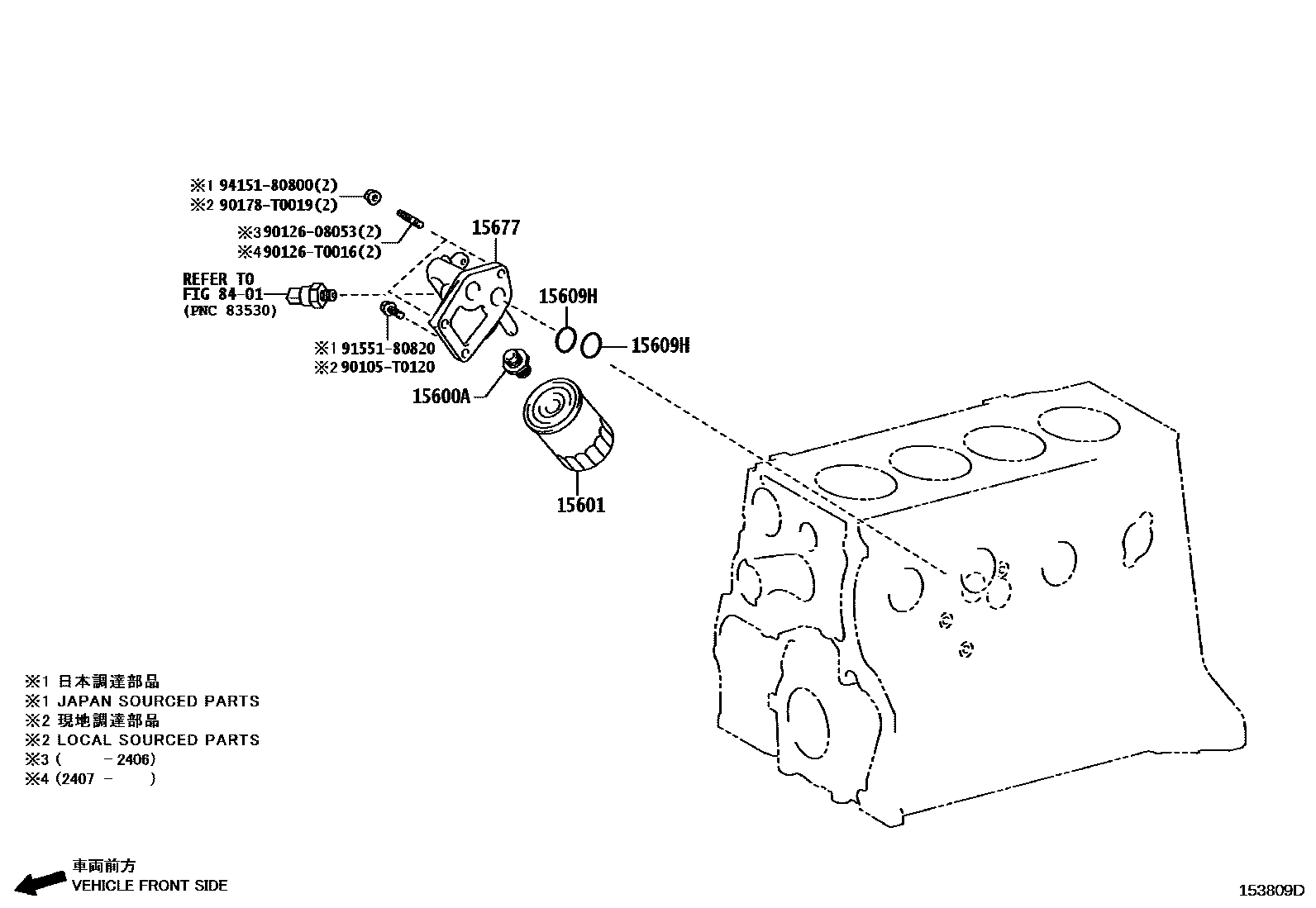

Toyota HILUX Oil Filter EPC diagram — 153809D
Oil Filter — 153809D (202308 – 999999)

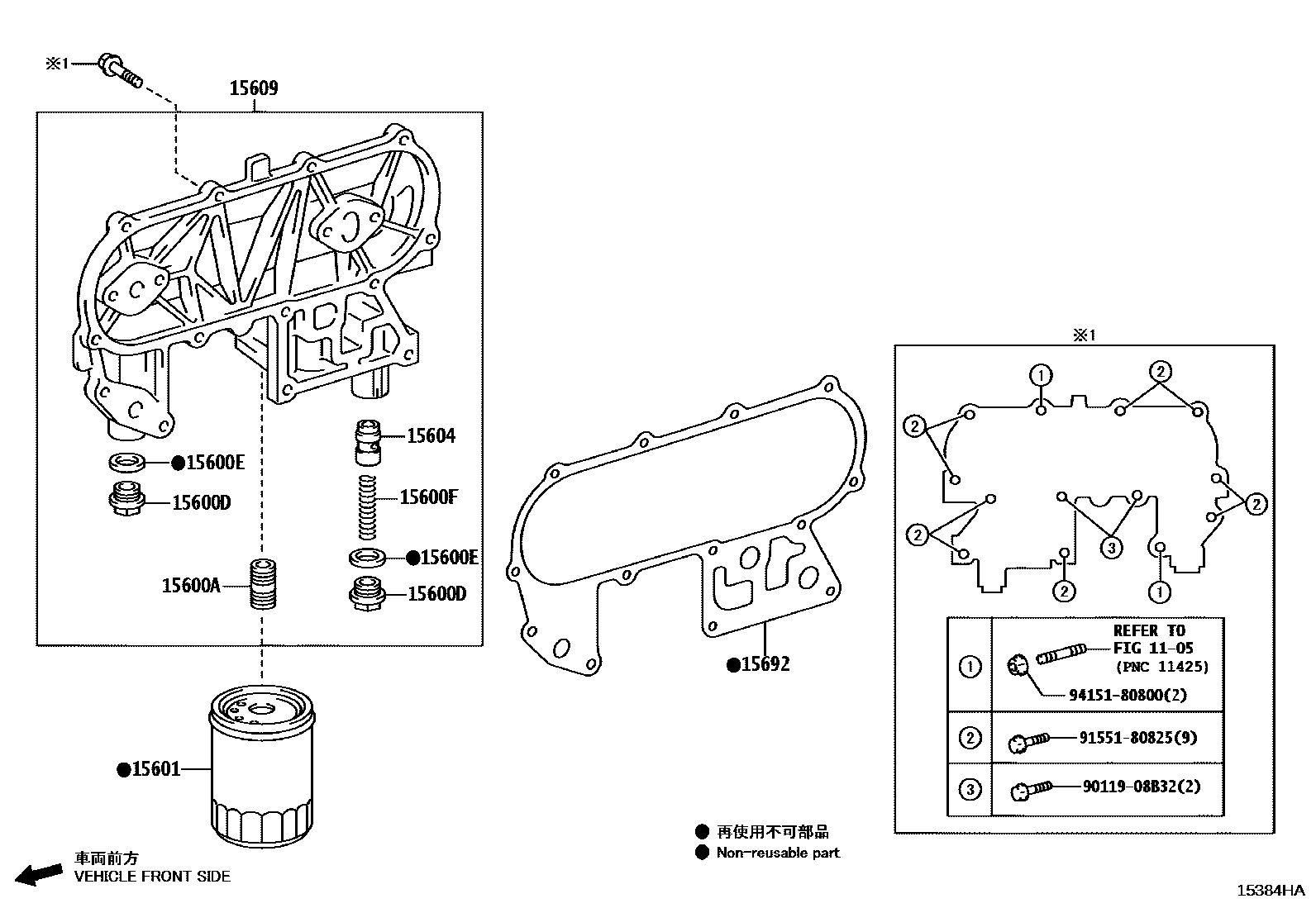

Toyota HILUX Oil Filter EPC diagram — 15384HA
Oil Filter — 15384HA (202402 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90404-19011 · 90404-19015 · 90404-T0002
15600DScrew plug (for oil filter)90341-18015
15600EGasket (for oil filter)90430-18029
15600FCompression spring (for oil filter)90501-16026
15601Oil filter sub-assembly90915-20005 · 90915-40002 · 90915-TB001
15604Oil safety valve sub-assembly15131-54010
15609Oil filter bracket sub-assembly15609-0C010 · 15609-0C020 · 15609-0C070 · 15609-0C090 · 15609-54014
15609BConnector (for oil filter bracket)90404-19017 · 90404-T0003
15609CGasket (for oil filter holder connector)90430-28004
15609DStraight threaded plug with head (for oil filter bracket)90341-T0010
15609EHeaded straight thread plug liner90430-T0009
15609GConnector bolt (for oil filter bracket)90401-T0005
15609HO-ring (for oil filter bracket)90301-17017 · 90301-68005 · 90301-T0023 · 90301-T0028 · 90301-T0046 · 90301-T0062 · 90301-T0084 · 96723-24030
15677Oil filter bracket15677-0E010 · 15677-0E020 · 15677-11020
15692Oil filter holder gasket15692-0C010 · 15692-0C020 · 15692-54050
