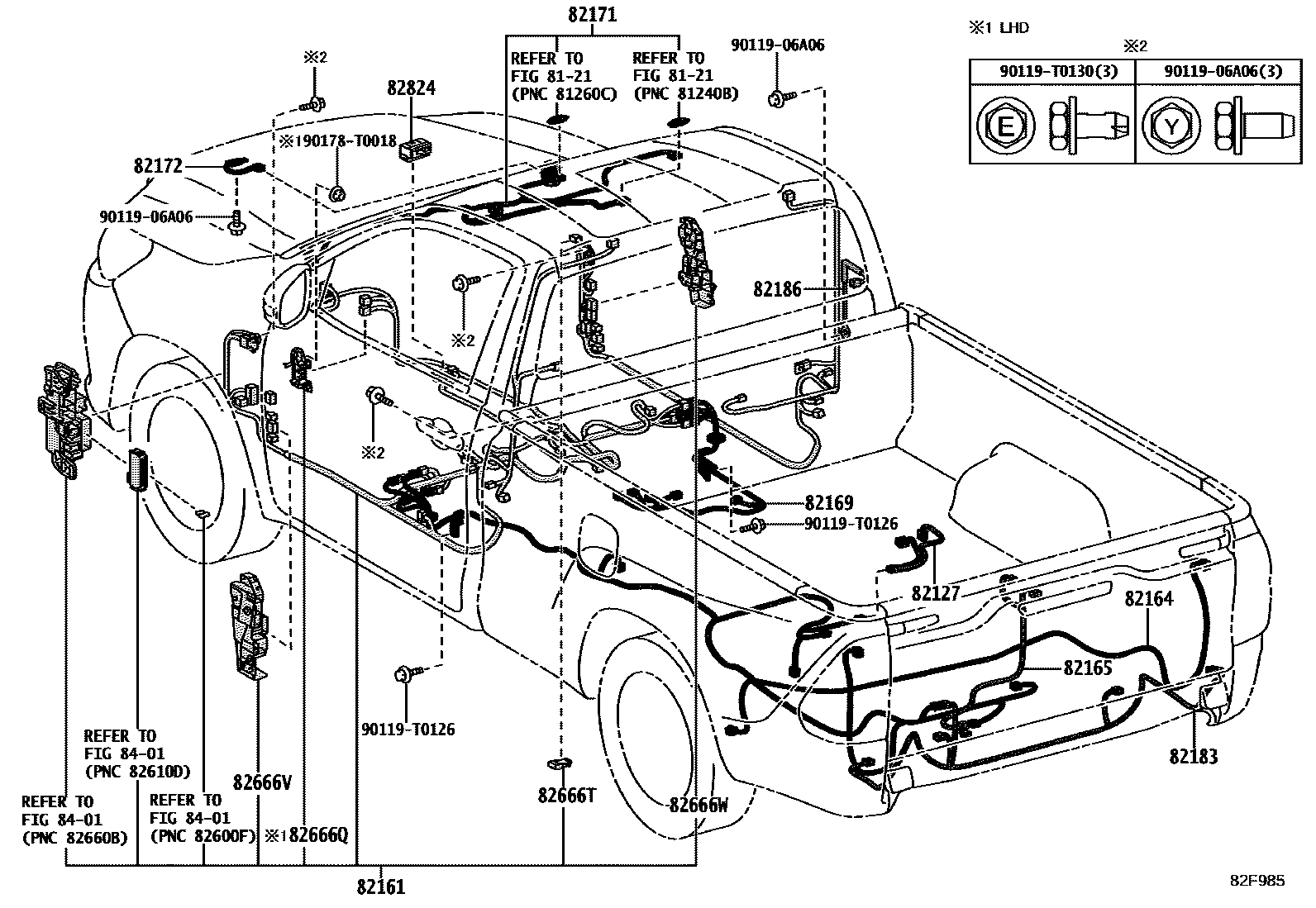

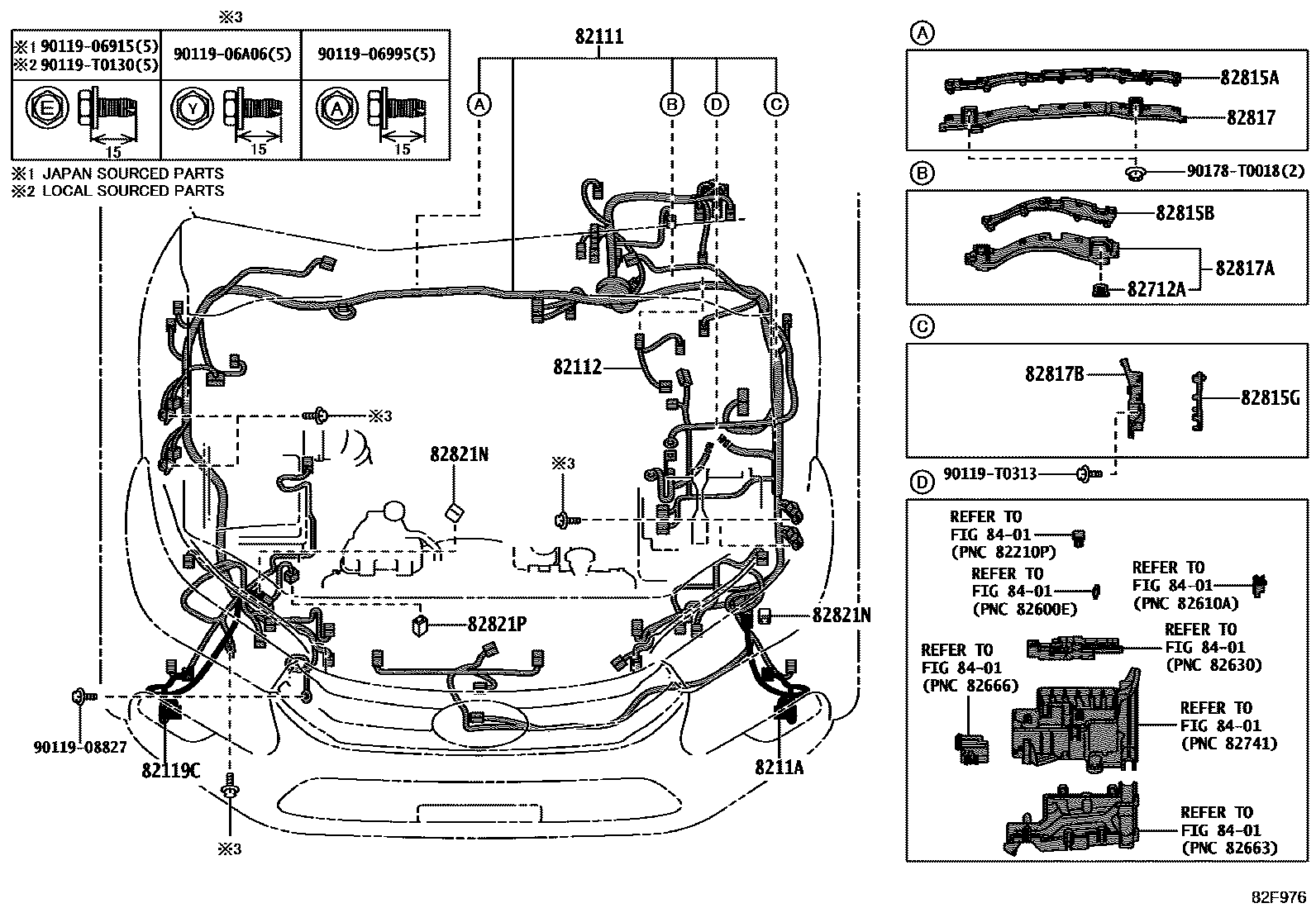

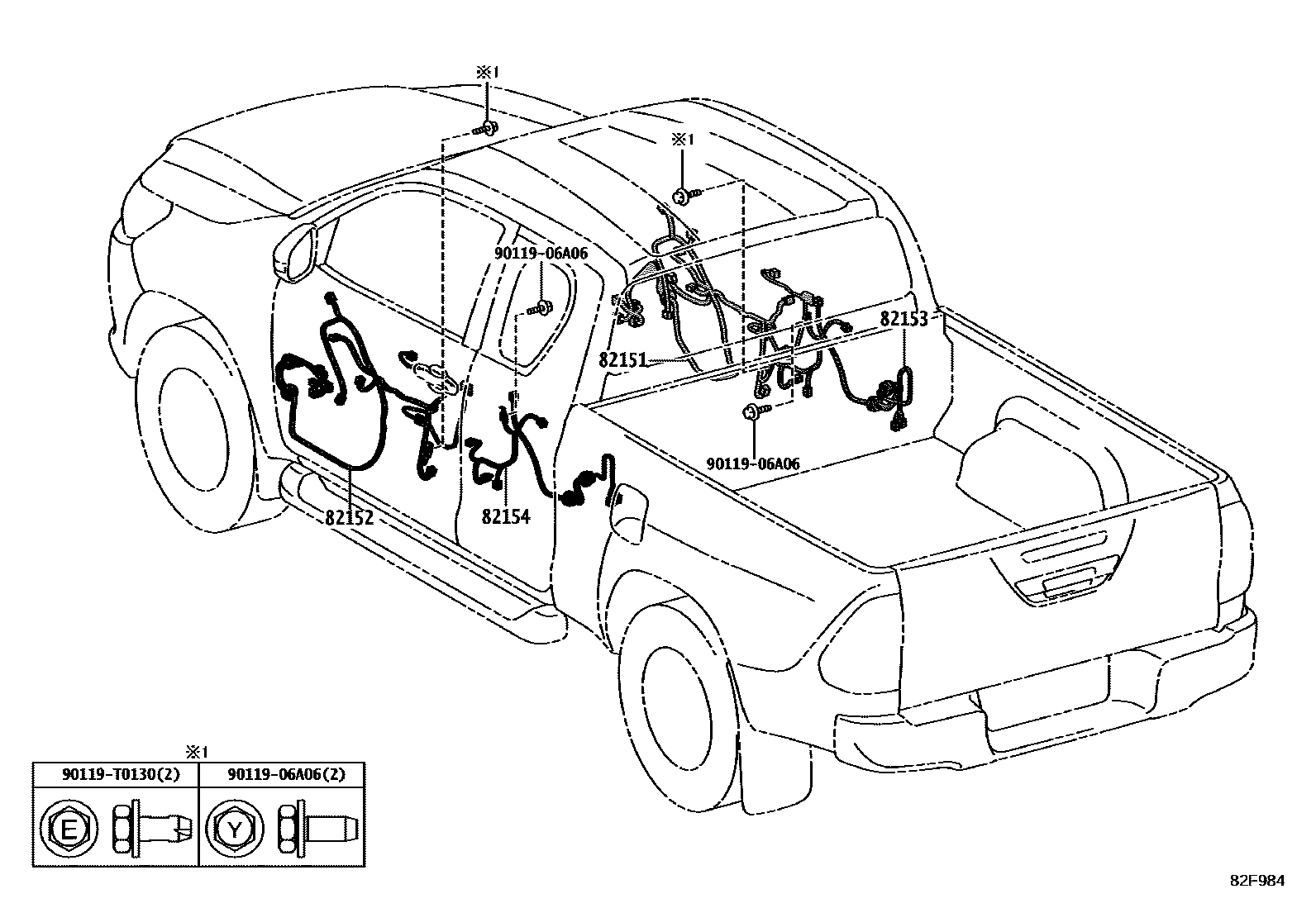

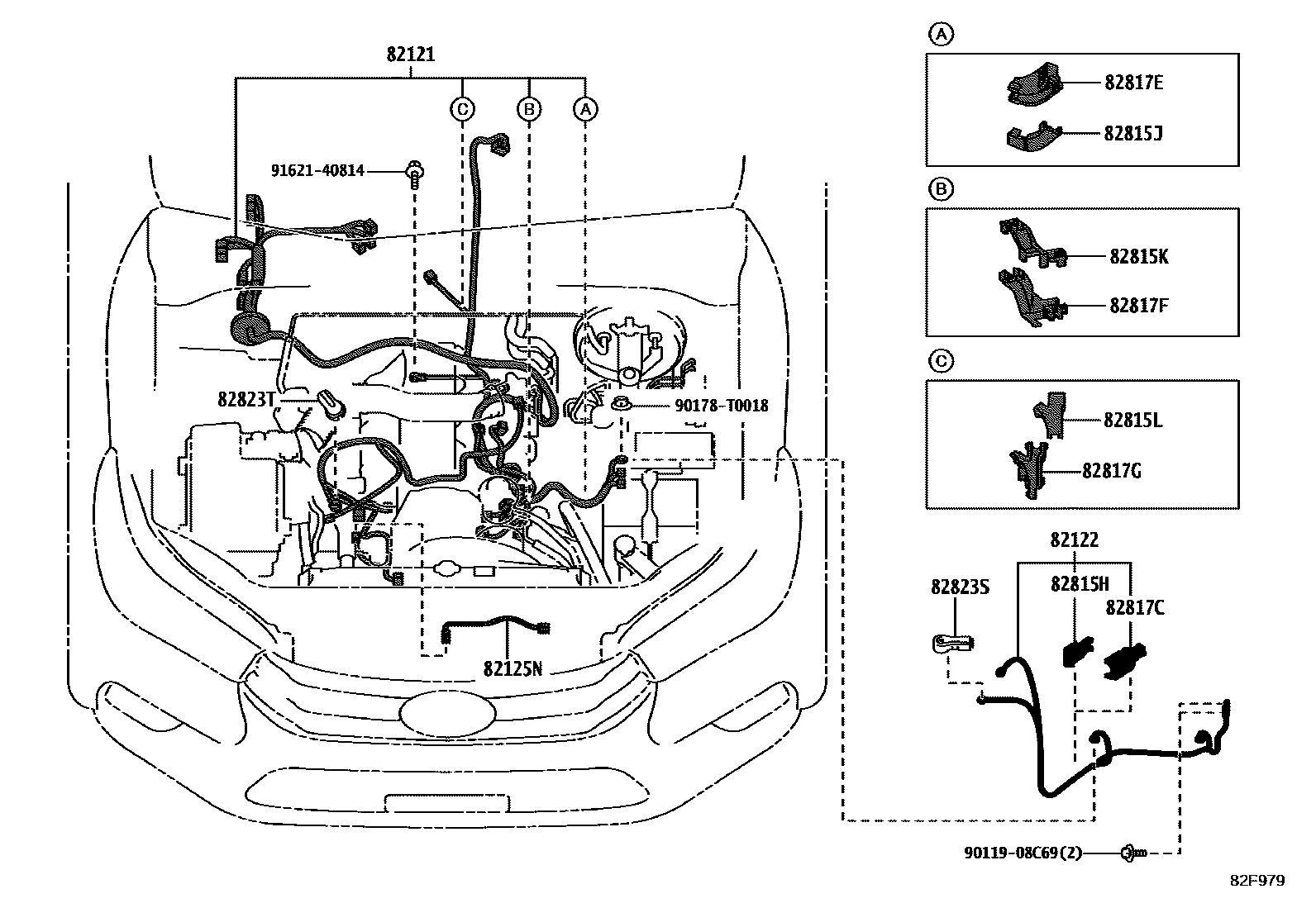

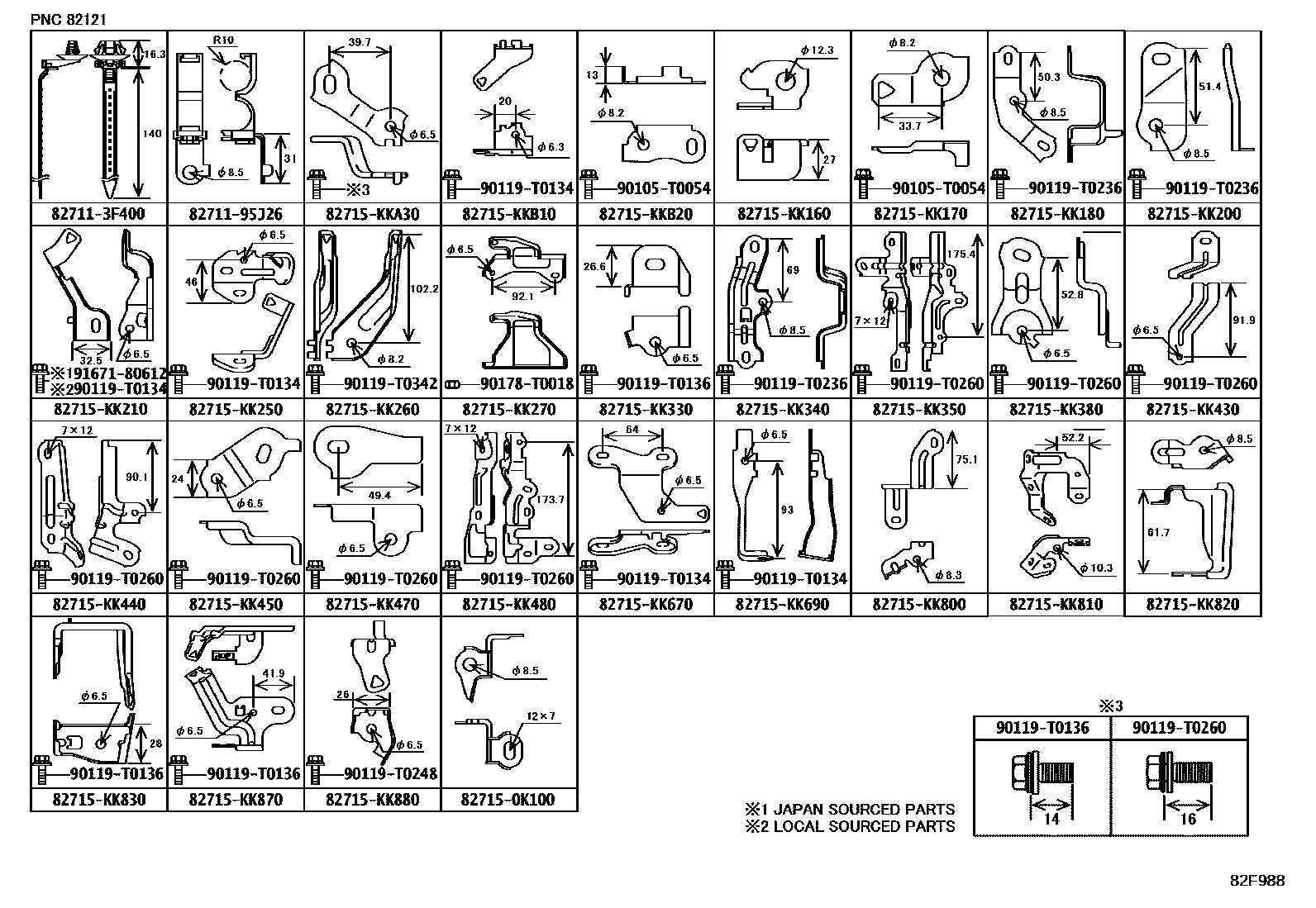

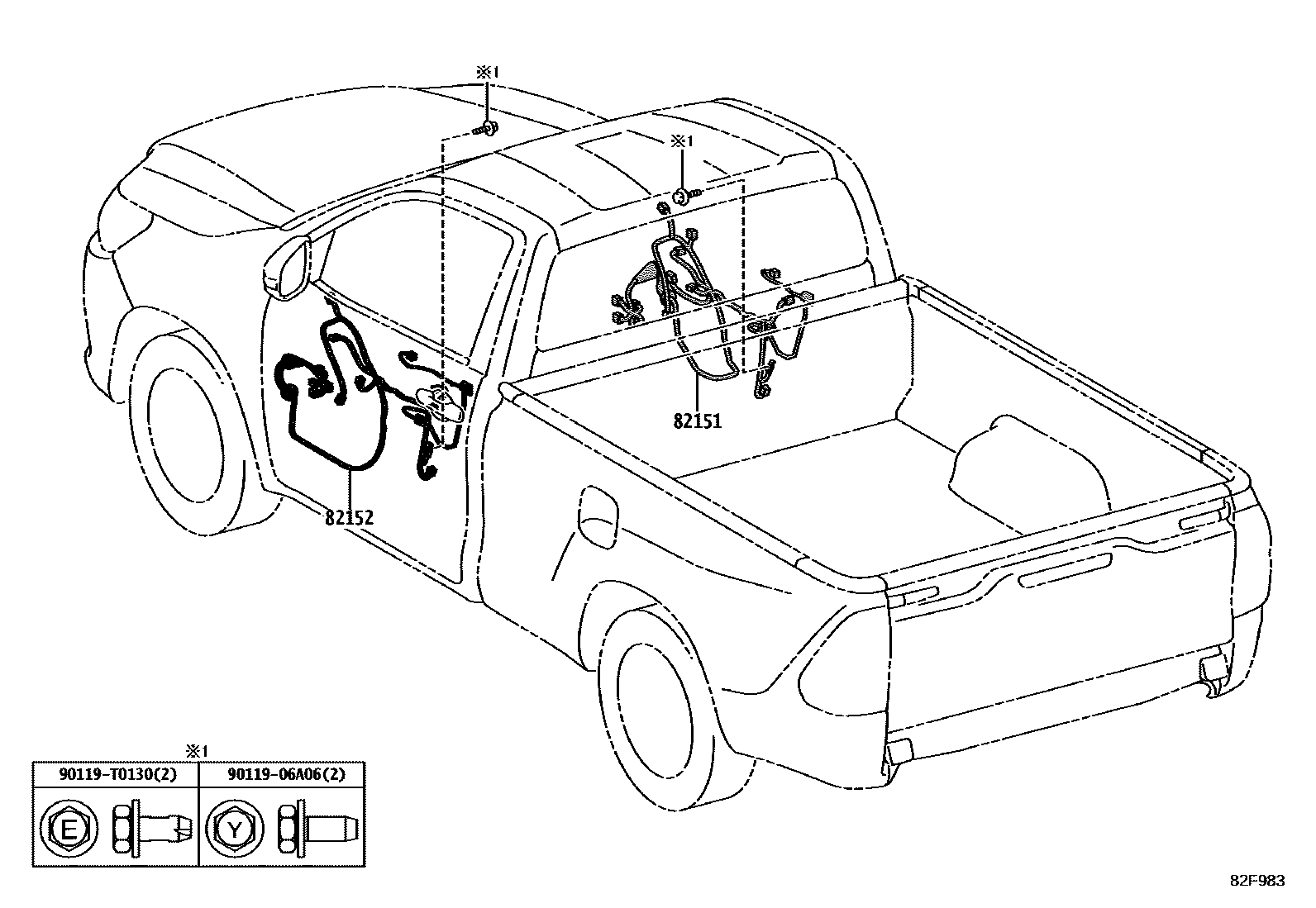

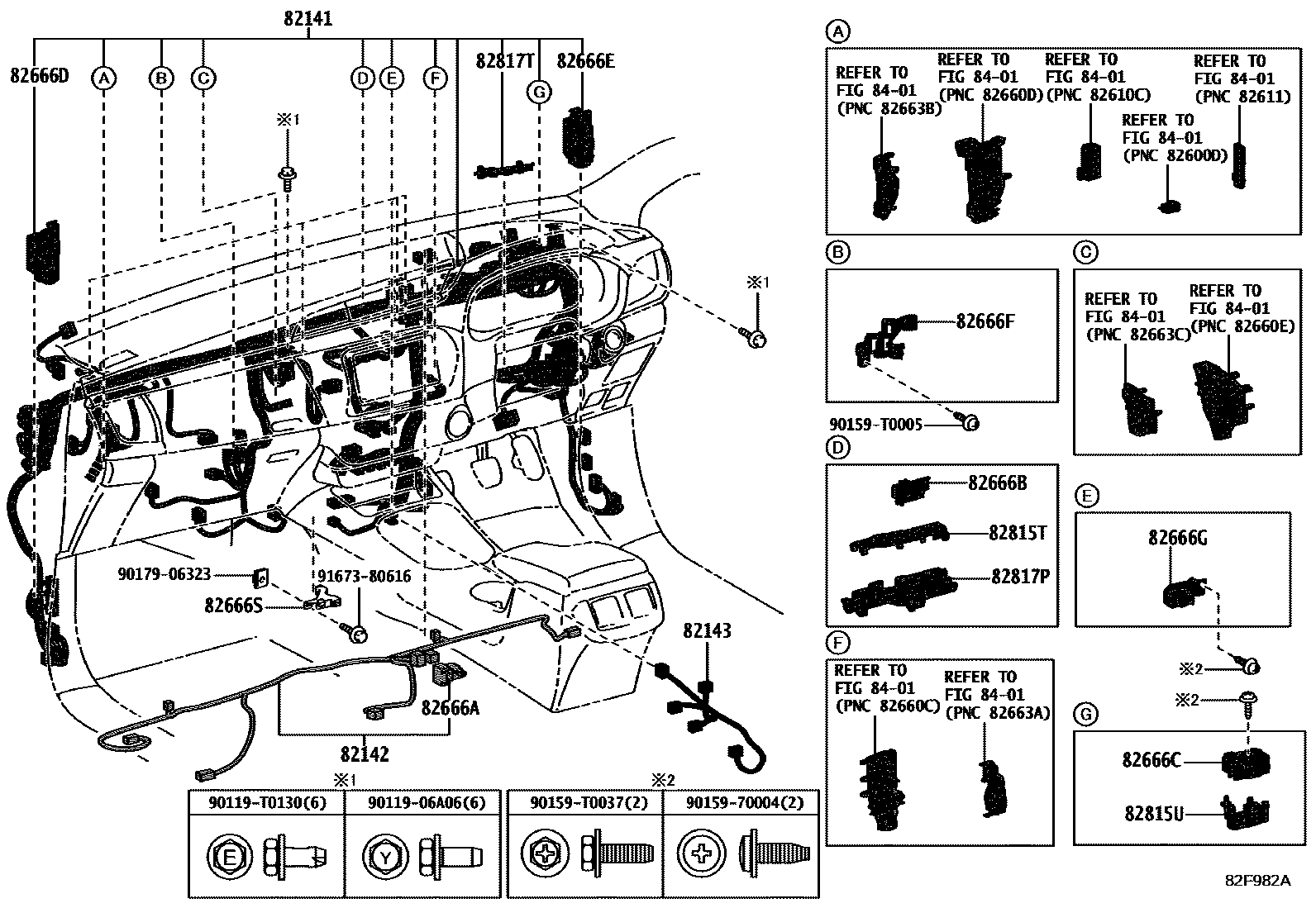

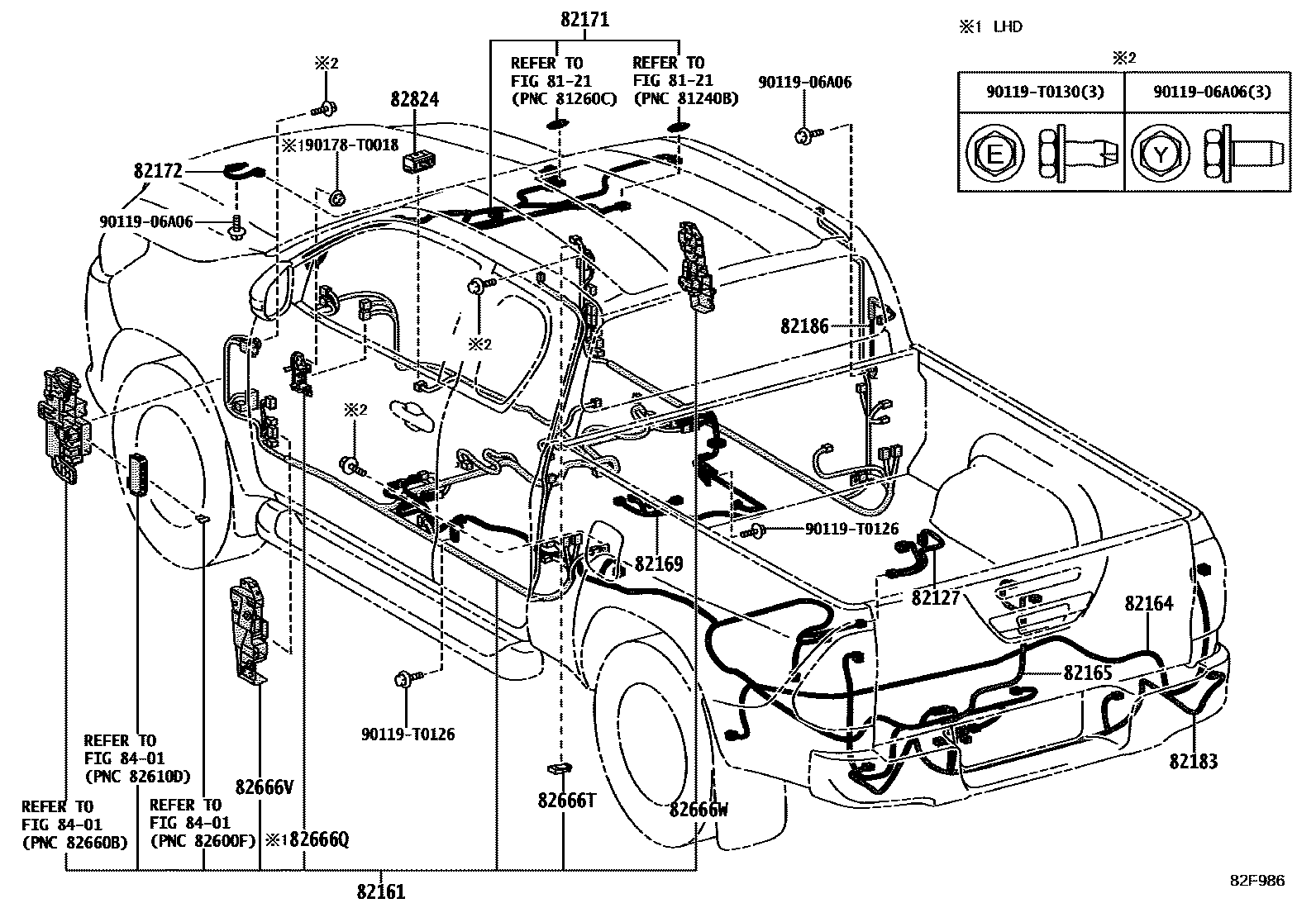

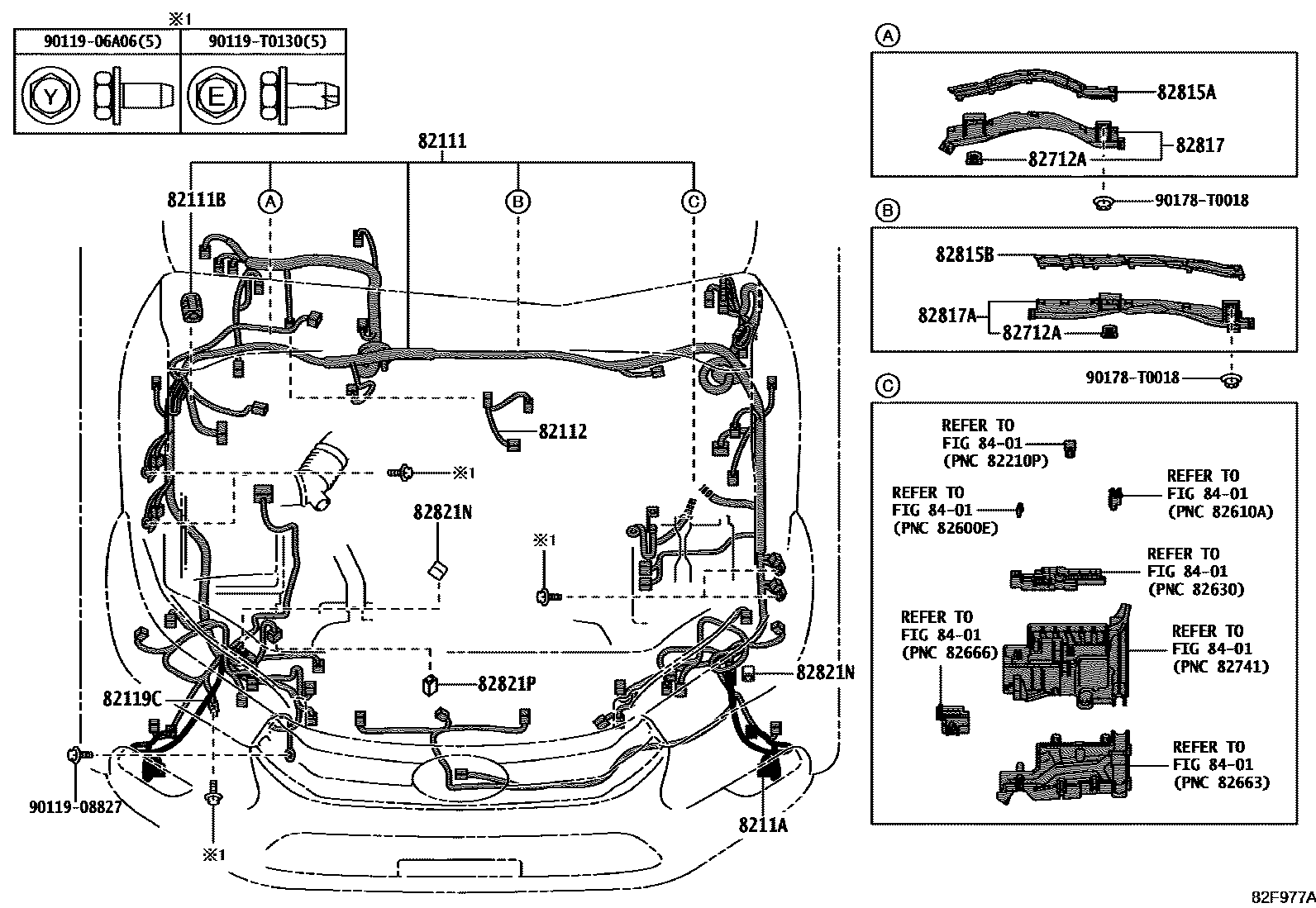

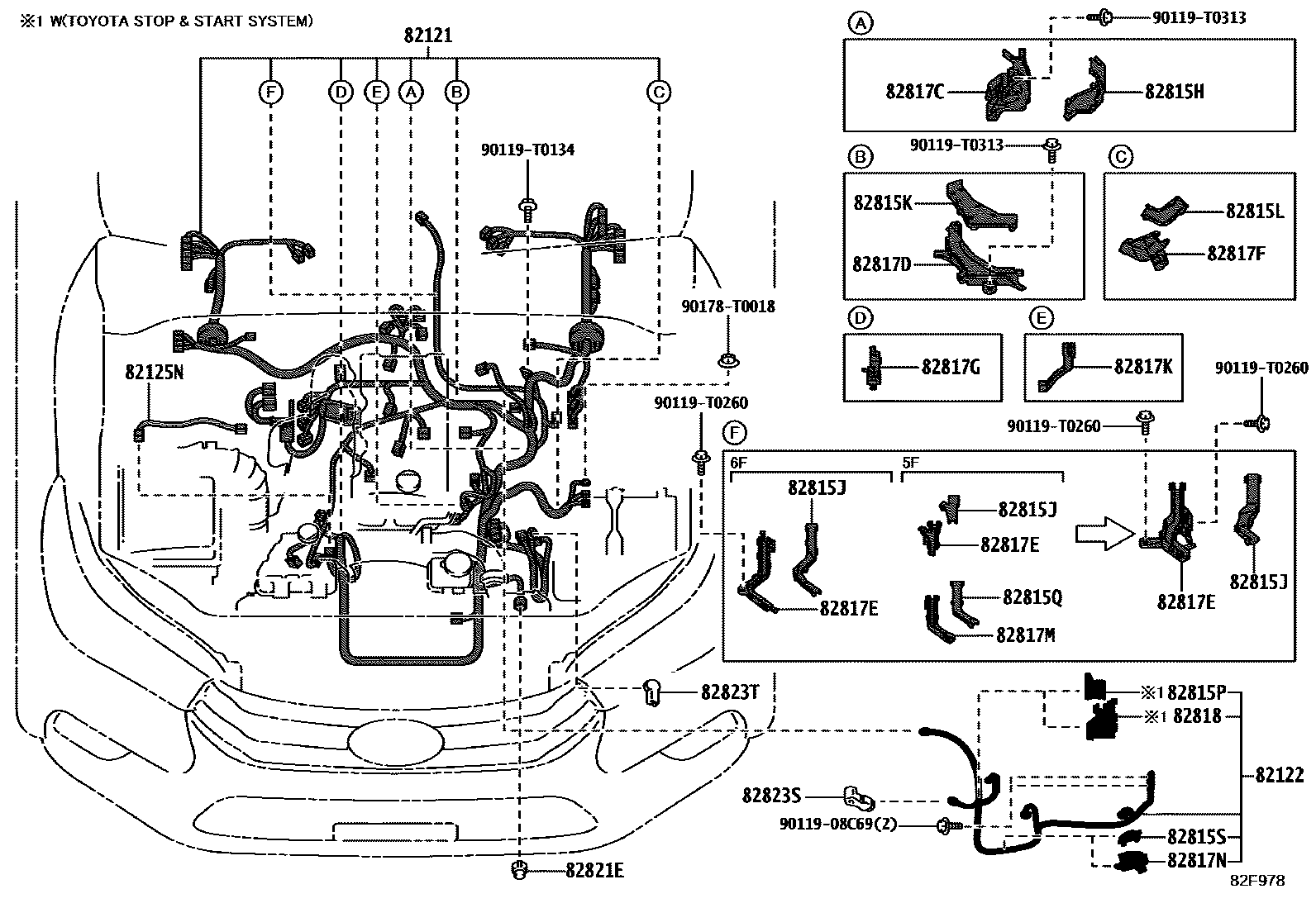

Toyota HILUX 线束和卡夹 — Figure 8202
Toyota HILUX EPC diagram 8202, 线束和卡夹, with 17 images and 78 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82111 | Engine room main wiring harness | 8211F-KK250 · 8211F-KK280 · 8211F-KK300 · 8211F-KK310 · 8211F-KKA00 · 8211F-KKK50 · 8211F-KKK60 · 8211F-KKK80 · 8211F-KKL00 · 8211F-KKL40 · 8211F-KKM90 · 8211F-KKN10 · 8211F-KKP00 · 8211F-KKP10 · 8211F-KKP20 · 8211F-KKP30 · 8211F-KKR90 · 8211F-KKT70 · 8211F-KKU00 · 8211F-KKU10 · 8211F-KKU20 · 8211F-KKV20 · 8211F-KKV30 · 8211F-KKV40 · 8211F-KKV50 · 8211F-KKV60 · 8211F-KKV70 · 8211F-KKV80 · 8211F-KKW00 · 8211F-KKW10 · 8211F-KKW40 · 8211F-KKW50 · 8211F-KKW60 · 8211F-KKW70 · 8211F-KKW80 · 8211F-KKX80 · 8211F-KKX90 · 8211F-KKY00 · 8211F-KKY20 · 8211G-KK080 · 8211G-KK130 · 8211G-KK190 · 8211G-KK220 · 8211G-KK230 · 8211G-KK240 · 8211G-KK620 · 8211G-KK630 · 8211G-KK640 · 8211G-KK650 · 8211G-KK680 · 8211G-KK710 · 8211G-KK720 · 8211G-KK730 · 8211G-KK740 · 8211G-KK750 · 8211G-KK760 · 8211G-KK770 · 8211G-KK780 · 8211G-KK790 · 8211G-KK800 · 8211G-KK810 · 8211G-KK820 · 8211G-KK830 · 8211G-KKA60 · 8211G-KKA70 · 8211G-KKB10 · 8211G-KKB40 · 8211G-KKB50 · 8211G-KKC20 · 8211G-KKC30 · 8211H-KK010 · 8211H-KK790 · 8211H-KK830 · 8211H-KK840 · 8211H-KK850 · 8211H-KK860 · 8211H-KK870 · 8211H-KK880 |
| 82111B | condenser | 90980-04206 |
| 82112 | Engine room wiring harness No. 2 | 82112-KK010 · 82112-KK060 |
| 82119C | Engine room wiring harness No. 5 | 82119-KK040 · 82119-KK050 · 82119-KK060 · 82119-KK070 · 82119-KK130 · 82119-KK140 |
| 8211A | Engine room wiring harness No. 6 | 8211A-KK040 · 8211A-KK050 · 8211A-KK060 · 8211A-KK070 · 8211A-KK140 · 8211A-KK150 |

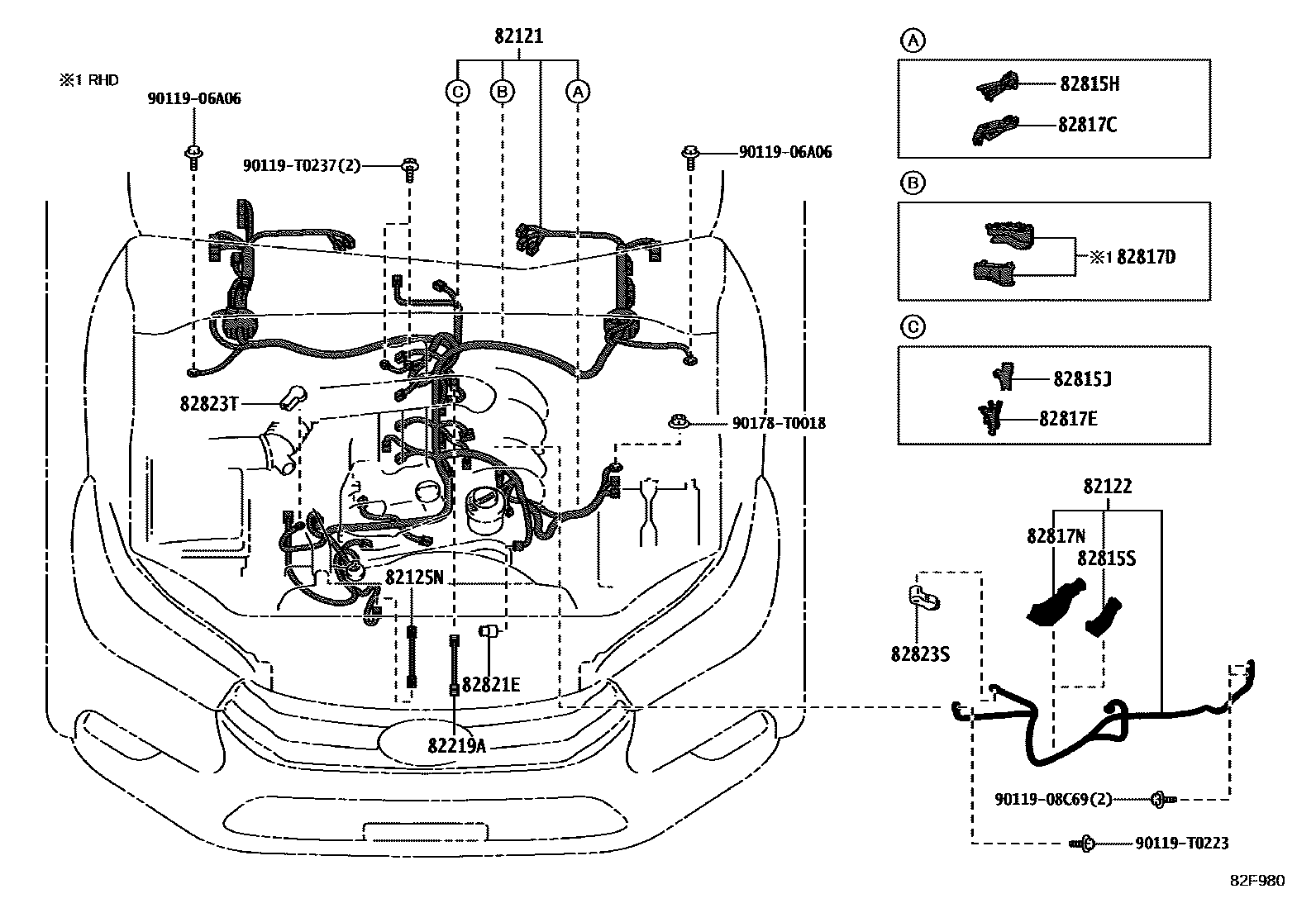

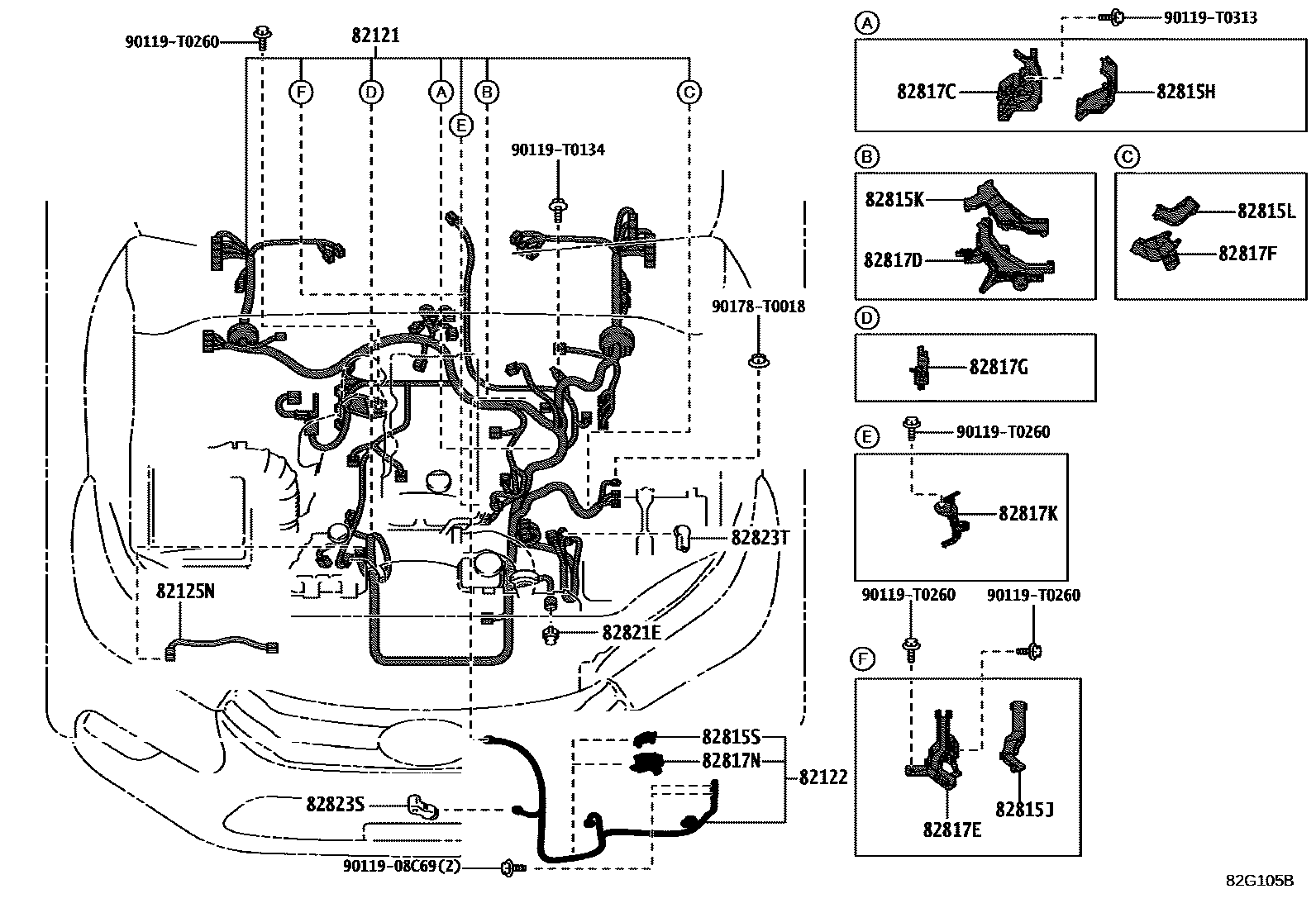

| 82121 | Engine wiring harness | 82121-71151 · 82126-KKL70 · 82126-KKL80 · 82126-KKL90 · 82126-KKM00 · 82126-KKM10 · 82126-KKM20 · 82126-KKM50 · 82126-KKN00 · 82126-KKN10 · 82126-KKN20 · 82126-KKN40 · 82126-KKN60 · 82126-KKN70 · 82126-KKP20 · 82126-KKR10 · 82126-KKR20 · 82126-KKR30 · 82126-KKR40 · 82126-KKR50 · 82126-KKR60 · 82126-KKR70 · 82126-KKR80 · 82126-KKR90 · 82126-KKS00 · 82126-KKS10 · 82126-KKS20 · 82126-KKS30 · 82126-KKS40 · 82126-KKS50 · 82126-KKS70 · 82126-KKS80 · 82126-KKS90 · 82126-KKT00 · 82126-KKT10 · 82126-KKT30 · 82126-KKT40 · 82126-KKT50 · 82126-KKT60 · 82126-KKT70 · 82126-KKT90 · 82126-KKU00 · 82126-KKU10 · 82126-KKU20 · 82126-KKU60 · 82126-KKU70 · 82126-KKU80 · 82126-KKU90 · 82126-KKV00 · 82126-KKV10 · 82126-KKV30 · 82126-KKV40 · 82126-KKV50 · 82126-KKV60 · 82126-KKW00 · 82126-KKW40 · 82126-KKW70 · 82126-KKW80 · 82126-KKW90 · 82126-KKX00 · 82126-KKX60 · 82126-KKX70 · 82126-KKX80 · 82126-KKY10 · 82126-KKY20 · 82126-KKY30 · 82126-KKY80 · 82126-KKZ10 · 82126-KKZ20 · 8213C-KK050 · 8213C-KK070 · 8213C-KK080 · 8213C-KK100 · 8213C-KK110 · 8213C-KK120 · 8213C-KK131 · 8213C-KK140 · 8213C-KK150 · 8213C-KK160 · 8213C-KK170 · 8213C-KK180 · 8213C-KK200 · 8213C-KK210 · 8213C-KK220 · 8213C-KK270 · 8213C-KK280 · 8213C-KK310 · 8213C-KK320 · 8213C-KK330 · 8213C-KK340 · 8213C-KK350 · 8213C-KK380 · 8213C-KK400 · 8213C-KK440 · 8213C-KK450 · 8213C-KK460 · 8213C-KK470 · 8213C-KK510 · 8213C-KK550 · 8213C-KK620 · 8213C-KK640 · 8213C-KK650 · 8213C-KK760 · 8213C-KK780 · 8213C-KK870 · 8213C-KK880 · 8213C-KK890 · 8213C-KKA00 · 8213C-KKA10 · 8213C-KKA30 · 8213C-KKA70 · 8213C-KKB00 · 8213C-KKB40 · 8213C-KKB50 · 8213C-KKB80 · 8213C-KKB90 · 8213C-KKC40 · 8213C-KKC50 · 8213C-KKE10 · 8213C-KKE20 · 8213C-KKG20 · 8213C-KKG30 · 8213C-KKJ10 · 8213C-KKK20 · 8213C-KKK30 · 8213C-KKL70 · 8213C-KKM10 · 8213C-KKM20 · 8213C-KKM30 · 8213C-KKM40 · 8213C-KKM50 · 8213C-KKM60 · 8213C-KKM70 · 8213C-KKU10 · 8213C-KKU20 · 8213C-KKU30 · 8213C-KKU40 |

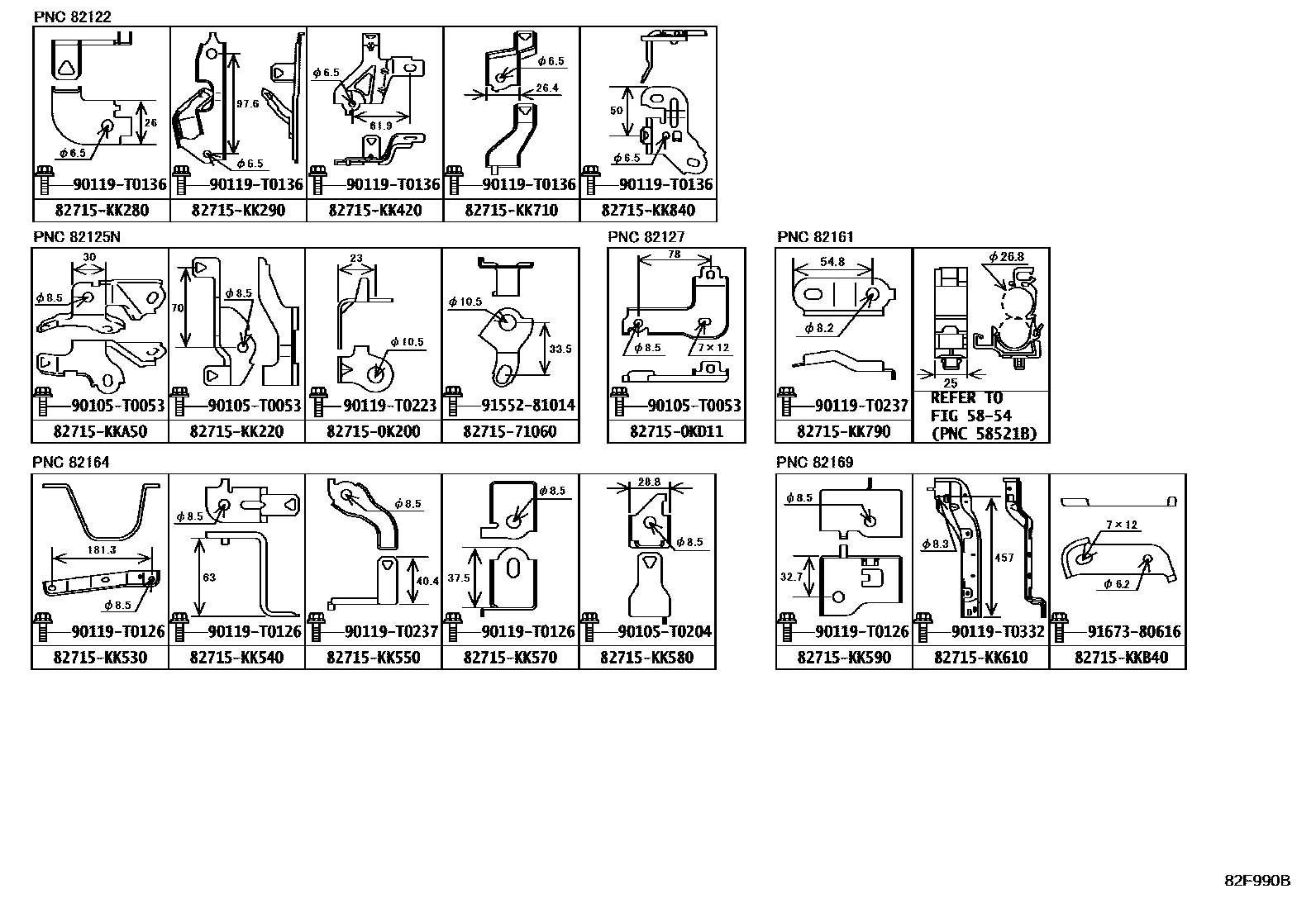

| 82122 | Engine No. 2 wiring harness | 82122-KK100 · 82122-KK120 · 82122-KK140 · 82122-KK150 · 82122-KK210 · 82122-KK230 · 82122-KK330 · 82122-KK390 · 82122-KK410 · 82122-KK430 |
| 82125N | Engine No. 5 wiring harness | 82125-KK010 |
| 82127 | Differential harness | 82127-0K011 |

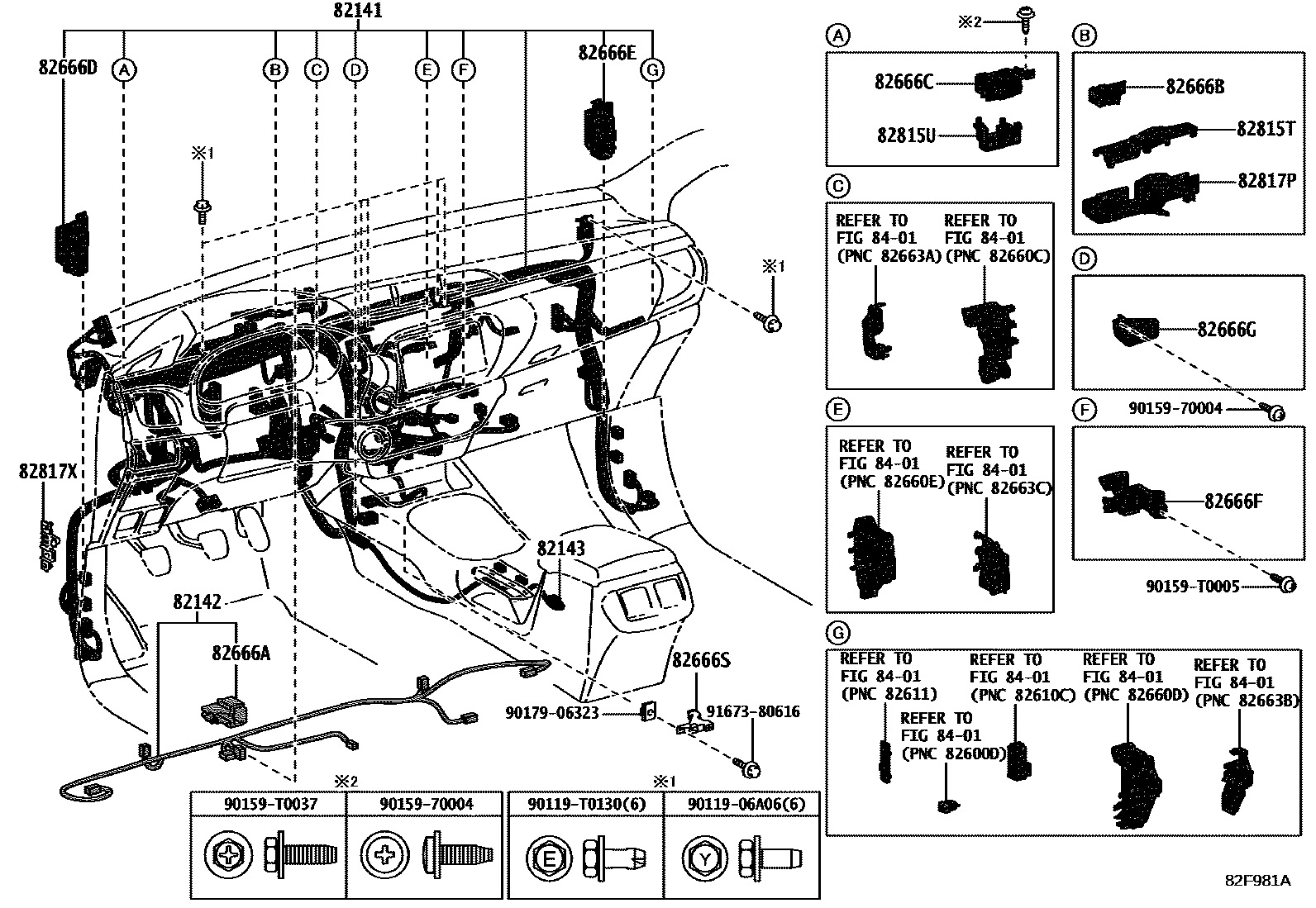

| 82141 | Dashboard wiring harness | 8214G-KK590 · 8214G-KK600 · 8214G-KK610 · 8214G-KK620 · 8214G-KK630 · 8214G-KK660 · 8214G-KK670 · 8214G-KK680 · 8214G-KK690 · 8214G-KK700 · 8214G-KK740 · 8214G-KK750 · 8214G-KK780 · 8214G-KK790 · 8214G-KK890 · 8214G-KKB30 · 8214G-KKB40 · 8214G-KKB50 · 8214G-KKB60 · 8214G-KKB70 · 8214G-KKB80 · 8214G-KKB90 · 8214G-KKC00 · 8214G-KKC10 · 8214G-KKC20 · 8214G-KKC30 · 8214G-KKC40 · 8214G-KKC50 · 8214G-KKC60 · 8214G-KKC70 · 8214G-KKC80 · 8214G-KKC90 · 8214G-KKD00 · 8214G-KKE40 · 8214G-KKE80 · 8214G-KKE90 · 8214G-KKF00 · 8214G-KKF10 · 8214G-KKF20 · 8214M-KKM30 · 8214M-KKM60 · 8214M-KKM80 · 8214M-KKN00 · 8214M-KKN10 · 8214M-KKN20 · 8214M-KKN30 · 8214M-KKP40 · 8214M-KKP60 · 8214M-KKP70 · 8214M-KKQ40 · 8214M-KKQ50 · 8214M-KKQ80 · 8214M-KKQ90 · 8214M-KKR00 · 8214M-KKR10 · 8214M-KKR80 · 8214M-KKR90 · 8214M-KKS20 · 8214M-KKW60 · 8214N-KK280 · 8214N-KK440 · 8214N-KK450 · 8214N-KK860 · 8214N-KKL30 · 8214N-KKL40 · 8214N-KKL50 · 8214N-KKL60 · 8214N-KKL70 · 8214N-KKL90 · 8214N-KKM00 · 8214N-KKM20 · 8214N-KKM30 · 8214N-KKM60 · 8214N-KKR60 · 8214N-KKR80 · 8214N-KKR90 · 8214N-KKS00 · 8214N-KKS30 · 8214N-KKS40 · 8214N-KKU00 · 8214N-KKV60 · 8214N-KKV70 · 8214N-KKV80 · 8214N-KKV90 · 8214N-KKW00 · 8214N-KKW20 · 8214N-KKW30 · 8214P-KK430 · 8214P-KK440 · 8214P-KK610 · 8214P-KK630 · 8214P-KK640 · 8214P-KK650 · 8214P-KK660 · 8214P-KK670 · 8214P-KK680 · 8214P-KK700 · 8214P-KK710 · 8214P-KK720 · 8214P-KK730 · 8214P-KK800 · 8214P-KK820 · 8214P-KK840 · 8214P-KK850 · 8214P-KK860 · 8214P-KK880 · 8214P-KK890 · 8214P-KKA20 · 8214P-KKC60 · 8214P-KKE10 · 8214P-KKE20 · 8214P-KKE30 · 8214P-KKE50 · 8214P-KKE60 · 8214P-KKF50 · 8214P-KKF60 · 8214P-KKG40 · 8214P-KKG60 · 8214P-KKG80 · 8214P-KKG90 · 8214P-KKJ00 · 8214P-KKJ50 · 8214P-KKK50 · 8214P-KKL60 · 8214P-KKL70 · 8214Q-KKR90 · 8214Q-KKU30 · 8214Q-KKV90 · 8214Q-KKW00 · 8214Q-KKW10 · 8214Q-KKX00 · 8214Q-KKX10 · 8214Q-KKX30 · 8214Q-KKX40 · 8214R-KK460 · 8214R-KK470 · 8214R-KK480 · 8214R-KK490 · 8214R-KK500 · 8214R-KK510 · 8214R-KK520 · 8214R-KK530 · 8214S-KK240 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-KKA40 · 82142-KKA50 · 82142-KKA70 · 82142-KKB30 · 82142-KKB40 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-KKB80 · 82143-KKB90 · 82143-KKC00 · 82143-KKC10 · 82143-KKC30 · 82143-KKC50 |
| 82151 | Right front door wiring harness | 82151-KKK60 · 82151-KKK70 · 82151-KKV80 · 82197-KKD20 · 82197-KKD30 · 82197-KKG40 · 82197-KKL90 · 82197-KKM00 · 82197-KKM10 · 82197-KKM20 · 82197-KKM30 · 82197-KKQ90 · 82197-KKR00 · 82197-KKR10 · 82197-KKR20 · 82197-KKR30 · 82197-KKR40 · 82197-KKR50 · 82197-KKR60 · 82197-KKR70 · 82197-KKR80 · 82197-KKS10 · 82197-KKS20 · 82197-KKS30 · 82197-KKS40 · 82197-KKV80 · 82197-KKV90 · 82197-KKW10 · 82197-KKW20 · 82197-KKW30 · 82197-KKW50 |
| 82152 | Left front door wiring harness | 821A8-KK270 · 821A8-KK310 · 821A8-KK490 · 821A8-KK640 · 821A8-KK650 · 821A8-KK660 · 821A8-KK670 · 821A8-KK680 · 821A8-KK690 · 821A8-KK700 · 821A8-KK710 · 821A8-KK720 · 821A8-KK740 · 821A8-KK750 · 821A8-KKB60 · 821A8-KKB70 · 821A8-KKB80 · 821A8-KKB90 · 821A8-KKC00 · 821A8-KKC20 · 821A8-KKC40 · 821A8-KKF20 · 821A8-KKF30 · 821A8-KKF40 · 821A8-KKF50 · 821A8-KKF60 · 821A8-KKF70 · 821A8-KKF80 · 821A8-KKK00 |
| 82153 | Rear door wiring harness No. 1 | 82153-KK240 · 82153-KK260 |
| 82154 | Rear door wiring harness No. 2 | 82154-KK380 · 82154-KK390 |
| 82161 | floor wiring harness | 8219H-KKW20 · 8219H-KKW30 · 8219H-KKW40 · 8219H-KKW50 · 8219H-KKW60 · 8219H-KKW70 · 8219H-KKW80 · 8219H-KKW90 · 8219H-KKX40 · 8219H-KKX50 · 8219H-KKX60 · 8219H-KKX70 · 8219H-KKX80 · 8219H-KKX90 · 8219H-KKY00 · 8219H-KKY10 · 8219H-KKY20 · 8219J-KK510 · 8219J-KK520 · 8219J-KK570 · 8219J-KK580 · 8219J-KK590 · 8219J-KK600 · 8219J-KK610 · 8219J-KK620 · 8219J-KK630 · 8219J-KK640 · 8219J-KK650 · 8219J-KK660 · 8219J-KKA70 · 8219J-KKR30 |
| 82164 | Frame wiring harness set | 82164-KKF30 · 82164-KKF40 · 82164-KKF41 · 82164-KKF50 · 82164-KKF60 · 82164-KKF80 · 82164-KKF81 · 82164-KKF90 · 82164-KKG00 · 82164-KKG20 · 82164-KKG40 · 82164-KKG70 · 82164-KKG90 · 82164-KKL00 · 82164-KKL30 · 82164-KKL60 · 82164-KKM40 · 82164-KKM80 · 82164-KKT80 · 82164-KKU00 · 82164-KKV30 |
| 82165 | No. 2 frame wiring harness | 82165-KK070 · 82165-KK080 · 82165-KK100 · 82165-KK200 |
| 82169 | No. 3 frame wiring harness | 82169-KK100 |
| 82171 | Roof No. 1 wiring harness | 82171-KKF30 · 82171-KKF40 · 82171-KKF60 · 82171-KKF70 · 82171-KKF80 · 82171-KKG20 · 82171-KKN20 · 82171-KKN30 · 82171-KKN50 · 82171-KKN60 · 82171-KKN70 · 82171-KKN80 · 82171-KKN90 · 82171-KKP00 · 82171-KKR60 · 82171-KKR70 |
| 82172 | Roof No. 2 wiring harness | 82172-KK010 |
| 82183 | Luggage No. 3 wiring harness | 82183-KK090 |
| 82186 | Rear window wiring harness No. 1 | 82186-KK030 |

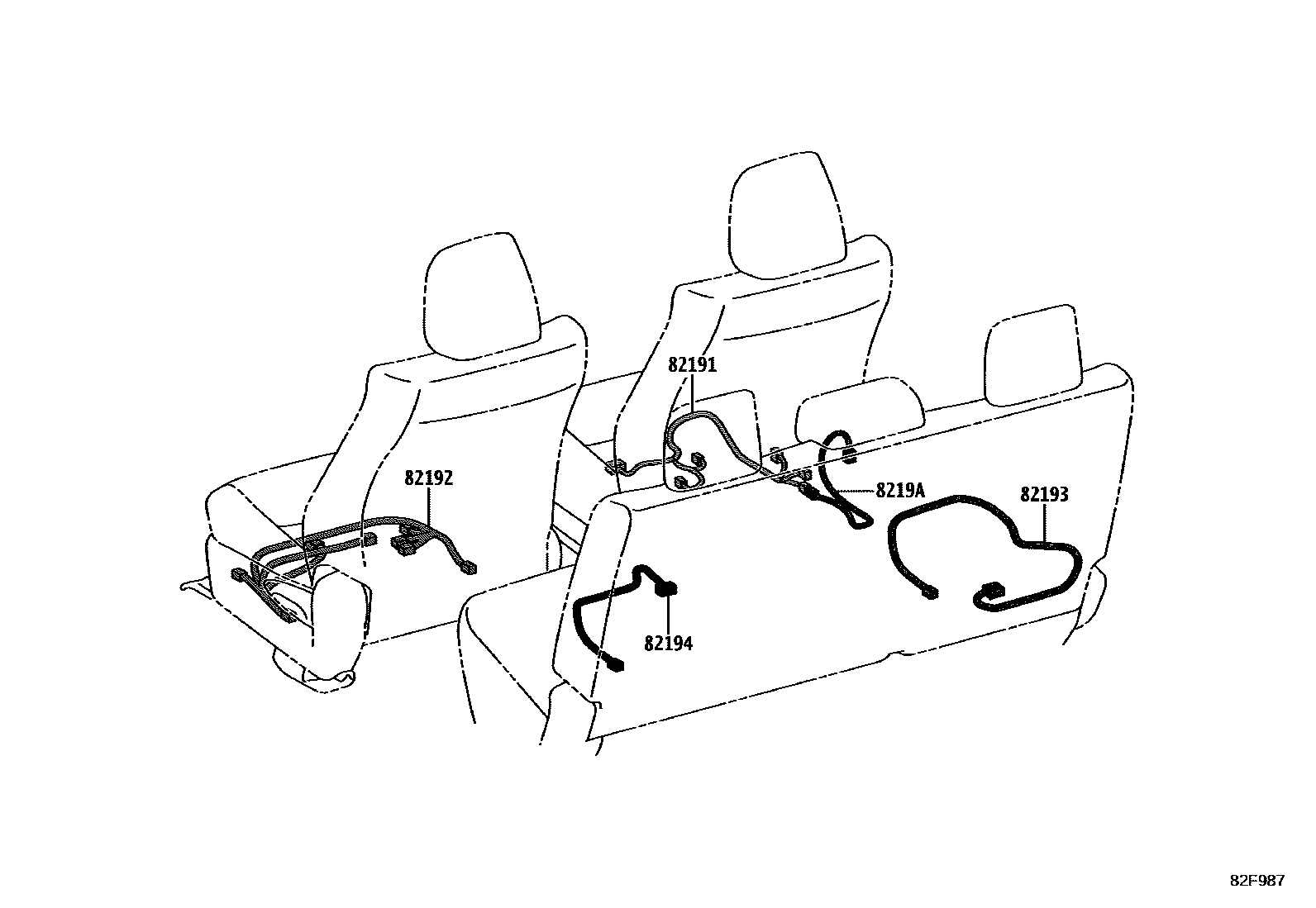

| 82191 | Front right seat wiring harness | 82191-0K050 |
| 82192 | Front left seat wiring harness | 82192-0K140 |
| 82193 | Rear right seat wiring harness | 82193-0K040 |
| 82194 | Rear left seat wiring harness | 82194-0K040 |
| 8219A | Wire harness No. 2, right side of front seat | 8219A-0K050 |
| 82219A | sensor harness | 82219-0K010 |

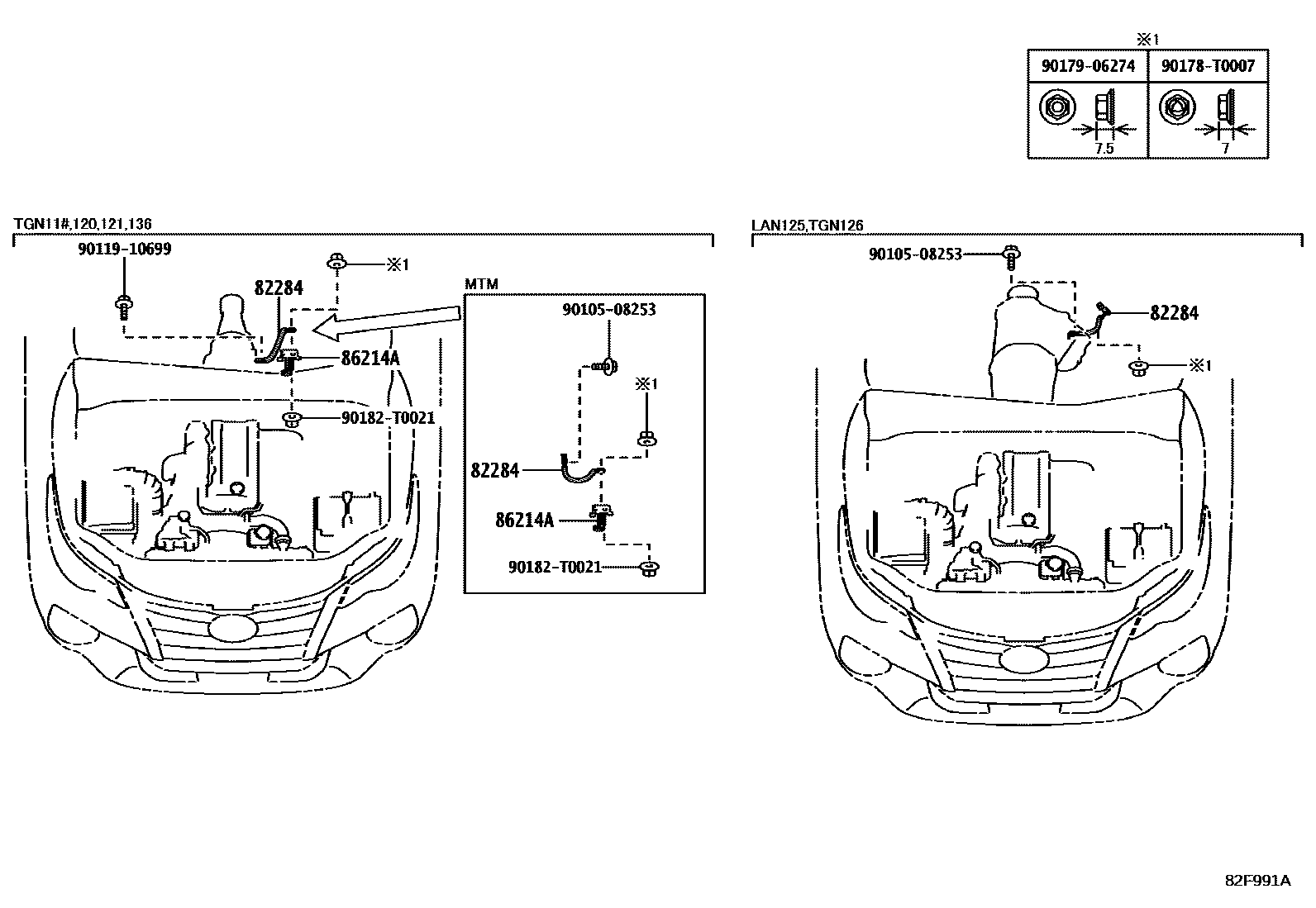

| 82284 | Ground wire | 82284-KK010 · 82284-KK020 · 82284-KK030 |
| 82666A | Connector holder No. 2 | 82666-0K200 |
| 82666B | No. 3 connector holder | 82666-0K160 · 82666-0K290 |
| 82666C | No. 4 connector holder | 82666-0K170 · 82666-0K180 |
| 82666D | No. 5 connector holder | 82666-0K210 |
| 82666E | No. 6 connector holder | 82666-0K220 |
| 82666F | No. 7 connector holder | 82666-0K230 · 82666-0K240 |
| 82666G | No. 8 connector holder | 82666-0K300 · 82666-0K310 |
| 82666Q | No. 12 connector holder | 82666-0K410 |
| 82666S | No. 13 connector holder | 82666-0K390 |
| 82666T | No. 14 connector socket | 82666-20270 |
| 82666V | No. 15 connector holder | 82666-0K470 |
| 82666W | No. 16 connector socket | 82666-0K480 |
| 82712A | Wire harness bracket | 82712-33190 |
| 82815A | Wiring harness protector cover | 82815-0K530 · 82815-0K560 |
| 82815B | Wiring harness protector cover | 82815-0K520 · 82815-0K550 |
| 82815G | No. 5 wire harness protector cover | 82815-0K540 |
| 82815H | No. 6 wire harness protector cover | 82815-0K270 · 82815-0K610 · 82815-0K661 |
| 82815J | No. 7 wire harness protector cover | 82815-0K340 · 82815-0K350 · 82815-0K600 · 82815-0K640 · 82815-0K710 |
| 82815K | No. 8 wire harness protector cover | 82815-0K280 · 82815-0K720 |
| 82815L | No. 9 wire harness protector cover | 82815-0K510 · 82815-0K710 |
| 82815P | No. 12 wire harness protector cover | 82815-0K070 |
| 82815Q | No. 13 wire harness protector cover | 82815-0K630 |
| 82815S | No. 15 wire harness protector cover | 82815-0K400 · 82815-0K800 |
| 82815T | No. 16 wire harness protector cover | 82815-0K410 · 82815-0K420 |
| 82815U | No. 17 wire harness protector cover | 82815-0K470 · 82815-0K480 |
| 82817 | No. 1 wire harness protection device | 82817-0K530 · 82817-0K560 |
| 82817A | No. 2 wire harness protection device | 82817-0K520 · 82817-0K550 |
| 82817B | No. 3 wire harness protection device | 82817-0K540 |
| 82817C | No. 4 wire harness protection device | 82817-0K270 · 82817-0K640 · 82817-0K691 |
| 82817D | No. 5 wire harness protection device | 82817-0K050 · 82817-0K280 |
| 82817E | No. 6 wire harness protection device | 82817-0K340 · 82817-0K350 · 82817-0K630 · 82817-0K670 |
| 82817F | No. 7 wire harness protection device | 82817-0K510 · 82817-0K780 |
| 82817G | No. 8 wire harness protection device | 82817-0K300 · 82817-0K670 |
| 82817K | No. 10 wire harness protection device | 82817-0K310 |
| 82817M | No. 12 wire harness protection device | 82817-0K660 |
| 82817N | No. 13 wire harness protection device | 82817-0K400 · 82817-0KA30 |
| 82817P | No. 14 wire harness protection device | 82817-0K410 · 82817-0K420 |
| 82817T | No. 15 wire harness protection device | 82817-0K800 |
| 82817X | No. 17 wire harness protection device | 82817-0K240 · 82817-0K840 · 82817-0K860 · 82817-0KA40 |
| 82818 | No. 2 wire harness protection device | 82817-0K290 |
| 82821E | Connector cover | 82821-KK020 |
| 82821N | Connector cover | 82821-KK030 |
| 82821P | Connector cover | 82821-71080 |
| 82823S | starter terminal cover | 82823-0K010 · 82823-0K030 · 82823-30100 · 82823-35040 · 82823-35050 |
| 82823T | Generator terminal cover | 82823-22050 |
| 82824 | Harness connector | 90980-12393 · 90980-12448 · 90980-12878 |
| 86214A | Radio ground bracket | 86214-KK010 |
