Toyota HILUX warning nameplate — Figure 7455

Toyota HILUX EPC diagram 7455, warning nameplate, with 2 images and 10 PNC and OE references.

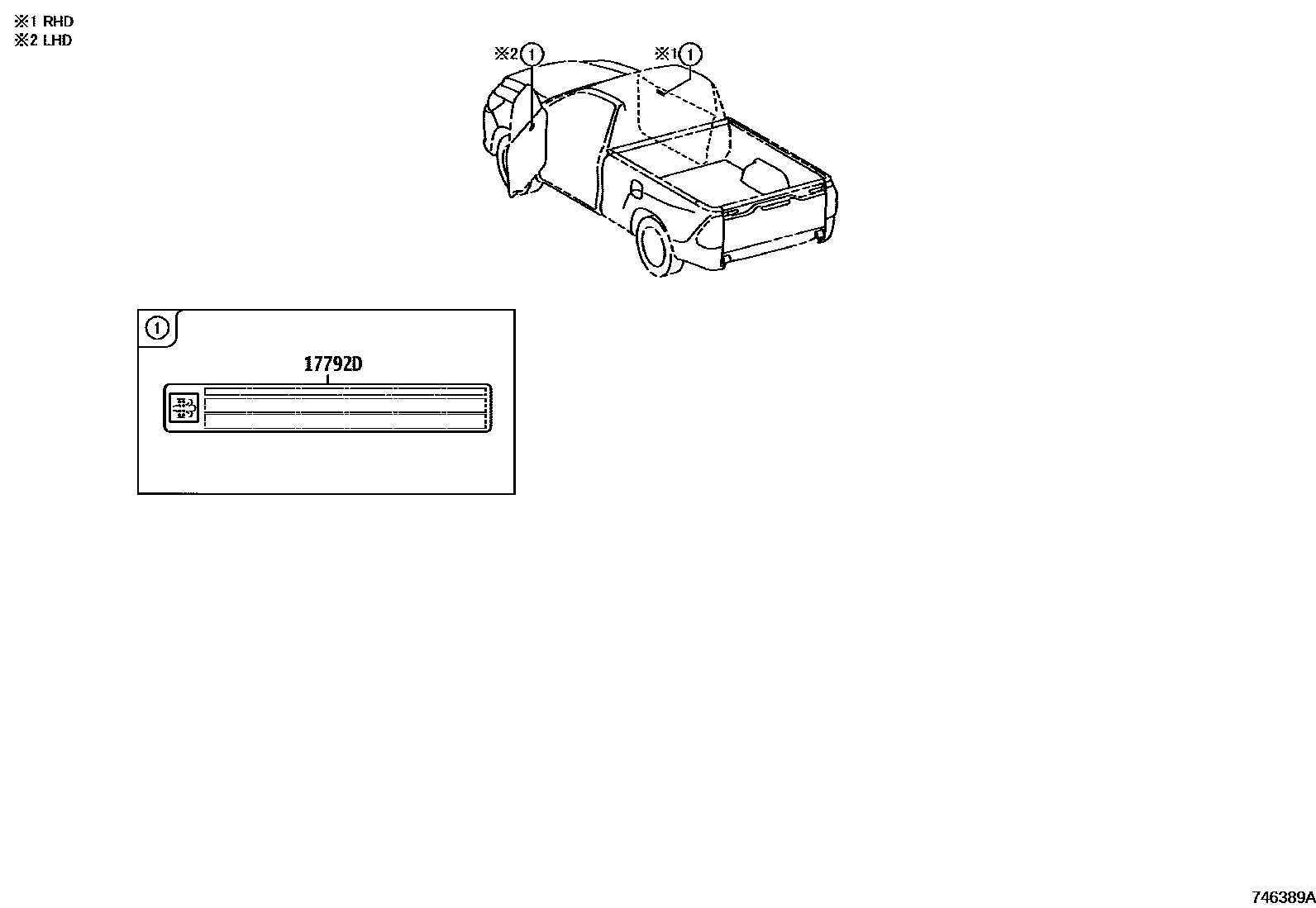

Toyota HILUX warning nameplate EPC diagram — 746389A
warning nameplate — 746389A (202208 – 999999)

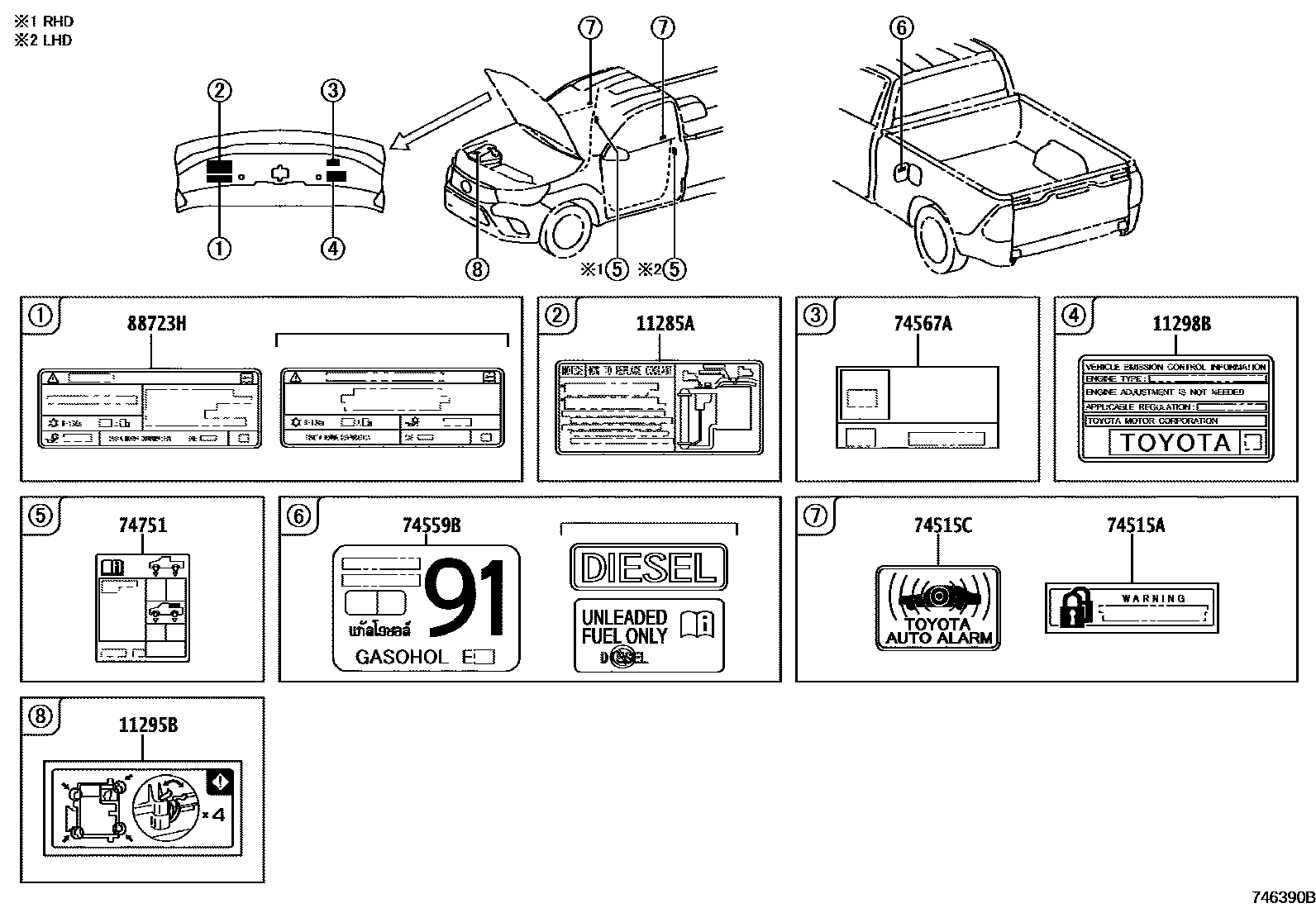

Toyota HILUX warning nameplate EPC diagram — 746390B
warning nameplate — 746390B (202208 – 999999)

PNC and OE references

PNCPart nameOE numbers
11285ACoolant System Caution Labels11285-0E010
11295BNo. 1 Engine Maintenance Attention Label11295-0E010
11298BEmission Control Information Label11298-0E040
17792DEmission control device information label17792-11750 · 17792-11800
74515AAnti-theft warning nameplate74515-20010
74515CAnti-theft warning information label74515-0K020 · 74515-42010
74559Bfuel information label74559-02050 · 74559-0K020 · 74559-20140 · 74559-89101 · 74559-YE010
74567AE.C.E approval number plate74567-25041 · 74567-71010
74751tire pressure information label42661-0KM31 · 42661-0KM40 · 42661-0KM50 · 42661-0KM70 · 42661-0KM80 · 42661-0KM90 · 42661-0KN10 · 42661-0KN20 · 42661-0KN40 · 42661-0KN50 · 42661-0KN60 · 42661-0KN90 · 42661-0KQ50 · 42661-0KQ70 · 42661-0KQ90 · 42661-0KS20 · 42661-0KS50 · 42661-0KT11 · 42661-0KT30 · 42661-0KT50
88723HCooler maintenance warning label88723-0K260 · 88723-0K261 · 88723-0K270 · 88723-0K300 · 88723-0K321 · 88723-0K350 · 88723-0K360 · 88723-0K390
