Toyota HILUX 前门锁和车门把手 — Figure 6753

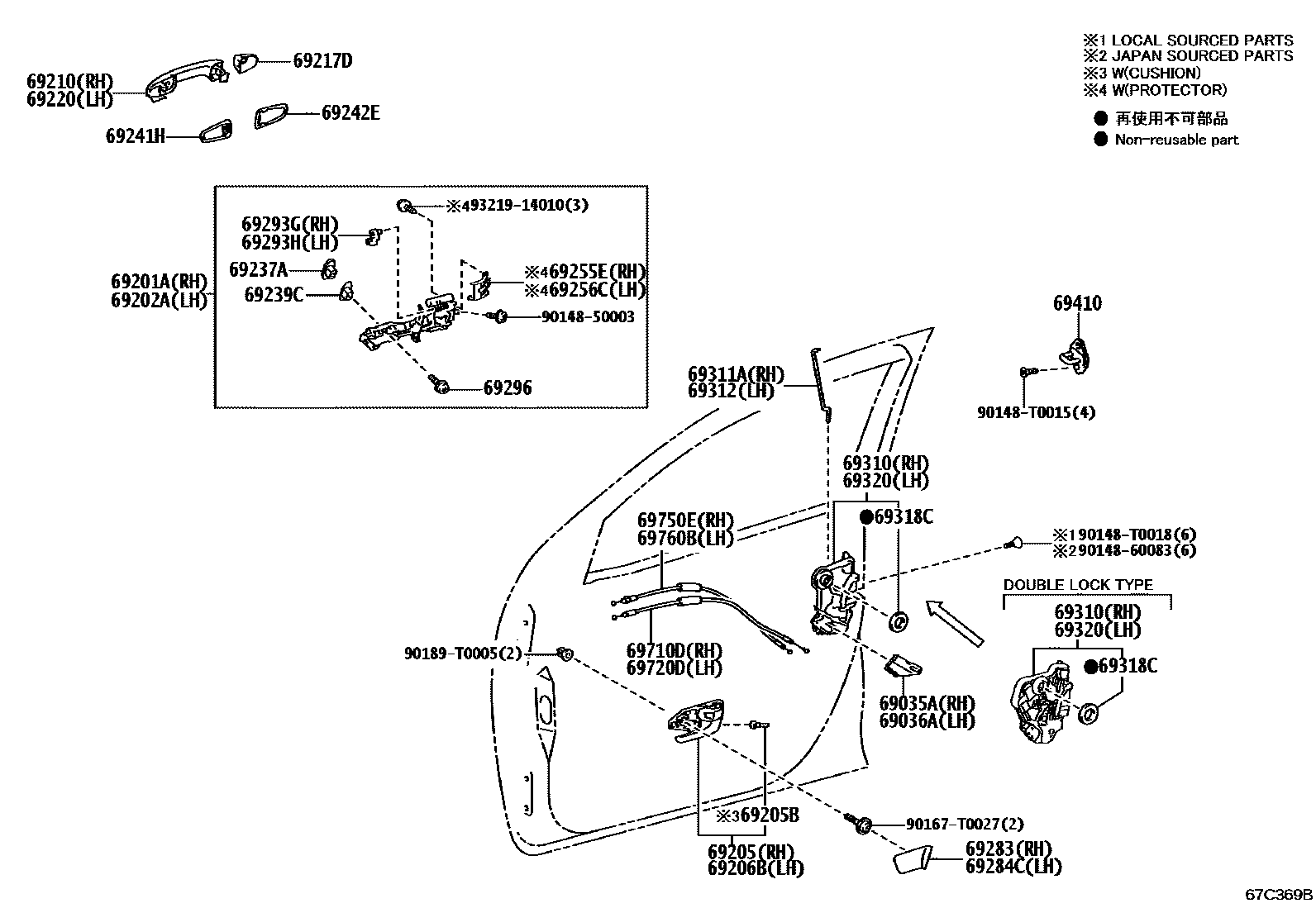

Toyota HILUX EPC diagram 6753, 前门锁和车门把手, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69035A | Right front door lock cover sub-assembly | 69035-02010 · 69035-02040 |
| 69036A | Left front door lock cover sub-assembly | 69036-02010 · 69036-02040 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-0K061 · 69201-0K070 · 69201-0K080 · 69201-0K090 · 69201-0K100 · 69201-0K160 · 69201-0K170 · 69201-0K171 · 69201-0K180 · 69201-0K200 · 69201-0K201 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-0K061 · 69202-0K070 · 69202-0K080 · 69202-0K090 · 69202-0K100 · 69202-0K160 · 69202-0K170 · 69202-0K171 · 69202-0K180 · 69202-0K200 · 69202-0K201 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04027 |
| 69210 | Right front door outer handle assembly | 69210-0K060 · 69210-0K200 · 69210-0K210 · 69210-0K220 · 69210-0K250 · 69210-0K260 · 69210-0K924 · 69210-YP020 · 69210-YP040 |
| 69217D | Front door outer handle cover | 69217-0K370 · 69217-0K380 · 69217-0K430 · 69217-0K440 · 69217-0K450 · 69217-0K460 · 69217-0K470 · 69217-0K480 · 69217-0K919 · 69217-0K920 · 69217-YP010 · 69217-YP020 · 69217-YP030 · 69217-YP040 |
| 69220 | Left front door outer handle assembly | 69210-0K060 · 69210-0K200 · 69210-0K210 · 69210-0K220 · 69210-0K250 · 69210-0K260 · 69210-0K924 · 69210-YP020 · 69210-YP040 |
| 69237A | Front door handle nut | 69237-0E010 · 69237-0K040 · 69237-0K060 · 69237-0K070 |
| 69239C | Front door handle bushing | 69239-0K040 · 69239-0K070 · 69239-0K080 |
| 69241H | Front door exterior handle pad | 69241-0K041 · 69241-0K060 · 69241-0K100 |
| 69242E | Front door rear outer handle pad | 69242-0K030 · 69242-0K050 · 69242-0K090 |
| 69255E | Right door outer handle protector | 69255-0K050 · 69255-0K051 · 69255-0K080 · 69255-0K081 |
| 69256C | Left door outer handle protector | 69256-0K050 · 69256-0K051 · 69256-0K080 · 69256-0K081 |
| 69293G | Right front door outer handle buckle | 69293-0K070 · 69293-12030 · 69293-33010 |
| 69293H | Left front door outer handle buckle | 69293-0K080 · 69293-12040 · 69293-33020 |
| 69296 | Car door inner handle screws | 69296-0K040 · 69296-0M010 · 69296-30010 |
| 69310 | Right front door lock assembly | 69030-02470 · 69030-02480 · 69030-02530 · 69030-02600 · 69030-0K200 · 69030-53080 · 69310-02160 · 69310-0K100 · 69310-0K110 |
| 69311A | Right front door lock opening lever | 69311-0K170 · 69311-0K180 |
| 69312 | Left front door lock opening lever | 69312-0K170 · 69312-0K180 |
| 69318C | door lock harness seal | 69318-51010 |
| 69320 | Left front door lock assembly | 69040-02450 · 69040-02470 · 69040-02510 · 69040-02550 · 69040-53090 · 69320-02160 · 69320-0K090 · 69320-0K110 |
| 69410 | Front door lock plate assembly | 69410-02090 · 69410-0D060 · 69410-0K070 |
| 69710D | Right front door lock remote control cable (for opening lever) | 69710-0K140 · 69710-0K150 · 69710-0K200 |
| 69720D | Left front door lock remote control cable (for opening lever) | 69710-0K140 · 69710-0K150 · 69710-0K200 |
| 69750E | Right front door inner locking cable (for locking/unlocking handle) | 69750-0K140 · 69750-0K150 · 69750-0K200 |
| 69760B | Left front door inner locking cable (for locking/unlocking handle) | 69750-0K140 · 69750-0K150 · 69750-0K200 |
