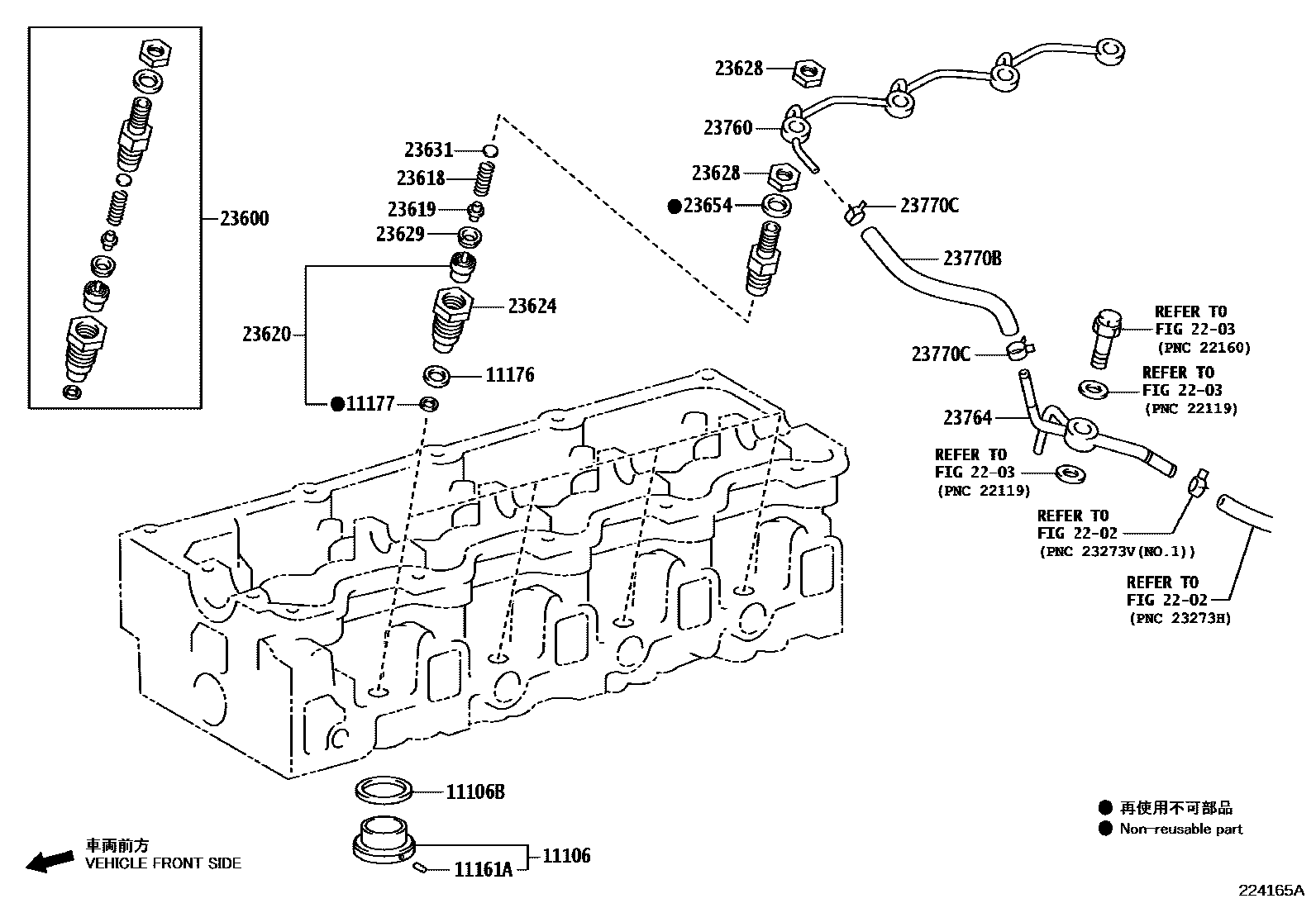

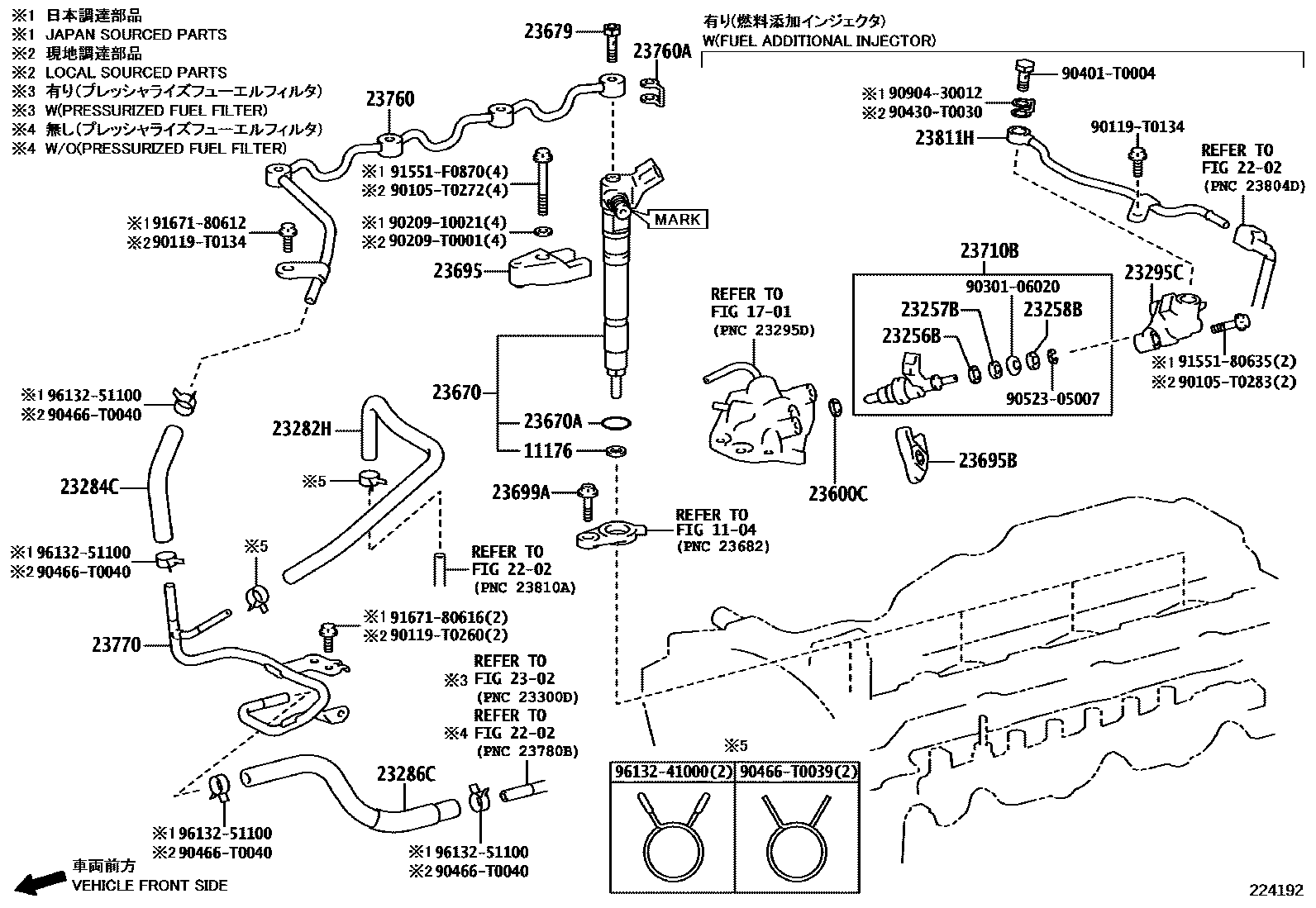

Toyota HILUX 喷油嘴 — Figure 2201
Toyota HILUX EPC diagram 2201, 喷油嘴, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11106 | Combustion chamber sub-assembly | 11106-54170 |
| 11106B | Gasket (for combustion chamber) | 11165-54030 |
| 11161A | Direct sales (for combustion chamber) | 90250-02046 |
| 11176 | Injector seat | 11176-0E010 · 11176-33010 · 11176-64010 |
| 11177 | Injector seat gasket | 11177-54020 |
| 23256B | No. 1 injector retaining ring | 23256-74010 |
| 23257B | No. 2 injector retaining ring | 23257-74010 |
| 23258B | No. 3 injector retaining ring | 23258-28011 |
| 23282H | No. 4 fuel hose | 23282-0E012 · 23282-0E022 |
| 23284C | No. 5 fuel hose | 23284-0E010 · 23284-0E020 · 23284-11010 |
| 23286C | No. 6 fuel hose | 23286-0E011 · 23286-0E020 · 23286-11011 |
| 23295C | Injector fixing parts | 23296-0E010 |
| 23600 | Injector body and injector assembly | 23600-59325 |
| 23600C | Gasket (for injector body and injector assembly) | 90430-T0019 · 90430-T0029 |
| 23618 | Injector body pressure adjustment spring | 23618-64080 |
| 23619 | Injector body compression pin | 23619-64010 |
| 23620 | Fuel injector assembly | 23620-69115 |
| 23624 | Fuel injector fixing nut | 23624-64041 |
| 23628 | Nut (for fixing the sealing ring) | 23628-64010 |
| 23629 | Spacer (for fuel injector) | 23629-54080 |
| 23631 | Washer (for injector body pressure adjustment spring) | 23631-64010 · 23631-64012 · 23631-64014 · 23631-64016 · 23631-64018 · 23632-64010 · 23632-64012 · 23632-64014 · 23632-64016 · 23632-64018 · 23633-64010 · 23633-64012 · 23633-64014 · 23633-64016 · 23633-64018 · 23634-64010 · 23634-64012 · 23634-64014 · 23634-64016 · 23634-64018 · 23635-64010 · 23635-64012 |
| 23654 | Gasket (for sealing ring) | 23654-64010 |
| 23670 | Fuel injector assembly | 23670-09460 · 23670-09470 · 23670-09500 · 23670-09510 · 23670-09540 · 23670-09550 · 23670-09560 · 23670-09570 · 23670-09580 · 23670-09590 · 23670-19065 · 23670-39495 |
| 23670A | O-ring (for injector assembly) | 96721-19017 |
| 23679 | Fuel injector hollow screw | 90401-06002 · 90401-T0007 |
| 23695 | No. 1 injector body clamp | 23695-0E010 · 23695-11010 |
| 23695B | No. 2 injector body clamp | 23695-0E020 · 23695-28010 |
| 23699A | Injector body clamp seat | 23699-0E010 · 23699-0E020 · 23699-11010 |
| 23710B | Exhaust fuel addition injector assembly | 23710-11010 |
| 23760 | Fuel injector overflow pipe assembly | 23760-0E011 · 23760-0E020 · 23760-54030 |
| 23760A | padding | 90430-06013 · 90430-T0017 |
| 23764 | No. 4 fuel injector overflow pipe | 23764-54130 |
| 23770 | No. 2 injector oil spill pipe assembly | 23770-0E011 · 23770-0E021 |
| 23770C | Clip or clip (for fuel hose assembly) | 96132-51000 |
| 23811H | No. 1 fuel pipe | 23811-08010 · 23811-08020 |
