Toyota HILUX Engine Overhaul Gasket Kit — Figure 1103
Toyota HILUX EPC diagram 1103, Engine Overhaul Gasket Kit, with 10 images and 2 PNC and OE references.

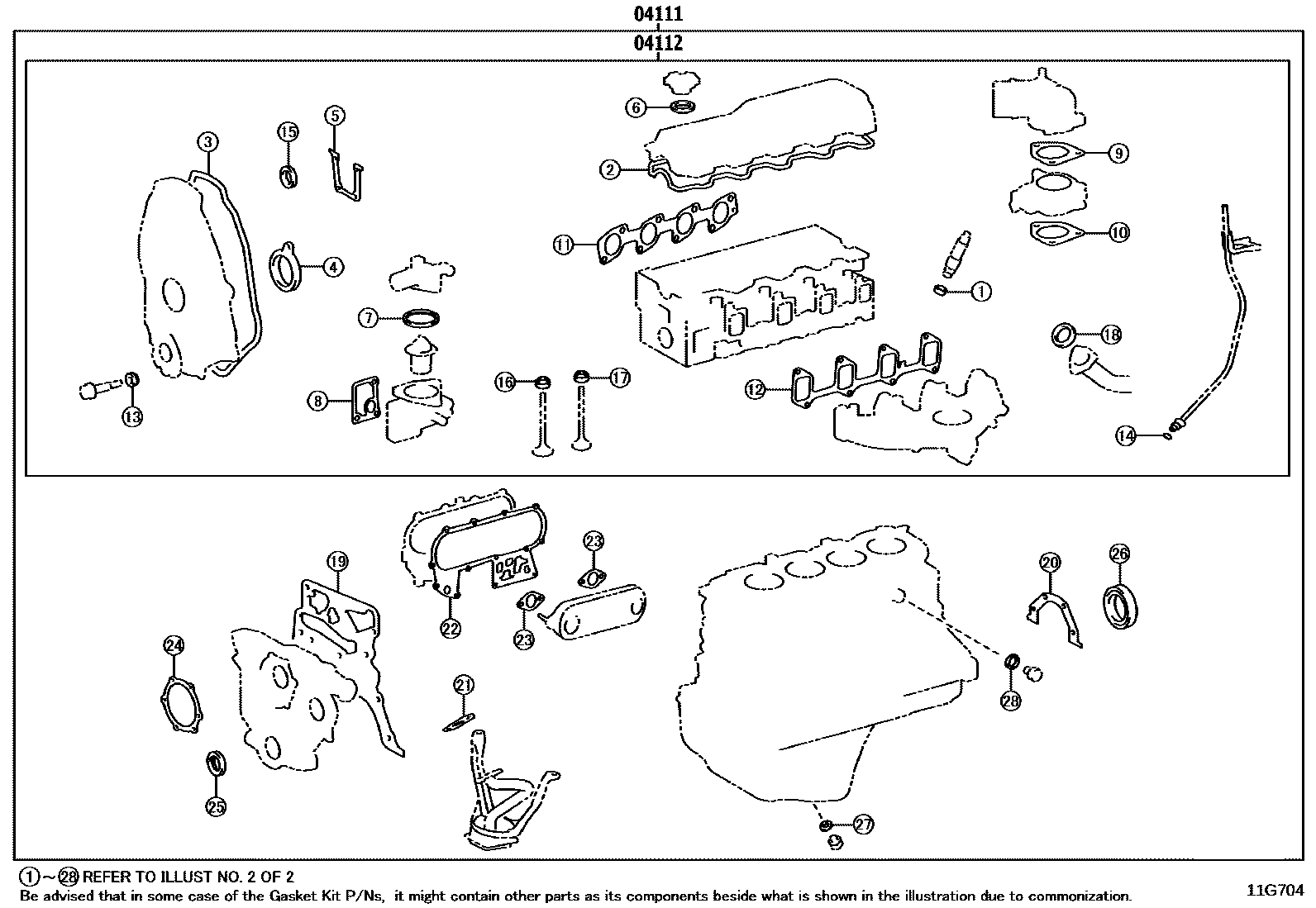

Engine Overhaul Gasket Kit — 11G704 (202301 – 999999)

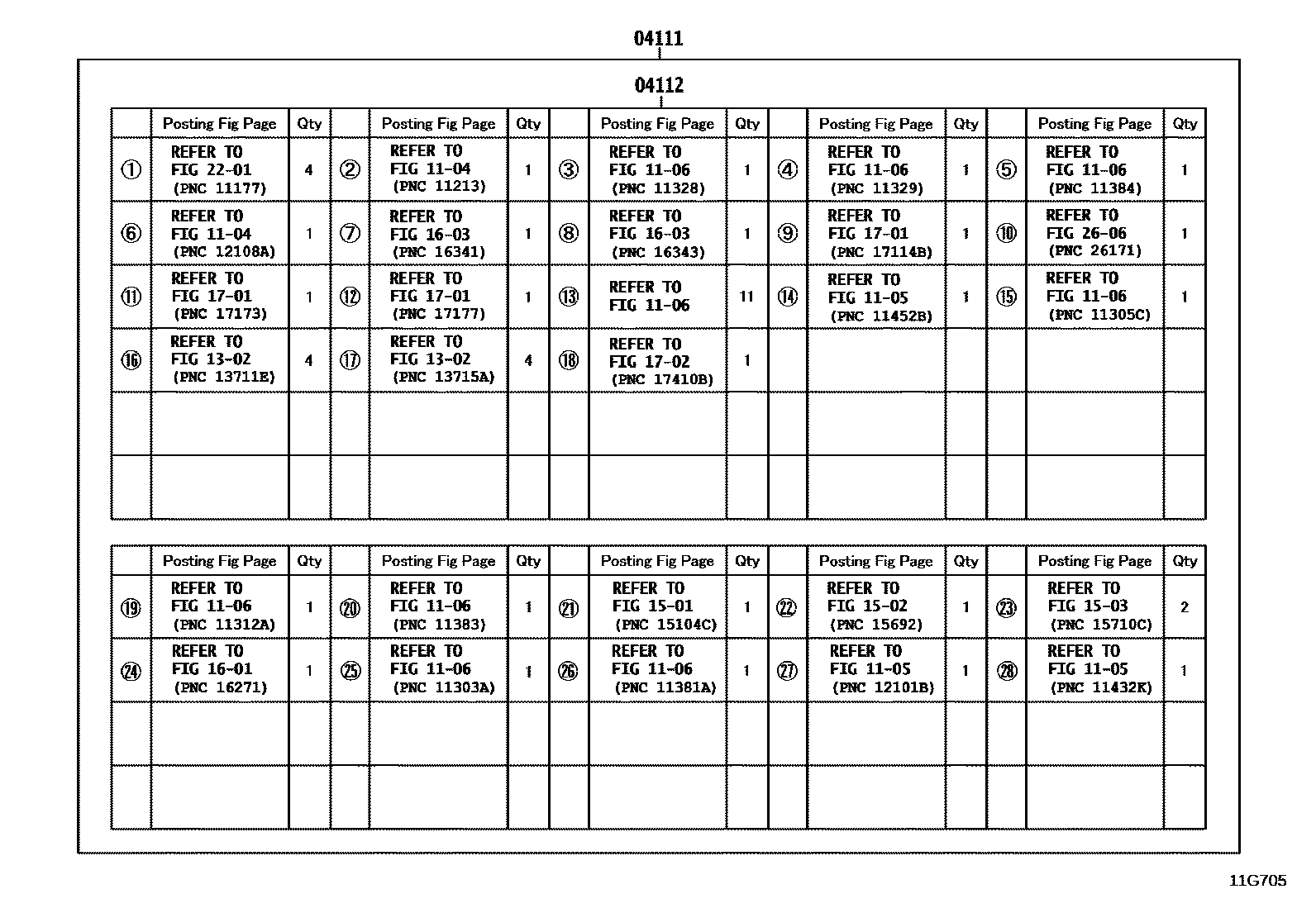

Engine Overhaul Gasket Kit — 11G705 (202301 – 999999)

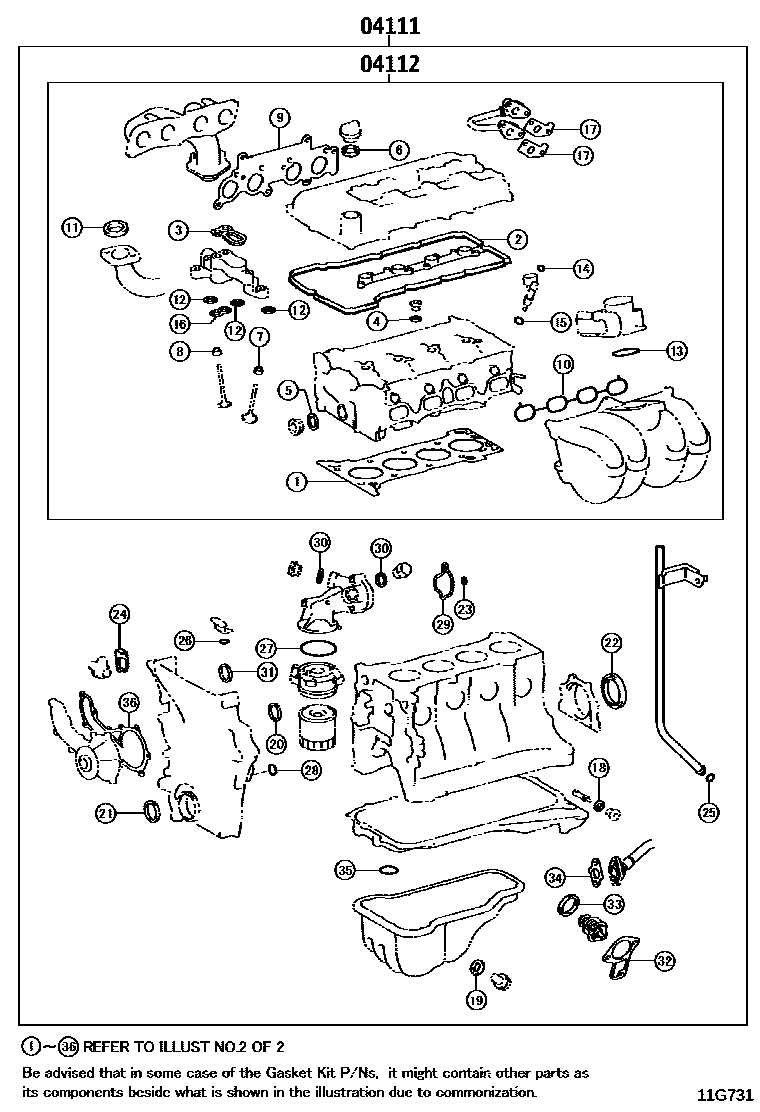

Engine Overhaul Gasket Kit — 11G731 (202208 – 999999)

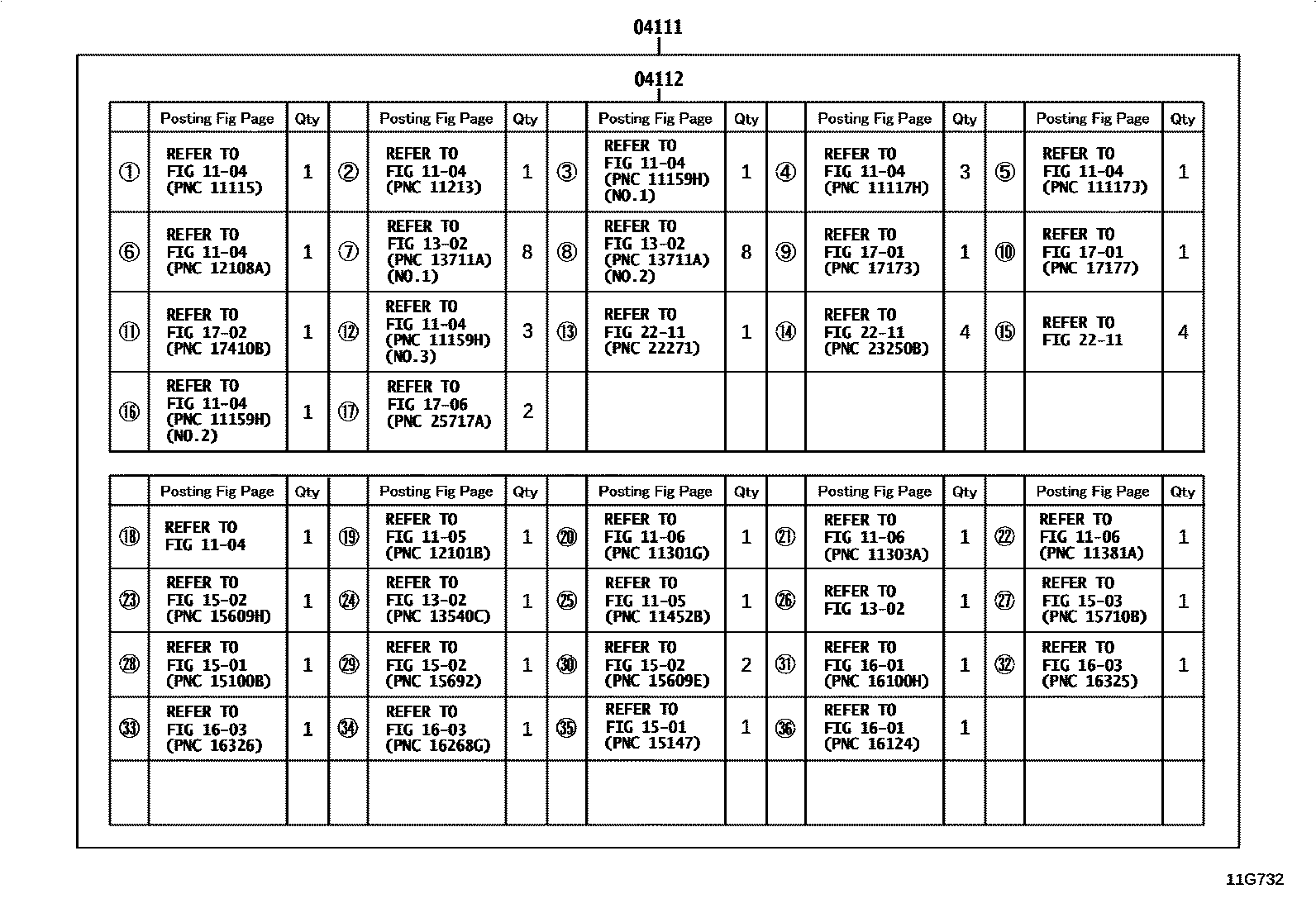

Engine Overhaul Gasket Kit — 11G732 (202208 – 999999)

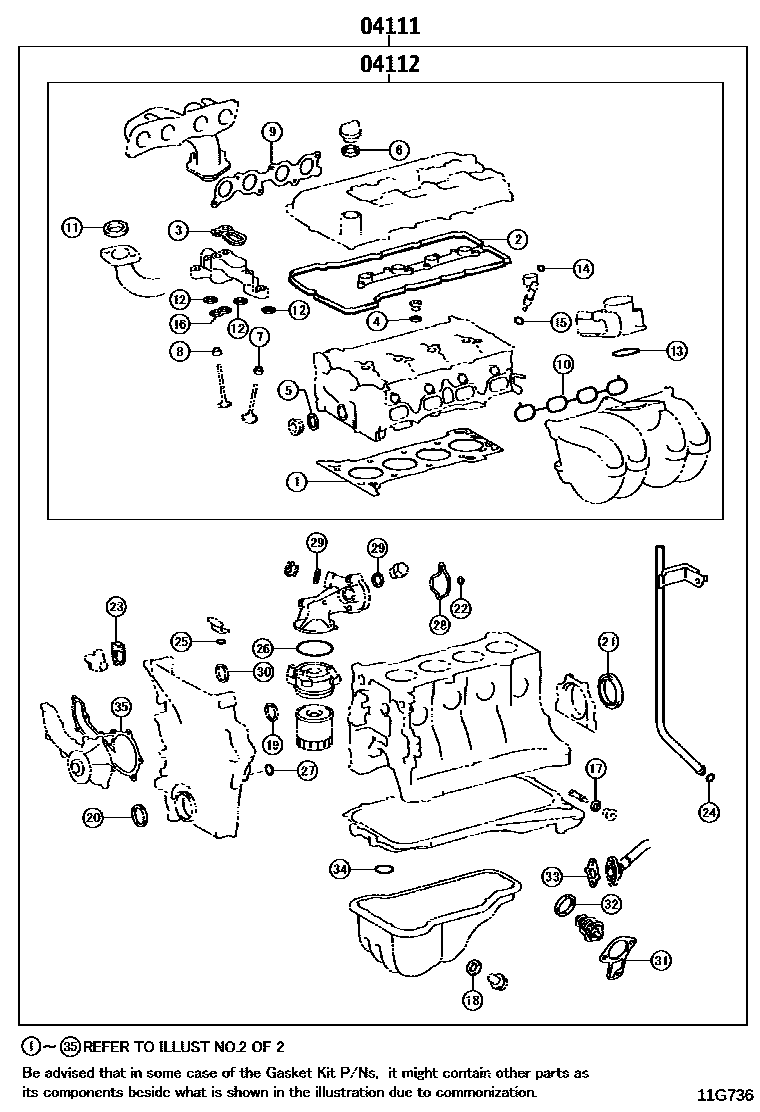

Engine Overhaul Gasket Kit — 11G736 (202208 – 999999)

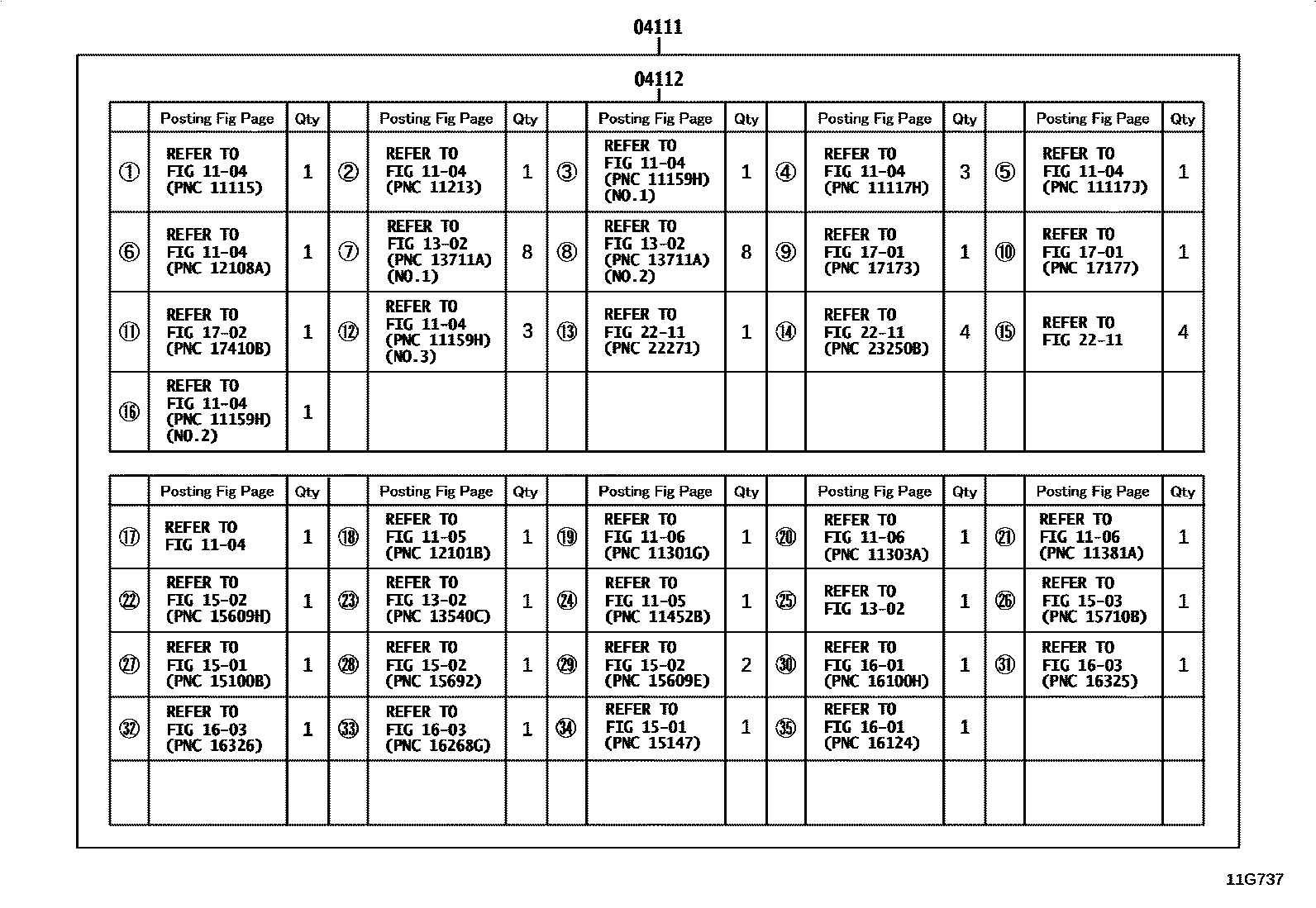

Engine Overhaul Gasket Kit — 11G737 (202208 – 999999)
Engine Overhaul Gasket Kit — 11G738 (202208 – 999999)

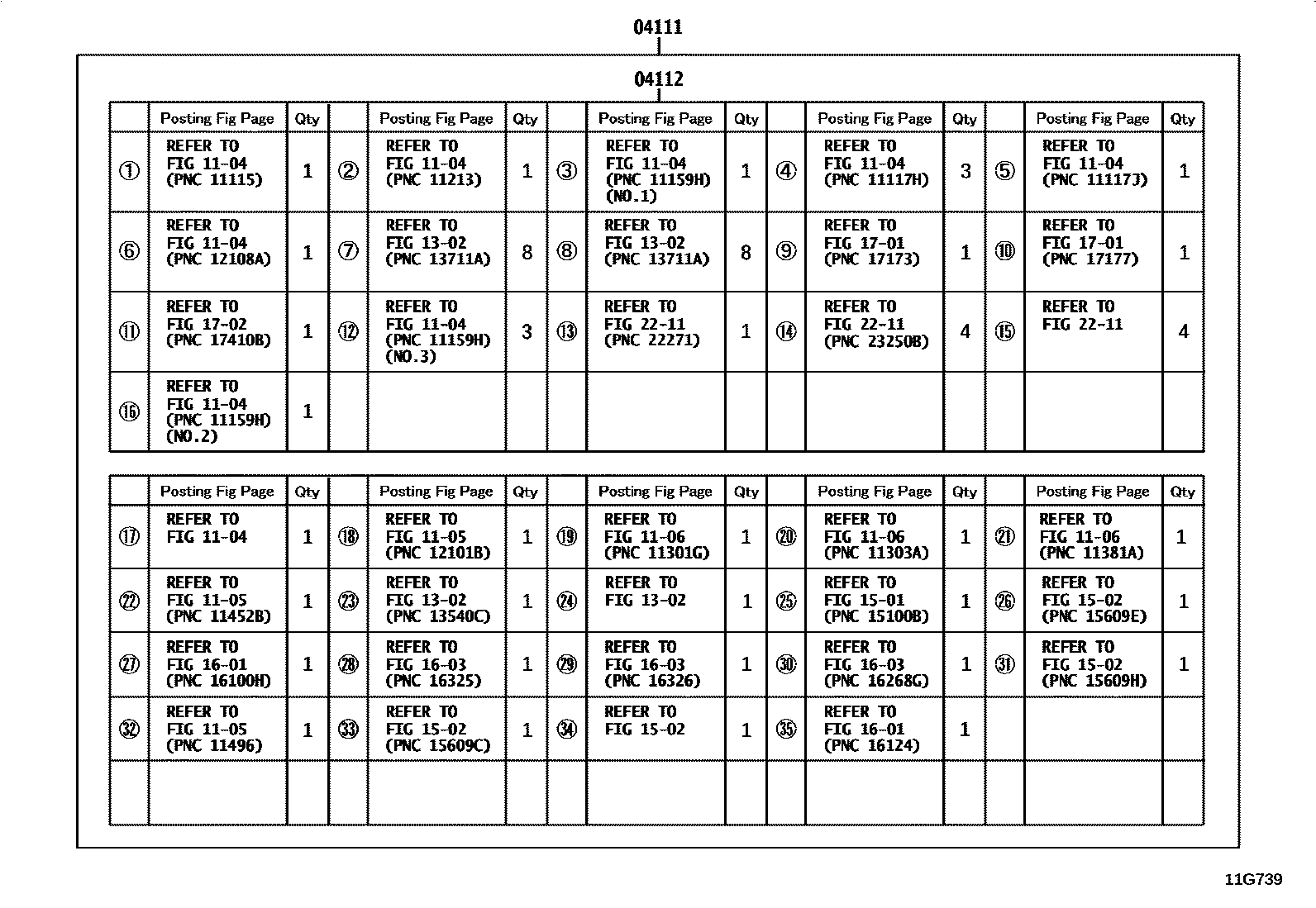

Engine Overhaul Gasket Kit — 11G739 (202208 – 999999)

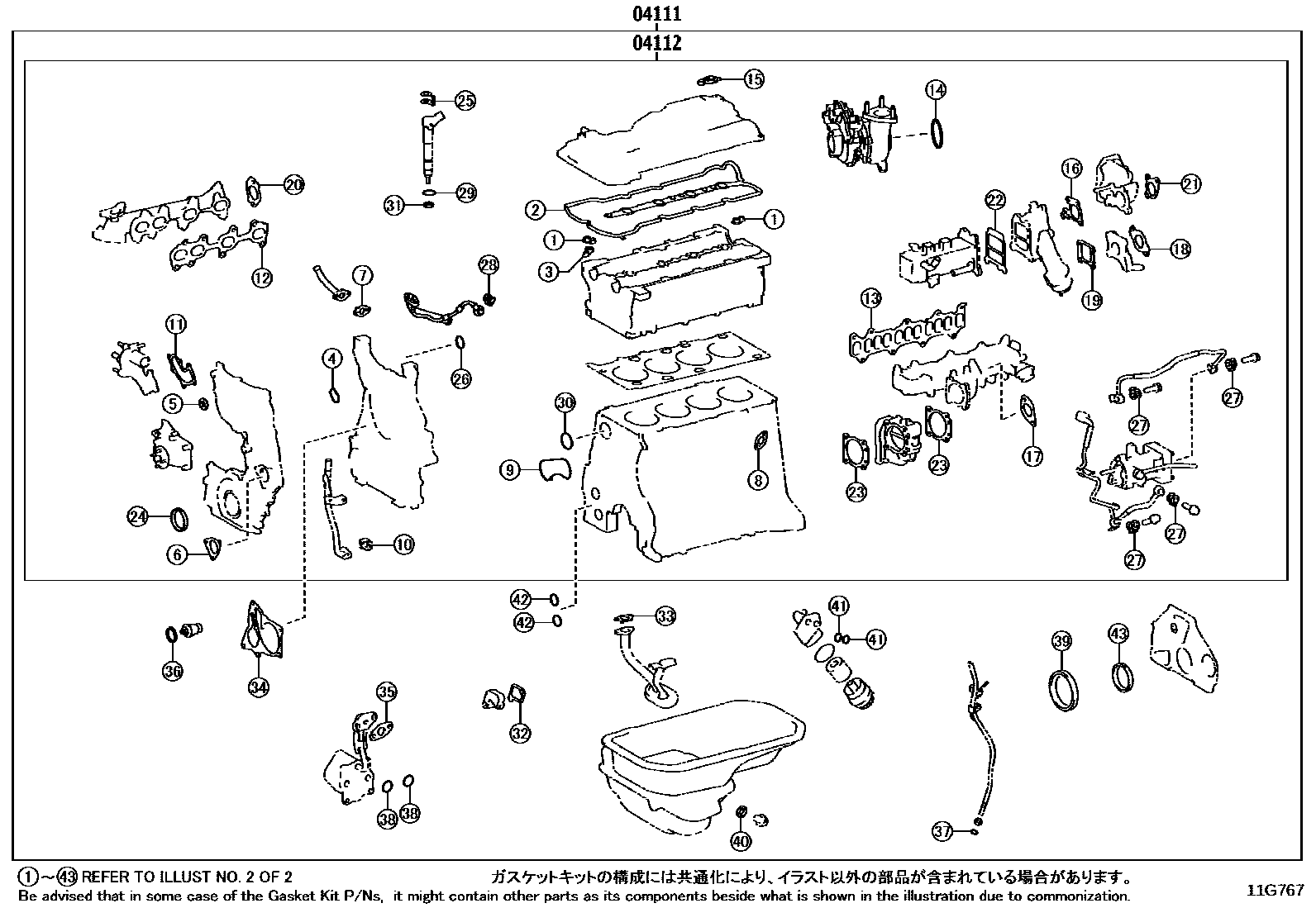

Engine Overhaul Gasket Kit — 11G767 (202208 – 999999)

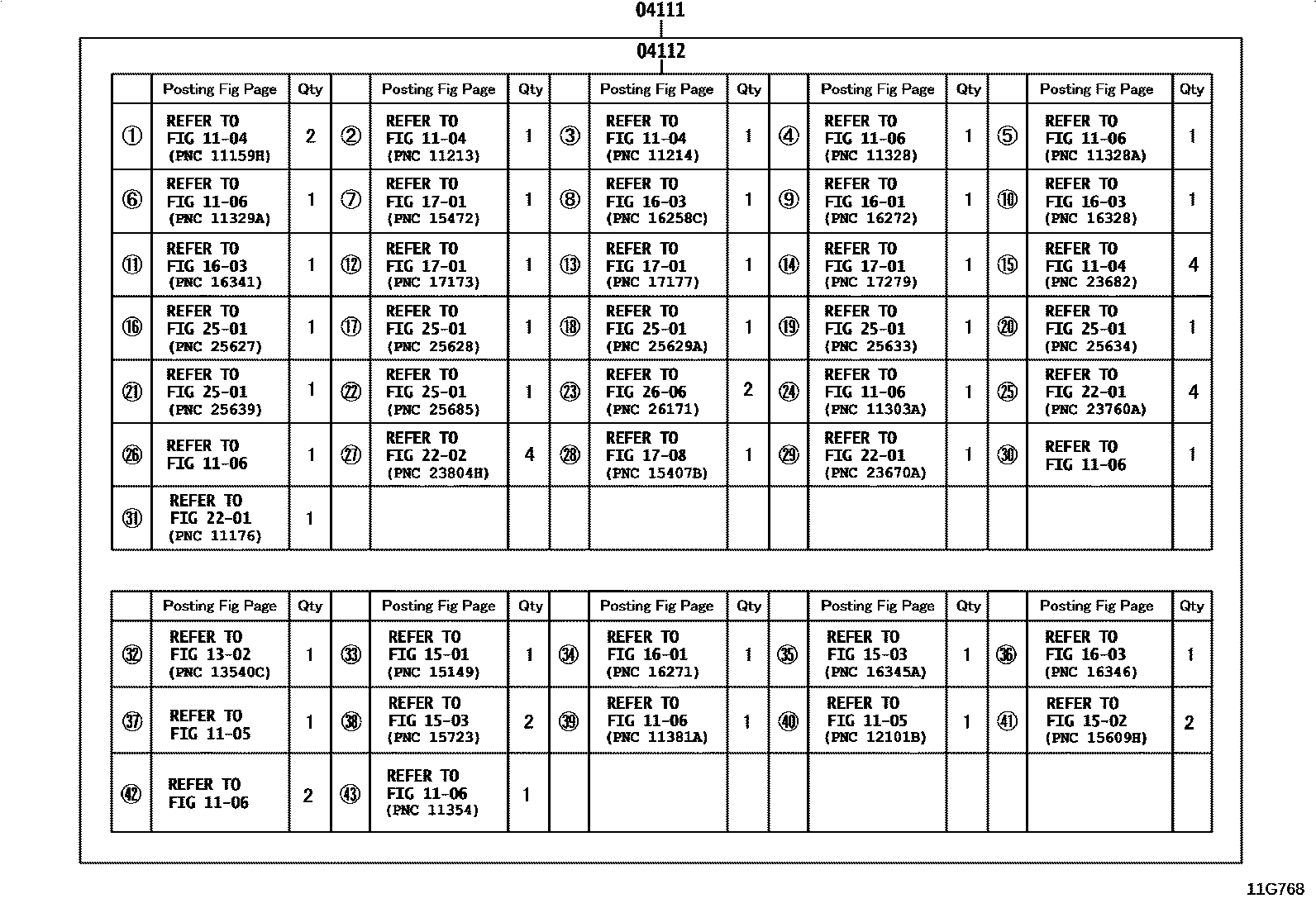

Engine Overhaul Gasket Kit — 11G768 (202208 – 999999)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 04111 | Engine overhaul gasket assembly | 04111-0C152 · 04111-0C300 · 04111-0C310 · 04111-0E112 · 04111-0E161 · 04111-0E191 · 04111-0E221 · 04111-54600 |
| 04112 | Engine valve grinding pad assembly | 04112-0C120 · 04112-0C130 · 04112-0C140 · 04112-0E112 · 04112-0E161 · 04112-0E191 · 04112-0E221 · 04112-54510 |
