Toyota HILUX 后视镜 — Figure 8701

Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 11 PNC and OE references.

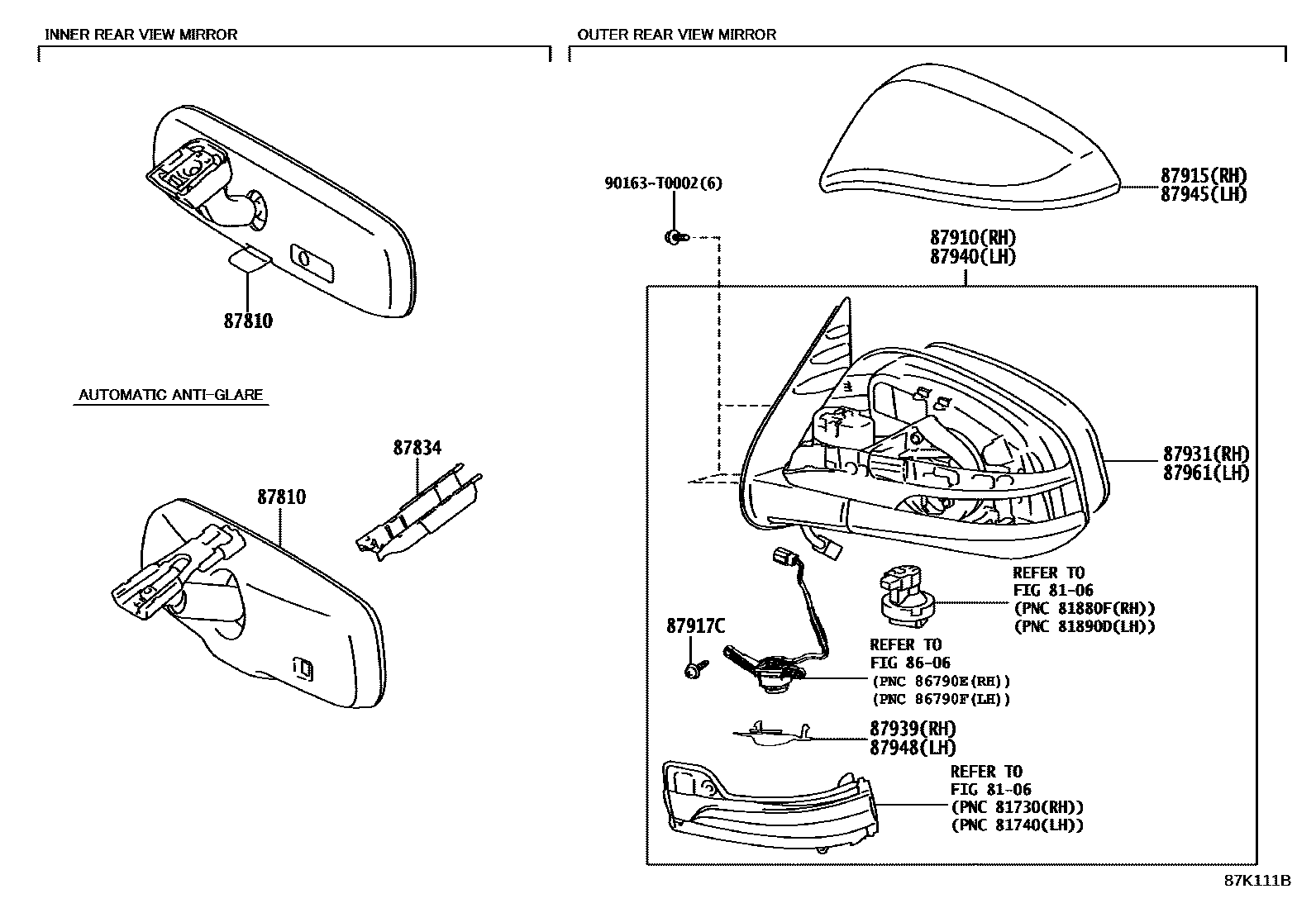

Toyota HILUX 后视镜 EPC diagram — 87K111B
后视镜 — 87K111B (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-06041 · 87810-0WG30
87834Interior rearview mirror stay fixing cover87818-0K010
87910Right exterior rearview mirror assembly87910-0K741 · 87910-0K792 · 87910-0K810 · 87910-0KC31 · 87910-0KC41 · 87910-0KC51 · 87910-0KC61 · 87910-0KD02 · 87910-0KD12 · 87910-0KD22 · 87910-0KD80 · 87910-0KE00 · 87910-0KE42 · 87910-0KF91 · 87910-0KG72 · 87910-0KG92 · 87910-0KM50 · 87910-0KM60
87915Right exterior rearview mirror cover87915-0K390 · 87915-0K400 · 87915-0K440 · 87915-0K450 · 87915-0K630 · 87915-0K916 · 87915-0K918
87917CExterior rearview mirror screws87917-0KM00
87931Right exterior rearview mirror87931-0KC60 · 87931-0KD00 · 87931-0KF80
87939Right exterior rearview mirror hole cover87939-0KM00
87940Left exterior rearview mirror assembly87940-0KA91 · 87940-0KB01 · 87940-0KB11 · 87940-0KB21 · 87940-0KB62 · 87940-0KB72 · 87940-0KB82 · 87940-0KC30 · 87940-0KC50 · 87940-0KC92 · 87940-0KE41 · 87940-0KE92 · 87940-0KF51 · 87940-0KF60 · 87940-0KG42 · 87940-0KG62 · 87940-0KM50 · 87940-0KM60
87945Left exterior rearview mirror cap87945-0K390 · 87945-0K400 · 87945-0K440 · 87945-0K450 · 87945-0K630 · 87945-0K916 · 87945-0K918
87948Left exterior rearview mirror hole cover87948-0KM00
87961Left exterior rearview mirror87961-0KB20 · 87961-0KB60 · 87961-0KF40
