Toyota HILUX 徽标和铭牌 — Figure 7551

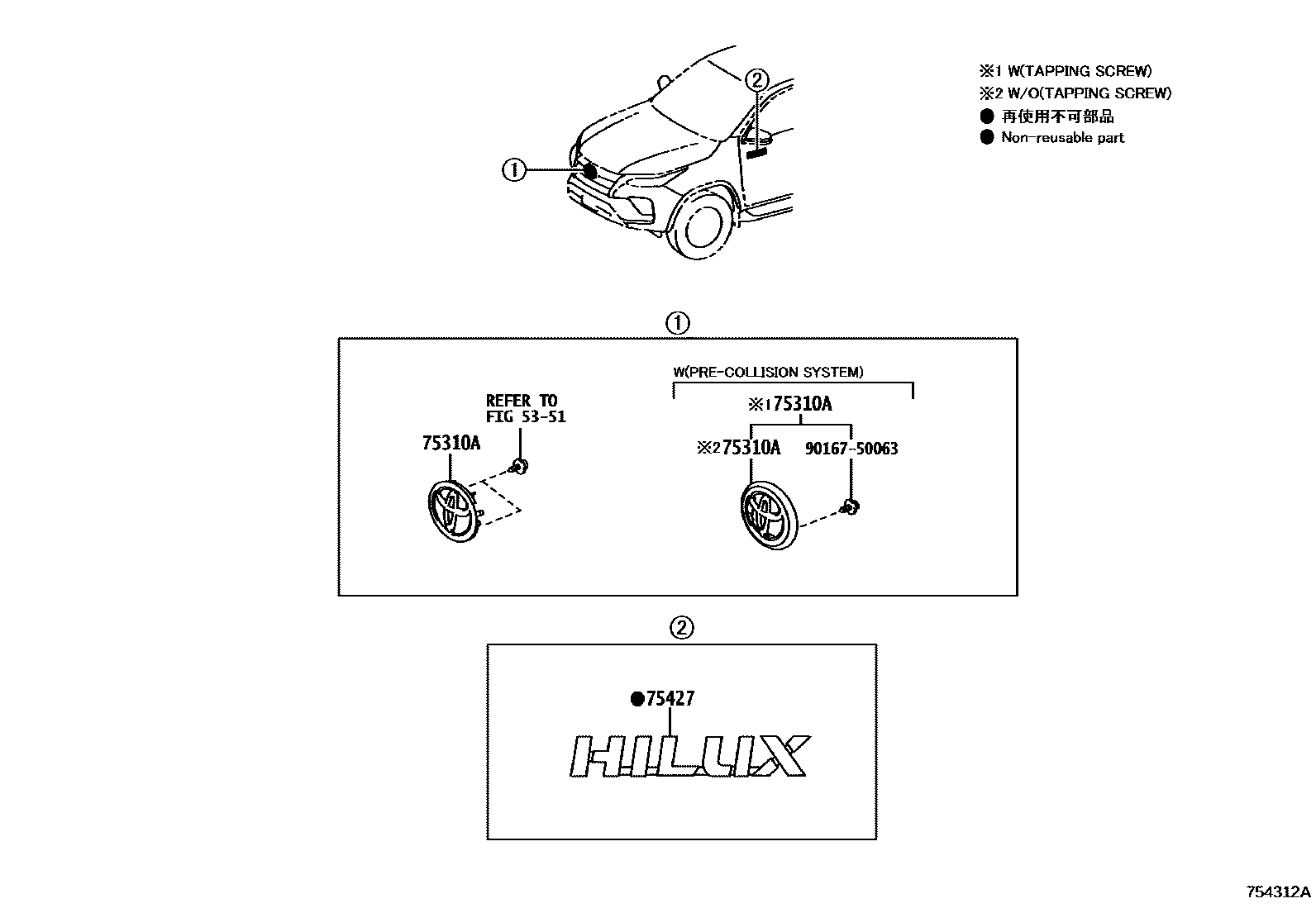

Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75310A | Radiator grille plate assembly | 53127-0K490 · 53127-0K500 · 75310-0K010 · 75310-0K030 · 75310-0K130 · 90975-T2030 |
| 75427 | front door nameplate | 75427-0K060 · 75427-0K100 · 75427-0K150 |
| 75459 | Back door mark | 75459-0K011 · 75459-0K031 · 75459-0K061 · 75459-0K081 |
| 75459B | No. 2 back door mark | 75469-0K040 · 75469-0K070 · 75469-0K080 |
| 75471B | No. 1 nameplate on rear body | 75427-0K110 |
| 75471D | rear nameplate | 75427-0K090 · 75427-0K110 · 75427-0K120 |
| 75479A | No. 3 back door mark | 75479-0K011 · 75479-0K021 · 75479-0K050 |
