Toyota HILUX 锁芯组件 — Figure 6765

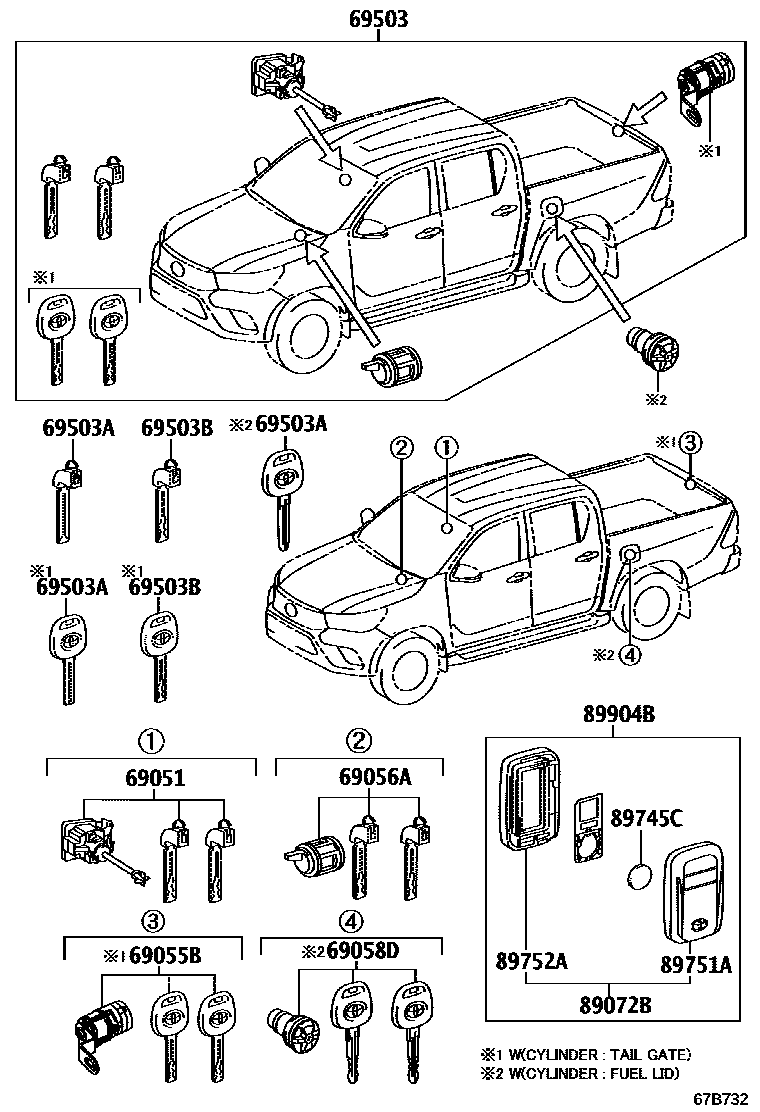

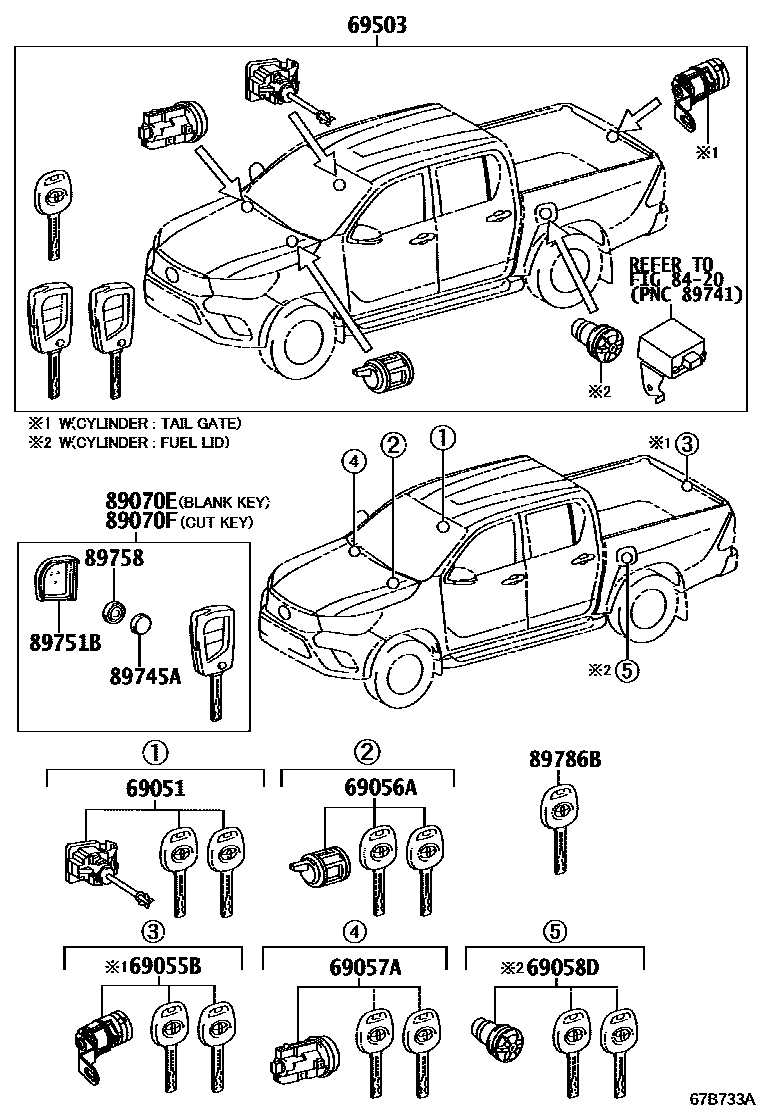

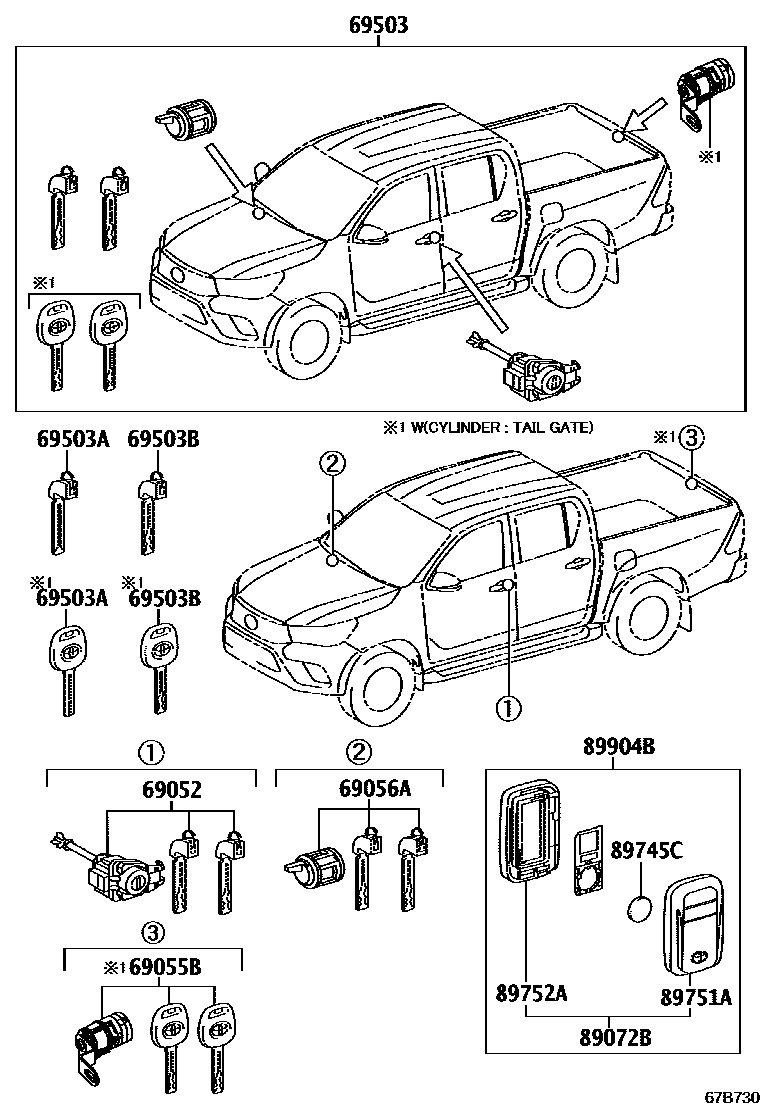

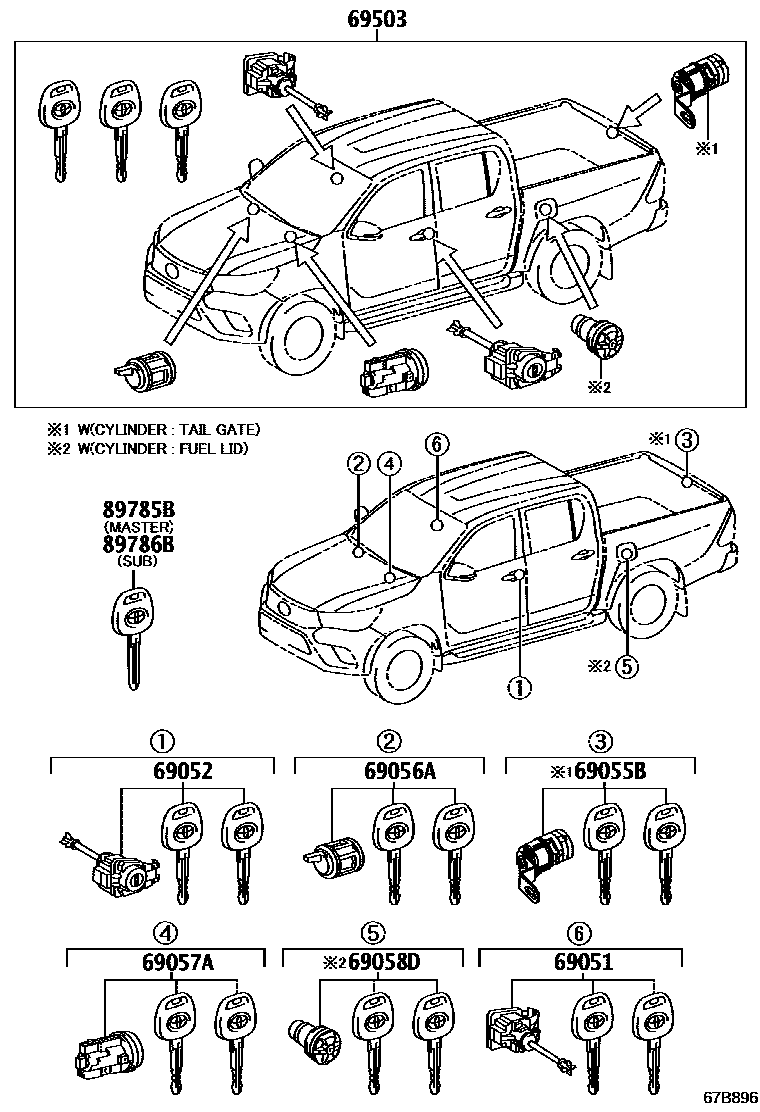

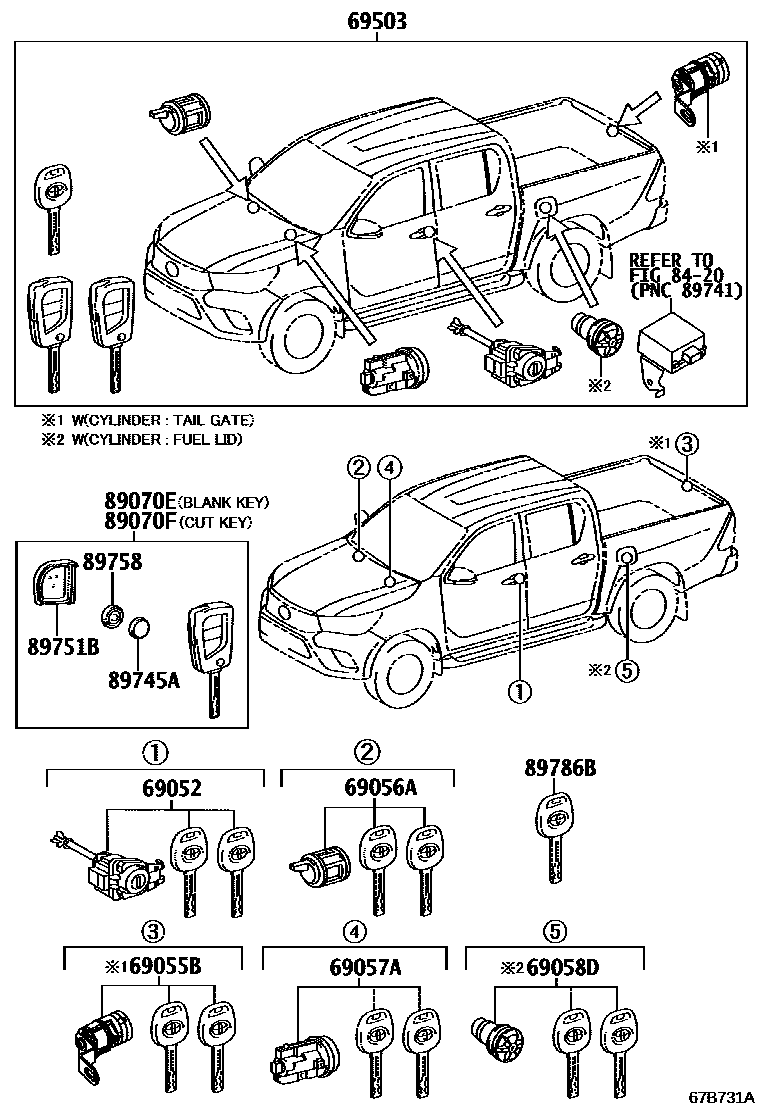

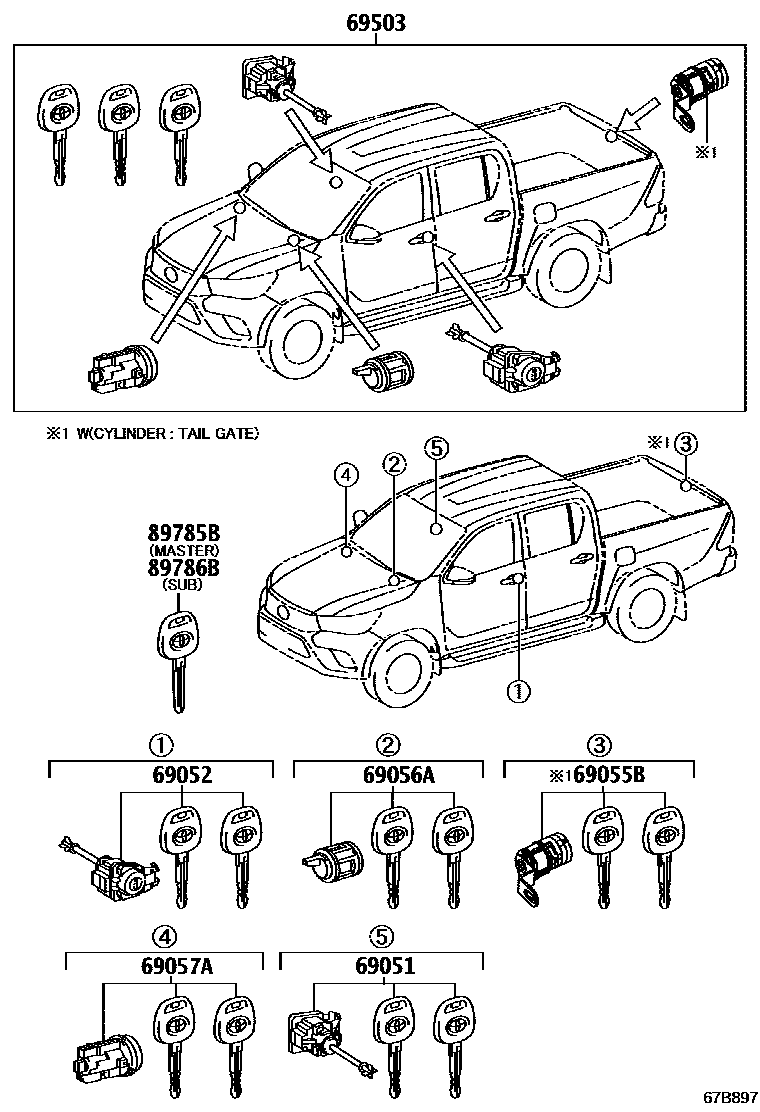

Toyota HILUX EPC diagram 6765, 锁芯组件, with 6 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0K060 · 69051-0K070 · 69051-0K080 · 69051-0K090 · 69051-0K100 |
| 69052 | Left door lock cylinder and key assembly | 69052-0K050 · 69052-0K060 · 69052-0K070 |
| 69055B | Rear door lock cylinder and key assembly | 69055-0K060 · 69055-0K070 · 69055-0K080 |
| 69056A | Glove box lock cylinder and key assembly | 69056-0K040 · 69056-0K050 · 69056-0K060 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-0K210 · 69057-0K220 |
| 69058D | Fuel tank filler cap lock cylinder and key assembly | 69058-0K030 · 69058-0K040 · 69058-0K050 · 69058-0K060 |
| 69503 | Door lock cylinder components | 69005-0KB40 · 69005-0KB50 · 69005-0KB70 · 69005-0KC00 · 69005-0KC50 · 69005-0KC70 · 69005-0KF30 · 69005-0KG40 · 89704-0KS20 · 89704-0KV60 · 89704-0KV70 · 89704-0KV80 · 89704-0KW00 · 89704-0KW10 · 89704-0KW11 · 89704-0KW20 · 89704-0KW21 · 89704-0KW30 · 89704-0KW40 · 89704-0KW50 · 89704-0KW60 · 89704-0KW70 · 89704-0KW80 · 89704-0KW90 · 89704-0KX00 · 89704-0KX20 · 89704-0KX40 · 89704-0KX60 · 89704-0KX61 · 89704-0KY00 · 89704-0KY10 · 89704-0KY20 · 89704-0KY30 · 89704-F0030 · 89704-F0310 · 89704-F0340 · 89704-F0350 · 89704-F0360 · 89704-F0380 · 89704-F0390 · 89704-F0400 · 89704-F0430 · 89704-F0440 · 89704-F0450 · 89704-F0460 · 89704-F0470 · 89704-F0480 · 89704-F0500 · 89704-F0510 · 89704-F0530 · 89704-F0550 · 89704-F0570 · 89704-F0580 · 89704-F0590 · 89704-F0600 · 89704-F0610 · 89704-F0630 |
| 69503A | external tooth key | 69515-0K100 · 69515-0K130 |
| 69503B | internal tooth key | 69515-0K070 · 69515-0K120 |
| 89070E | Remote key assembly | 89070-0KG00 · 89070-0KG10 · 89070-0KG20 · 89070-0KG40 |
| 89070F | Remote key assembly (internal tooth key) | 89070-0KG70 · 89070-0KG80 · 89070-0KG90 · 89070-0KJ10 |
| 89072B | Remote key shell assembly (for smart key) | 89072-0KF10 · 89072-0KF90 · 89072-0KG10 · 89072-0KG90 |
| 89745A | Transmitter battery | 89745-0D040 |
| 89745C | Transmitter battery | 89745-0K010 |
| 89751A | Transmitter housing cover | 89751-0K120 · 89751-0K130 · 89751-0K350 |
| 89751B | Transmitter housing cover | 89751-0K170 · 89751-0K191 · 89751-0K210 |
| 89752A | transmitter housing | 89752-0K770 · 89752-0K780 · 89752-0K810 · 89752-0K830 |
| 89758 | Remote key seal | 89758-02010 |
| 89785B | transceiver key master transmitter | 89785-0D170 |
| 89786B | transceiver key secondary transmitter | 89786-0K070 · 89786-0K150 · 89786-0R020 |
| 89904B | Electronic key transmitter sub-assembly | 89904-0KK80 · 89904-0KL20 · 89904-0KL21 · 89904-0KM40 · 89904-0KN30 |
