Toyota HILUX 后门锁和后门把手 — Figure 6756

Toyota HILUX EPC diagram 6756, 后门锁和后门把手, with 1 images and 14 PNC and OE references.

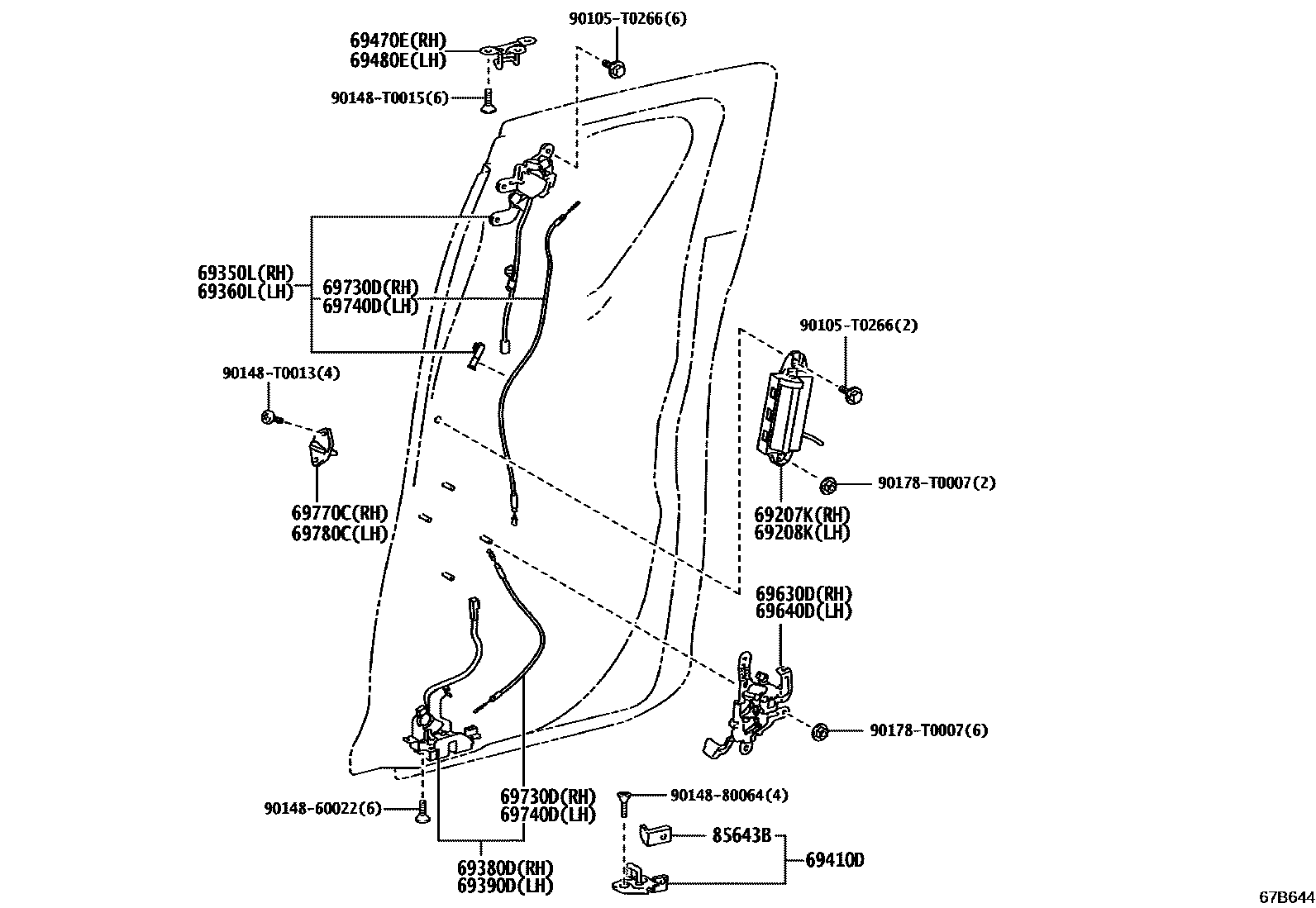

Toyota HILUX 后门锁和后门把手 EPC diagram — 67B644
后门锁和后门把手 — 67B644 (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
69350LEntry door panel right upper lock assembly69350-0K181
69360LEntry door panel left upper lock assembly69360-0K021
69380DEntry door panel right lower lock assembly69380-0K020
69390DEntry door panel left lower lock assembly69390-0K020
69410DEntry door door panel lock plate assembly69410-0K100 · 69420-0K020
69470EEntry door panel right upper lock assembly69470-0K010
69480EEntry door panel left upper lock assembly69480-0K010
69630DEntry door panel right upper lock remote control mechanism assembly69630-0K020
69640DEntry door panel left upper lock remote control mechanism assembly69640-0K020
69730DRight rear door lock remote control cable assembly69703-0K020 · 69704-0K020
69740DLeft rear door lock remote control cable assembly69703-0K020 · 69704-0K020
69770CEntry door panel right lock cancel lever assembly69770-0K230
69780CEntry door panel left lock cancel lever assembly69780-0K150
85643BBlock cushion85643-0K010 · 85643-0K020
