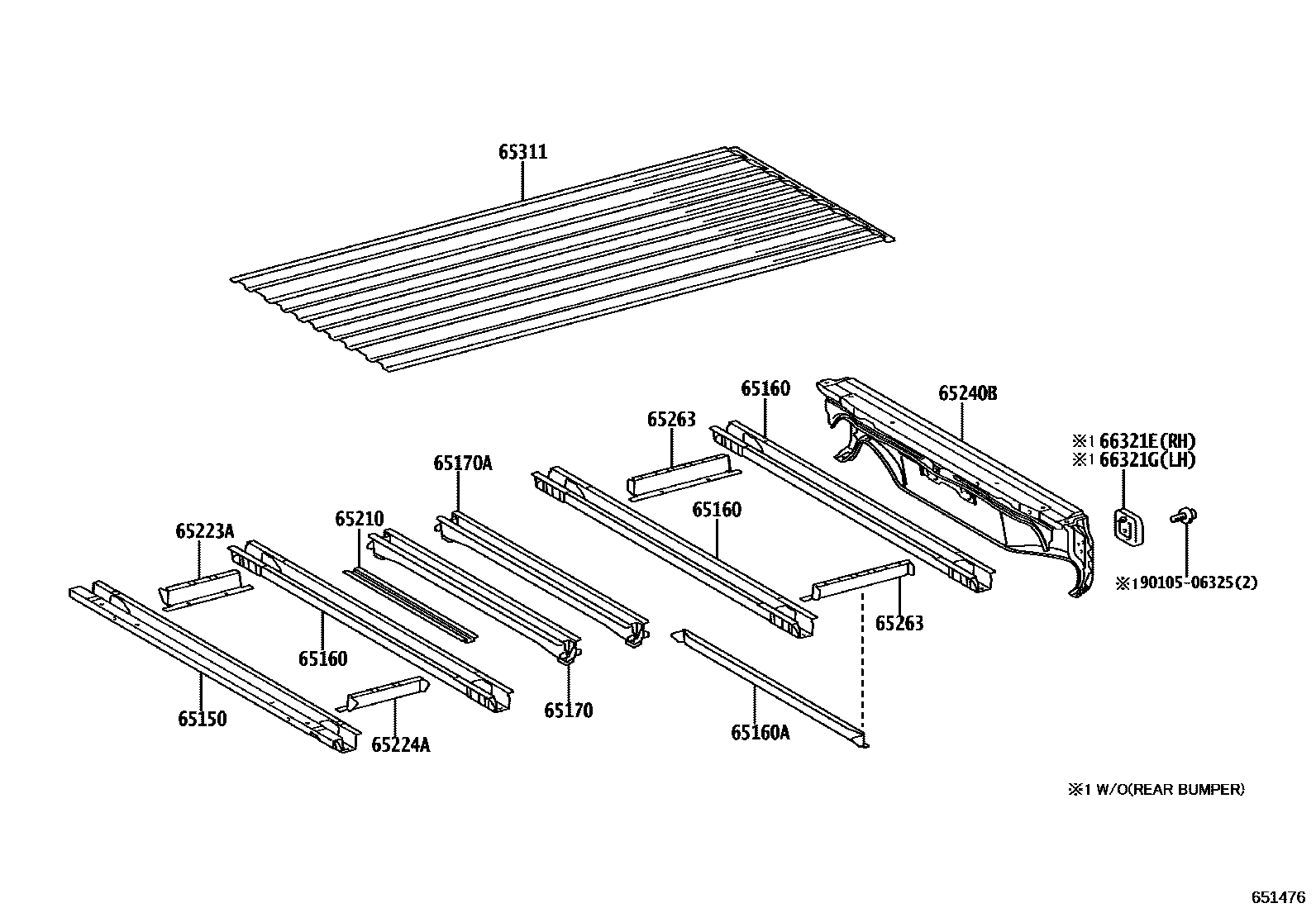

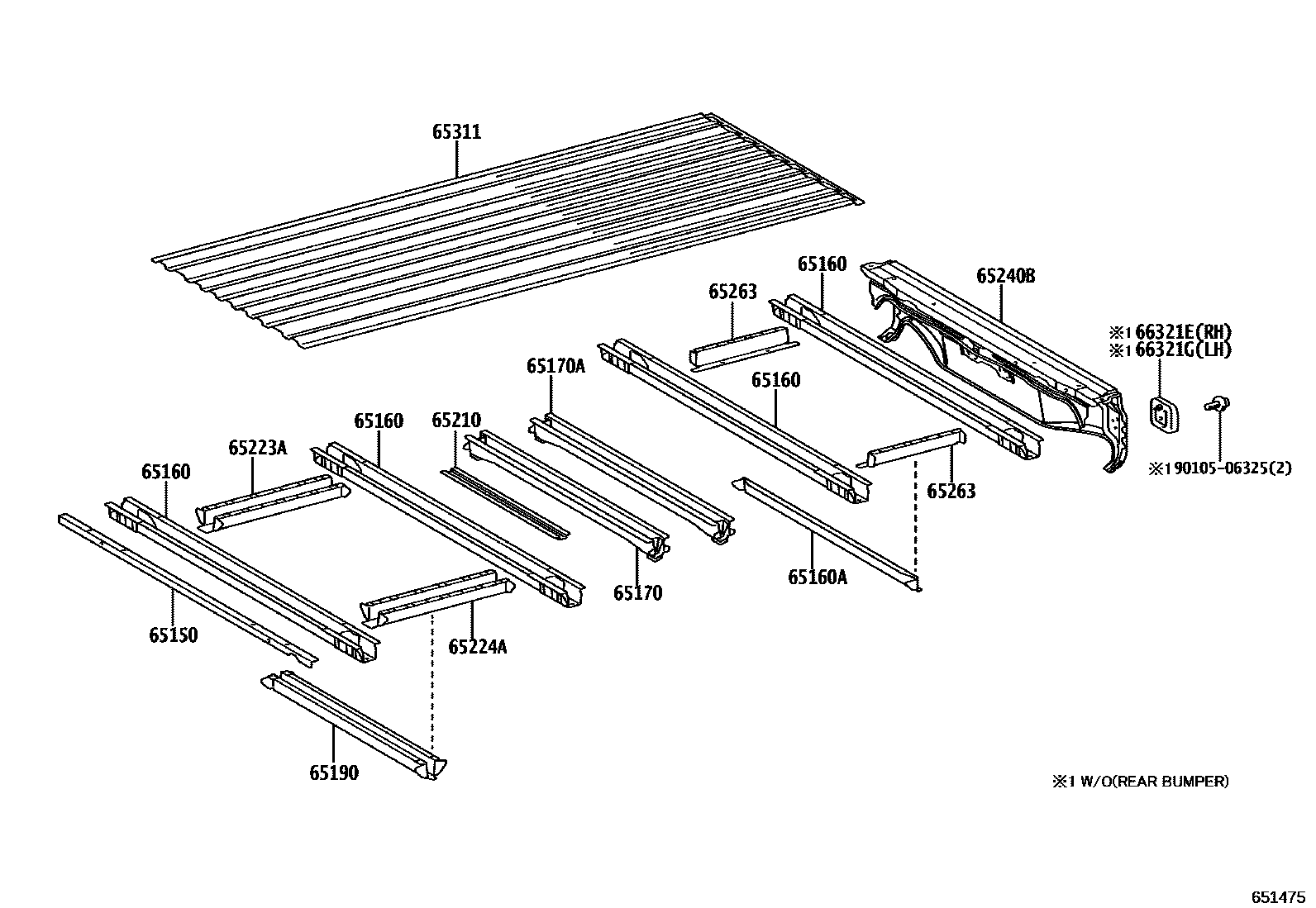

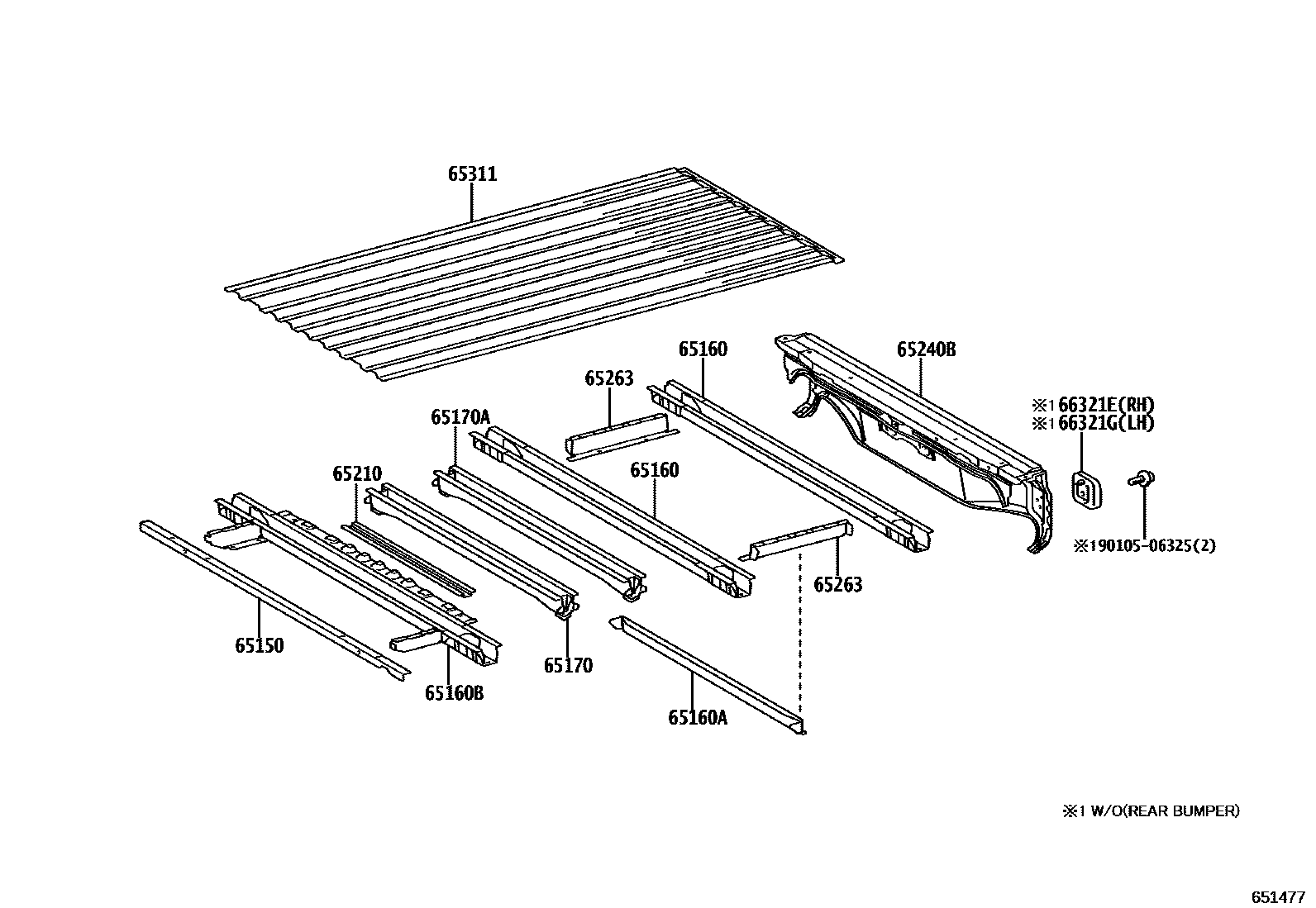

Toyota HILUX 后车身地板和翼子板 — Figure 6552
Toyota HILUX EPC diagram 6552, 后车身地板和翼子板, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65150 | No. 1 crossbeam assembly | 65150-KK020 · 65151-0K011 |
| 65160 | No. 2 beam assembly | 65160-KK010 |
| 65160A | No. 2 beam assembly | 65261-0K011 |
| 65160B | No. 2 beam assembly | 65160-KK020 |
| 65170 | No. 2 beam assembly | 65170-KK010 |
| 65170A | No. 3 beam assembly | 65170-KK010 |
| 65190 | No. 5 beam assembly | 65191-0K011 |
| 65210 | No. 6 beam assembly | 65271-KK010 |
| 65223A | Front floor right front reinforcement | 65223-0K011 · 65223-0K021 |
| 65224A | Front floor left front reinforcement | 65223-0K011 · 65223-0K021 |
| 65240B | No. 9 beam assembly | 65240-KK010 · 65240-KK020 · 65240-KK030 · 65240-KK040 · 65240-KK050 · 65240-KK060 · 65240-KK090 |
| 65263 | Floor side frame reinforcement | 65263-KK010 |
| 65311 | central floor | 65311-KK020 · 65311-KK030 · 65311-KK040 |
| 66321E | Railing rubber buffer block | 66321-0K010 · 66321-0K020 |
| 66321G | Railing rubber buffer block | 66322-0K010 · 66322-0K020 |
