Toyota HILUX 车内装饰板 — Figure 6451

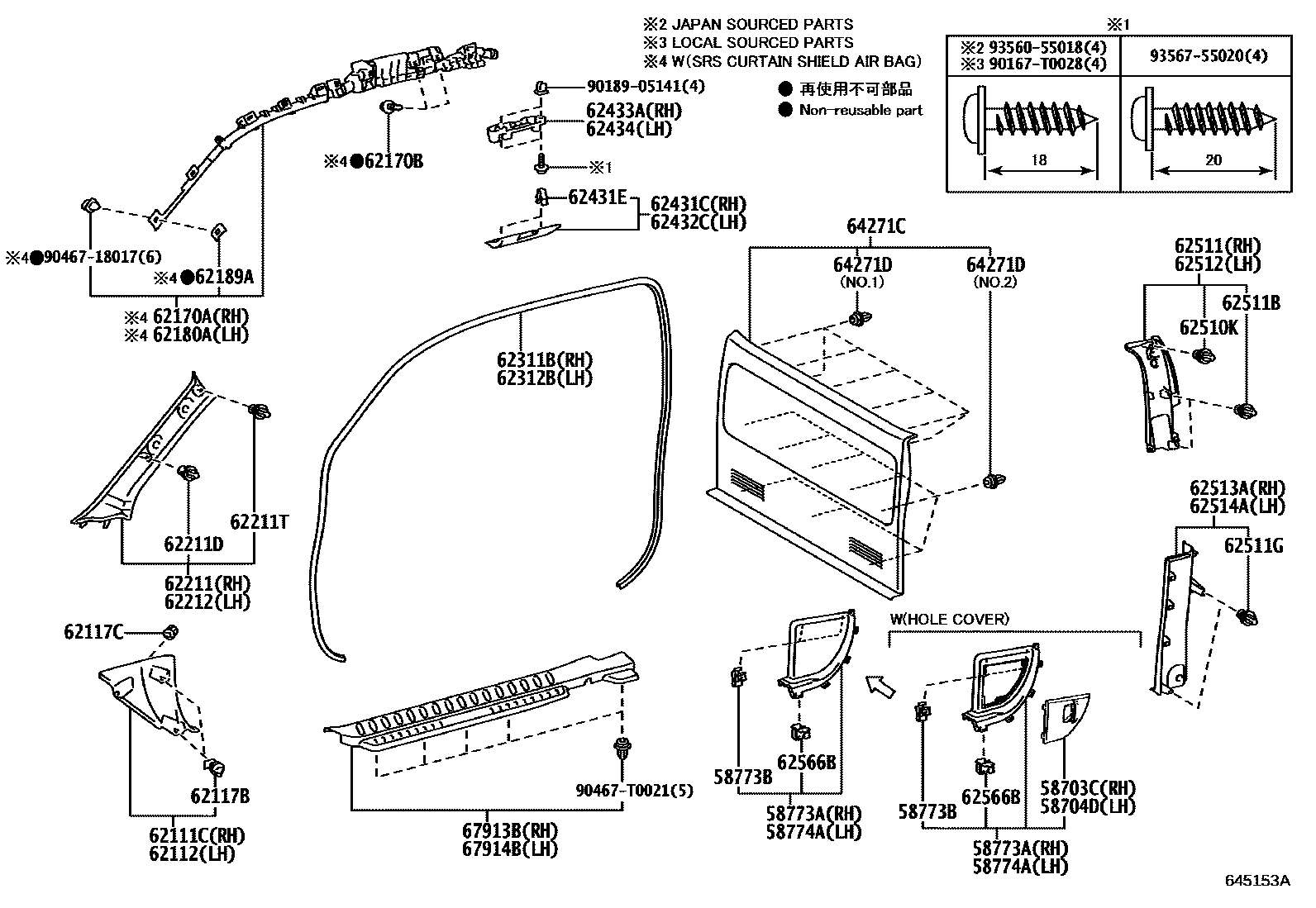

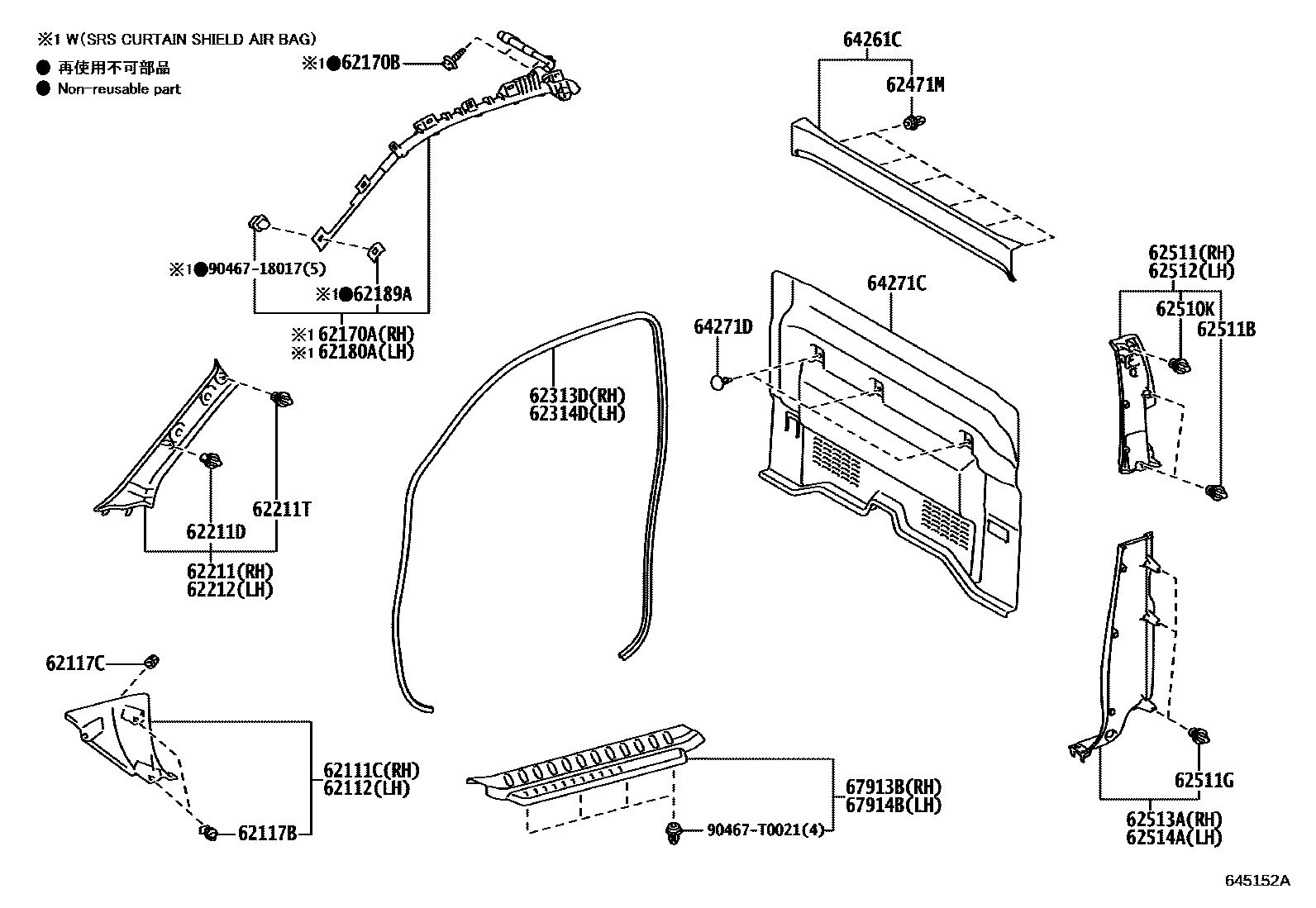

Toyota HILUX EPC diagram 6451, 车内装饰板, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58773B | Clip (for trunk door side decorative cover) | 90468-05125 |
| 62117C | No. 2 clip (for cowl side trim panel) | 90467-06147 |
| 62170A | Right curtain air bag assembly | 62170-0K080 · 62170-0K090 · 62170-0K150 · 62170-0K160 |
| 62170B | Bolts with washers | 91673-80616 |
| 62180A | Left curtain air bag assembly | 62180-0K080 · 62180-0K090 · 62180-0K150 · 62180-0K160 |
| 62189A | Curtain air bag clip spacer | 62189-42010 |
| 62211D | Clip (for body front pillar decorative panel) | 90467-T0021 |
| 62211T | Clip (for front pillar decorative panel) | 90467-10188 · 90467-T0021 |
| 62311B | Right front door opening waterproof tape | 62311-0K130 · 62311-0K160 |
| 62312B | Left front door opening waterproof tape | 62312-0K130 · 62312-0K160 |
| 62313D | Right front door waterproof strip | 62313-0K050 · 62313-0K051 · 62313-0K060 |
| 62314D | Left front door waterproof strip | 62314-0K050 · 62314-0K051 · 62314-0K060 |
| 62431E | Clip (for side panel trim) | 90467-T0034 |
| 62471M | clip | 90467-T0021 |
| 62510K | Clip (for front side panel) | 90467-10188 |
| 62511B | Clip (for the inner decorative panel of the side panel) | 90467-T0021 |
| 62511G | Clip (for the inner decorative panel of the side panel) | 90467-T0021 |
| 62566B | No. 1 door inner sill protection strip clip | 62566-30010 |
| 64271C | Back panel decorative panel | 64271-0K090 · 64271-0K240 · 64271-0K250 |
| 64271D | Clip (for back panel decorative panel) | 90467-10188 · 90467-T0021 |
