Toyota HILUX 前转向齿轮和连杆 — Figure 4505

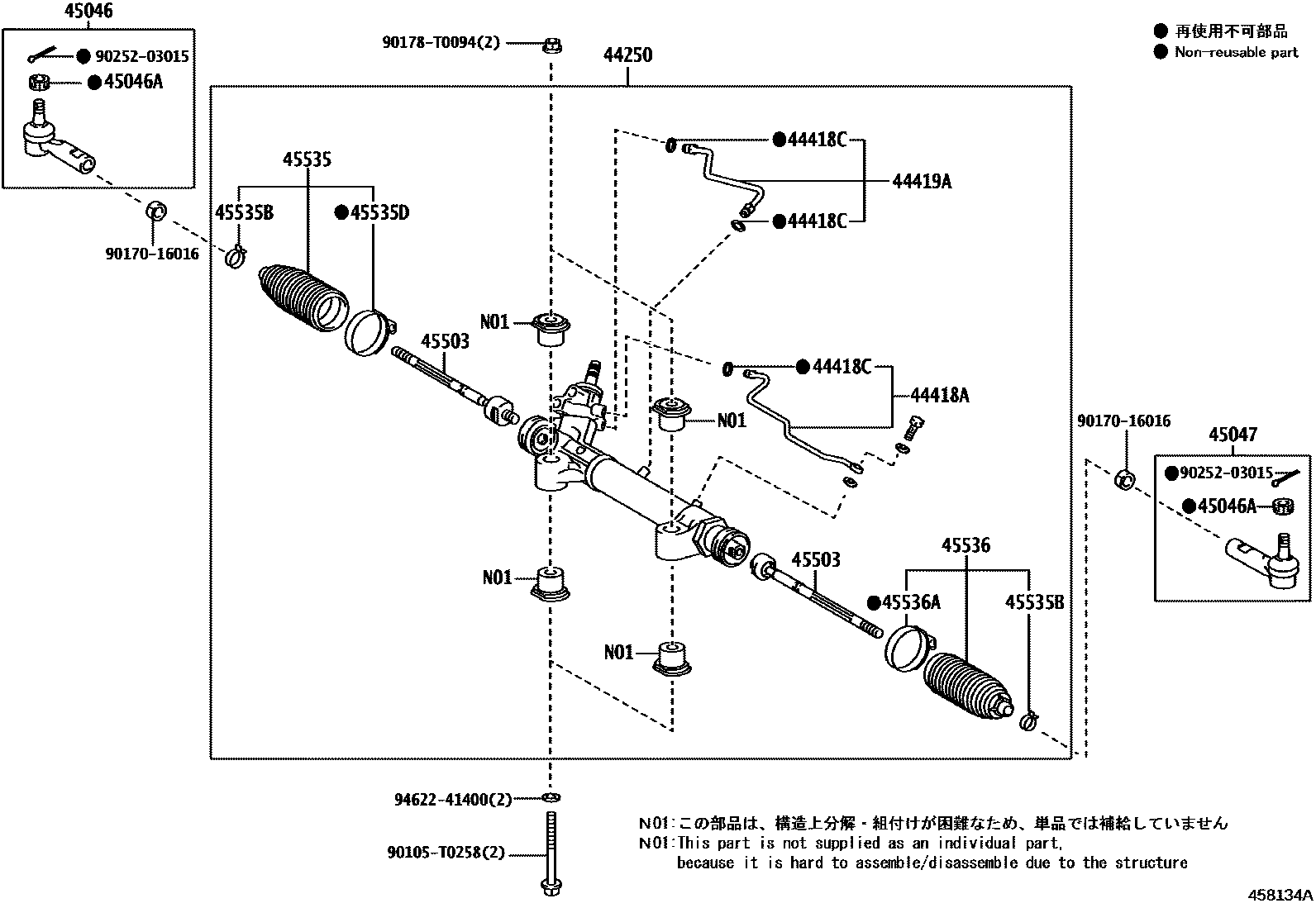

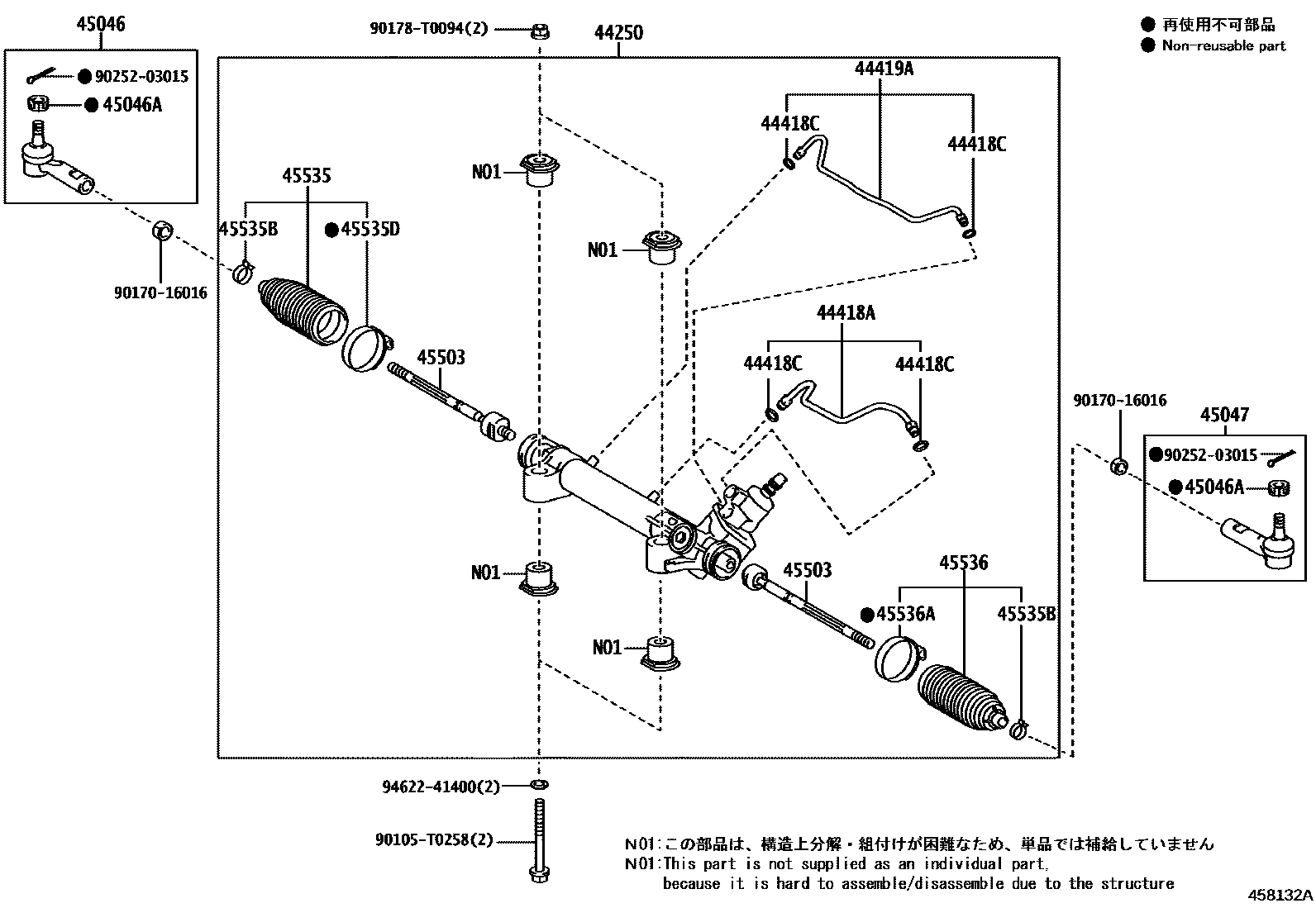

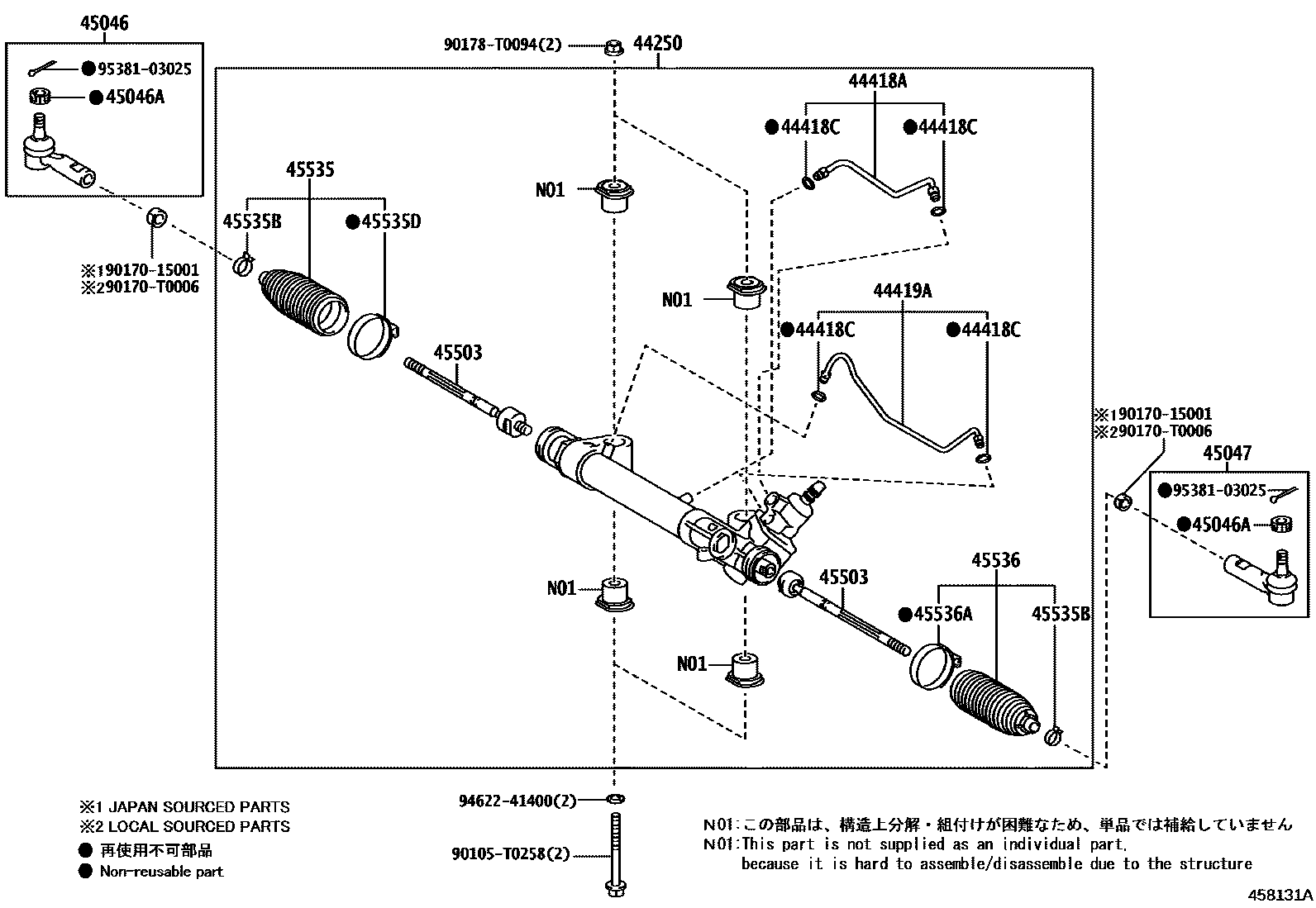

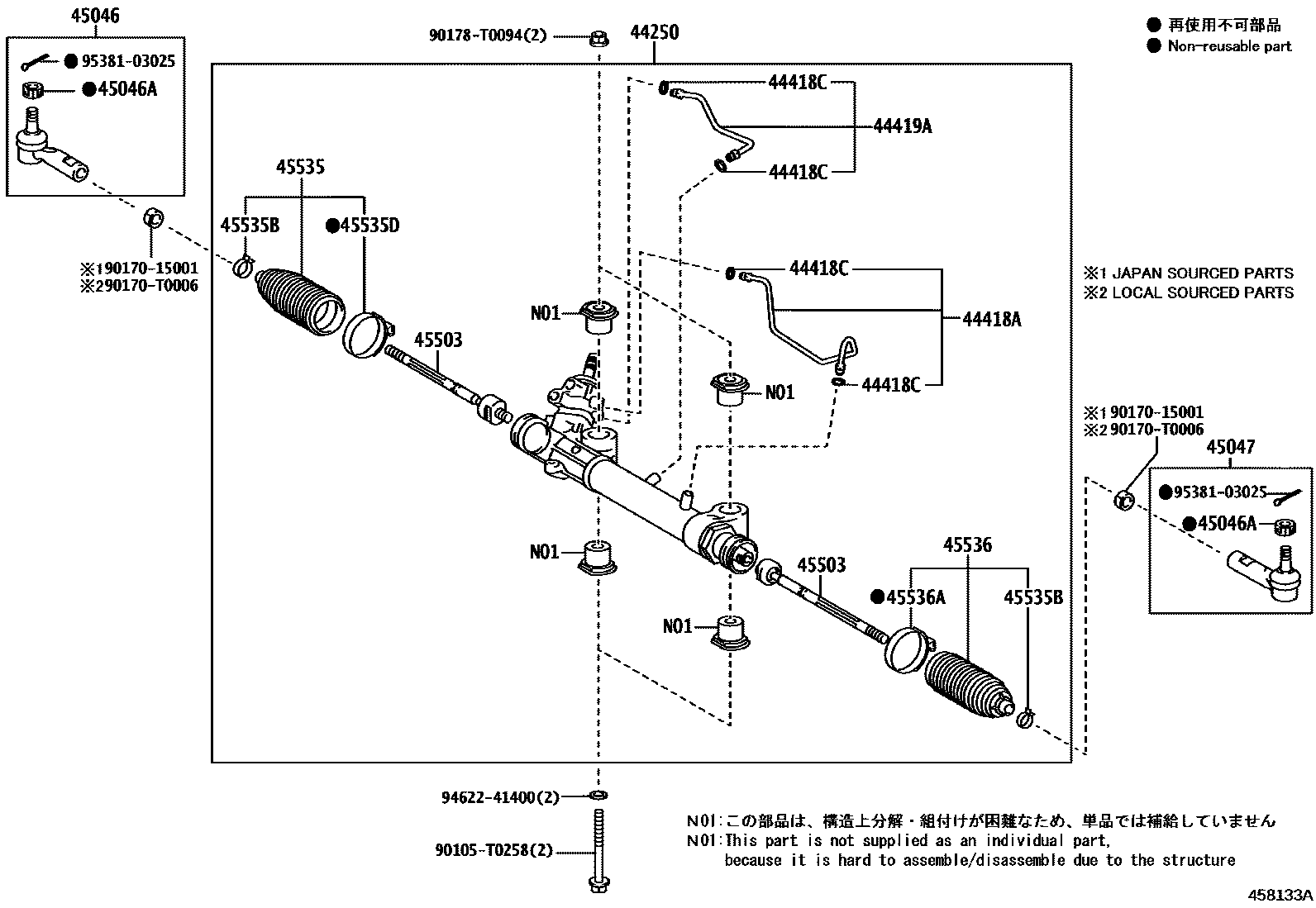

Toyota HILUX EPC diagram 4505, 前转向齿轮和连杆, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-0K601 · 44250-0K602 · 44250-0K621 · 44250-0K622 · 44250-0K623 · 44250-0K631 · 44250-0K632 · 44250-0K641 · 44250-0K642 · 44250-0K651 · 44250-0K652 · 44250-0K661 · 44250-0K662 · 44250-0K671 · 44250-0K672 · 44250-0K681 · 44250-0K682 · 44250-0K691 · 44250-0K692 · 44250-0K711 · 44250-0K712 · 44250-0K721 · 44250-0K722 · 44250-0K731 · 44250-0K732 · 44250-0K741 · 44250-0K742 · 44250-0K752 · 44250-0K753 · 44250-0K761 · 44250-0K762 |
| 44418A | Right steering pressure oil pipe | 44418-0K190 · 44418-0K200 · 44418-0K220 · 44418-0K230 · 44418-0K250 · 44418-0K260 · 44418-0K270 · 44418-0K280 |
| 44418C | O-ring (for steering pressure oil pipe) | 90301-T0032 |
| 44419A | Left steering pressure oil pipe | 44419-0K190 · 44419-0K200 · 44419-0K220 · 44419-0K230 · 44419-0K250 · 44419-0K260 · 44419-0K270 · 44419-0K280 |
| 45046 | Right tie rod end sub-assembly | 45046-09780 · 45046-09800 · 45046-09820 |
| 45046A | Castle nuts (for tie rod ends) | 90171-T0002 · 90171-T0004 |
| 45047 | Left tie rod end sub-assembly | 45046-09780 · 45046-09800 · 45046-09820 |
| 45503 | Steering rack end sub-assembly | 45503-0K110 · 45503-0K130 · 45503-0K140 |
| 45535 | No. 1 steering rack dust cover | 45535-09380 · 45535-09390 · 45535-09400 · 45535-09410 · 45535-09420 |
| 45535B | Clamp (for steering rack dust boot) | 45537-0D040 · 90466-T0004 · 90466-T0005 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-0K010 · 45538-0K020 · 45538-0K030 · 45538-0K040 · 45538-0K050 |
| 45536 | No. 2 steering rack dust cover | 45535-09380 · 45535-09390 · 45535-09400 · 45535-09410 · 45535-09420 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-0K010 · 45538-0K020 · 45538-0K030 · 45538-0K040 · 45538-0K050 |
