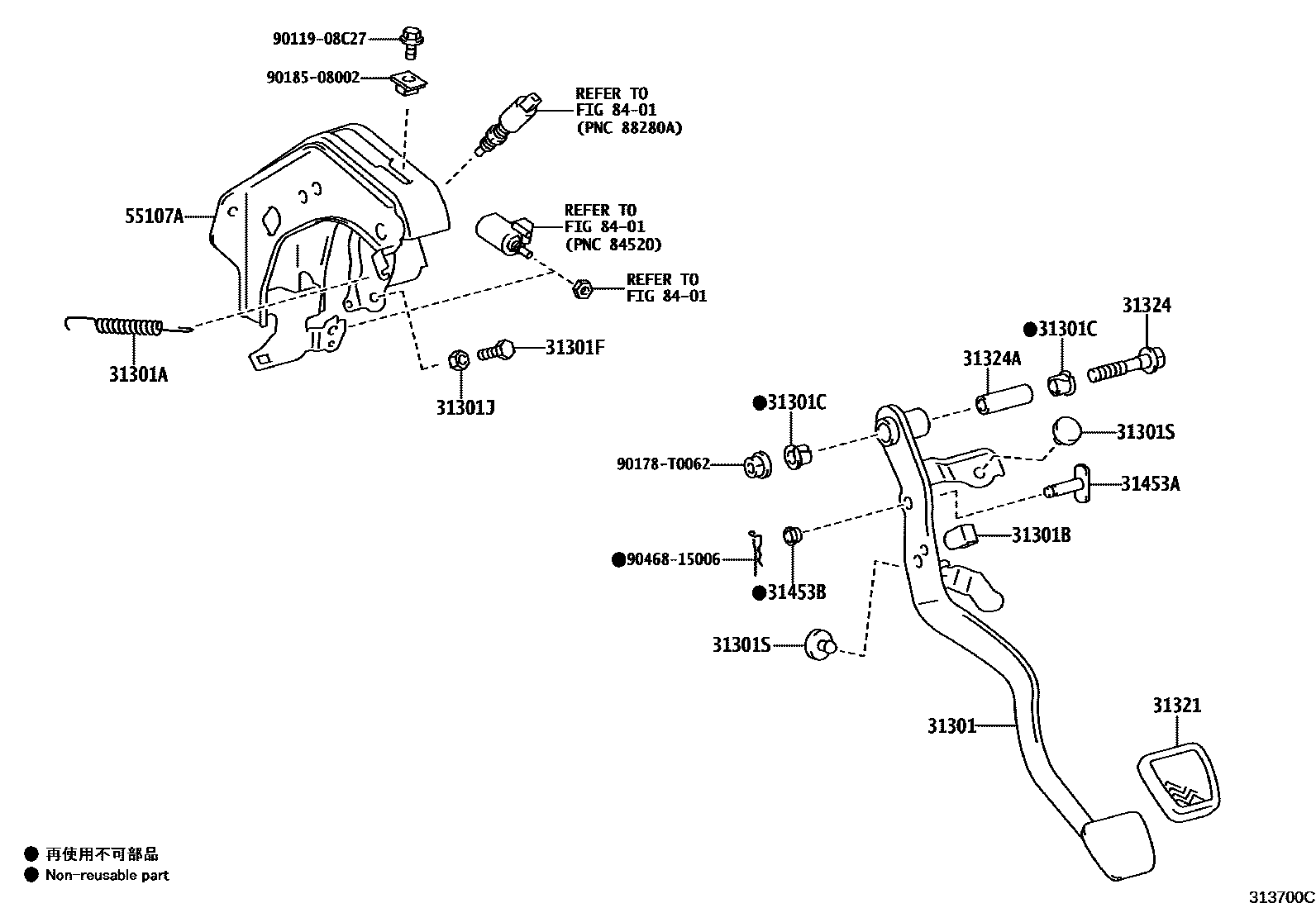

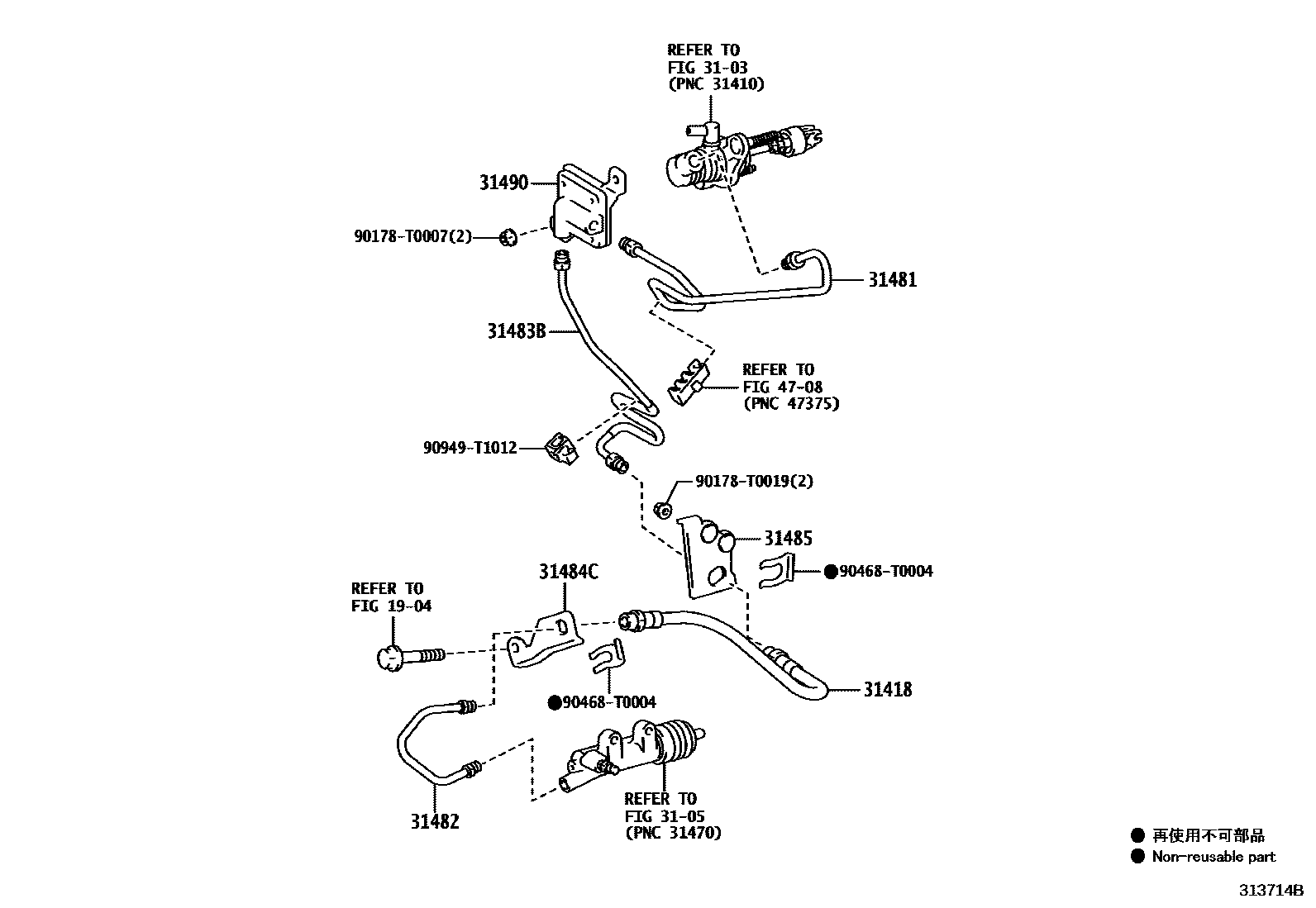

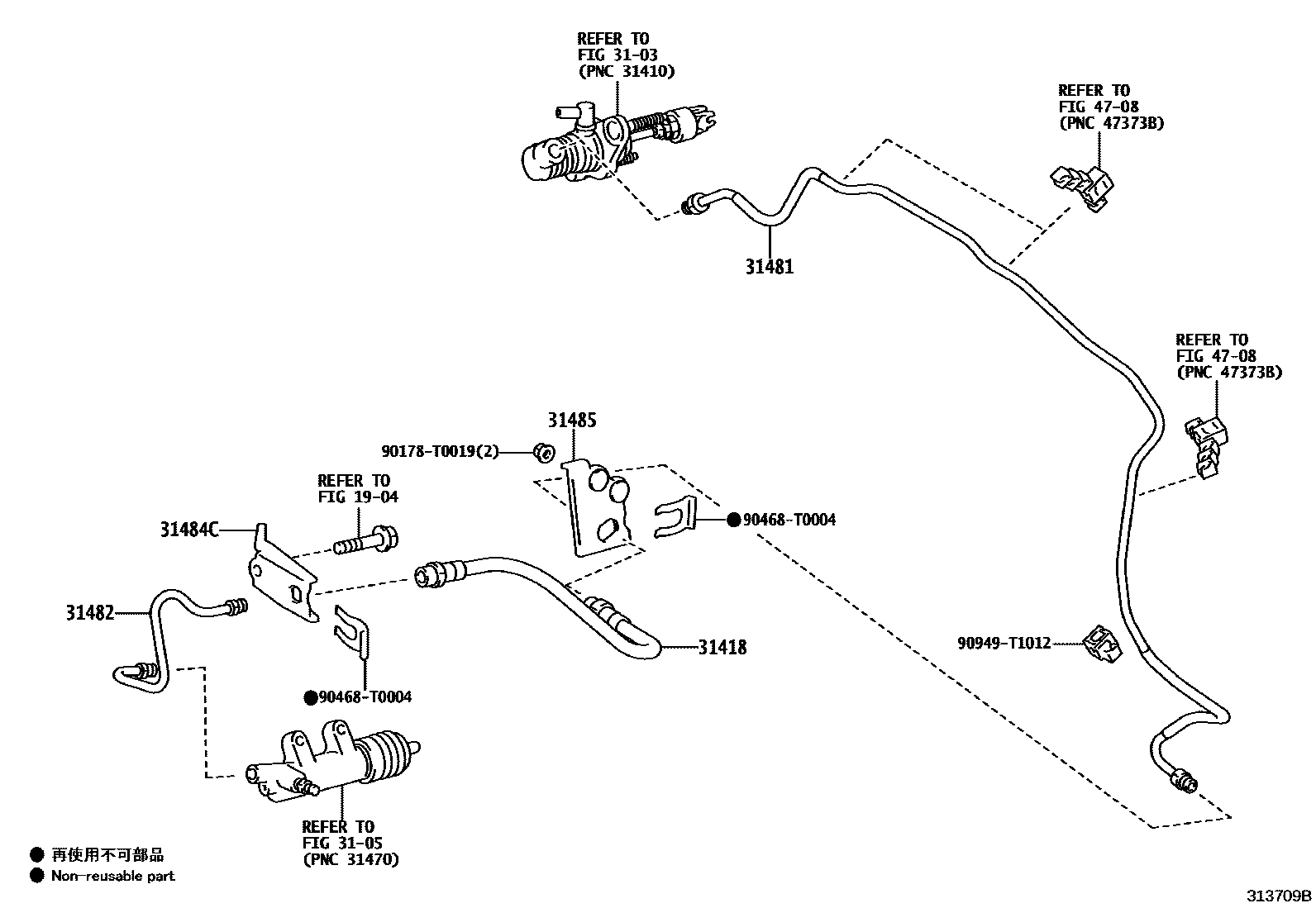

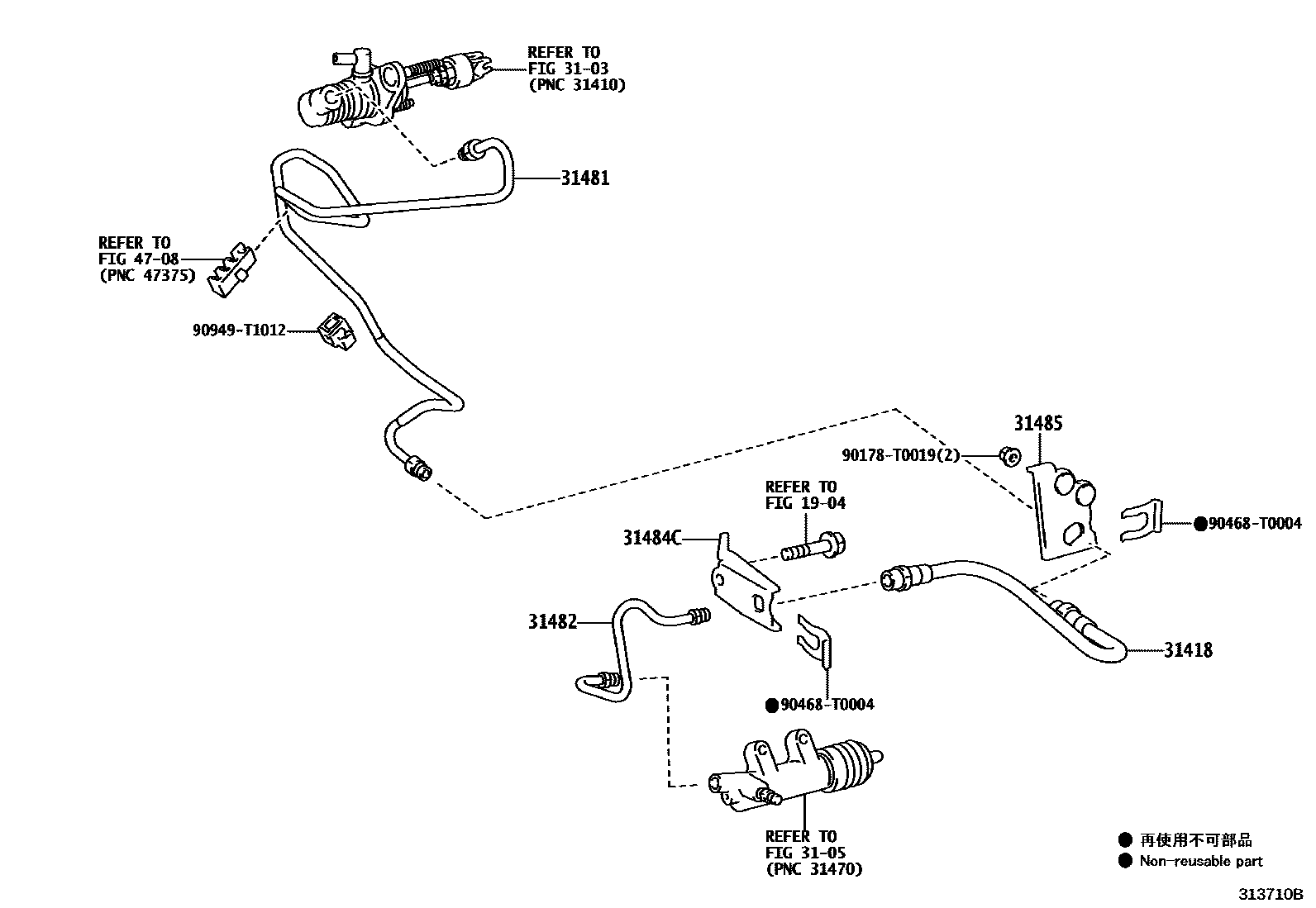

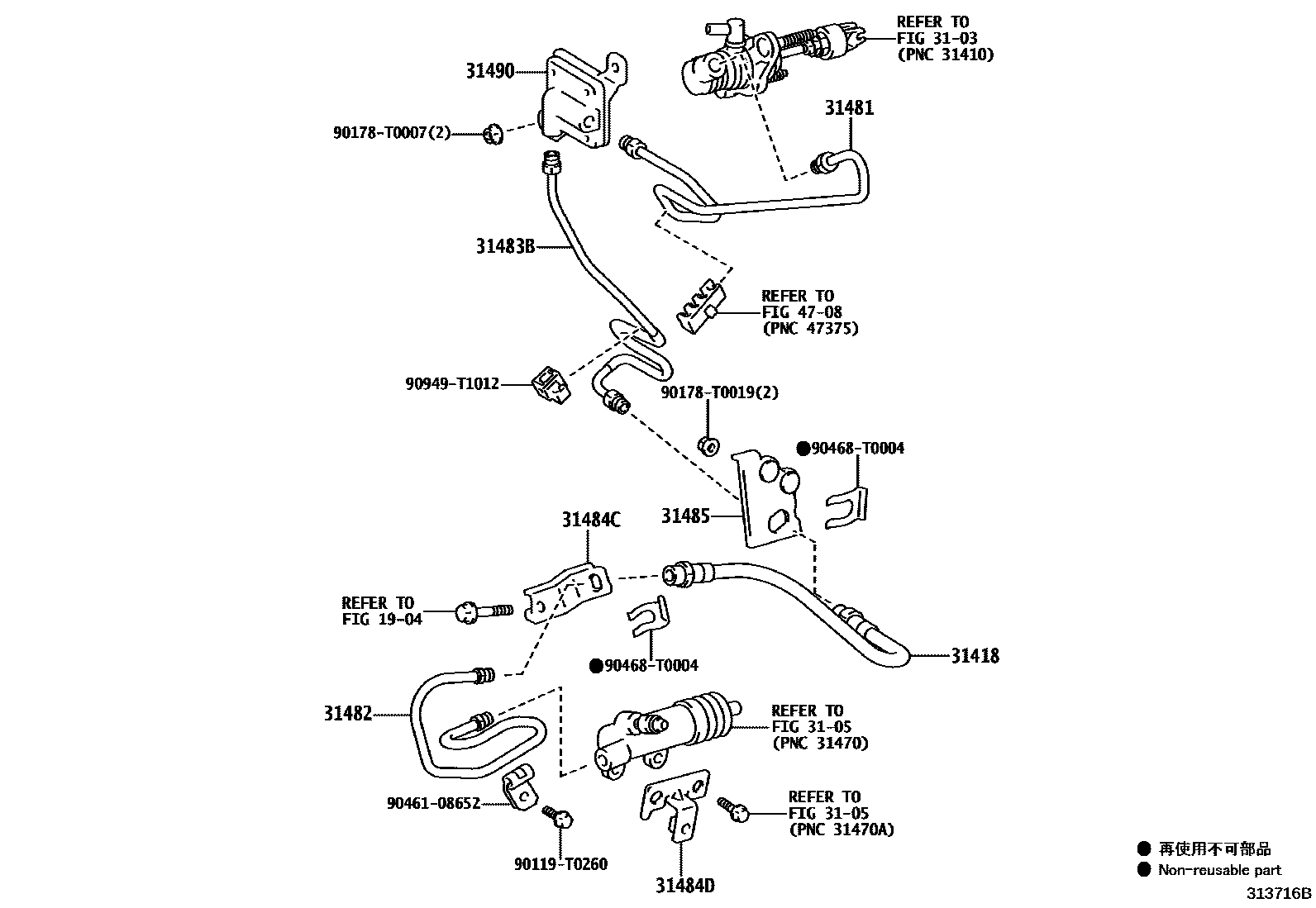

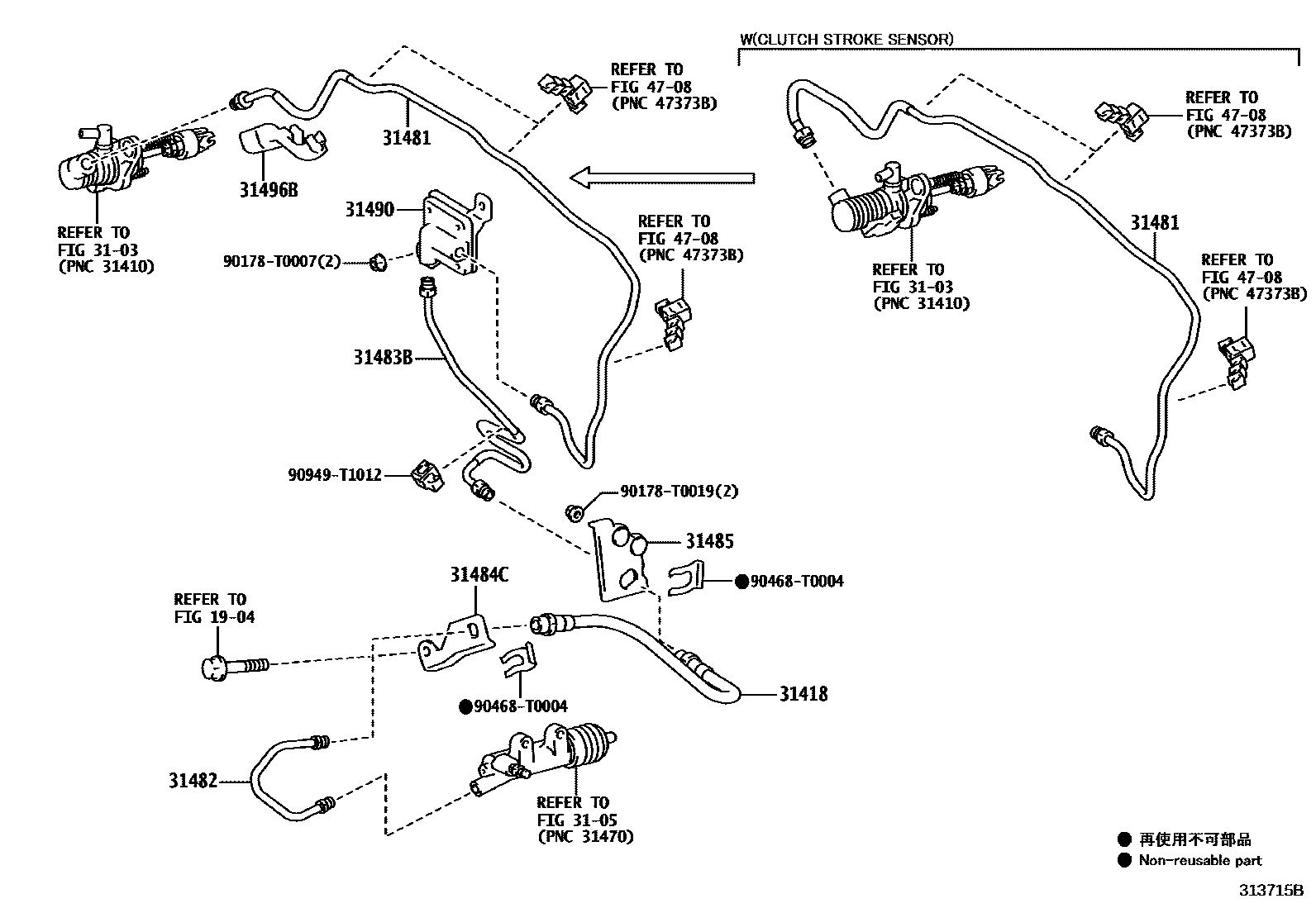

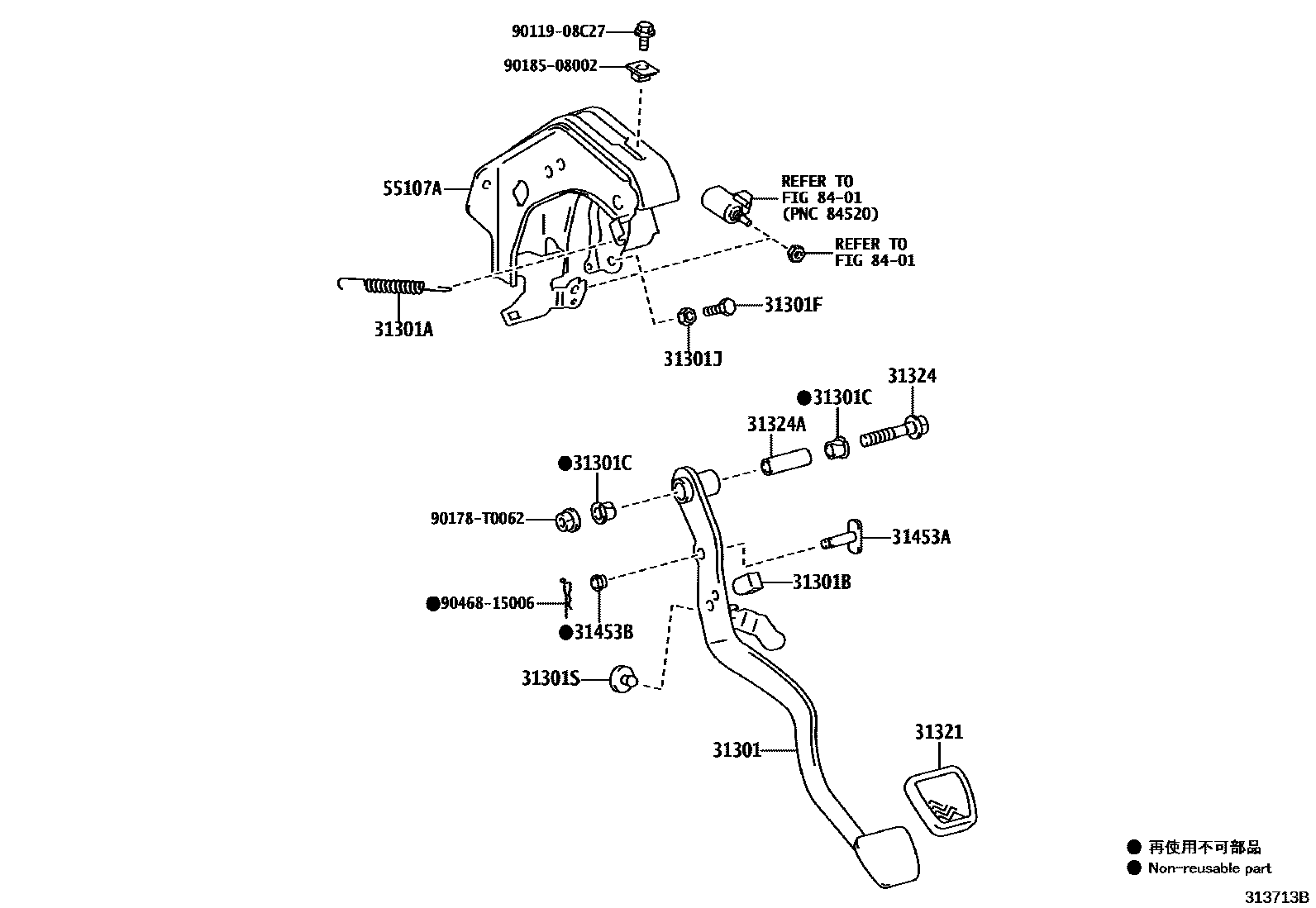

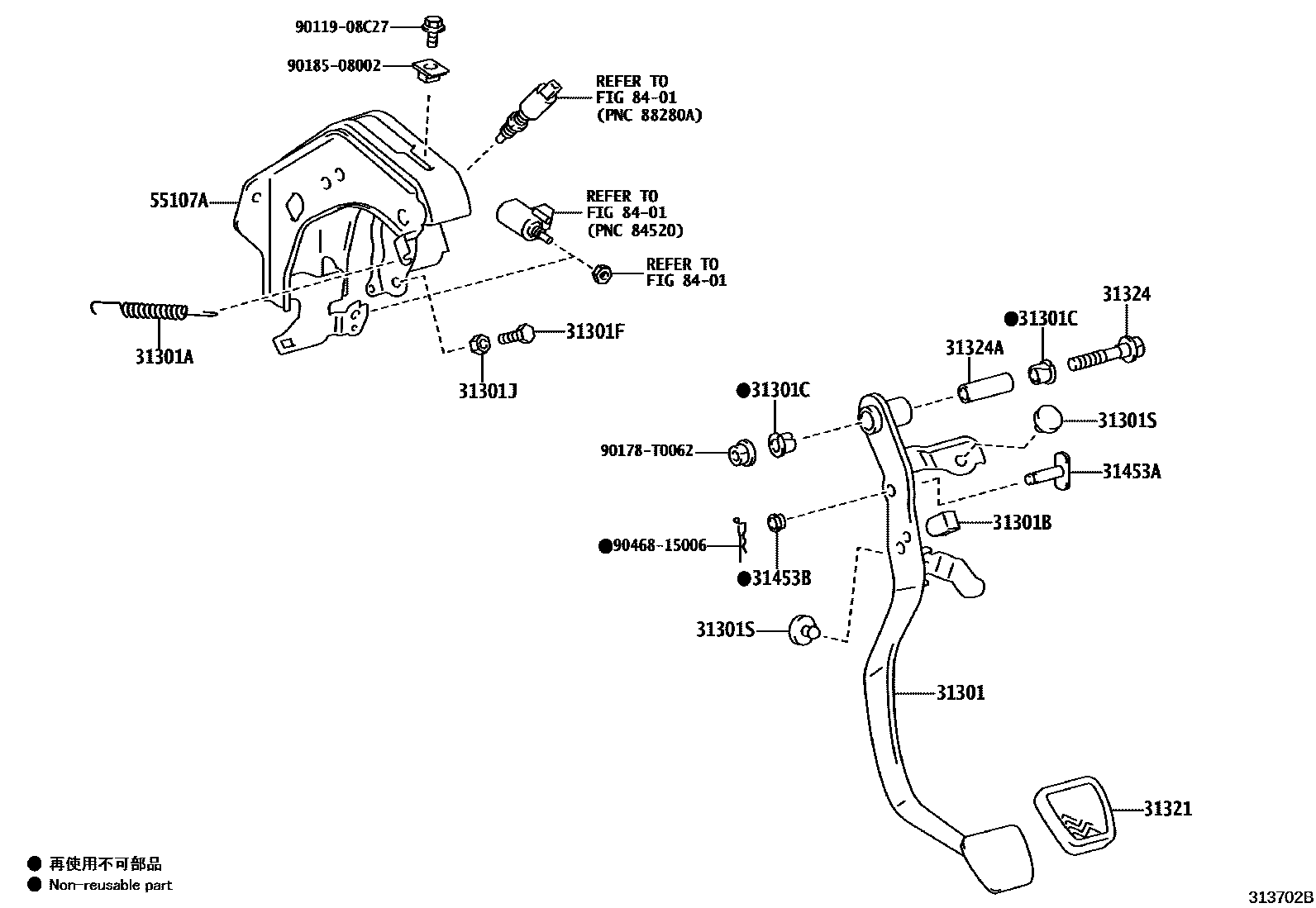

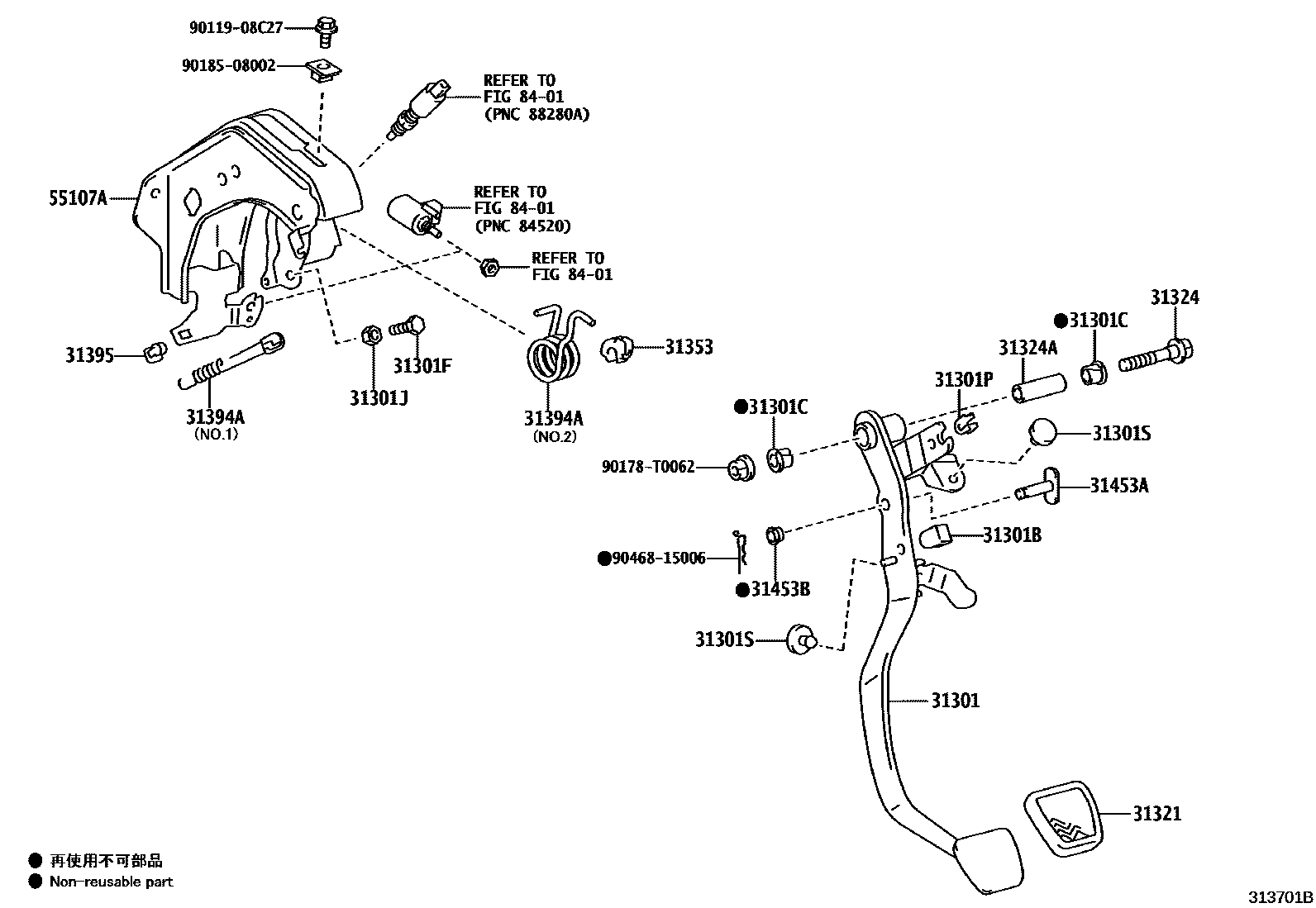

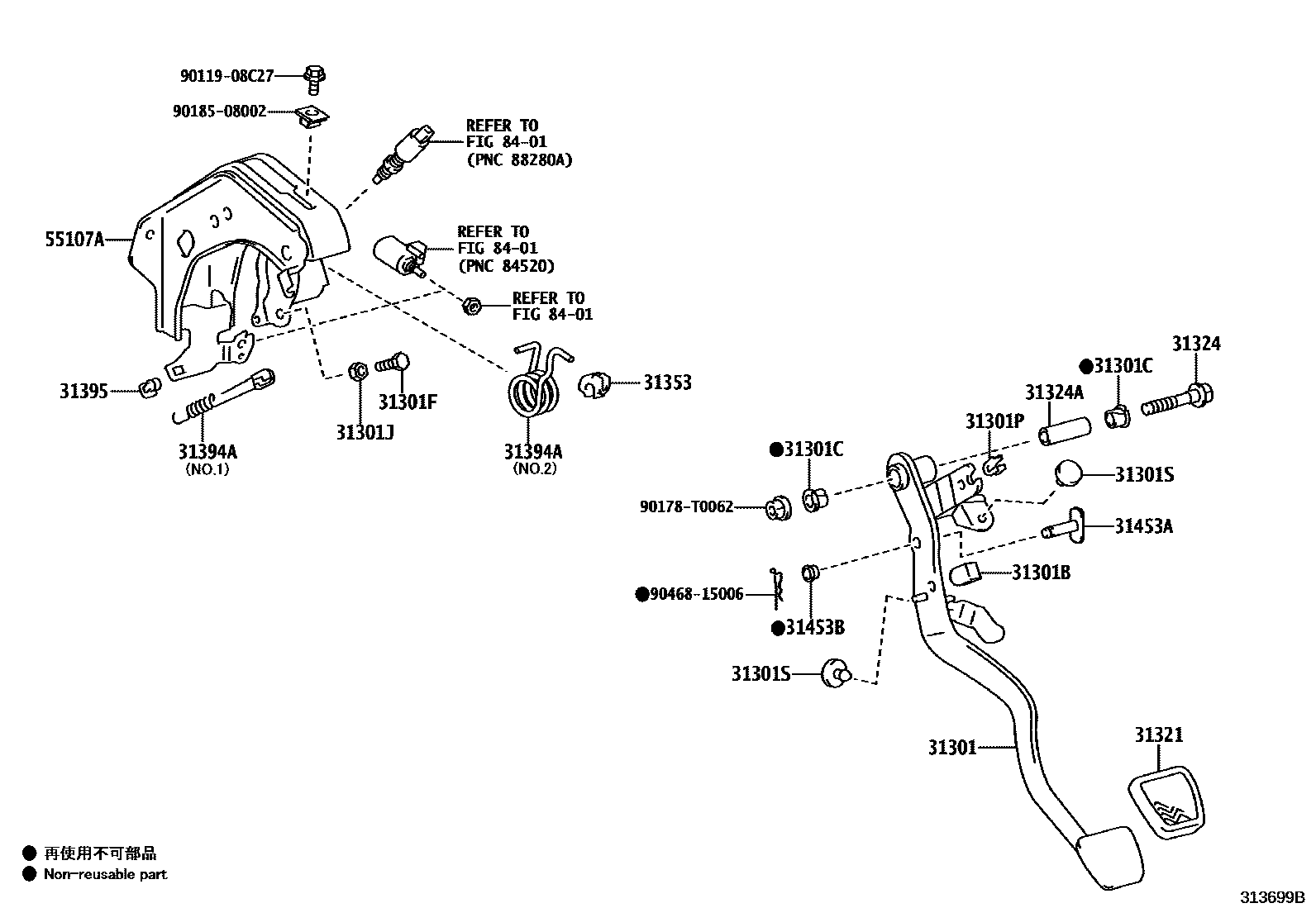

Toyota HILUX 离合器踏板和挠性软管 — Figure 3102
Toyota HILUX EPC diagram 3102, 离合器踏板和挠性软管, with 10 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-0K280 · 31301-KK020 · 31301-KK040 · 31301-KK080 · 31301-KK100 |
| 31301A | Spring (for clutch pedal) | 90507-T0001 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-T0004 · 90541-T0005 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-T0005 |
| 31301J | Nut (for clutch pedal stop) | 90170-T0005 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-06055 |
| 31301S | Cushion pad No. 2 (for clutch pedal) | 90541-06036 |
| 31321 | clutch pedal pad | 31321-02020 |
| 31324 | clutch pedal shaft | 90105-T0112 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31353 | Clutch pedal spring retainer | 31353-26010 |
| 31394A | Pedal spring with hook | 31394-25010 · 31394-KK010 |
| 31395 | pedal spring hook | 31395-33020 |
| 31418 | clutch hose | 90080-94215 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90240-T0002 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-KK010 · 31481-KK020 · 31481-KK030 · 31481-KK040 · 31481-KK050 · 31481-KK070 · 31481-KK080 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-KK020 · 31482-KK030 · 31482-KK040 |
| 31483B | Accumulator to flexible hose pipe | 31483-KK010 · 31483-KK050 |
| 31484C | No. 1 clutch tube bracket | 31484-0K010 · 31484-0K030 · 31484-KK010 |
| 31484D | No. 2 clutch tube bracket | 31484-20460 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31485-KK010 · 31485-KK040 |
| 31490 | Clutch pressure accumulator assembly | 31490-0K030 |
| 31496B | Clutch tube clamp | 31496-KK010 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-KK020 · 55107-KK030 |
