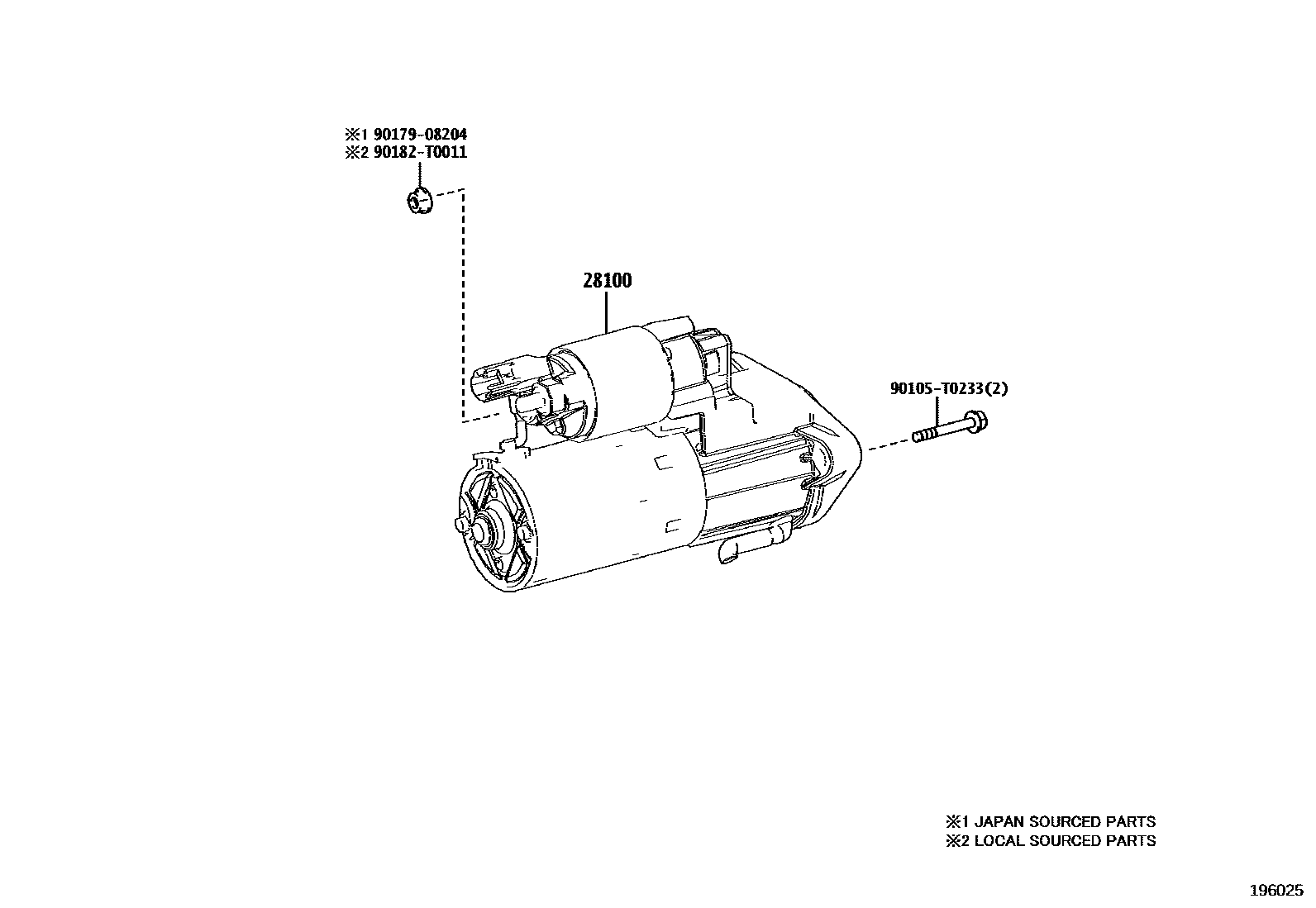

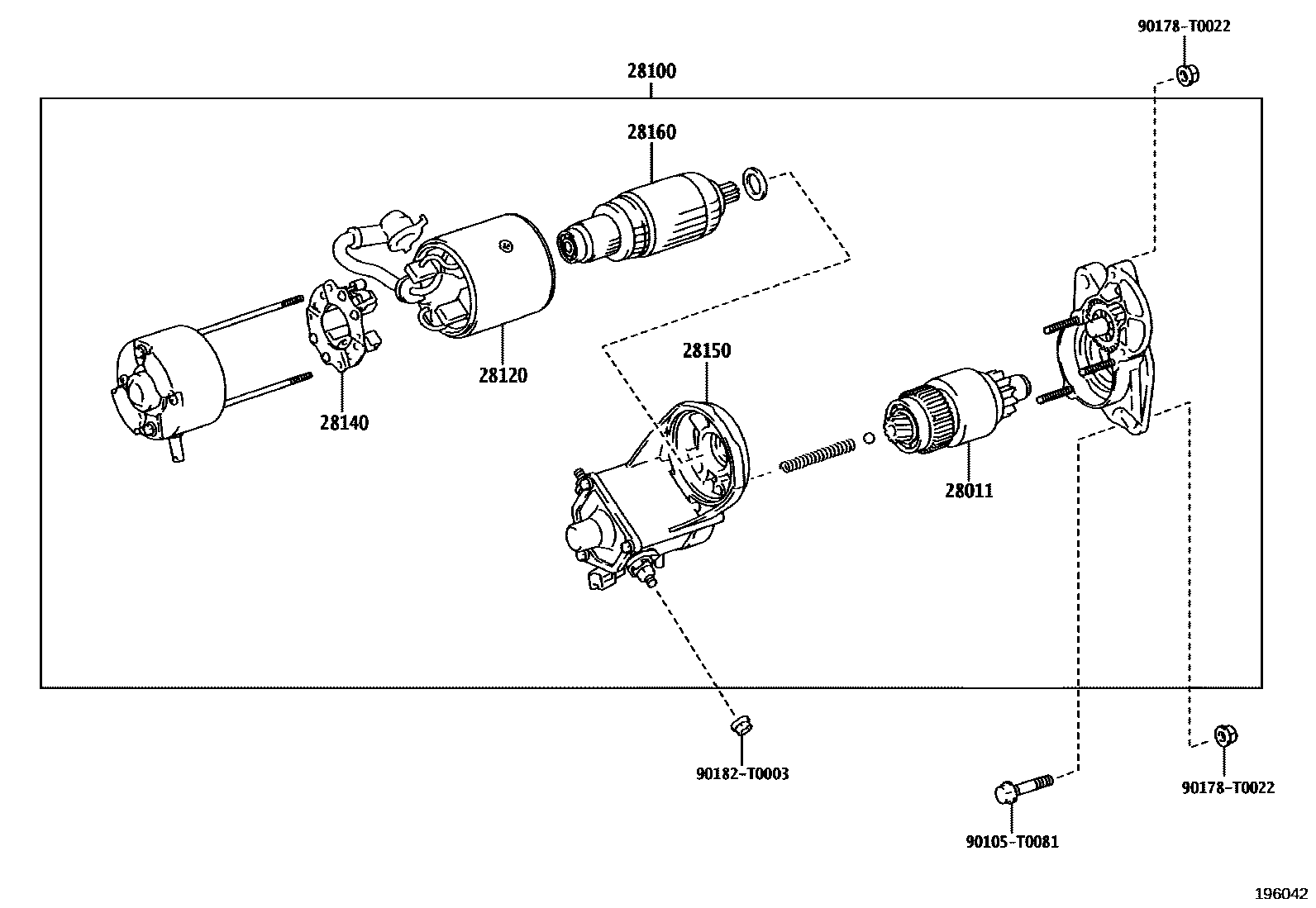

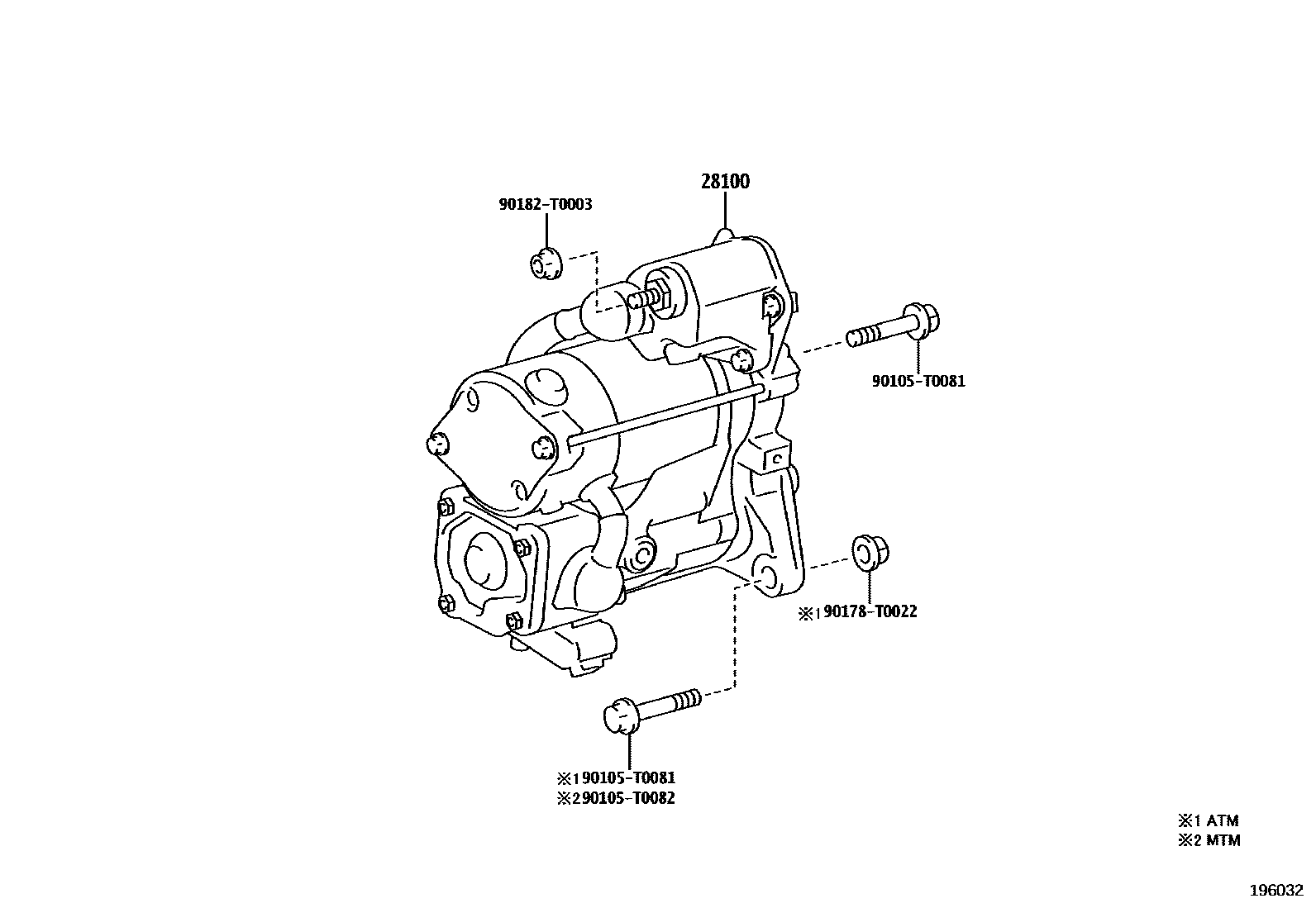

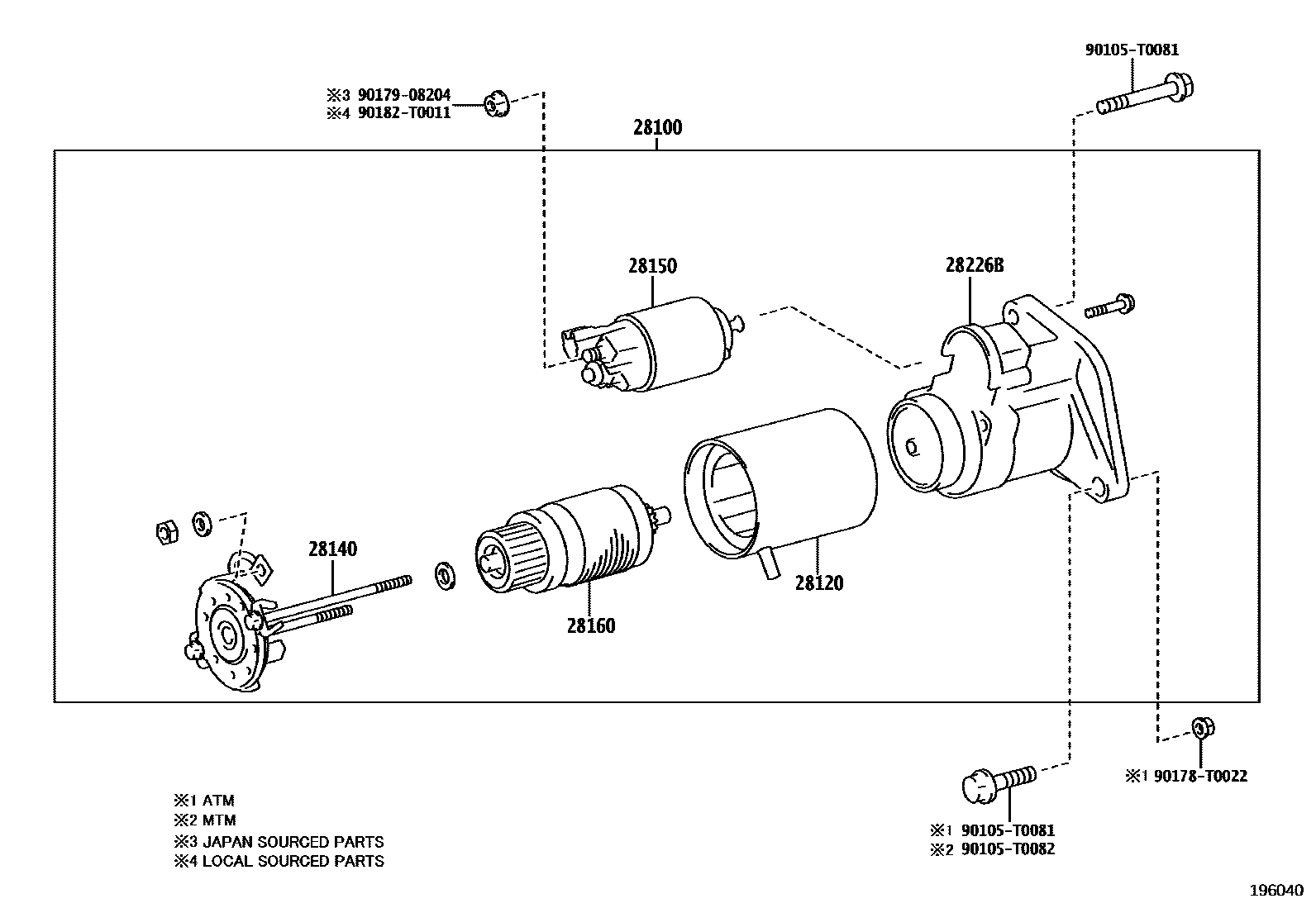

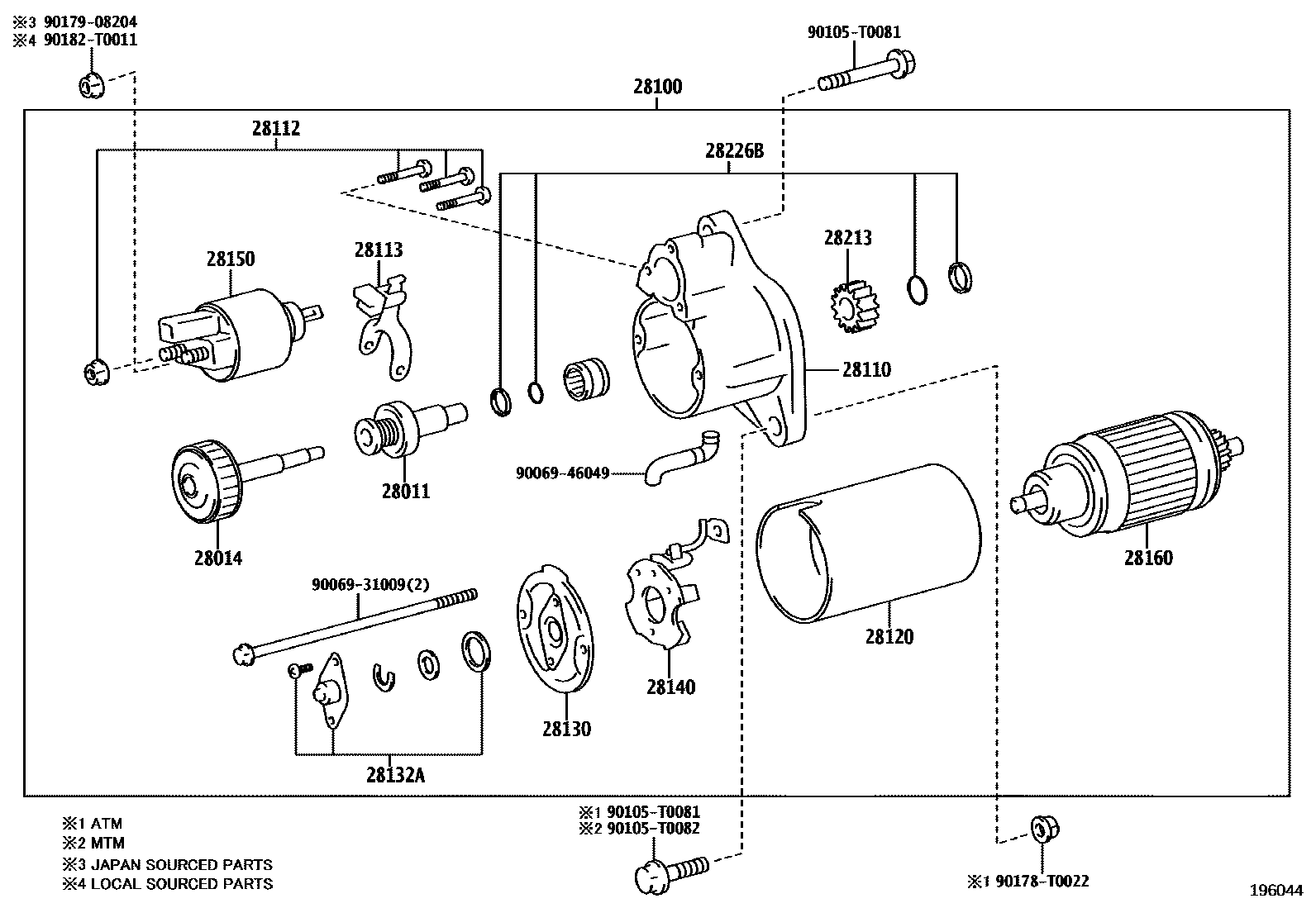

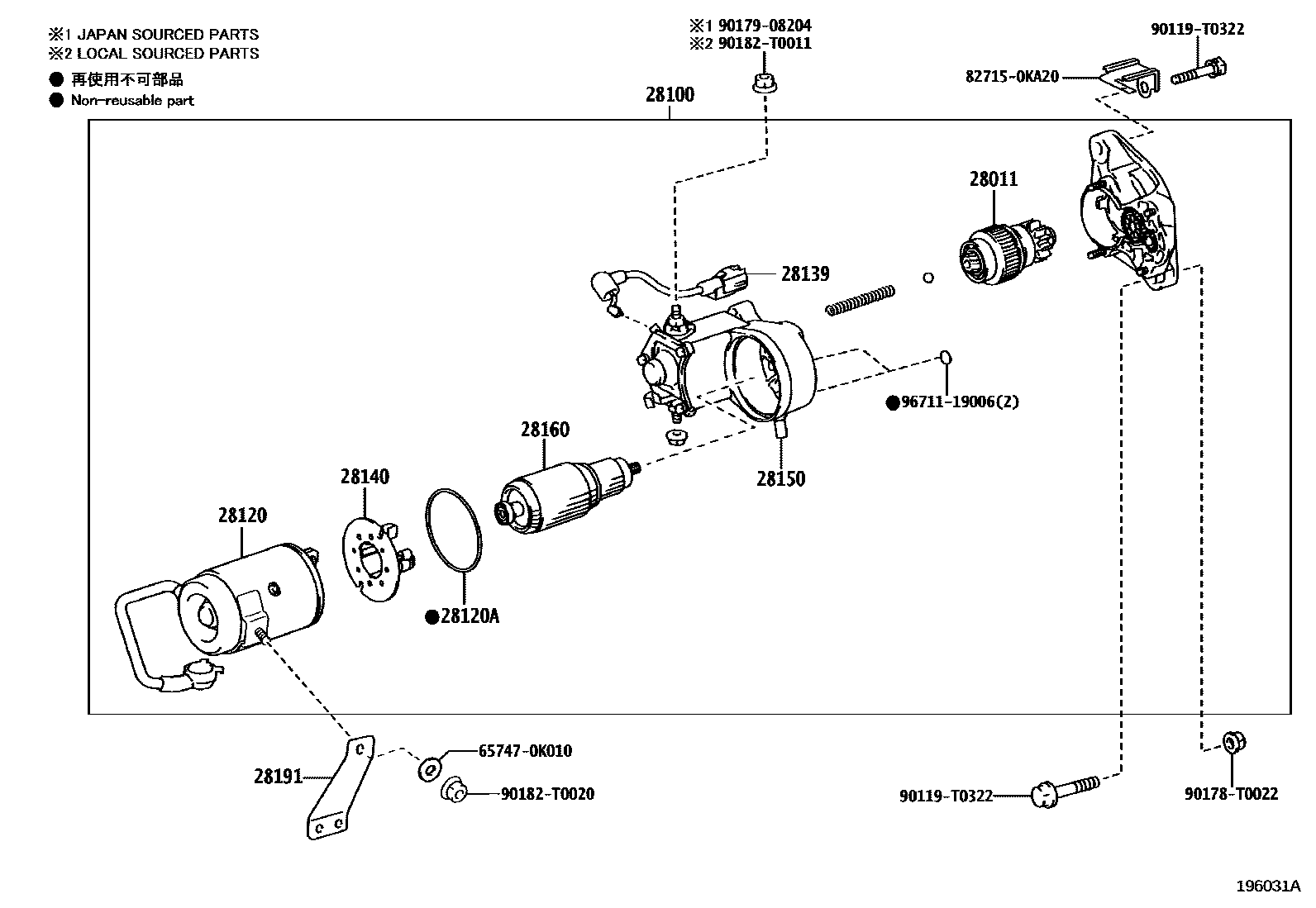

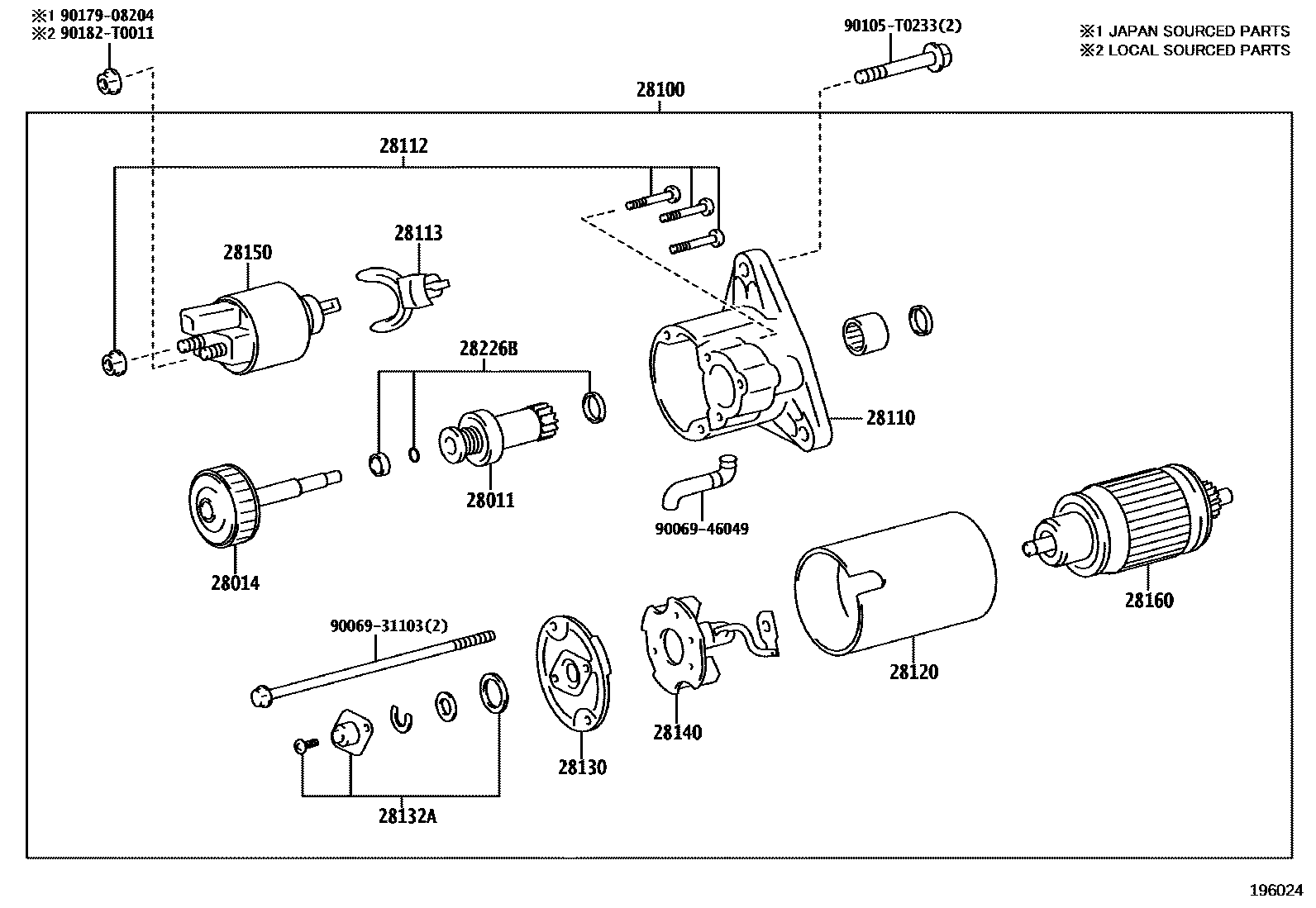

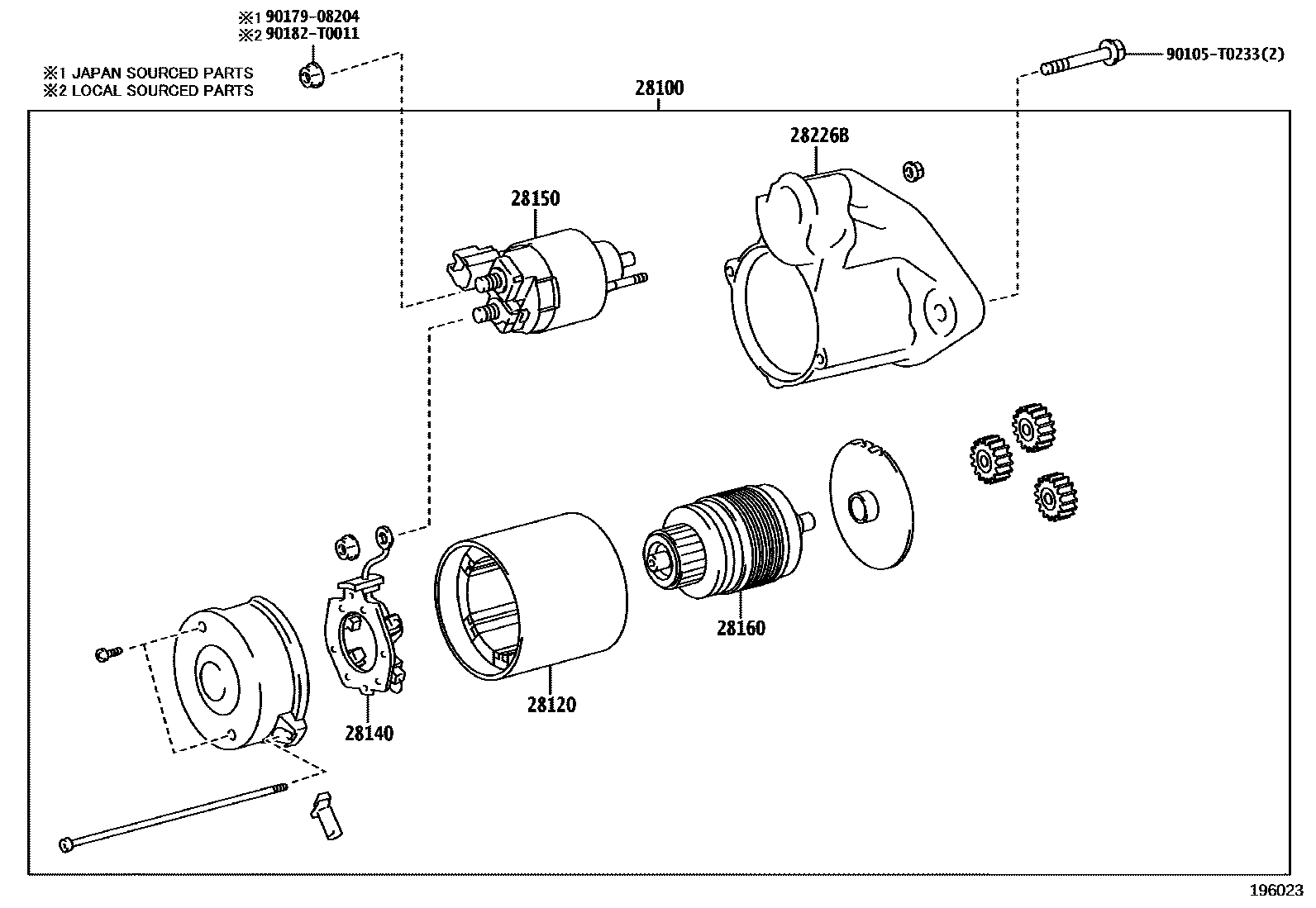

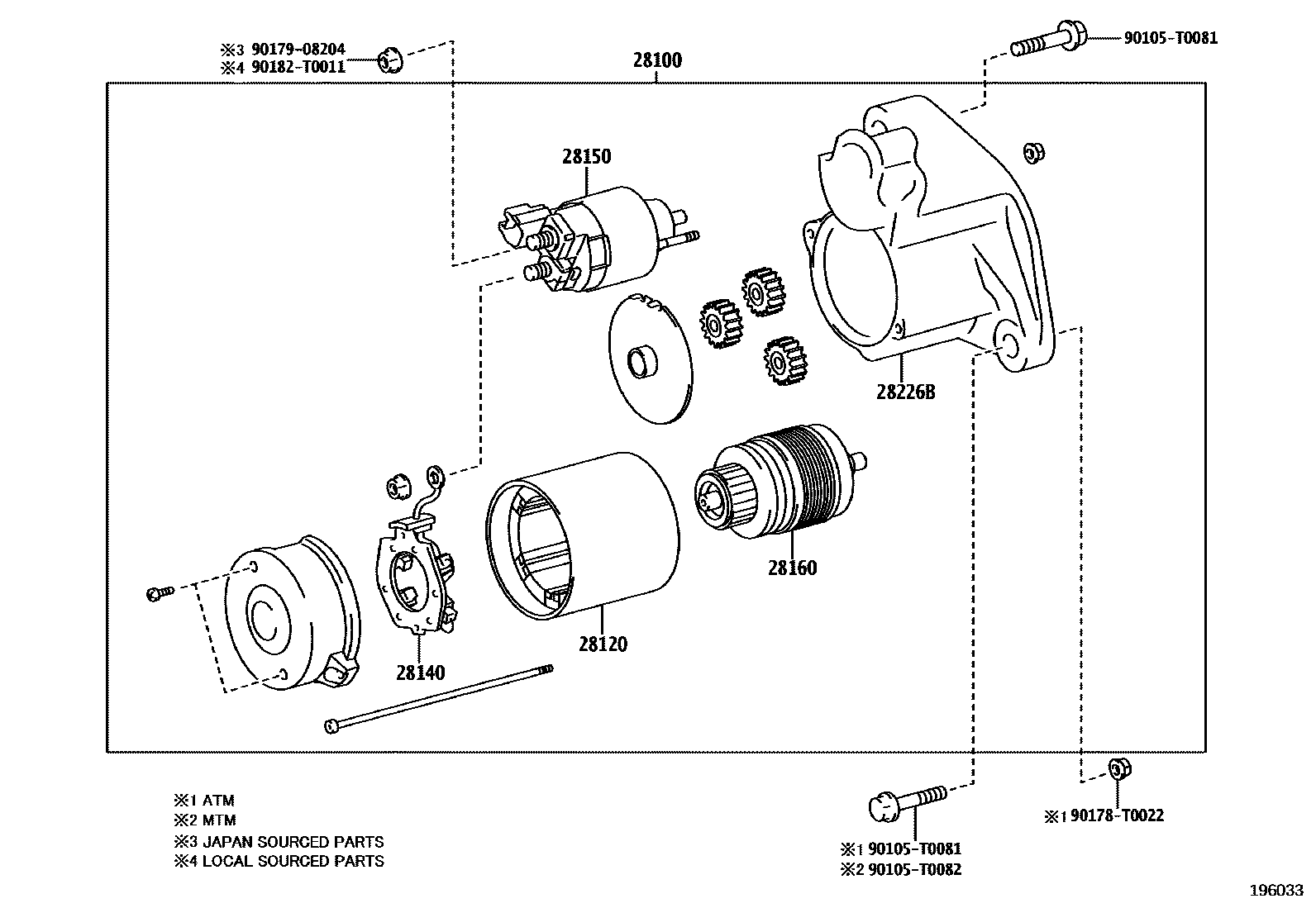

Toyota HILUX 起动机 — Figure 1904
Toyota HILUX EPC diagram 1904, 起动机, with 9 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-0C120 · 28011-0L200 · 28011-30050 · 28011-54260 |
| 28014 | Planetary gear carrier shaft sub-assembly | 28014-0C120 · 28014-0L200 |
| 28100 | Starter assembly | 28100-0C090 · 28100-0C110 · 28100-0C120 · 28100-0L052 · 28100-0L100 · 28100-0L180 · 28100-0L200 · 28100-0L201 · 28100-0L220 · 28100-0L261 · 28100-0L262 · 28100-54491 |
| 28110 | Starter drive end housing assembly | 28110-0C120 · 28110-0L200 |
| 28112 | Housing fixing bolts | 28112-0L200 |
| 28113 | starter pinion drive rod | 28113-0C120 · 28113-0L200 |
| 28120 | Starter yoke assembly | 28120-0C090 · 28120-0C120 · 28120-0L050 · 28120-0L180 · 28120-0L200 · 28120-0L260 · 28120-54260 |
| 28120A | O-ring (for starter yoke) | 90099-64040 |
| 28130 | Starter commutator end frame assembly | 28130-0D130 · 28130-0L070 |
| 28132A | Starter commutator end frame cover | 28132-0C120 · 28132-0L200 |
| 28139 | Lead No. 1 (for starter) | 28139-56280 |
| 28140 | Starter brush holder assembly | 28140-0C080 · 28140-0C120 · 28140-0L180 · 28140-0L200 · 28140-0L260 · 28140-64040 · 28140-77090 |
| 28150 | Starter electromagnetic switch assembly | 28150-0C080 · 28150-0C120 · 28150-0L050 · 28150-0L200 · 28150-0L260 · 28150-0Y170 · 28150-40130 · 28150-54330 |
| 28160 | Starter armature assembly | 28160-0C090 · 28160-0C120 · 28160-0L180 · 28160-0L200 · 28160-0L260 · 28160-54140 · 28160-64041 |
| 28191 | starter bracket | 28191-54040 |
| 28213 | starter clutch pinion | 28213-0L200 |
| 28226B | starter magnetic switch | 28226-0C090 · 28226-0C120 · 28226-0L180 · 28226-0L200 · 28226-0L260 |
