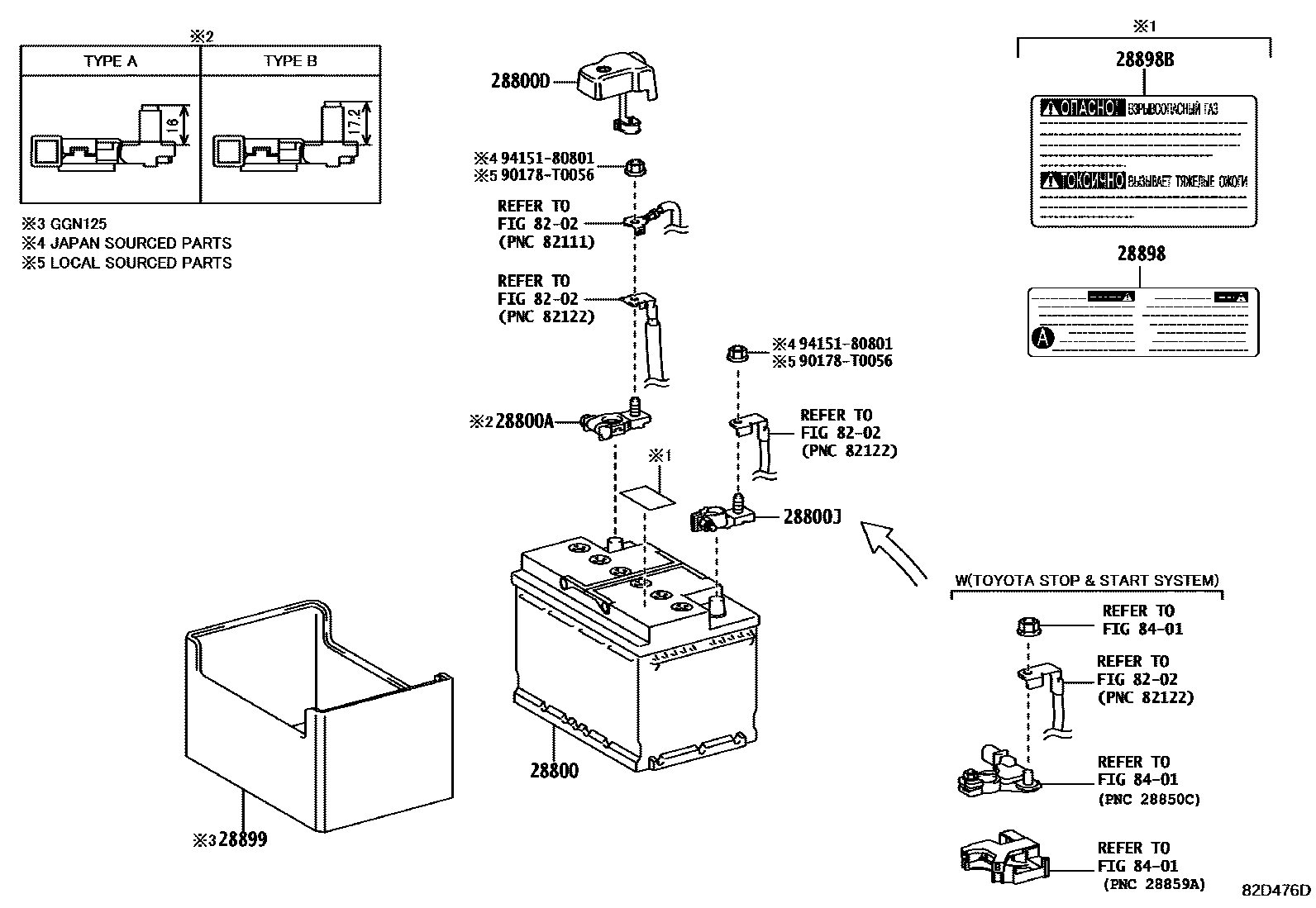

Toyota HILUX 蓄电池和蓄电池电缆 — Figure 8201
Toyota HILUX EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0C210 · 28800-0C240 · 28800-0C251 · 28800-0C260 · 28800-0C272 · 28800-0C273 · 28800-0C280 · 28800-0C360 · 28800-0L380 · 28800-0L461 · 28800-0L480 · 28800-0L481 · 28800-0L490 · 28800-0L502 · 28800-0L503 · 28800-0L510 · 28800-0L520 · 28800-0L570 · 28800-0L600 · 28800-0L720 · 28800-0L730 · 28800-31460 |
| 28800A | battery positive terminal | 90982-05054 · 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82821-33350 |
| 28800J | battery negative terminal | 90982-06059 |
| 28898 | battery plates | 28897-36030 |
| 28898B | battery plates | 28897-31040 |
| 28899 | Battery insulation cover | 28899-27020 |
