Toyota HILUX 后门板和后门玻璃 — Figure 6755

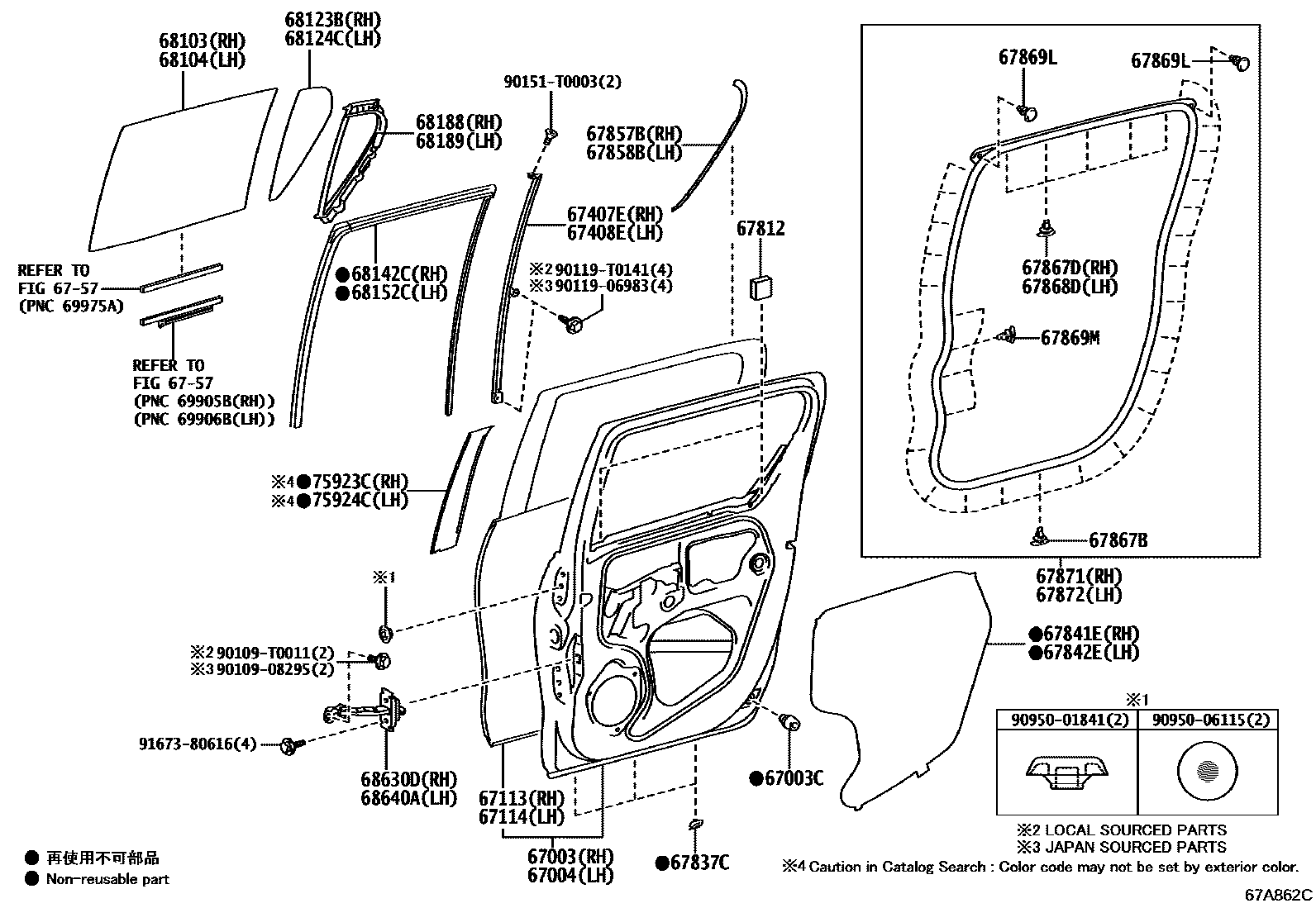

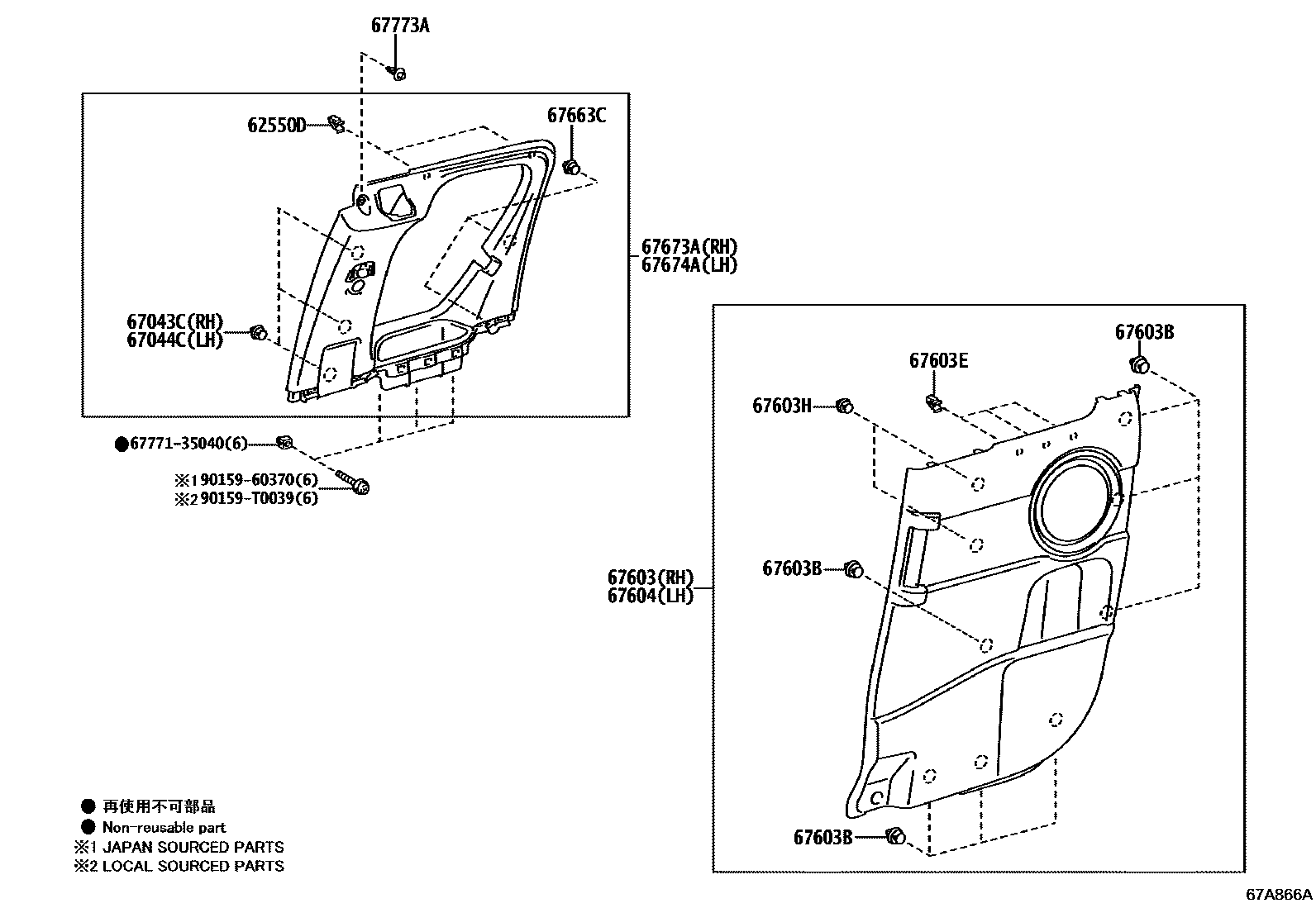

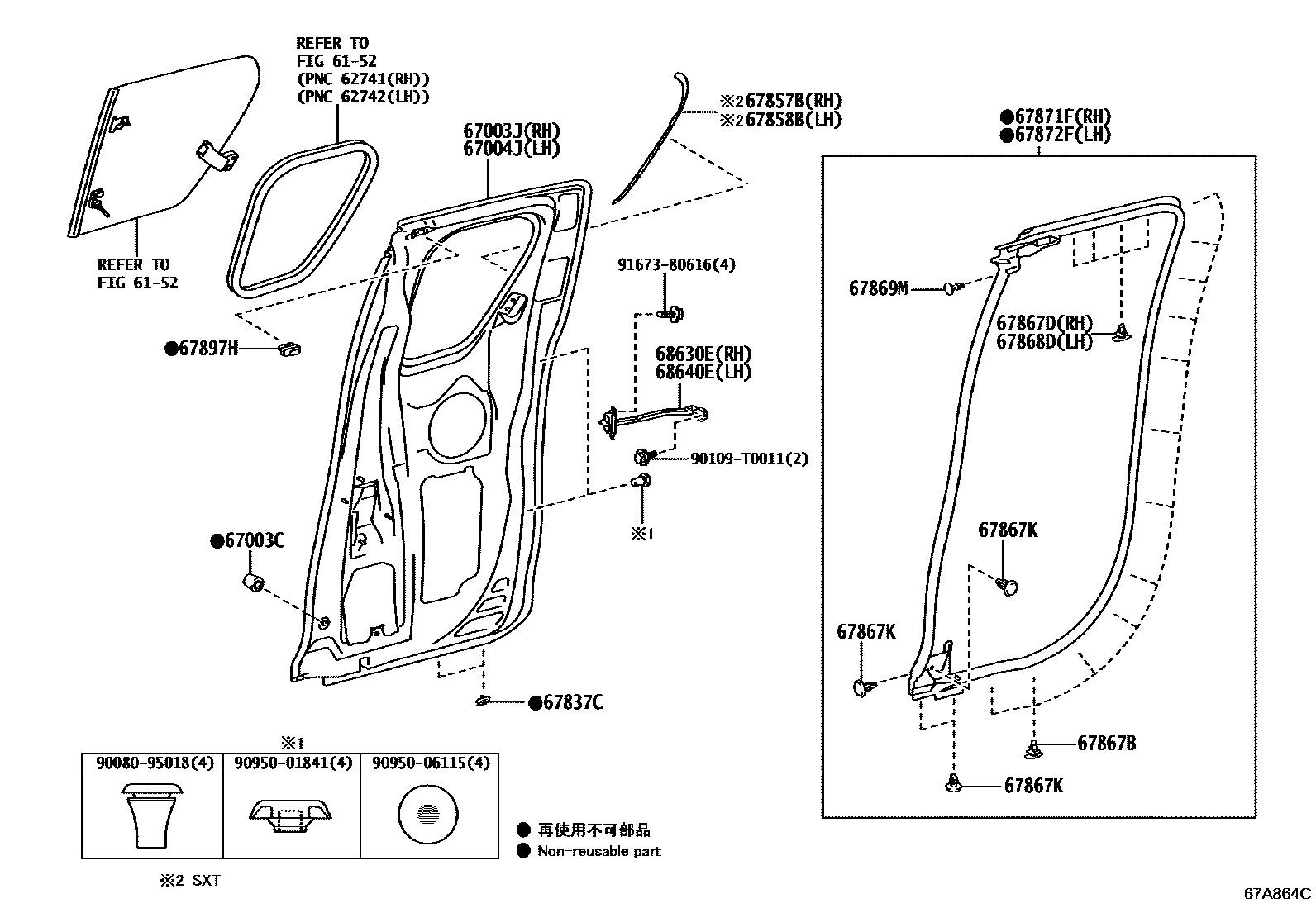

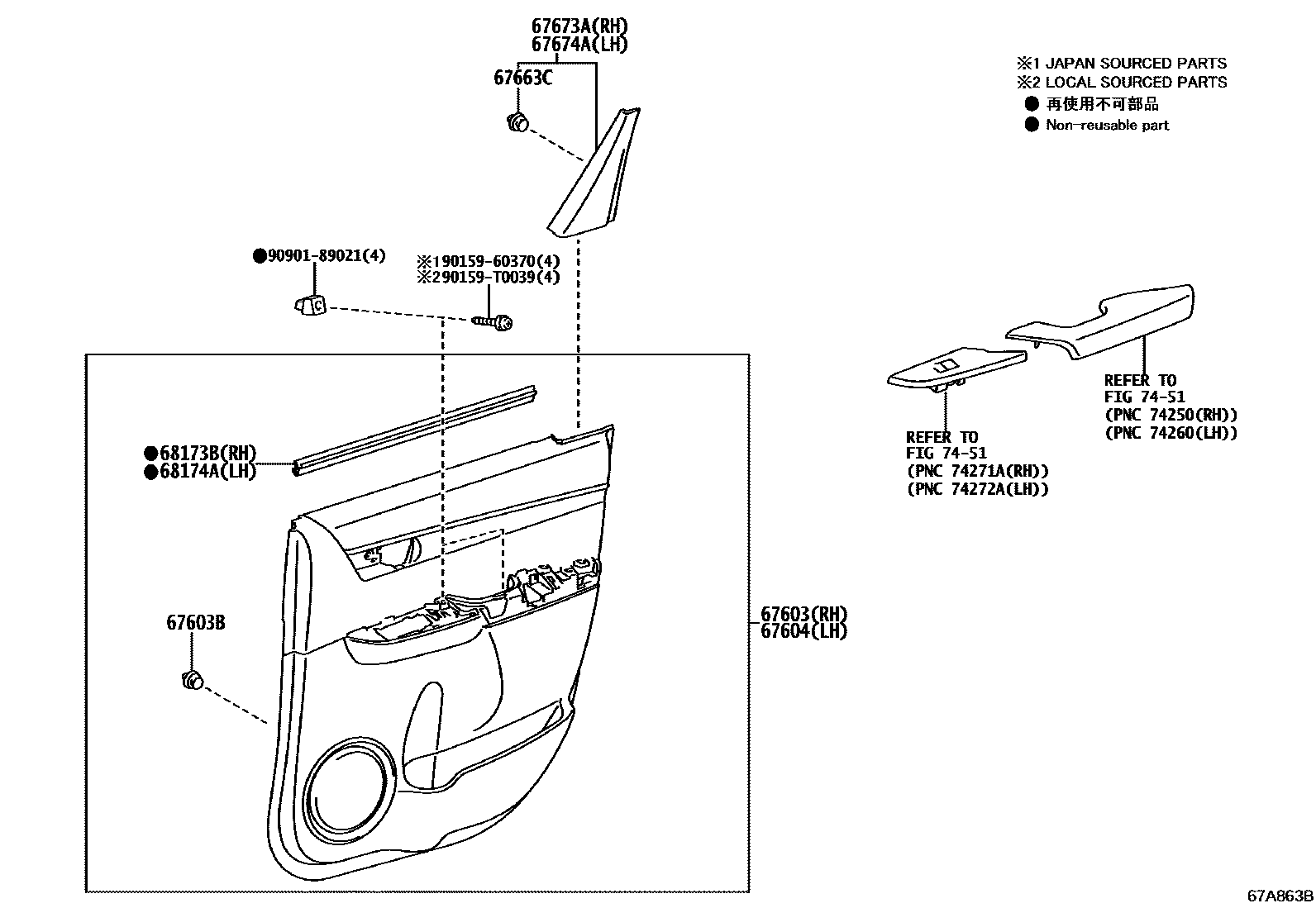

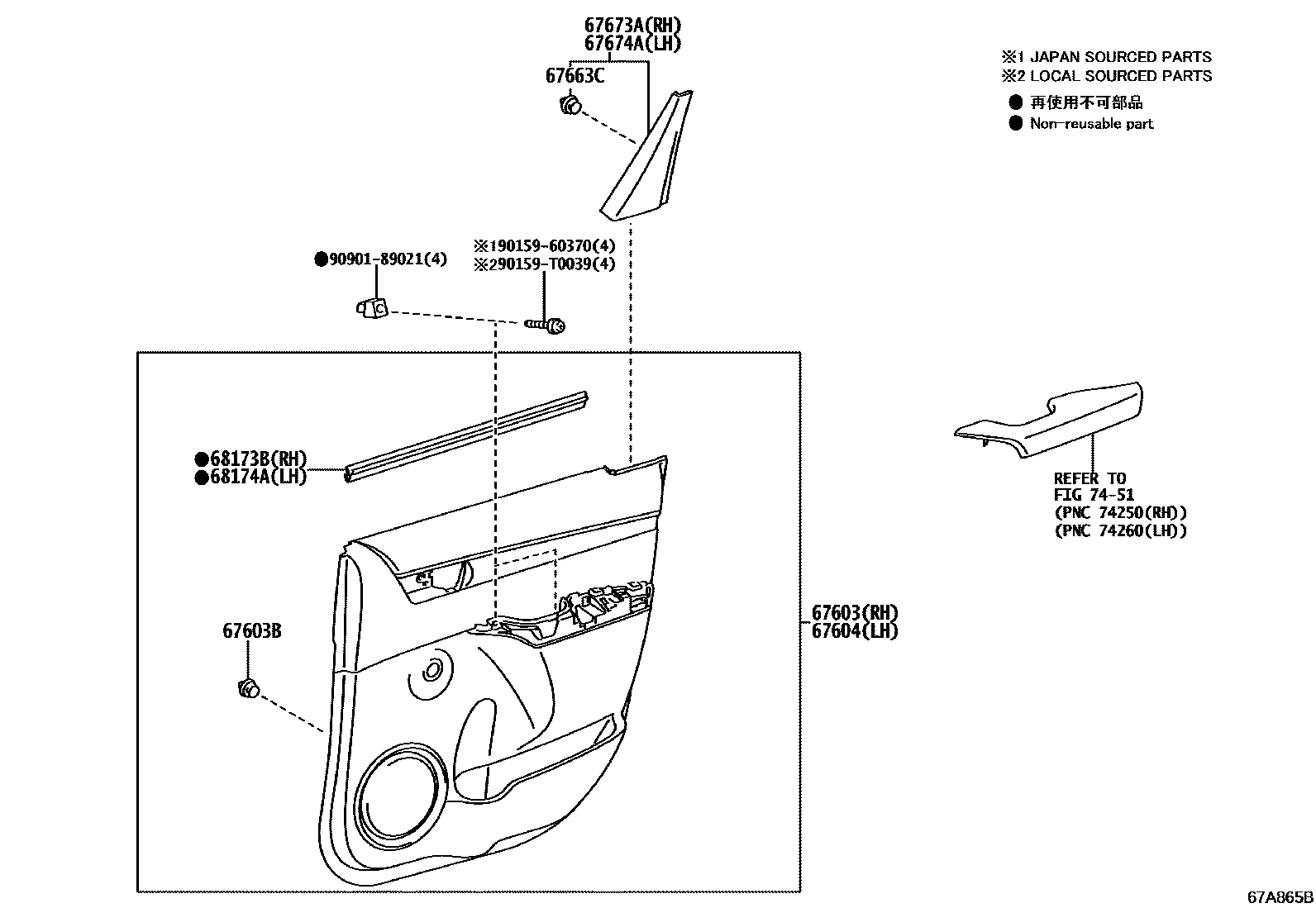

Toyota HILUX EPC diagram 6755, 后门板和后门玻璃, with 5 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62550D | Rear window side decorative panel clip | 90468-05125 |
| 67003 | Right rear door panel sub-assembly | 67003-KK011 |
| 67003C | Rear door panel cushion | 90541-09131 |
| 67003J | Right entry door door panel sub-assembly | 67003-KK021 |
| 67004 | Left rear door panel sub-assembly | 67004-KK011 |
| 67004J | Left entry door door panel sub-assembly | 67004-KK021 |
| 67043C | Right rear door window frame clip | 90467-09224 |
| 67044C | Left rear door window frame clip | 90467-09224 |
| 67113 | Right rear door outer panel | 67113-KK010 |
| 67114 | Left rear door outer panel | 67114-KK010 |
| 67407E | Right rear door window divider sub-assembly | 67407-0K100 |
| 67408E | Left rear door window divider sub-assembly | 67408-0K100 |
| 67603 | Right rear door decorative panel sub-assembly | 67630-0K771 · 67630-YP070 |
| 67603B | Catch (for rear door trim panel) | 90467-T0019 |
| 67603E | Catch (for rear door trim panel) | 90467-10201 |
| 67603H | Catch (for rear door trim panel) | 90467-09224 |
| 67604 | Left rear door decorative panel sub-assembly | 67640-0K771 · 67640-YP070 |
| 67663C | Clips (for door frame decorative strips) | 90467-T0019 |
| 67673A | Right rear door frame decorative strip | 67673-0K040 · 67673-KK010 |
| 67674A | Left rear door frame decorative strip | 67674-0K040 · 67674-KK010 |
| 67812 | Rear door silencer pad | 69759-0K030 · 69759-0K060 |
| 67837C | Rear door dust seal retainer | 67837-0K091 · 67837-0K092 · 67837-0K102 · 67837-0K121 · 67837-0K210 |
| 67841E | Right rear door access hole cover | 67841-0K130 · 67841-0K140 · 67841-0K150 · 67841-0K190 |
| 67842E | Left rear door access hole cover | 67842-0K010 · 67842-0K020 · 67842-0K060 · 67842-0K080 |
| 67857B | Right rear door panel protector | 67857-0K030 · 67857-0K080 · 67857-0K090 |
| 67858B | Left rear door panel protector | 67858-0K030 · 67858-0K080 · 67858-0K090 |
| 67867B | Door seal strip clip (for rear door) | 67867-12150 |
| 67867D | Right rear door seal strip fixing | 67867-52010 |
| 67867K | Left door seal strip clip (for rear door) | 67869-26050 |
| 67868D | Left rear door seal strip fixing | 67867-52010 · 67867-52030 |
| 67869L | Rear door seal strip clip | 67869-0K010 · 9004A-46317 · 90467-06084 |
| 67869M | Car door seal strip clip | 67867-0K020 · 67867-50050 · 67869-20030 |
| 67871 | Right rear door sealing strip | 67871-0K080 · 67871-0K081 · 67871-0K110 · 67871-0K111 · 67871-0K120 · 67871-0K200 · 67871-0K201 |
| 67871F | Entry door door panel right seal strip | 67871-0K090 |
| 67872 | Left rear door sealing strip | 67872-0K080 · 67872-0K081 · 67872-0K110 · 67872-0K111 · 67872-0K120 · 67872-0K200 · 67872-0K201 |
| 67872F | Entry door panel left seal | 67872-0K090 |
| 67897H | rear door cushion | 67897-0K020 |
| 68103 | Right rear door glass sub-assembly | 68113-0K210 · 68113-0K220 · 68113-0K230 · 68113-0K240 · 68113-0K250 · 68113-0K380 · 68113-0K410 · 68113-0K470 |
| 68104 | Left rear door glass sub-assembly | 68114-0K210 · 68114-0K220 · 68114-0K230 · 68114-0K240 · 68114-0K250 · 68114-0K380 · 68114-0K410 · 68114-0K470 |
| 68123B | Right rear door corner window glass | 68123-0K231 · 68123-0K241 · 68123-0K250 · 68123-0K260 · 68123-0K270 · 68123-0K280 · 68123-0K330 · 68123-0K380 |
| 68124C | Left rear door corner window glass | 68124-0K231 · 68124-0K241 · 68124-0K250 · 68124-0K260 · 68124-0K270 · 68124-0K280 · 68124-0K330 · 68124-0K380 |
| 68142C | Right rear door glass lift slot | 68142-0K080 · 68142-0K100 · 68142-0K110 |
| 68152C | Left rear door glass lift slot | 68152-0K080 · 68152-0K100 · 68152-0K110 |
| 68173B | Right rear door glass inner sealing strip | 68173-0K080 · 68173-0K090 |
| 68174A | Left rear door glass inner sealing strip | 68174-0K080 · 68174-0K090 |
| 68188 | Right rear door corner window seal | 68188-0K111 · 68188-0K141 |
| 68189 | Left rear door corner window seal | 68189-0K111 · 68189-0K141 |
| 68630D | Right rear door opening limiter assembly | 68630-0K080 · 68630-0K091 · 68630-0K100 |
| 68630E | Entry door panel right opening limiter assembly | 68640-0K101 |
| 68640A | Left rear door opening limiter assembly | 68630-0K080 · 68630-0K091 · 68630-0K100 |
| 68640E | Entry door panel left opening limiter assembly | 68640-0K101 |
| 75923C | No. 2 right side light-shielding film | 75923-0K030 · 75923-0K040 · 75923-0K090 |
| 75924C | No. 2 left shading film | 75924-0K030 · 75924-0K040 · 75924-0K090 |
