Toyota HILUX 车内装饰板 — Figure 6451

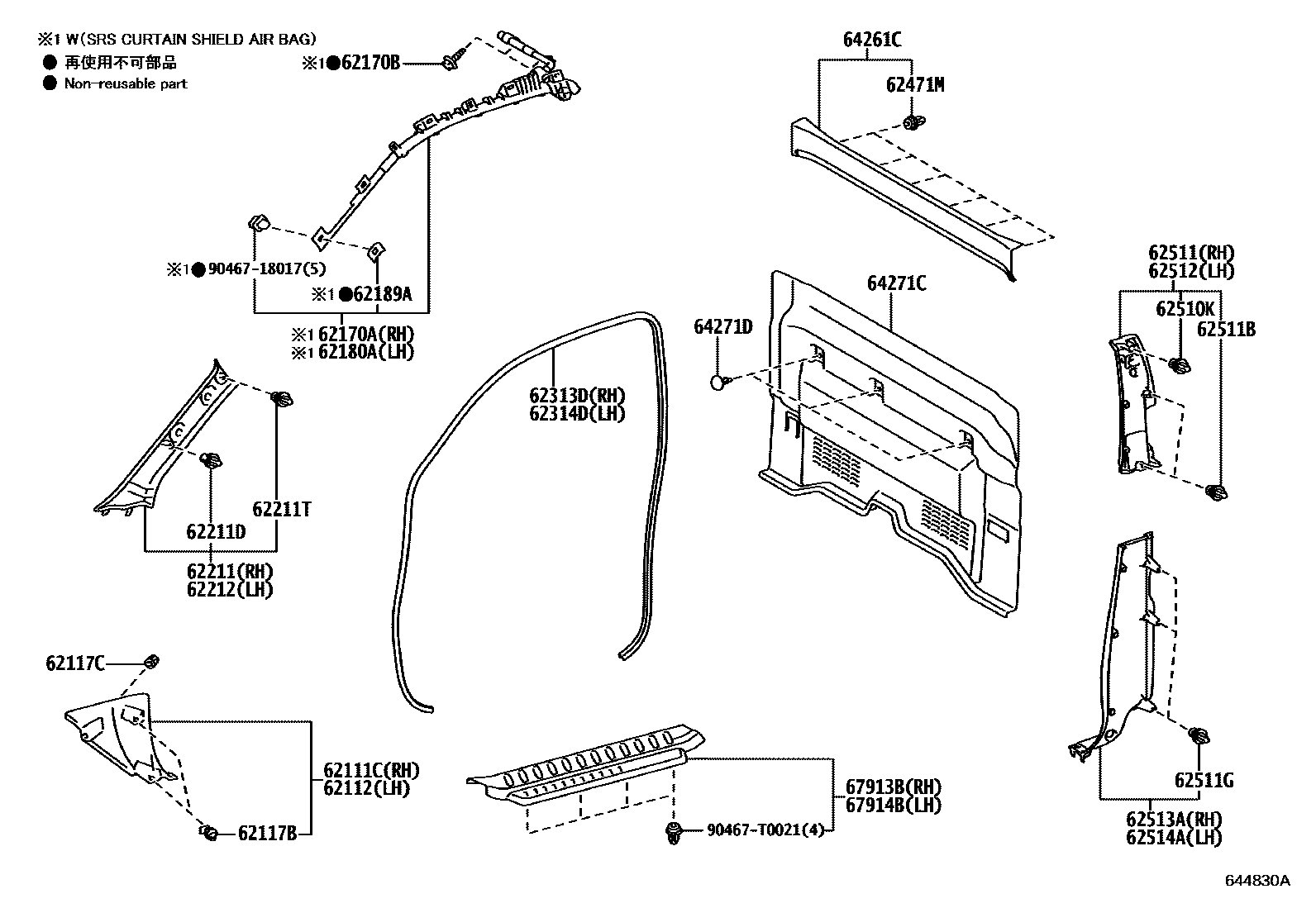

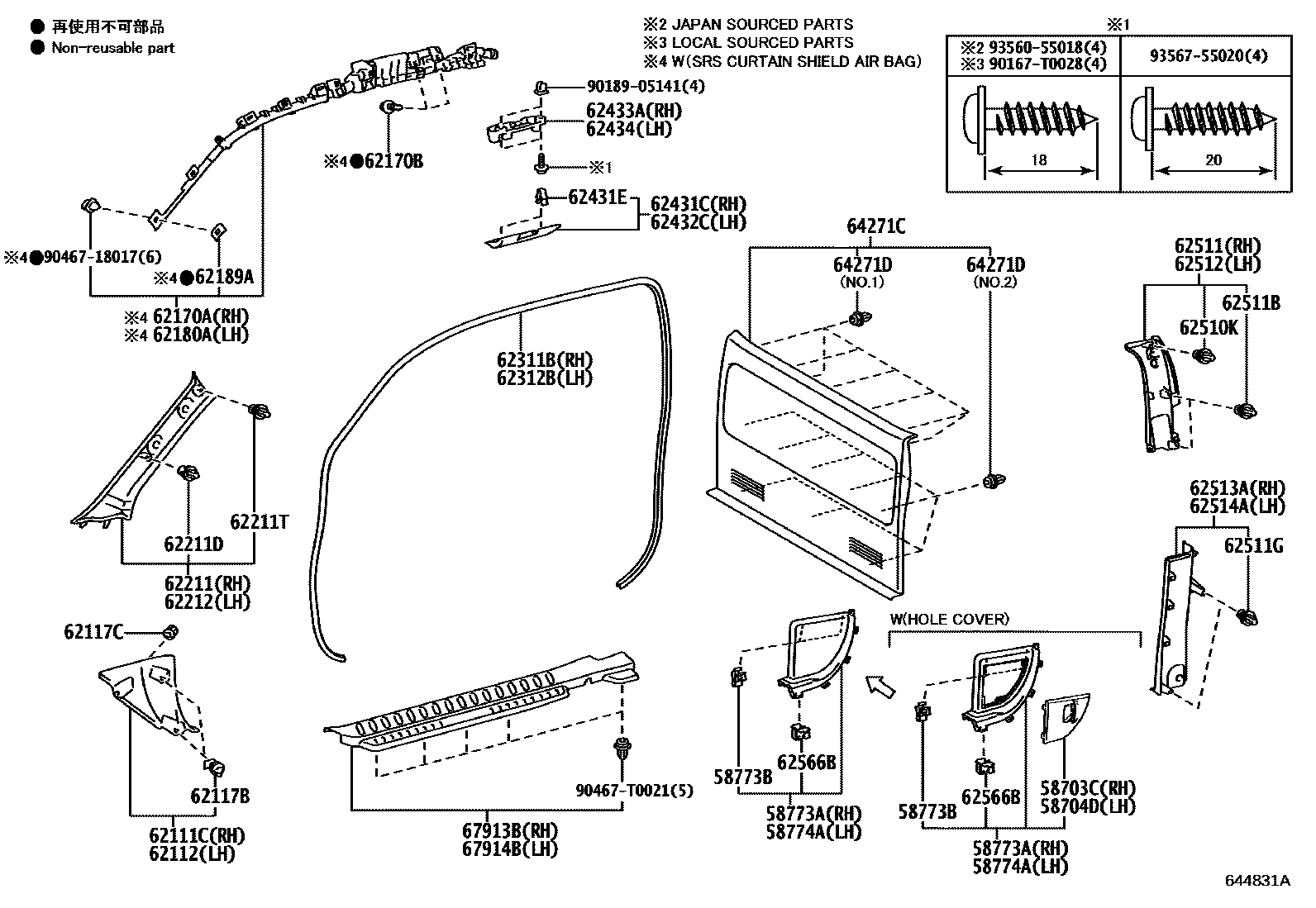

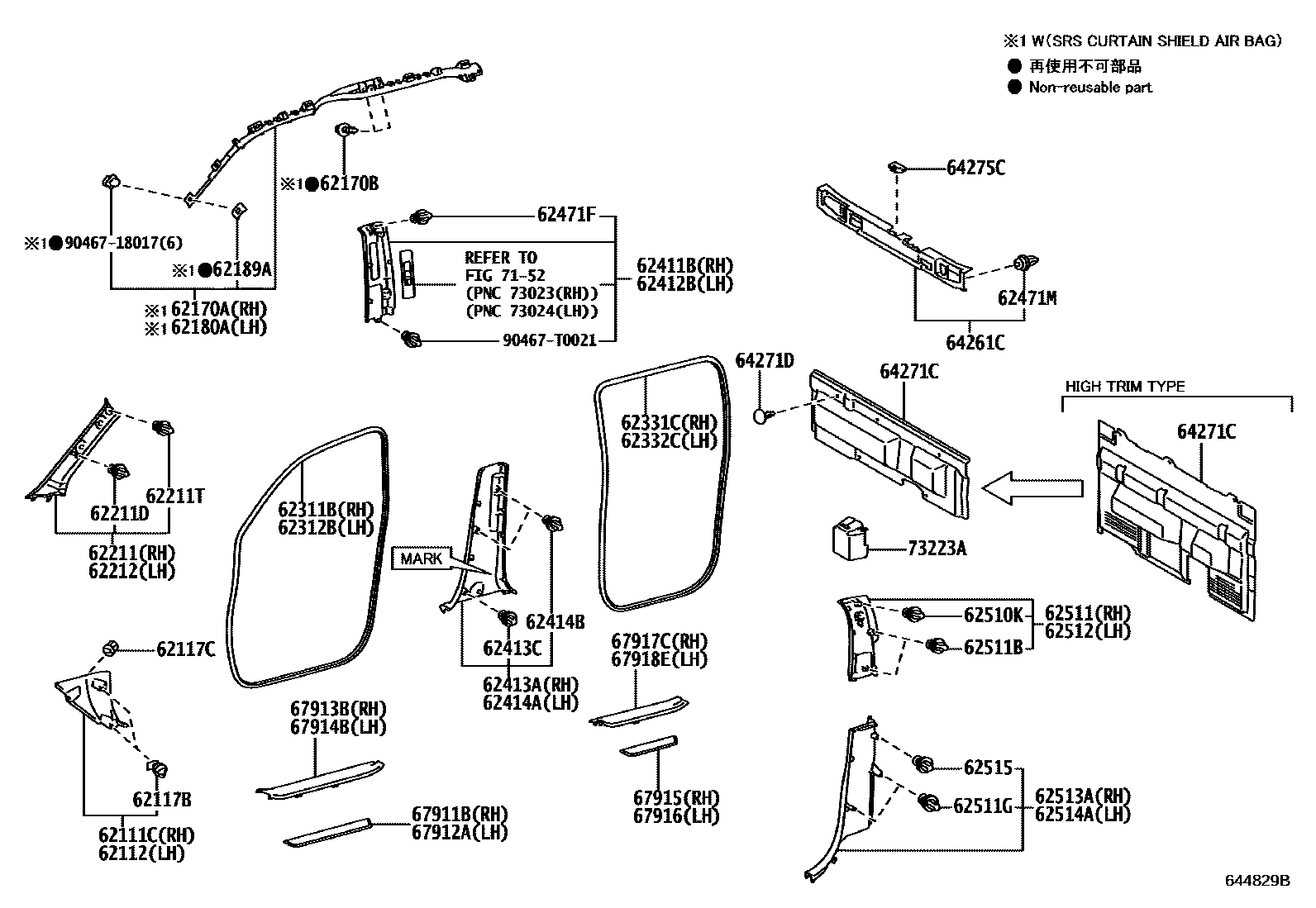

Toyota HILUX EPC diagram 6451, 车内装饰板, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58773B | Clip (for trunk door side decorative cover) | 90468-05125 |
| 62117C | No. 2 clip (for cowl side trim panel) | 90467-06147 |
| 62170A | Right curtain air bag assembly | 62170-0K080 · 62170-0K090 · 62170-0K100 · 62170-0K120 · 62170-0K150 · 62170-0K160 |
| 62170B | Bolts with washers | 91673-80616 |
| 62180A | Left curtain air bag assembly | 62180-0K080 · 62180-0K090 · 62180-0K100 · 62180-0K120 · 62180-0K150 · 62180-0K160 |
| 62189A | Curtain air bag clip spacer | 62189-42010 |
| 62211 | Right front pillar trim | 62211-0K190 |
| 62211D | Clip (for body front pillar decorative panel) | 90467-T0021 |
| 62211T | Clip (for front pillar decorative panel) | 90467-10188 · 90467-T0021 |
| 62212 | Left front pillar trim | 62212-0K190 |
| 62311B | Right front door opening waterproof tape | 62311-0K111 · 62311-0K130 · 62311-0K141 · 62311-0K151 · 62311-0K160 · 62311-0K211 |
| 62312B | Left front door opening waterproof tape | 62312-0K111 · 62312-0K130 · 62312-0K141 · 62312-0K151 · 62312-0K160 · 62312-0K211 |
| 62313D | Right front door waterproof strip | 62313-0K050 · 62313-0K051 · 62313-0K060 |
| 62314D | Left front door waterproof strip | 62314-0K050 · 62314-0K051 · 62314-0K060 |
| 62331C | Right rear door opening waterproof tape | 62331-0K121 · 62331-0K141 · 62331-0K151 · 62331-0K211 |
| 62332C | Left rear door opening waterproof tape | 62332-0K121 · 62332-0K141 · 62332-0K151 · 62332-0K211 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10167 |
| 62414B | Clip (for the decorative panel under the center pillar) | 90467-10188 |
| 62431E | Clip (for side panel trim) | 90467-T0034 |
| 62471F | Clip (for roof side inner upper trim panel) | 90467-10188 |
| 62471M | clip | 90467-T0021 |
| 62510K | Clip (for front side panel) | 90467-10188 |
| 62511 | Decorative panel on the right side | 62511-0K360 |
| 62511B | Clip (for the inner decorative panel of the side panel) | 90467-T0021 |
| 62511G | Clip (for the inner decorative panel of the side panel) | 90467-T0021 |
| 62512 | Decorative panel on the left side | 62512-0K360 |
| 62513A | Decorative panel on the right side | 62513-0K110 |
| 62514A | Decorative panel on the left side | 62514-0K110 |
| 62515 | Side inner decorative panel clip | 90467-10167 · 90467-T0021 |
| 62566B | No. 1 door inner sill protection strip clip | 62566-30010 |
| 64261C | Upper back panel decorative parts | 64261-YP010 |
| 64271C | Back panel decorative panel | 64271-0K080 · 64271-0K090 · 64271-0K230 · 64271-0K240 · 64271-0K250 · 64271-0K280 · 64271-0K300 · 64271-0K340 · 64271-0K370 · 64271-0K400 · 64271-0K420 · 64271-0K470 · 64271-0K490 · 64271-0K500 · 64271-0K510 · 64271-0K520 |
| 64271D | Clip (for back panel decorative panel) | 90467-10188 · 90467-T0021 |
| 64275C | Back panel decorative cover | 64275-0K030 |
| 73223A | seat belt retractor cover | 73223-KK020 |
