Toyota HILUX 尿素罐和管 — Figure 2502

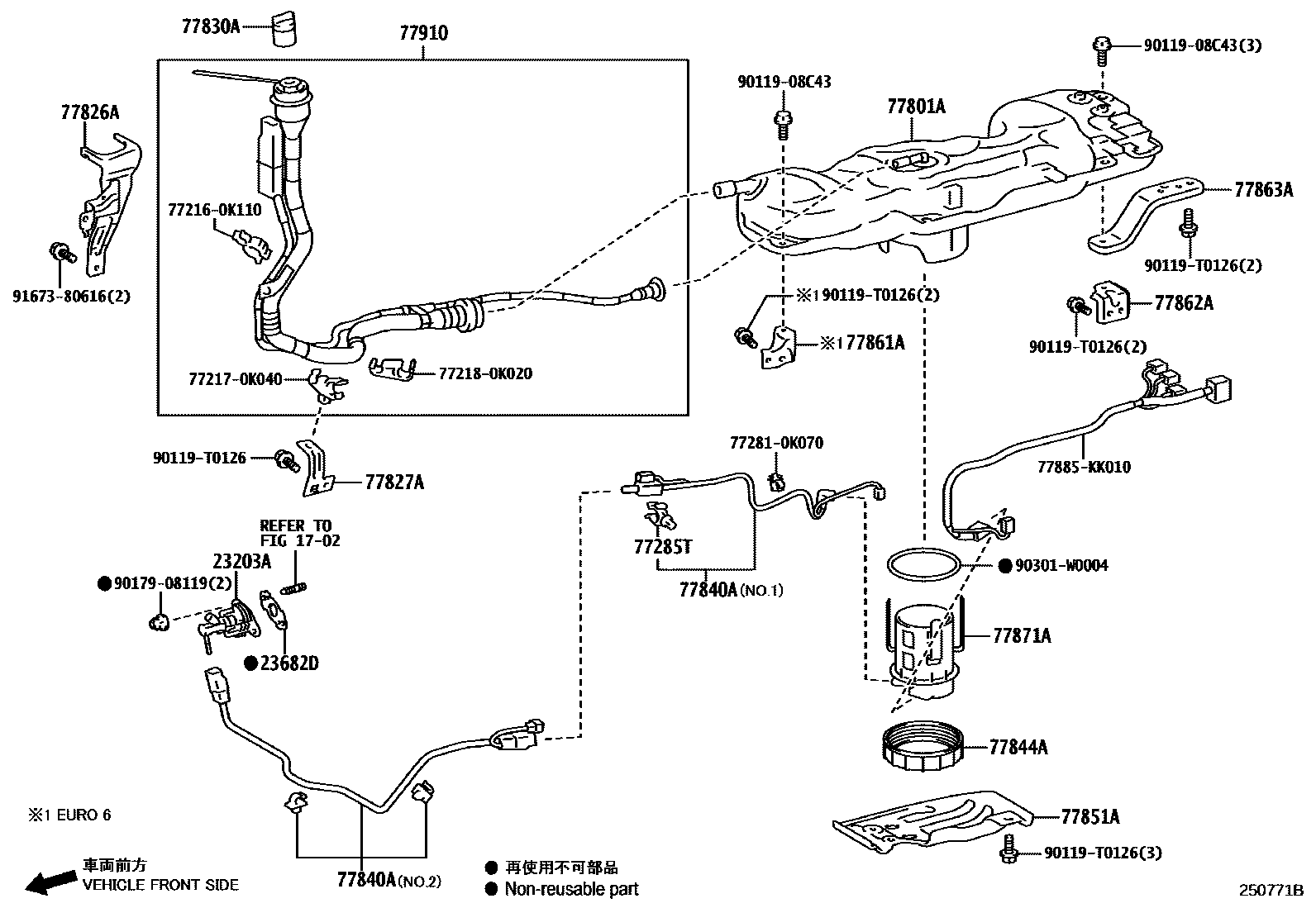

Toyota HILUX EPC diagram 2502, 尿素罐和管, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23203A | Urea injector components | 23203-11021 |
| 23682D | Injector body gasket | 23682-11010 |
| 77285T | Urea tube No. 1 clamp | 77285-0K140 |
| 77801A | Urea tank sub-assembly | 77801-0K070 · 77801-0K080 |
| 77826A | Urea tank filling pipe No. 1 bracket | 77826-KK010 |
| 77827A | Urea tank filling pipe No. 2 bracket | 77827-KK010 |
| 77830A | Urea tank cover assembly | 77830-0K020 · 77830-0K050 |
| 77840A | Urea pipe assembly with heater | 77840-0K020 · 77840-0K021 · 77841-0K010 · 77841-0K011 |
| 77844A | Urea pump meter fixings | 77844-0K010 |
| 77851A | Urea tank protection parts | 77851-KK010 |
| 77861A | Urea tank No. 1 bracket | 77861-KK010 |
| 77862A | Urea tank No. 2 bracket | 77862-KK010 |
| 77863A | Urea tank No. 3 bracket | 77863-KK010 |
| 77871A | Urea pump | 77871-0K010 |
| 77910 | Urea tank filling pipe assembly | 77910-0K020 · 77910-0K021 |
