Toyota HILUX 歧管喷气系统 — Figure 1706

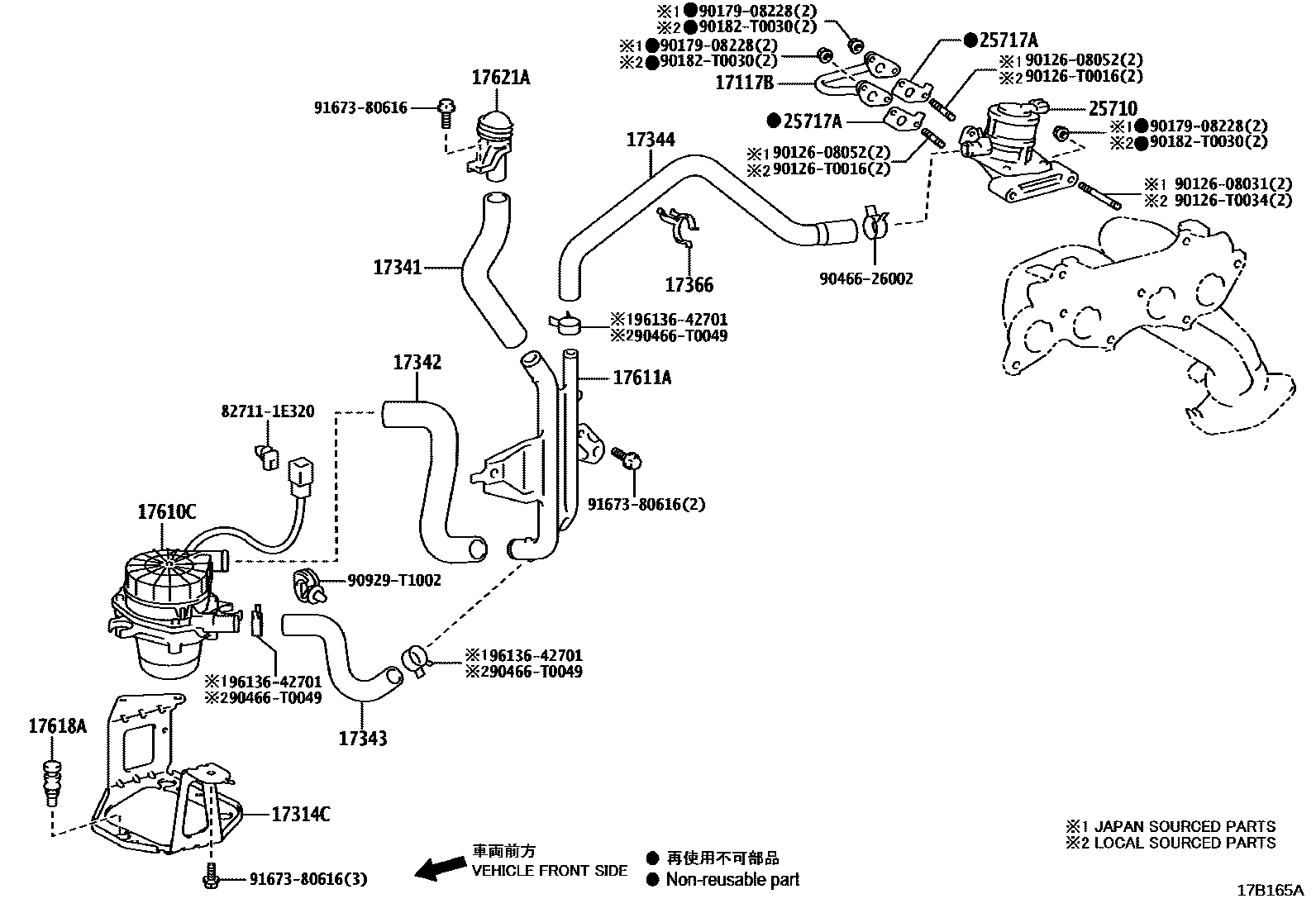

Toyota HILUX EPC diagram 1706, 歧管喷气系统, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17117B | No. 4 intake pipe | 17117-0C020 |
| 17314C | air pump bracket | 17314-0C011 |
| 17341 | Hoses No. 1 (for air injection systems) | 17341-0C130 |
| 17342 | Hoses No. 2 (for air injection systems) | 17342-0C130 |
| 17343 | No. 3 hose (for air injection system) | 17343-0C090 |
| 17344 | No. 4 hose (for air injection system) | 17344-0C090 |
| 17366 | No. 1 jet hose clamp | 17366-0C010 |
| 17610C | air pump assembly | 17610-0C040 |
| 17611A | air pump intake pipe | 17611-0C060 |
| 17618A | Air pump vibration isolation pad | 17618-0C010 |
| 17621A | air pump air inlet | 17621-0C080 |
| 25710 | Air switch valve assembly | 25710-75015 |
| 25717A | air switch valve gasket | 25717-0C010 · 25717-75010 |
